Ferrari F40 LM Restoration Part 3

I really wanted to keep the Ferrari F40 LM Restoration in one large post, however it was proving too large to handle. For this latest update, I’ve decided to create a separate post. I’ve also split the original post into two parts, just to make it easier on everyone’s bandwidth, including mine! You can access the index by clicking here. And so continues the most popular build to grace these pages…

Ferrari F40 LM Restoration Index

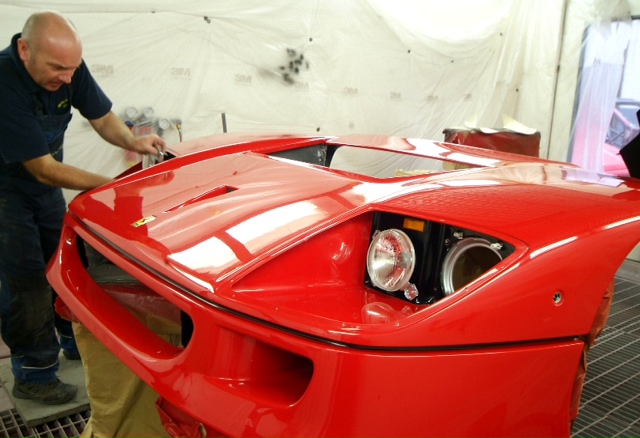

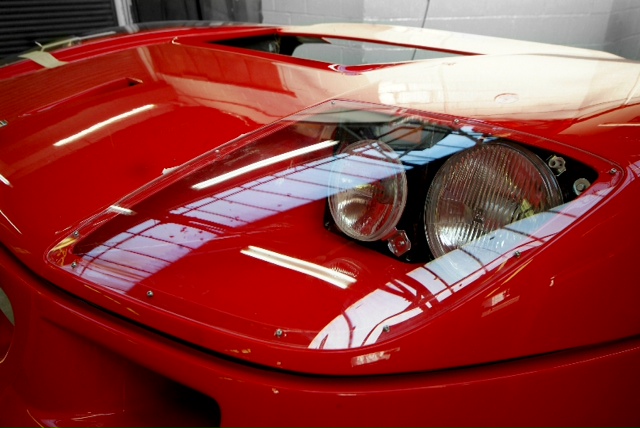

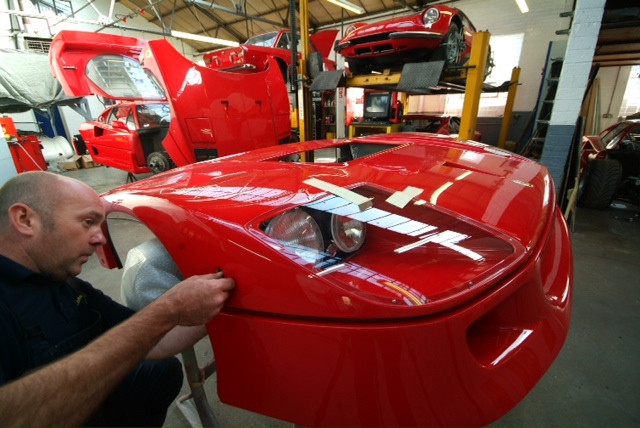

The front clam is now just about there. Black on, lights in, lenses on and even that vital Badge. On the paint Paul is correct. Effectively it is paint drying by a chemical re-action. I asked Kevin for a fuller answer and he tells me that whilst it is true to say that great progress has been made in lowering the amount of solvents released into our atmosphere during the painting process, most of this is achieved by the use of ever more sophisticated catalysts which allow ultra high film thicknesses delivered by fewer coats and cause less overspray loss age; Some say that Water based paints are a bit of a myth to assuage the green lobby, the “water dilutant ” has solvents included to speed evaporation and due to corrosion problems comes in plastic bottles which then go into land fill so all we have really done is to have moved the problem on. Water based paints take a lot longer to evaporate than solvent based products and so we now have non productive periods where the painter has to “ watch the paint dry” he can’t drop onto another job because he is suited and booted and has to keep clean, in the meantime the compressor and spray booth are running flat out burning up resources. Nasty chemicals are still used to cure primers and filler coats which account for most of the product applied

1774944d1379667352-f40-lm-restoration-image3

1774945d1379667352-f40-lm-restoration-image5

1774946d1379667352-f40-lm-restoration-image4

1774948d1379667379-f40-lm-restoration-image1

1774949d1379667379-f40-lm-restoration-image2

1774947d1379667352-f40-lm-restoration-image6

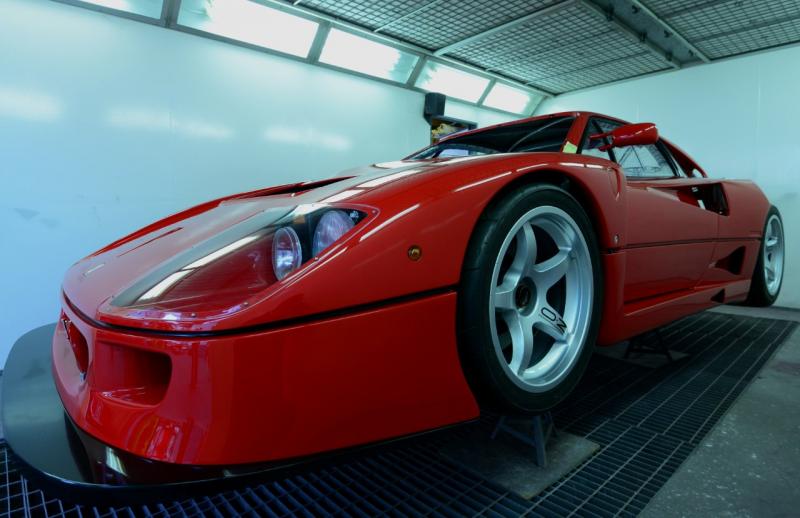

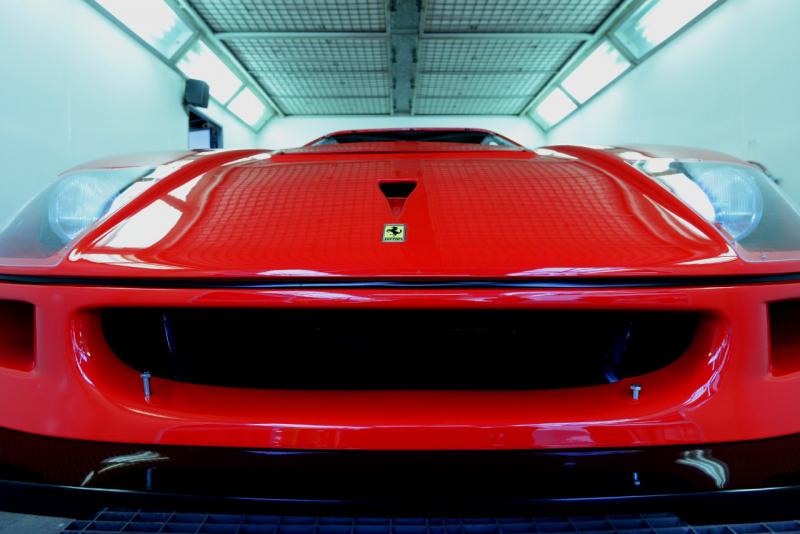

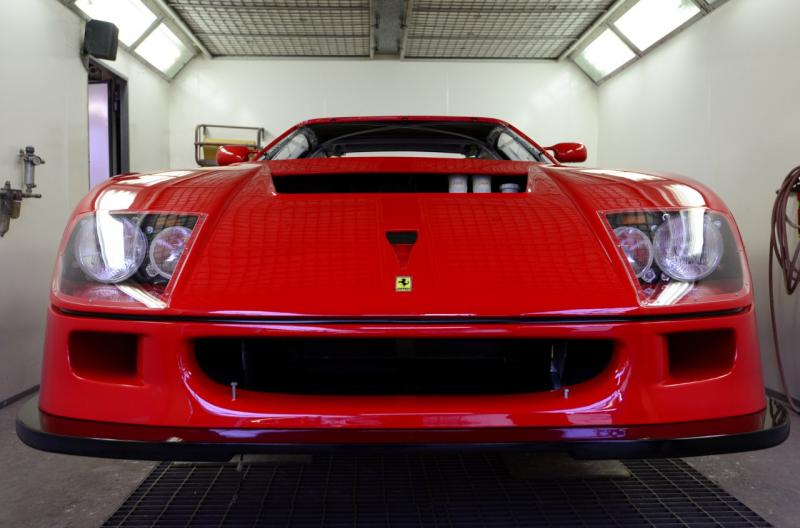

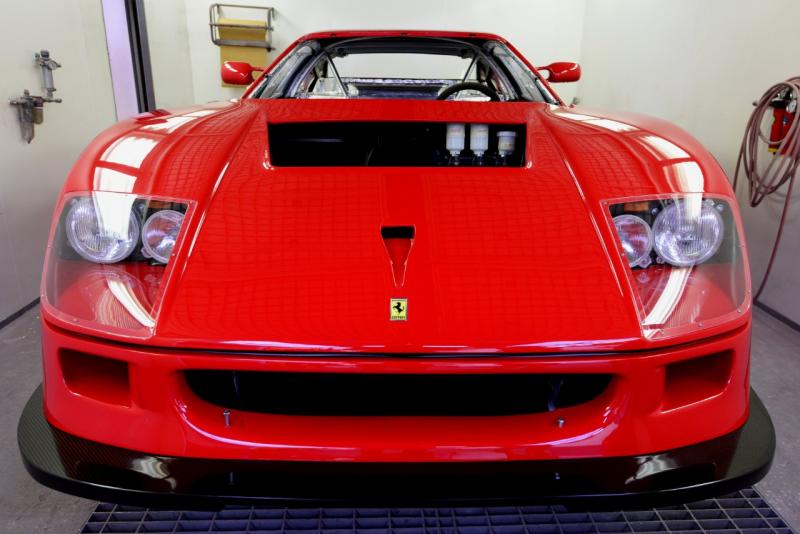

A few more pics for the weekend now we have the front clam just about complete with new splitter, soft mounted but at least in position(some black detailing still needed on the brake ducts inlets). There is something about the subtle differences in the LM that make it look like a 21st Century car and the standard car look very dated. Cannot quite put my finger on it, but I think it is to do with the lights and extra clam width?

1775500d1379761831-f40-lm-restoration-dsc_0507s

1775501d1379761831-f40-lm-restoration-dsc_0574

1775502d1379761913-f40-lm-restoration-dsc_0508s

1776094d1379846386-f40-lm-restoration-dsc_0499s

1776095d1379846386-f40-lm-restoration-dsc_0501s

1776097d1379846386-f40-lm-restoration-dsc_0512s

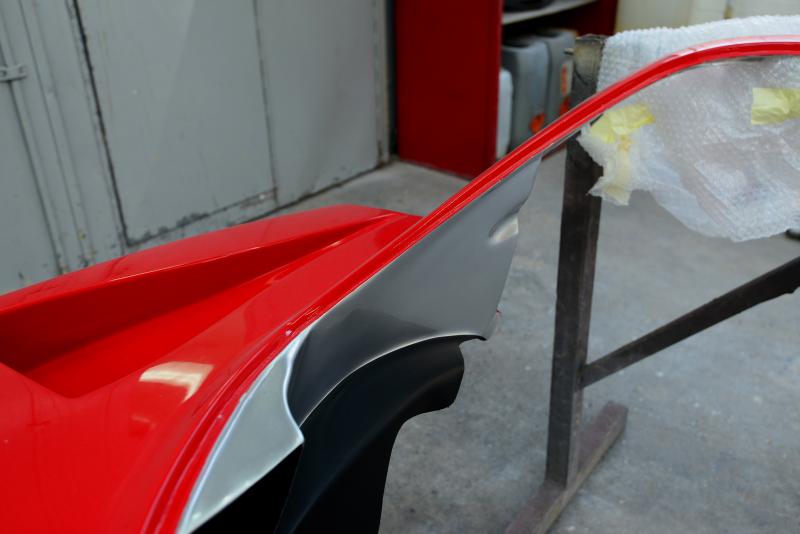

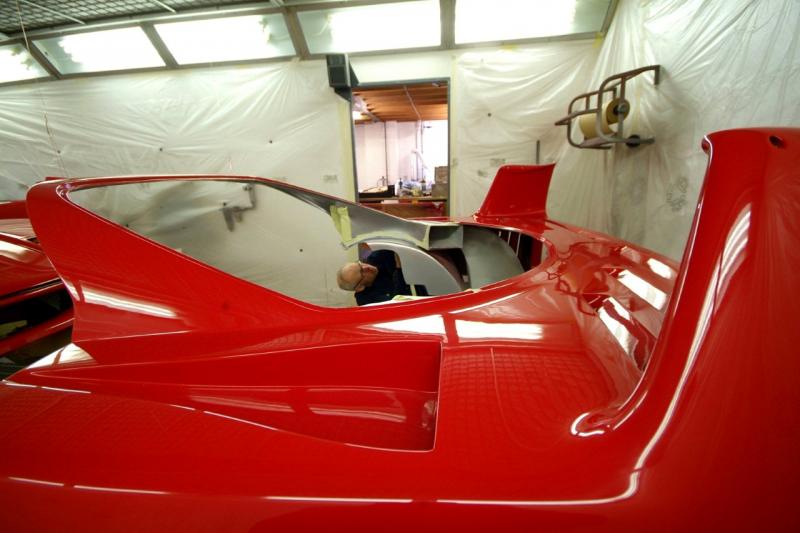

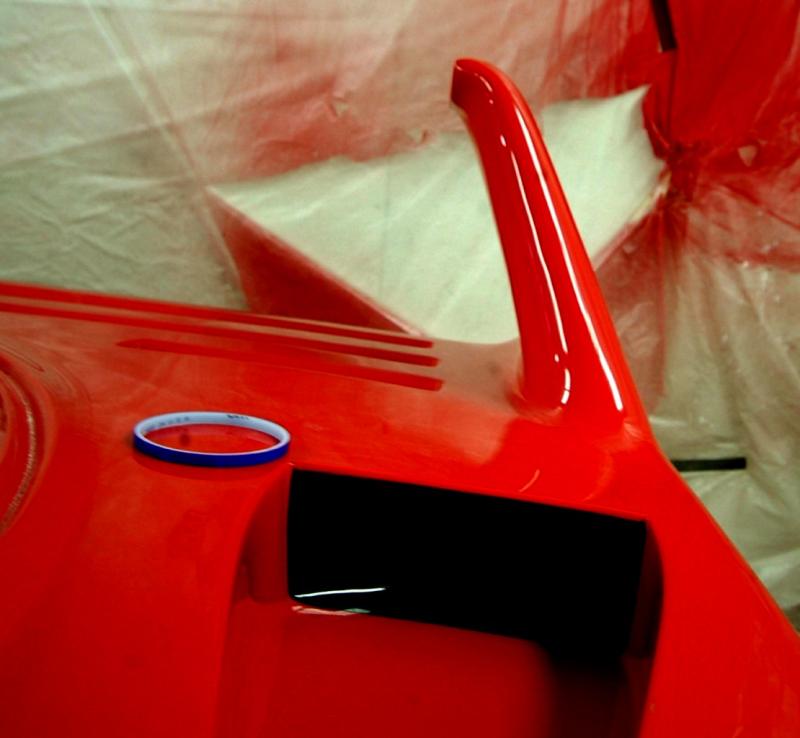

Meanwhile back at the other end of the car, the rear clam is getting close to completion which will then render the illusion that we are further ahead than it appears as it will all be coming off again.

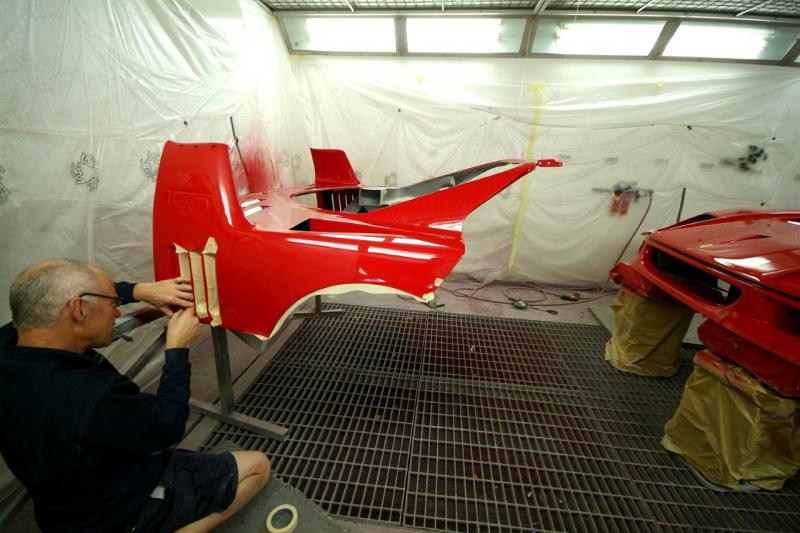

17c0913 010s

170913 007s

1776487d1379925853-f40-lm-restoration-17c0913-006s

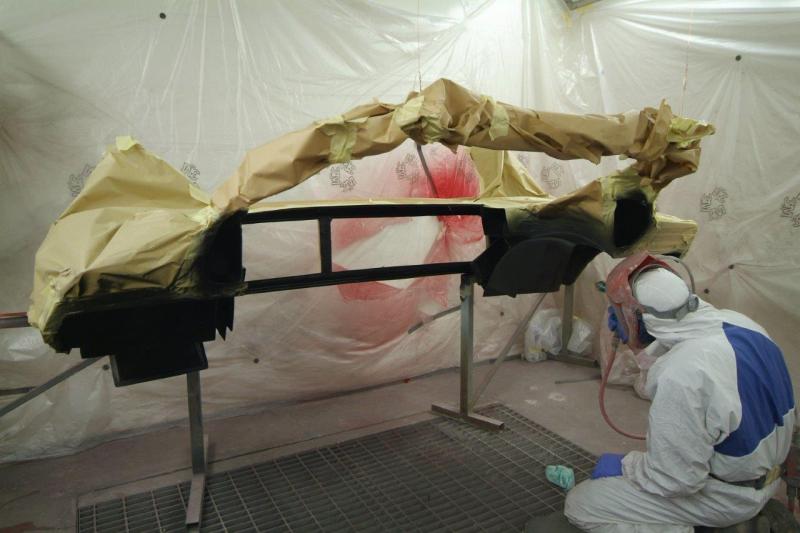

1776575d1379947368-f40-lm-restoration-18th0813-018s

DSC_0553

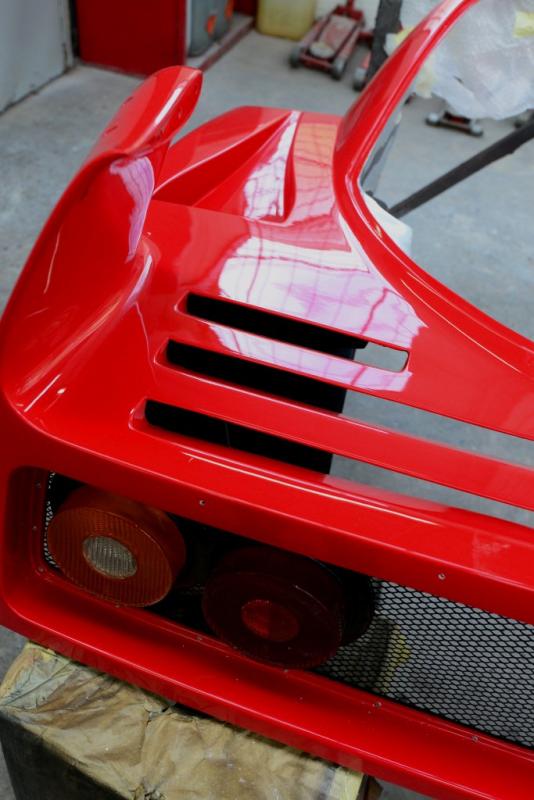

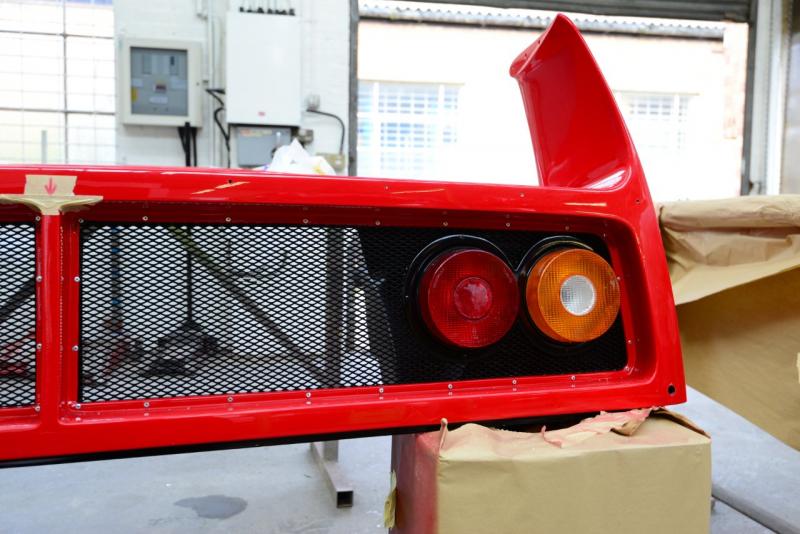

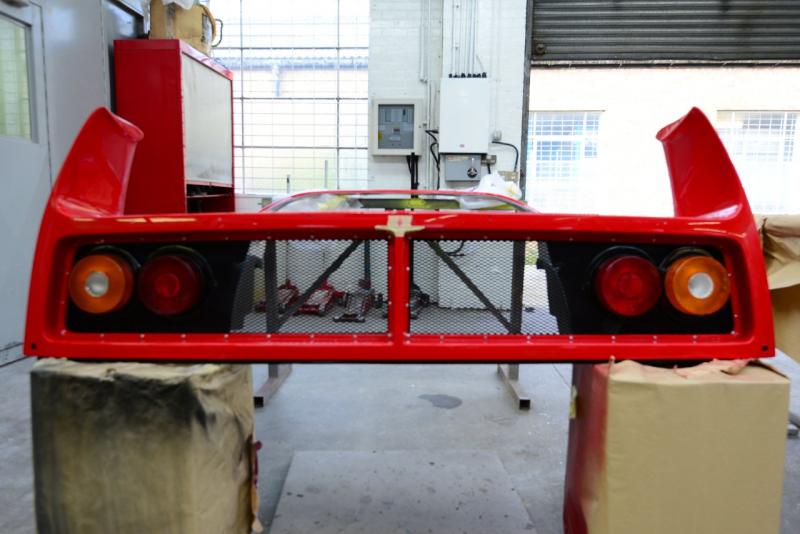

Assembly now well underway on the rear clam. Restored lights etc in and now just the wing to restore. Apologies for the out of focus shot, but you get the idea.
DSC_0546s
DSC_0547s
DSC_0550s
DSC_0551s
DSC_0582

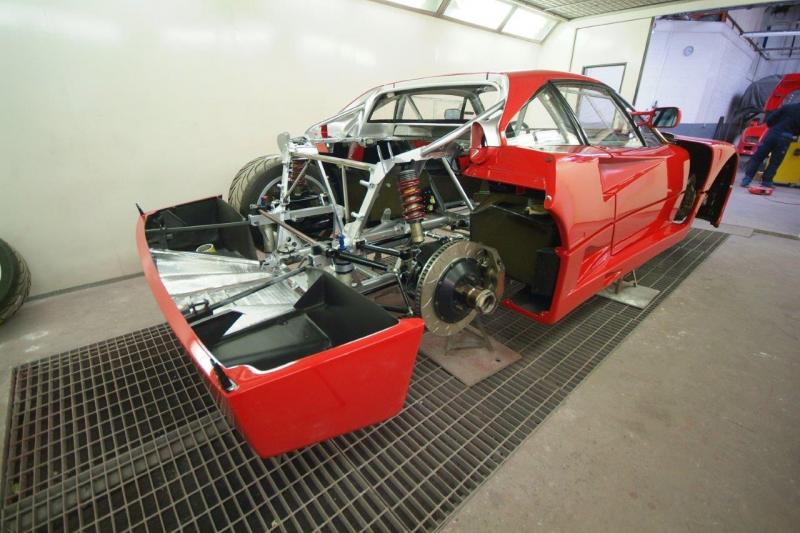

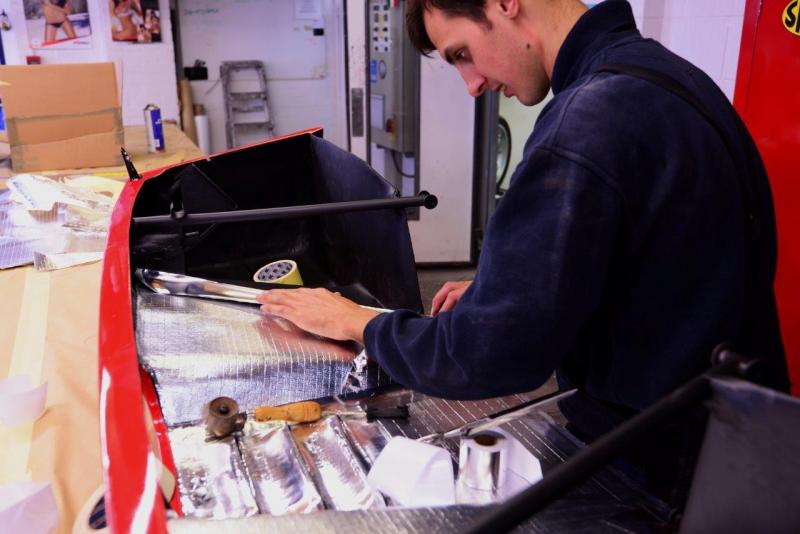

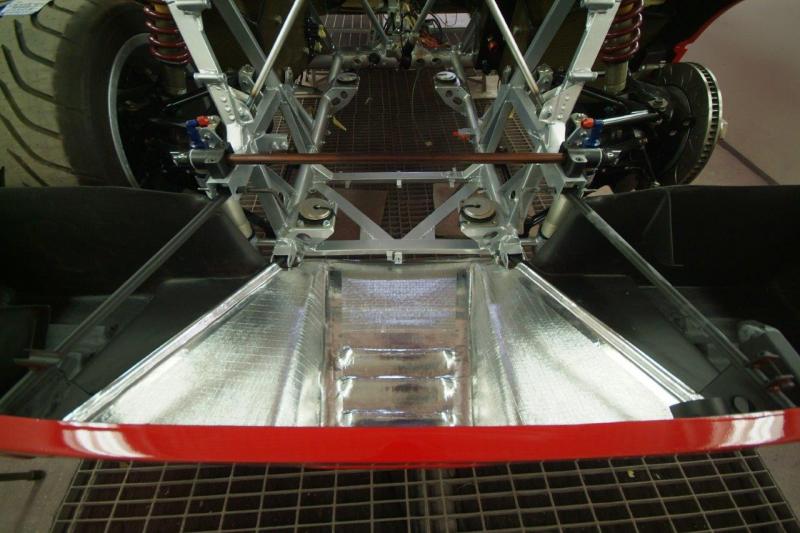

Now the lower clam. James applying the heat insulation and then the clam soft mounted. Oil coolers and their brackets have already been fitted and so are ready to go back in. Now just need the rear wing to be restored, a few clips etc and then all that remains on the bodywork is to get the engine in so all the miserable panel gaps can be adjusted.Out of interest, here is the detail of the clam junction on a standard car I noted recently (apologies poor iphone shot), so we have to try and do a bit better!
19C0913 004s
19C0913 010s
DSC_0583s
F40 hunt 002s

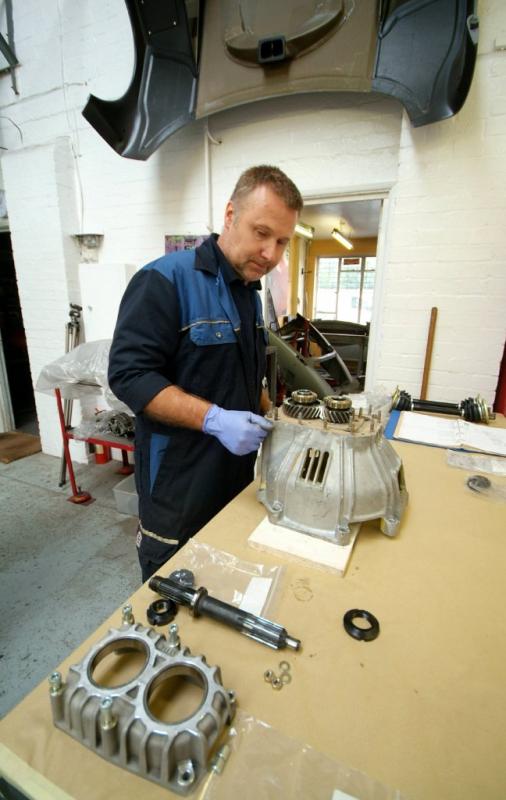

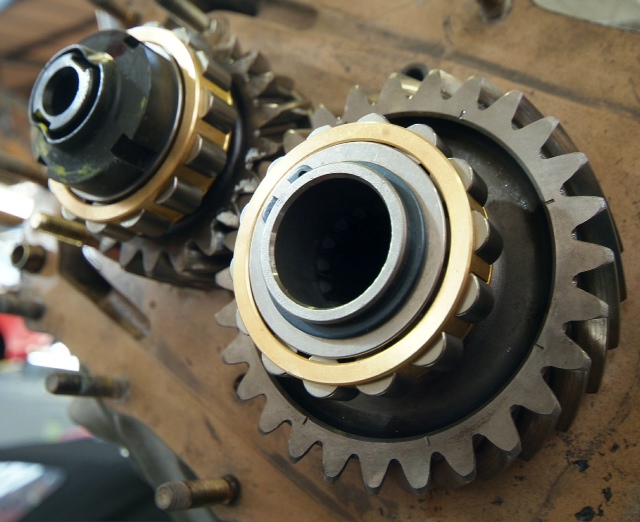

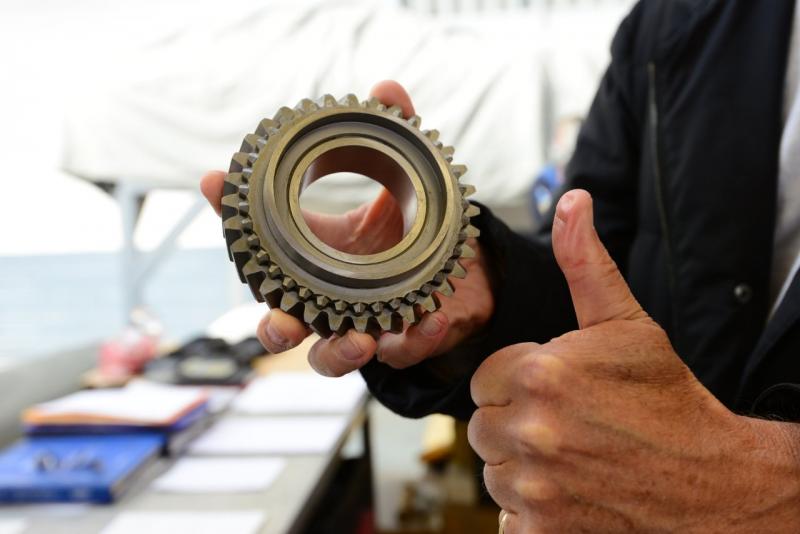

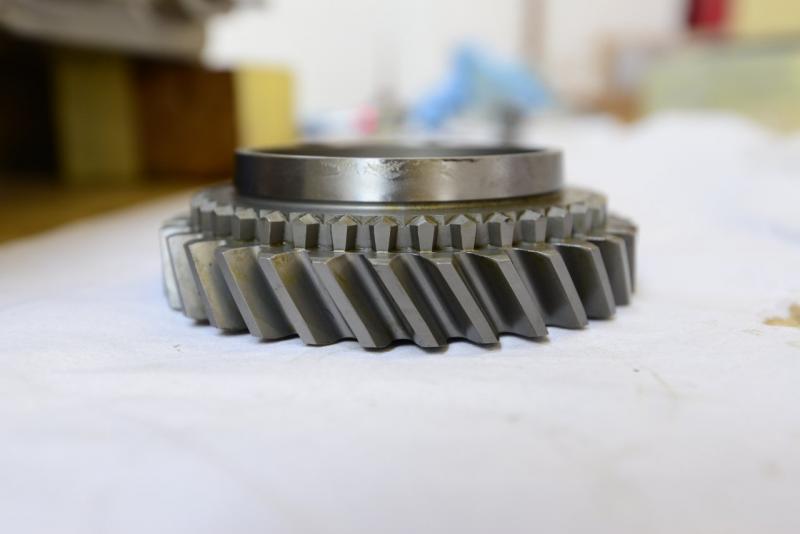

A switch back to grey from red for a bit of variety. Our gearbox has lain almost finished for some months primarily awaiting the new and impossible to source reverse gear. Finally, six months and more in the queue, a new and improved reverse gear from Crosthwaites. The original and unavailable Ferrari part is actually composed of two separate elements whereas our new version has somehow been crafted from one, a really trick piece of engineering. Now we understand how they could build an Auto Union from scratch.First shot shows the old scored gear, the others the new.That means we can now finish up our gearbox and here Colin is fitting the drop gears with new bearings on the Bell housing and when finished all castings will be cleaned up and sprayed. The entire gearbox has new bearings.
1777795d1380181631-f40-lm-restoration-dsc_0560s
1777797d1380181631-f40-lm-restoration-dsc_0561s
1777799d1380181681-f40-lm-restoration-12a0913-018s
1777800d1380181681-f40-lm-restoration-image25

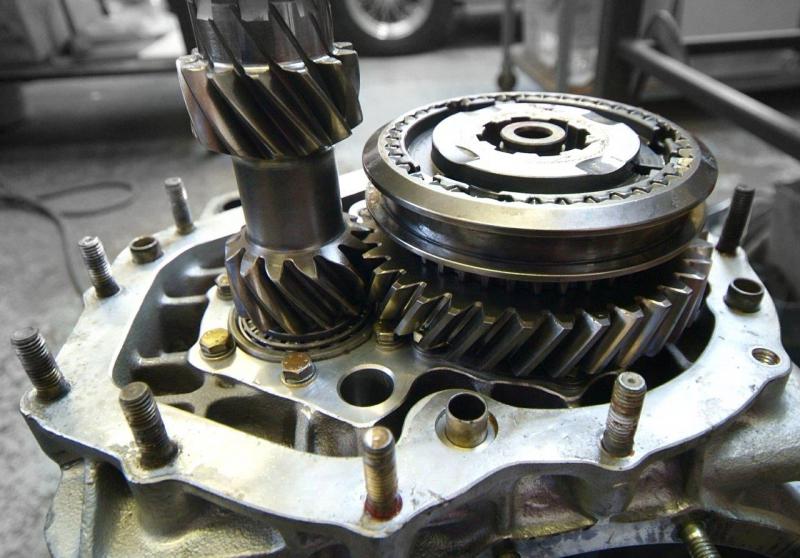

Reverse gear finds its home, meshing perfectly, so we finally are on the way to a finished gearbox.
1778266d1380296408-f40-lm-restoration-27913-004s

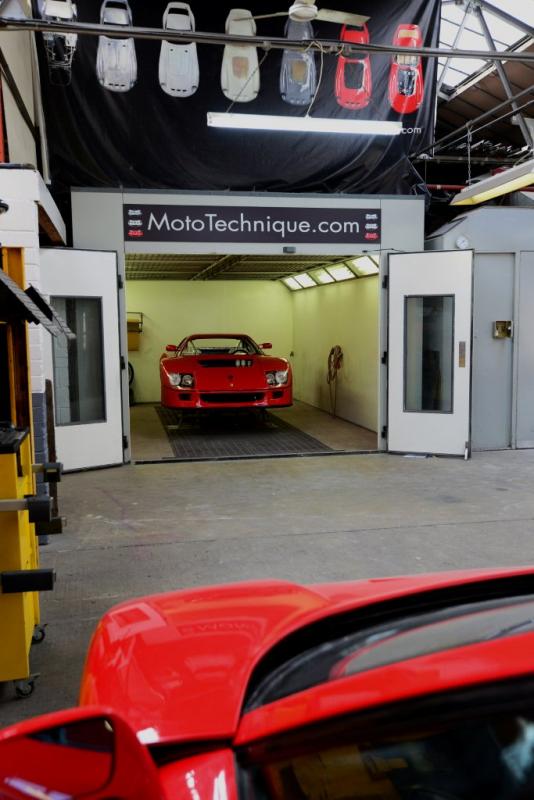

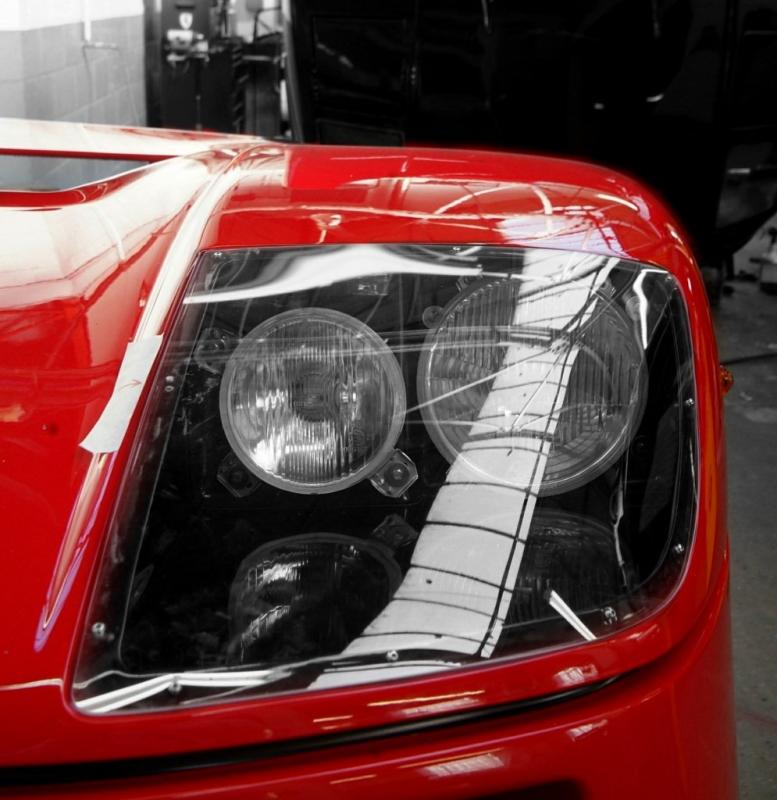

A few arty shots from last week
1779081d1380446177-f40-lm-restoration-18th0813-005s
1779082d1380446177-f40-lm-restoration-18913-008s
1779083d1380446177-f40-lm-restoration-18913-025s
1779084d1380446211-f40-lm-restoration-dsc_0569s

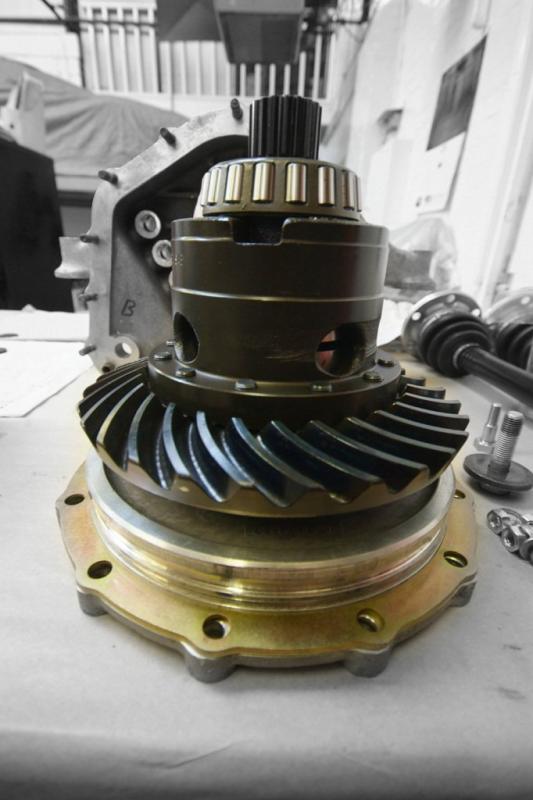

Now our finished final drive assembly with new limited slip and the lower geared crown wheel as recommended by CM.
1779563d1380534455-f40-lm-restoration-27913-006s

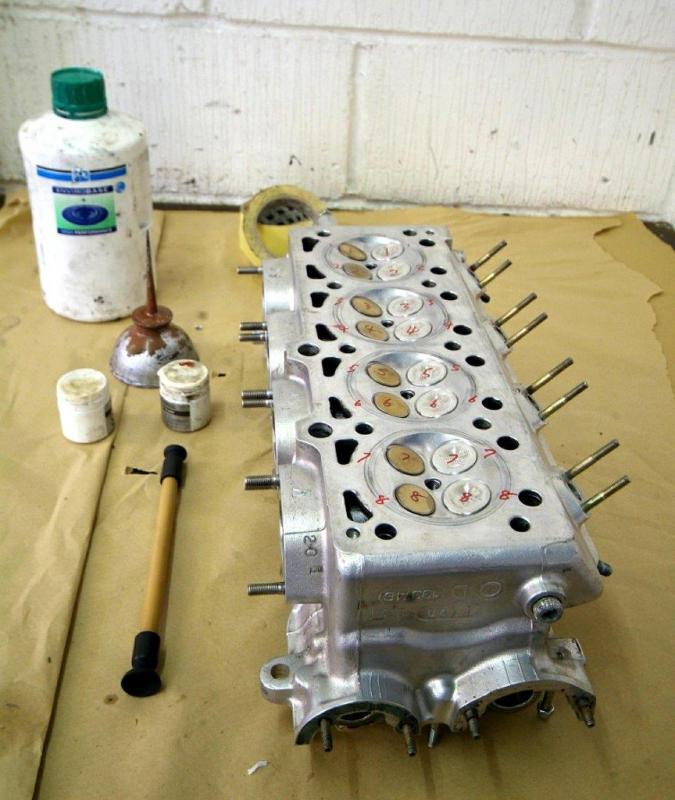

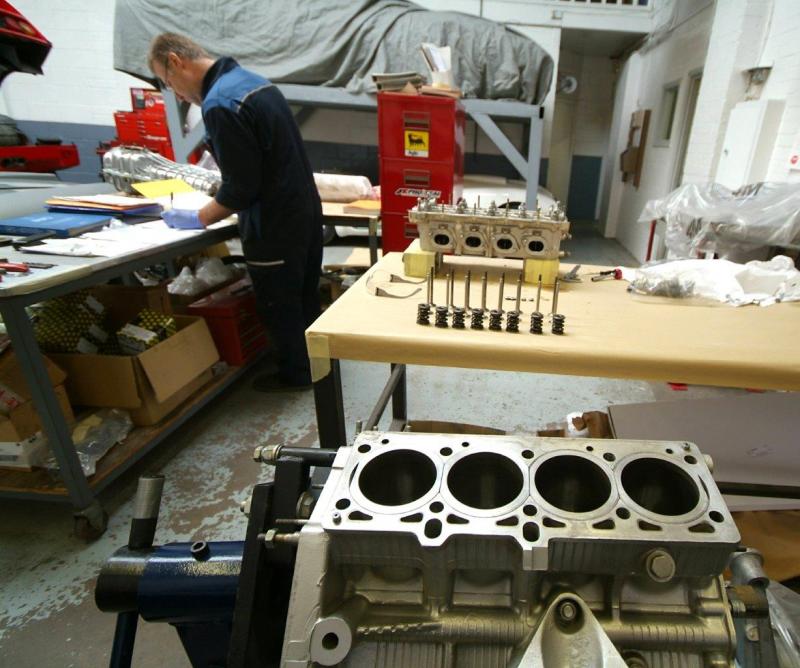

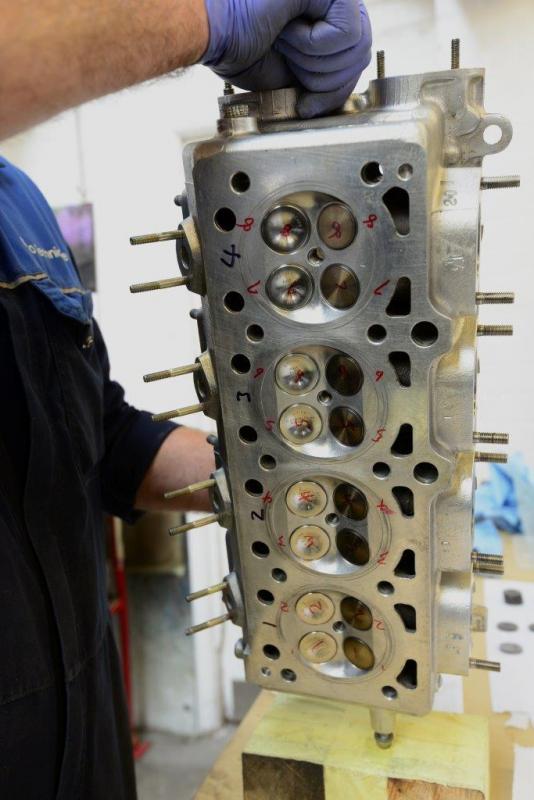

All new exhaust and inlet valves now in, having been lapped, as you can see from this bunch of shots. Next up fitting the cams.
1780600d1380621398-f40-lm-restoration-280813c-030s
1780601d1380621398-f40-lm-restoration-17a0913-003s

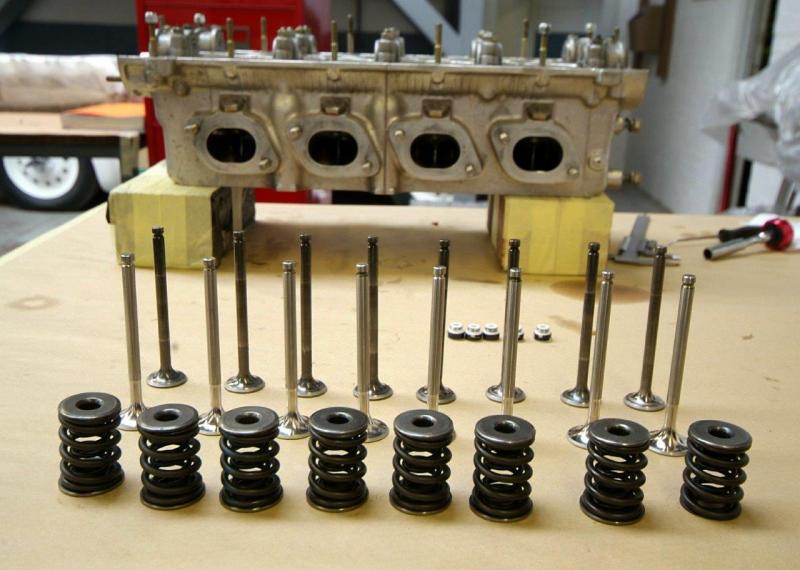

1780602d1380621398-f40-lm-restoration-17a0913-005s
1780604d1380621980-f40-lm-restoration-dsc_0555s

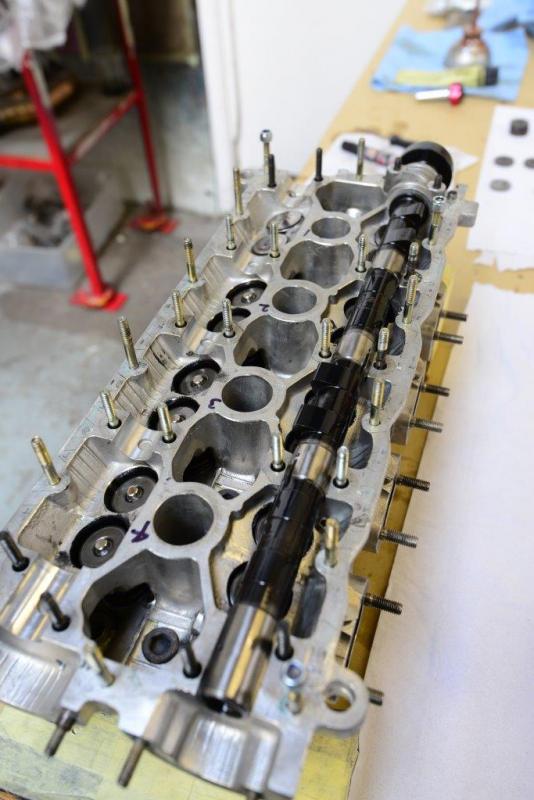

1780605d1380622008-f40-lm-restoration-dsc_0557s

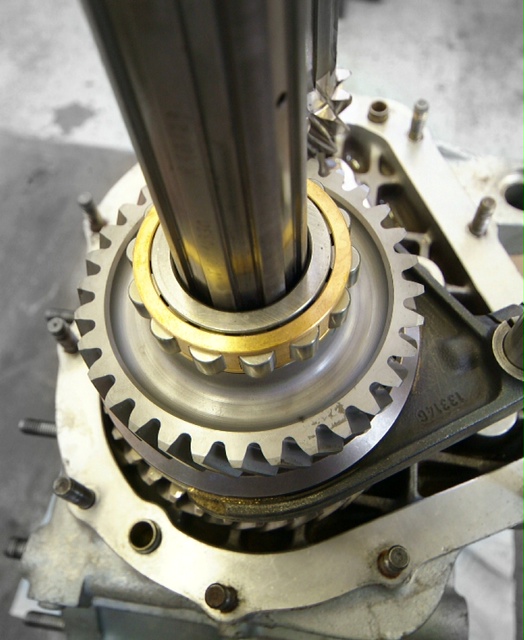

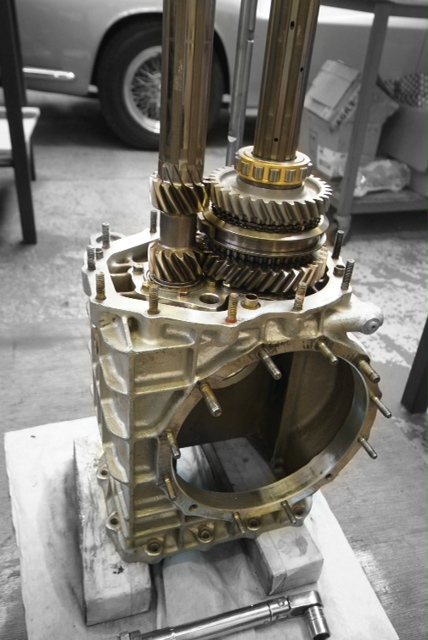

Now this really is reverse finally coming home…..

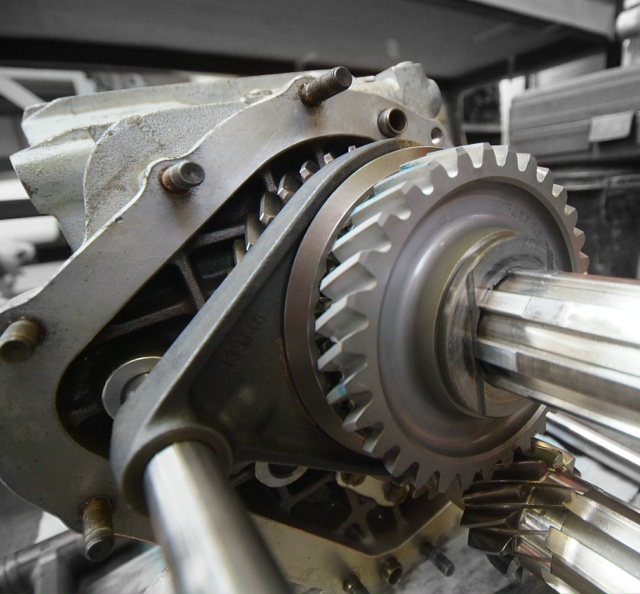

1781077d1380700661-f40-lm-restoration-image1
1781078d1380700661-f40-lm-restoration-image3

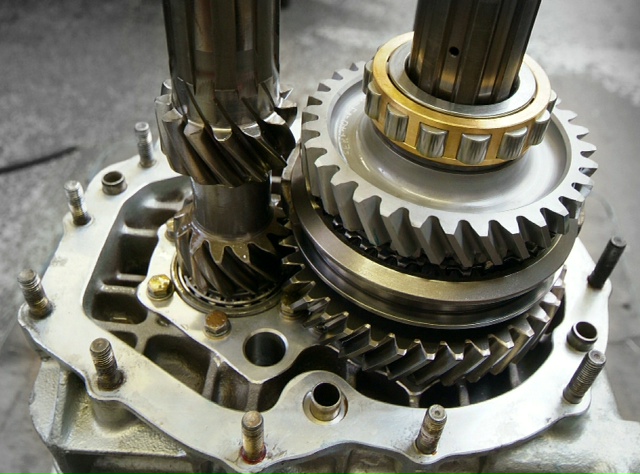

1781081d1380700682-f40-lm-restoration-image6

1781082d1380700682-f40-lm-restoration-image8

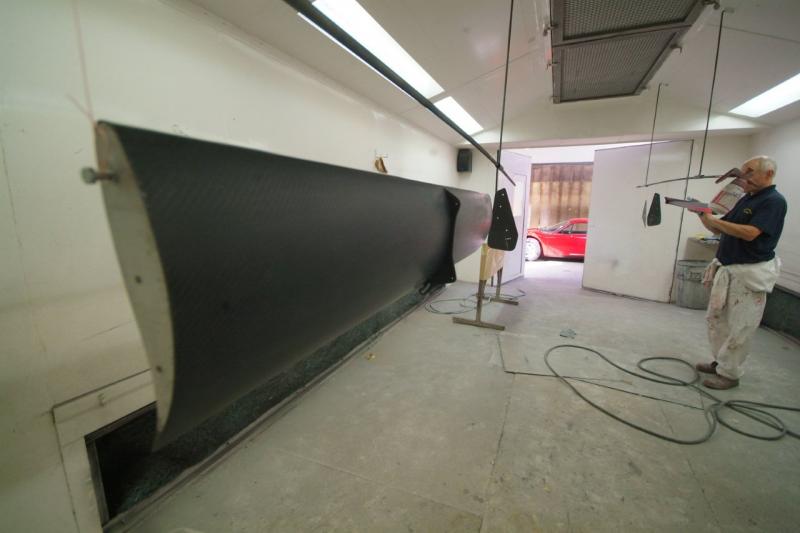

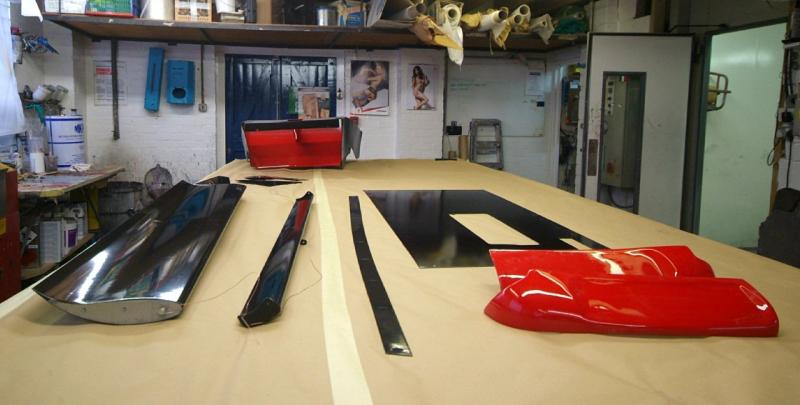

Rear wing now stripped down, degreased and coated which revealed some pinholes so a little further work required there. Large carbon pat to the right is part of the undertray. Be really good to get that all finished up and mounted so we have a complete rear clam, next week all being well.
1781586d1380790844-f40-lm-restoration-24th913-001s
1781587d1380790844-f40-lm-restoration-250913-002s

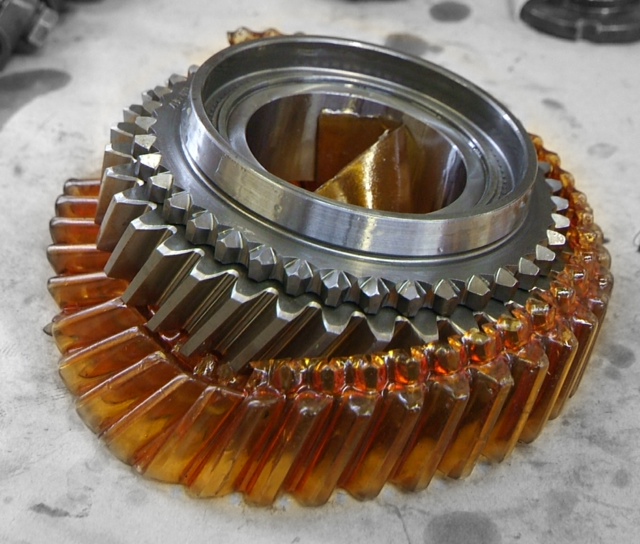

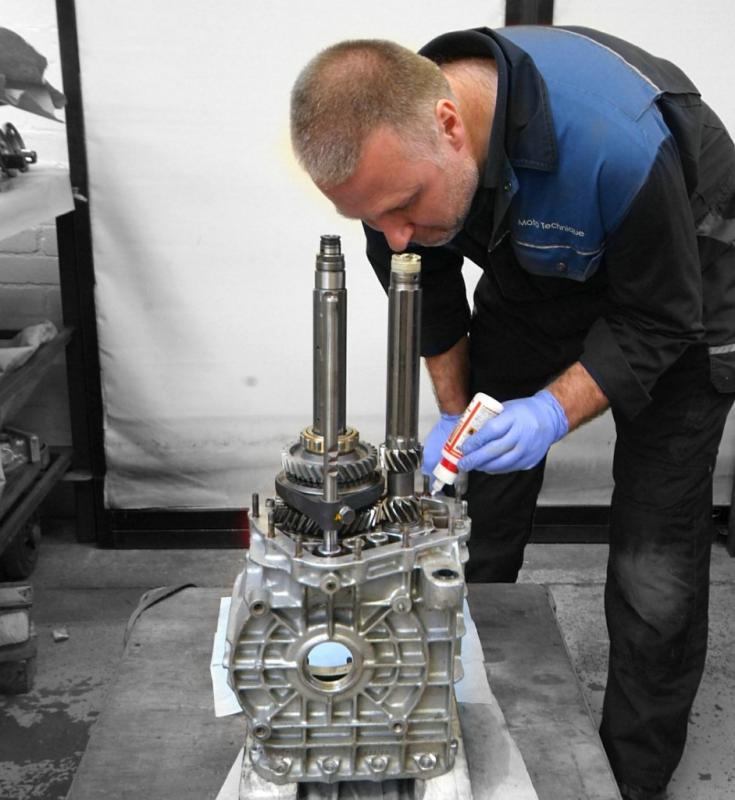

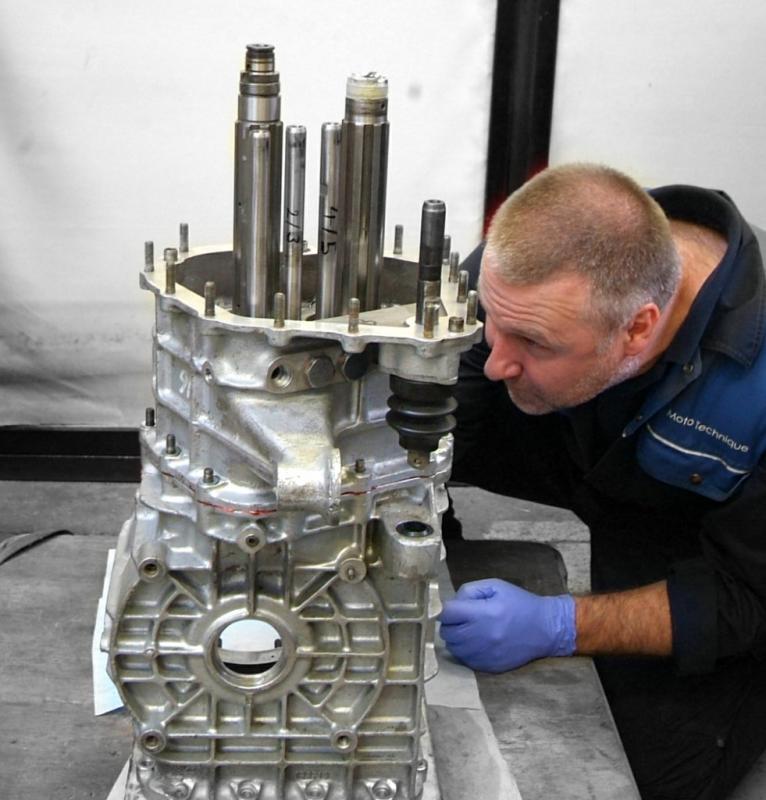

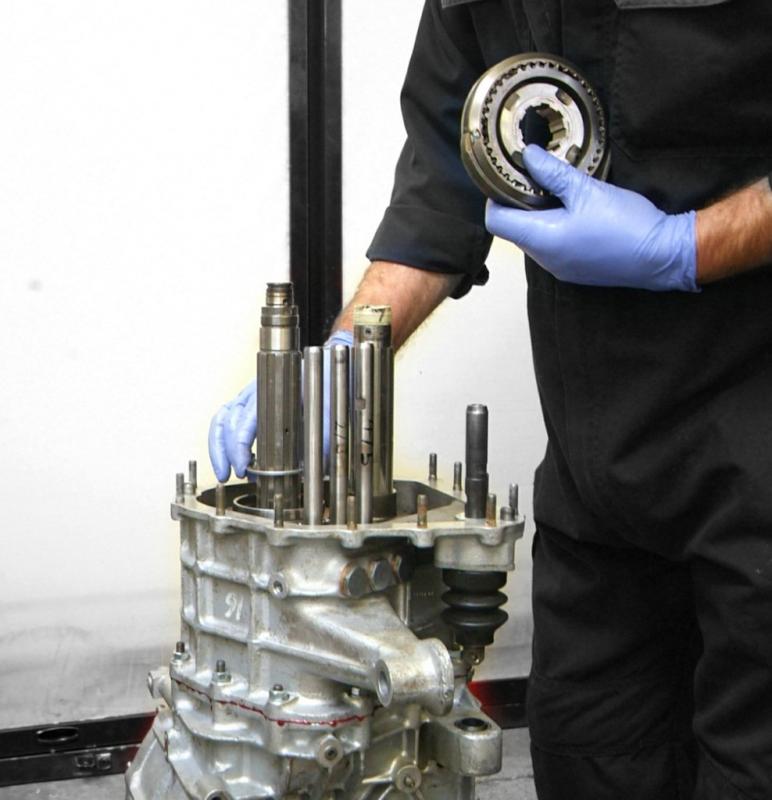

Back to the gearbox which is now really beginning to take shape with all new seals, bearings etc. Here you can also see our delicious new 2nd gear complete with toffee coating.I hope it works as smoothly as it looks and the next step is to adjust the selectors and test…..
1782223d1380876353-f40-lm-restoration-photo
1782224d1380876353-f40-lm-restoration-01913-023s
1782225d1380876353-f40-lm-restoration-01st1013-004s
1782226d1380876353-f40-lm-restoration-01913-034s

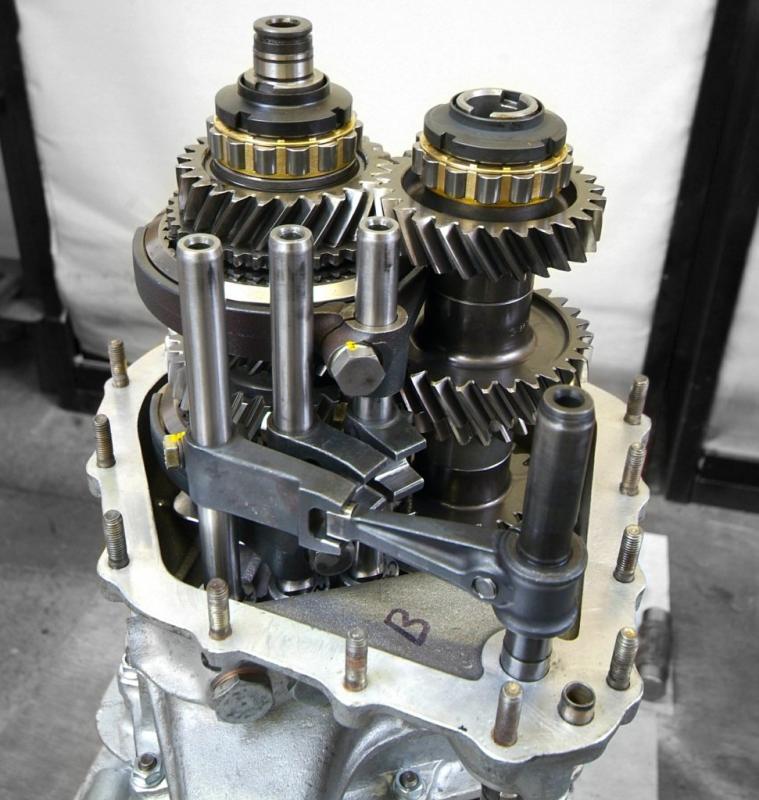

1782227d1380876370-f40-lm-restoration-3rd1013-001s
1782228d1380876370-f40-lm-restoration-3rd1013-021s

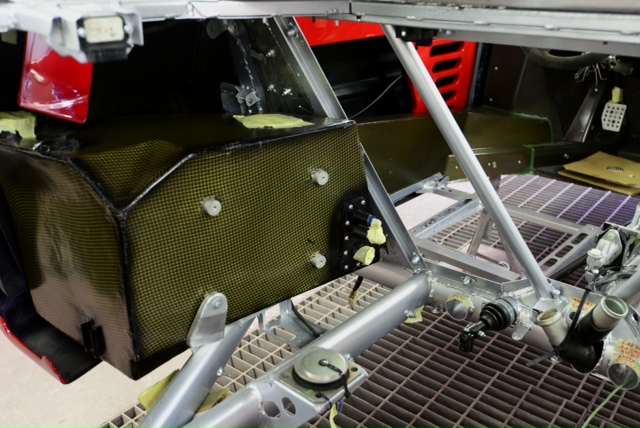

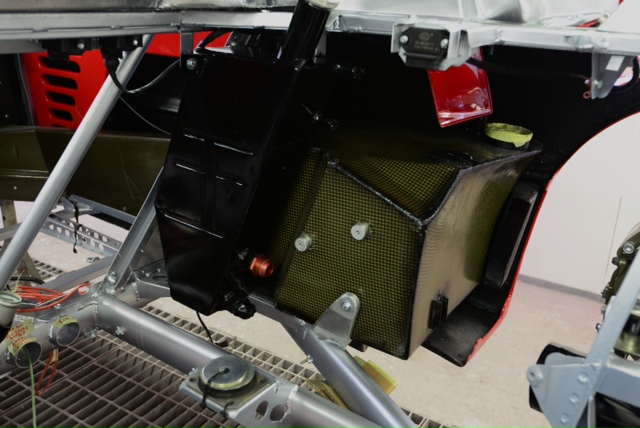

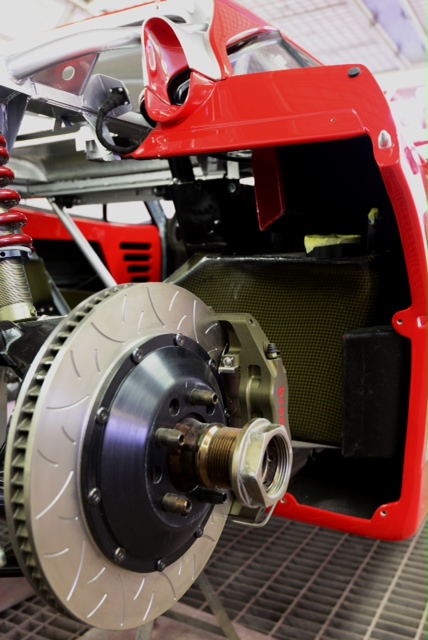

Fuel tanks back in for further adjustment and ancillary fitting. Second shot shows the restored oil tank also now fitted. Tanks will be out again shortly for their pressure test and then back in for good.
1782827d1380958039-f40-lm-restoration-image1
1782828d1380958039-f40-lm-restoration-image2
1782829d1380958039-f40-lm-restoration-image3

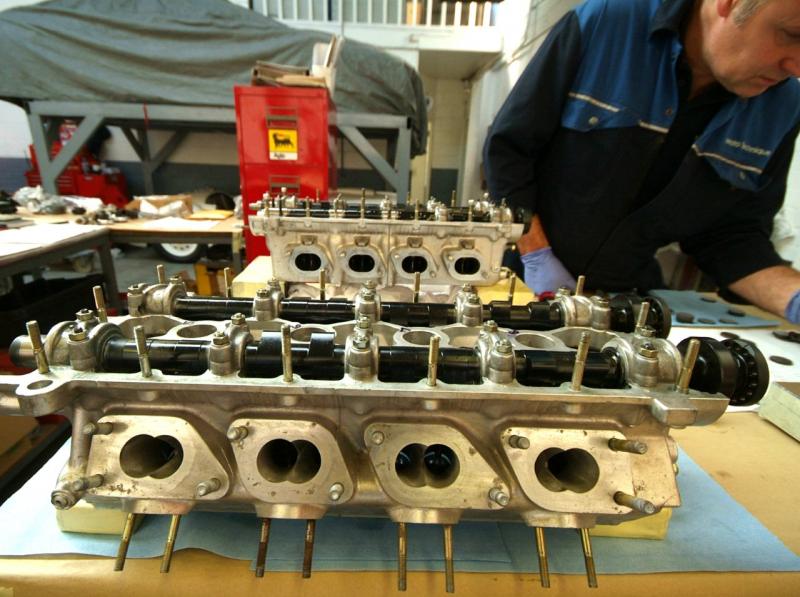

A final burst from last week with Colin adjusting the valve shims now that the cams are back in place.

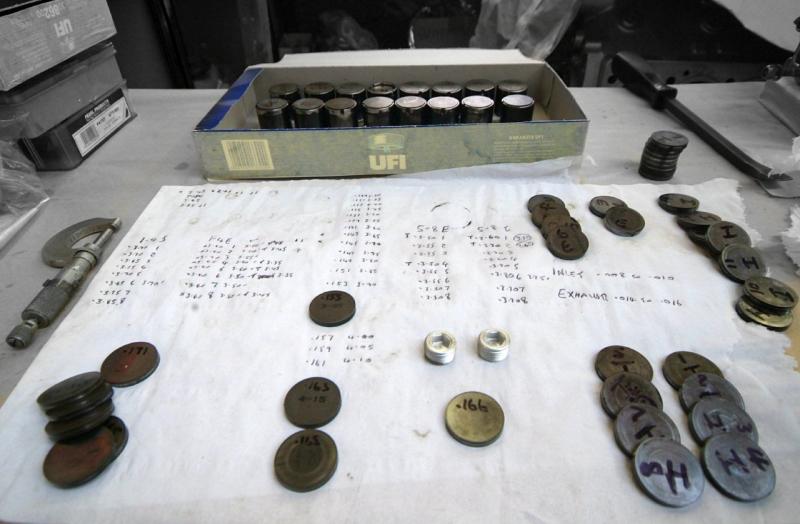

1783302d1381053910-f40-lm-restoration-270913-003s
1783303d1381053910-f40-lm-restoration-dscf5720s

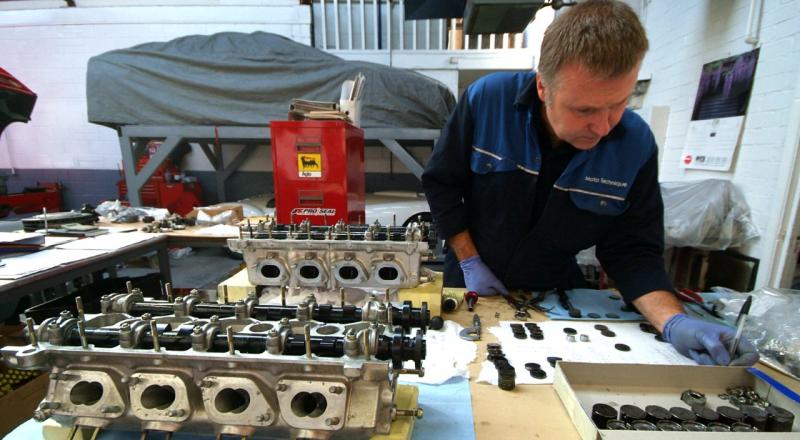

1783304d1381053910-f40-lm-restoration-dscf5721s

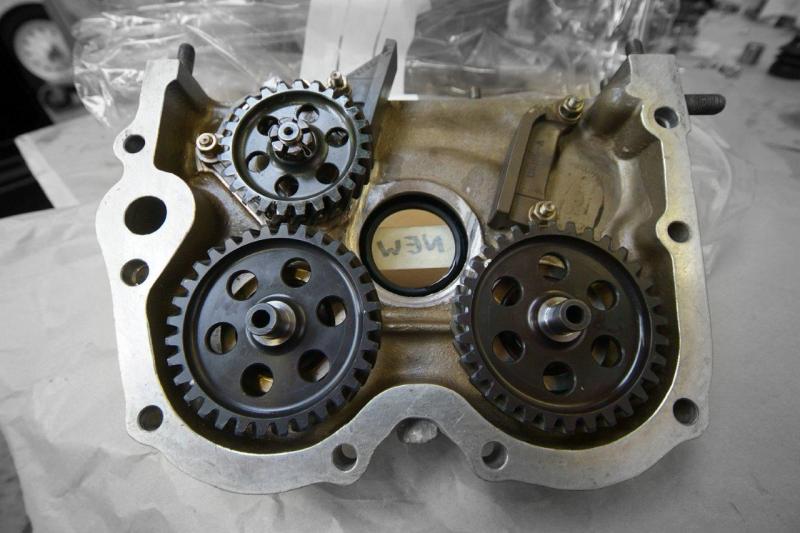

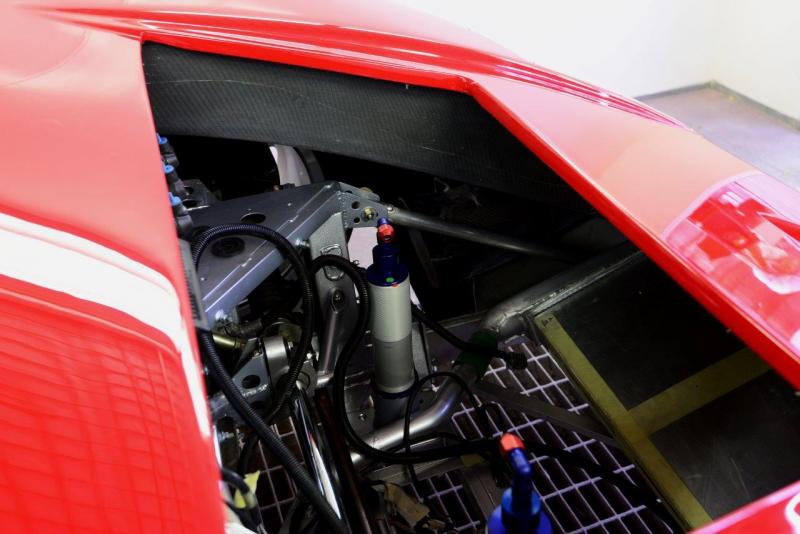

Here you can see the front timing chest being built up with new bearings and seals as well as an interesting shot under the front clam showing how the high pressure air duct runs from next to the radiator to the wheel arches etc.
1783700d1381140341-f40-lm-restoration-04103-011s
1783701d1381140341-f40-lm-restoration-04103-006s
1783702d1381140414-f40-lm-restoration-dsc_0542s
Colin pressing the clutch release bearing onto it’s carrier, our balanced clutch and lightweight flywheel and a few general shots.Please pay no attention to panel gaps as all these will need to be adjusted when the engine is in and the chassis under load.

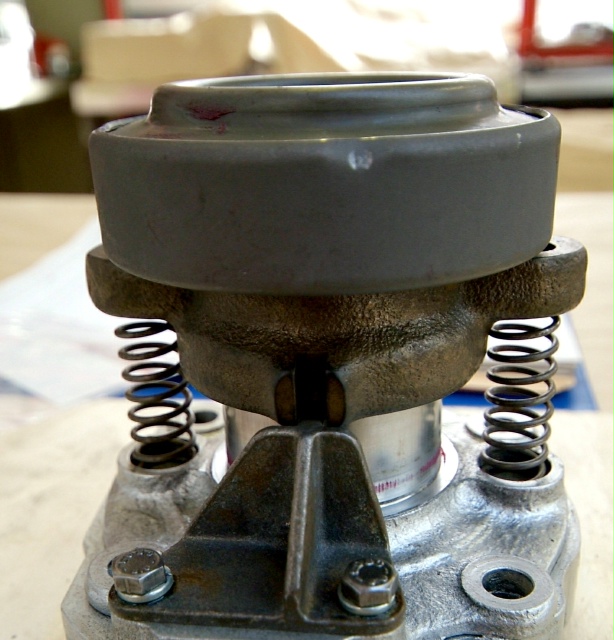

1784229d1381225868-f40-lm-restoration-image

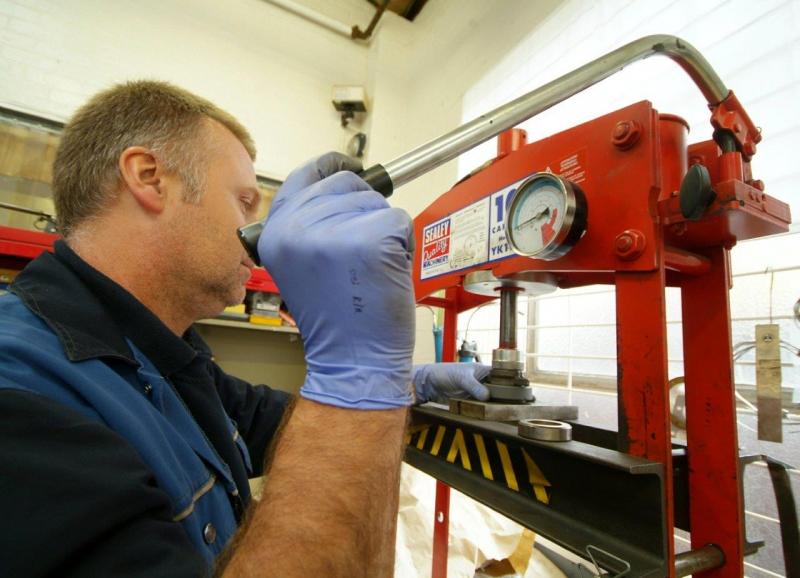

1784230d1381225868-f40-lm-restoration-12a0913-004s

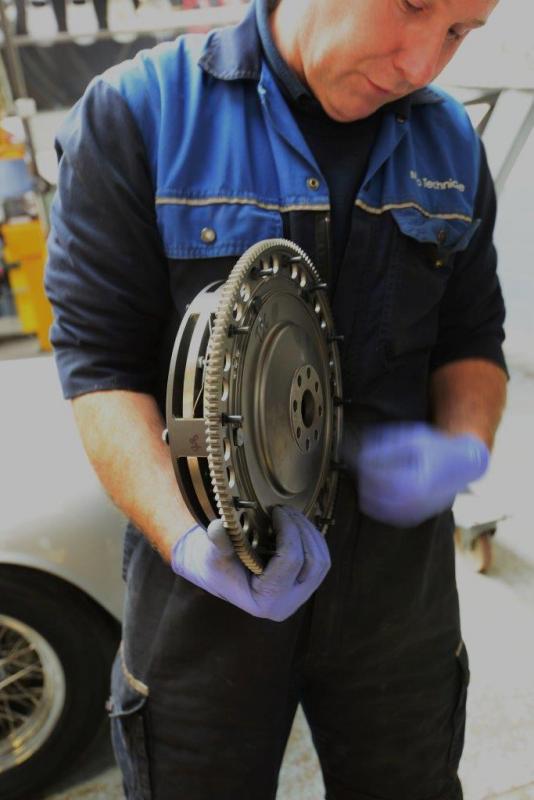

1784231d1381225868-f40-lm-restoration-dsc_0567s
1784234d1381226486-f40-lm-restoration-dsc_0529s

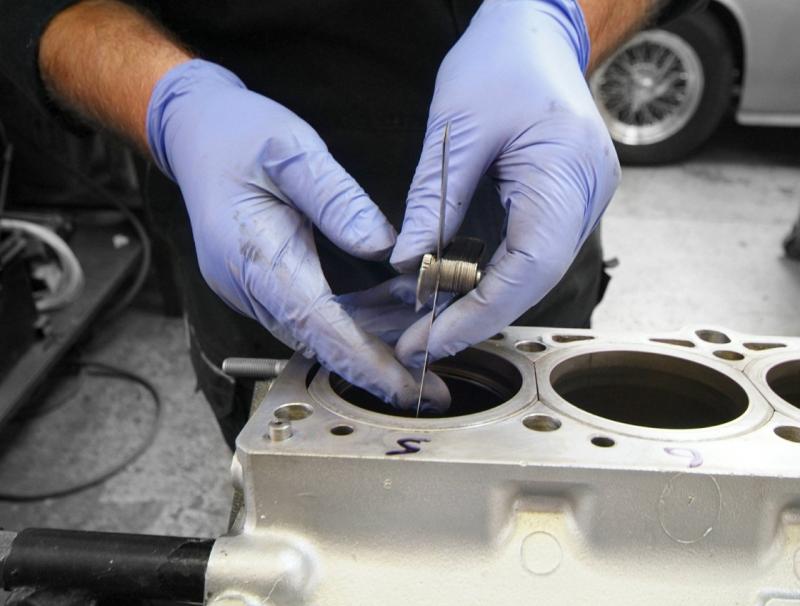

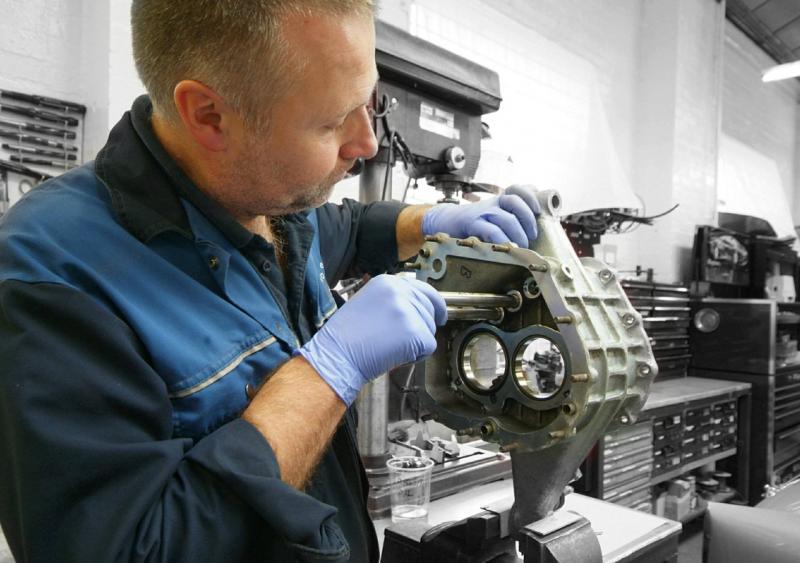

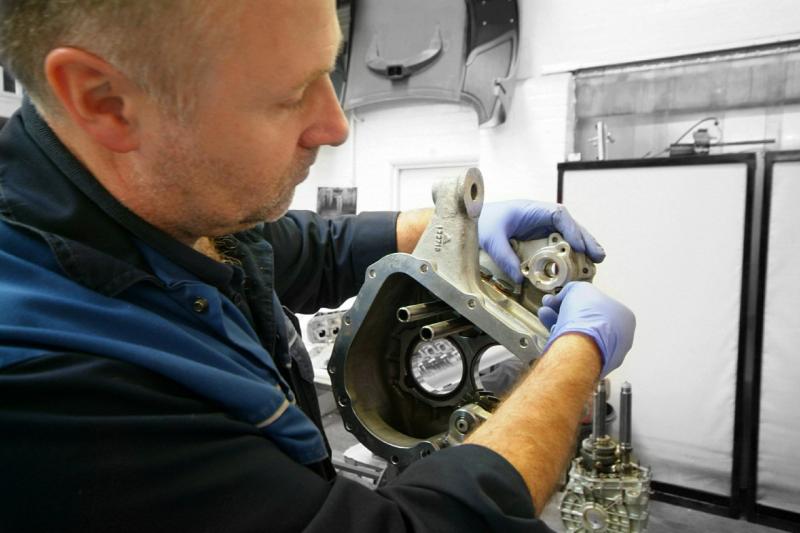

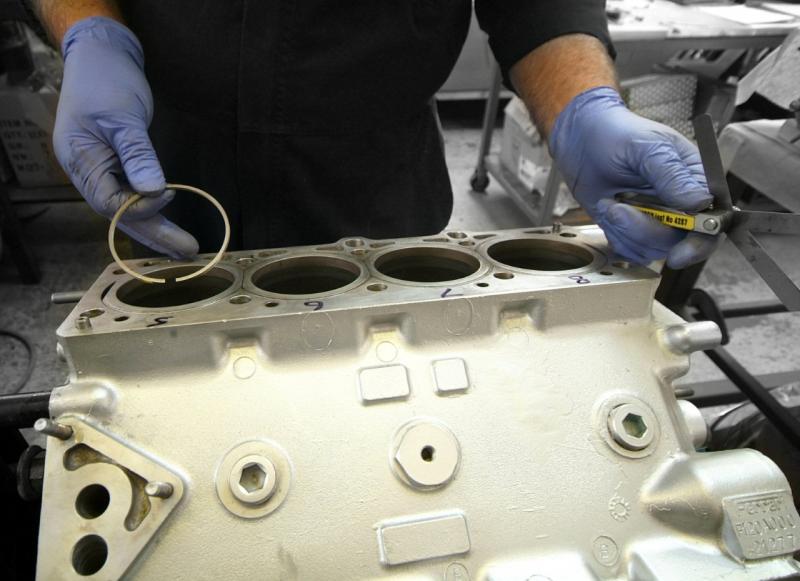

Ouch! New piston rings arrived, along with HT leads and gasket set. Do you guys get robbed in the States same us and why is it that everything ex Ferrari has a disproportionate price tag and is not easy to get your hands on? Dumb question-they’ve got it and you want it. Rumour has it that Classiche has warehouses of spares so they can promise their customers instant availability but for the rest of us it is never that simple. Keeps the business rolling in for their restoration department.Anyway, I digress, a few shots of setting up the selector shafts and checking and adjusting the end gap of those expensive rings
1784606d1381310867-f40-lm-restoration-30913-010s
1784607d1381310867-f40-lm-restoration-30913-017s
1784608d1381310867-f40-lm-restoration-270913-005s
1784609d1381310867-f40-lm-restoration-270913-004s

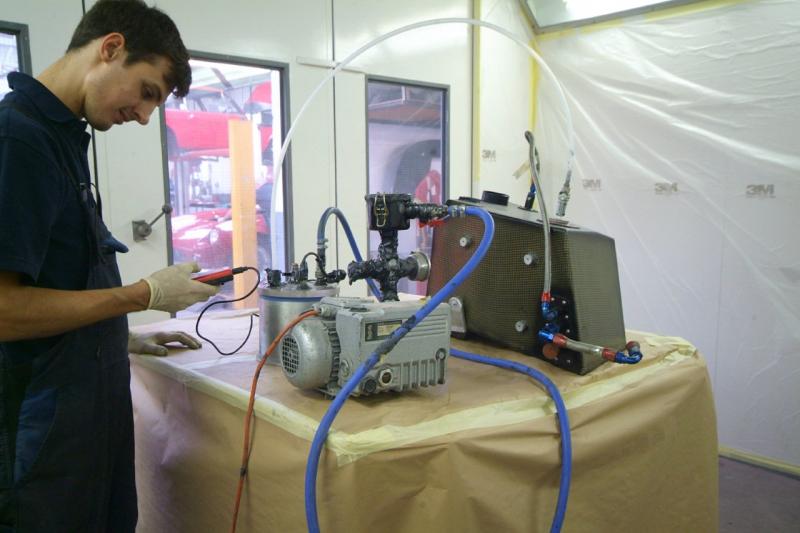

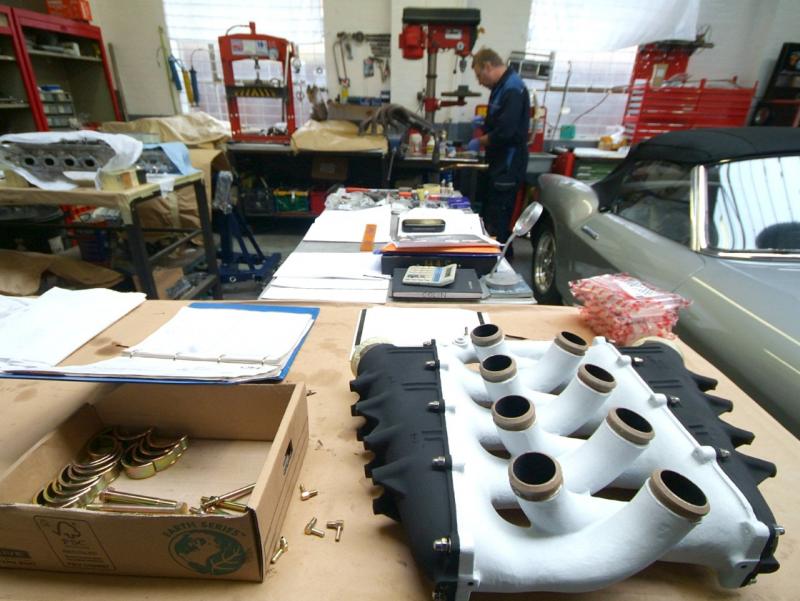

And now the HT leads and gasket set-just silly. First pic shows one of our fuel tanks undergoing a pressure test. Left overnight and they both passed with no issues. Next couple of shots show Colin checking over our restored exhaust manifolds, which in due course will undergo the Zircotec process, and generally collecting all the parts together for the real assembly push.
1785143d1381398497-f40-lm-restoration-4t1013-005s

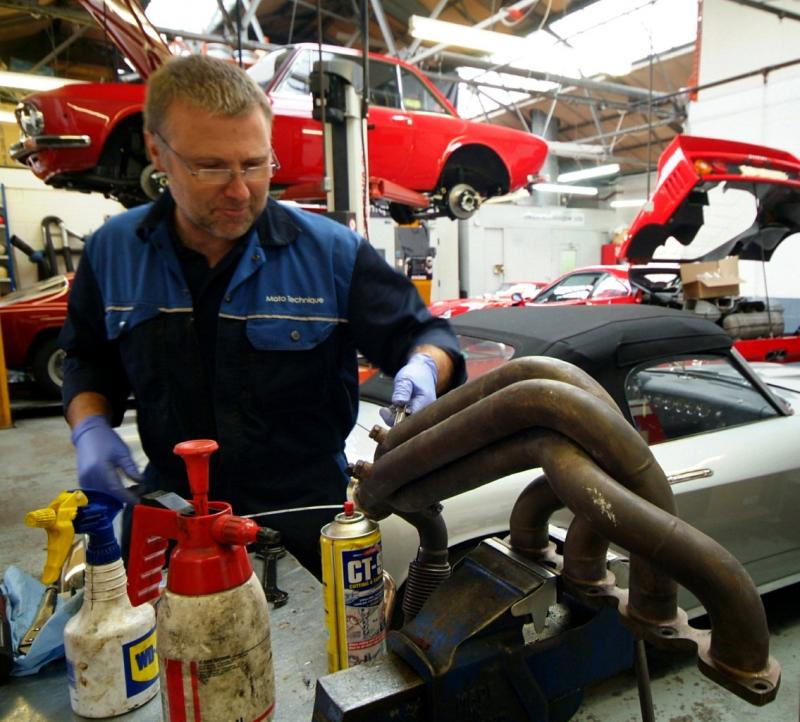

1785144d1381398551-f40-lm-restoration-240913-009s
1785145d1381398551-f40-lm-restoration-240913-006s

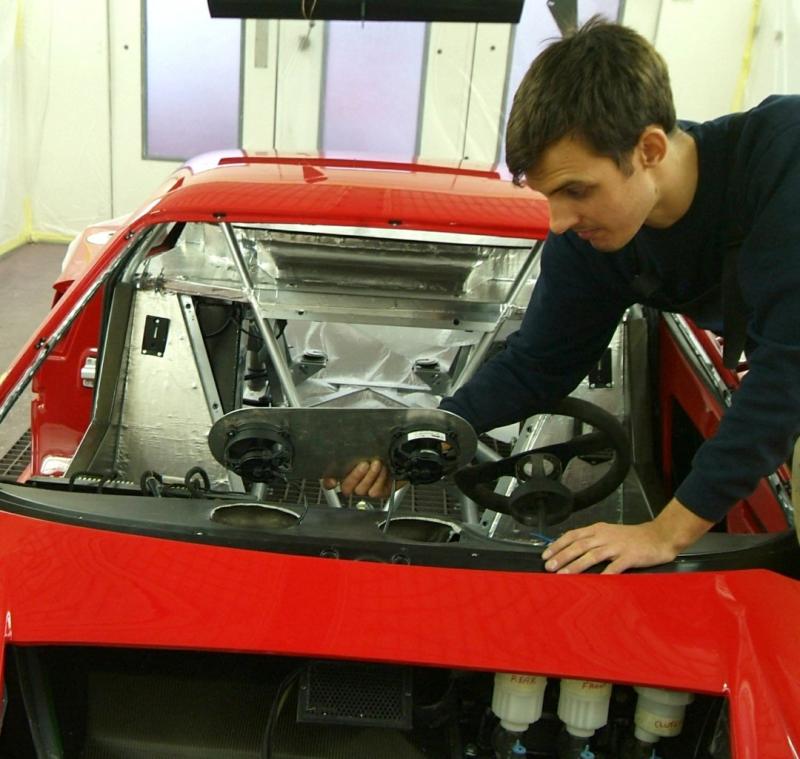

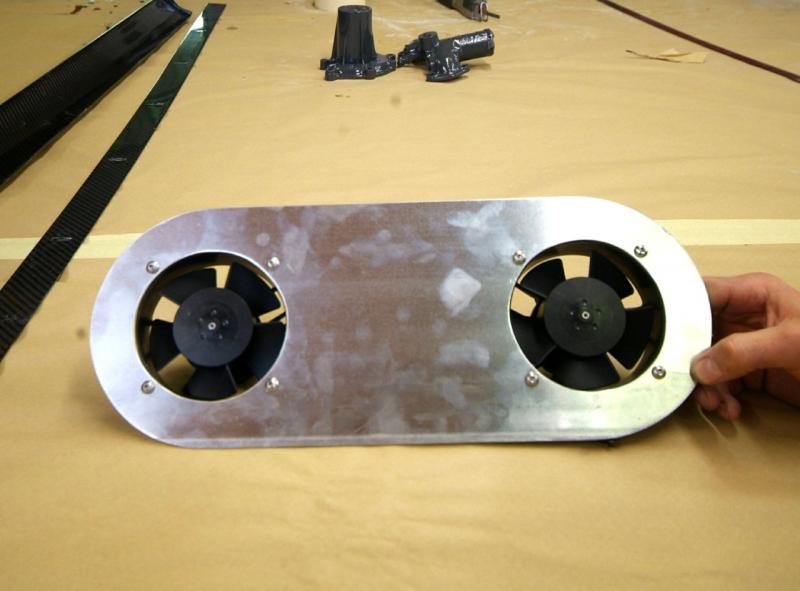

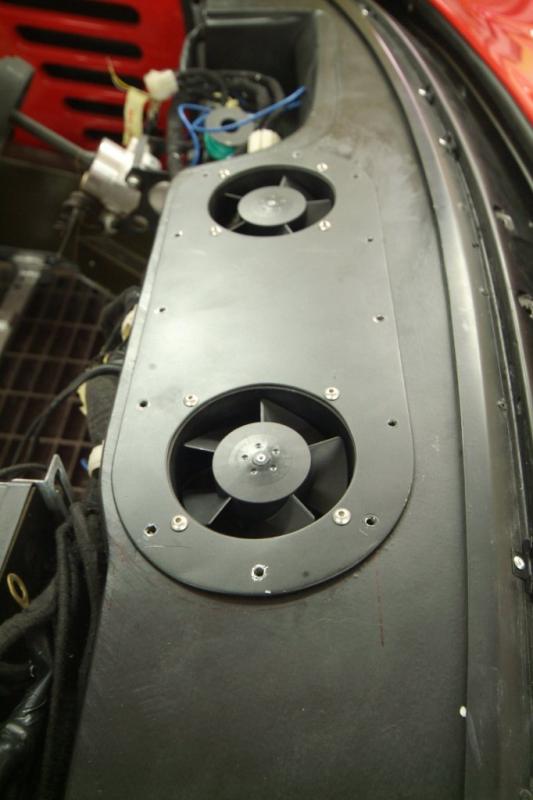

A little modification we have fabricated to endeavor to make life in the cockpit more bearable.
1785563d1381482424-f40-lm-restoration-031013-002s
1785564d1381482424-f40-lm-restoration-031013-003s
1785566d1381482424-f40-lm-restoration-41013-002s

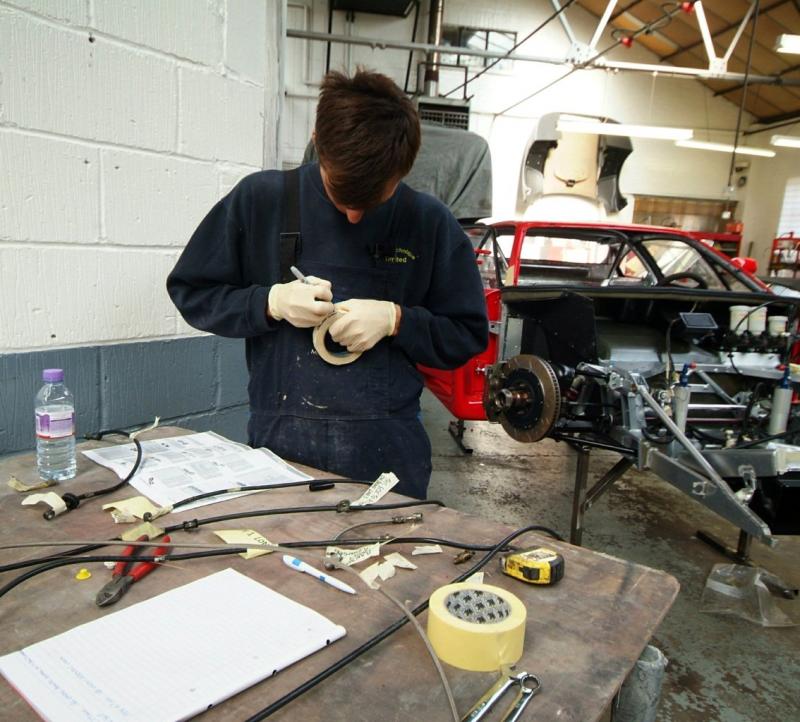

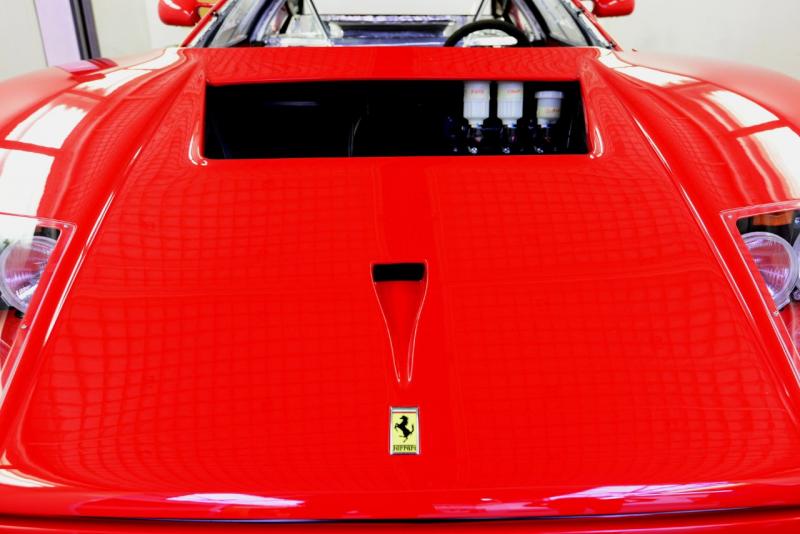

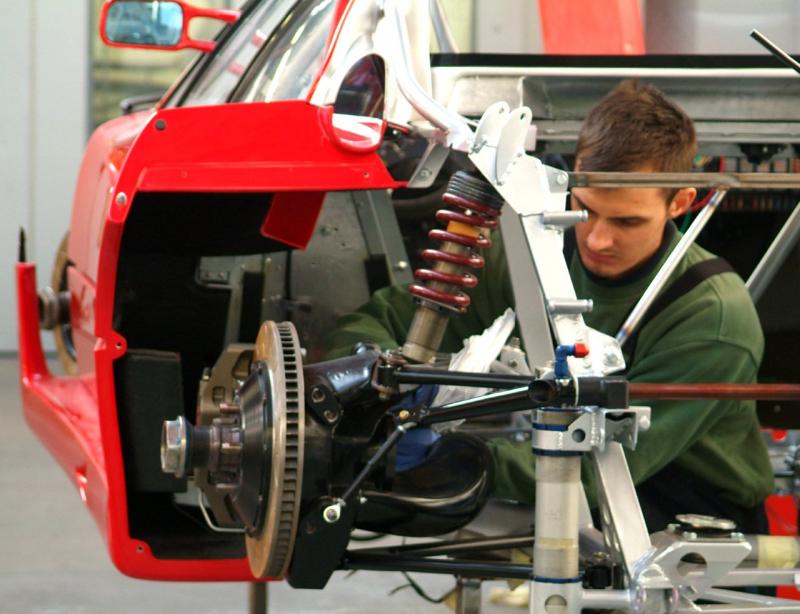

James busy measuring up all the brake line requirements as this coming week is all about plumbing having finished installing the fire extinguisher system which has four outlets in the engine bay, one pictured in second image, and two in the cockpit.Last shot is just a bit of red
1786399d1381655747-f40-lm-restoration-071013-002s

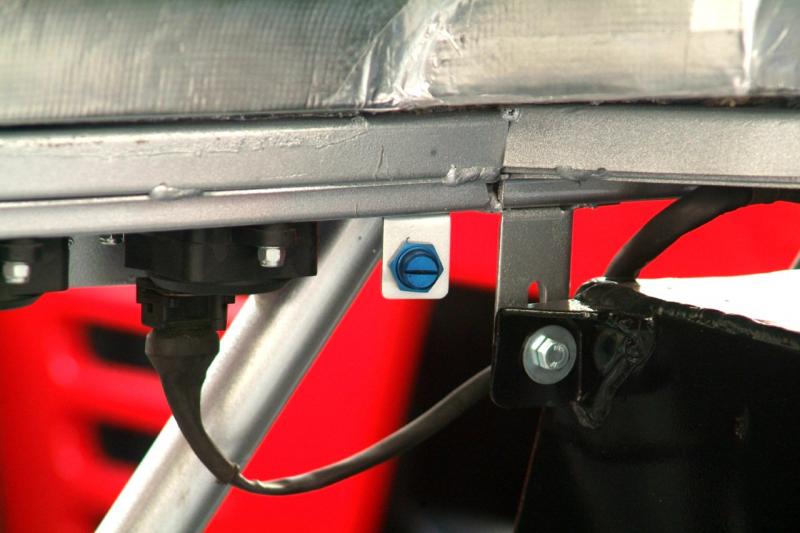

1786400d1381655747-f40-lm-restoration-080913-004s
1786401d1381655747-f40-lm-restoration-080913-019s
1786402d1381655747-f40-lm-restoration-dsc_0505s

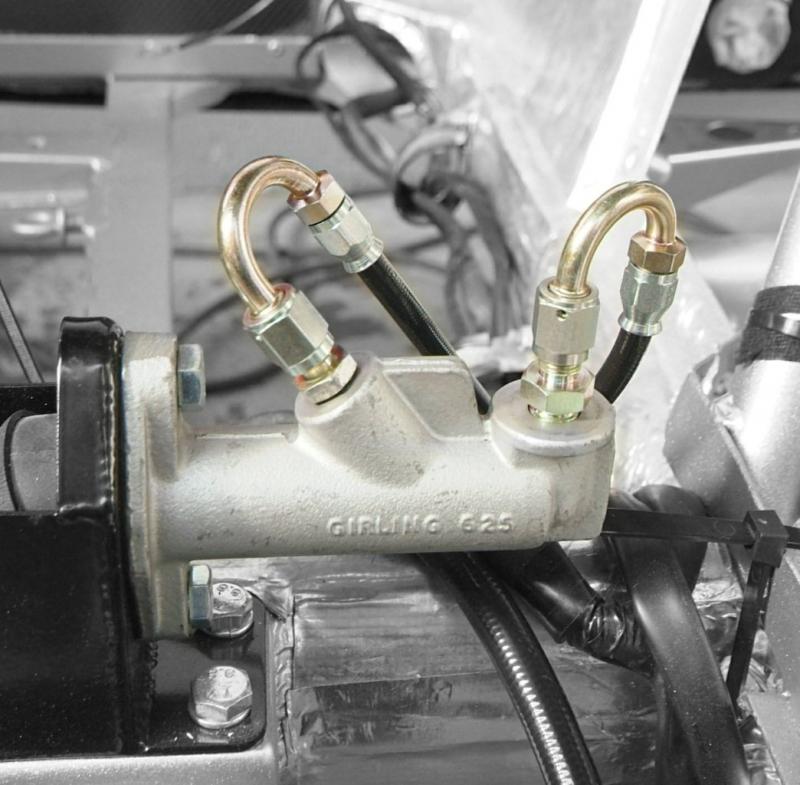

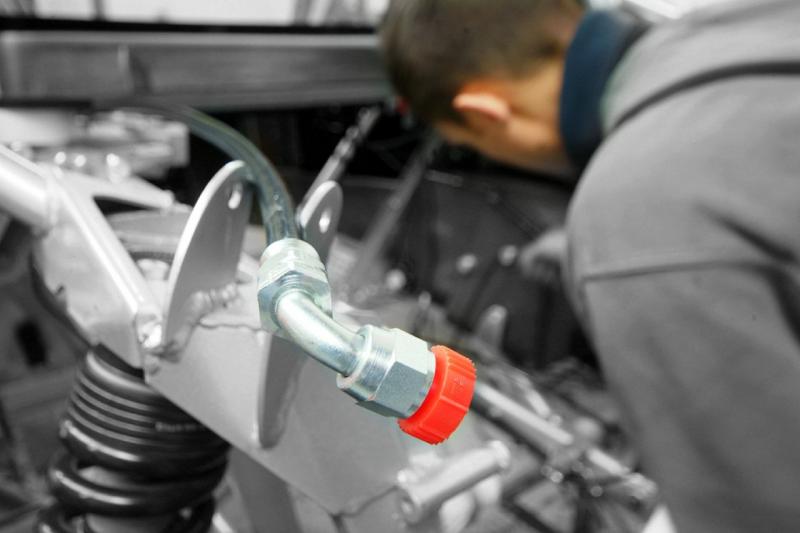

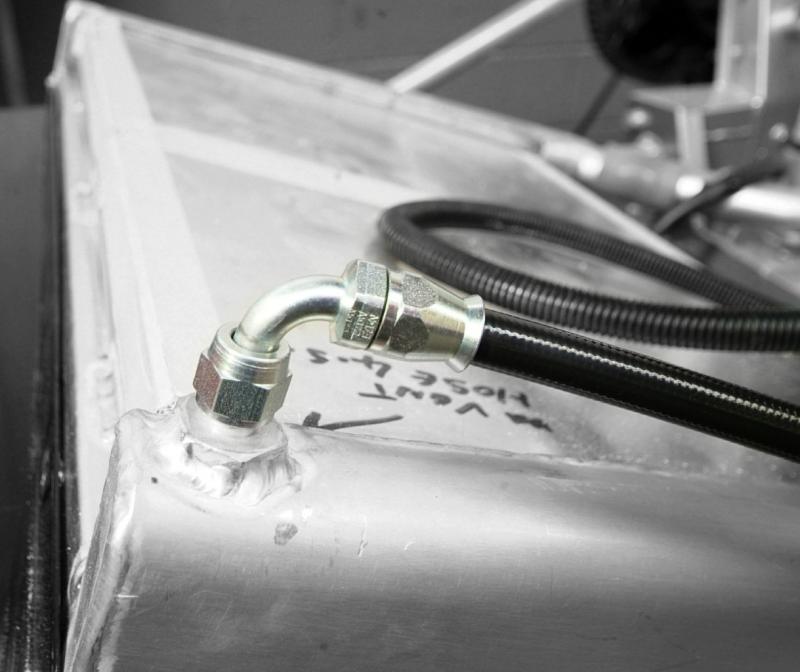

Now the plumbing starts. James starting work on the Air Jack system, radiator and brake lines. Second shot shows the line from the rad at the front to the coolant header tank. Once the plumbing is over the two major outstanding issues will be electrics and the engine where we are held up for a couple of parts.

1786891d1381737060-f40-lm-restoration-9th1013-019s

1786893d1381737060-f40-lm-restoration-9th1013-026s
1786894d1381737060-f40-lm-restoration-9th1013-030s

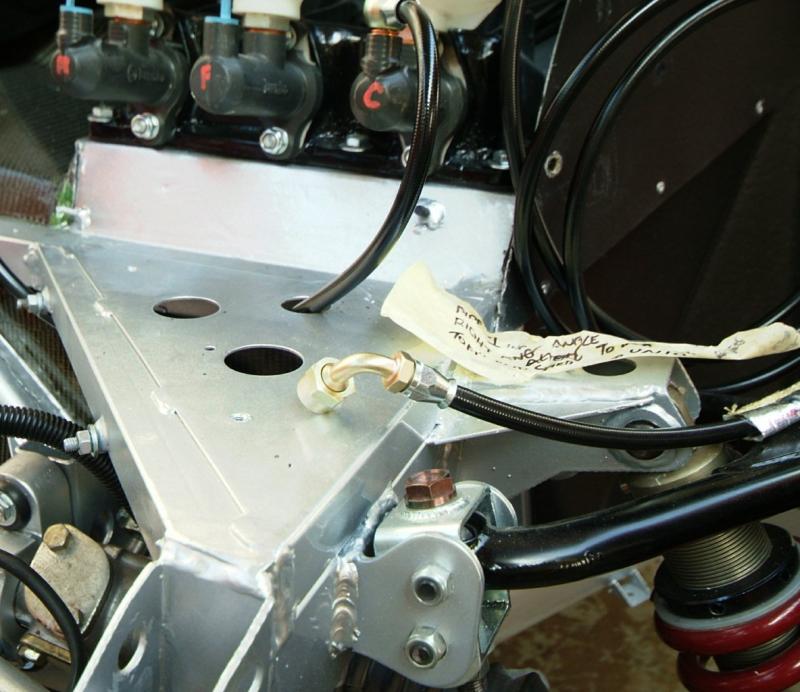

1786895d1381737117-f40-lm-restoration-080913-003s

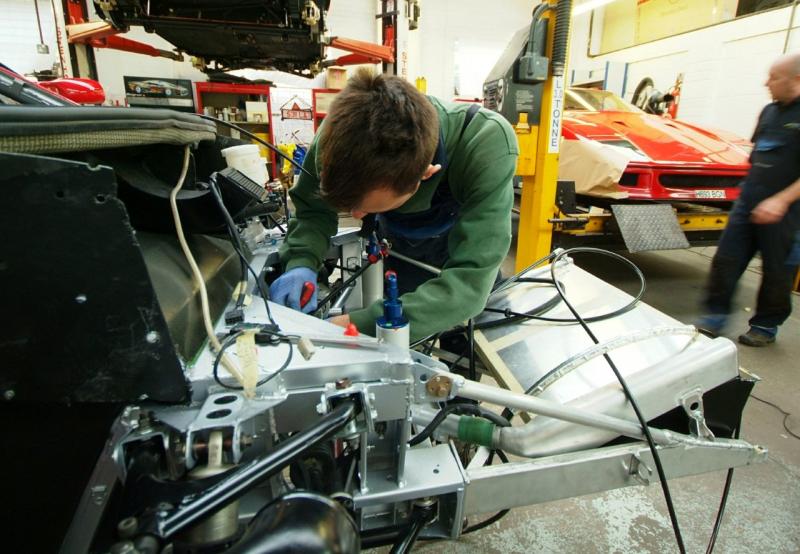

1786896d1381737117-f40-lm-restoration-091013-007s

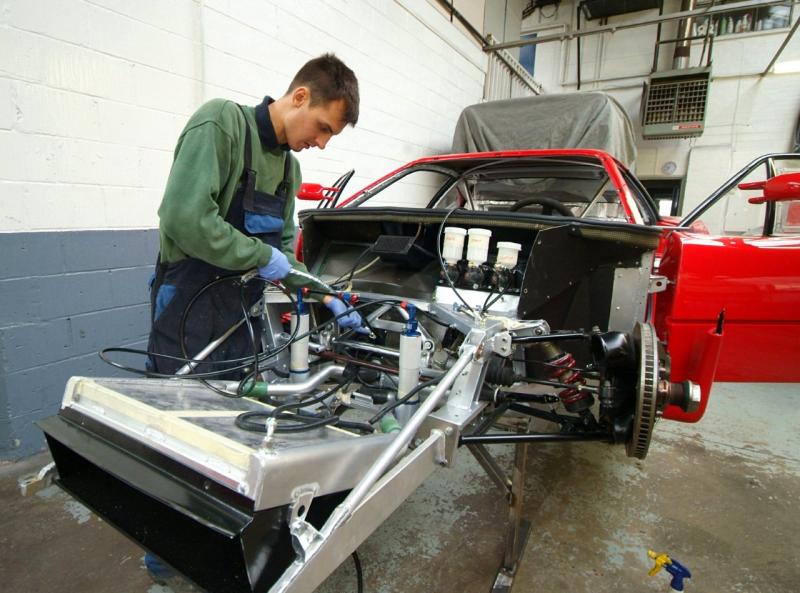

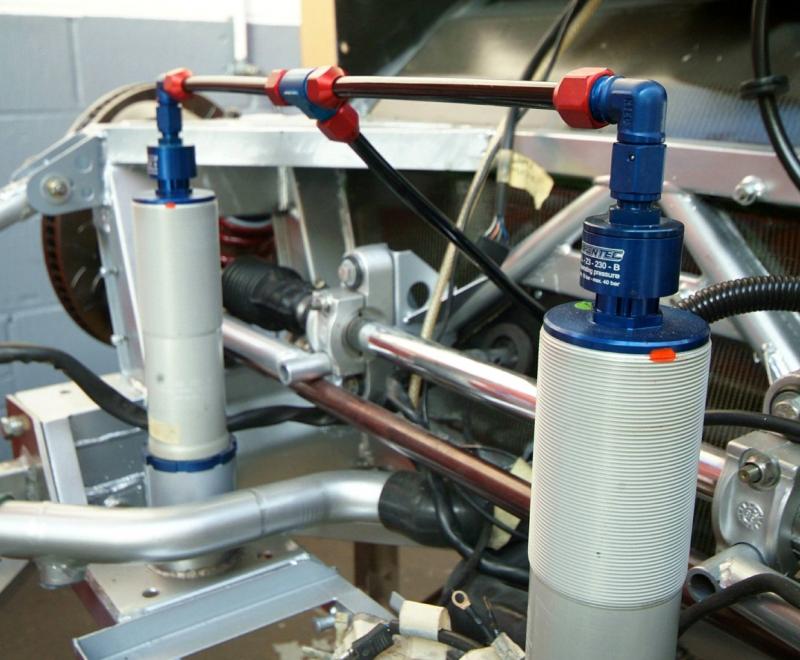

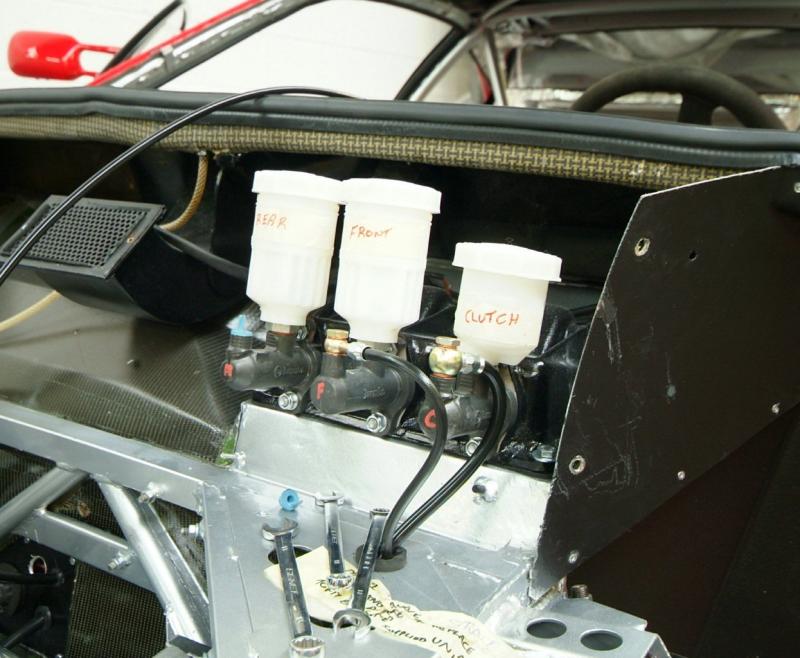

Krontec front jacks now plumbed in and James busy now on the brakes.
1787381d1381824455-f40-lm-restoration-080913-001s
1787385d1381824628-f40-lm-restoration-091013-013s
1787383d1381824455-f40-lm-restoration-091013-009s

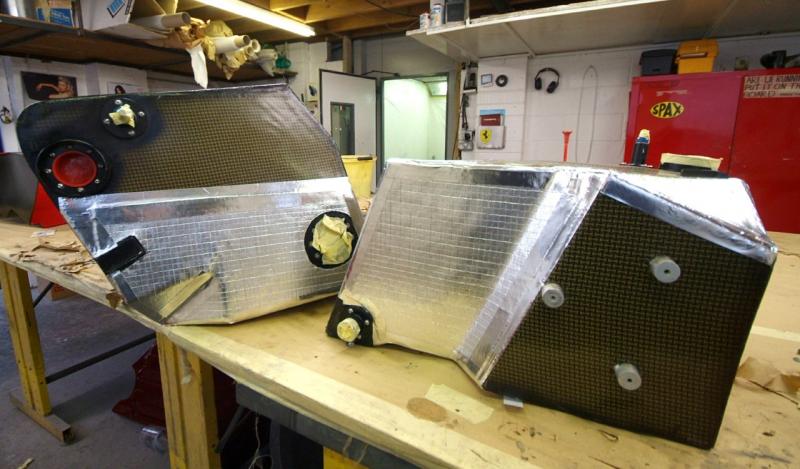

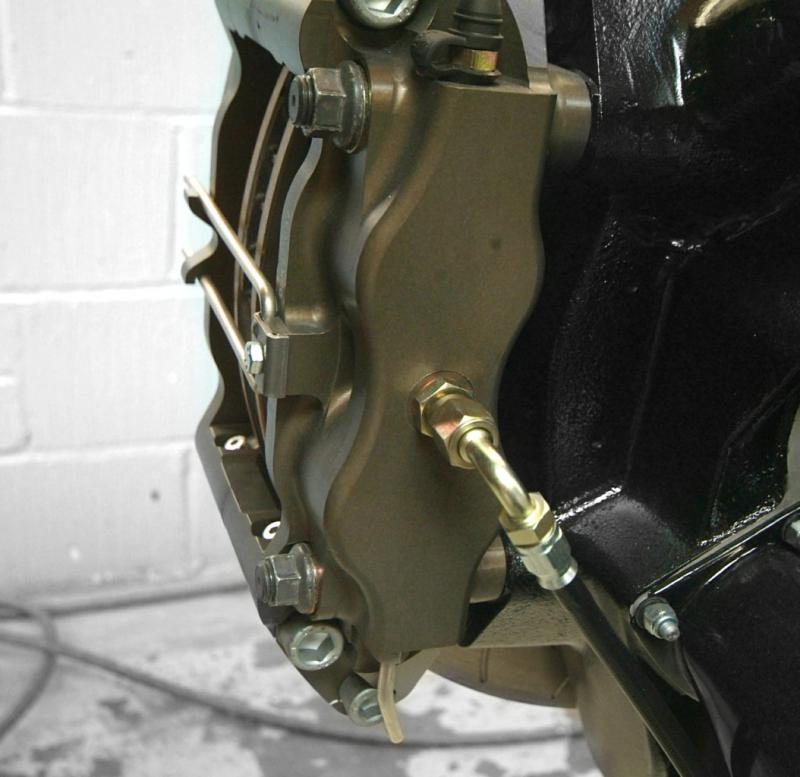

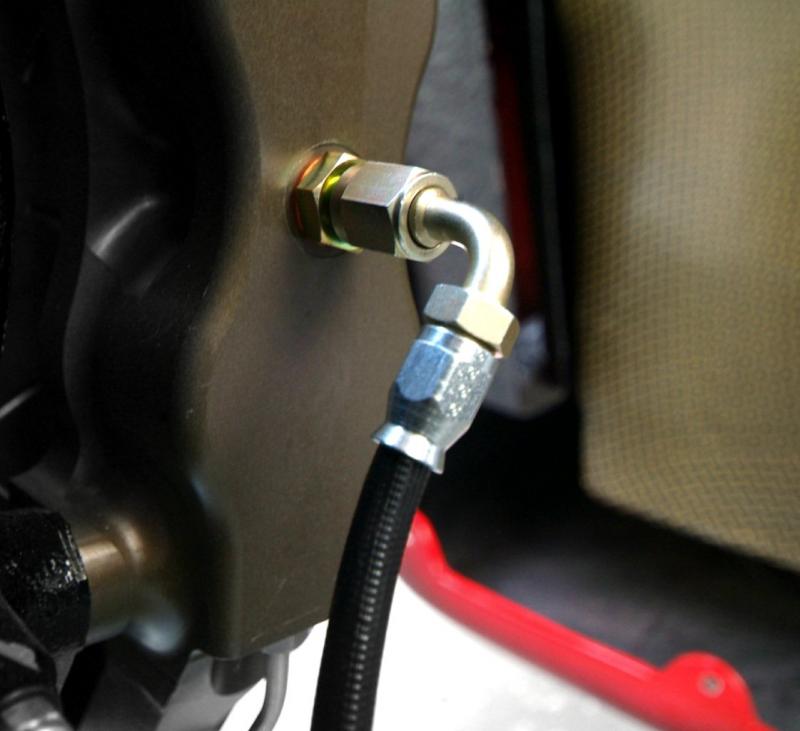

Brake lines now mostly installed as well as air jacks so now turning our attention to the fuel system. Kink in the line from the front master cylinder is being adjusted as lines not yet tightened. James clearly enjoying applying some more Zircotec insulation film to any exposed areas of the tanks before the heat shields are mounted. Should have them mounted in the chassis for the final time tomorrow. Quite frustrating, fitting, removing, fitting removing, makes one feel we are further advanced than we are when they are first fitted, but the only way to get a proper job in my view.
1788305d1381912180-f40-lm-restoration-101013-006s
1788306d1381912180-f40-lm-restoration-101013-008s
1788307d1381912180-f40-lm-restoration-101013-013s

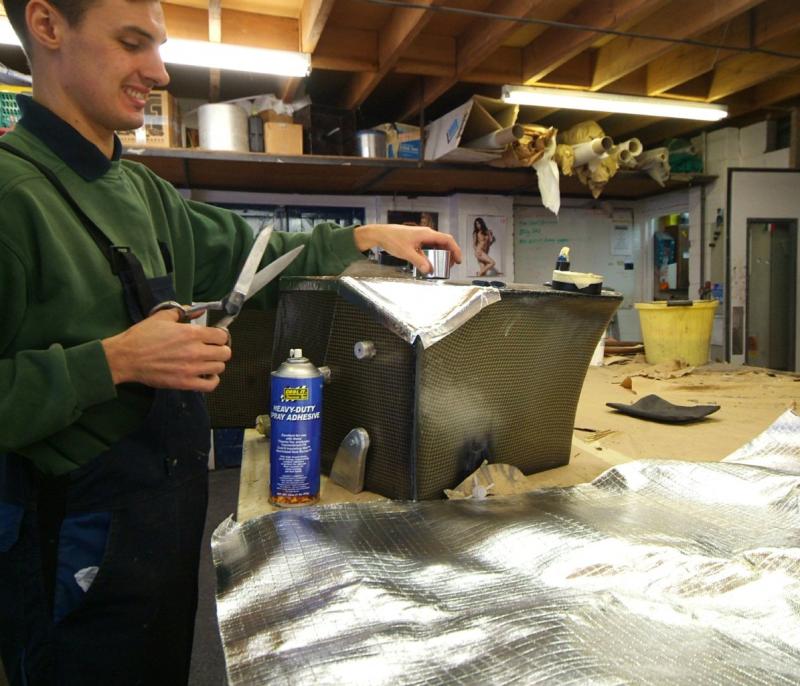

1788308d1381912214-f40-lm-restoration-10th1013-002s
1788309d1381912214-f40-lm-restoration-10102013a-002s

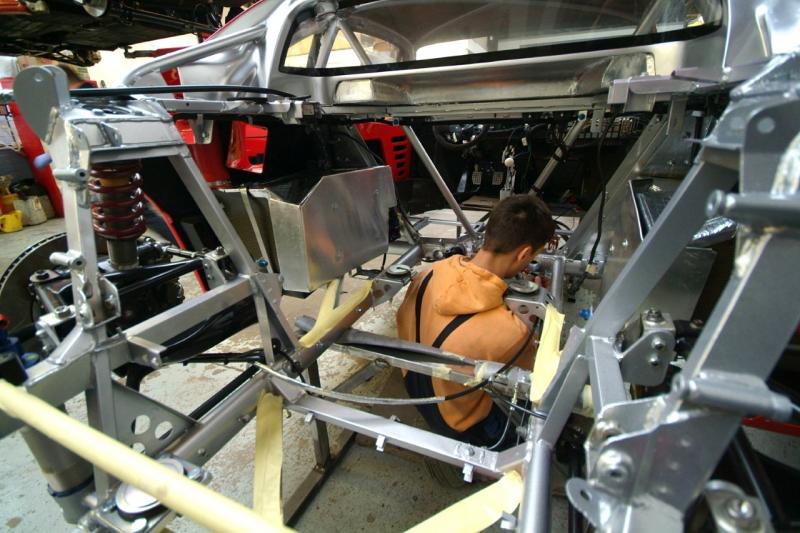

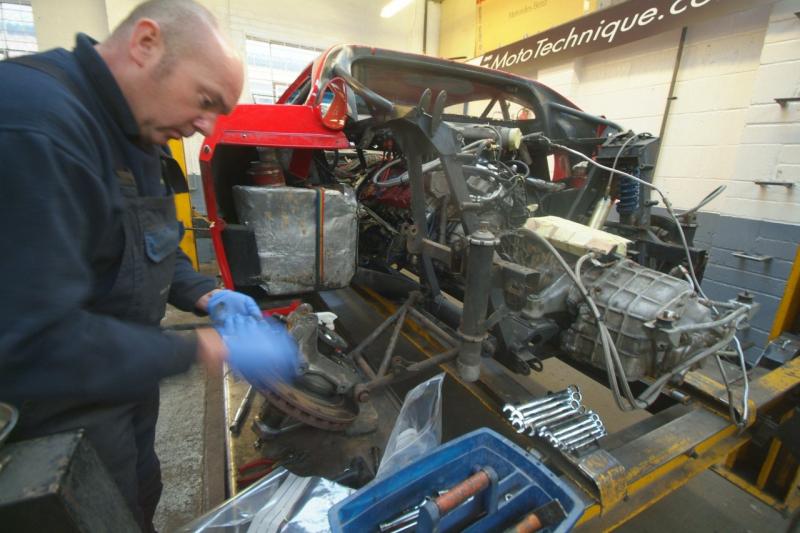

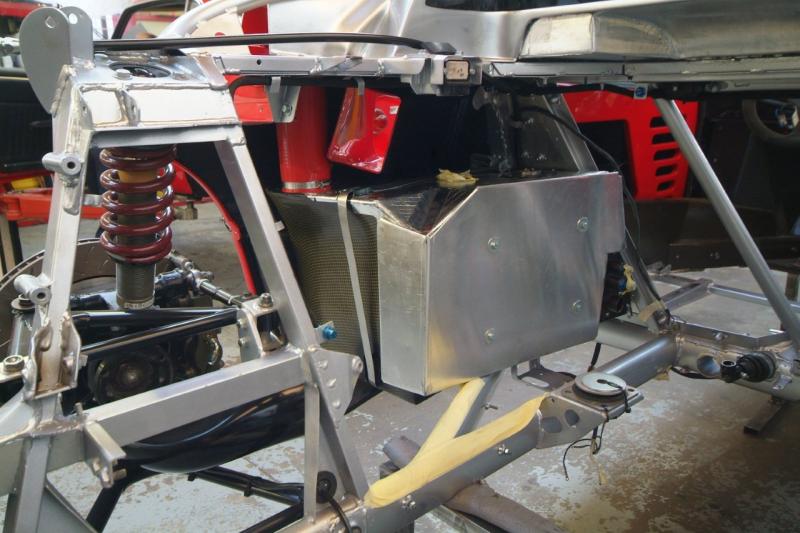

The fuel tanks complete with heat shields are finally in and this time we hope for good. In these shots you can firstly see where we came from, complete with Rasta style tank tie down, and where we now are and it makes it easier when I look at the bills. In these shots you can see the extinguisher outlets, the fuel pressure regulator, the air lines to the rear jacks, brake lines, in effect most of what will finally give the car life.
1788829d1381994944-f40-lm-restoration-111-010s
1788830d1381994944-f40-lm-restoration-11th102013-002s-2-
1788833d1381994957-f40-lm-restoration-dscf6206s

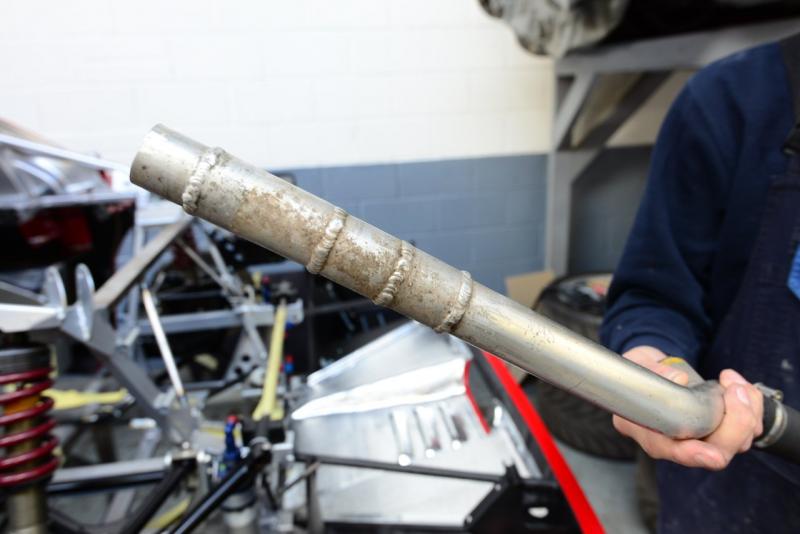

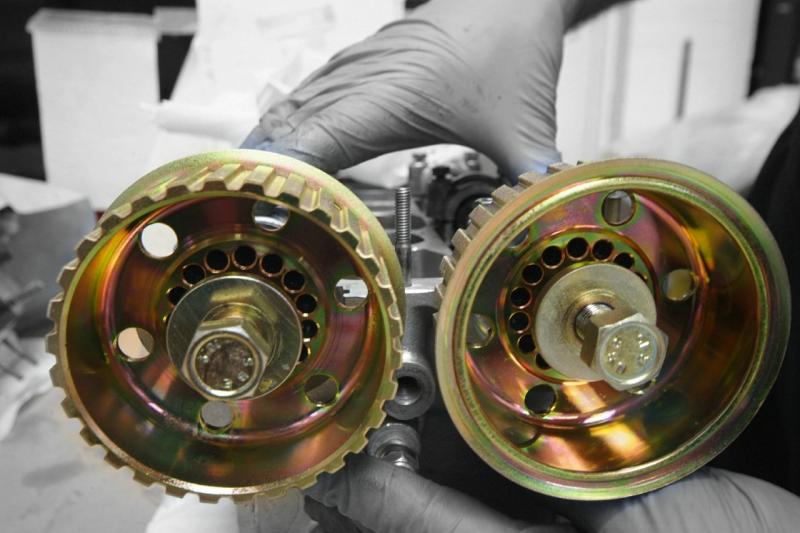

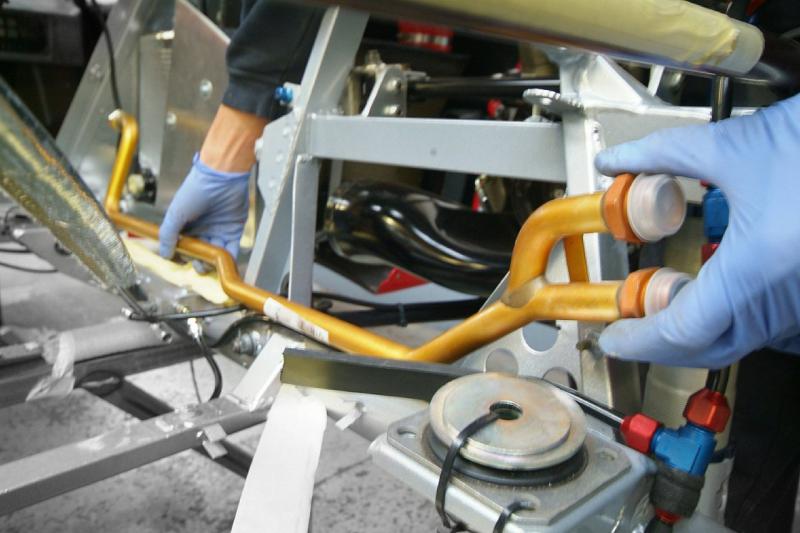

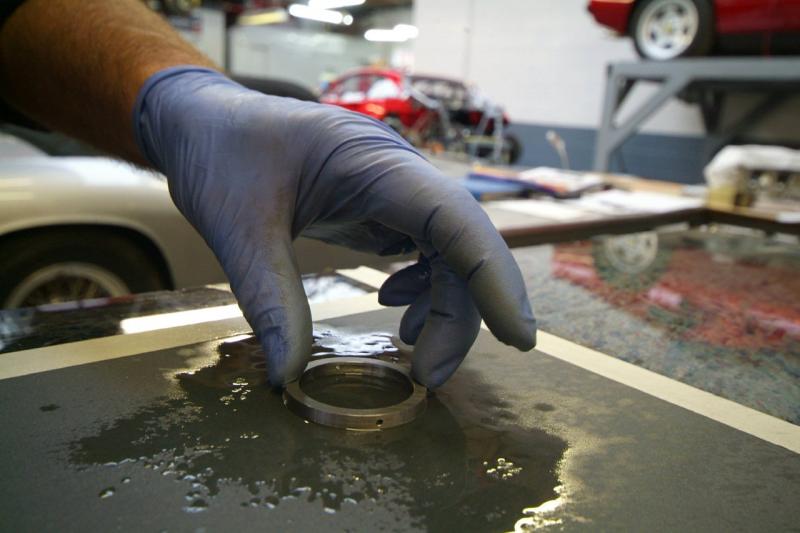

So, today’s helping is our restored cam drive sprockets in place on the end of the camshafts, oil feed pipes being trial fitted, water pump bearing being pressed into place on the hydraulic press, and Colin de-burring the new gear shim. Also a shot of some of the pipes we are replacing which look more like an Apprentices welding test!
1789345d1382083033-f40-lm-restoration-151013-005s
1789346d1382083033-f40-lm-restoration-151013-006s
1789347d1382083033-f40-lm-restoration-11th102013-009s

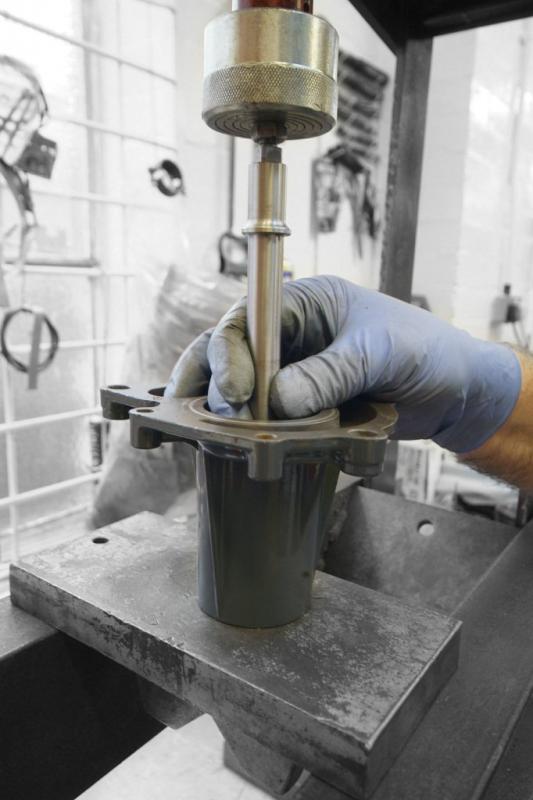

1789348d1382083280-f40-lm-restoration-151013-003s
1789349d1382083280-f40-lm-restoration-dsc_0621s

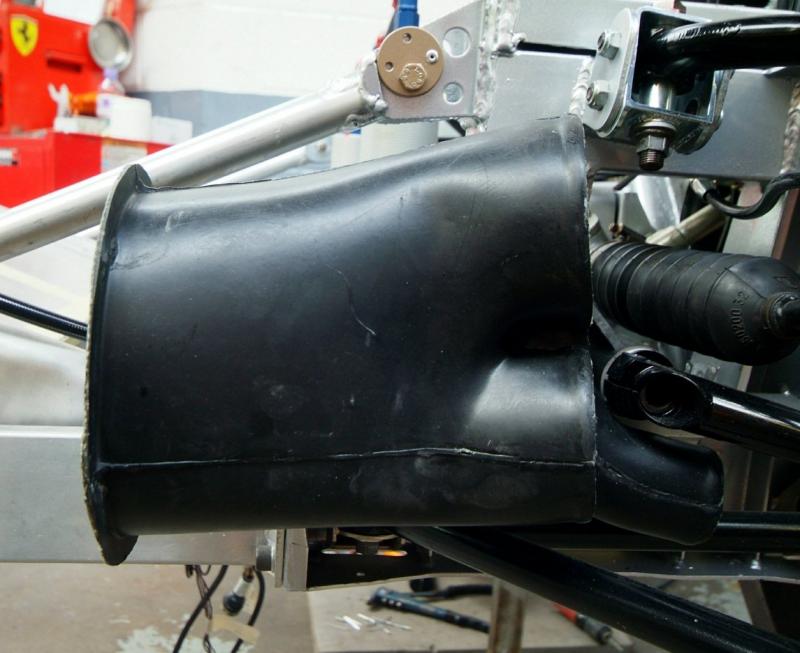

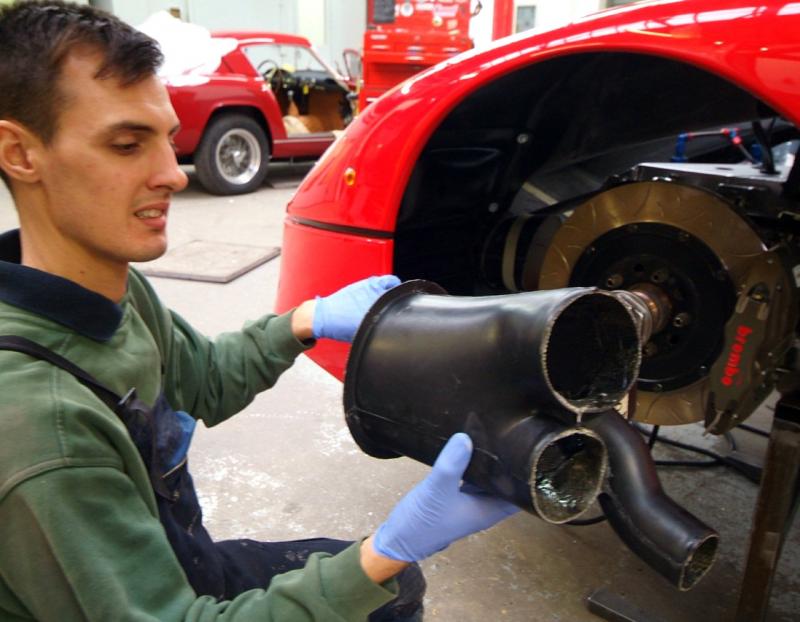

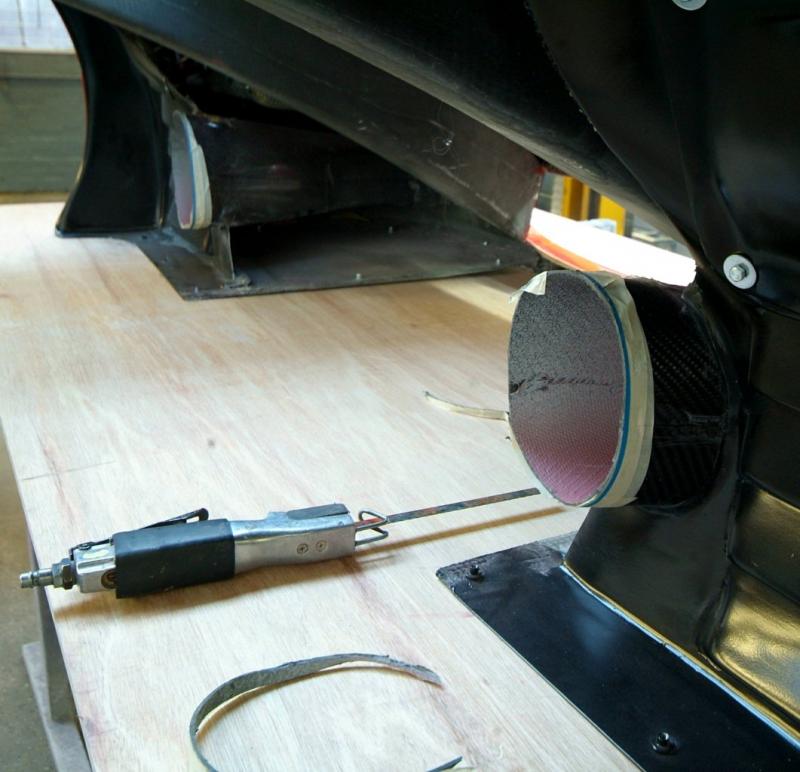

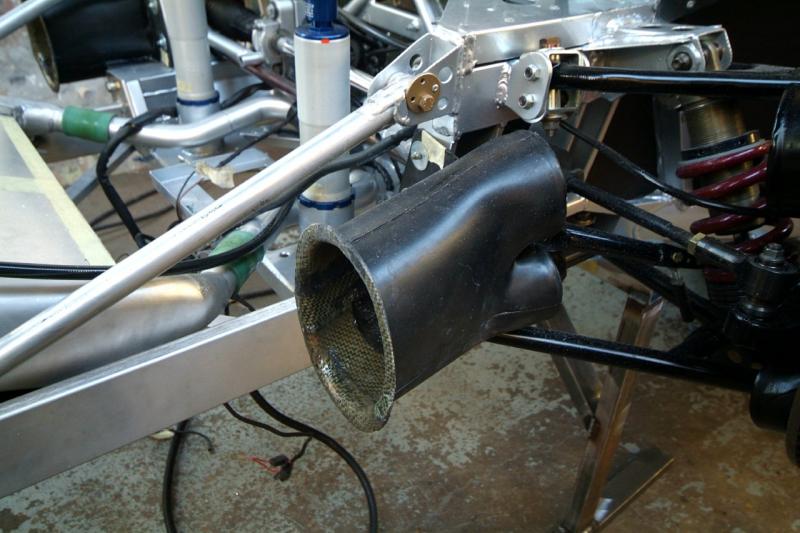

James now sorting out the front brake cooling ducts. Needless to say they are pretty simply cast Kevlar pieces so after adjusting they will be given the Mototechnique treatment which I will post later today. Only problem was that, true to Italian form, the diameter of the lower duct is different on the hub to the chassis element!
1789728d1382160579-f40-lm-restoration-111013-002s
1789729d1382160579-f40-lm-restoration-111013-006s
1789731d1382160579-f40-lm-restoration-141013-011s
1789732d1382160748-f40-lm-restoration-10102013a-006s

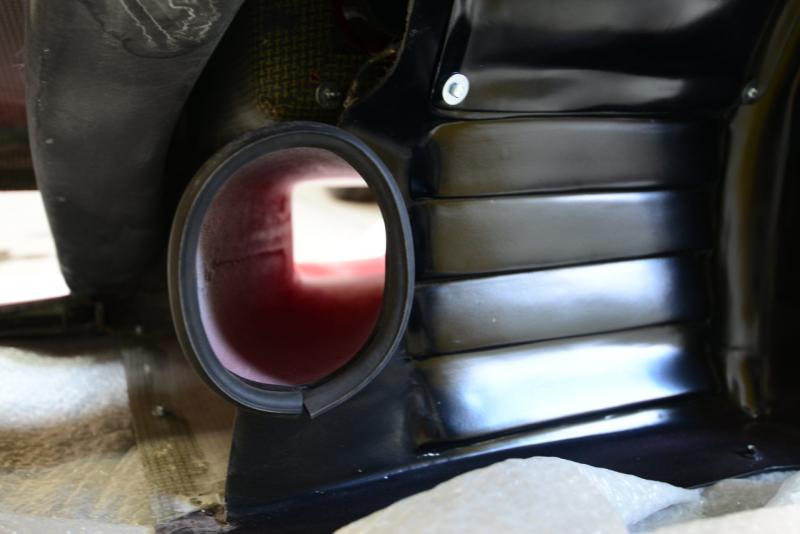

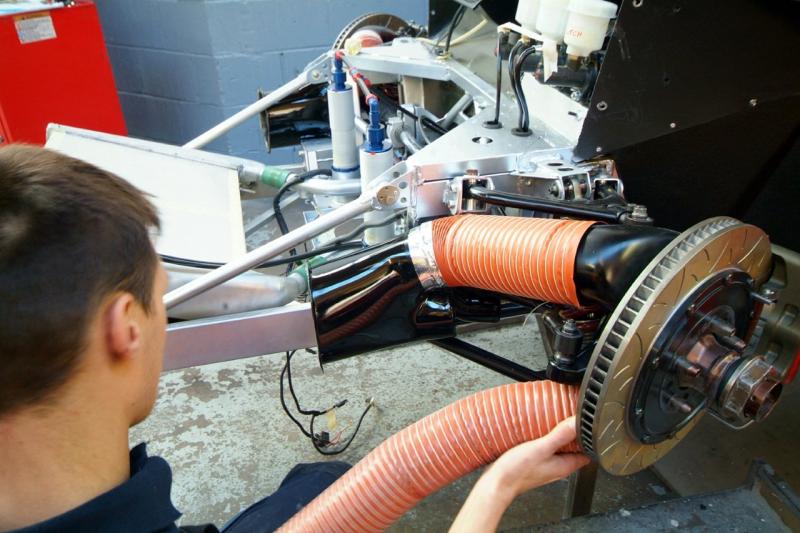

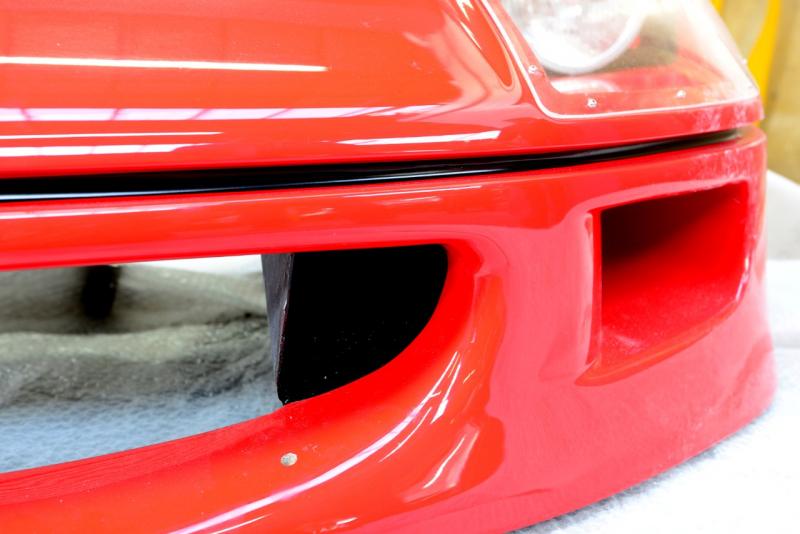

In this phase you can see James fitting up the Elephant trunk and trying his best on the bottom section but we are going to have to adapt. Also note the before and after finish on the duct itself. Certainly beginning to look the part. Front clam now mates perfectly with the brake cooling ducts and here you can also see the high pressure inlets either side of the rad driving that air into the low pressure area that is the front wheel arch.

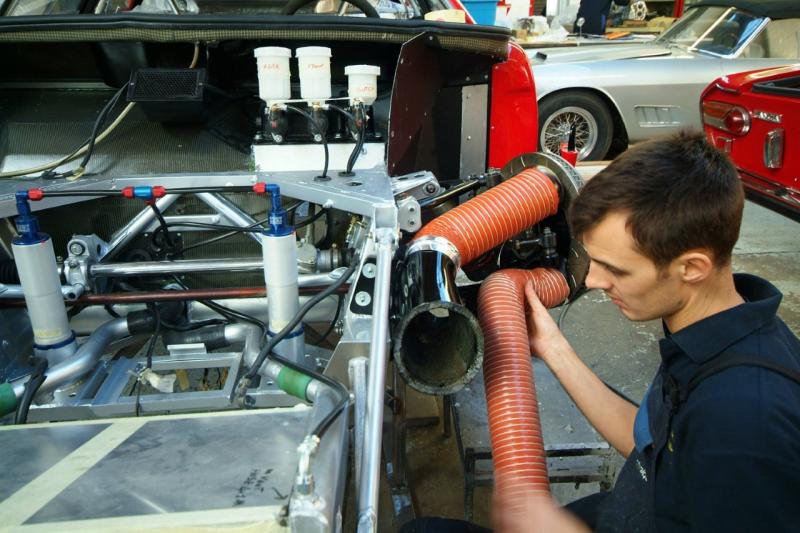

1789798d1382196464-f40-lm-restoration-16102013-033s
1789800d1382196464-f40-lm-restoration-dsc_0659s
1789799d1382196464-f40-lm-restoration-16102013-029s
1789801d1382196554-f40-lm-restoration-dsc_0650s

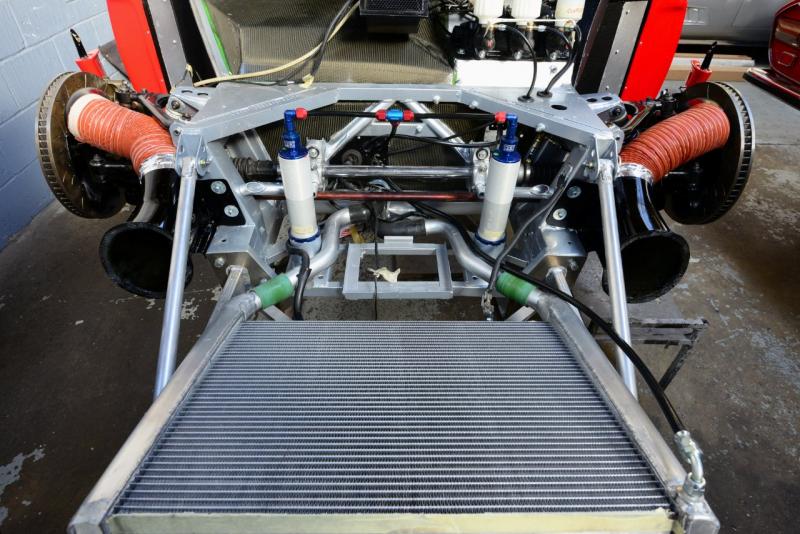

Missed a stage-A posts being fitted now, rad uncovered for the first time for these shots, and ductwork being taped into place.

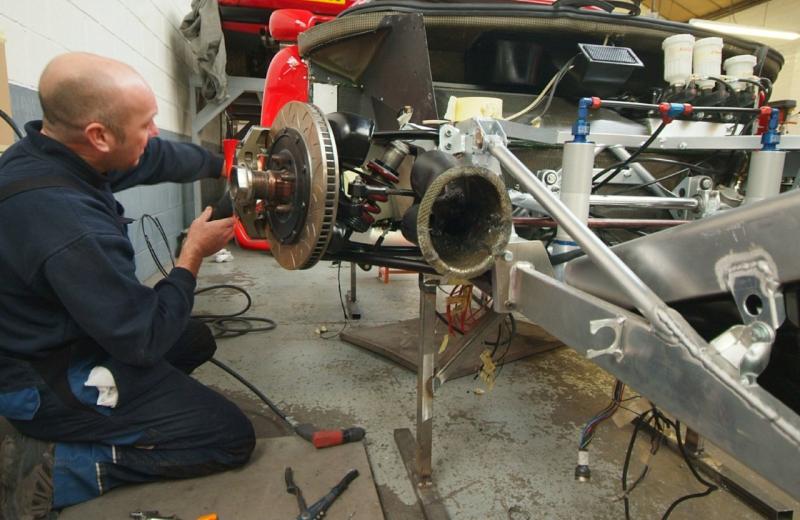

1790187d1382259922-f40-lm-restoration-141013-012s
1790189d1382259922-f40-lm-restoration-dsc_0633s

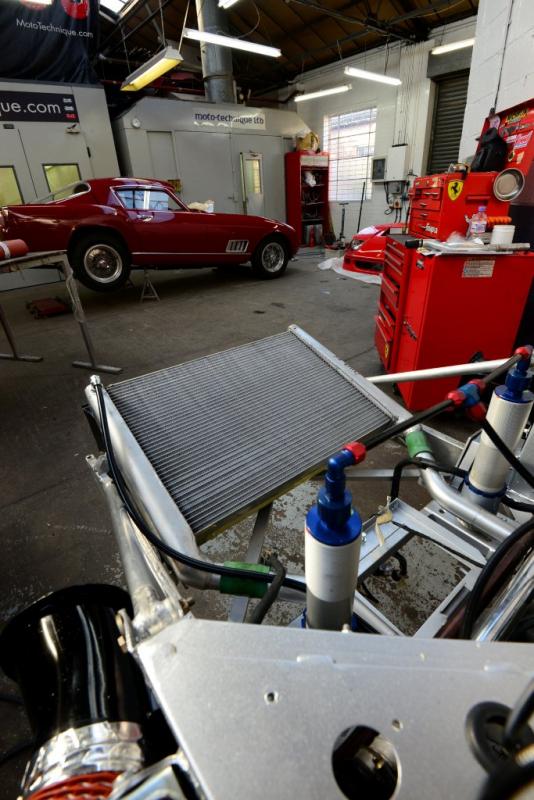

1790190d1382259922-f40-lm-restoration-dsc_0641s

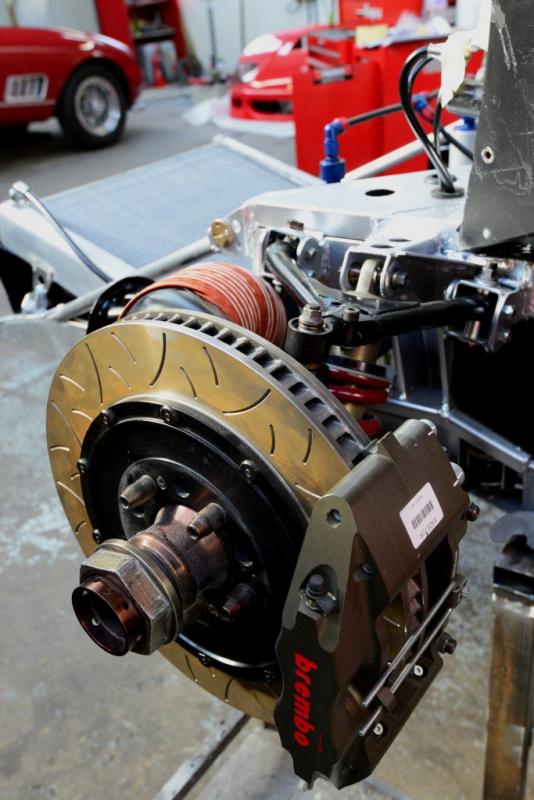

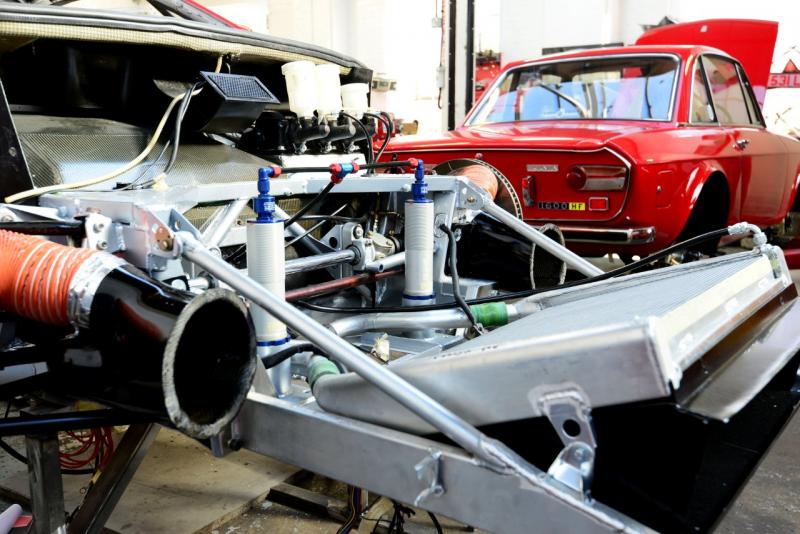

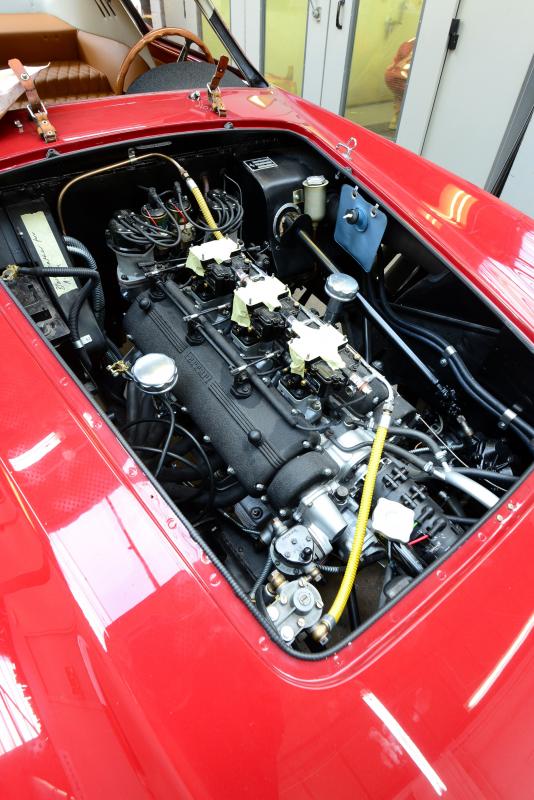

A few more pics of the brakes, front jacking system etc. A very nice HF and a little bit of engineering art shot under florescent lighting forgetting to adjust white balance hence odd colour.

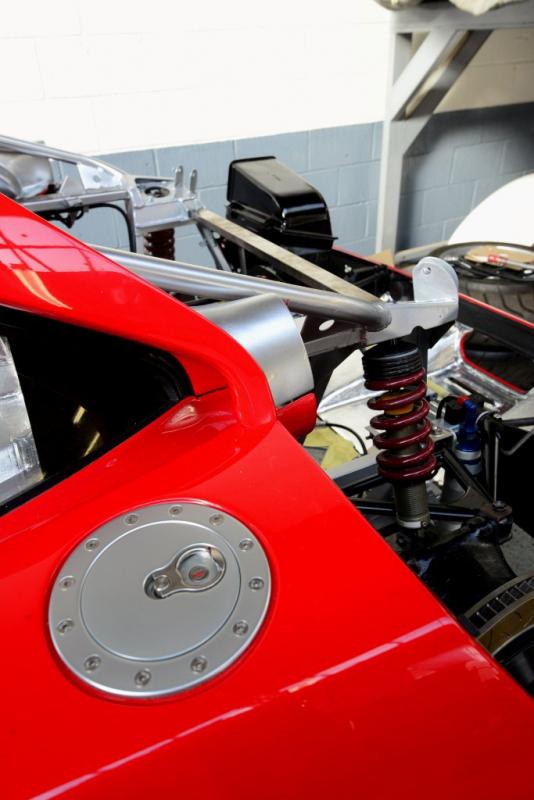

1790335d1382293398-f40-lm-restoration-dsc_0630s
1790337d1382293398-f40-lm-restoration-dsc_0660s
1790338d1382293398-f40-lm-restoration-dsc_0643
1790339d1382293438-f40-lm-restoration-dsc_0653s

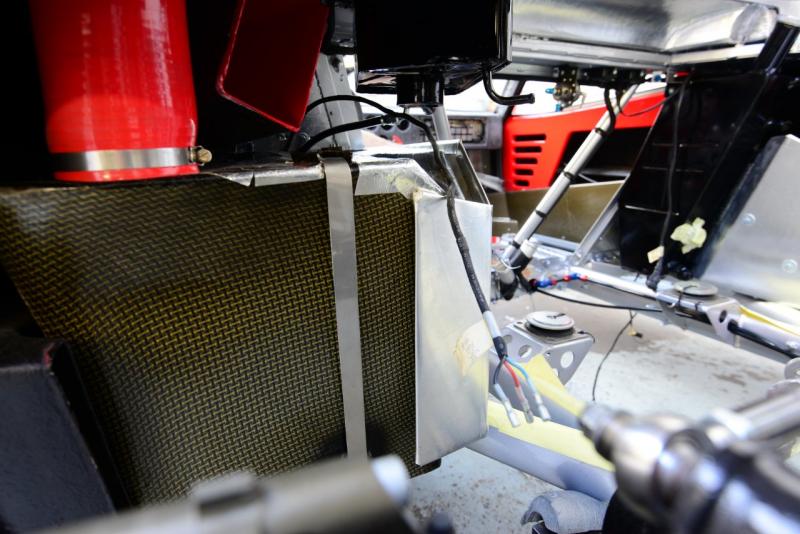

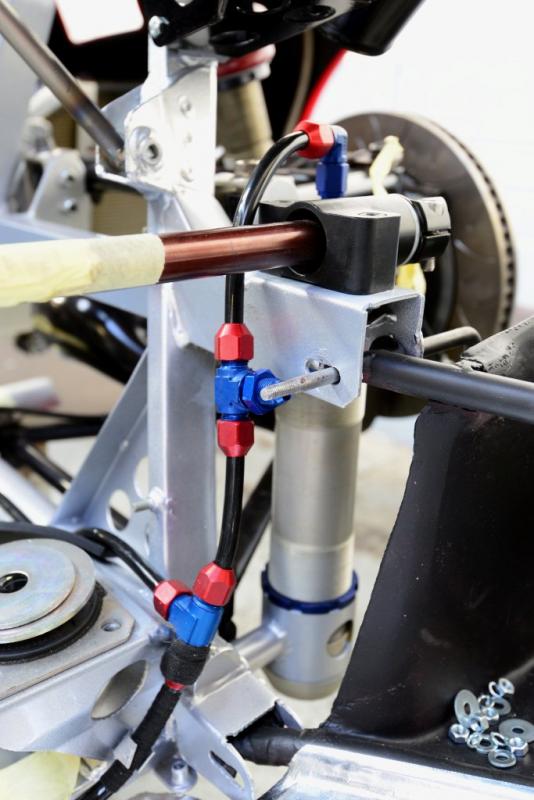

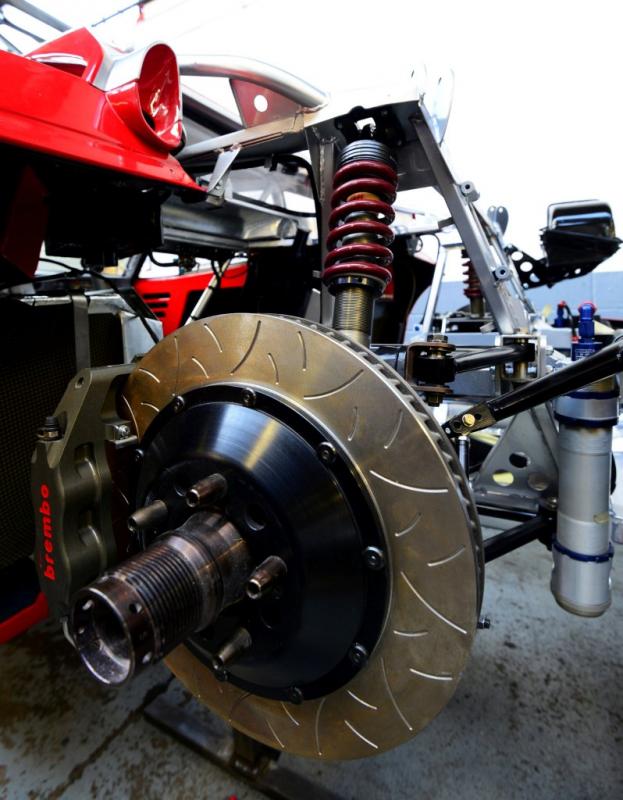

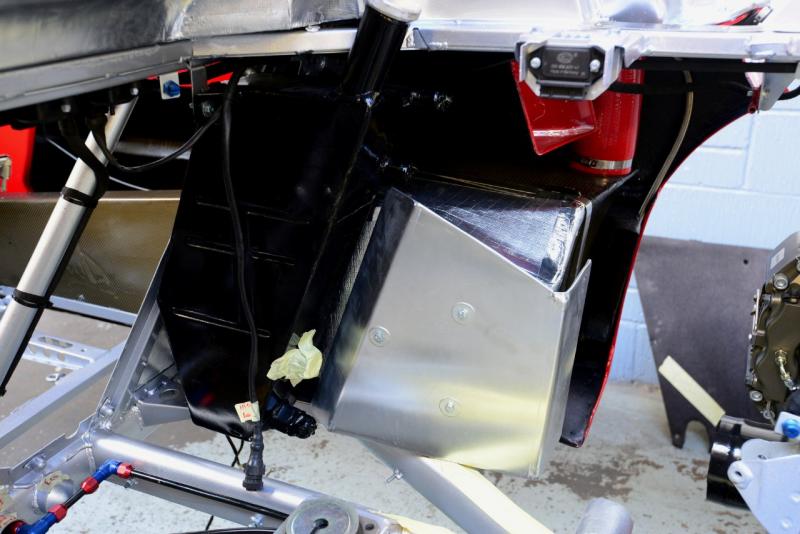

Now the oil tank is in, the brake lies run, the coolant header tank in, jacks etc and here are an assorted bunch of shots showing all the various details.

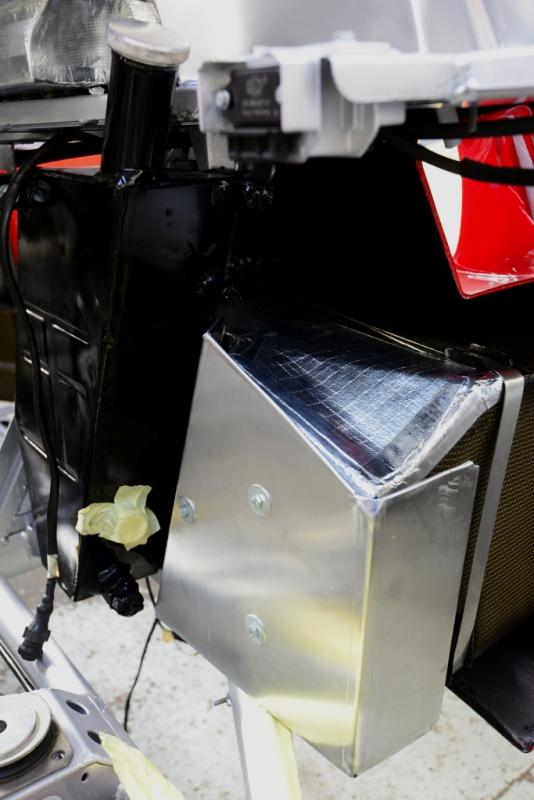

1790703d1382341651-f40-lm-restoration-dsc_0608s

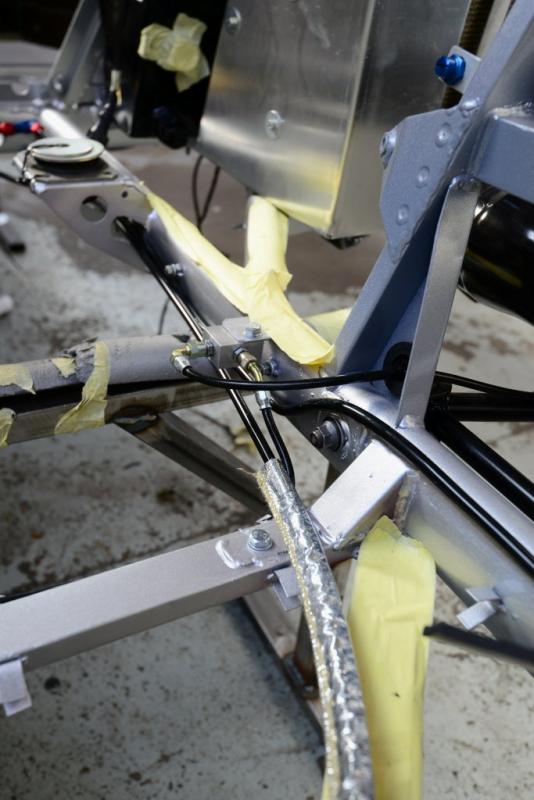

1790704d1382341651-f40-lm-restoration-dsc_0611s
1790705d1382341651-f40-lm-restoration-dsc_0612-3-s
1790706d1382341651-f40-lm-restoration-dsc_0620s
1790708d1382341713-f40-lm-restoration-dsc_0617s

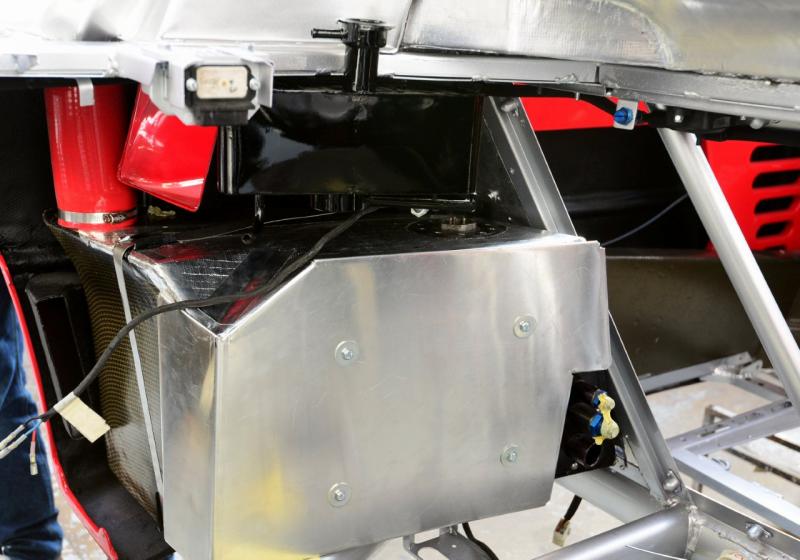

1790710d1382341794-f40-lm-restoration-dsc_0609s
1790707d1382341713-f40-lm-restoration-dsc_0616s

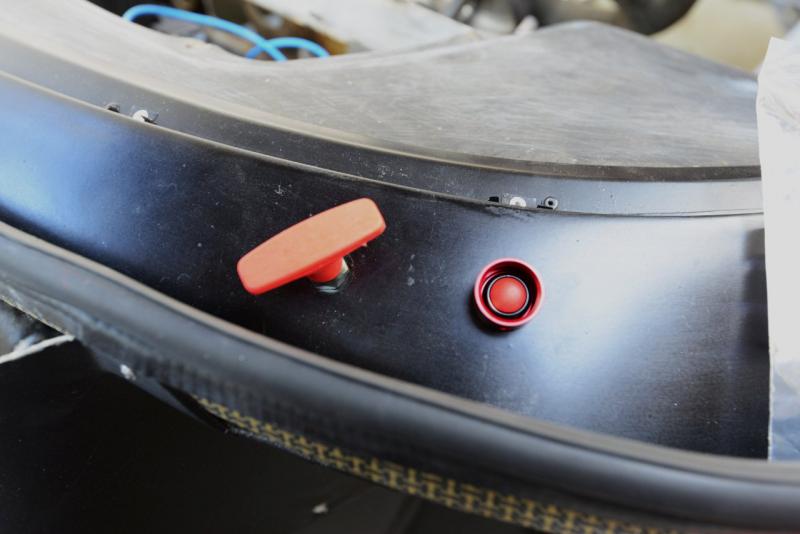

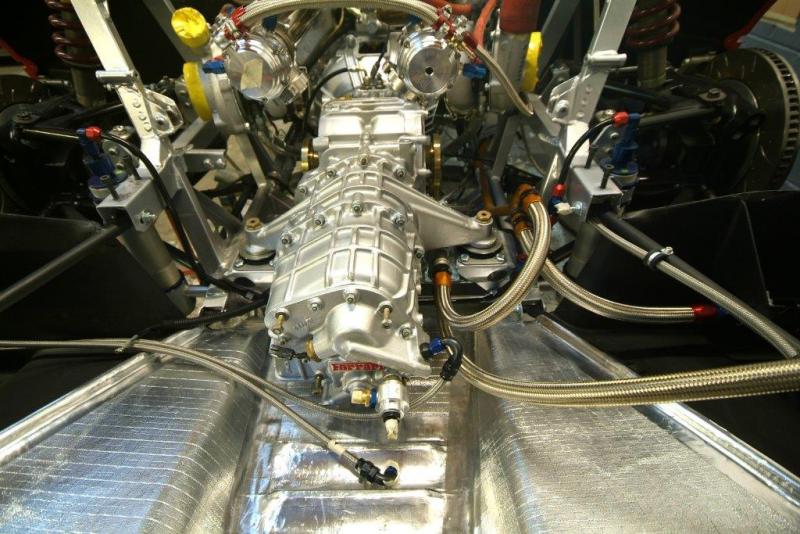

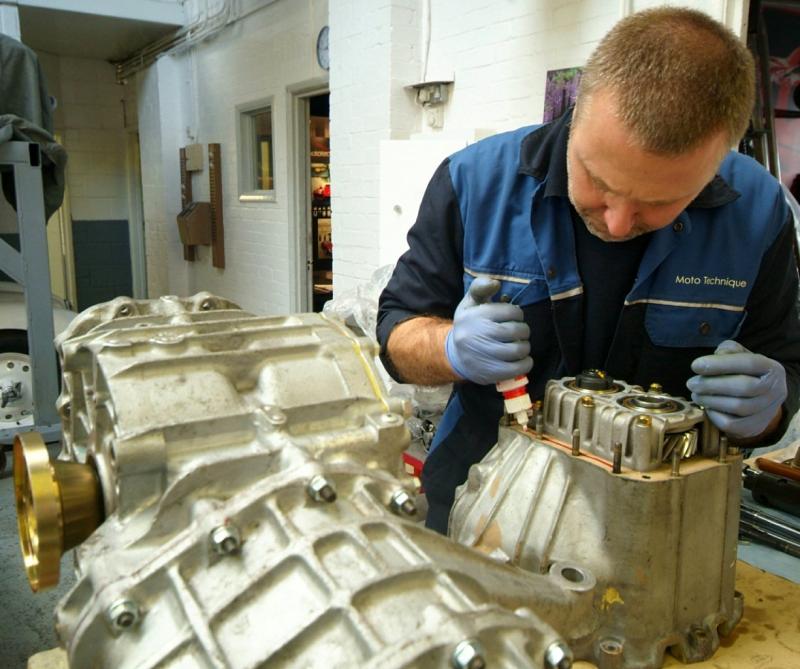

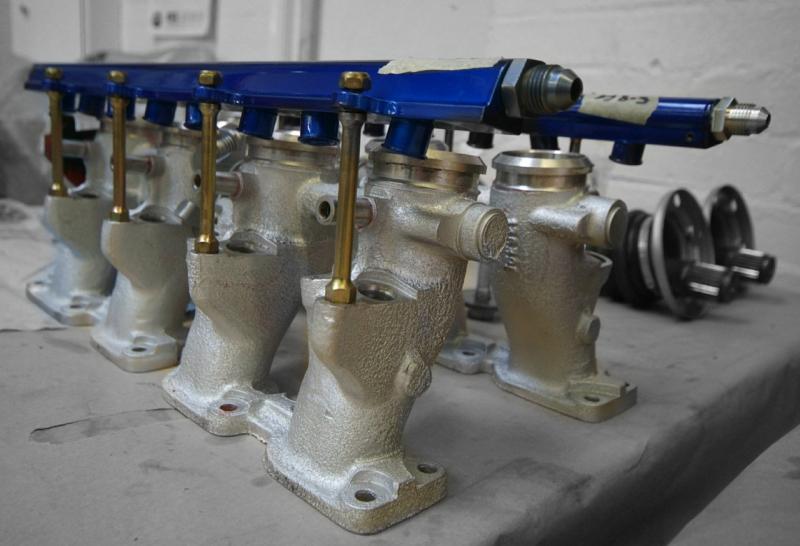

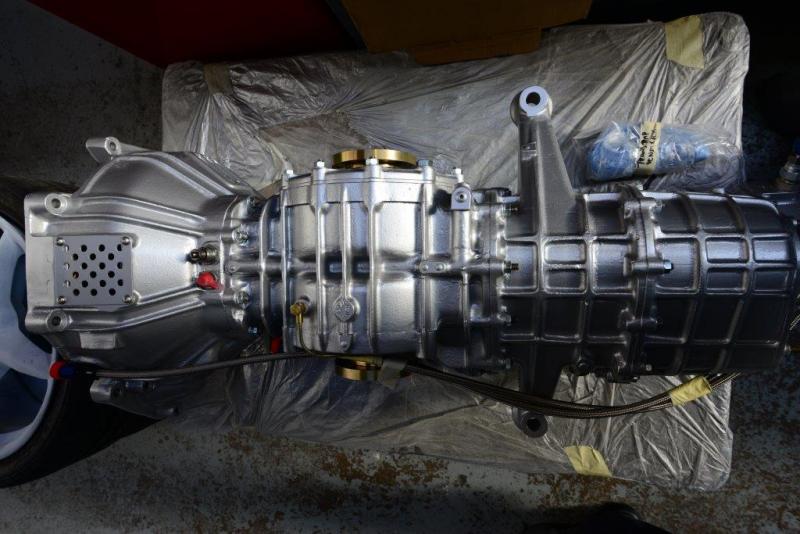

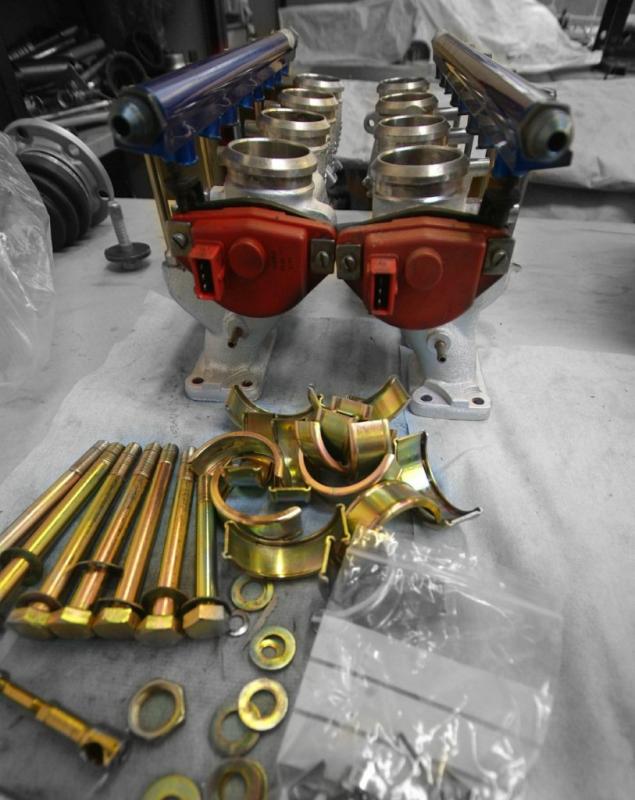

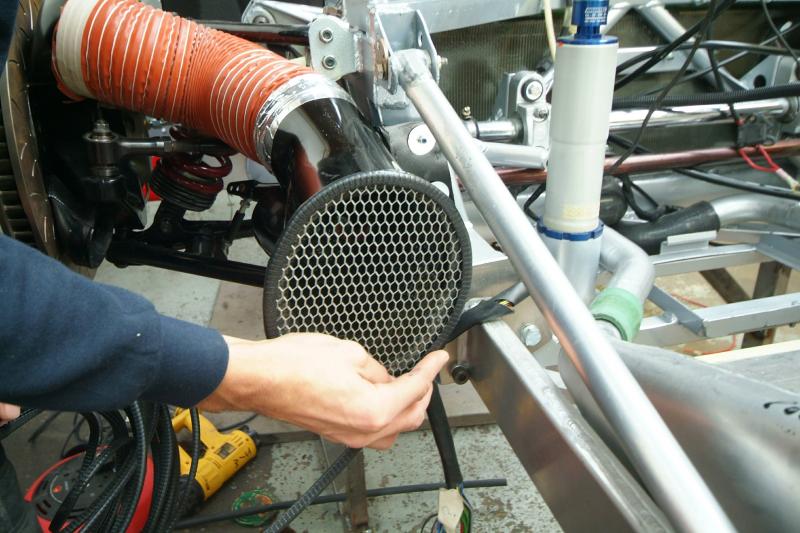

Gearbox etc now in one piece which is a major step forward. Work now progressing on the fuel rails etc, all stripped and rebuilt. James, with a very odd shaped head, has made up some screens to keep rubbish out of the discs. Finally, kill switch and fire extinguisher external buttons all now wired through.
1790839d1382376313-f40-lm-restoration-16102013-002s

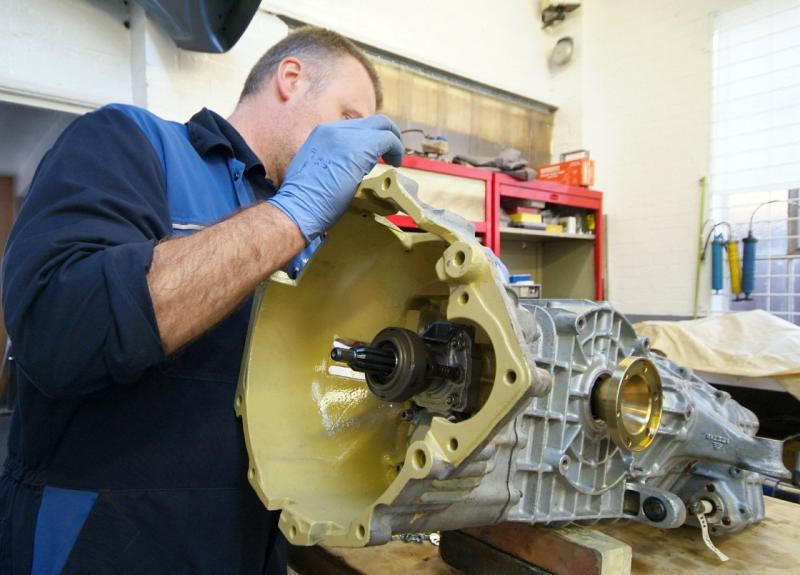

1790840d1382376313-f40-lm-restoration-16102013-022s

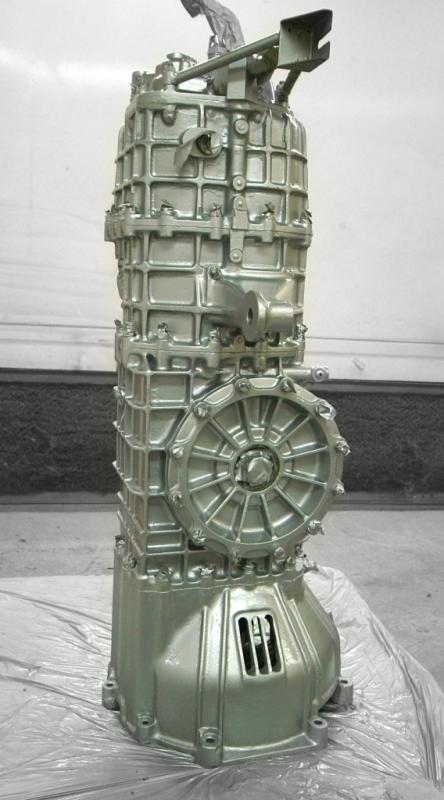

1790841d1382376313-f40-lm-restoration-21st-occy13-015s
1790842d1382376383-f40-lm-restoration-21st-occy13-019s
1790843d1382376383-f40-lm-restoration-21st-occy13-022s
1790844d1382376460-f40-lm-restoration-21st-occy13-016s
1790845d1382376460-f40-lm-restoration-21st-occy13-013
1790846d1382376605-f40-lm-restoration-dsc_0624s

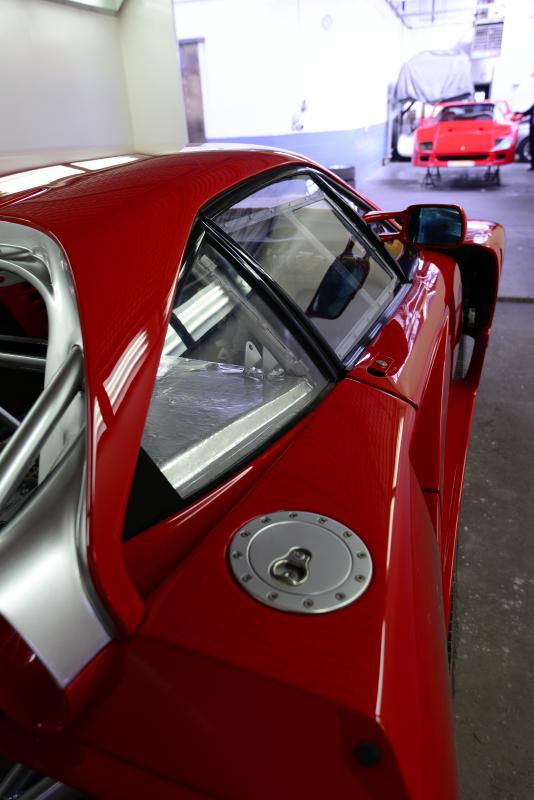

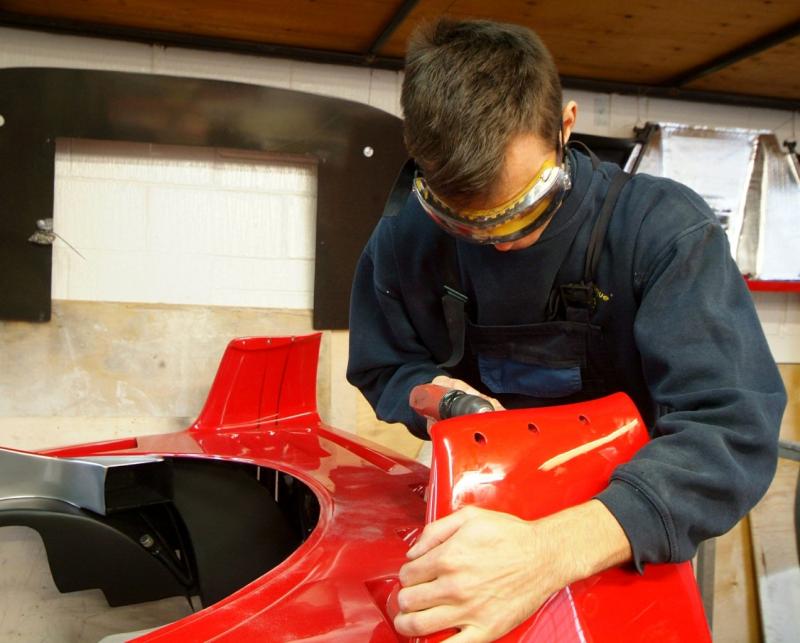

A last few Red shots from the recent past to end on that I have not posted, but then its cold turkey for me for the next 10 days. Engine is the last big one and just waiting for our final parts so hopefully that should be my surprise as soon as I get to check on line.
1790927d1382386621-f40-lm-restoration-dsc_0497s
1790928d1382386621-f40-lm-restoration-141013-019s

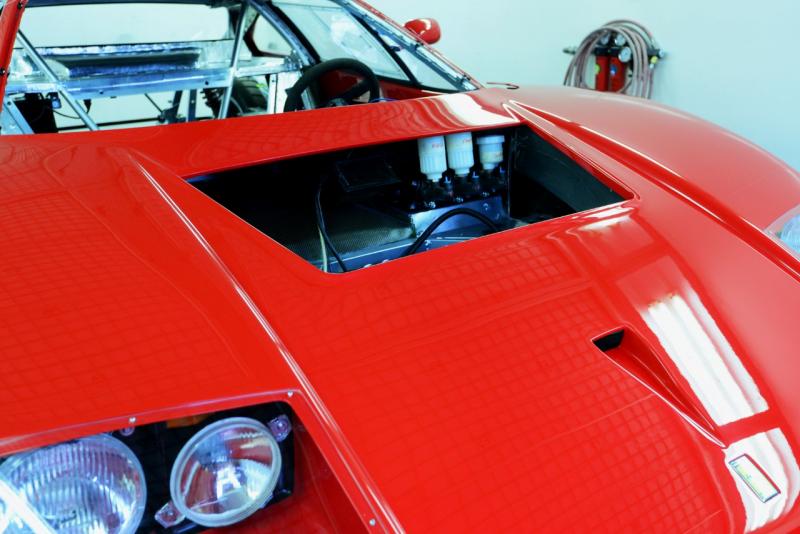

1790929d1382386621-f40-lm-restoration-dsc_0571s
1790930d1382386621-f40-lm-restoration-dsc_0538

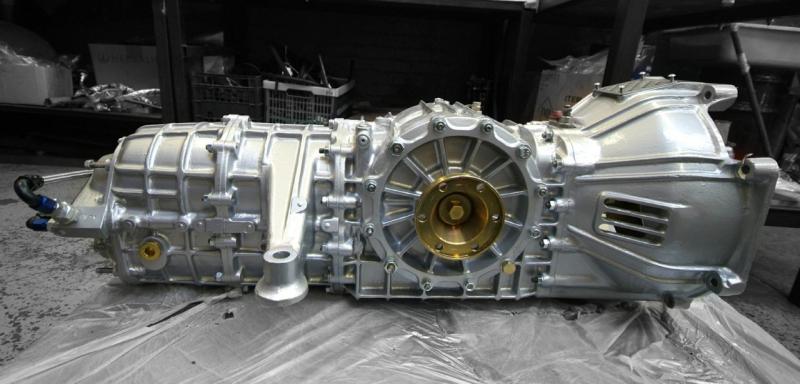

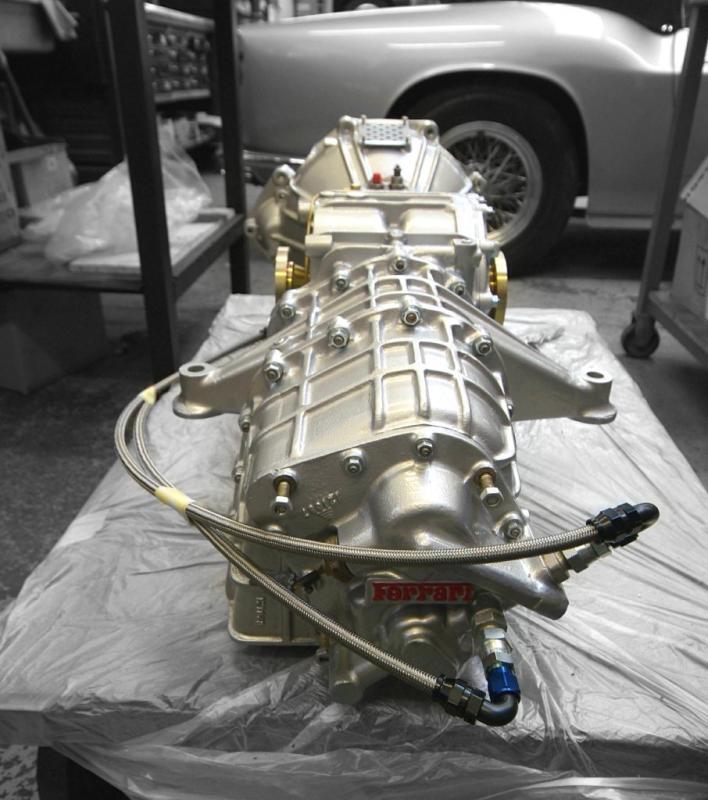

One major milestone in my absence, a totally complete and hopefully functioning transmission. How is it that Ferraris mechanical components, particularly engines and transmissions, just look right? You look back at any of the Enzo era cars and under the bonnet was as good as the rest, and I don’t feel you can quite say the same today. In this case, here we have what appears as an enormous and probably pretty inefficient packaging by today’s standards, but, to me at least, it just looks right; in fact it looks great, but maybe I am biased by ownership and relief?
1797976d1383635598-f40-lm-restoration-311013-013s
1797977d1383635598-f40-lm-restoration-311013-022s

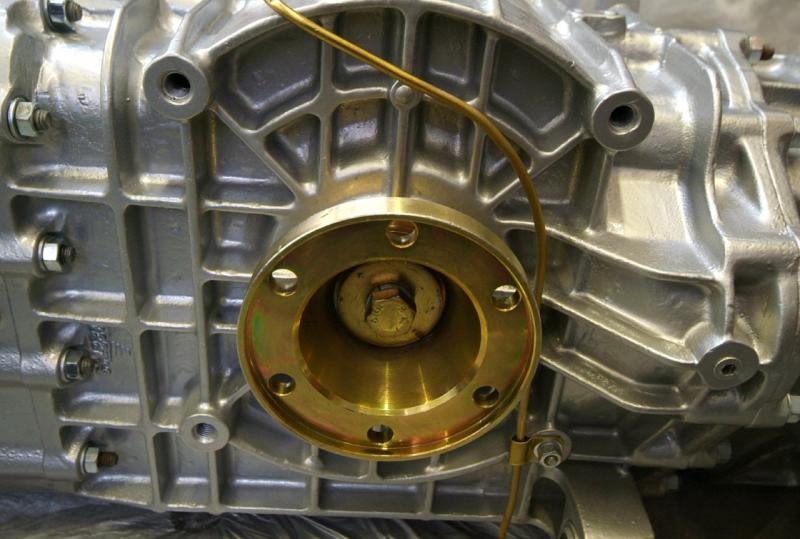

1797978d1383635598-f40-lm-restoration-311013-034s

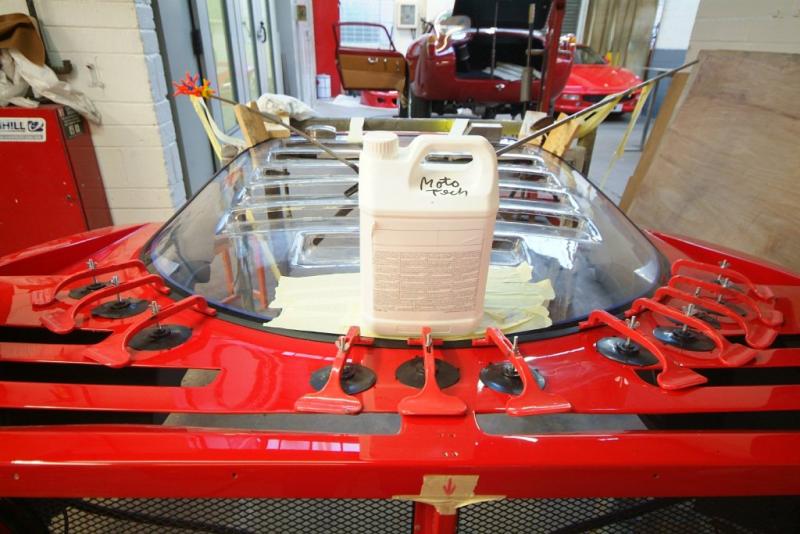

Rear screen all newly polished and finally bonded in place. I love the typical Mototechnique work arounds with rods, blocks and tape so as to ensure pressure is applied in every area.

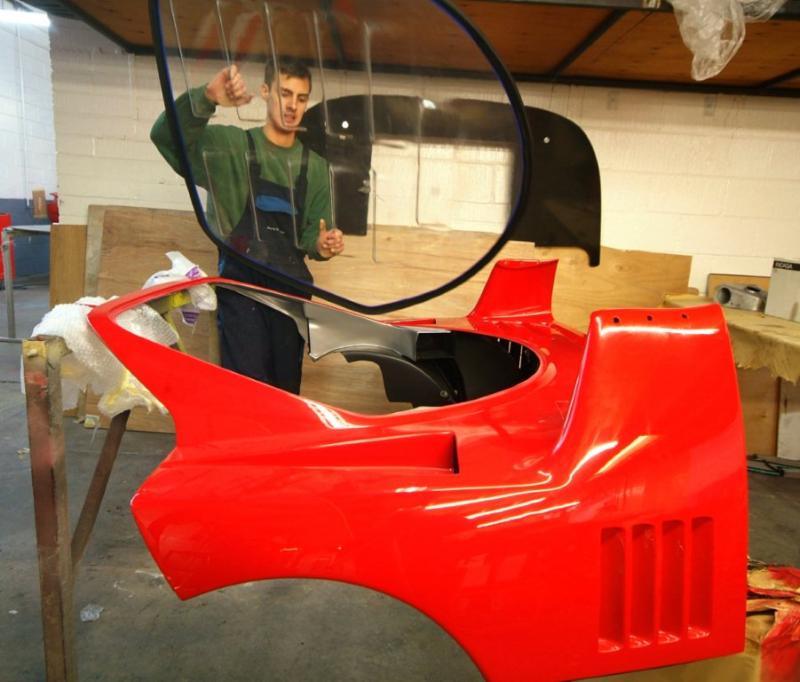

1798483d1383726948-f40-lm-restoration-231013-005s

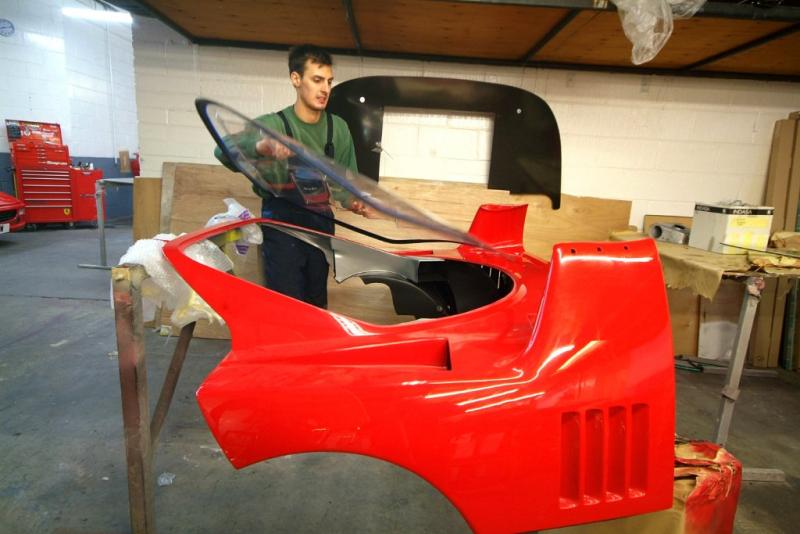

1798484d1383726948-f40-lm-restoration-231013-004s
1798485d1383726948-f40-lm-restoration-23102013-005s

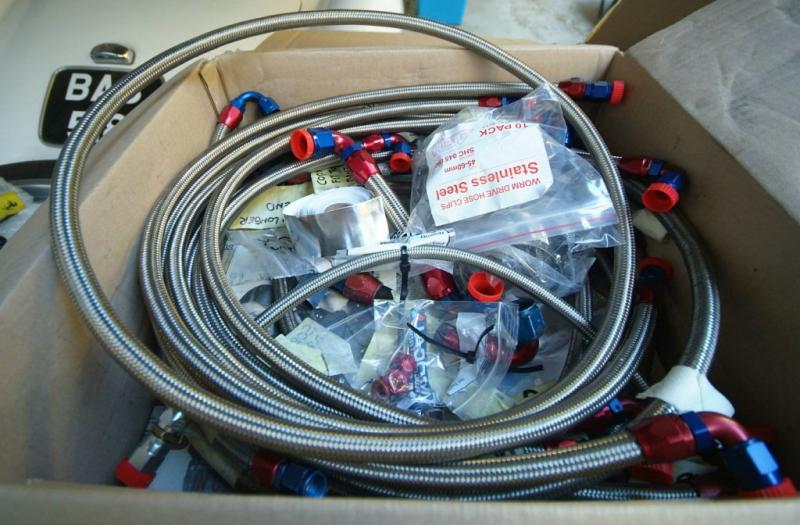

I was hoping we were just about finished with our parts buying but it just rolls on-another box of expensive hoses and ‘stuff’. Fuel pumps now back in and you can tell things have changed over here as James is out of shorts and back in his beanie to deal with all the minutiae of the wiring. Turns out that there was a lot of wiring which had just been terminated at each end whilst leaving the rest inert, so we have markedly reduced the loom. A lot of work on the electrical system has been ongoing but it is hardly photgenic. Finally the radiator has been out, pressure tested and so as to finish it off, has now been polished.
1798976d1383815569-f40-lm-restoration-29th-1013-012s

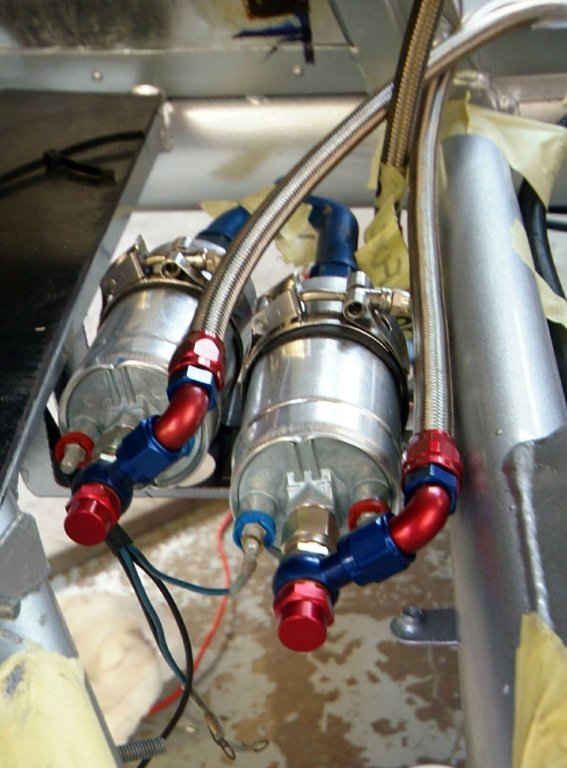

1798977d1383815569-f40-lm-restoration-29th-1013-015s

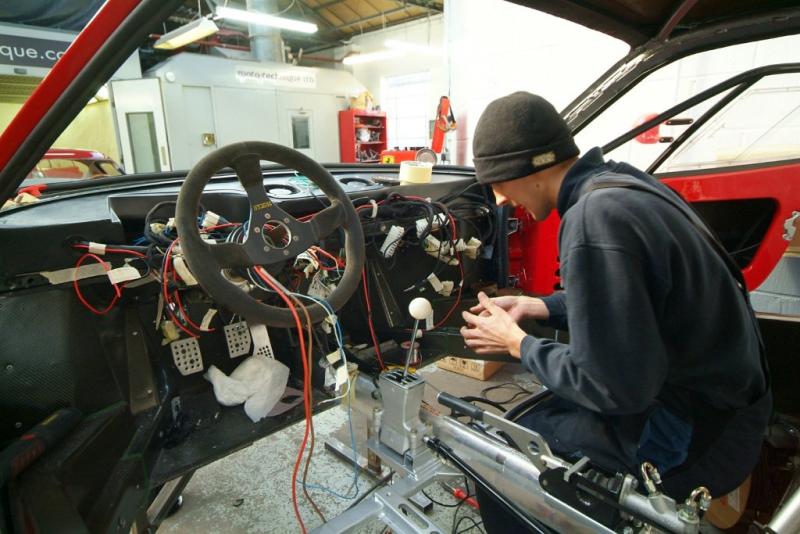

1798978d1383815569-f40-lm-restoration-29th-1013-016s

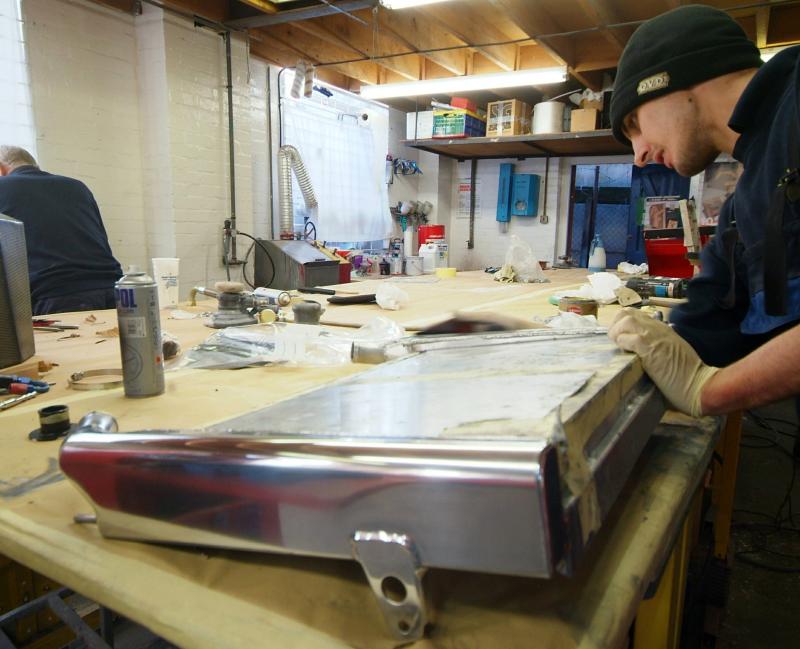

1798979d1383815569-f40-lm-restoration-29th-1013-033

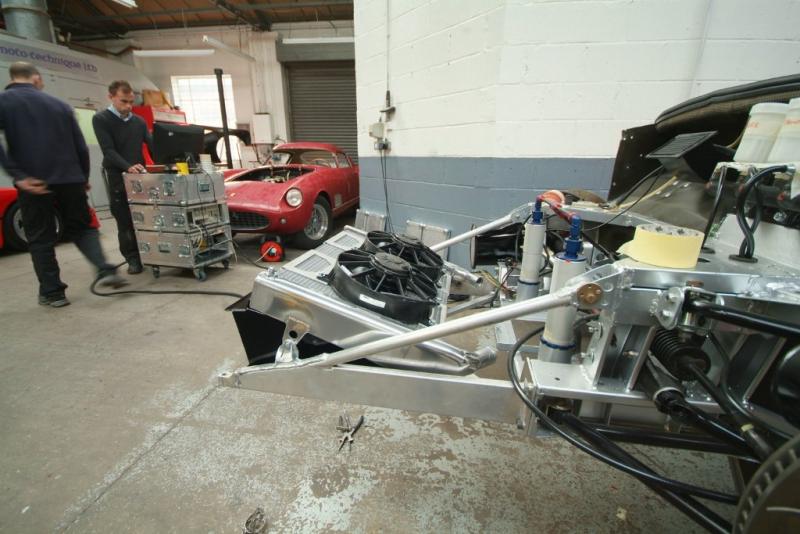

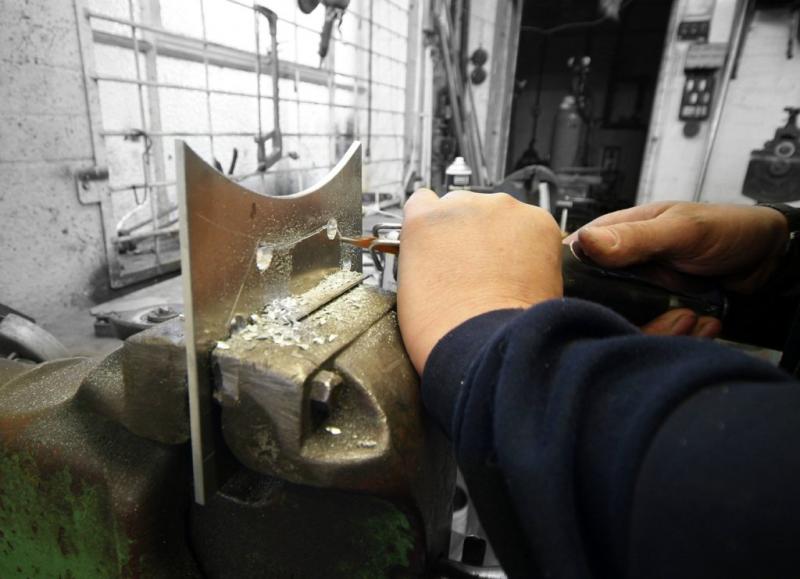

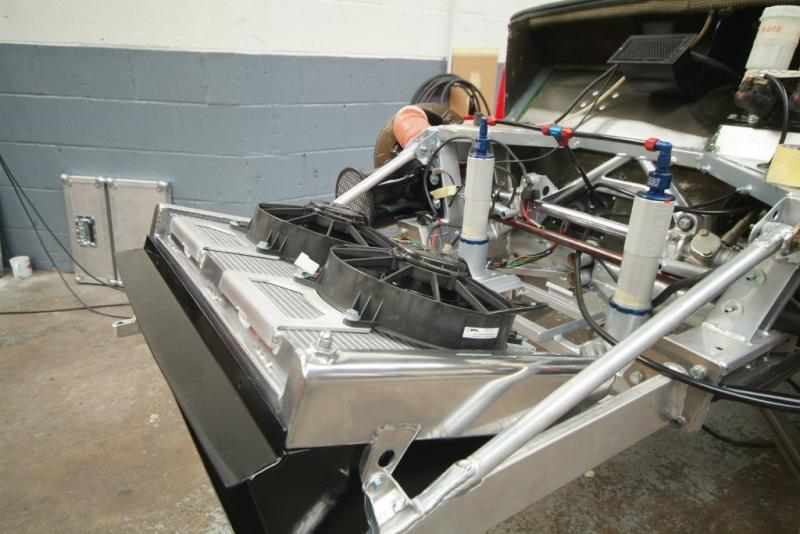

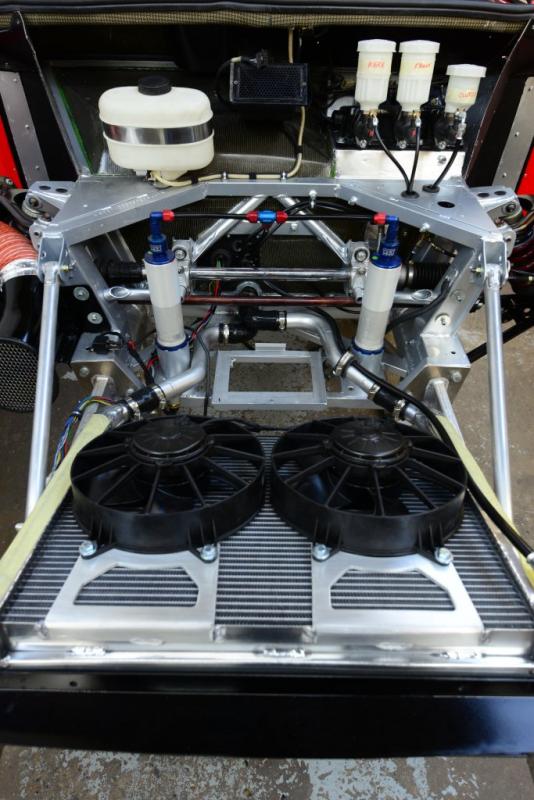

With the radiator tested and polished, time to fit the fans.Here you see another set of skilled hands making up the brackets and then the assembly back in place for the last time. I said that about the fuel tanks and as you will see from the next post , and that proved to be wishful thinking.
1799402d1383900697-f40-lm-restoration-311013-047s

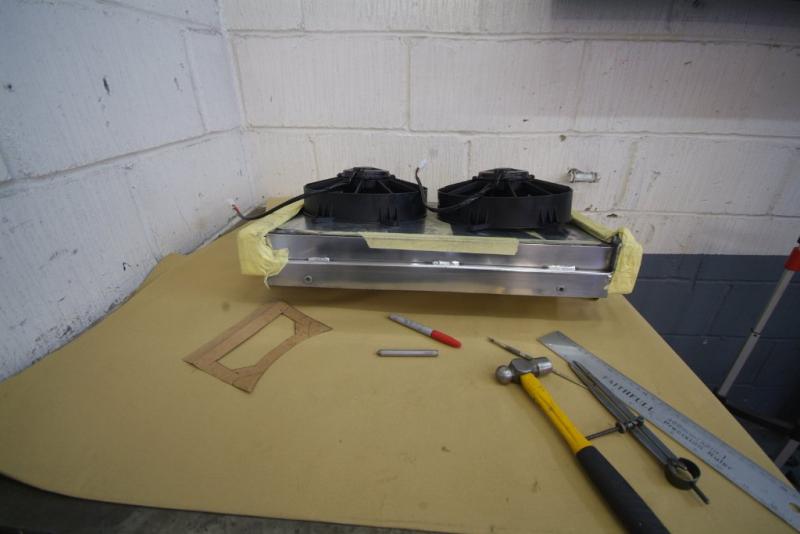

1799403d1383900697-f40-lm-restoration-311013-039s
1799404d1383900697-f40-lm-restoration-dscf6604s
1799405d1383900697-f40-lm-restoration-dscf6600s
I thought the tanks were in for good but no, out they came for the umpteenth time so as to be filled with foam and fitting of the new “ VITON” tank gaskets. Now when they go back it really will be their final trip.

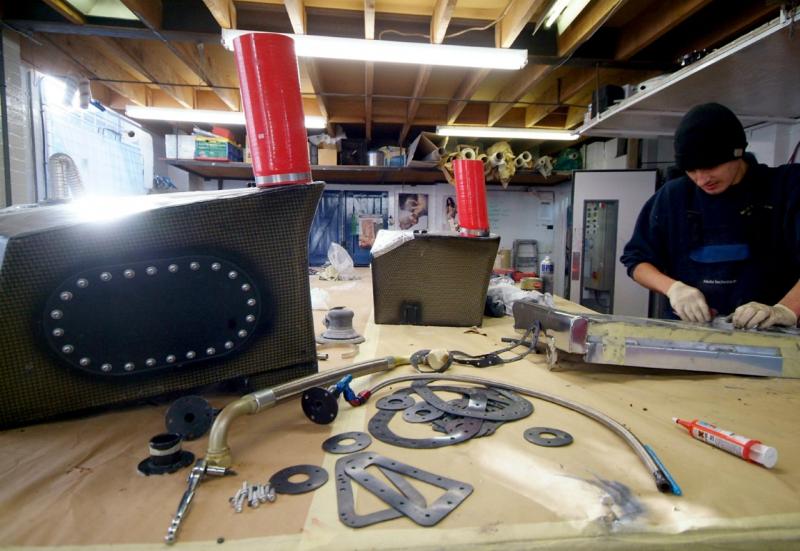

1799941d1384009064-f40-lm-restoration-29th-1013-038s

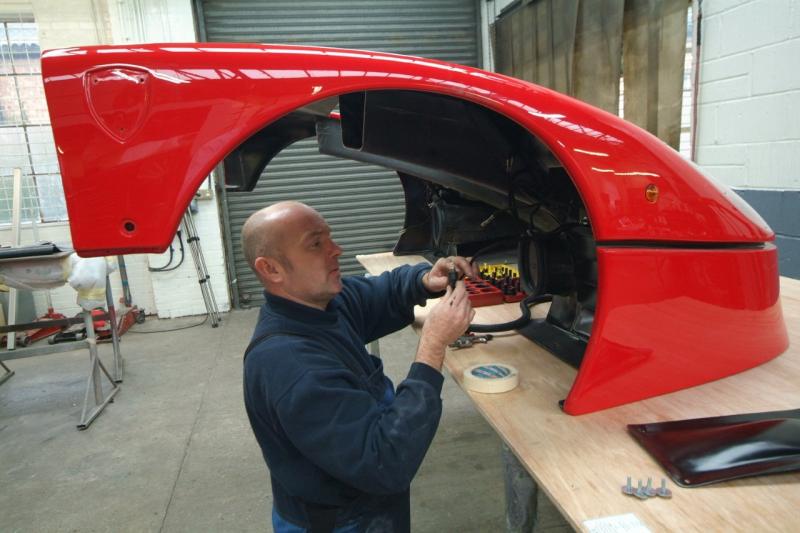

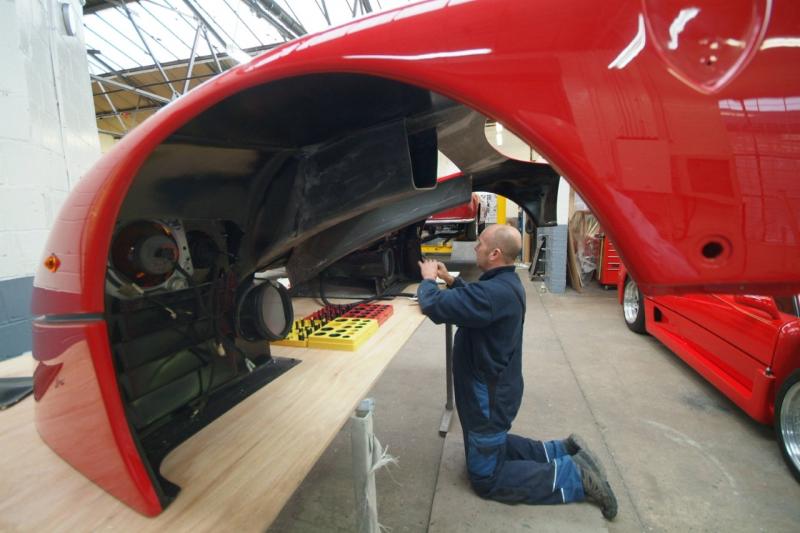

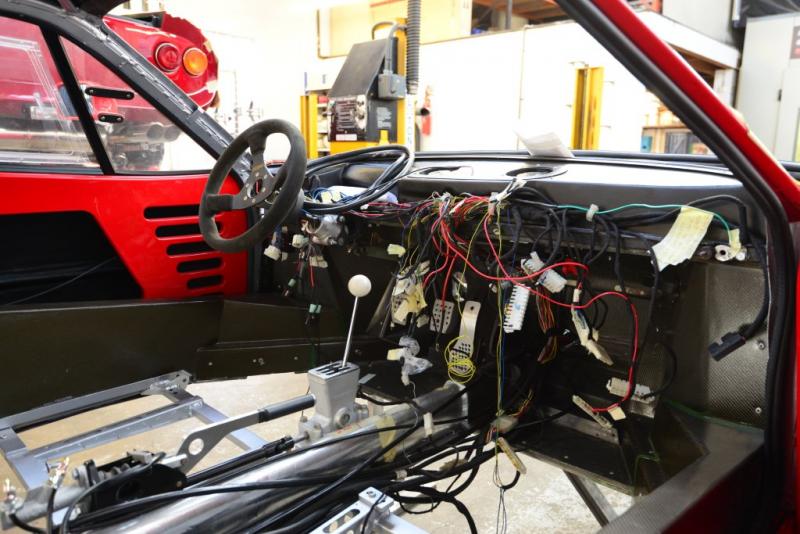

Mr Brown fitting the wiring loom to the front clam and replacing the “aircraft style “electrical connectors
1800896d1384160101-f40-lm-restoration-31st1013-001s
1800897d1384160101-f40-lm-restoration-31st1013-003s

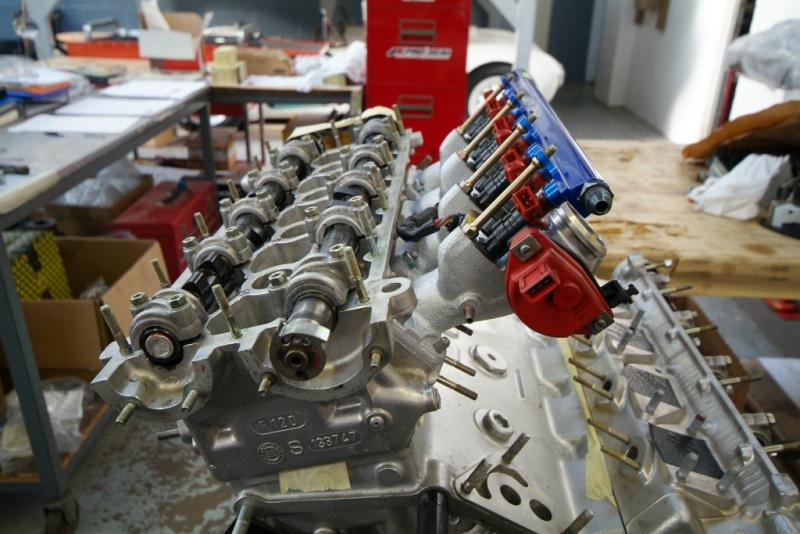

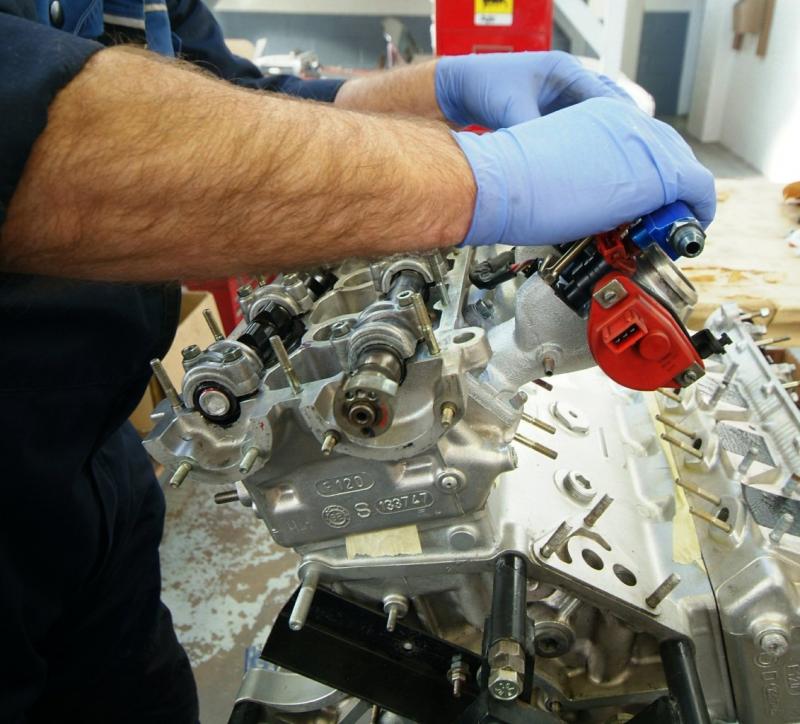

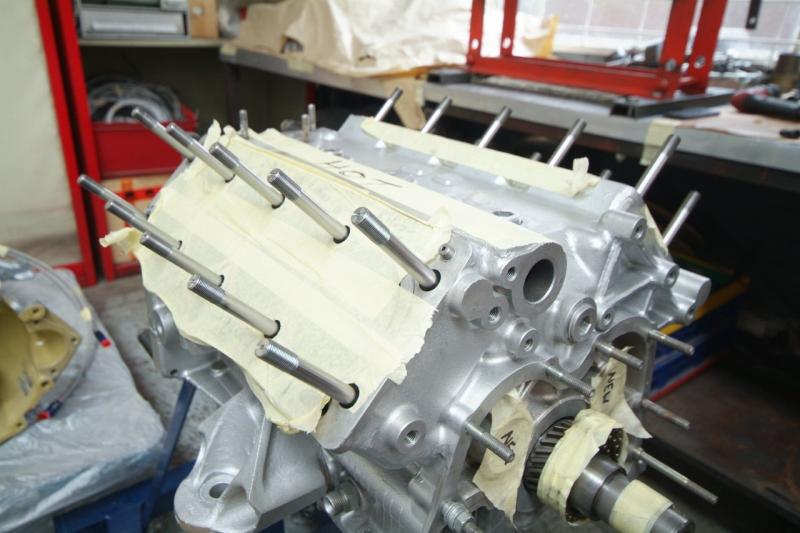

A bit of engine news.New stainless cylinder head bolts now in and Colin is dry assembling everything in normal Mototechnique manner, so as to check positioning of Turbos and to make sure everything will go together without any problems when he starts in earnest later this week. We also need to measure cable runs for sensors etc so we can finish the loom, so having the engine in sort of one piece is the only way to do it properly. Note rebuilt throttle bodies and injector rails with all newly anodised parts-I hope this too will be a work of art when Colin has finished with it.
1801364d1384245426-f40-lm-restoration-dscf6611s

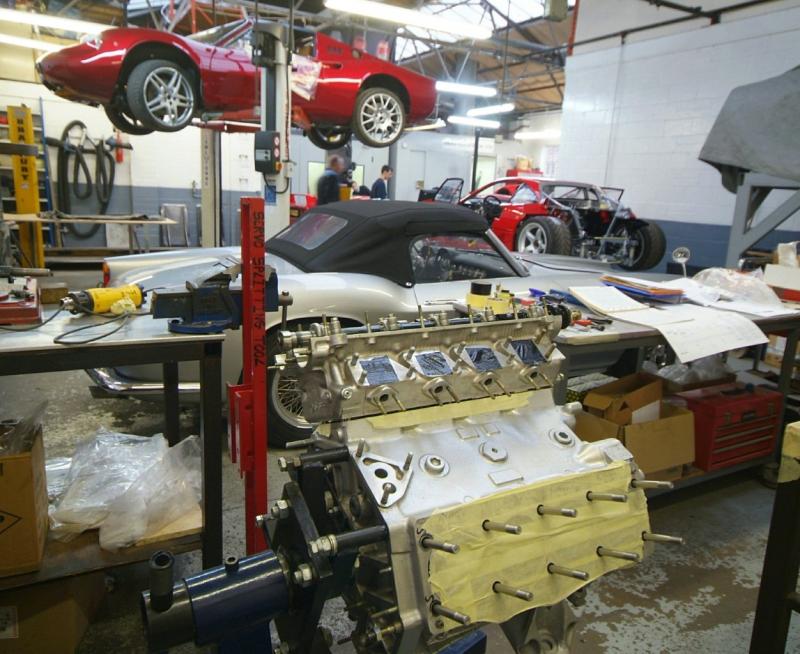

1801365d1384245426-f40-lm-restoration-dscf6640s
1801367d1384245426-f40-lm-restoration-041013-010s
1801366d1384245426-f40-lm-restoration-041013-006s
1801367d1384245426-f40-lm-restoration-041013-010s
1801368d1384245548-f40-lm-restoration-041013-013s

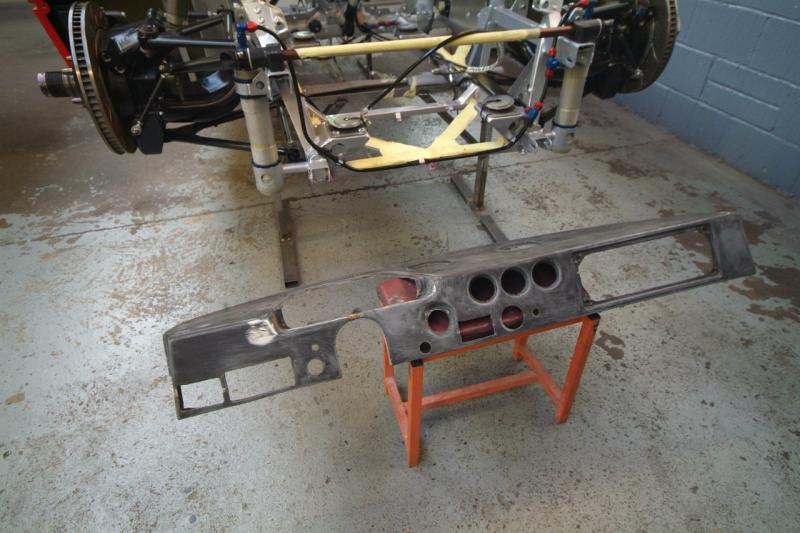

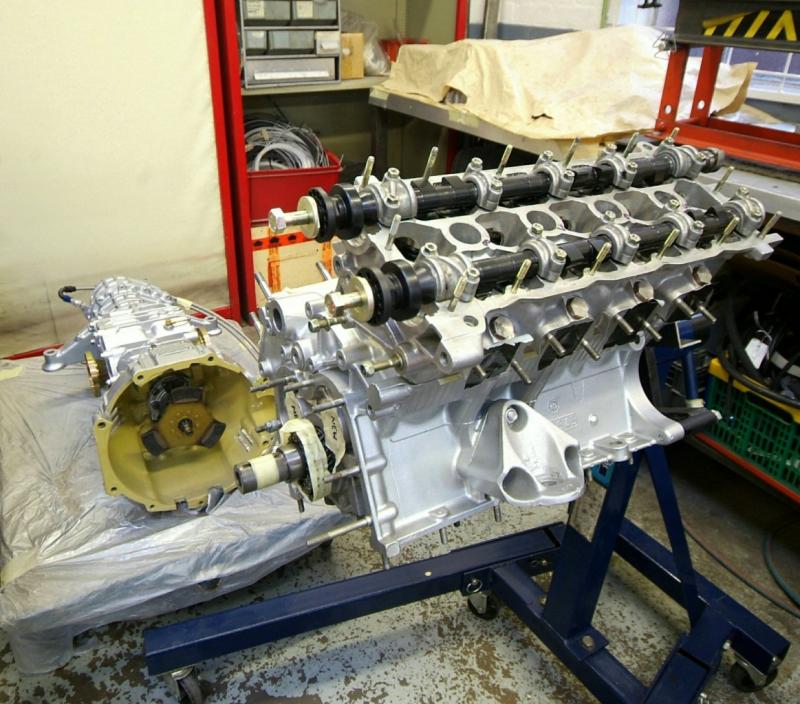

The dashboard starting its restoration journey.Massive aperture to the left of the steering wheel used to house a huge bright red fog light so there was no way the driver would miss the low oil pressure warning light. We are reverting to a more sophisticated and less intrusive LM system. An engine and gearbox shot and then the polished radiator back in for good but looks so much better all cleaned up. Hope to have most of the front finished up by the weekend with any luck. Appallingly, it appears Mototechnique have had their attention diverted by other customers who want their cars finished so there has been a bit of a pause in progress, and photos, for a few days, so off on Friday to collect some more updates and redirect their attention.
1801905d1384339274-f40-lm-restoration-dscf6218s

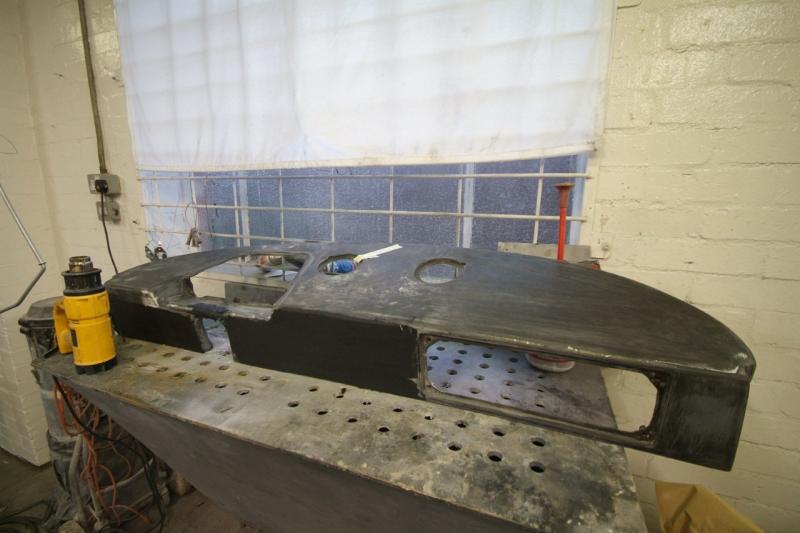

1801906d1384339274-f40-lm-restoration-22-1013-004s
1801907d1384339274-f40-lm-restoration-dscf6641s
1801908d1384339274-f40-lm-restoration-dscf6614s

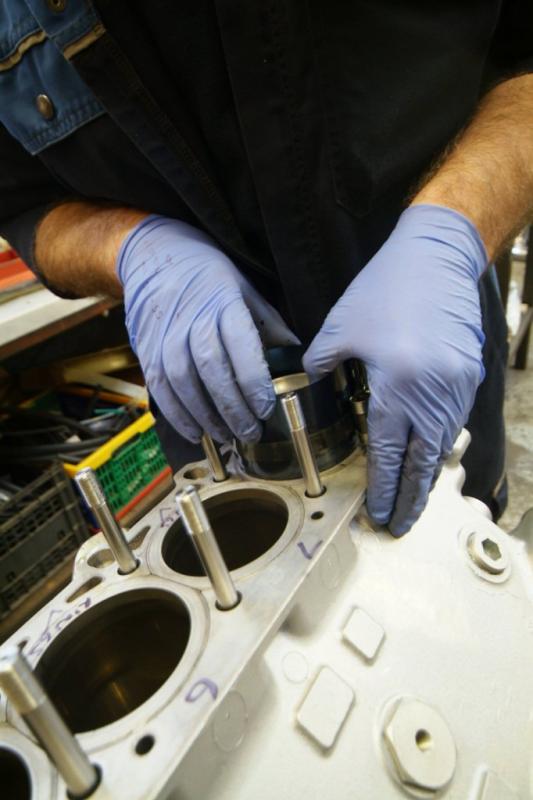

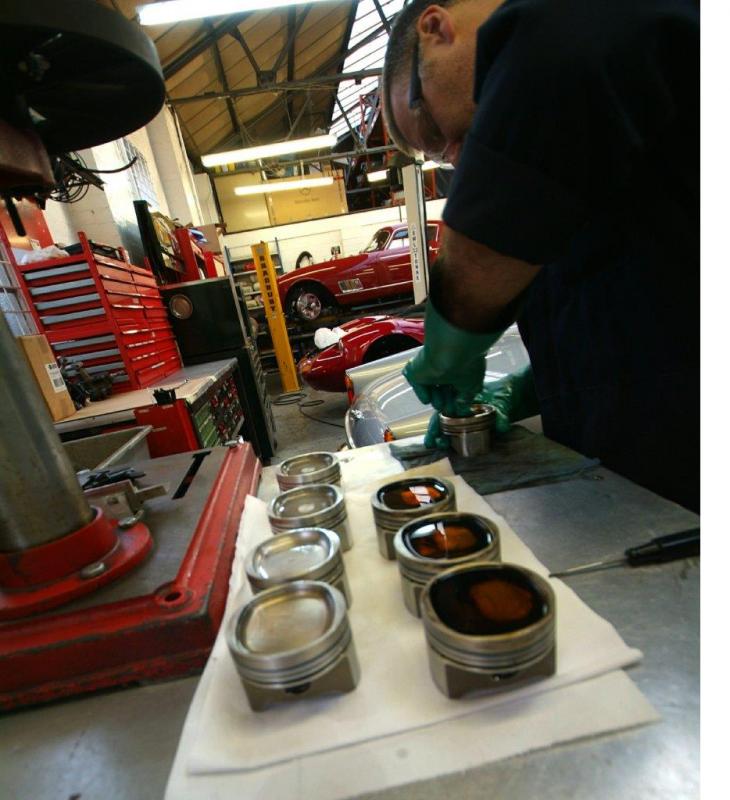

Colin is prepping the pistons ready for the fitting of the piston rings; here the pistons are being soaked in a mild solvent to loosen the carbon and the piston crowns and ring grooves are being de-gummed of any carbon deposits. Next stop pistons will be fitted to con rods followed by slipping into bores and connected to crank so with any luck we will have the heads on ‘for real’ shortly.
1801963d1384356858-f40-lm-restoration-121113-008s

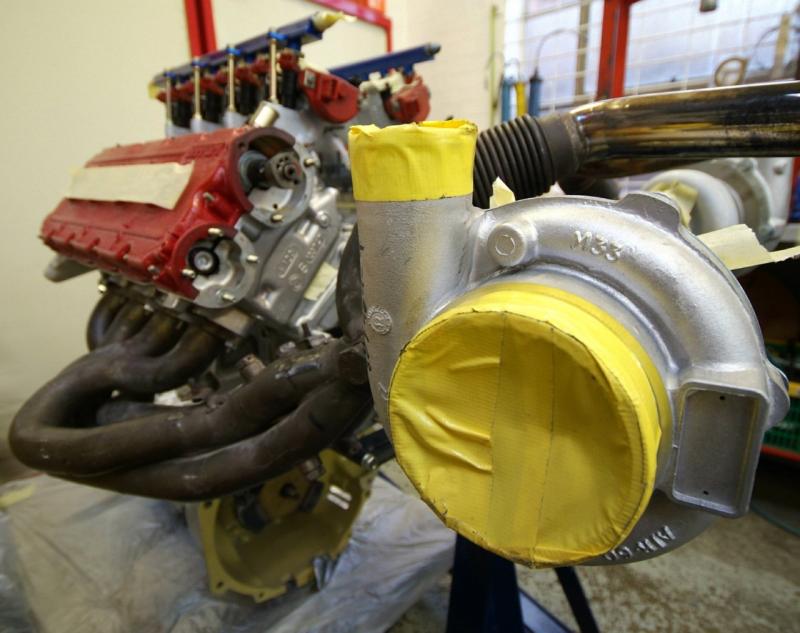

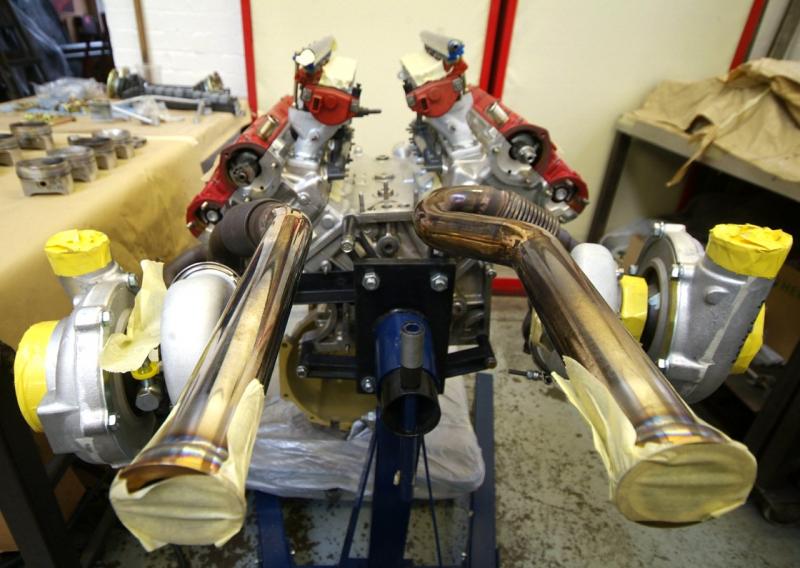

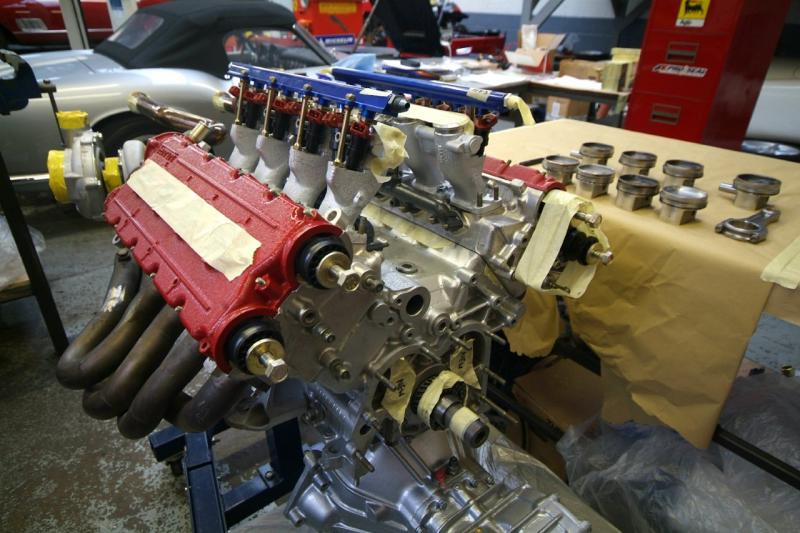

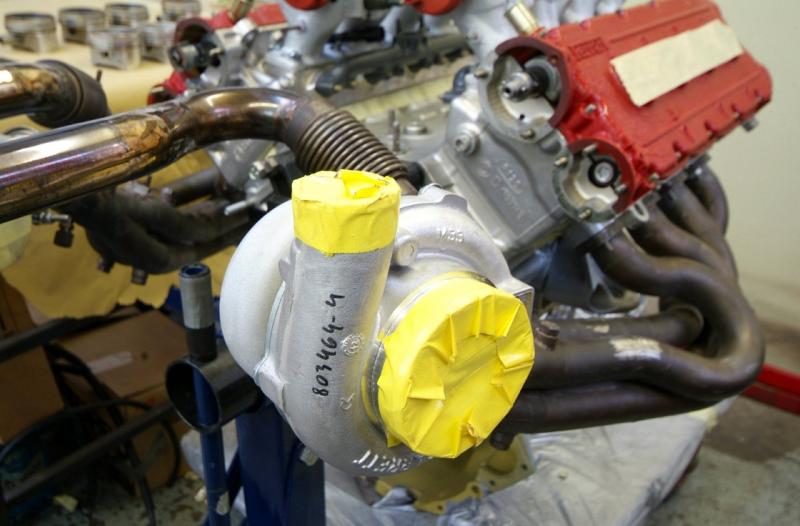

Engine now soft assembled so we can figure out all the sensor positions and cable lengths and hopefully warn off any potential issues. Cylinder heads resprayed and pretty soon, once we have fabricated some additional sensor mounts, the exhausts can be cleaned off and go off to Zircotec for their coating which will really complete the look, let alone help with efficiency and cooling. Hopefully tomorrow, the pistons will go in and we can get to where it looks we are now for real.
1802288d1384418063-f40-lm-restoration-111113-015s
1802289d1384418063-f40-lm-restoration-111113-024s
1802290d1384418063-f40-lm-restoration-111113-025s
1802291d1384418063-f40-lm-restoration-111113-036s

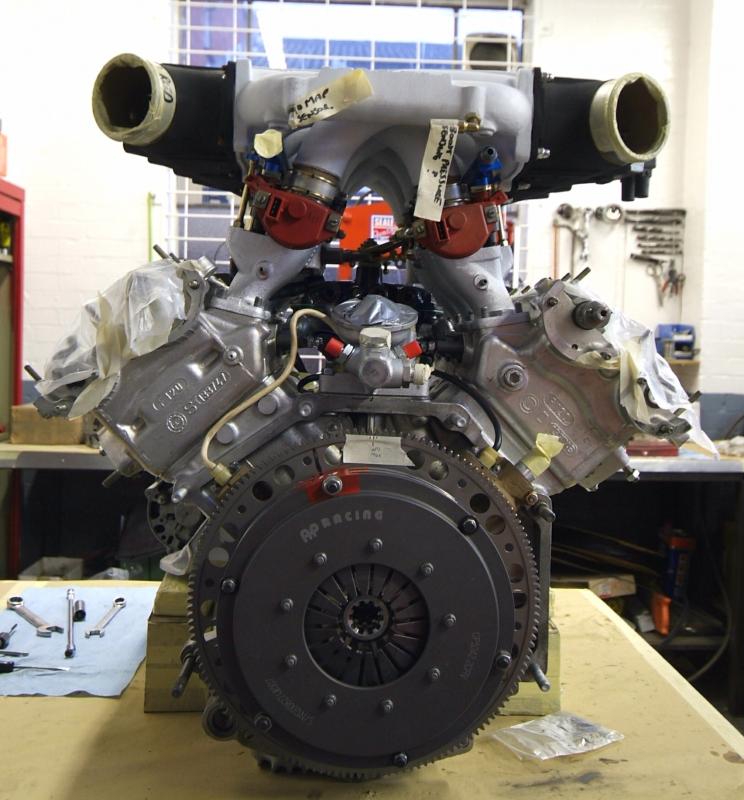

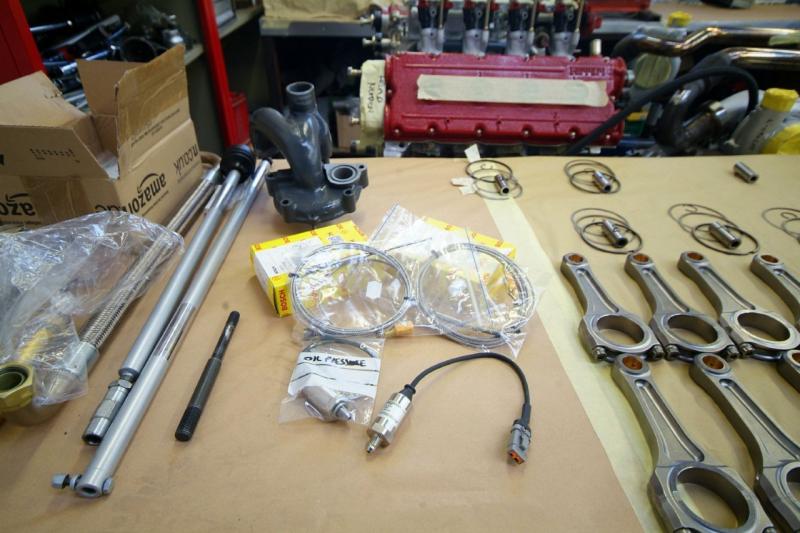

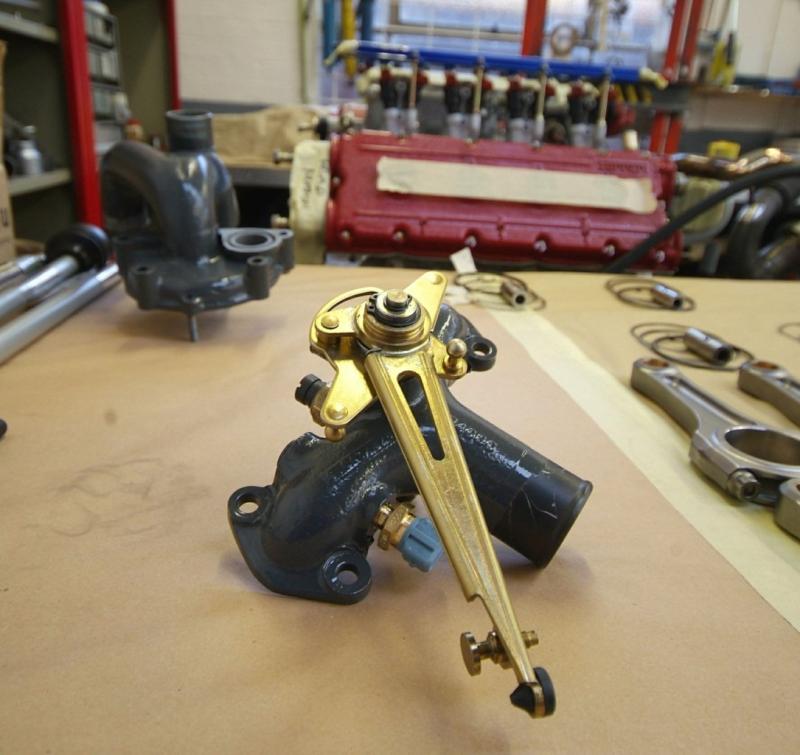

Off to the shop, but to bring you up to date for now. Engine assembly now starts in earnest after the ‘dry’ assembly. Here you can see the Titanium conrods all lined up in battle formation, pistons and gudgeon pins, numbered from the dynamic balancing, some of the sensors, gear linkage and finally the throttle linkage sub assemblies. I wonder if any F40 engine has received such a detailed and pristine rebuild?

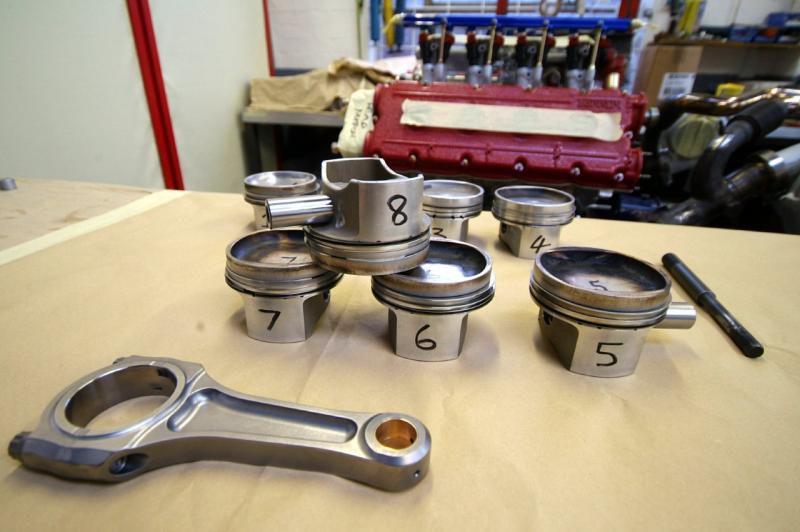

1802609d1384503380-f40-lm-restoration-111113-035s
1802610d1384503380-f40-lm-restoration-121113-013s
1802611d1384503380-f40-lm-restoration-121113-017s
1802612d1384503380-f40-lm-restoration-121113-015s

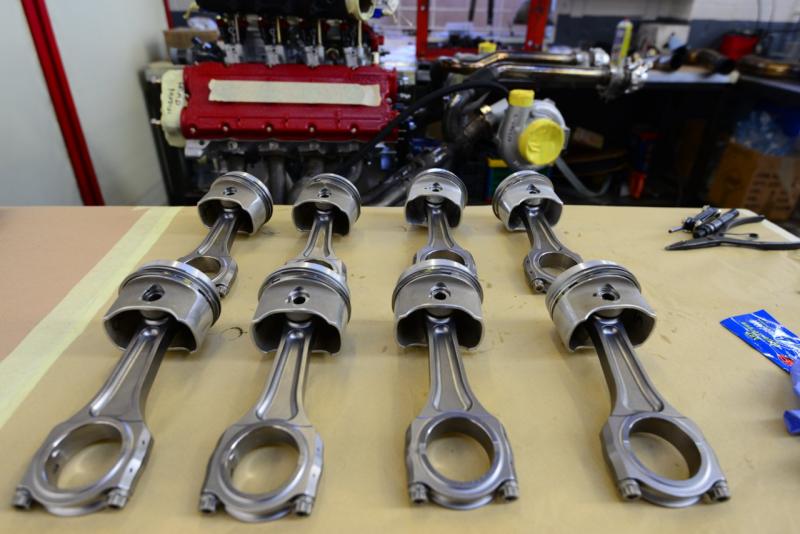

A few more engine detail shots.Pistons and rods in battle formation ready for installation and the assembly starts for real here. Heads are all ready to go as are injector rails etc, so we should have the pistons and rods in imminently and then the build up can continue. You can also see the details of the injectors, rails etc, all rebuilt, plated and better than new. Wastegates all soft mounted, cable and pipe routes and lengths resolved.
1803802d1384762608-f40-lm-restoration-dsc_5449s
1803803d1384762608-f40-lm-restoration-dsc_5453s
1803804d1384762608-f40-lm-restoration-dsc_5456s
1803805d1384762608-f40-lm-restoration-dsc_5458s

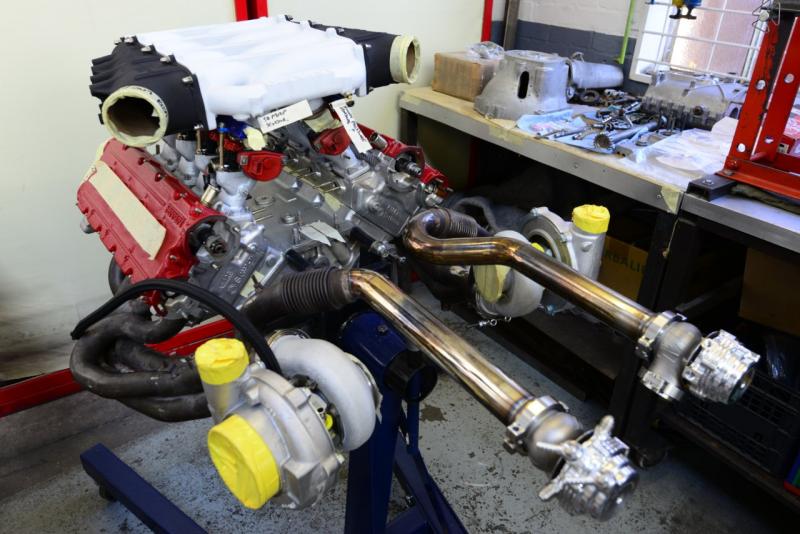

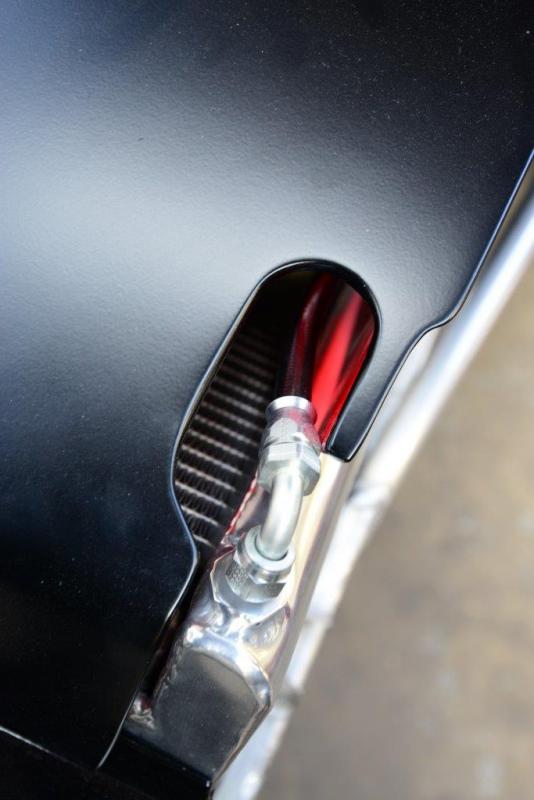

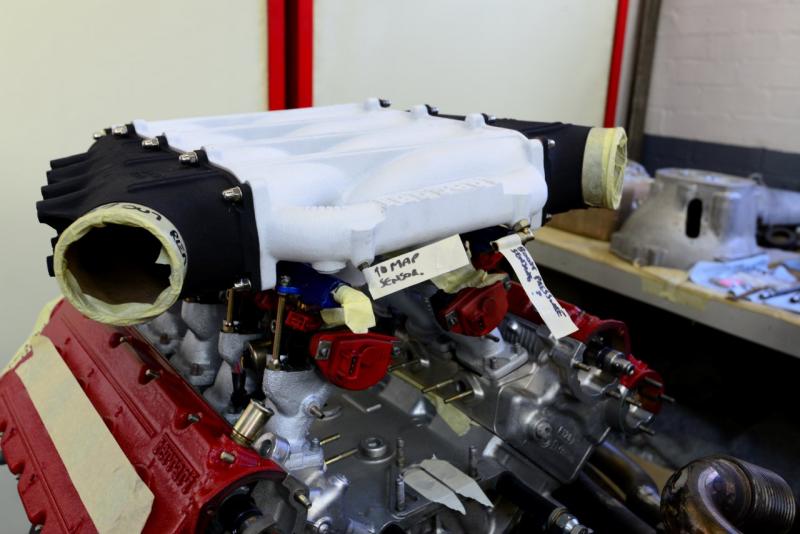

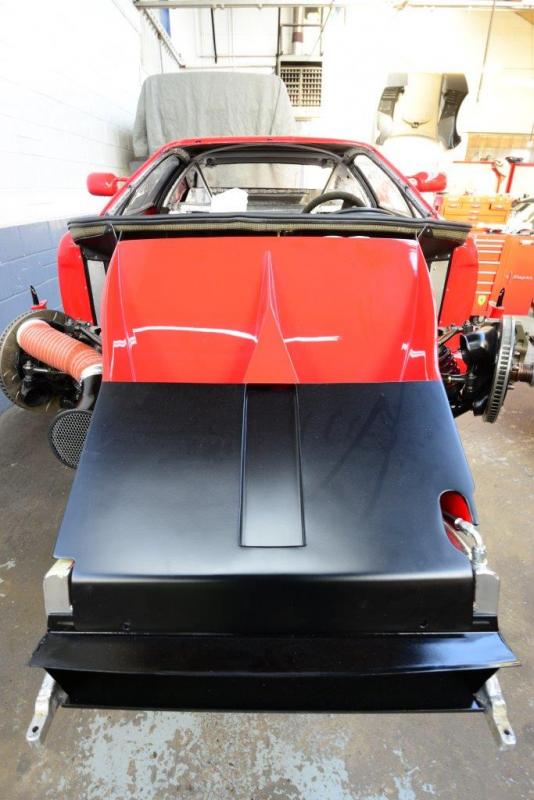

A nice little detail. The front end, as I will show in the next post, is almost there. Bit of final work on the elephant trunking etc still to do.
1804335d1384854721-f40-lm-restoration-dsc_5427s

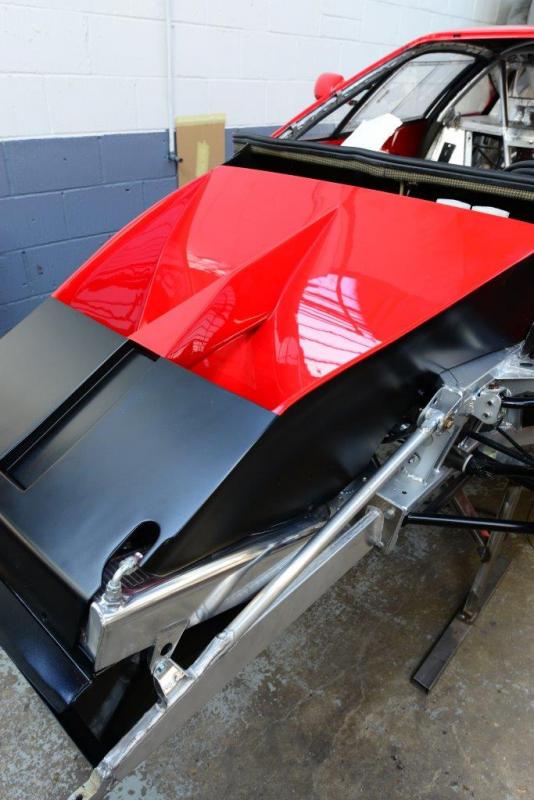

1804336d1384854721-f40-lm-restoration-dsc_5441s
1804337d1384854721-f40-lm-restoration-dsc_5430s

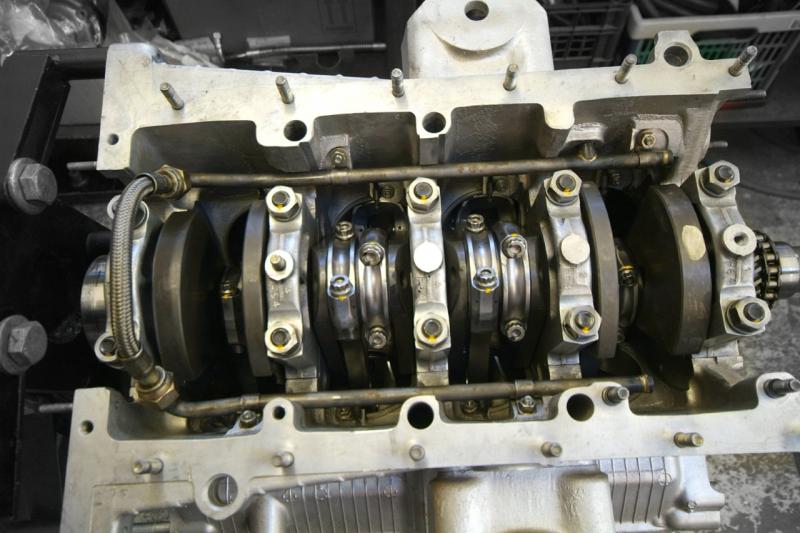

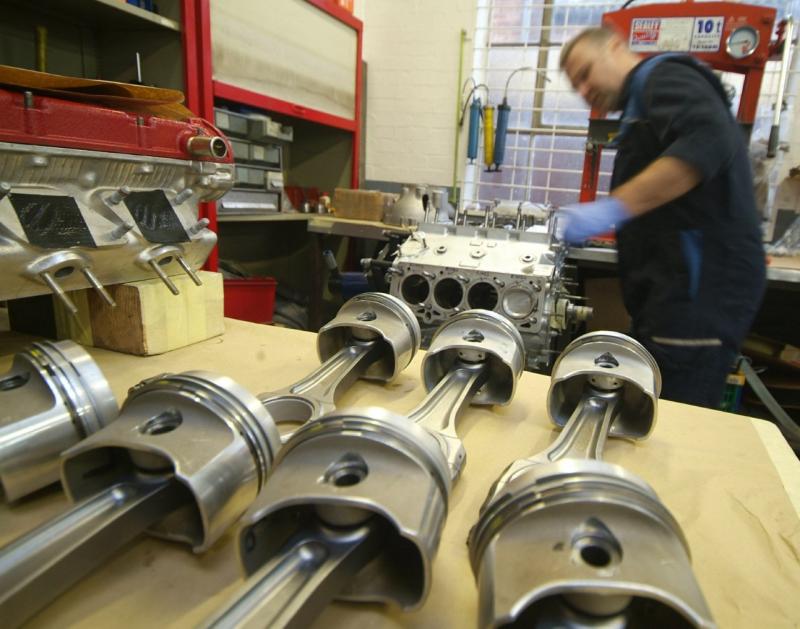

Finally, assembly for real, rods and pistons in and oil pump fitted.
1804699d1384939764-f40-lm-restoration-181113-002s
1804701d1384939764-f40-lm-restoration-181113-020s
1804702d1384939764-f40-lm-restoration-191113-004s

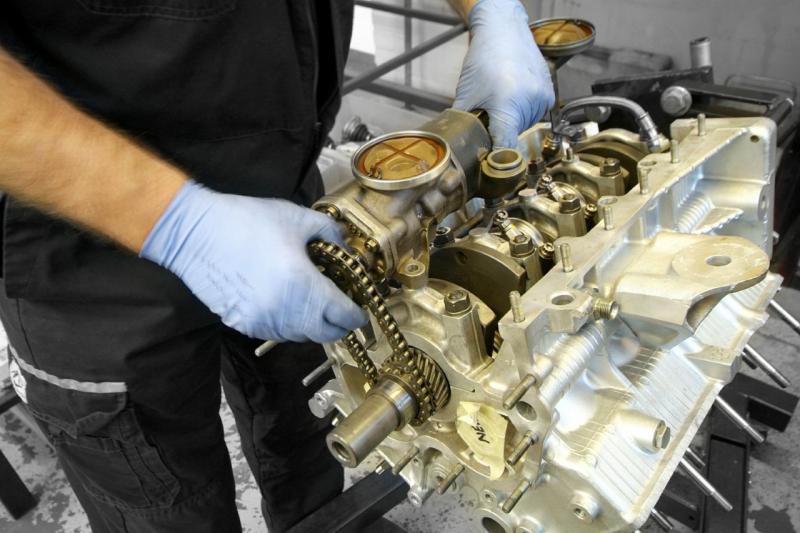

1804703d1384939782-f40-lm-restoration-191113-013s

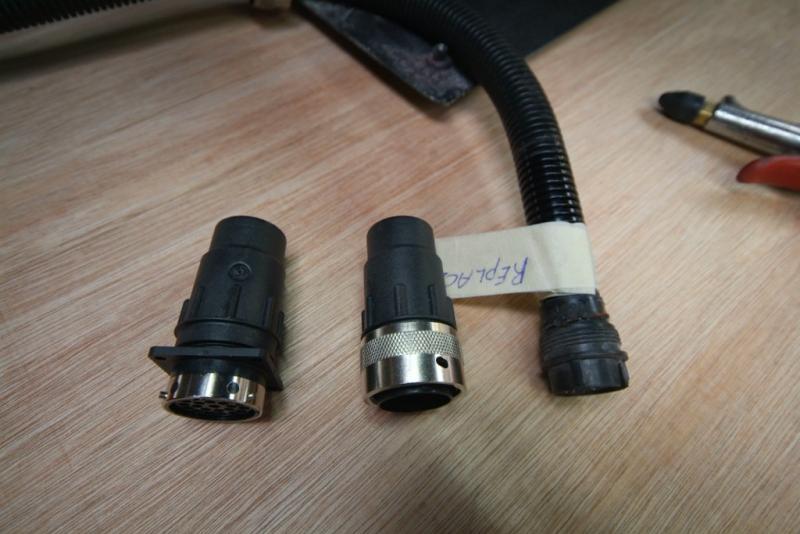

As you can see now, most of the front is now finished. A bit of work on the Brake ductwork and final attention to the new front clam connector, but that aside now pretty much done.
1805116d1385026163-f40-lm-restoration-31st1013-015s

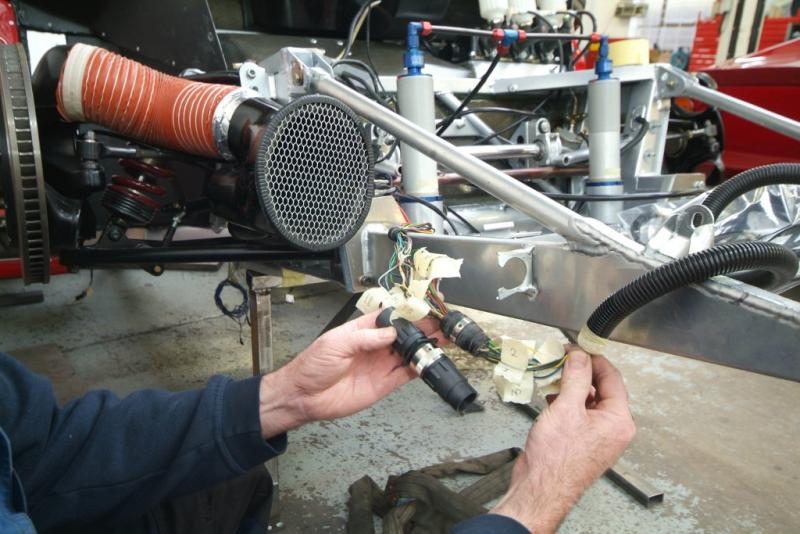

1805117d1385026163-f40-lm-restoration-31102013-005s
1805118d1385026308-f40-lm-restoration-dsc_5415s

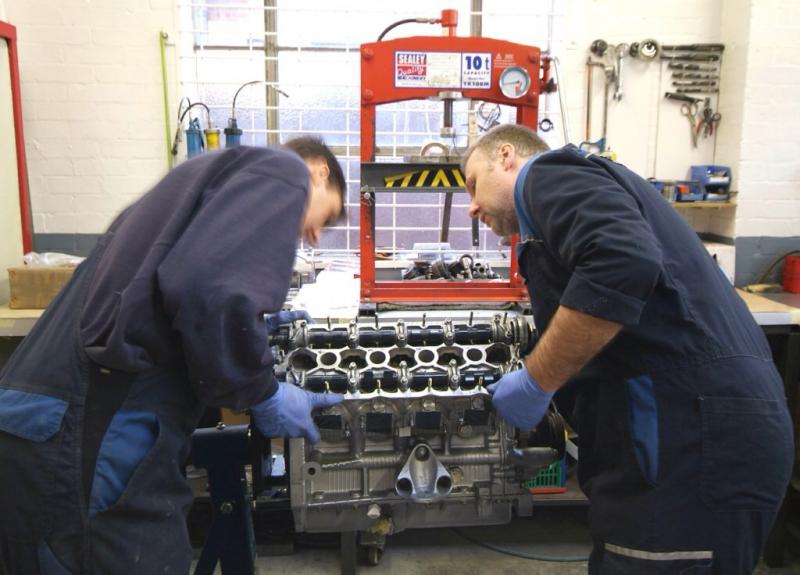

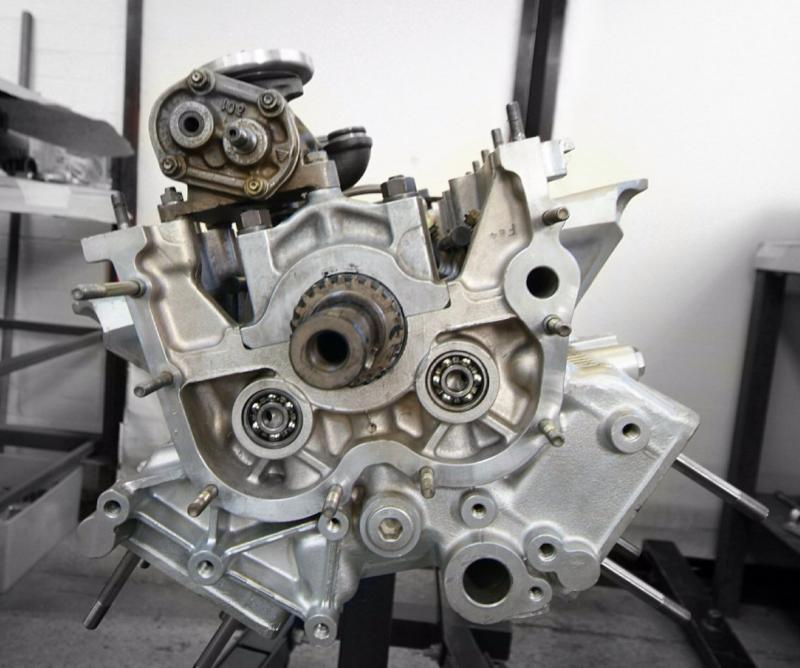

Sump on, cylinder heads on to upgraded gaskets.
1805576d1385131994-f40-lm-restoration-image

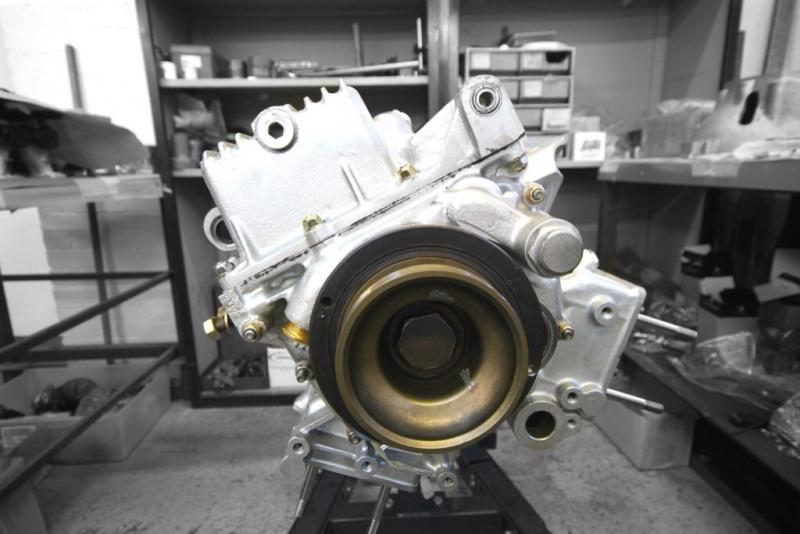

1805577d1385132115-f40-lm-restoration-image
1805578d1385132180-f40-lm-restoration-image
1805580d1385132242-f40-lm-restoration-image
1805581d1385132314-f40-lm-restoration-image
1805585d1385132420-f40-lm-restoration-image

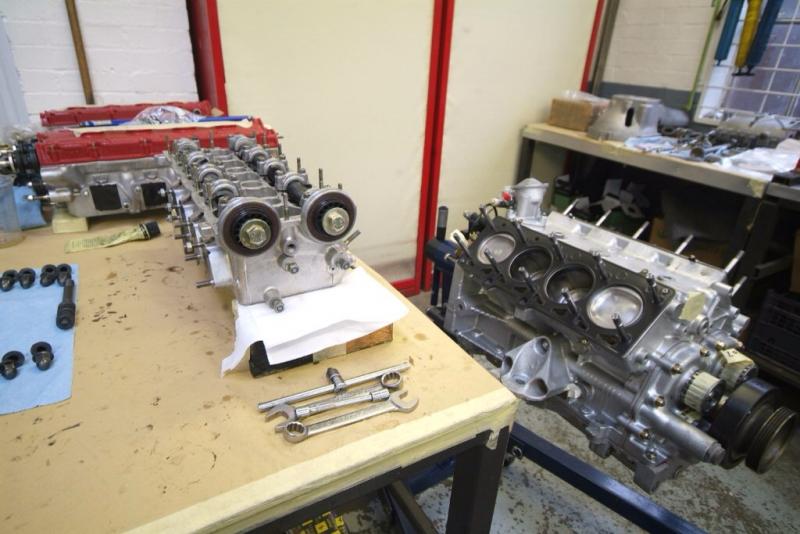

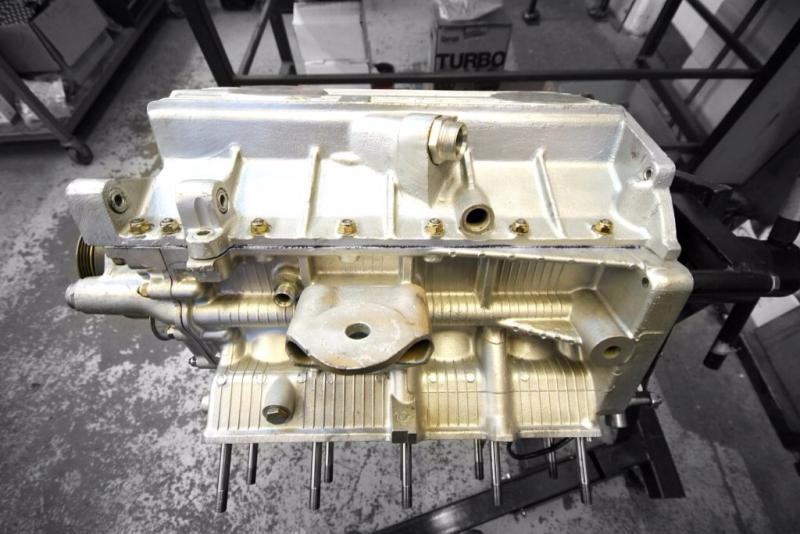

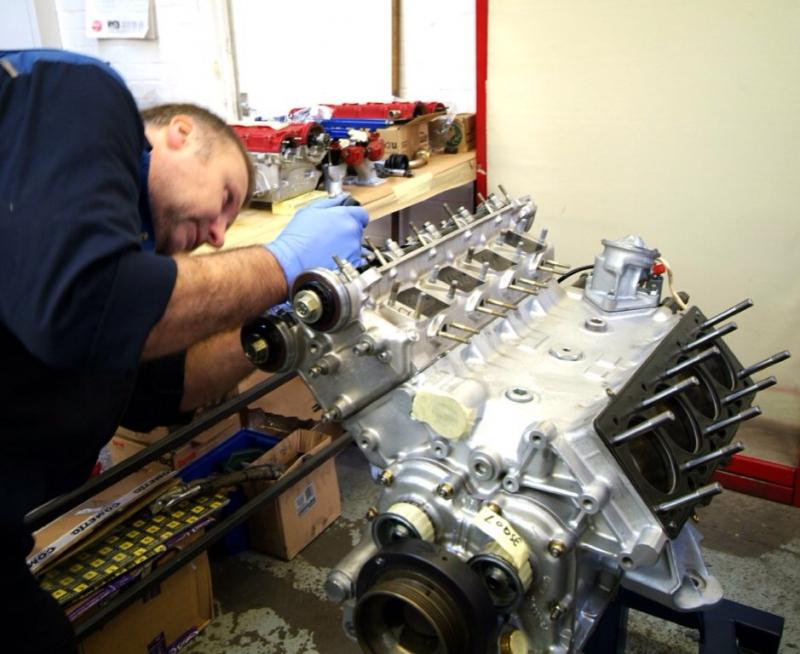

A couple of images I missed of the injector rails etc being built up
1805708d1385154555-f40-lm-restoration-image
1805709d1385154621-f40-lm-restoration-image

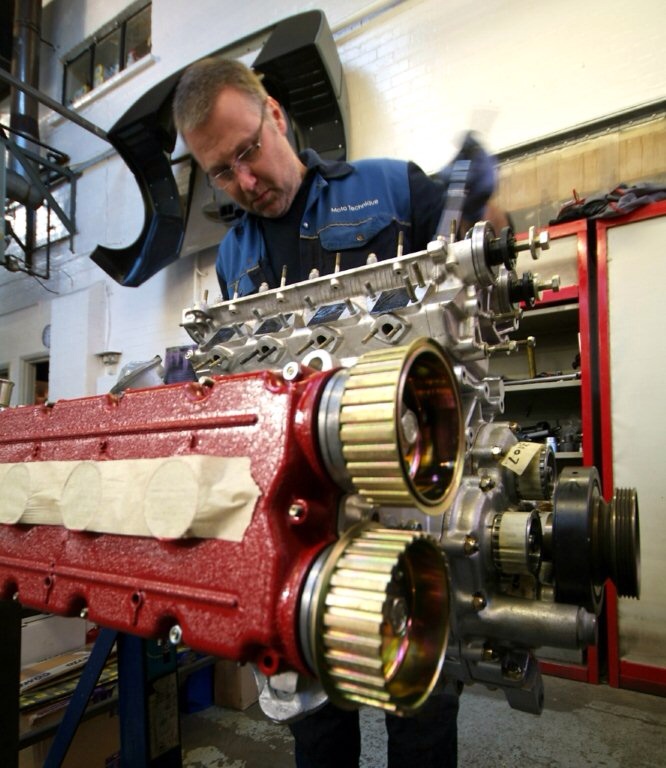

Both heads on. Note cam covers yet to be finished.
1805884d1385185857-f40-lm-restoration-image

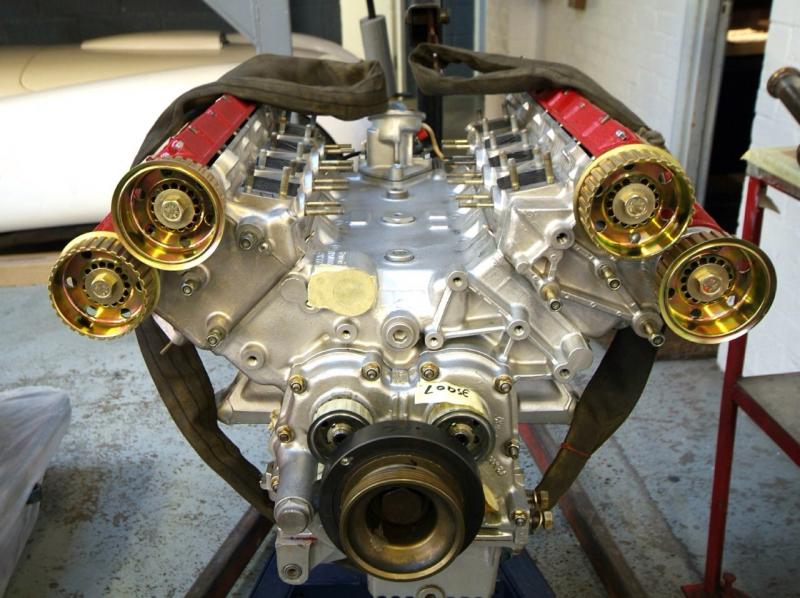

Next stage to fit the fuel rails etc, but actually starting to look like an engine.

1805886d1385186008-f40-lm-restoration-image

More AP
1806295d1385268726-f40-lm-restoration-image

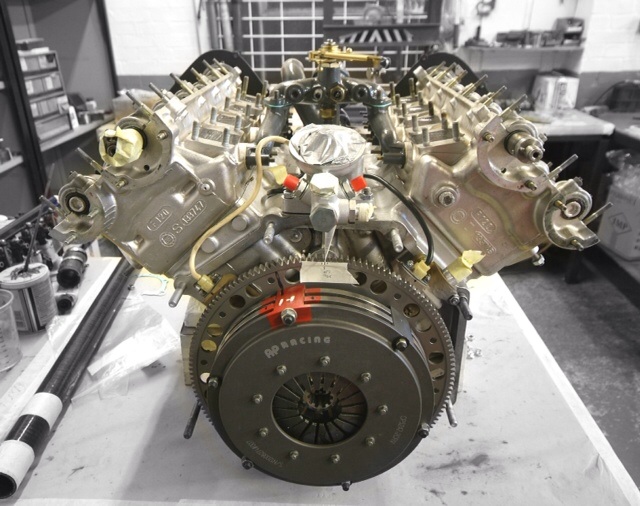

This time from the other end
1806296d1385268784-f40-lm-restoration-image

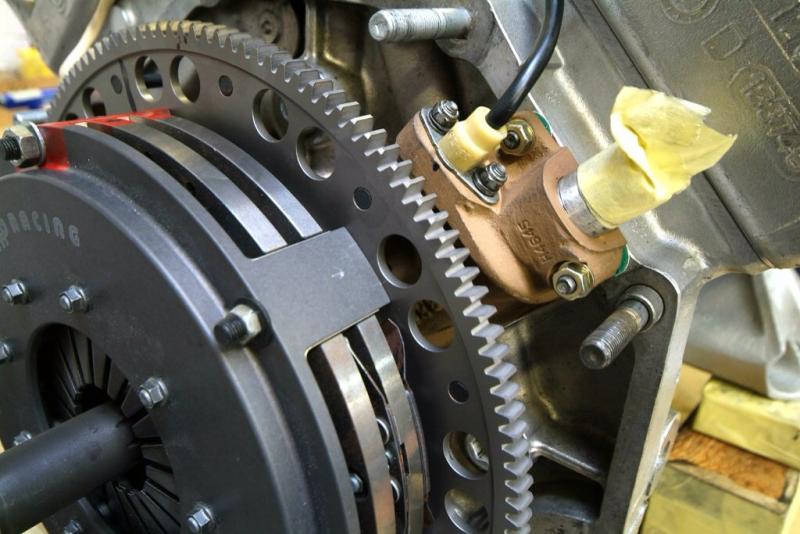

Showing our lightweight flywheel etc
1806298d1385268846-f40-lm-restoration-image

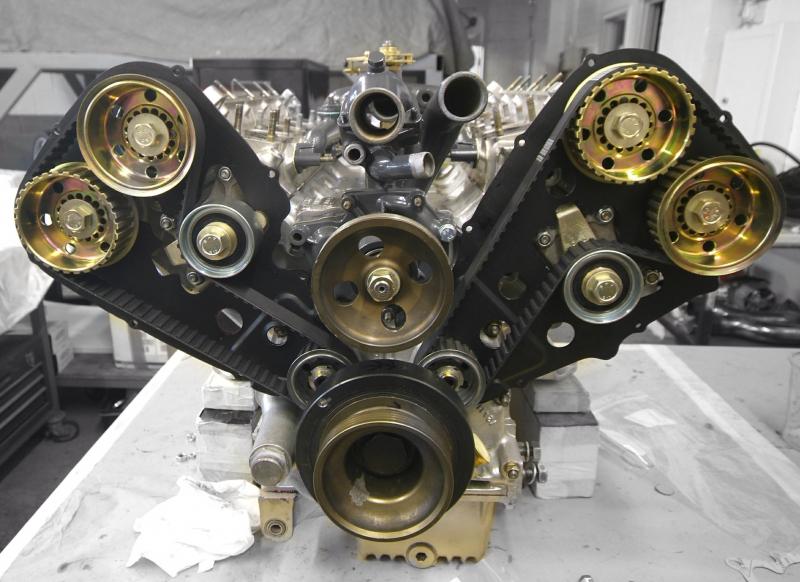

Quick update-belts on!
1806754d1385386058-f40-lm-restoration-image

yes it has been quite a trying road but the end result is I end up with a genuine zero mies car, and I believe better than new. It started as a small refurb but once we dug deep, it was clear the only way to do her justice was to go back to the beginning as the issues were more than initially presented and at the same time resolve many other points. Dealing with CM was a struggle and that took us many many months longer than anticipated and tempted an alternative route, but I felt it was essential on many fronts and we finally got there.

Meanwhile, a further engine post today before we cut back to a bit of chassis detail.

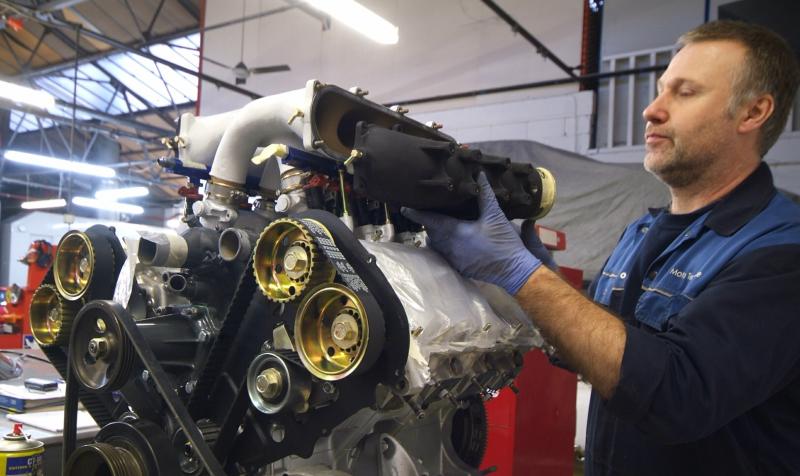

1807074d1385456986-f40-lm-restoration-image
And currently the money shot. Seems a pity to hide all this under the bell housing.
1807076d1385457245-f40-lm-restoration-image

WARNING: Not as good as it looks!

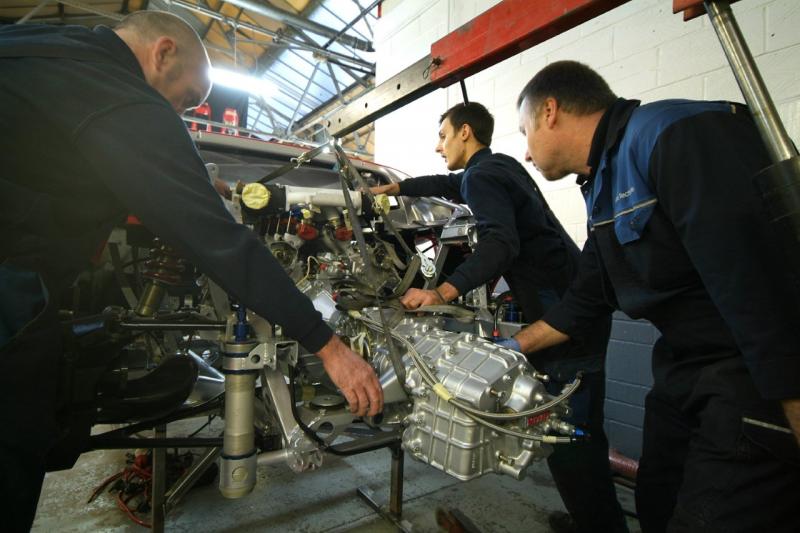

The boys are finally installing the lump, but not really. Yet again, this is a visual three steps forward two back as it will certainly be coming out again. Once in position it will enable us to sort out all cable runs, check manifold and exhaust routing etc etc, all of which we have to do as this is not a standard car and we need to check that everything fits such as anticipated.

Still encouraging to see.

1807536d1385538742-f40-lm-restoration-26th1113-025s

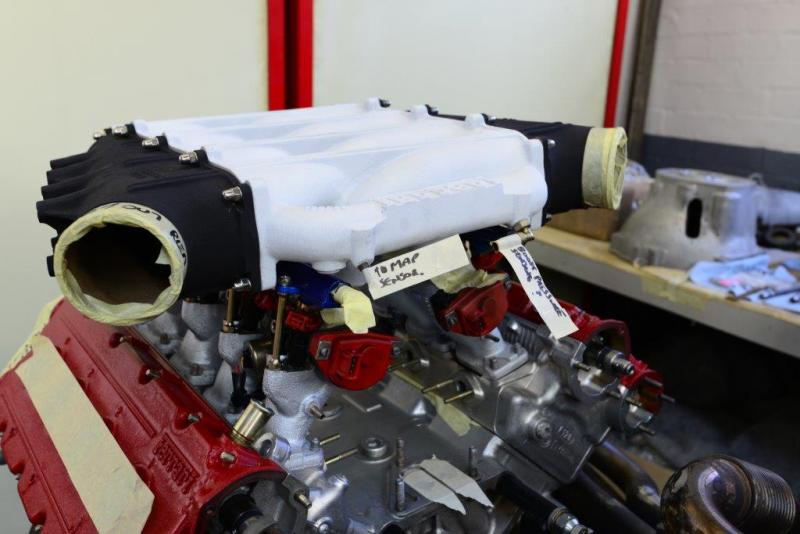

A few missing pics of the engine pre installation which, beautiful as it looks carries a few issues we have yet to fully resolve As I said, this is a soft install only at this stage and hopefully today it will be properly mounted in the car and then wiring and plumbing can begin in earnest. Then it will be out again, hopefully for the last time.

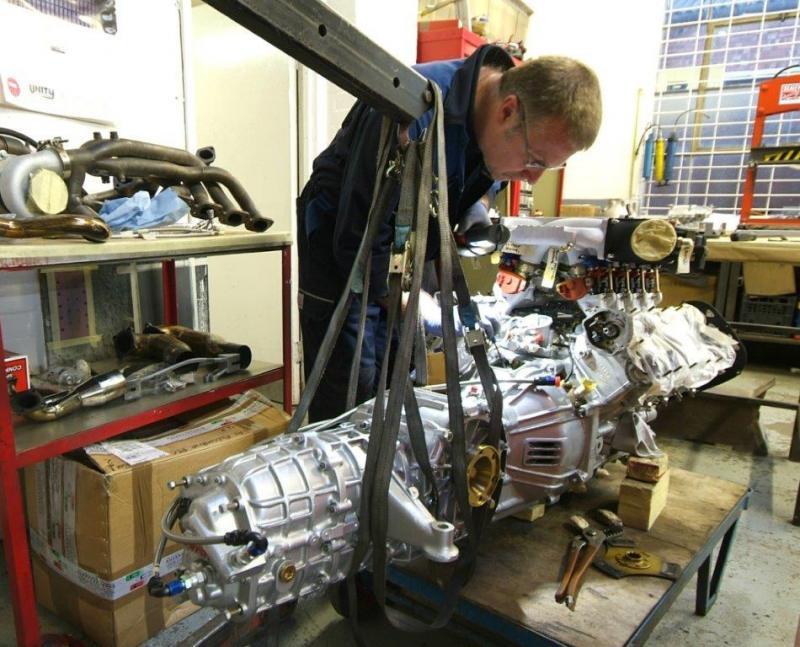

1807872d1385636472-f40-lm-restoration-26th1113-004s

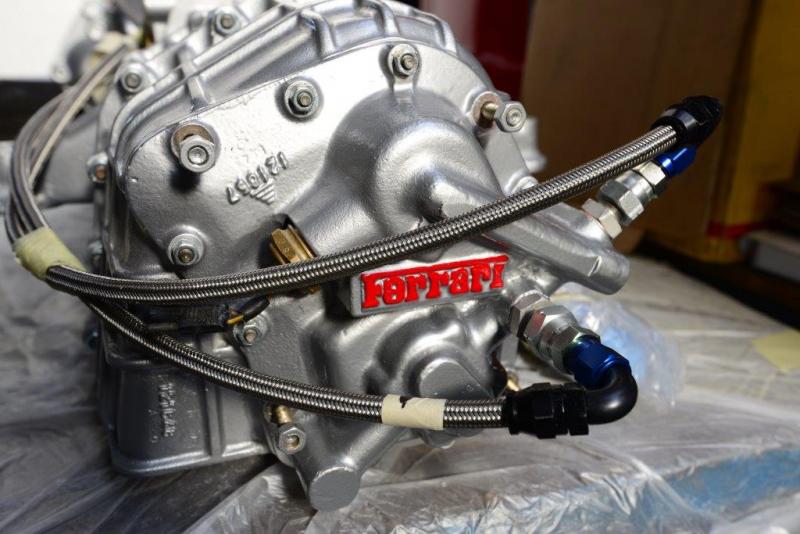

1807873d1385636472-f40-lm-restoration-dsc_5445s
1807874d1385636472-f40-lm-restoration-dsc_5456s
1807875d1385636472-f40-lm-restoration-dsc_5447s

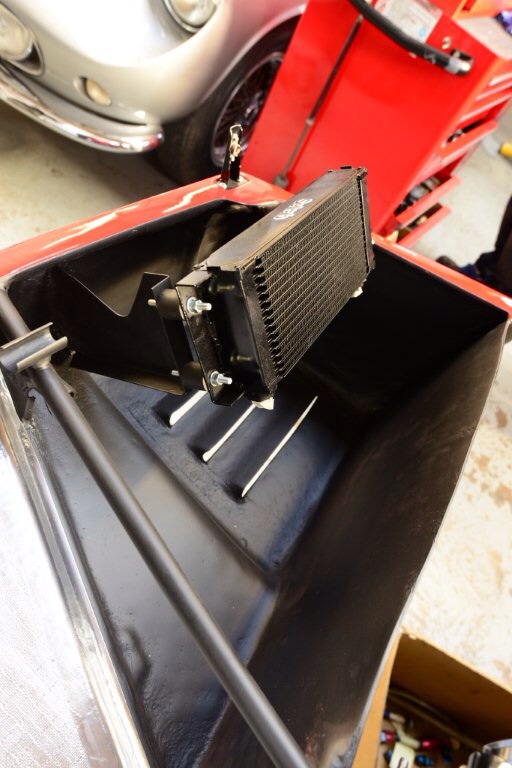

A couple of other out of sync images. This one the gearbox oil cooler. Interestingly Ferrari were so unconcerned with the gearbox oil temp they did not even bother to fit a temperature sensor. We are.
1807986d1385666711-f40-lm-restoration-image
1807988d1385666844-f40-lm-restoration-image
And on the other side, the engine oil cooler and here you can also see the air line to the jacking system, in this instance recessed to comply with road legislation.

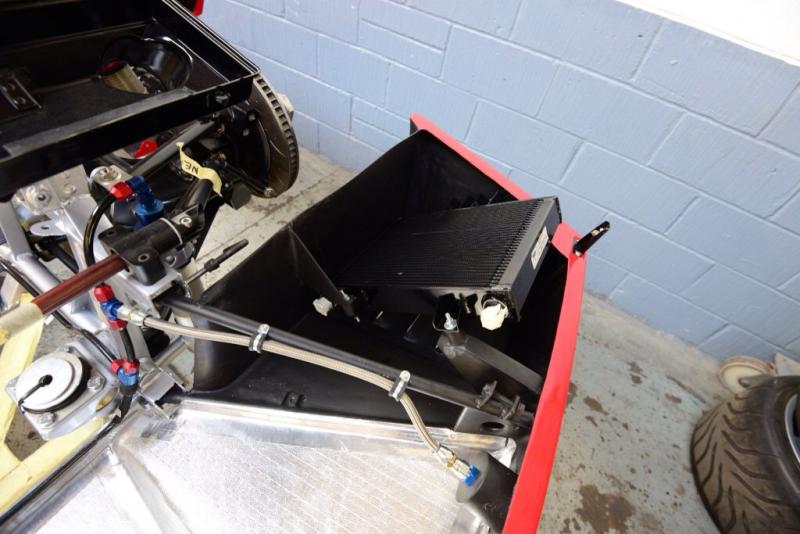

1808015d1385672182-f40-lm-restoration-image
A bit of recent history and will catch up with the install in the next post.

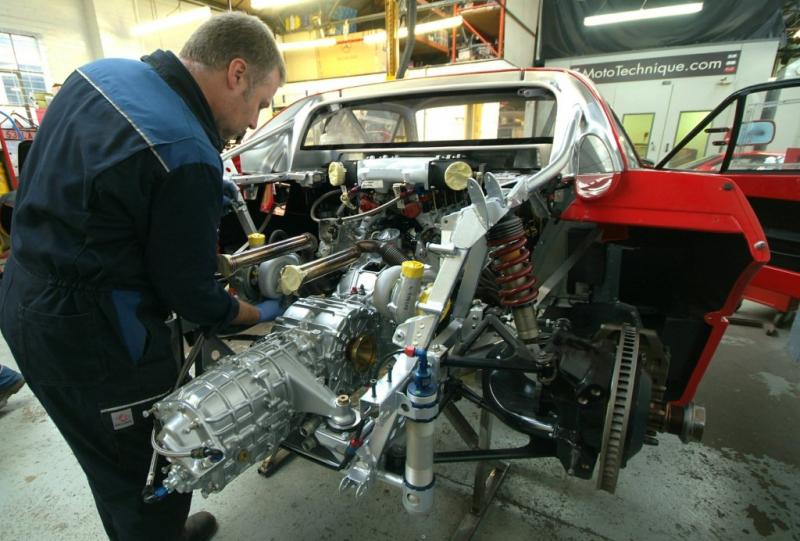

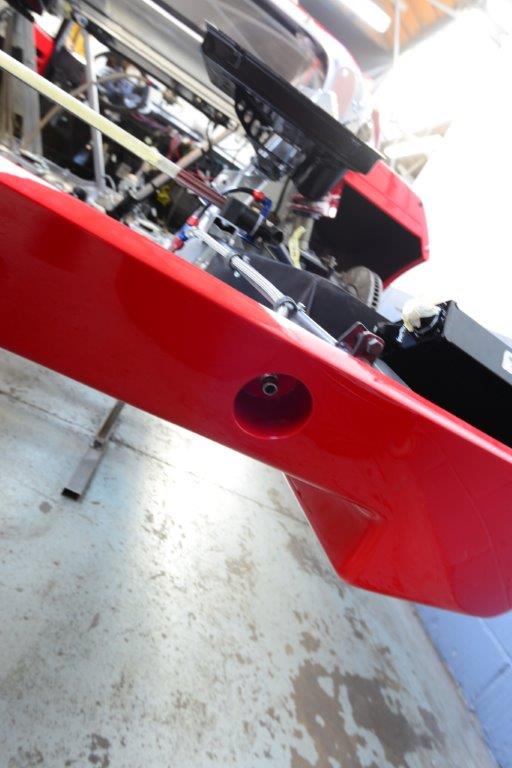

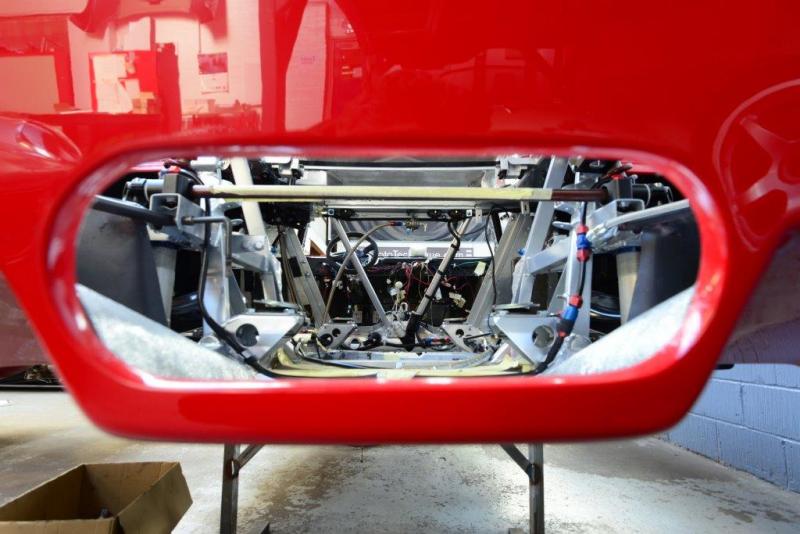

Expectant engine bay now temporarily filled, and details of air jacking point.

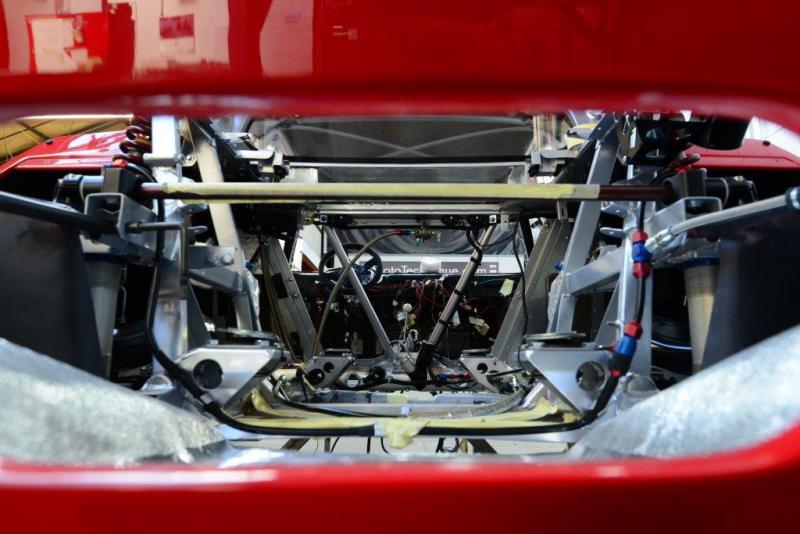

1808178d1385733327-f40-lm-restoration-dsc_5476s
1808179d1385733327-f40-lm-restoration-dsc_5475s
1808180d1385733327-f40-lm-restoration-dsc_5469s
1808285d1385747331-f40-lm-restoration-271113-008s
Next up is to trial fit the oversize intercoolers which will finalise the position of the turbos.
1808418d1385760668-f40-lm-restoration-image

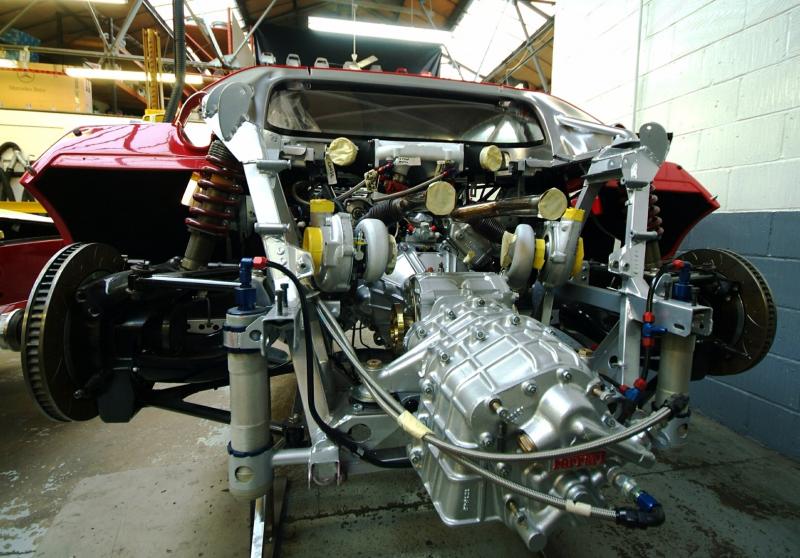

A couple additional shots from last week.

As you can see there is still much to do electrically and we are just about to begin the Motec wiring.

Currently thinking I might keep the standard recessed and covered fuseboard rather than exposed and prominent as it should be as seeing as how this car will quite often be carrying passengers, not what you would want to come into contact with if it all was to go pear shaped?

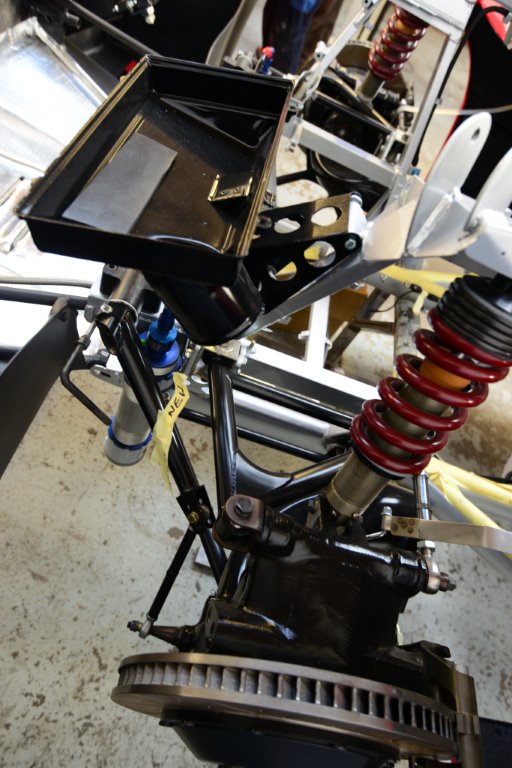

1809047d1385894550-f40-lm-restoration-dsc_5411s
1809049d1385894550-f40-lm-restoration-dsc_5413s

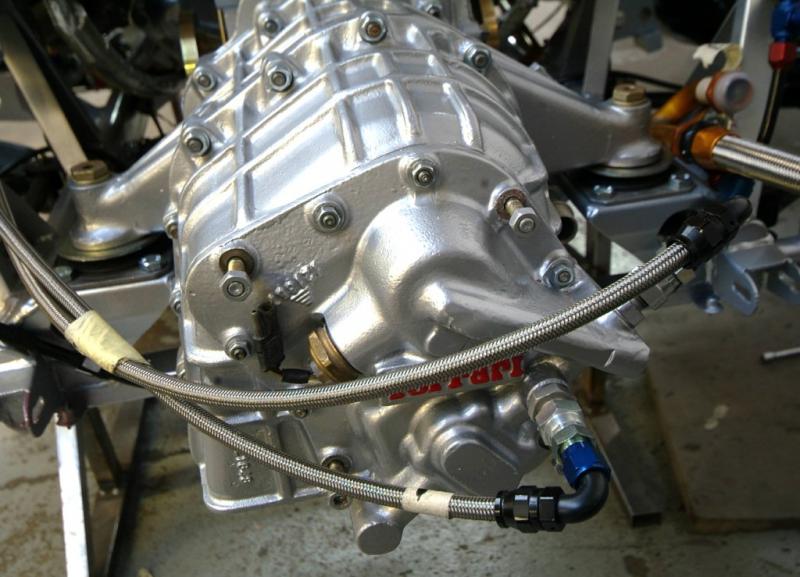

A few detail shots as we measure out all the pipework and settle all the routing so that when it goes in for real, it all fits. As PSk said two steps forward, one step back, but, painful though it is, that is the proper way IMHO.

Next stage, fit the wastegates and try and line up the intercoolers

1809514d1385976556-f40-lm-restoration-27th1113-007s

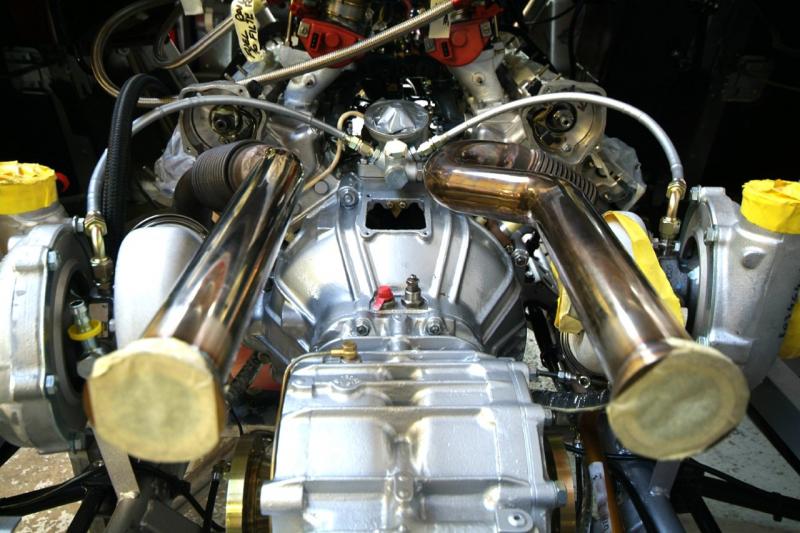

1809516d1385976556-f40-lm-restoration-27th1113-010s

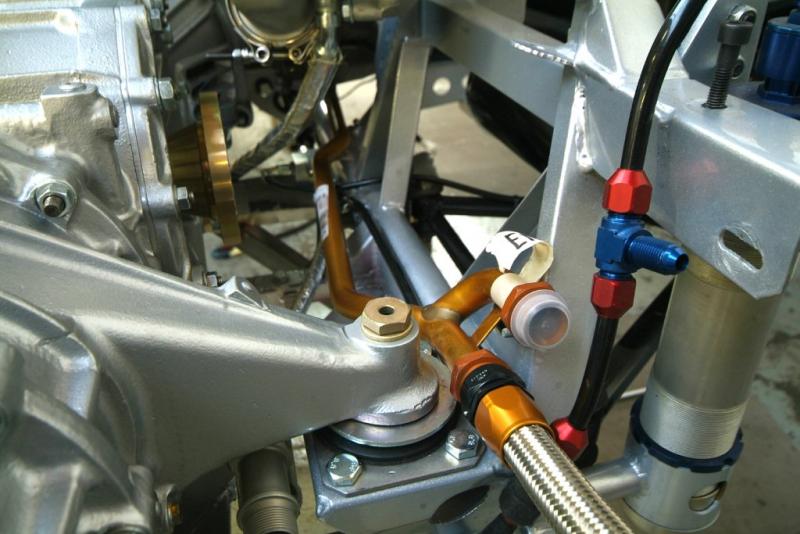

1809515d1385976556-f40-lm-restoration-27th1113-008s

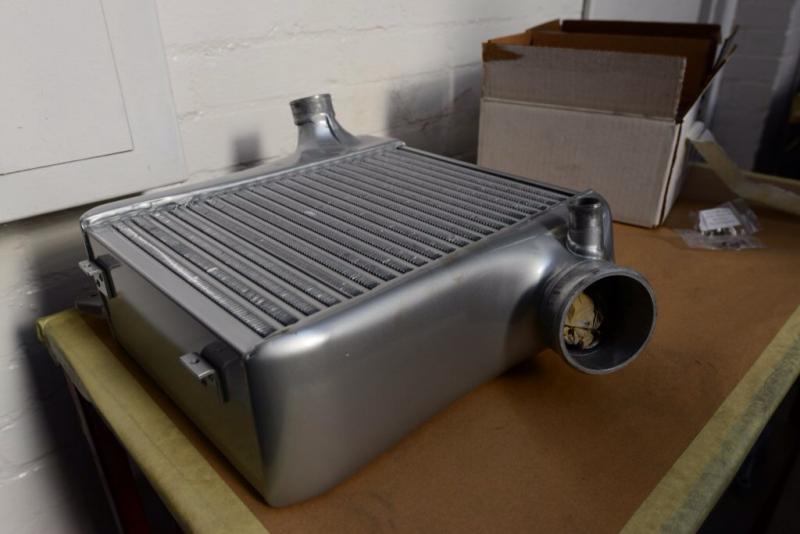

Prior to tomorrow’s post a missing shot of our refurbished oversize intercoolers, their size really noticeable when in position
1809659d1386013332-f40-lm-restoration-image

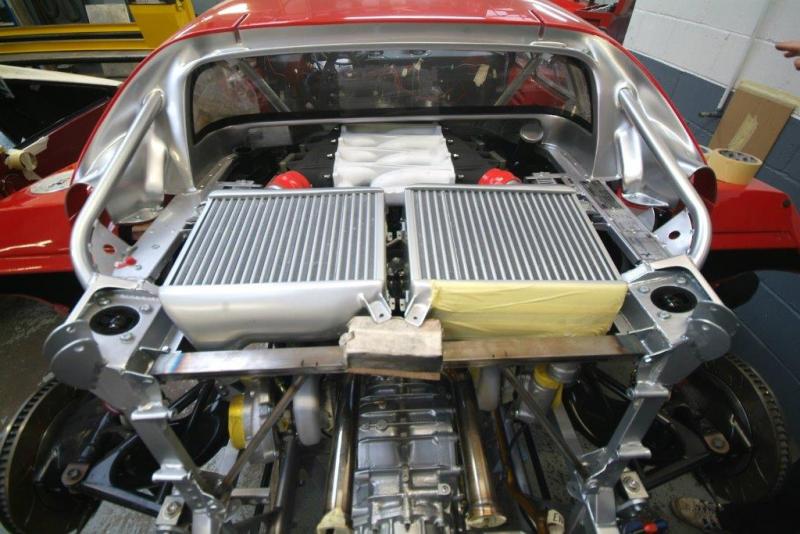

Looks better than it is as I have to keep on reminding you (and me)that it all comes back out again soon. Nevertheless beginning to look the part with the Intercoolers now positioned and as you can see we need to adjust the turbos to line up.
1809855d1386065083-f40-lm-restoration-28th1113-004s

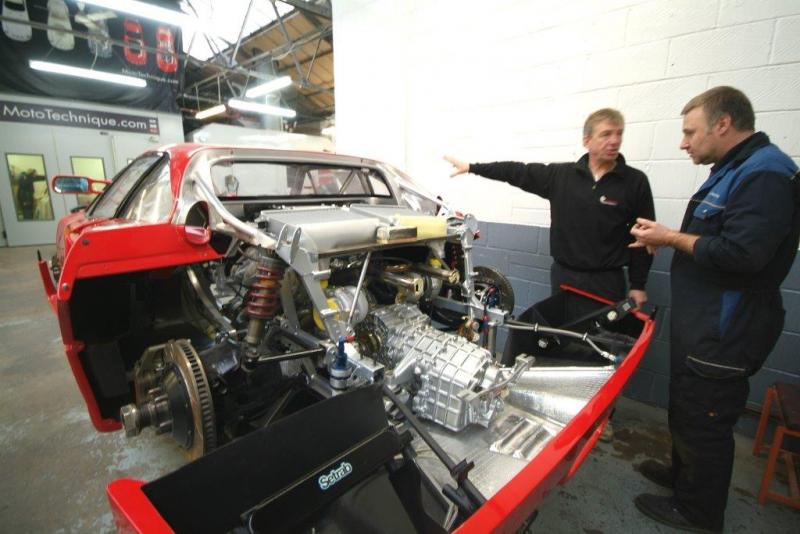

1809856d1386065083-f40-lm-restoration-28th1113-003s
1809857d1386065083-f40-lm-restoration-28th1113-005s
1809858d1386065083-f40-lm-restoration-28th1113-006s

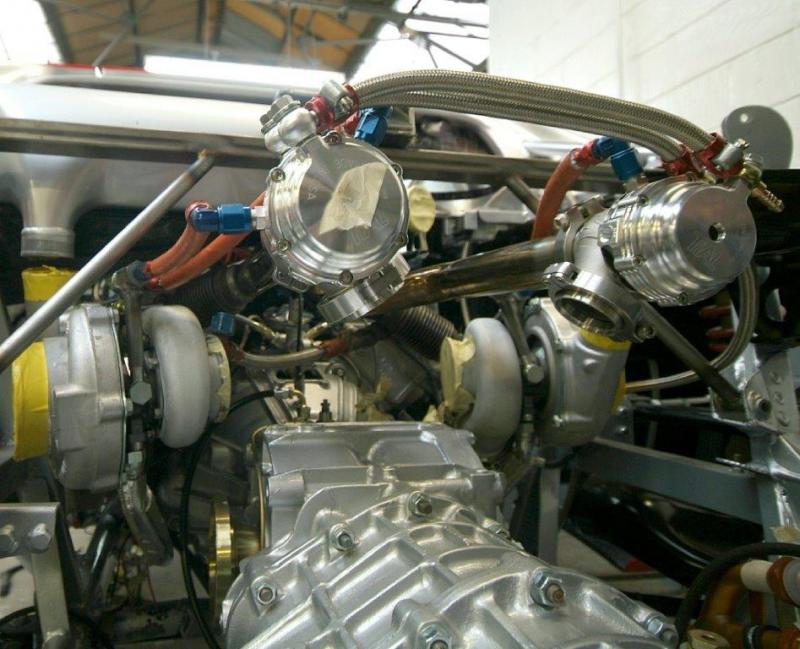

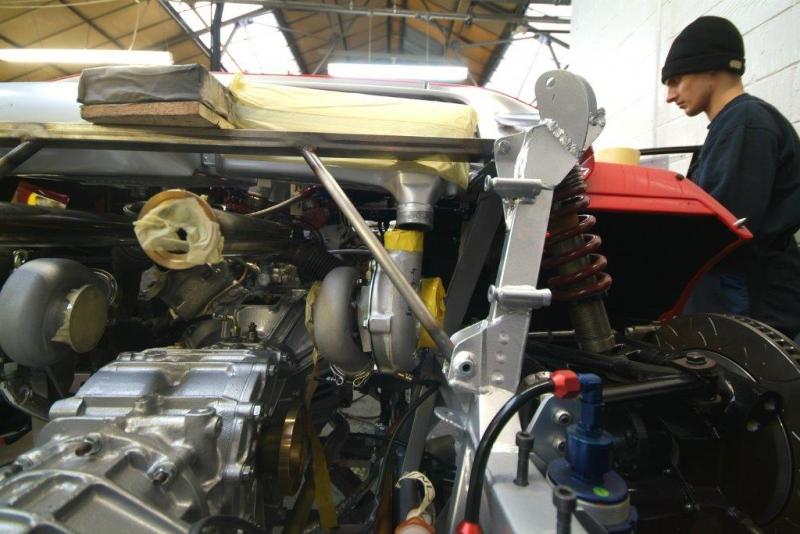

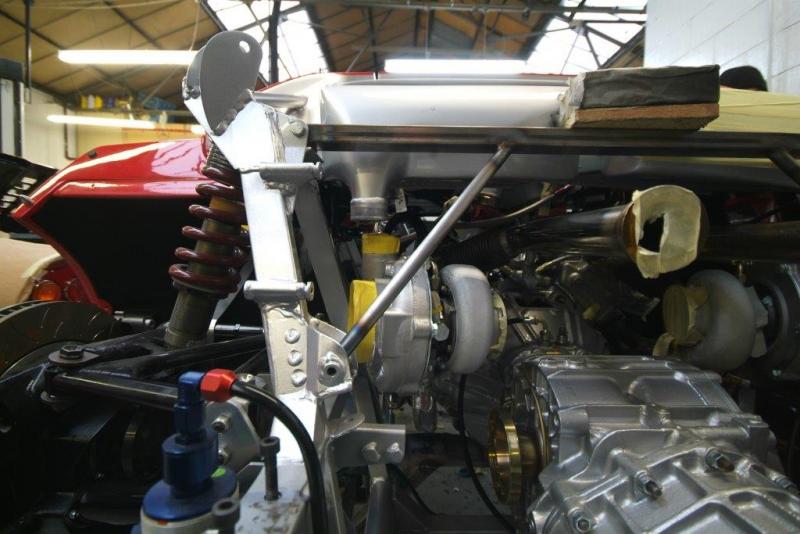

Water cooled wastegates fitted. We are thankfully not reonventing the wheel here as there are a couple of race LM’s running this set up in the UK which is helpful, indeed said company will be doing all tuning and dyno work in due course.

The red pipework is Hi spec water pipe covered in a stainless steel braiding and the additional orange / red heat proofing is “Aeroquip Firesleeve” the routing of the pipes is not final, it is work in progress.

Next up we go round the other side to see where all this links up.

1810351d1386174096-f40-lm-restoration-0211213-007s

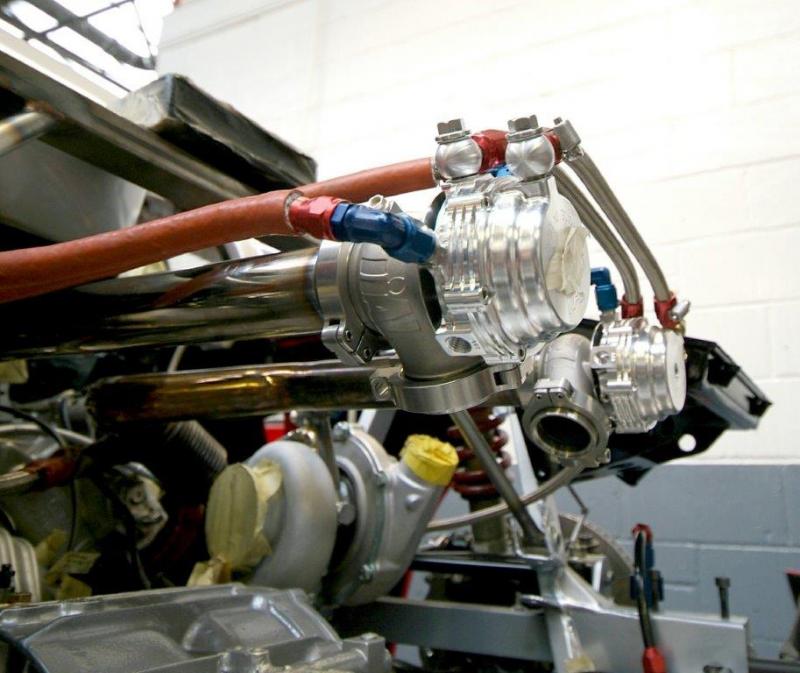

1810352d1386174096-f40-lm-restoration-0211213-012s

Now from the drivers end of the lump.

First shot shows the fuel regulator having all the hoses finally tightened up and the sensor that runs to the ECU being mounted before reinstallation.

Next up are the two heat shields, the old ones being in poor condition, which will protect the tanks from the exhaust heat. Note, exhausts will be going away shortly for refinishing to match the rest.

Last shot shows details of all the radiator and ancillary water hoses.

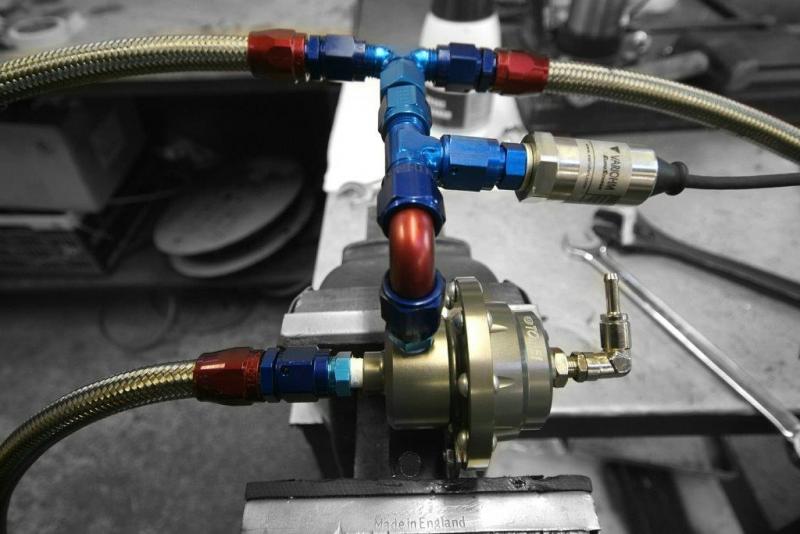

1810710d1386252256-f40-lm-restoration-2ng1213-003s

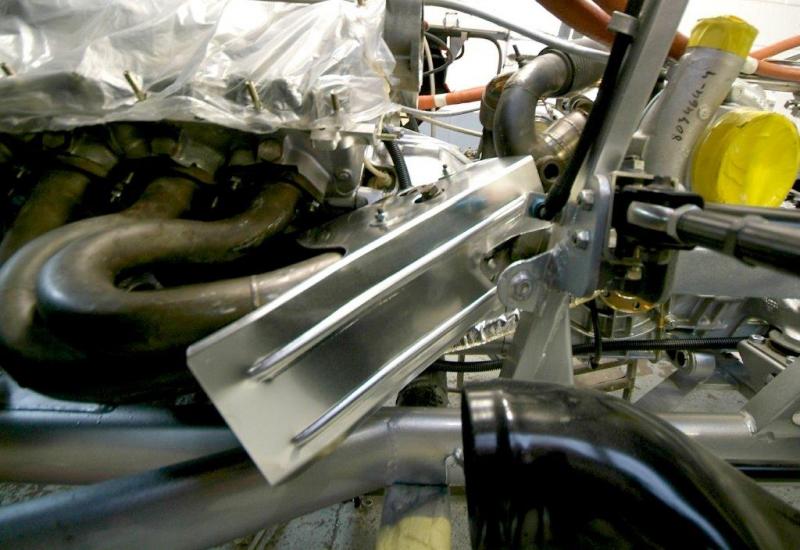

1810711d1386252256-f40-lm-restoration-3rd1213-001s

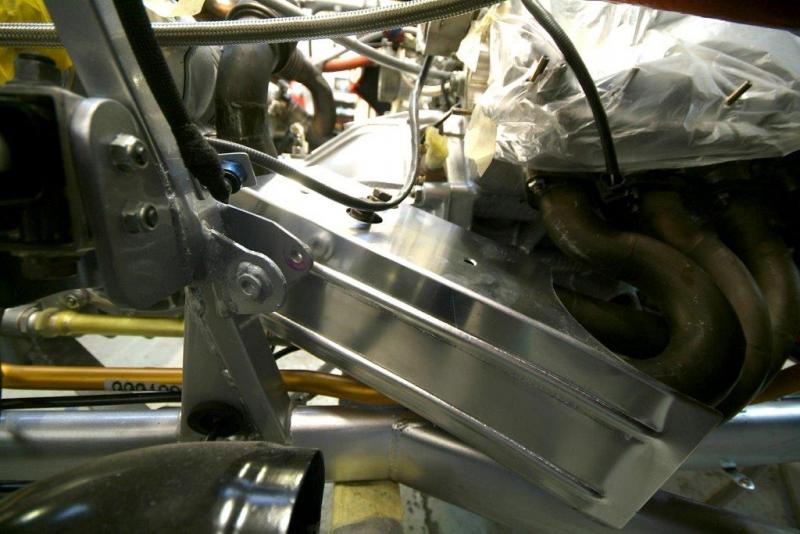

1810712d1386252256-f40-lm-restoration-3rd1213-002s
1810713d1386252256-f40-lm-restoration-3rd1213-009s

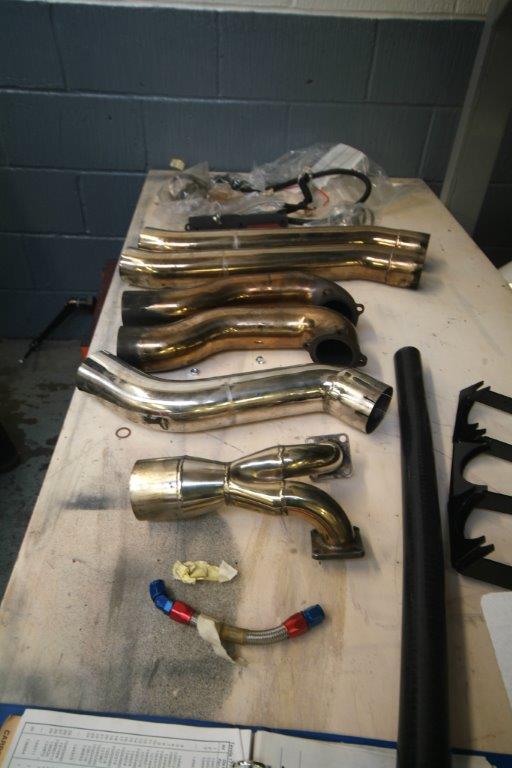

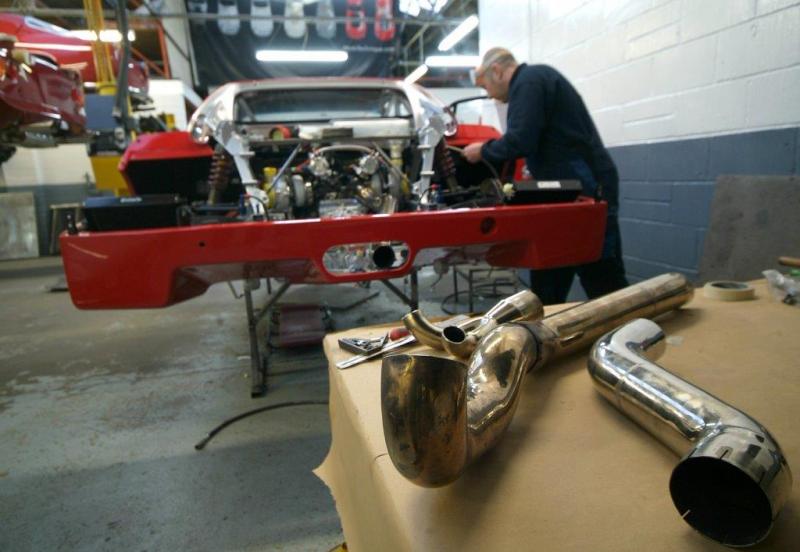

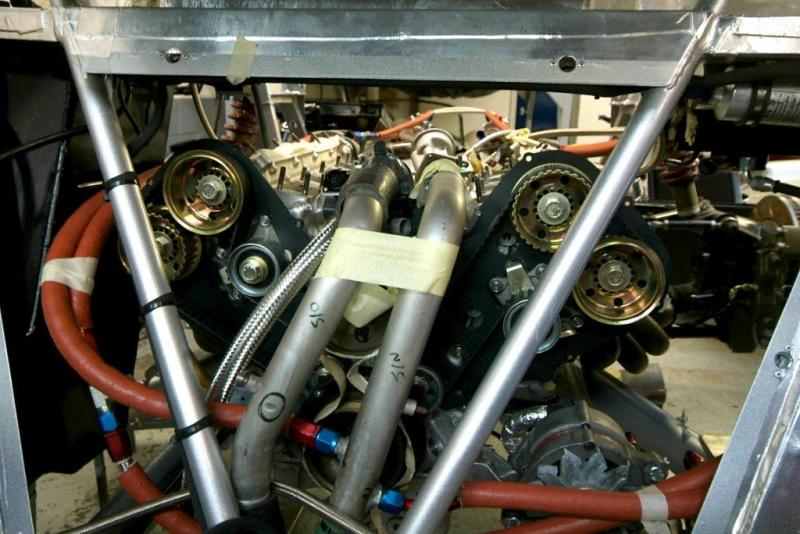

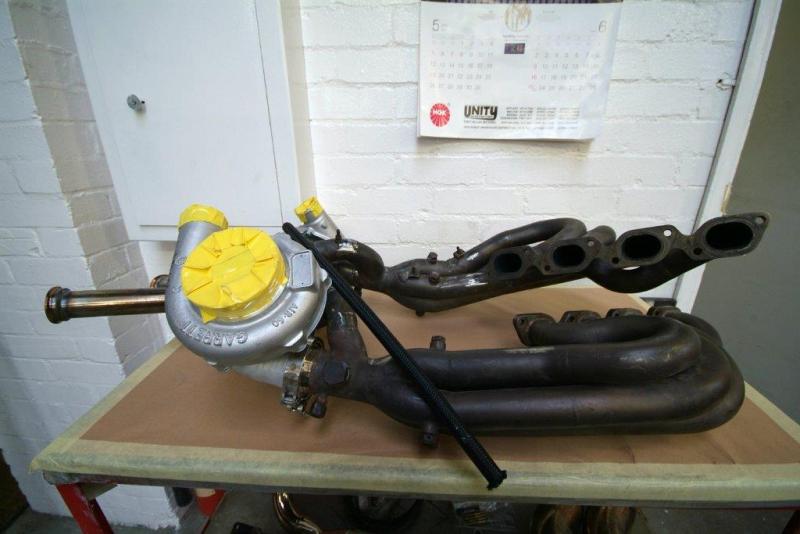

Seeing as how we are on the subject of exhausts, here is what we currently have and are cleaning up. Plan is to zircotec the lot, including the manifolds, in white as a nod to the P cars and indeed as a few LM’s were.
1811103d1386335260-f40-lm-restoration-28th1113-007s
1811104d1386335260-f40-lm-restoration-41213-008s
1811105d1386335299-f40-lm-restoration-151113-033s

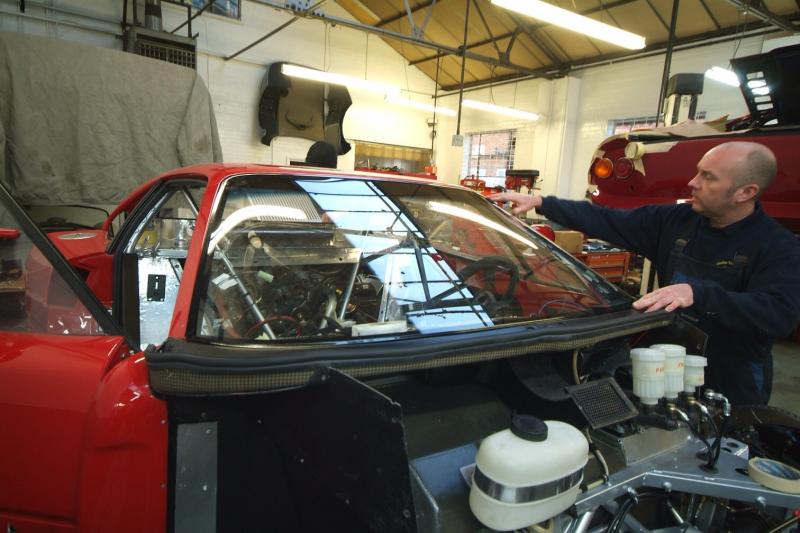

Perhaps not the most exciting of shots but somewhat of a landmark none the less. Turns out the existing screens heating element was not working so seemingly inevitably a new one was needed.
1811510d1386407335-f40-lm-restoration-image

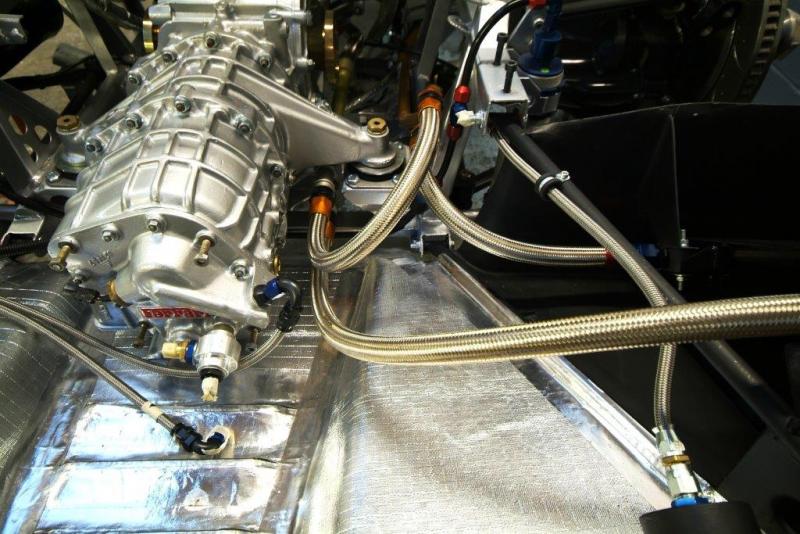

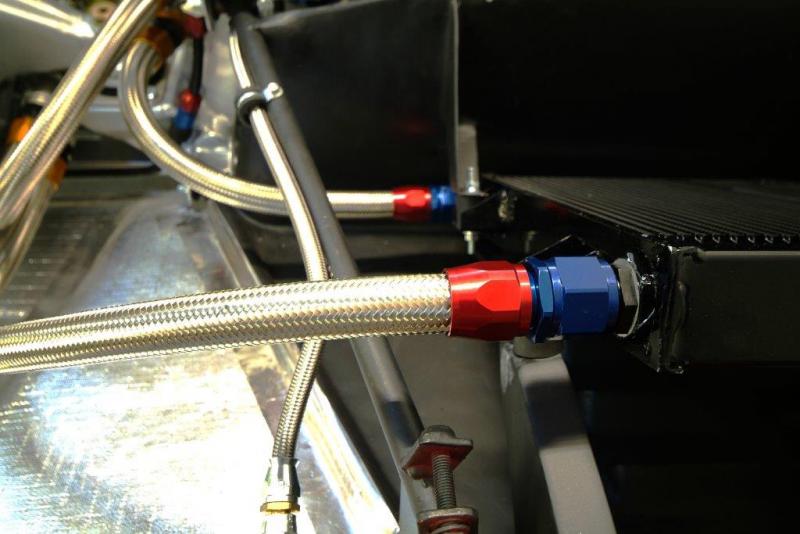

A few detail shots showing the various oil lines all correctly sized and fitted. All looking very neat and tidy.
1812473d1386585665-f40-lm-restoration-061213-005s
1812474d1386585665-f40-lm-restoration-061213-008s
A detail shot showing the supports for the wastegate coolant pipes so as to provide better heat tolerance as well as a stiff location to support them. Once they are welded we will Zinc / Passivate them to a gold finish.

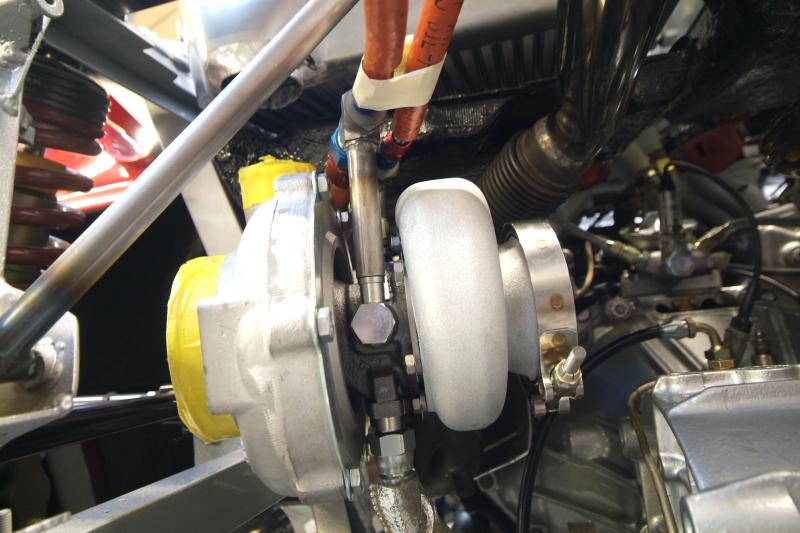

1812911d1386666909-f40-lm-restoration-image

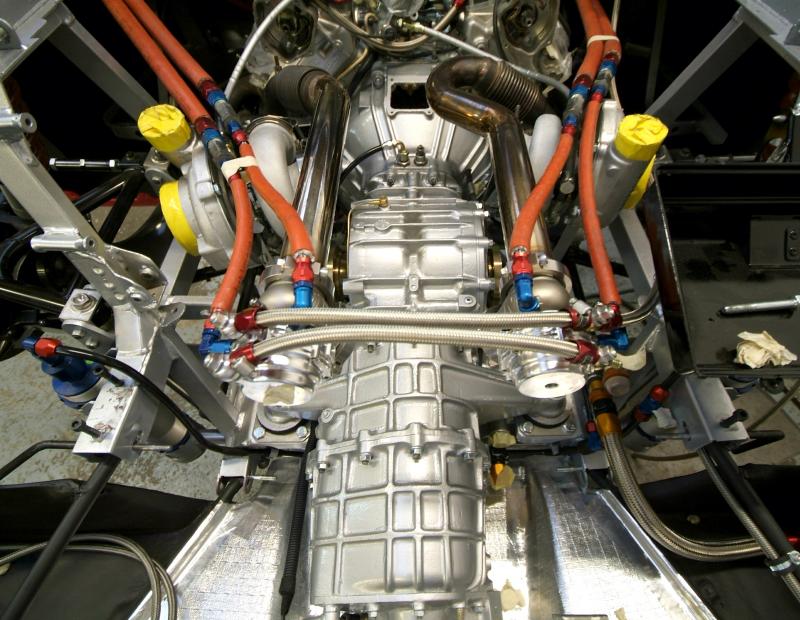

Another shot showing all the plumbing. Next up exhausts.
1813540d1386788600-f40-lm-restoration-image
Work now underway adapting our exhaust system and a further shot of the transmission etc.
1814279d1386857250-f40-lm-restoration-061213-011s

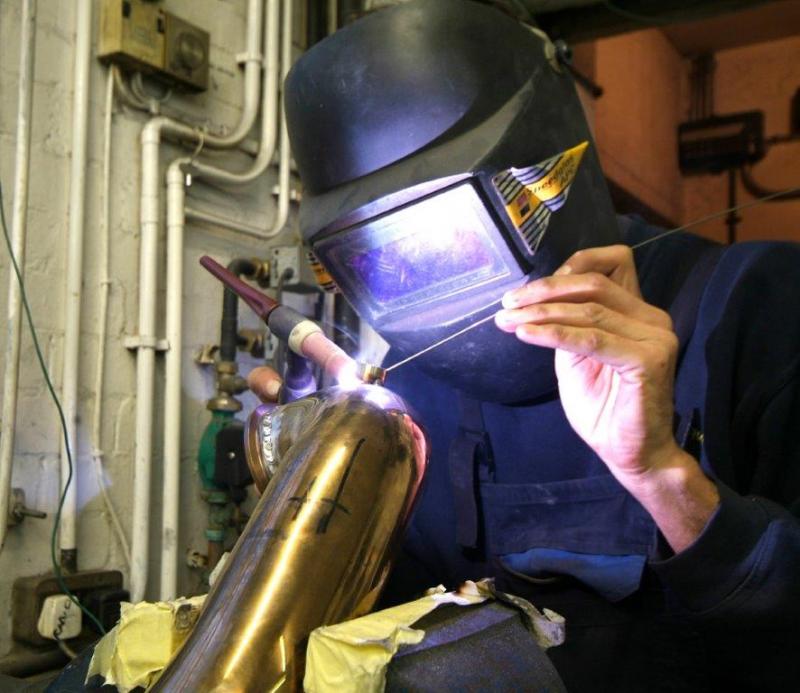

1814280d1386857250-f40-lm-restoration-061213-022s

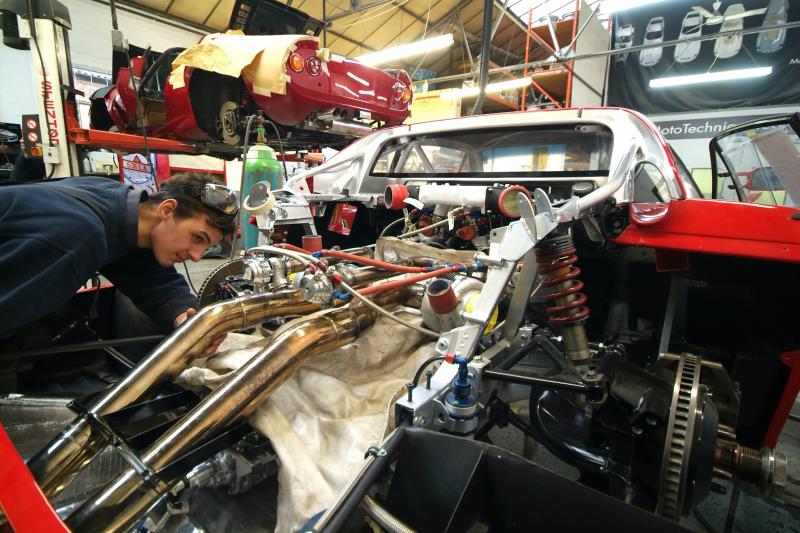

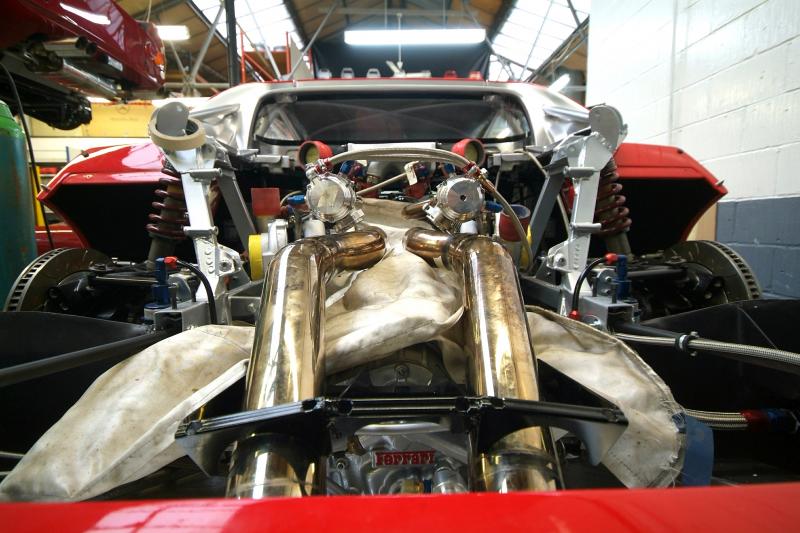

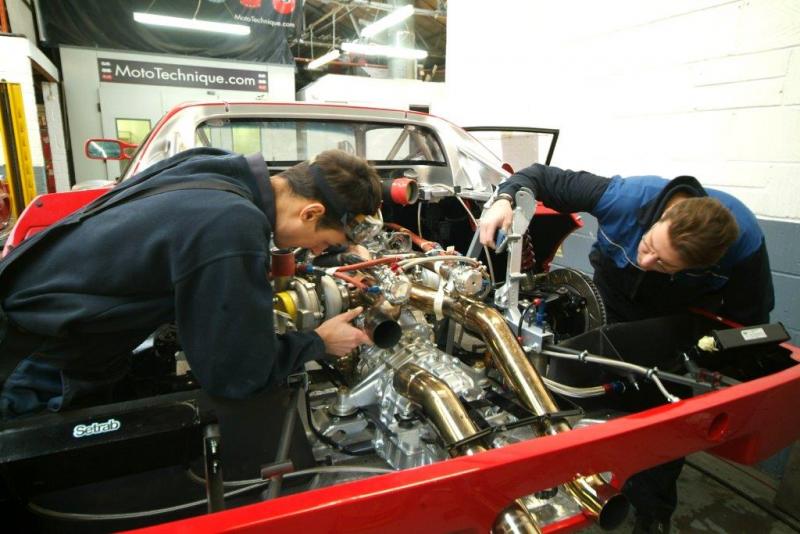

Work starts on the exhaust…..

1814659d1386936823-f40-lm-restoration-151213-003s

1815192d1387011780-f40-lm-restoration-image
1815805d1387121058-f40-lm-restoration-image

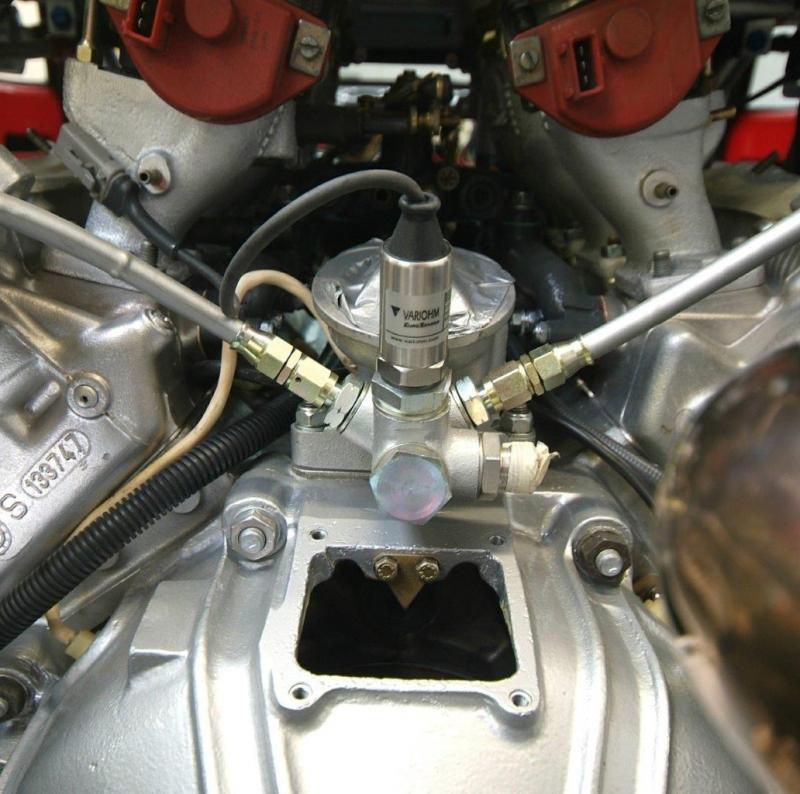

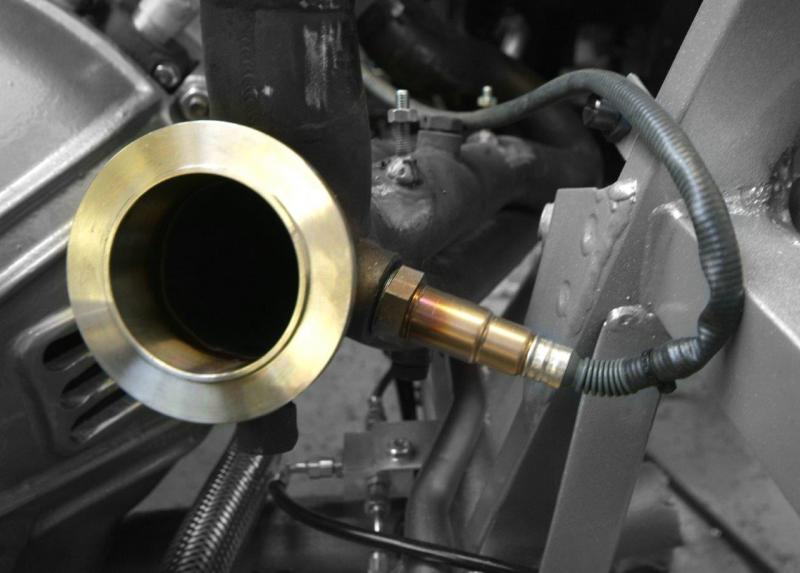

A couple of detail shots showing the oil pressure sensor and a Lamda sensor
1816741d1387281902-f40-lm-restoration-11122013-005s
1816742d1387281902-f40-lm-restoration-11122013-009s

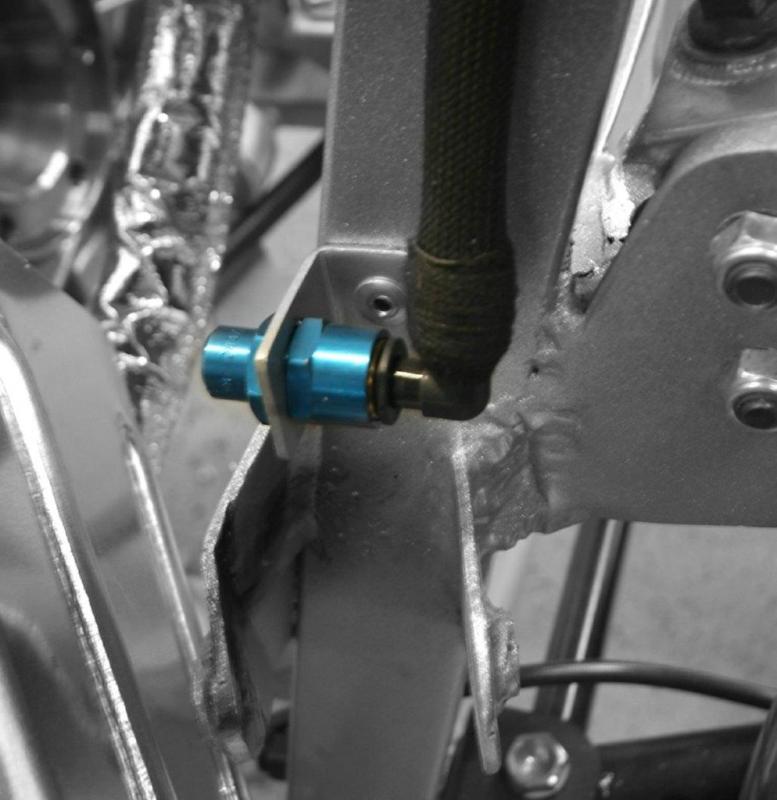

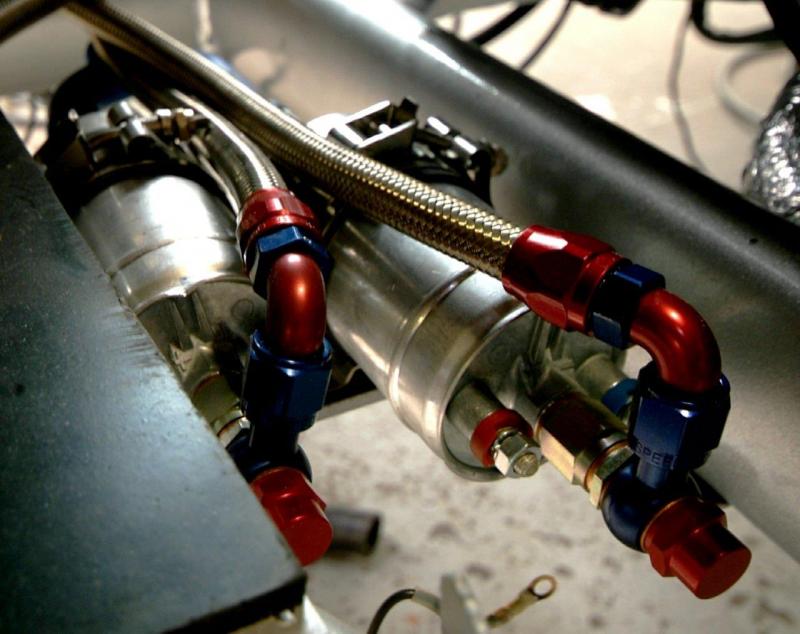

Close up of fire extinguisher outlet and fuel pumps. Fuel pumps are a different set up on the race car whereas I believe they are internal, certainly in USA cars.
1817429d1387369484-f40-lm-restoration-11122013-014s
1817430d1387369484-f40-lm-restoration-11122013-012s

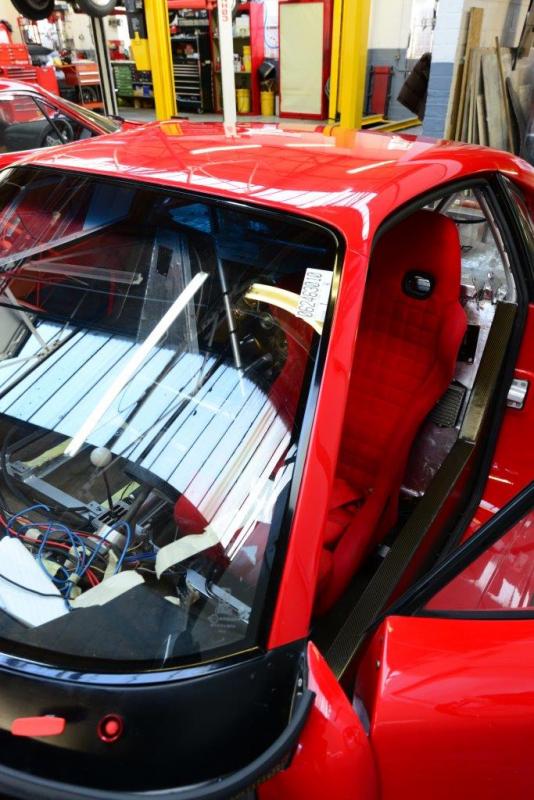

New windscreen with heating element now bonded in and seat temporarily fitted to check out positioning for mapping controls etc. Note the Michelotto LM seats which will either be cleaned or recovered in due course.
1817878d1387457547-f40-lm-restoration-dsc_5590s
1817879d1387457547-f40-lm-restoration-dsc_5593s

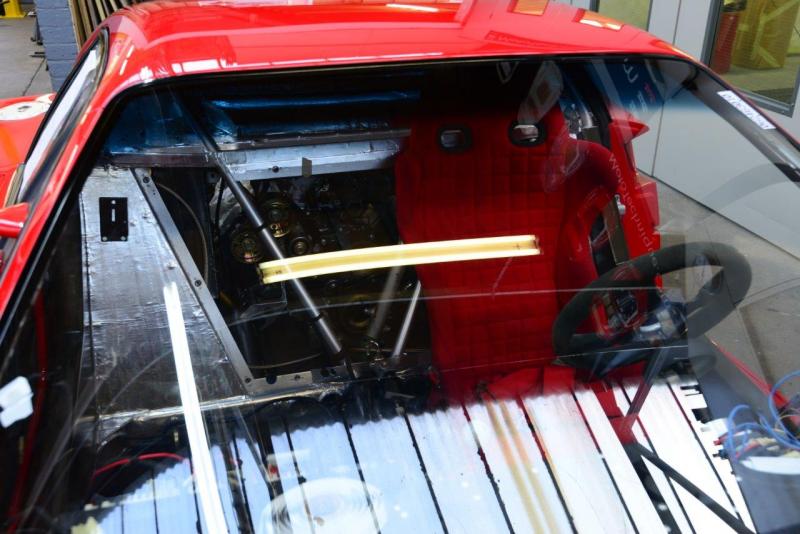

One further part needing modification and renewal, the inlets from the air boxes to the turbos. Here you can see some elephant hose being sacrificed. Filled with foam, stripped off and the foam core then used as a former for laying up the carbon.

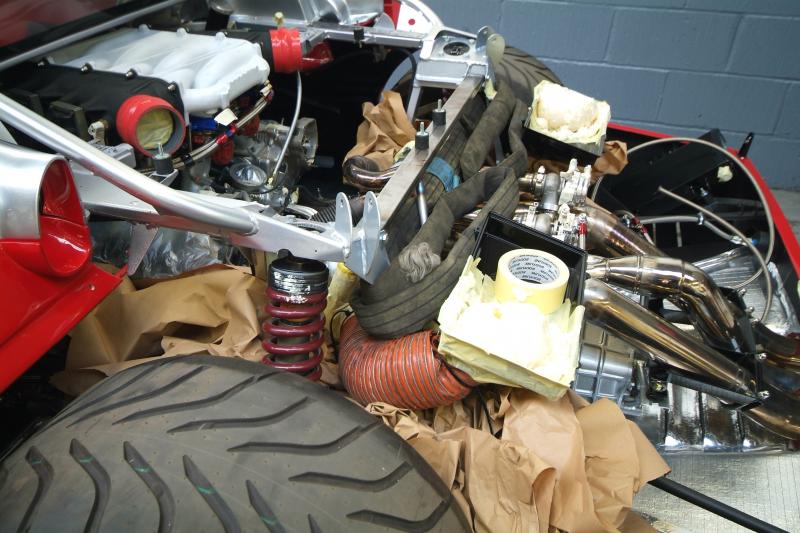

1818295d1387529076-f40-lm-restoration-image

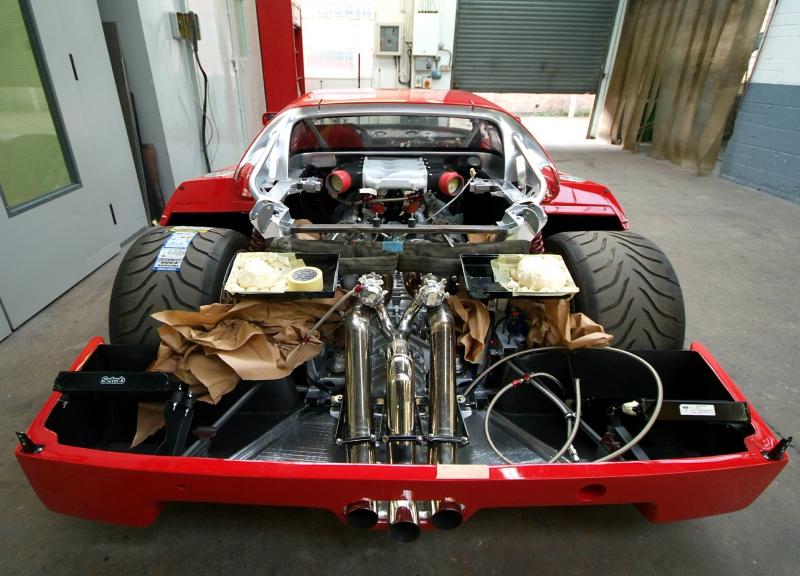

Exhaust installed and I have to ask if there is a better engine zone in the automotive universe? And I do mean zone rather than bay, with the suspension, tyres, exhaust, oil coolers etc etc; just classic.

Cannot wait until it all goes together for real inc intercoolers etc as it should really look quite something.

1818443d1387565735-f40-lm-restoration-image

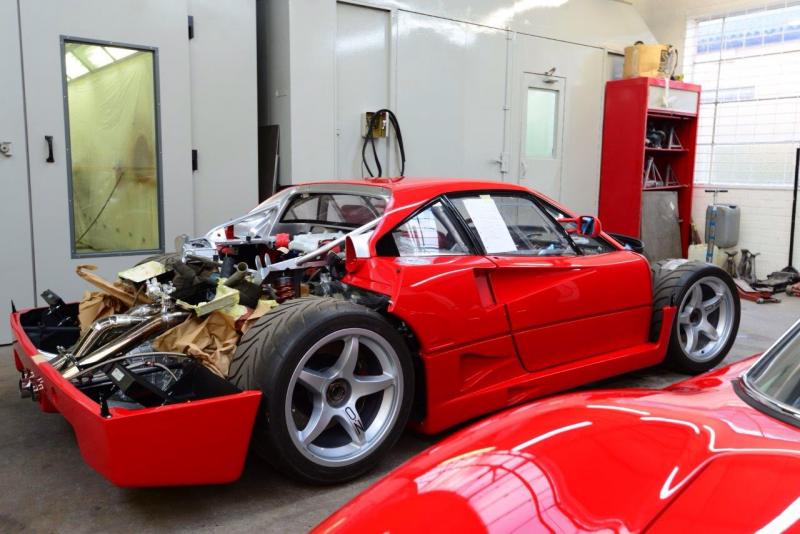

A drip feed of shots up to Christmas as clearly work is over for now…..
1818710d1387619006-f40-lm-restoration-dsc_5563s
1819102d1387703497-f40-lm-restoration-image

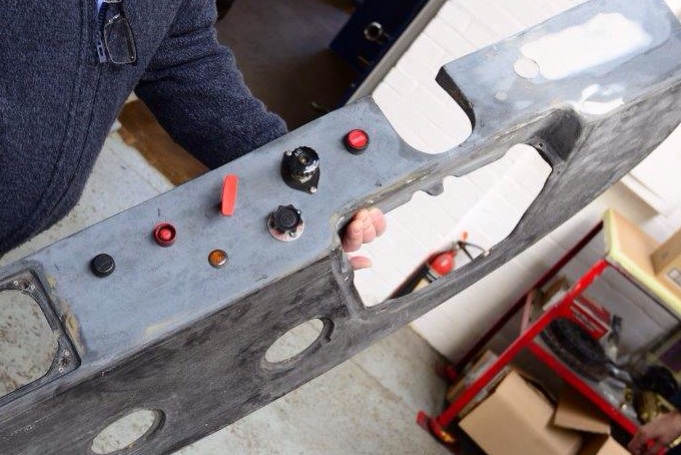

Upside down shot shows Dashboard now well on the way. Right hand side of the dash all sorted, left hand was dominated by the giant red oil pressure warning light which ensured there was no way the driver could claim he never saw it, as covered earlier in the thread, so that has been filled in and will now be arranged as it should be.
1819486d1387784681-f40-lm-restoration-image

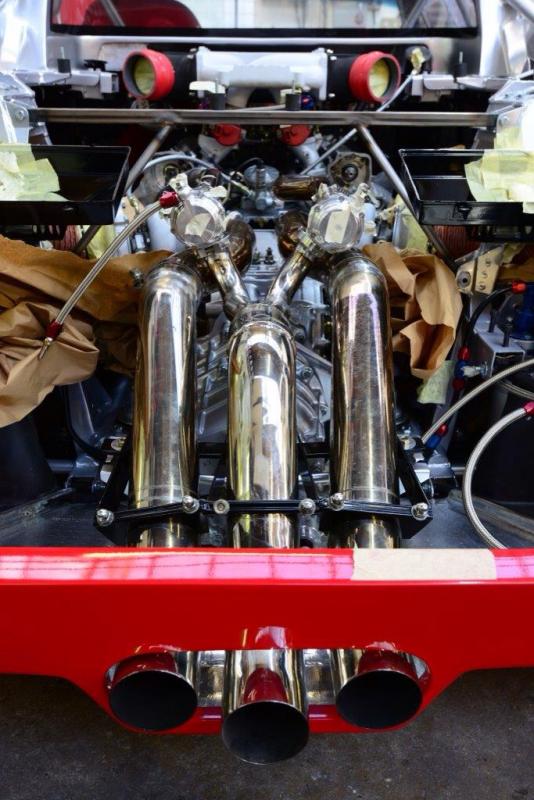

Not quite sure why the wastegate pipe appears a bit longer. We plan to even up.
1821075d1388143058-f40-lm-restoration-image
A few shots before the strip down and the final haul. A small list…..
1826004d1389187914-f40-lm-restoration-image
Front just missing the lower brake ductwork and a bit of wiring to tidy up.
Yes, I know about the tyres!
1826005d1389187986-f40-lm-restoration-image

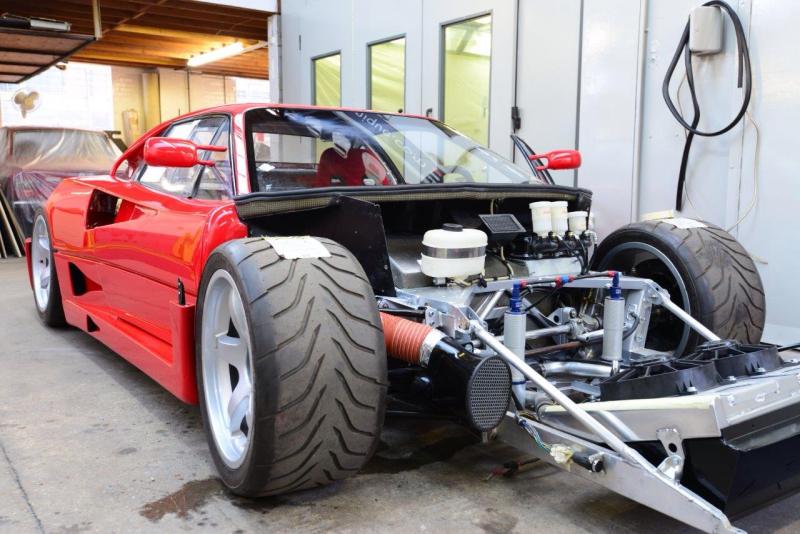

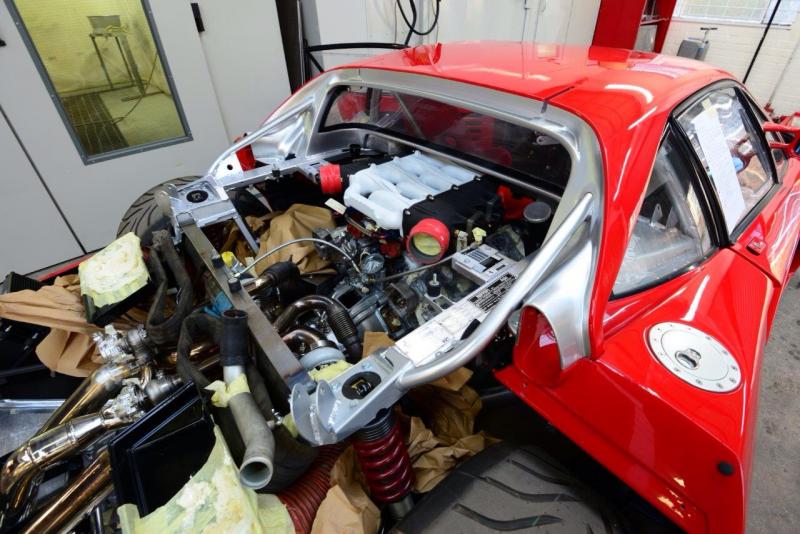

Engine prior to strip out after we have made the carbon turbo trunking coming next.
1826006d1389188126-f40-lm-restoration-image

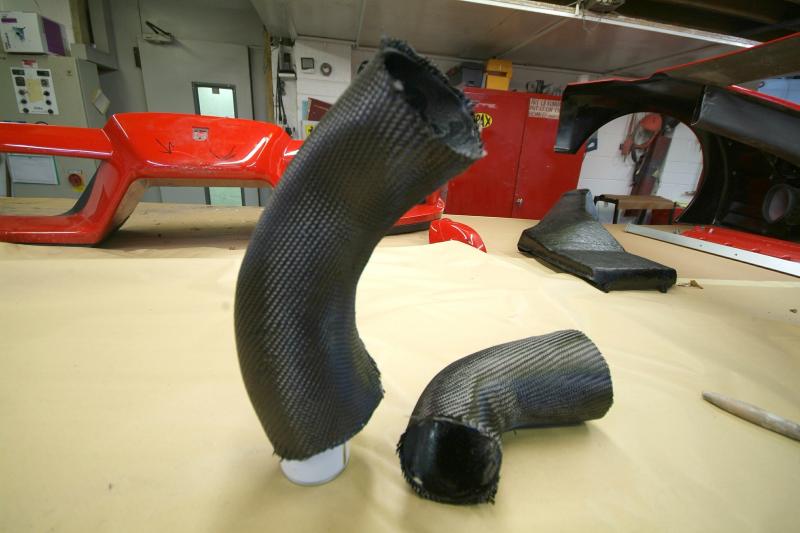

Sacrificial elephant trunking now removed and cast for carbon revealed.

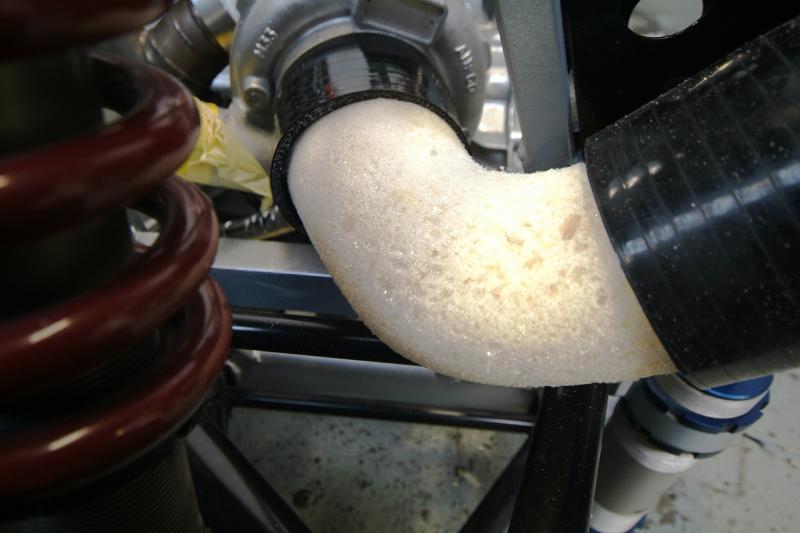

1826451d1389270489-f40-lm-restoration-image

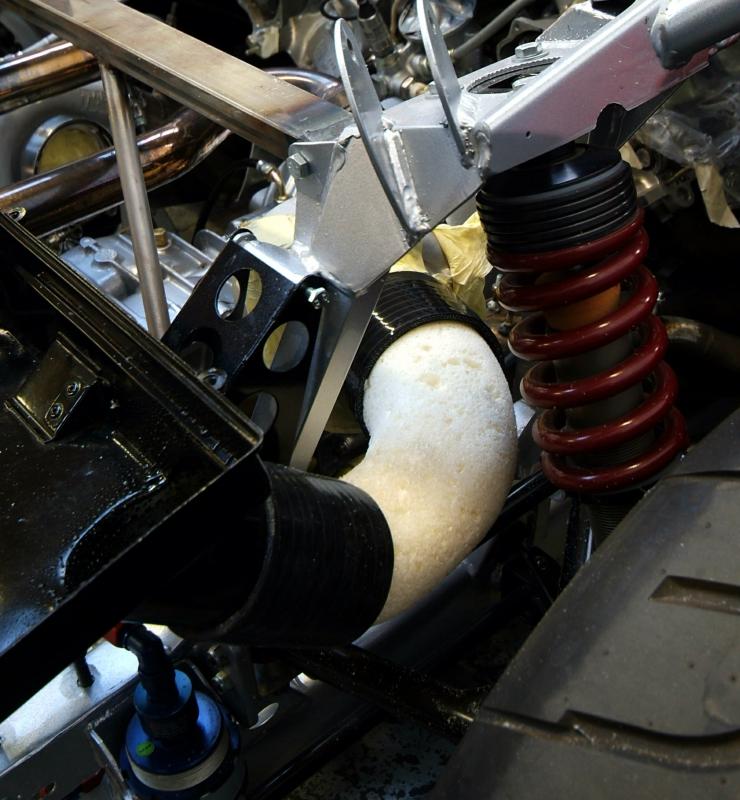

At least these will fit properly unlike the earlier Michelotto offerings.

1826452d1389270546-f40-lm-restoration-image

They begin to take shape….

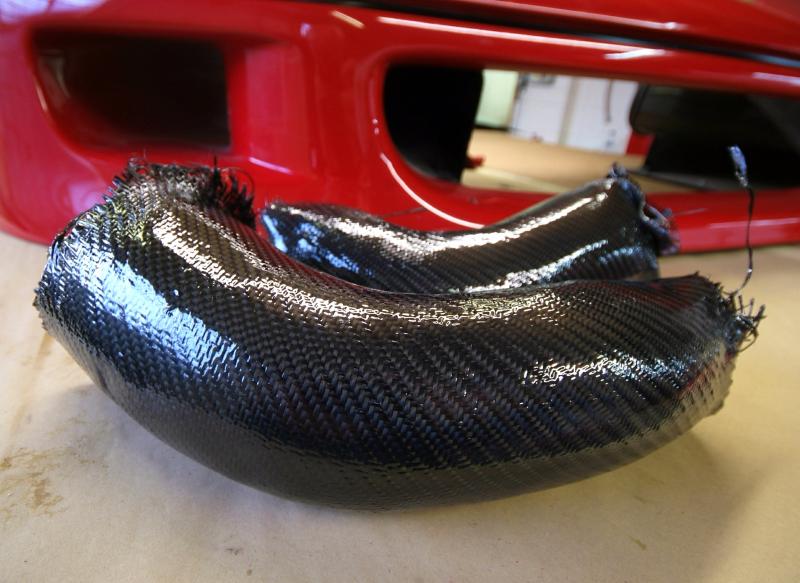

1826838d1389360576-f40-lm-restoration-image

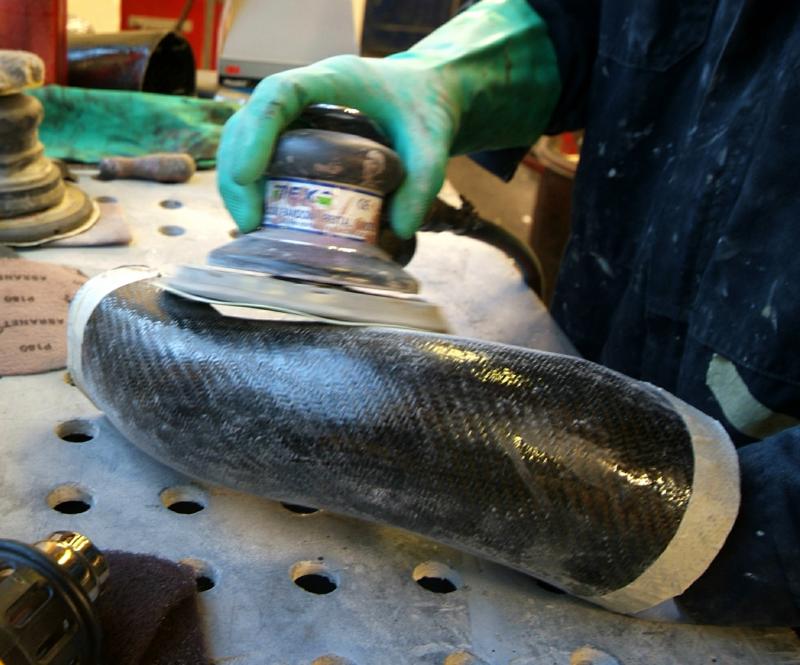

Beginning to look better…
1826839d1389360626-f40-lm-restoration-image

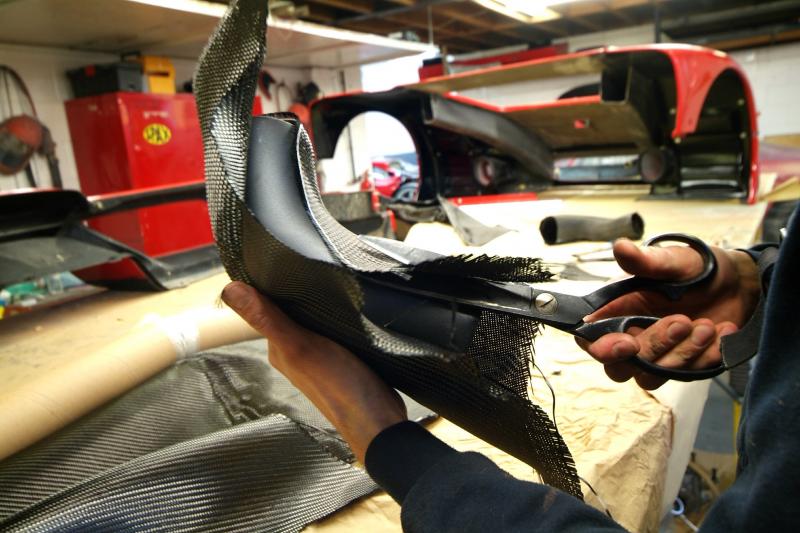

A few images of final layer of carbon and epoxy resin being applied.

1829306d1389790955-f40-lm-restoration-image

1829307d1389791064-f40-lm-restoration-image

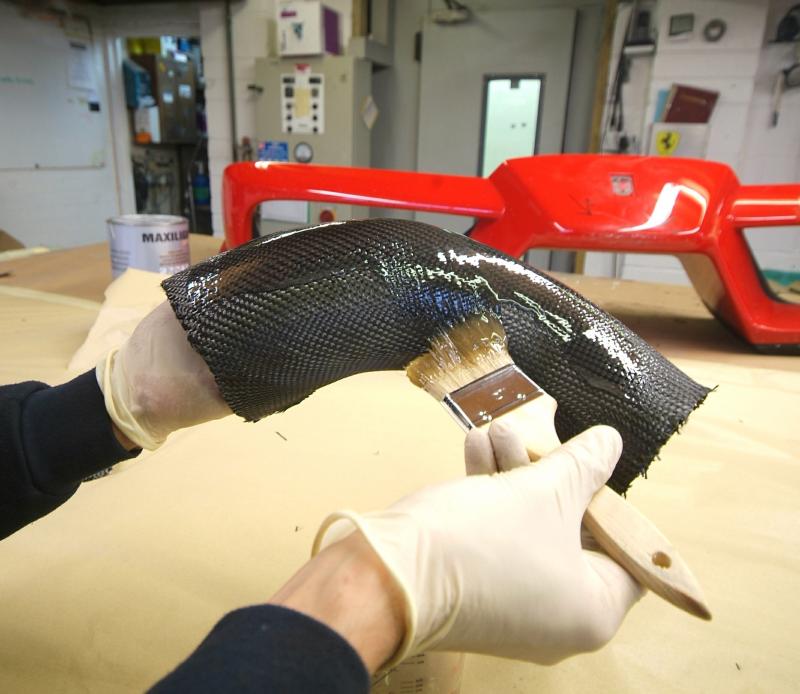

And finally the resin and you begin to get an idea of the finish. Note the traditional Mototechnique back drop!

1829308d1389791236-f40-lm-restoration-image

OK, final assembly for real, really.

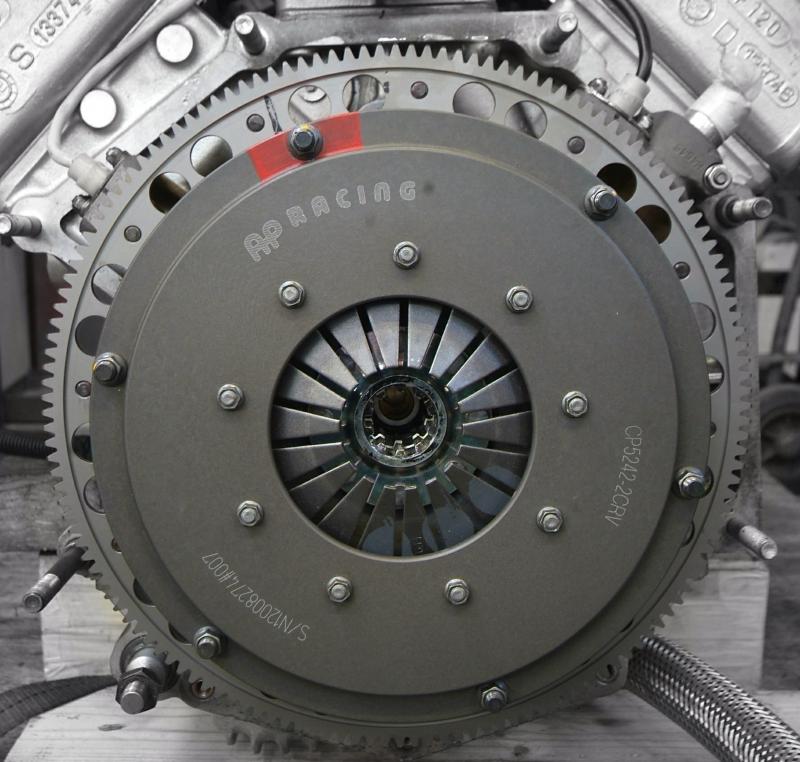

Clutch and lightweight flywheel shown here with marks indicating position as balanced

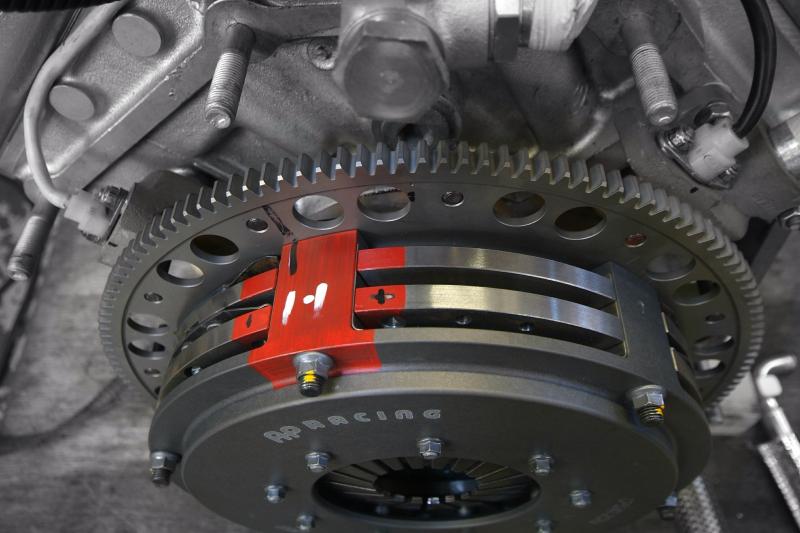

1829720d1389876447-f40-lm-restoration-image

All slightly Groundhog Day.

Next up final detail assembly on the engine to include all electrics etc as the ‘lump’ as installed was short of detail and being used to check positions of everything, those turbo inlet pipes included.

1829722d1389876577-f40-lm-restoration-image

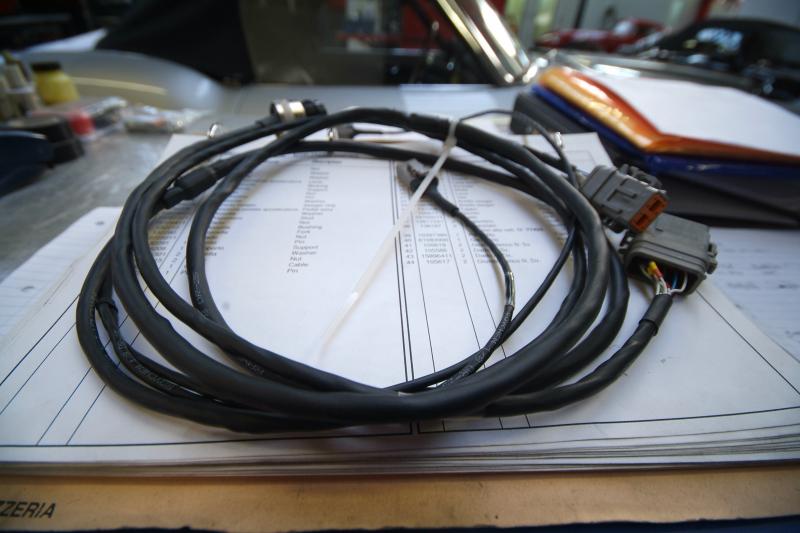

New custom Motec wiring harness now arrived and ready for the install.
1830059d1389959930-f40-lm-restoration-image

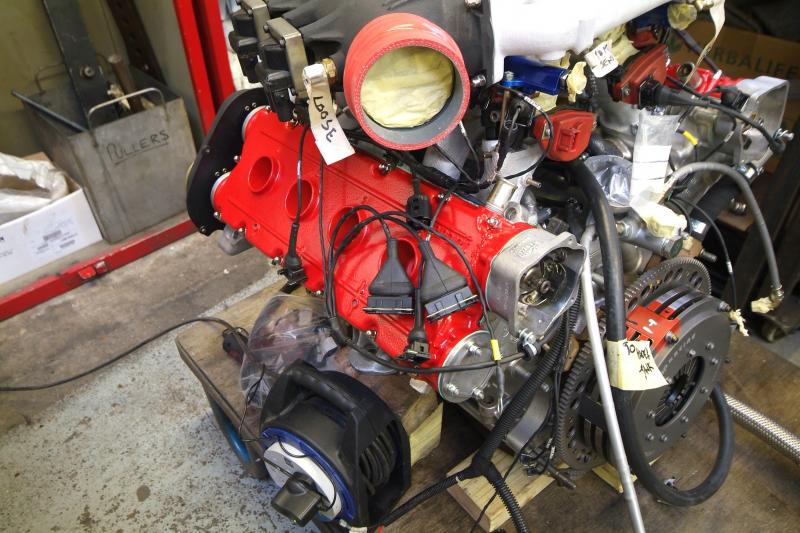

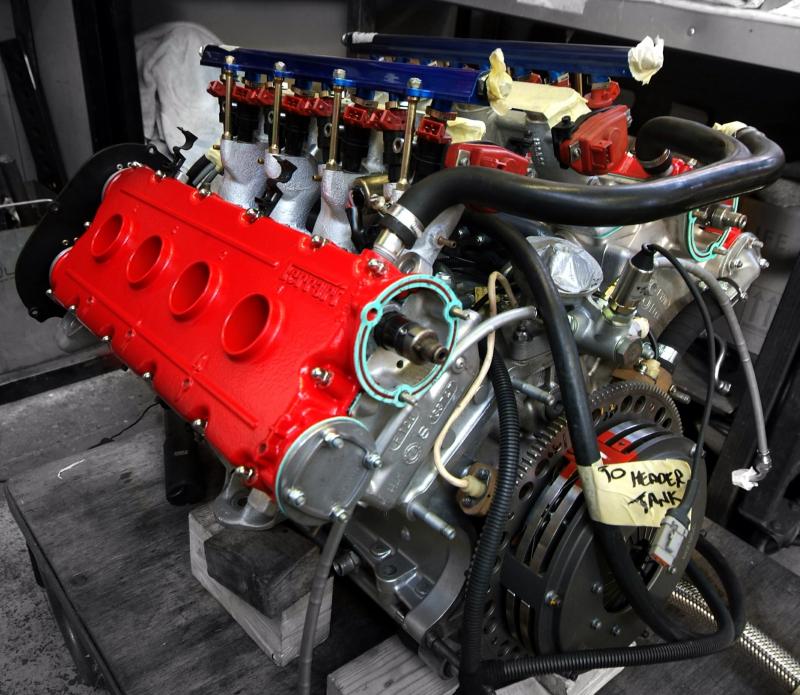

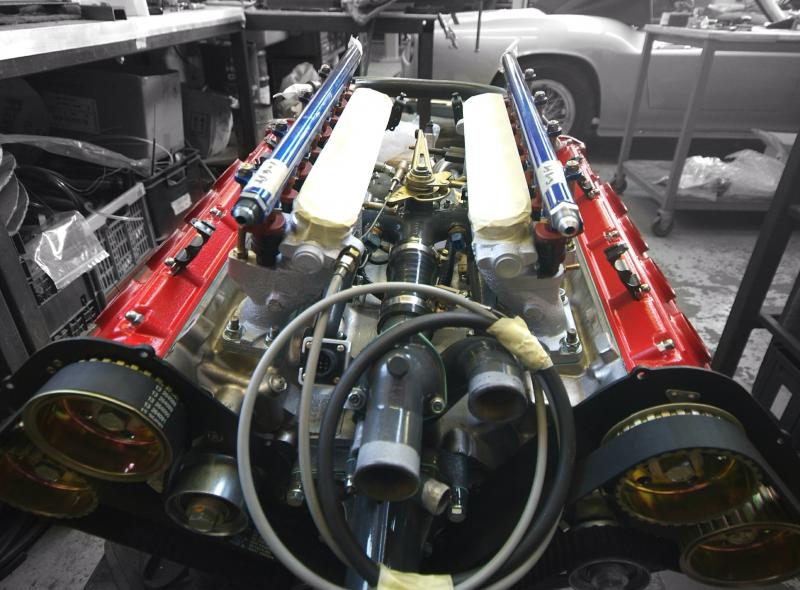

And all the detail work on fuel rails etc now well underway and our new crackle cam covers in place-that was a story in itself but finally we have the correct finish.
1830060d1389960000-f40-lm-restoration-image
1830063d1389960117-f40-lm-restoration-image

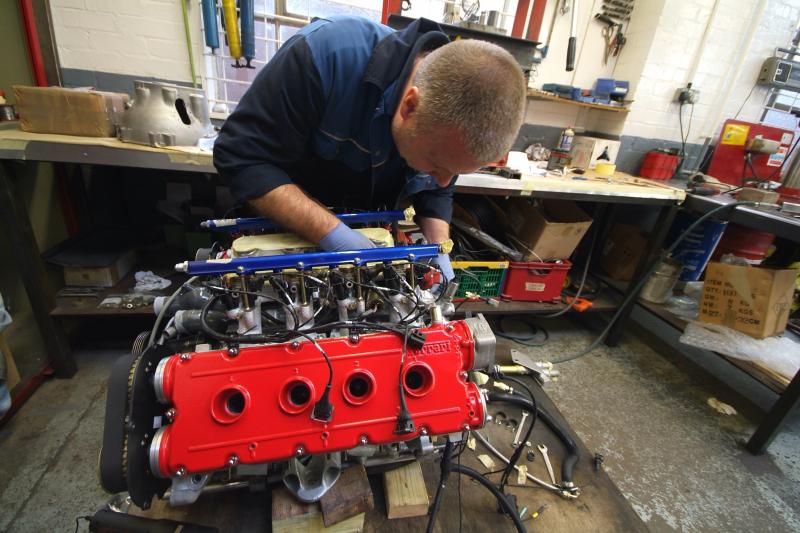

1830540d1390052112-f40-lm-restoration-image
1830541d1390052165-f40-lm-restoration-image

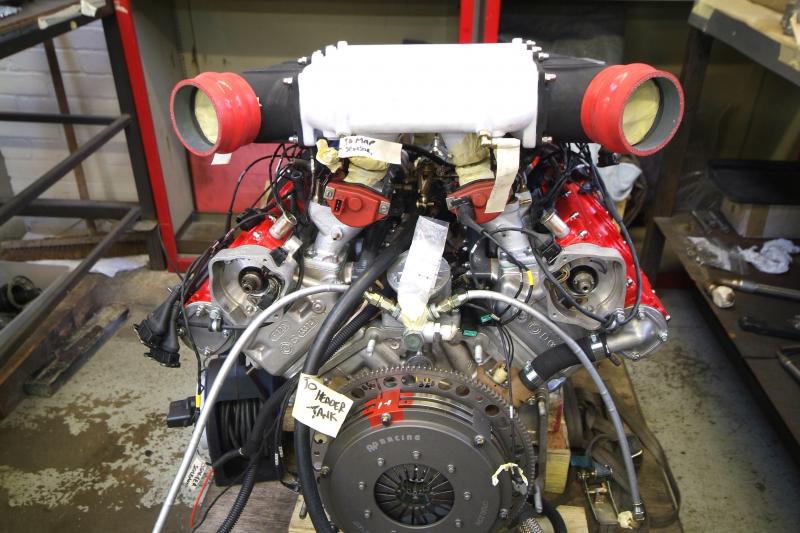

1830543d1390052899-f40-lm-restoration-image
Fuel tanks back in for final time, really, next week, and then the lump back in and we can start to wire her up.

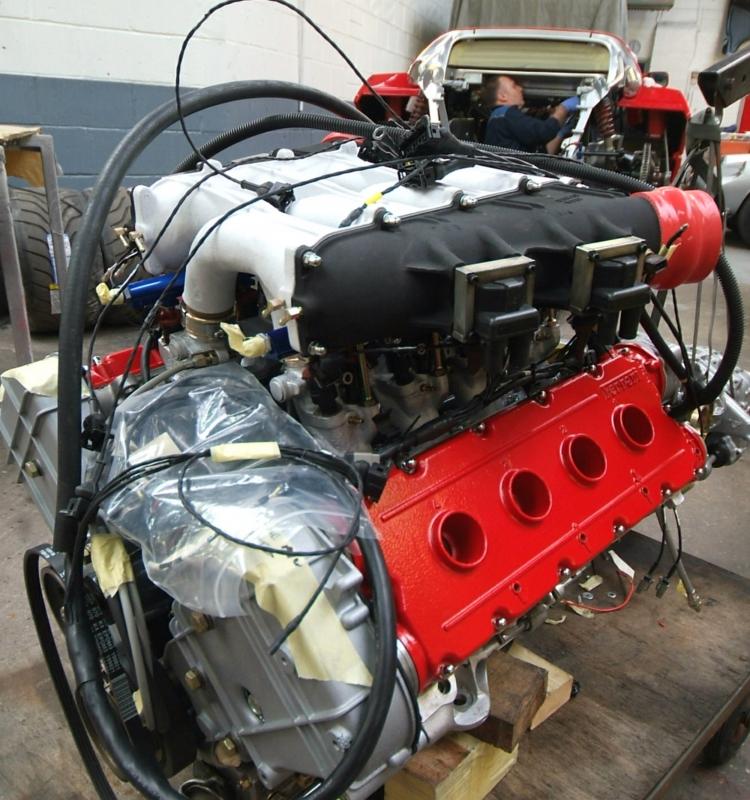

1830900d1390139053-f40-lm-restoration-image

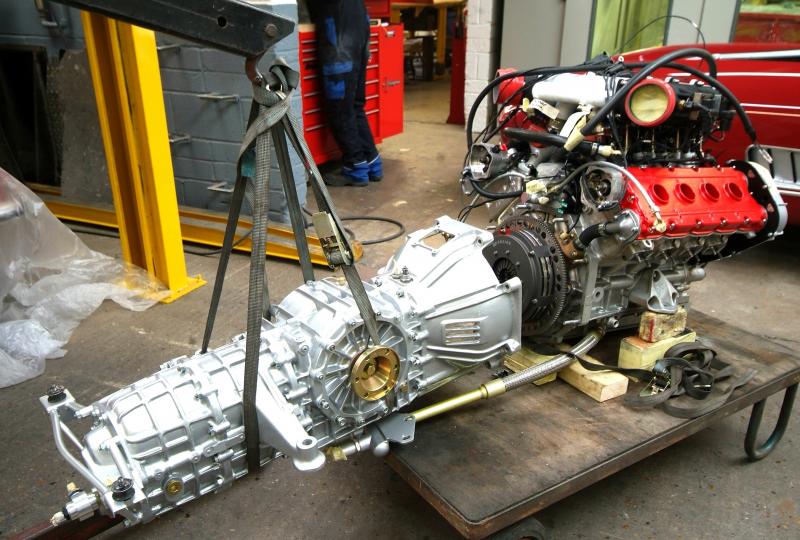

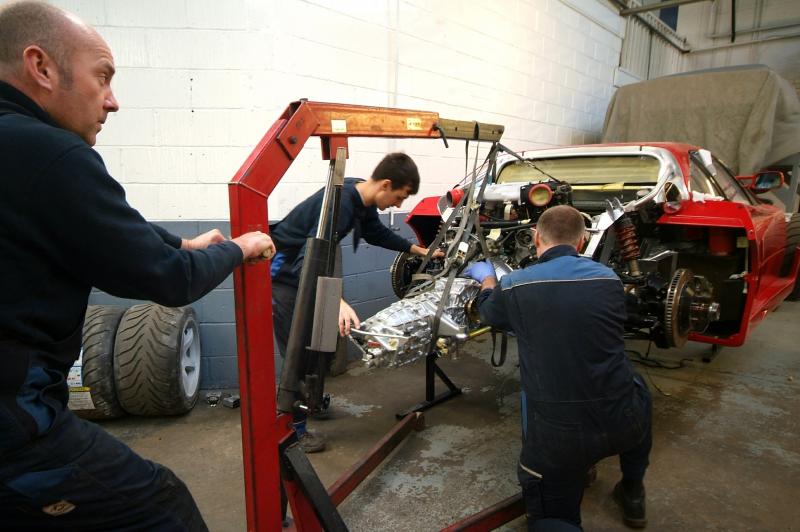

The mating
1830901d1390139129-f40-lm-restoration-image
Meanwhile, fuel tanks now in for good, all plumbed up so next we can return the lump to its natural home now that hopefully all clutch issues resolved.
1831327d1390225559-f40-lm-restoration-image
1831328d1390225693-f40-lm-restoration-image

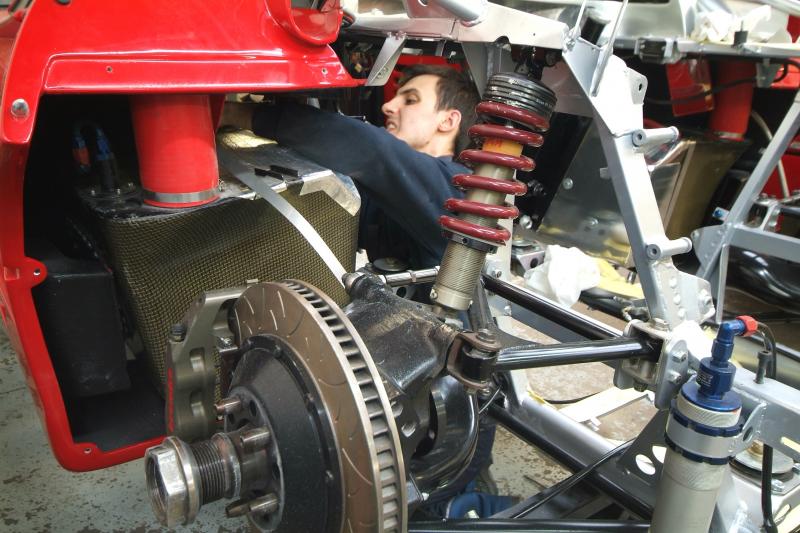

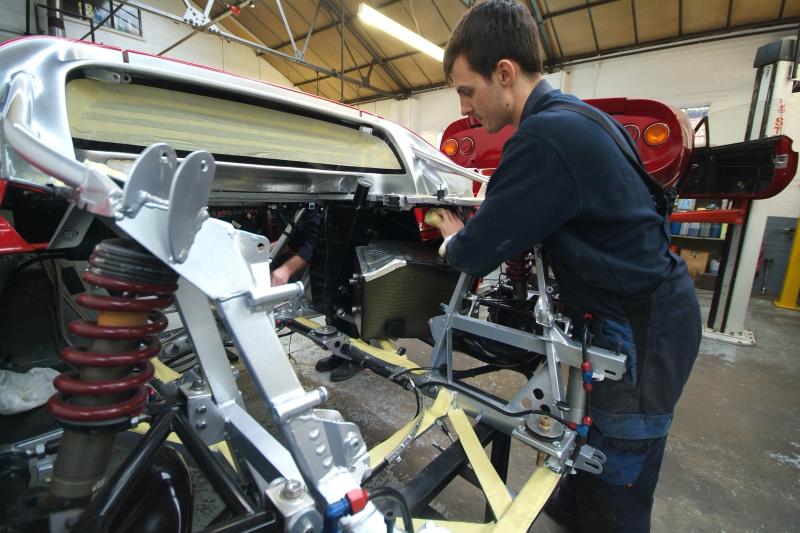

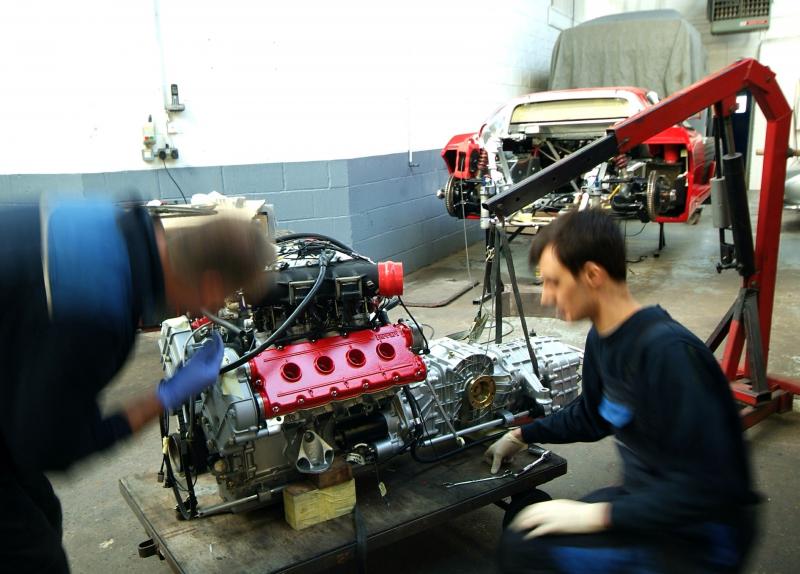

Meanwhile, back on the front, we are moving towards insertion again…..
1831931d1390310443-f40-lm-restoration-image
And in she goes…
1831934d1390310601-f40-lm-restoration-image
New OZ rims from Michelotto all pitted and poorly finished so now being refinished.
1832368d1390401278-f40-lm-restoration-image
And this little not now needs plugging in….

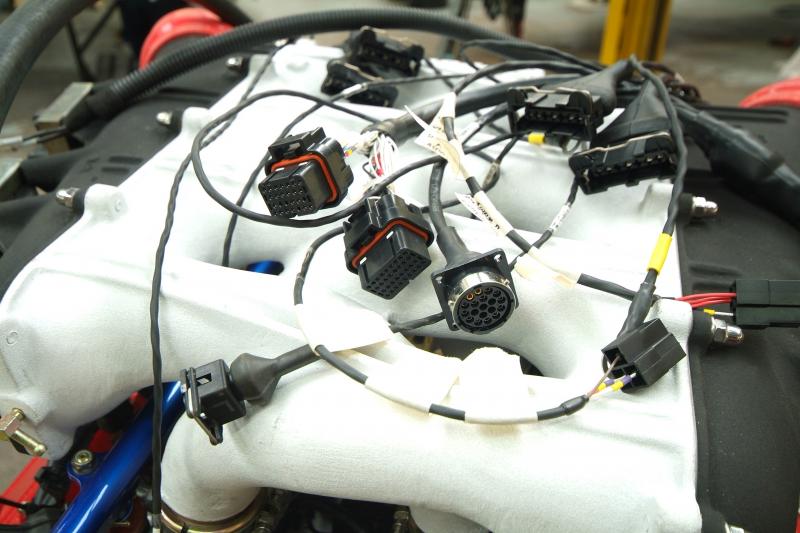

1832404d1390403028-f40-lm-restoration-image
CLICK HERE for part 4.
You can leave a response, or trackback from your own site.

11 Responses to “Ferrari F40 LM Restoration Part 3”

  1. shiftyXTI says:

    Wow, so much quality work going on here, this really is a better F40 than ever left the factory or Michelotto in period. I’ve yet to have a moment where either the purist or the modder in me would do anything different – just perfect!

    Thanks for sharing!

  2. B E says:

    Oh my bloody word. 😮

    It’s one of those things where you don’t even notion the care of imagining how much it would all cost, you just succumb to the sheer amount of win being had. The attention to detail is unparalleled.

    By far the best, most intriguing build I’ve ever seen.

  3. Brock says:

    WOW!!! And people think its expensive to restore a Mustang or Camaro LOL!!

  4. gustav says:

    where’s the link to next part of this carporn? fantastic words and pics.

  5. Maurits says:

    Thanks to people like you we can enjoy the might of machines like this awesome F40 LM at Le Mans Classic every two years.

    To put this huge result in perspective, when did you start this Project?

  6. nugundam93 says:

    Saw this over at speedhunters and the attention (and more!) to detail is just way out there. Reading about this build was definitely time well-spent.

  7. Oliver says:

    This is without a doubt the most interesting build I have ever read, And I’ve read quite a few. To look at the journey undertaken with this very special car is just amazing and that is an understatement!

    I came here from Speedhunters and sat down and read the entire story – because that is what you have put together here.

    Seriously enjoyable read but one thing I cannot get my head around is just the sheer level of perfectionism being adorned here, of course you would only want to do this build once – and to see the gearbox/engine/pumps/hoses come out again in the next few years would probably bring more than just a tear to your wallet! haha.

    Congratulations on making many people jealous, I hope the remainder of the build goes to plan and that you enjoy the car for a long as possible.

    P.S
    I’m sure I am not alone in wanting you to do us all a favour and keep the post going when the car is complete and maybe a heads up if you are taking it to Goodwood/similar, would love to see it in person!

  8. Dashel says:

    Amazing work and hours being put into this build, and for the record brilliant build thread and choice of car.

    2 things:

    You would be pretty stoked to have it in full revs, I for one think that you ought to be mad to put that anywhere on a road let alone a racetrack.

    Better start work on a air conditioned car cabin. She needs all the sleep she can get after a rebirth!

    Again Just brilliant, spent the last 2 hours reading and inspecting every bit of this thread!

    I think, and this is just a suggestion, it would be good to post the amount spent, hours taken and dyno results at the end.

    The bloke working on her final engine tune up and handling would be proud as!

    pure perfection!

  9. October Tober says:

    I need more. Please.

  10. Mark says:

    Hi guys! Any chance you can tell me how, if at all, the intercoolers are being fed cool air to cool the intake charge?

    I would be grateful for any info you can provide.

    Greets Mark

Leave a Reply
