Project 510: FMIC + more (pt 3)

DSC_1010

Part 3, here we go. To quickly re-cap, Part 1 was all about relocating the alternator with custom mounts, and Part 2 saw the intercooler and radiator bolted into place, and the intercooler piping tacked together. Now we’re getting down to the finer details.

The S12 manifold I bought was quite bare, so I needed an accelerator cable bracket because my DR30 one was not compatible. I decided I’d just make my own.

DSC_0870

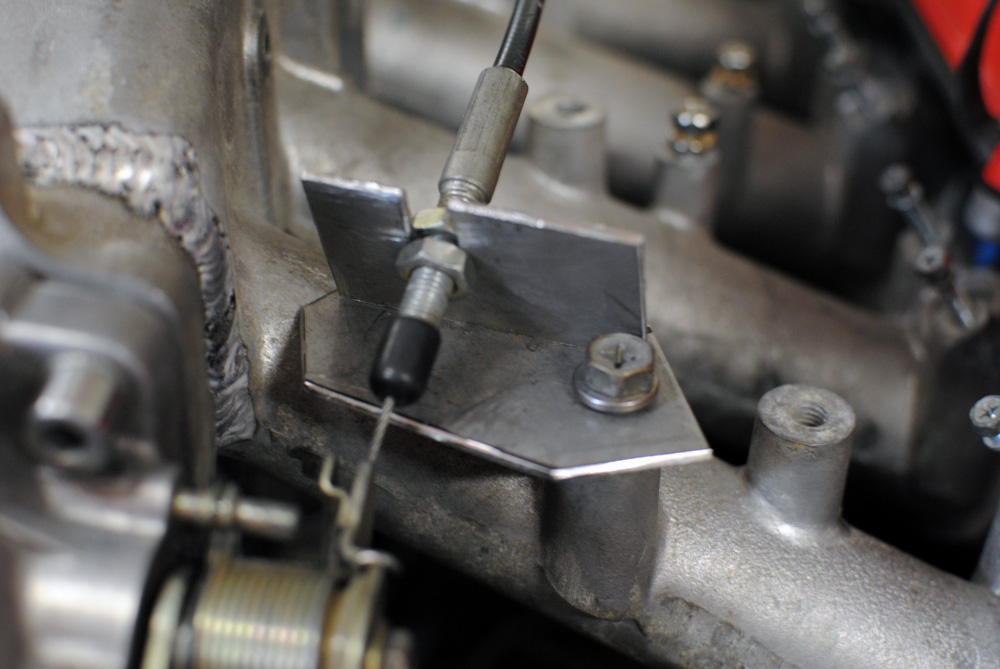

I broke out the scrap metal pile once again and found some 1mm plate. After a bit of work with the angle grinder and drill I had my basic shape.

DSC_0883

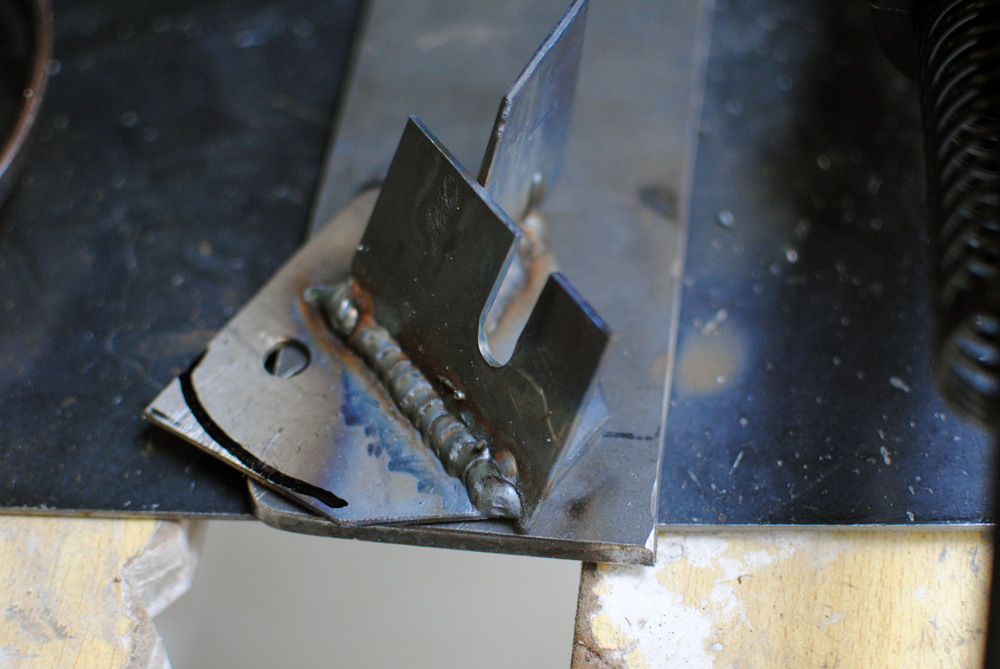

To weld it together I used the ‘thin metal technique’ which is a series of hot tacks joined together. This worked well for me.

DSC_0885

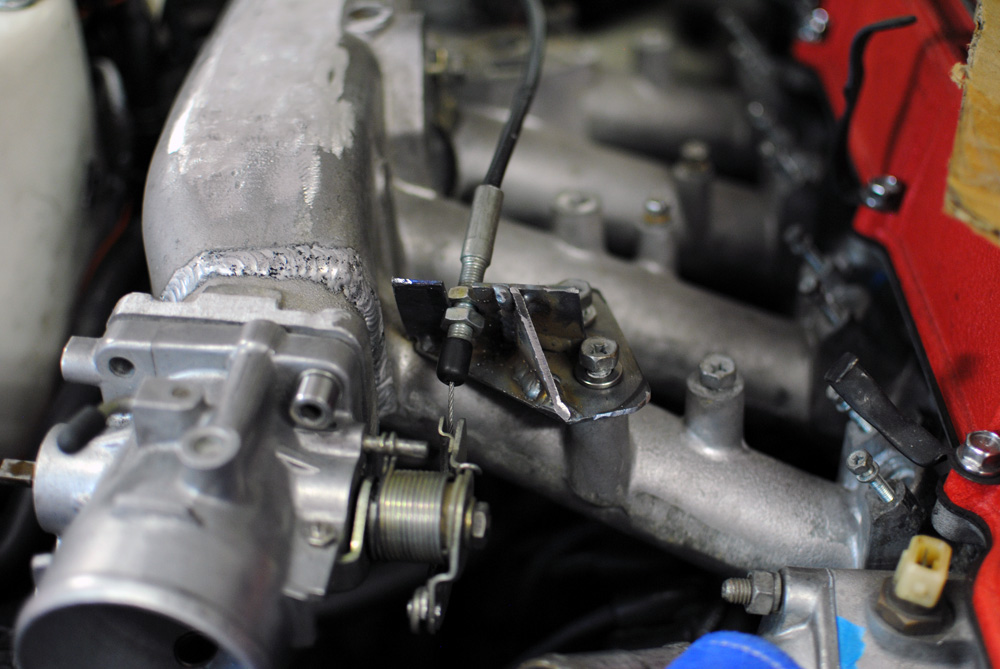

The finished piece (with added gusset)

DSC_0888

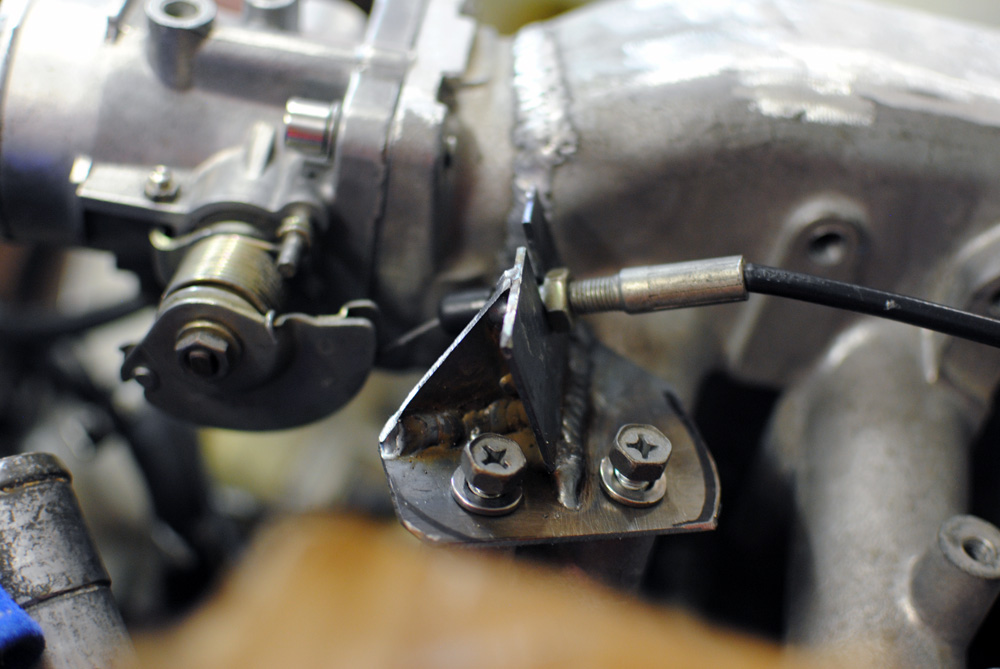

Side angle.

DSC_0889

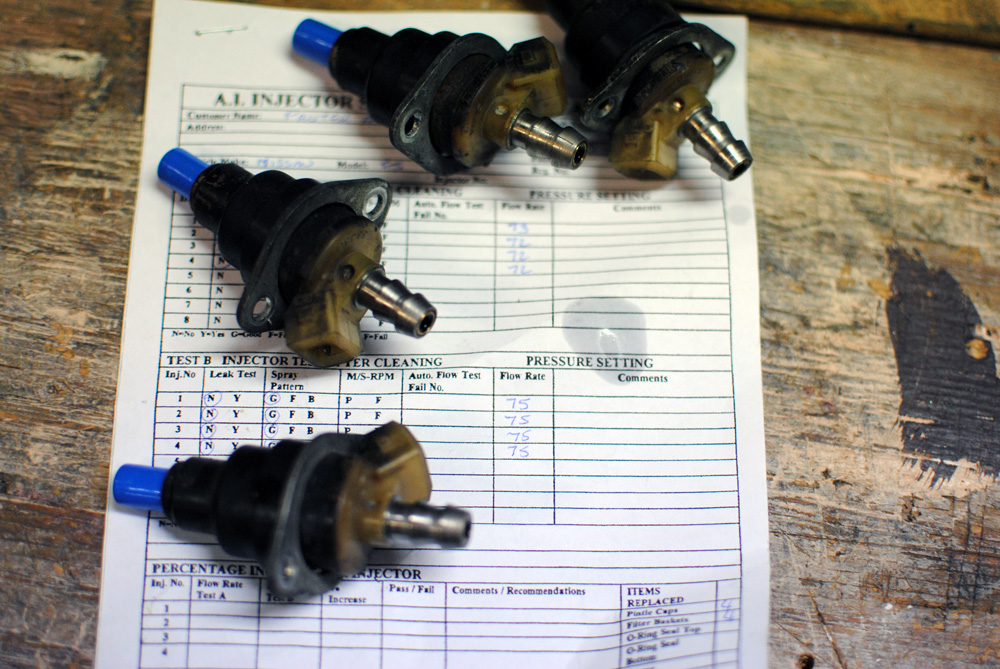

While I had the injectors out I thought it would be a good idea to have them professionally cleaned and flow-tested. It turned out that they were actually quite good, but we still managed to extract a bit out of them and get them all equal.

DSC_0667

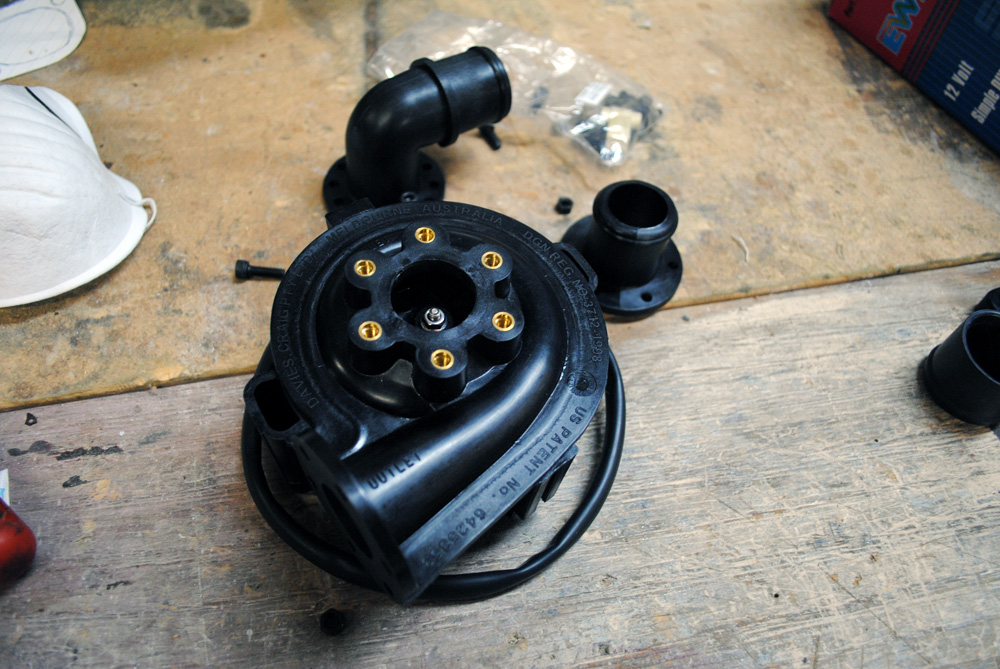

Let’s move away from the intake for a minute and talk about the electric water pump. I chose a Davis Craig EWP80, and as you can see above it comes with a couple of different flanges that you can bolt on to the inlet and outlet.

DSC_0668

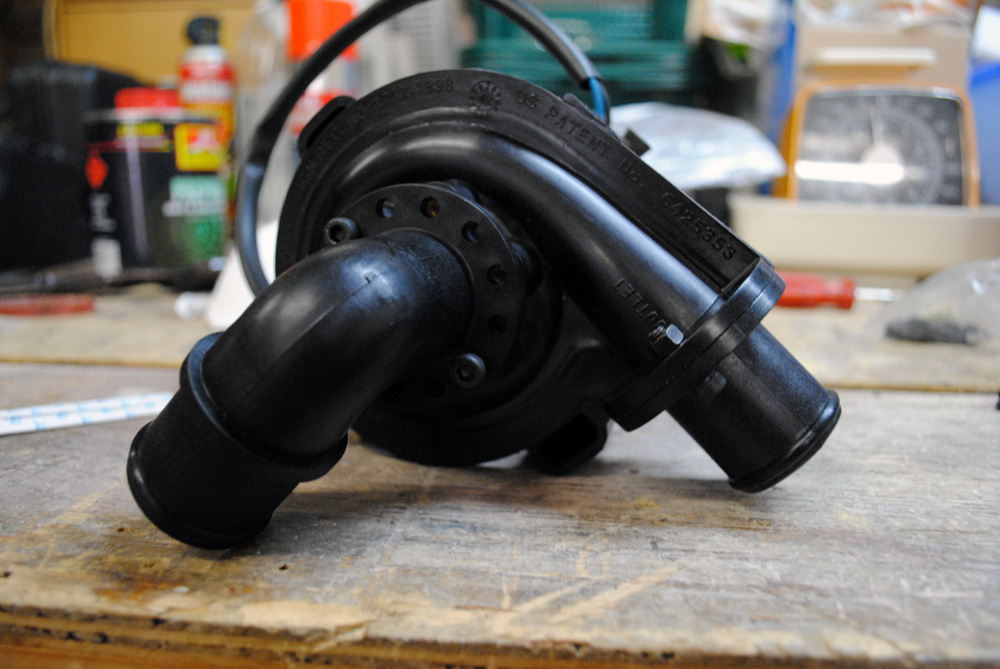

This is the combination I went with, except I needed the outlet (to the right of the picture) to face the other direction. This is simple enough as the housing can be loosened and rotated (albeit carefully), much like a turbo.

DSC_0669

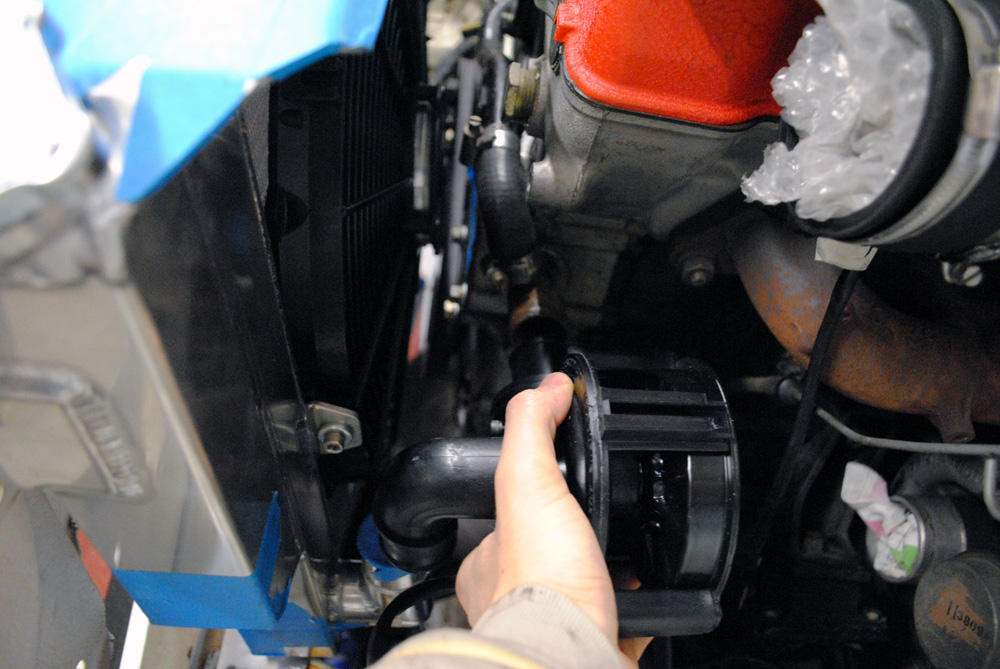

With the housing rotated you can see how lucky I was with the placement. The inlet of the pump points down straight into the vertical facing lower radiator outlet, and the pump outlet points straight into the engine. This means all I needed was two short and straight hoses. Davis Craig recommends that you do not hard-mount these pumps, but simply let the hoses hold them in place. If you solid-mount them you can risk damaging them.

Time for more fabrication…

DSC_0907

DSC_0908

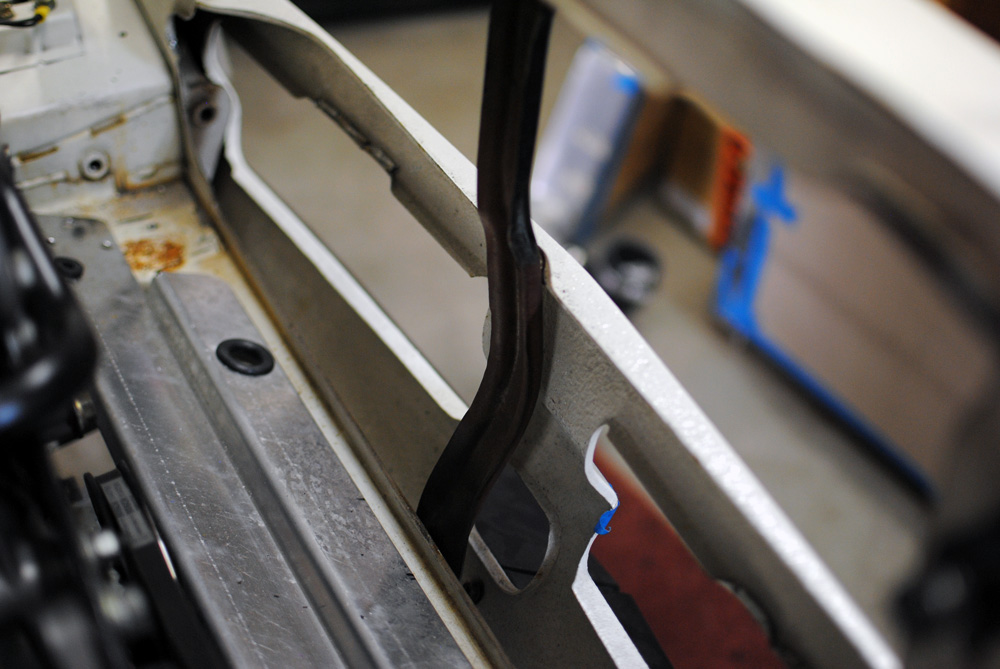

In the above images you’ll see the factory radiator support bracket. This sits behind the grille and ties the front of the car together in 3 places. Unfortunately with my new intercooler now taking up some real estate the factory item would no longer fit, so I had to modify it or make my own. I chose to make my own (duh!).

DSC_0909

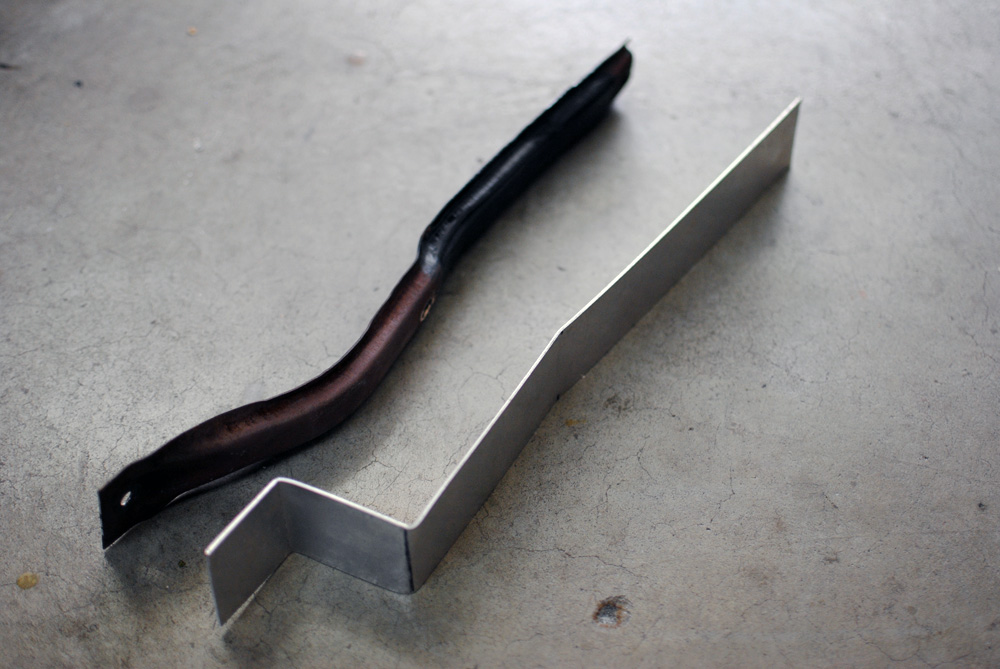

Much like the alternator bracket, I started off with a quick and easy aluminium mock-up. Here it is compared to the factory bracket.

DSC_0910

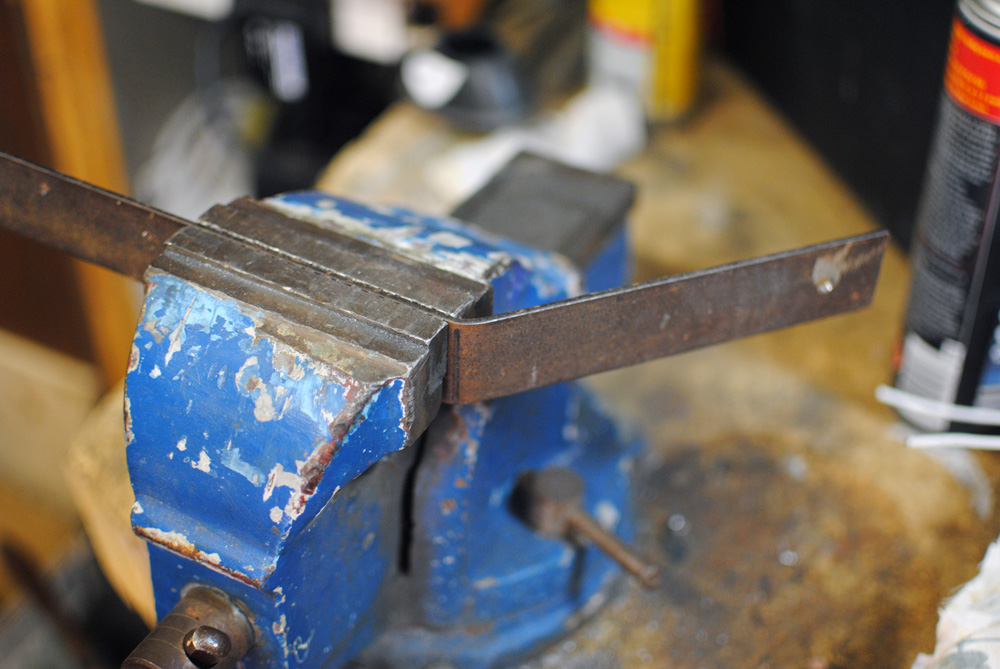

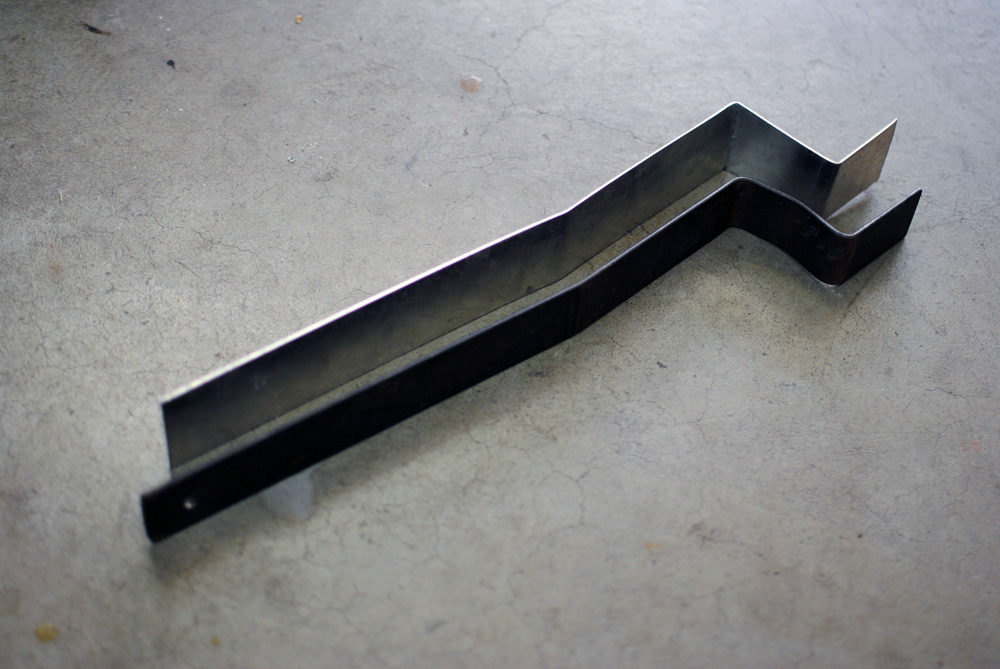

Once I got it to a point where I knew it would work, I made another one out of some thicker steel by marking the fold lines and bending it in the vise. I used a thicker metal compared to the original bracket, since the original was a stamped shape with folds in it to give it strength, whereas mine was just a flat piece of metal.

DSC_0911

Here is the steel version next to the aluminium mockup.

DSC_0912

DSC_0913

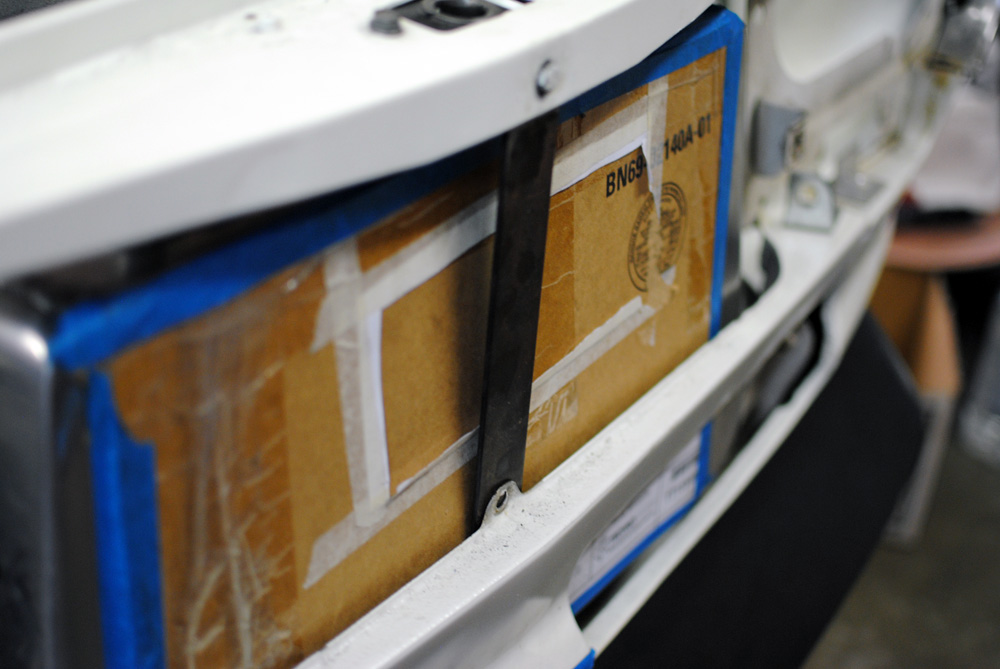

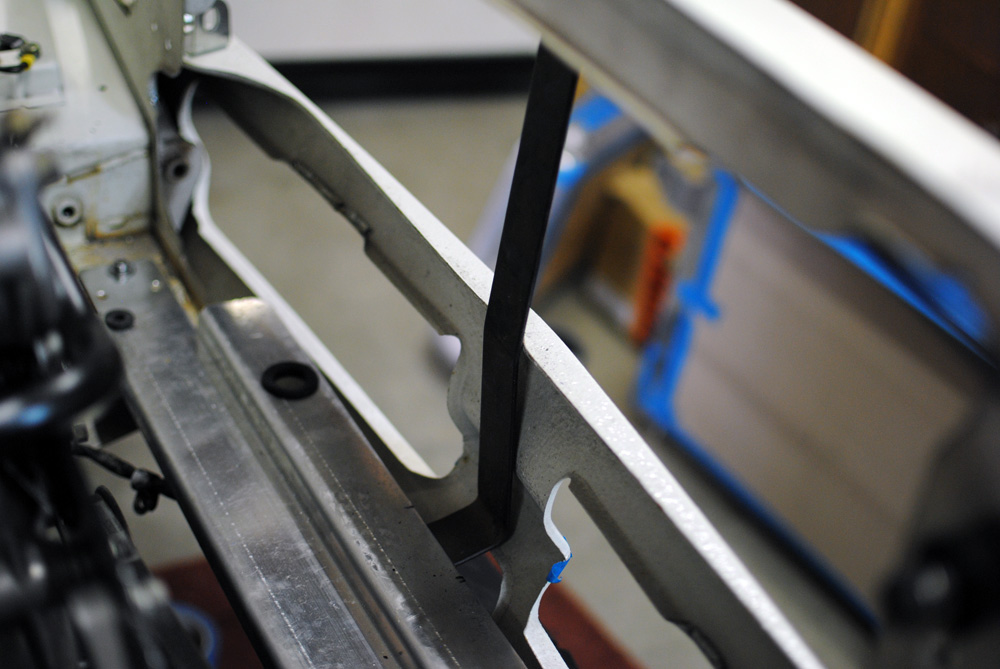

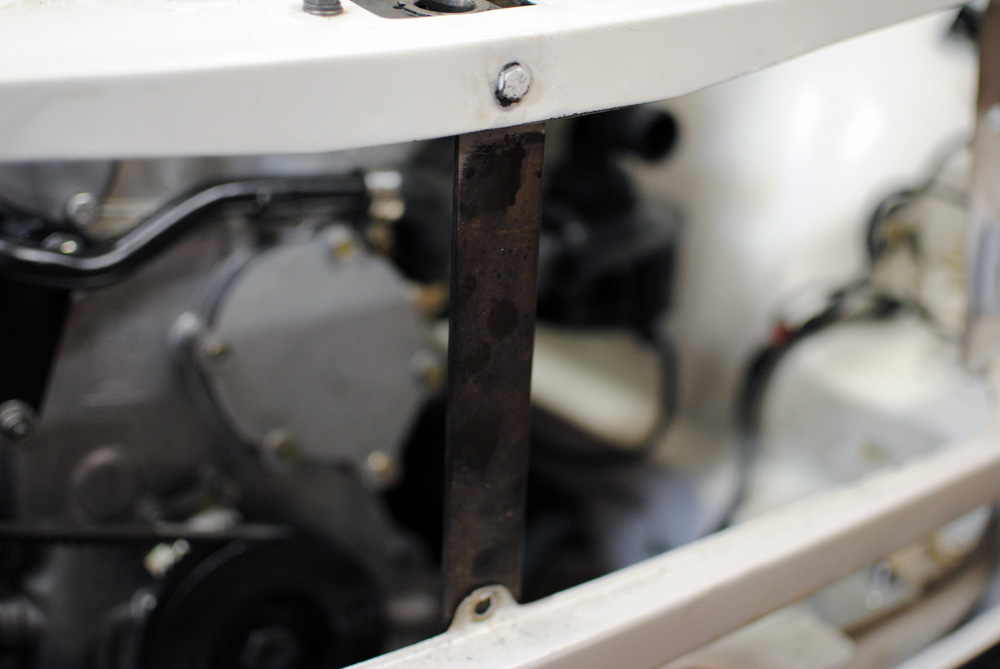

Test fitting on the car to make sure it doesn’t hit the front apron.

DSC_0914

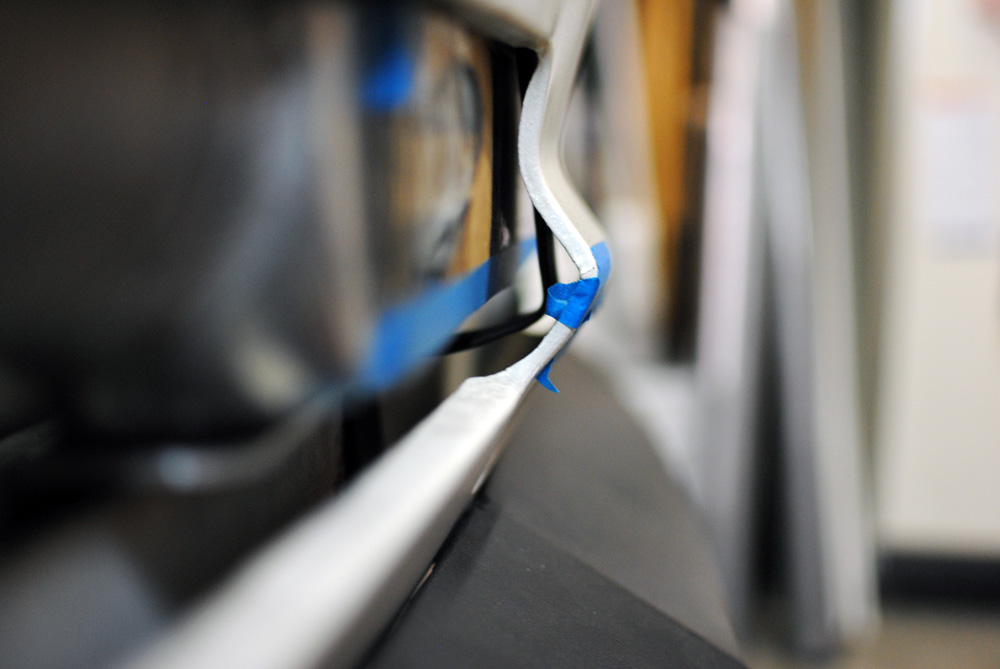

The true test was to put the intercooler into place and make sure it all fit together.

DSC_0915

Great success!

DSC_0917

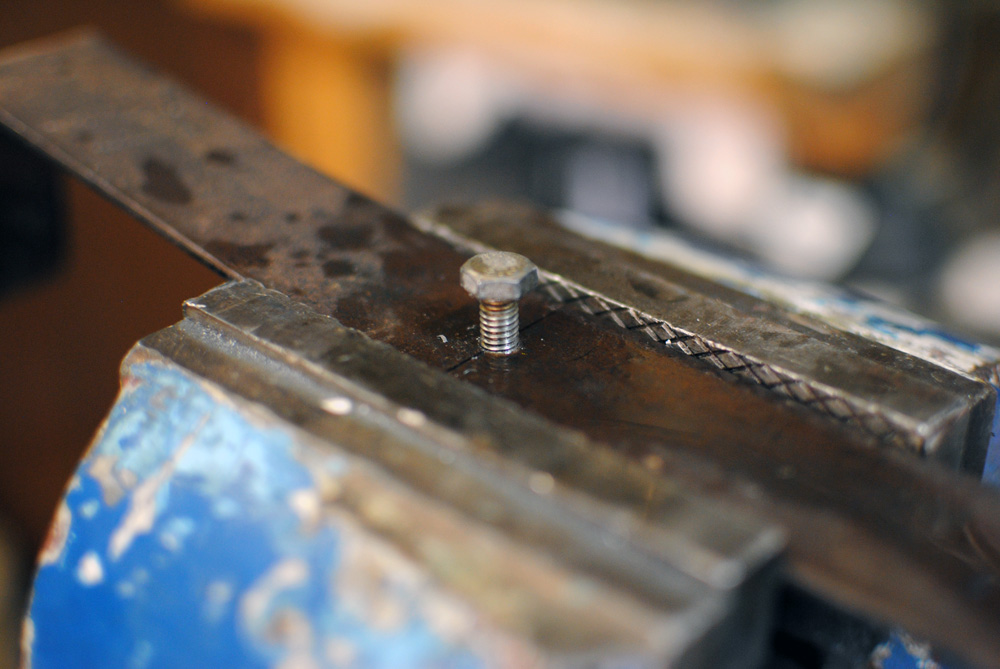

At this point I had only drilled and tapped the top hole. Now that I knew the shape worked, I could drill and tap the second hole, and drill the 3rd hole, as the third bolt is screws into a thread in the body of the car. I used the same distance between holes as the factory item so everything would line up the same as before.

DSC_0918

All done!

DSC_0982

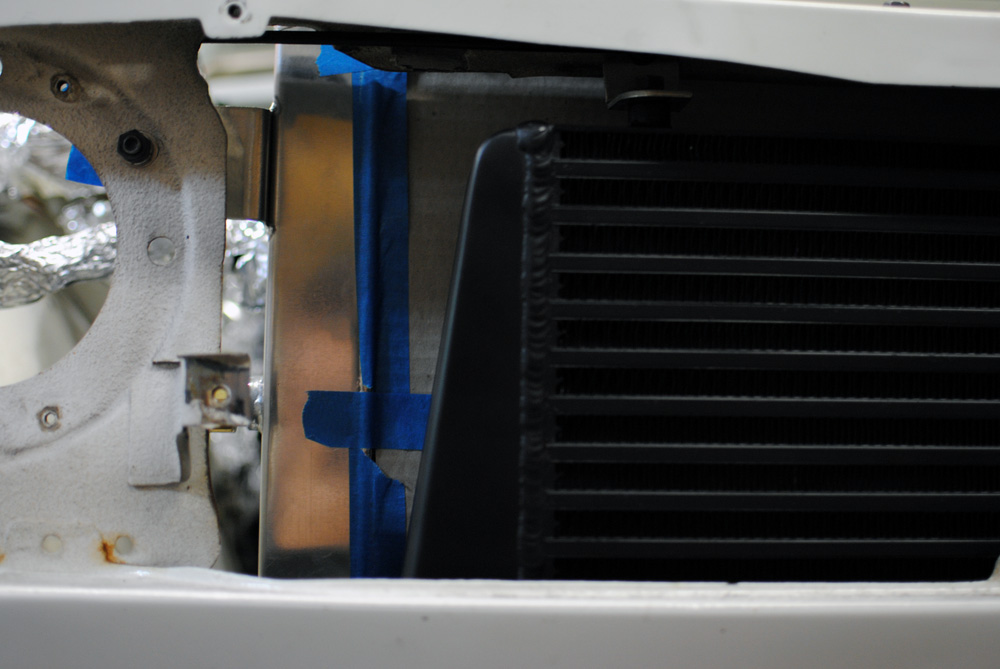

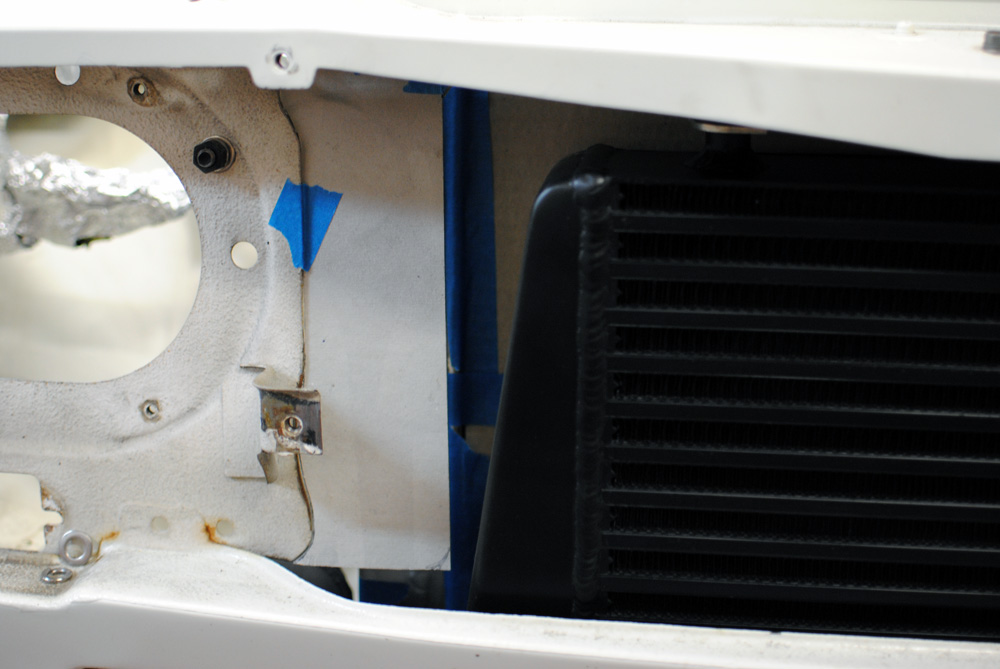

One of the last bits of fabrication that I tackled was to add in some metal to the radiator support panel. As you can see in the above image, there is a big gap between the body and the radiator. Because my previous radiator was so big and wide, the previous owner had cut a lot of metal out of the front of the car.

DSC_0981

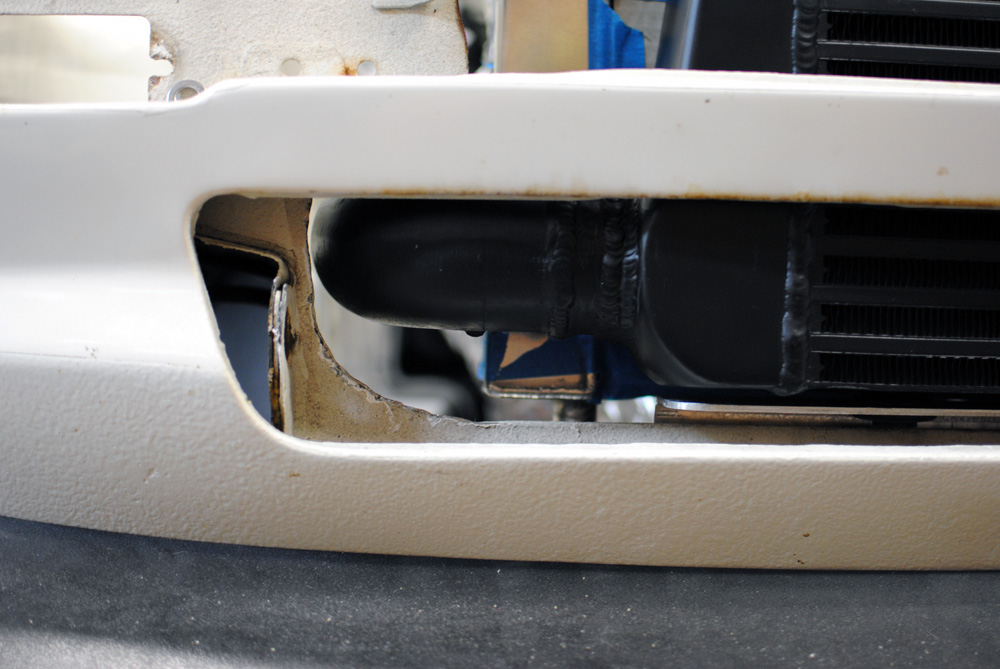

It was a similar story down below near the intercooler. These gaps would allow air to go straight into the engine bay, letting in dirt and debris. Not only that, the air would be better utilised if it was directed at the radiator and intercooler instead of going straight past it.

DSC_0985

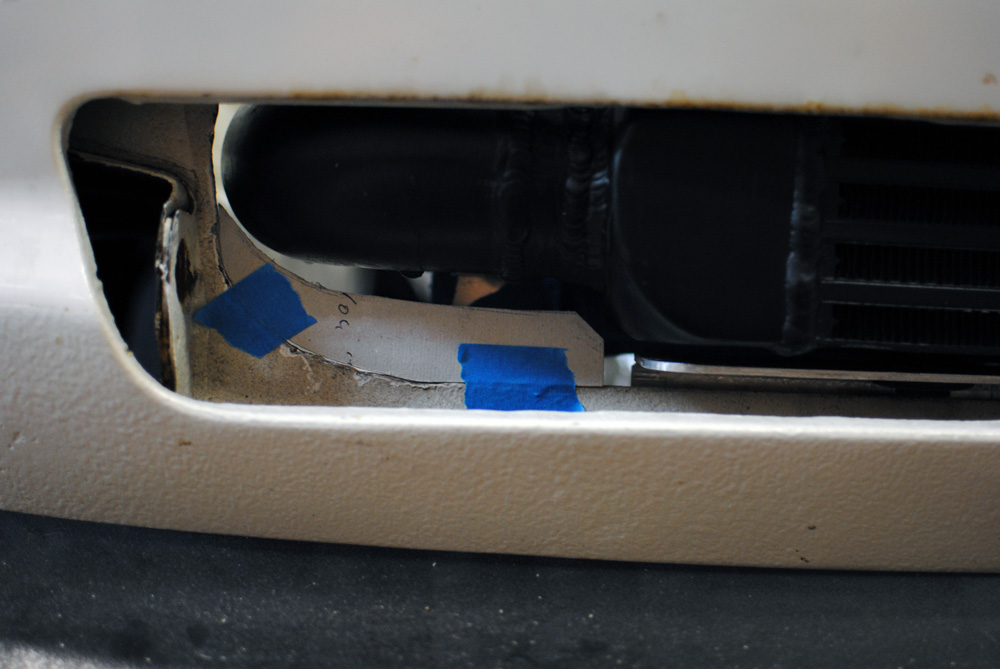

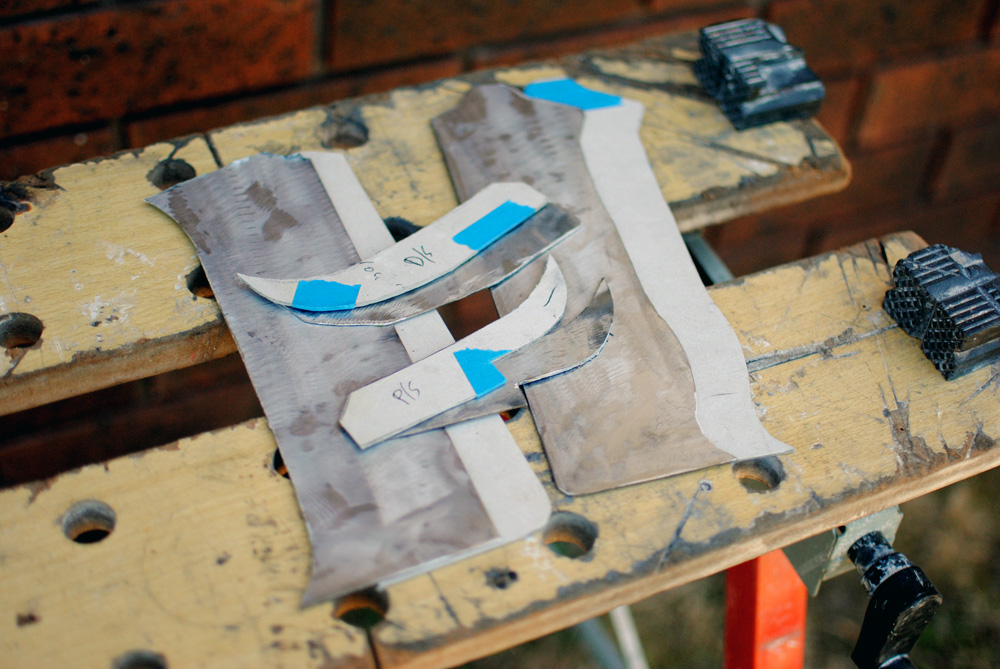

So it was out with the cardboard and scissors to make some templates that followed the shape of the radiator and intercooler.

DSC_0984

I’ve only showed you the driver’s side so far but it was the same on the other side.

DSC_0988

Next the templates were transferred onto 1mm metal. This metal had some sort of zinc in it, even after I grinded off the top layer, so it wasn’t very good to weld. Before you school me I have read up on zinc flu and all that stuff, but I was only doing short tack welds and I had a dust mask on and a fan behind me to blow away any fumes.

DSC_0992

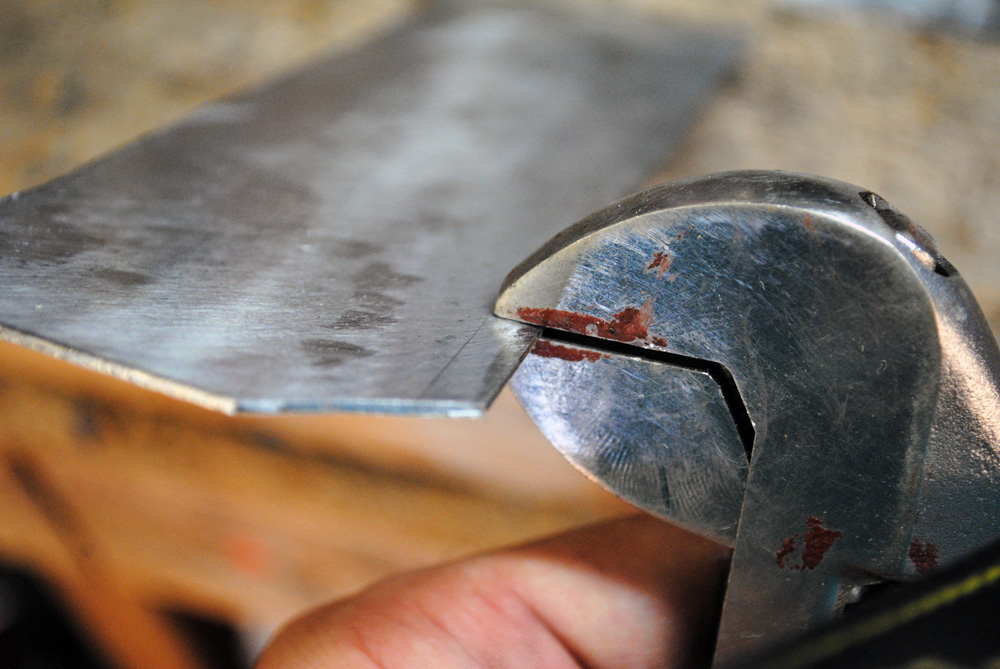

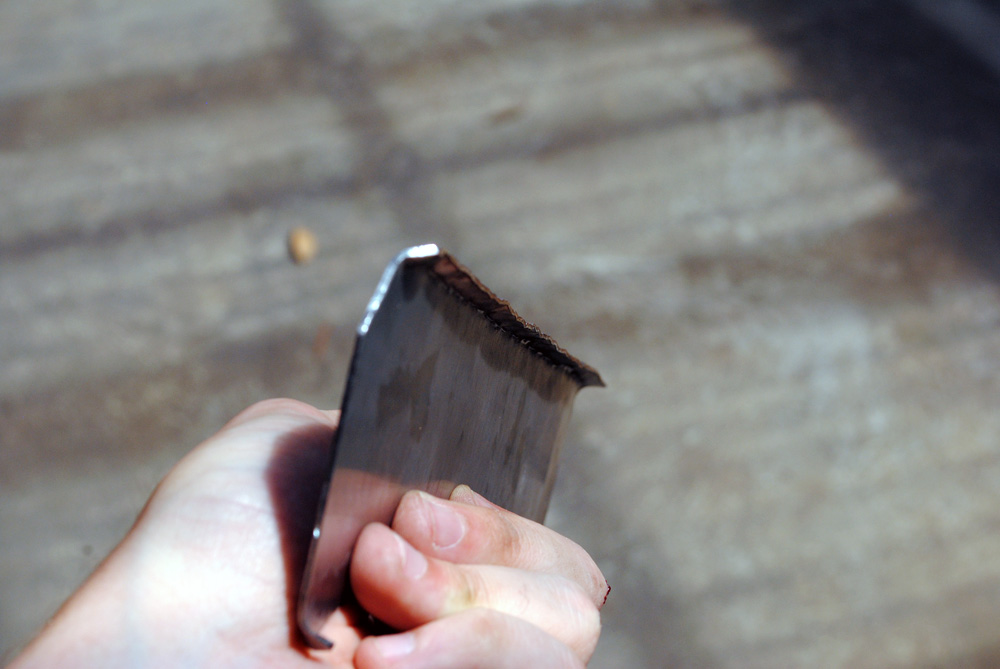

I wanted to add some rigidity and a nice clean edge to the two vertical pieces. To do this I scribed a line and then took a shifter spanner adjusted to the same thickness as the metal and slowly bent the edge into shape.

DSC_0993

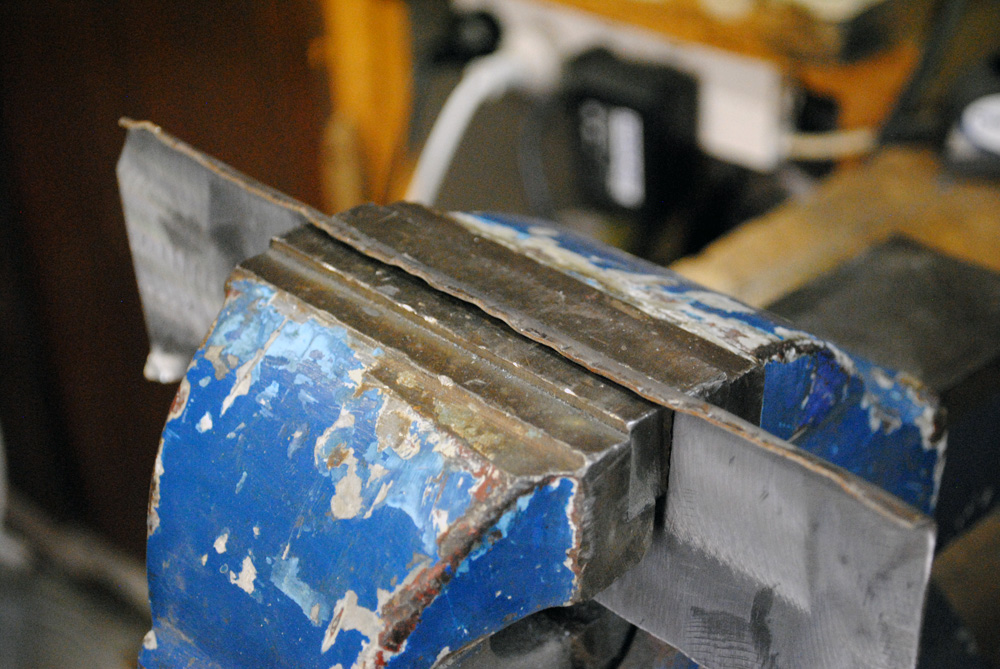

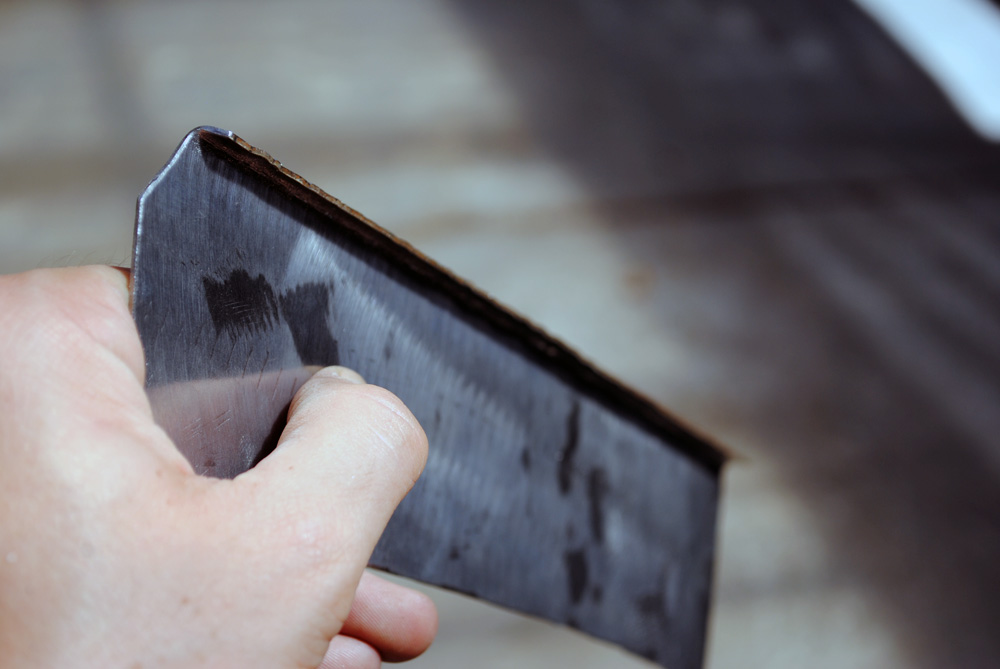

Which gives you something like this.

DSC_0994

Next I put it in the vise and started hammering the lumps and bumps into shape.

DSC_0995

And this is how it turned out. Noice!

DSC_0999

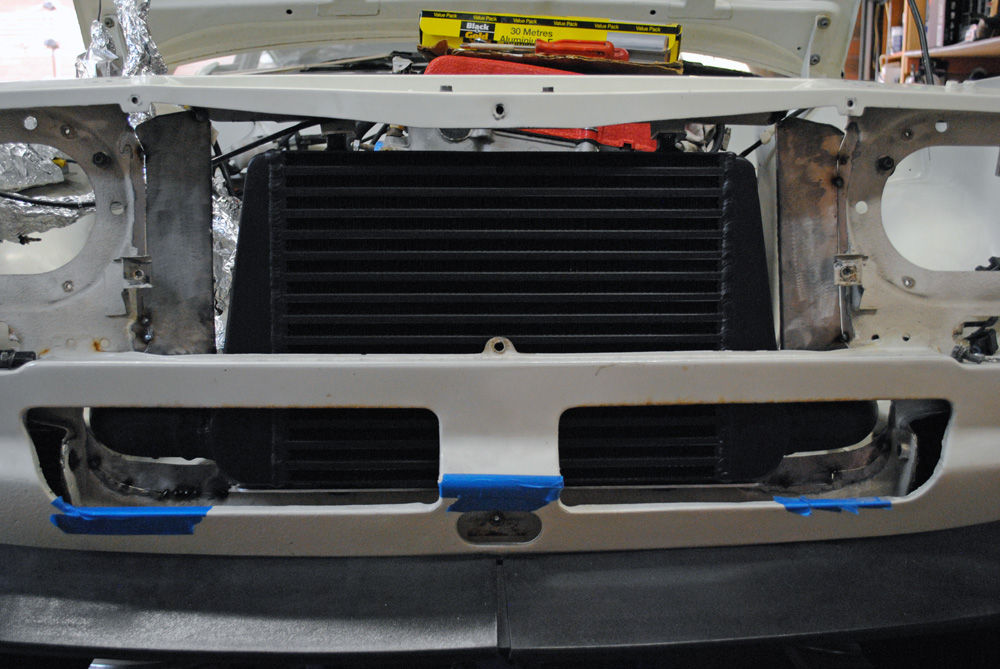

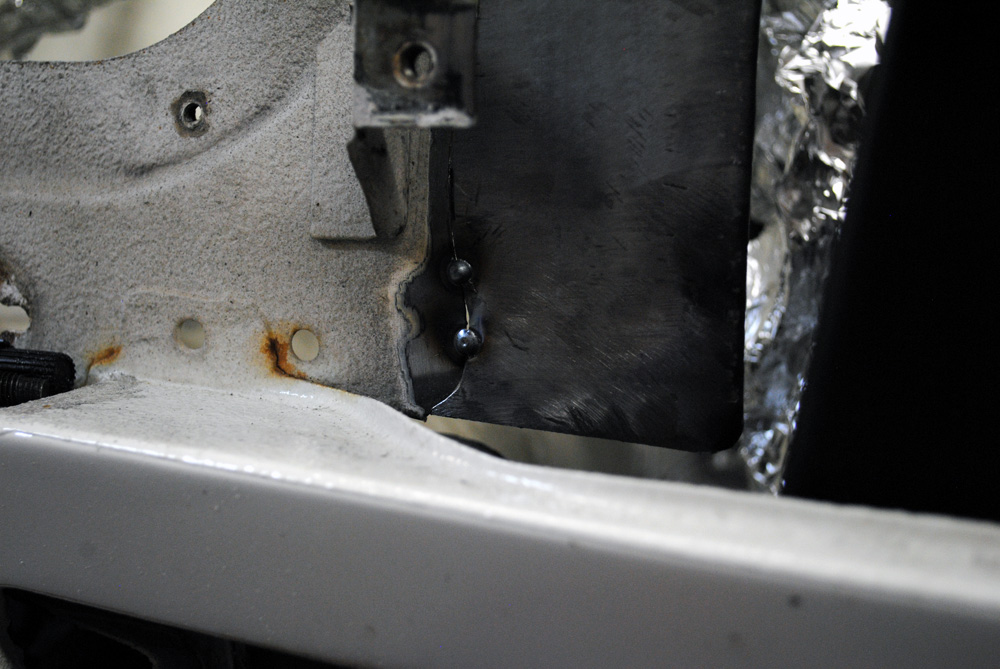

Here are all 4 pieces tacked into place.

DSC_1002

Close-up.

DSC_1006

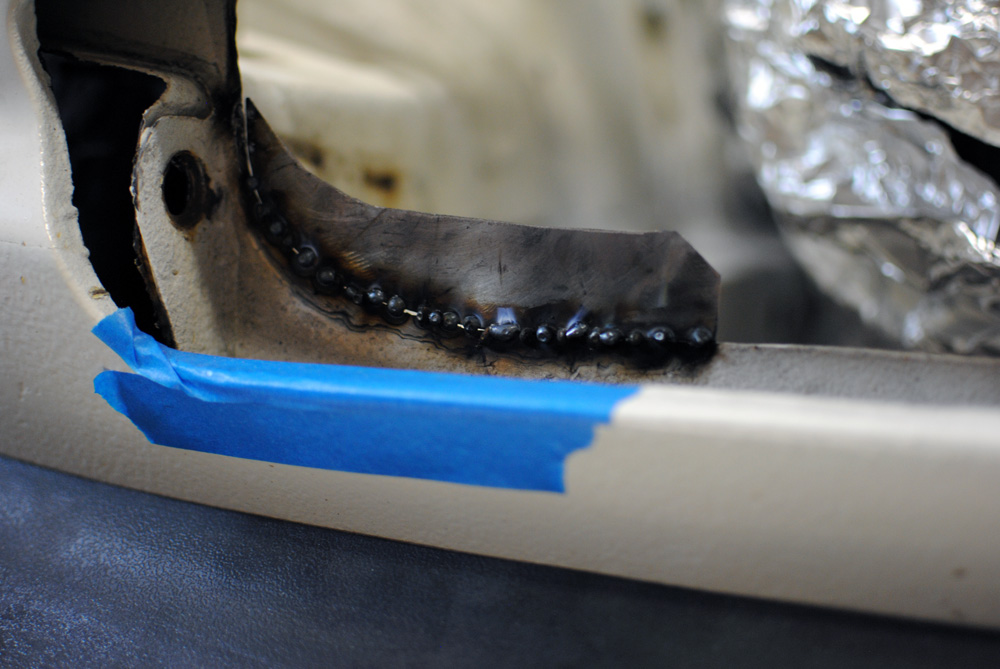

I slowly joined up the tack welds until there was no gaps, ground down the welds, and then filled up any more gaps. I would do a few tacks on one piece, then move onto the next, and make my way around the 4 different pieces so as not to heat up the metal too much and reduce the chance of distortion.

DSC_1014

DSC_1015

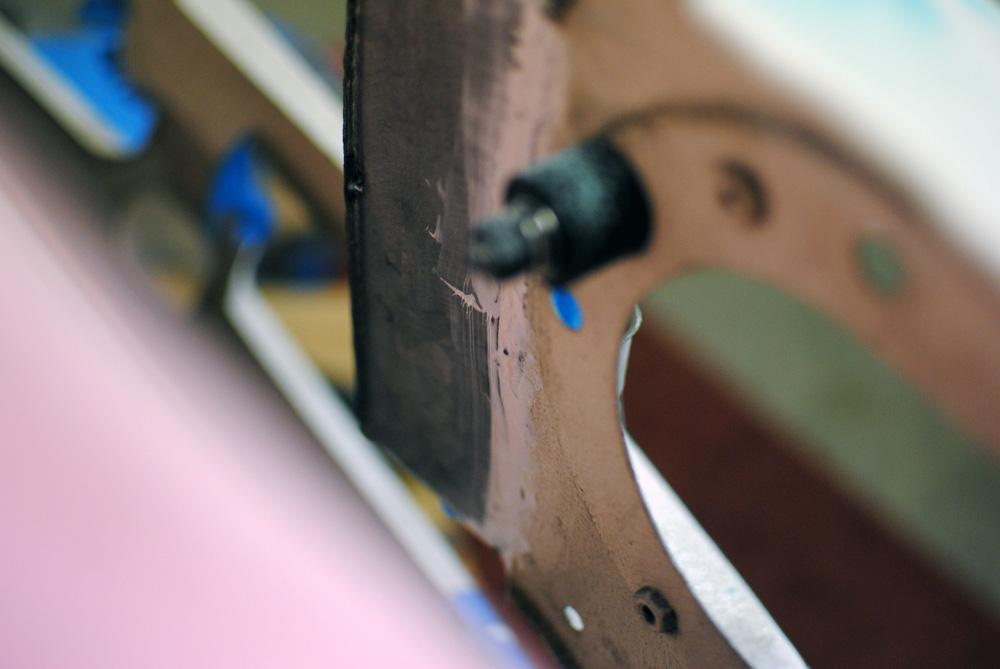

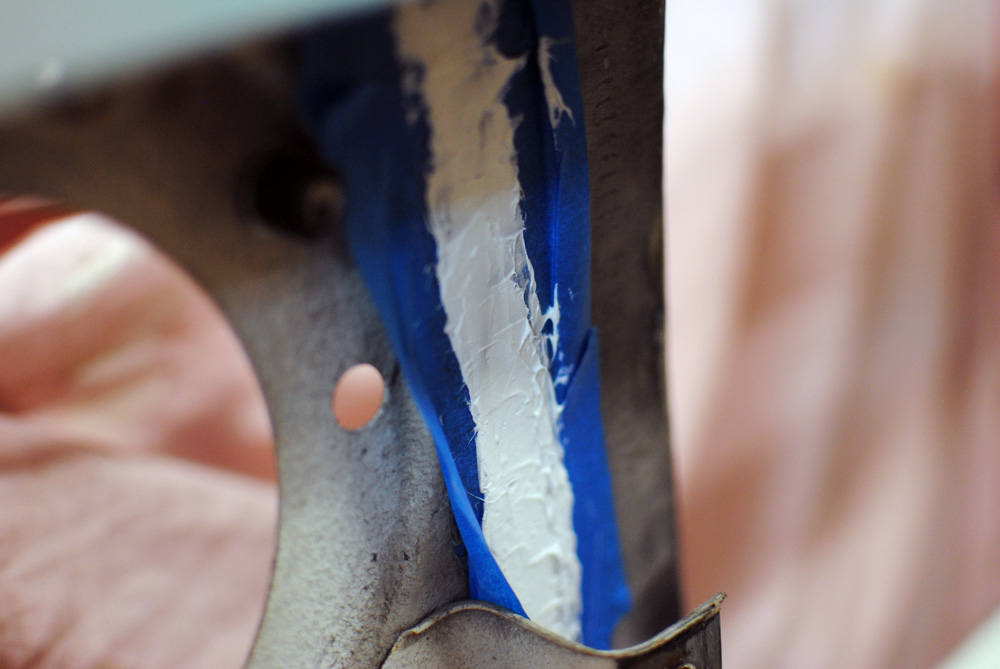

Once the welding was complete I sealed it all up with Sikaflex on both the front and back. If I could do this again I would have overlapped the new pieces with the existing metal instead of butt-welding, this would have allowed me to make simpler shaped pieces and would have made the welding much easier.

DSC_1008

Before the welder was wheeled away, I needed to fill up some holes on the top of the radiator support panel. This is where the old radiator mounts were bolted in.

DSC_1009

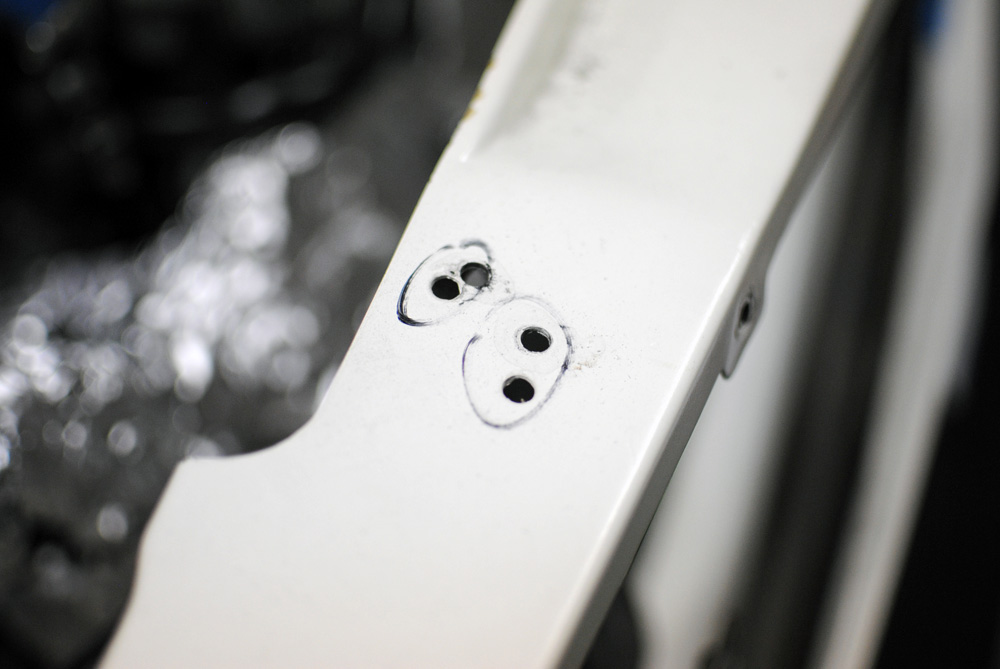

First the paint was ground back.

DSC_1010

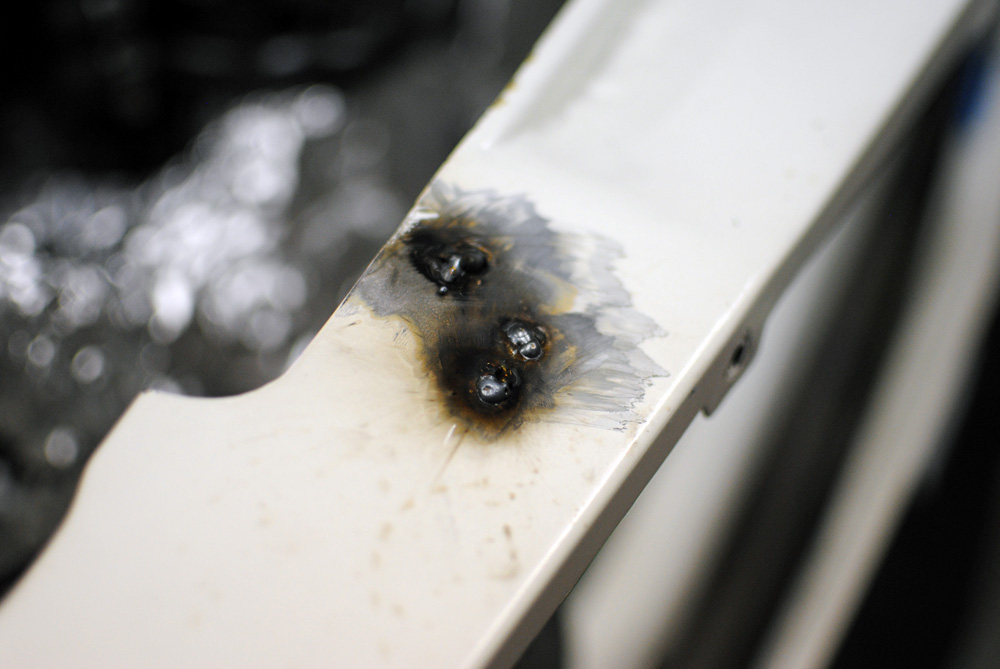

Then the holes were welded up. I used some 10c coins underneath to help.

DSC_1011

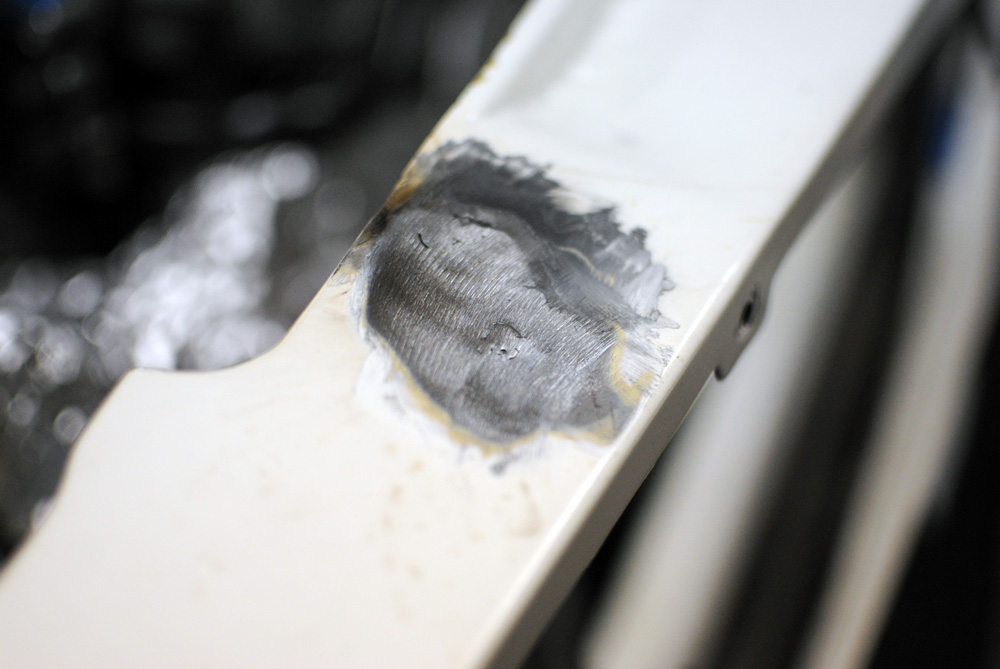

Ground back.

DSC_1012

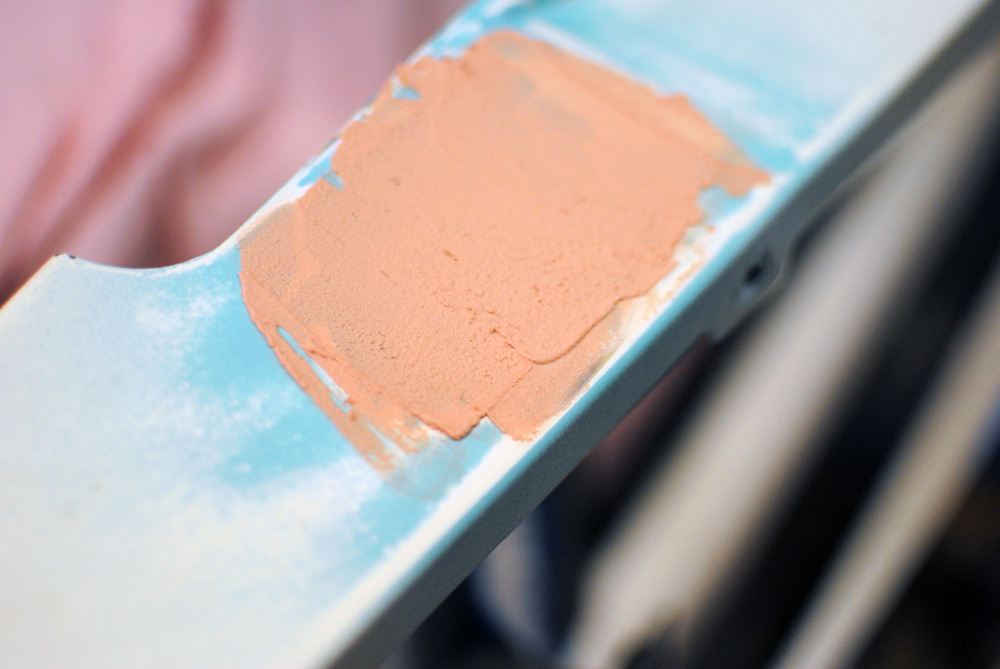

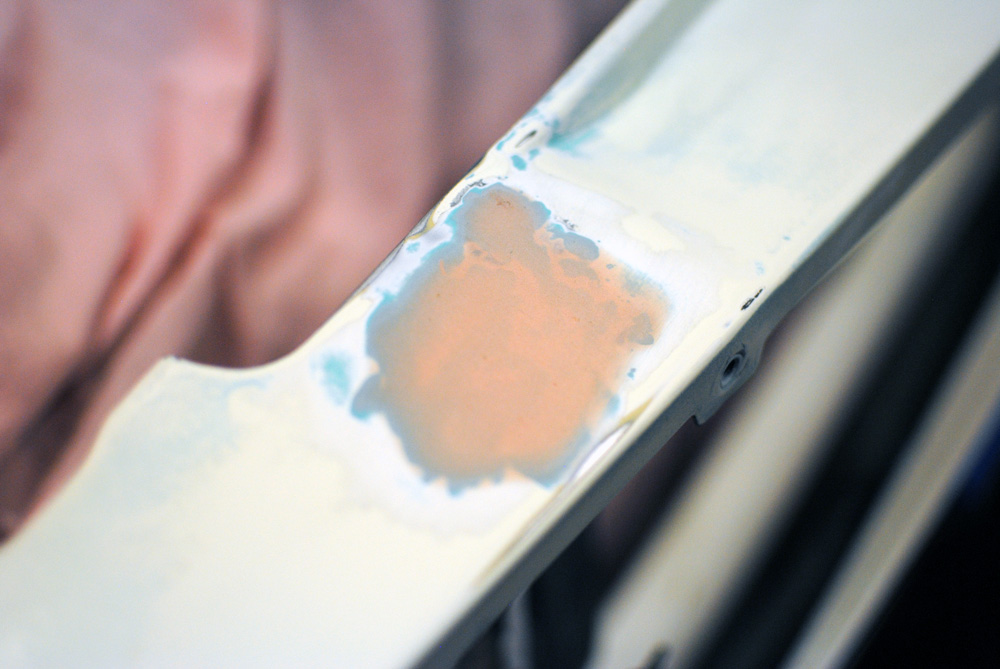

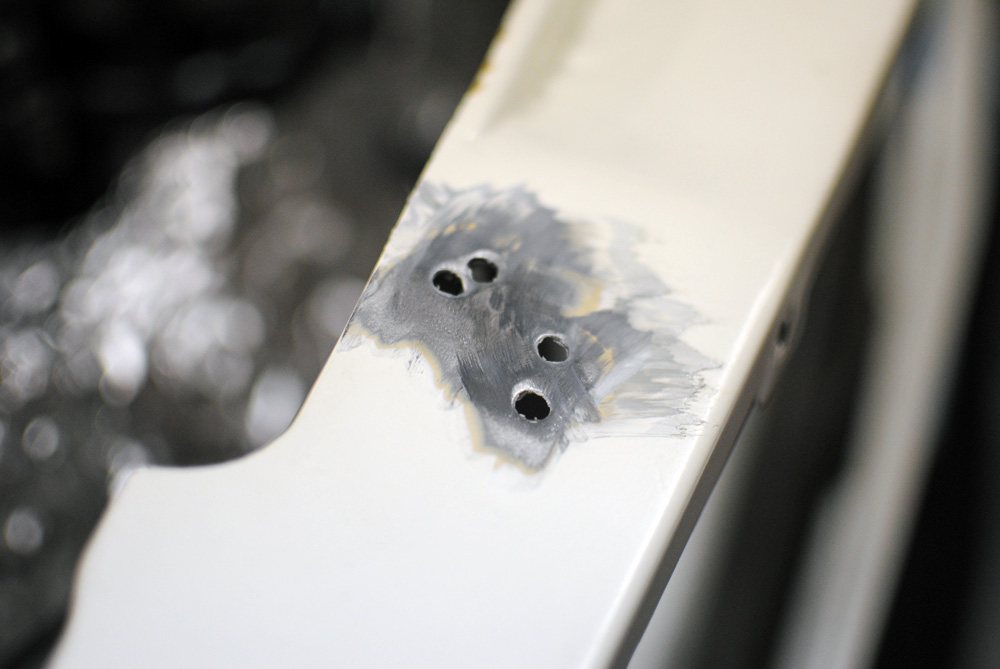

A little bit of filler was used to even everything out.

DSC_1016

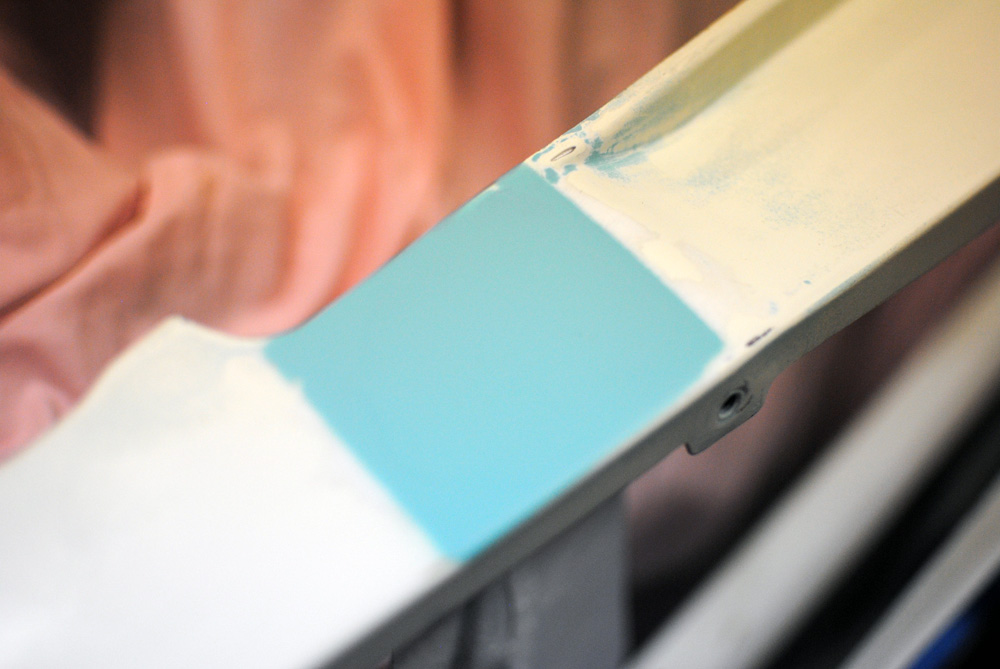

Sanded back.

DSC_1017

And finally a coat of high-build primer.

DSC_1024

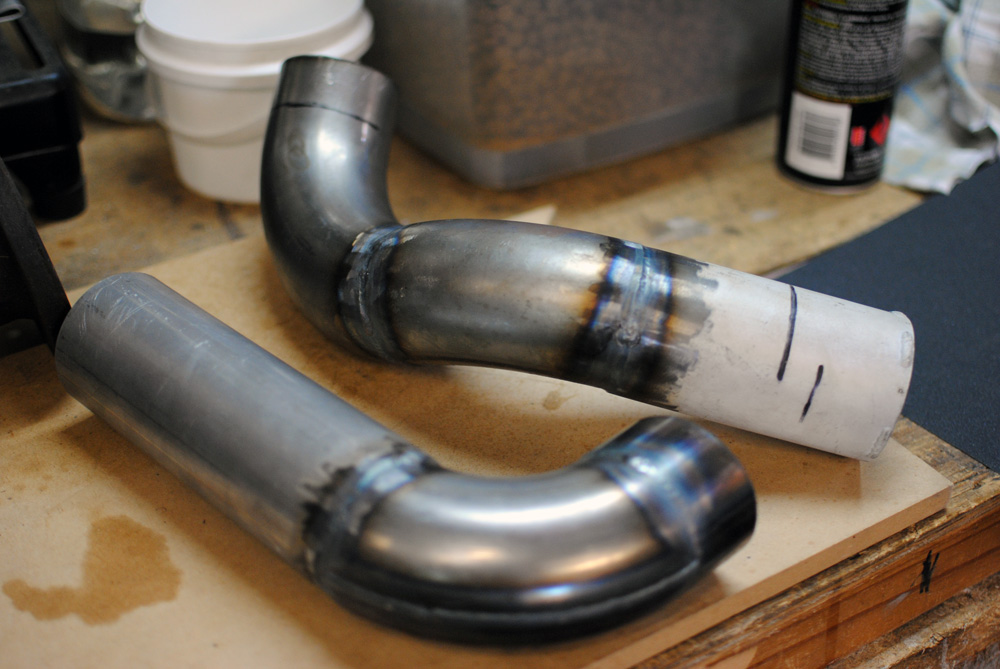

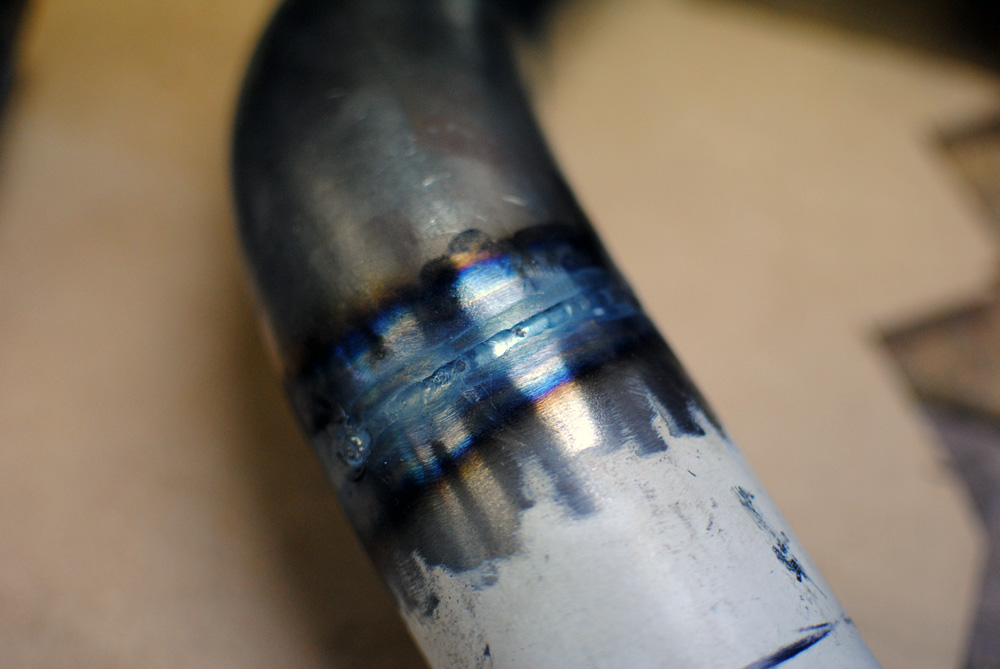

I’ll finish this post off with a picture of my final intercooler piping that I had tig welded by Dom at Protek after I had tacked them together.

DSC_1023

The tig welds are much neater than I could ever dream to achieve on my mig, and I know they’ll be leak-free.

The next update will be getting everything looking pretty and getting stuck into final assembly. Sorry to drag this out but it was just too much to put into a single post, I hope you’re enjoying it.

You can leave a response, or trackback from your own site.

7 Responses to “Project 510: FMIC + more (pt 3)”

  1. Peter Georgey says:

    Looking good

  2. Andy Voytko says:

    I’m a sheetmetal worker by trade. Weld everyday. The zinc plated metal is called galvanized. It sucks to weld. A good way to prevent galvanize poisoning is to drink some milk before welding. It helps trust me. Also, butt welding is a much better choice than lap welding. Laps are where rust will develop, unless you use a weld through primer. Finally, nice job for someone new to welding. I would run a little more voltage or less wire speed. That’ll help the weld wet out more.

  3. anth says:

    Hi Andy. It was strange metal, it wasn’t galvanized (I know what gal looks like) but it still gave off a white residue when I welded it. I have heard of the milk trick, strange but everyone seeems to swear by it! I have a weld-through paint now but unfortunately I got my hands on it after I completed this job. It’s not a primer, it’s a bronze/copper paint. Thanks for the tips! :)

  4. dennis says:

    Great stuff! just want to ask if it’s necessary to unplug the ECU when you welded the radiator support panel as I will do some welding on the same spot on my car.

  5. anth says:

    Hi Dennis, I disconnected the car’s battery just to be on the safe side.

  6. ewokracing says:

    Keep an eye on that throttle cable, the angle where the metal end meets the plastic cable sheath looks a little high and the cable sheath might begin to fray on the underside after a while. Maybe continue the notch in your bracket down a bit more?
    (Had the same thing happen on one of my cars, couldn’t figure out why cables kept breaking).

  7. anth says:

    cheers mate I had a look the other day and noticed the cable had worn a groove into the plastic sheath, so I have notched the bracket down as far as possible. thanks again for pointing this out!
