Could this be the holy grail? The best car ever featured on Build-Threads.com? For those of you who are keen followers of the Facebook page, you’d be well aware that I’m quite the Ferrari tragic, and that as far as supercars go, I’d have a hard time deciding between an F40 or a Lamborghini Miura (if the opportunity ever happened to arise). I’m that much of a tragic, in fact, that I signed up to Ferrari Chat a long time ago just so I could view images that are restricted to members. This build comes from that very forum, but I’m not about to make you sign up to view it. Instead, I have personally asked the owner of this car, Tim, for his permission to re-post the entire thread on these very pages, and thankfully he said yes. I think this build is so incredible that it should be shared with a greater audience, so I’d like to thank Tim for allowing me to post it here.

This F40 is listed as Chassis No 84326, and was rotting away in a garage for 8 years before Tim snapped it up and sought about having it brought back to better than it’s former glory. This isn’t a made-for-TV hack job, this is a no-expense-spared restoration of one of the greatest supercars of all time. I’m so used to seeing F40′s in their finished guise, carefully polished with gleaming paintwork, but to see one in various states of undress has given me a whole new appreciation for both the shape and the engineering behind it. I hope you enjoy this build as much as I have…

All text and images below are taken from http://www.ferrarichat.com/forum/288gto-f40-f50-enzo-laferrari/396915-f40-lm-restoration.html

As some of you may have read the thread about chassis 84326, a non Michelotto F40LM which raced in the BPR in 96 and which had been rotting in a garage for 8 years and I bought a few months ago. Described by Mike Sheehan as LM/GTE it is one of 27 non original cars converted by privateers.

Aside from the original Michelotto LM’s, the 27 other cars as listed by Michael Sheehan in his definitive article on the LM, all started their life as road cars. 84326 was no different and finally ended up in an unusual configuration running twin KKK turbos with twin waste gates and adjustable boost putting out approx 720 BHP. It competed in some races in the 1996 BPR without any distinction and probably it’s greatest claim to fame was that it lapped Hockenheim quicker, just, than a Maclaren FI GTR, so it was no slouch. It is also featured in the book covering the series.

When I bought it, it looked good as per images I will post in a next instalment, but once we got into the detail, it turned out it was a real mess, and 8 years in a damp barn had taken their toll.

The real issue has been whether to restore or continue its evolution and I eventually decided that I would continue its evolution seeing as how it achieved no great success on track in its original format and has continued to evolve during its life so might as well continue now. Consequently, as it is described by Michael Sheehan as an LM/GTE, I thought I might as well continue updating it accordingly.

So, we have stripped her down to almost a bare shell, and the aim is to upgrade all areas to full spec whilst leaving the engine as it raced, and we are lucky in that Michelotto has agreed to supply us with parts, specifically brakes, hubs, suspension etc which he is normally not happy to do unless for an ex race car.

Thanks to our Dutch friends on F Chat, I have managed to unearth its history and as chronologically we should start there, here are some great shots courtesy of them during the 1996 BPR.

Next up a few more race shots and then where we started, somewhat of an illusion.

1655145d1360159252-f40-lm-restoration-image-30

1655146d1360159252-f40-lm-restoration-image-29

1655144d1360159252-f40-lm-restoration-image-28

1655143d1360159252-f40-lm-restoration-image-27

No, I won’t campaign her but use primarily on the track for fun. Hope to follow the Mille Miglia in the Ferrari parade perhaps and do a few events. Work is being done by a small shop in the UK called Mototechnique who I know from old when they rebuilt my 365 Spyder and they recently did a full ground up on a 250 GTO, so they know their stuff-real old fashioned artisans.

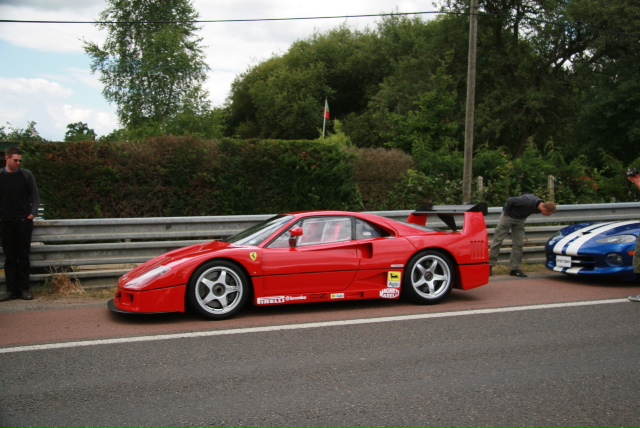

A few more images as was
1655665d1360244479-f40-lm-restoration-image-22

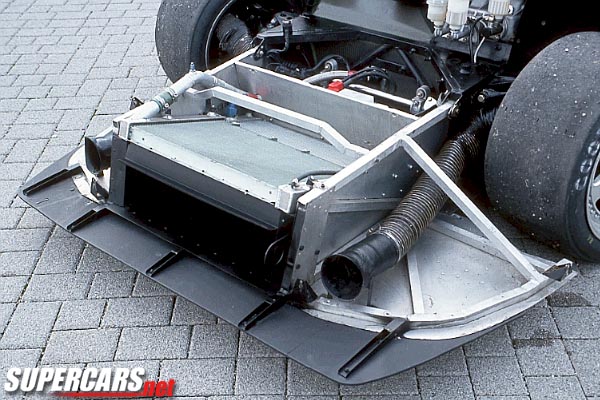

1655666d1360244479-f40-lm-restoration-image-23

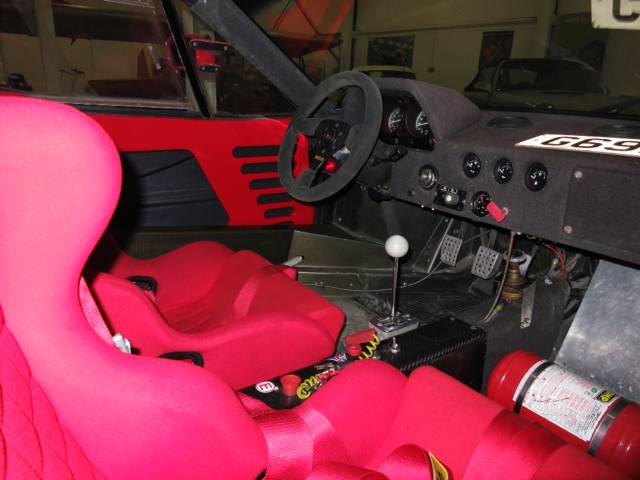

1657187d1360457362-f40-lm-restoration-photo

1657188d1360457362-f40-lm-restoration-image-20

1657192d1360457618-f40-lm-restoration-image-28a

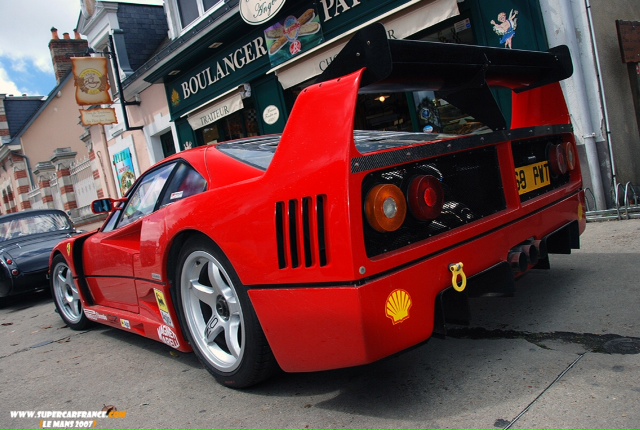

1657193d1360457618-f40-lm-restoration-image-23

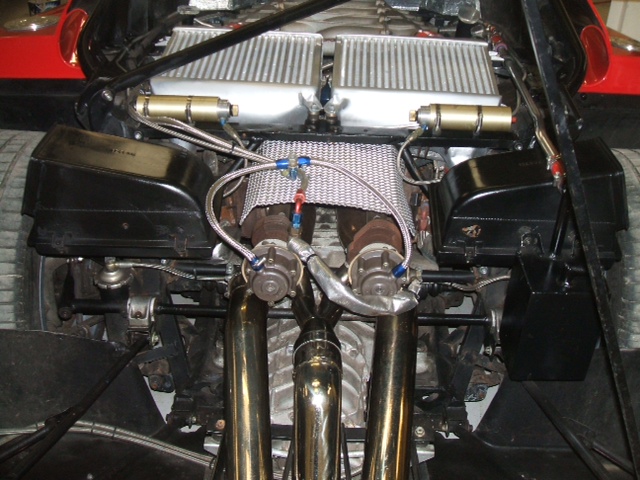

1657194d1360457618-f40-lm-restoration-18a

1657191d1360457618-f40-lm-restoration-image-17

Car was delivered to a small restoration company, Mototechnique in Surrey England who restored my old Daytona Spyder 25 years ago and seems to have got even better having recently done a ground up 250 GTO restoration.

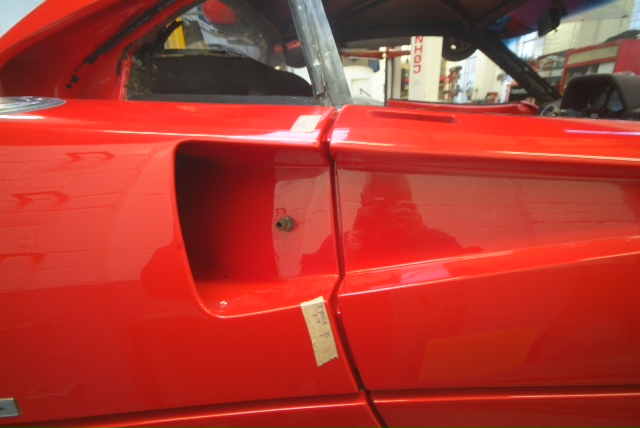

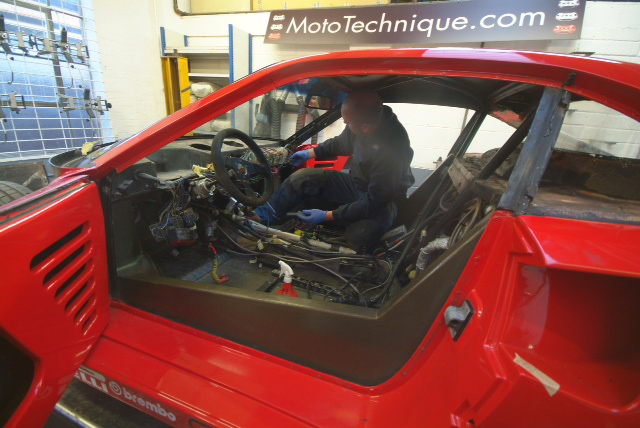

The strip down begins and note the Air Jack inlet just behind the door which we will recite in the lower rear clam as well as sorting the shut line.

Also, now the intercoolers are out, they are somewhat deeper than at first glance.

1657863d1360591166-f40-lm-restoration-0801-036

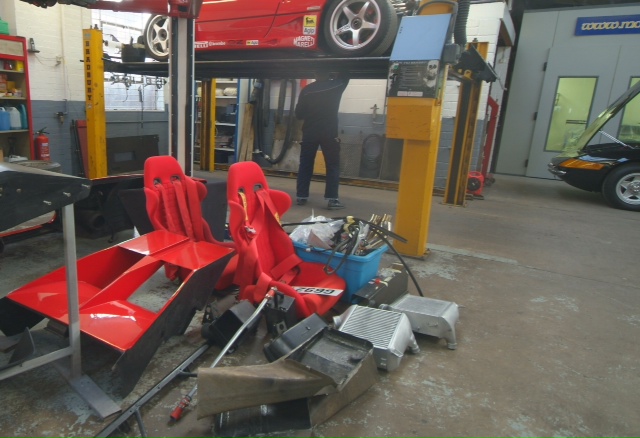

1657864d1360591166-f40-lm-restoration-0801-001

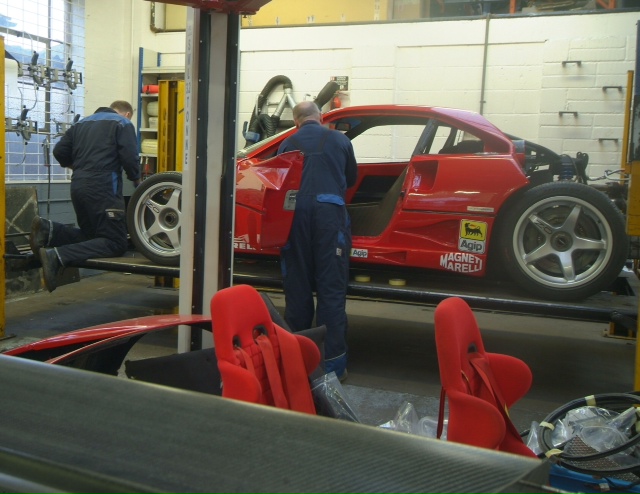

1657866d1360591235-f40-lm-restoration-0801-014

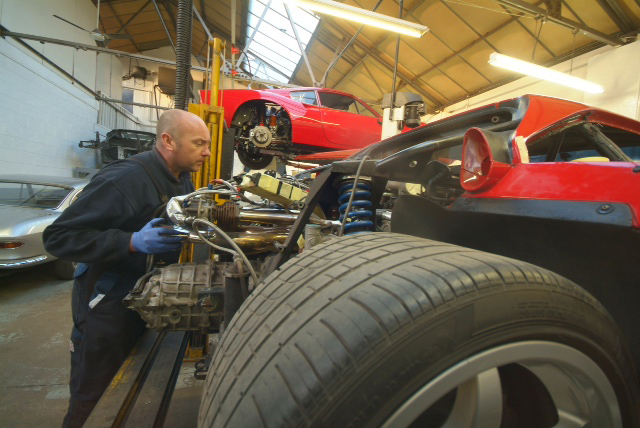

1657865d1360591235-f40-lm-restoration-9th-1st-031

1657862d1360591166-f40-lm-restoration-9th-1st-038

 A few more images as the beautiful body is removed to show the mess beneath.

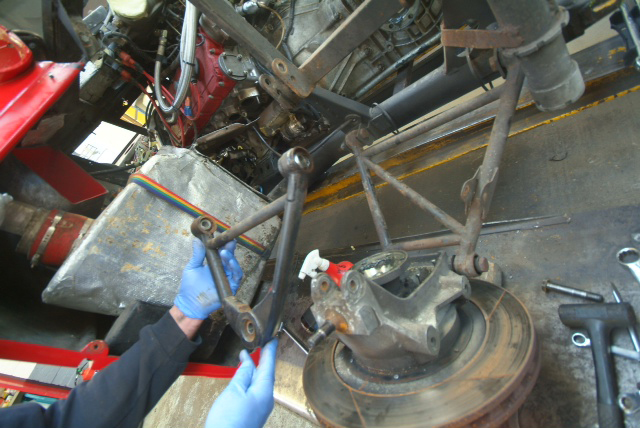

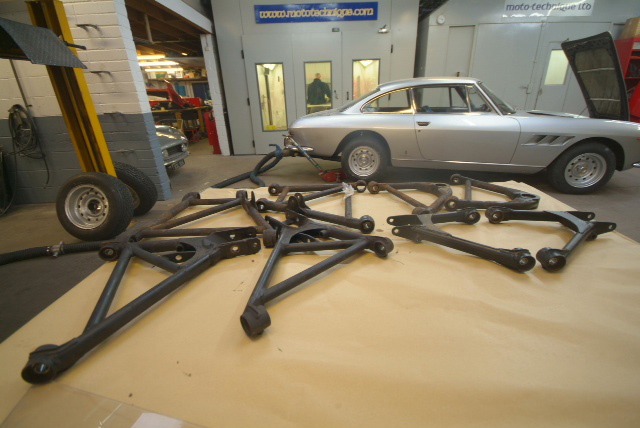

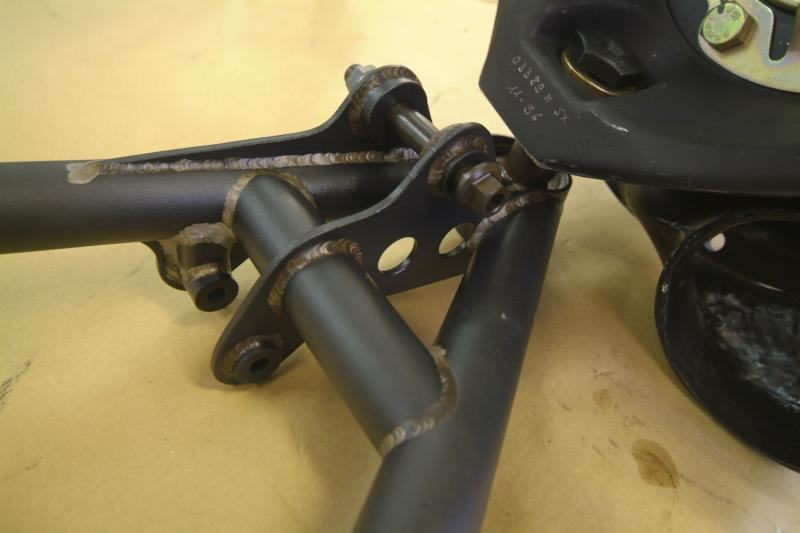

The strengthened wishbones which now are to be replaced with all new Michelotto ones, the modified front assembly still with its vestiges of road car use, the oil rad which had been bizarrely resited to the front, all headed for the bin!

1658320d1360674371-f40-lm-restoration-1101-008-copy

1658322d1360674371-f40-lm-restoration-image-91

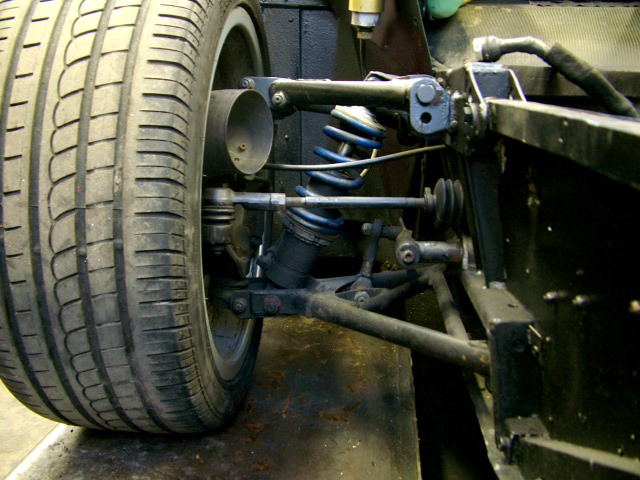

1658323d1360674371-f40-lm-restoration-image-89

1658324d1360674650-f40-lm-restoration-image-3

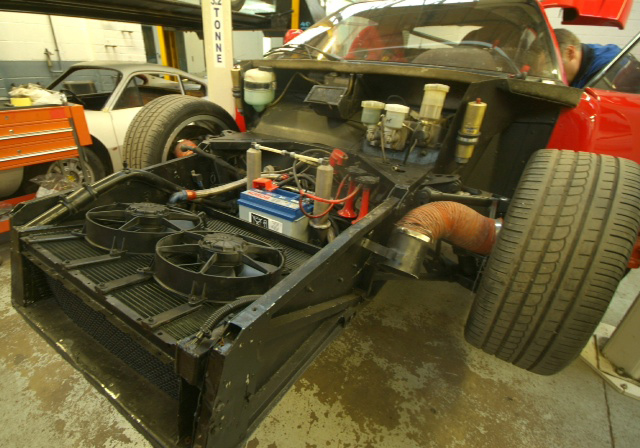

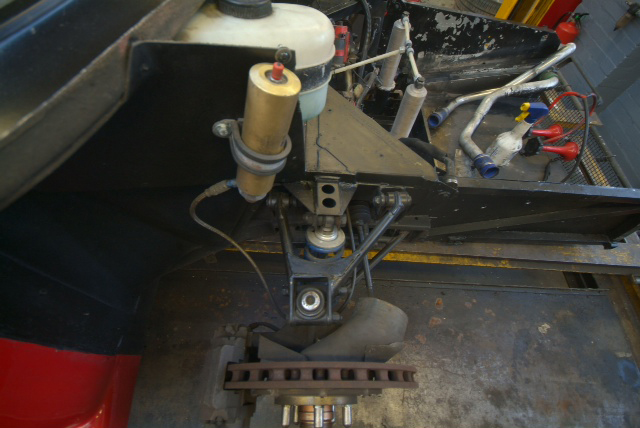

More images of suspension and brakes, all heading for the bin. Apparently in 96 these were genuine Group C but in my mind have no place on this car. All very interesting but off they come.

You can also see the disaster that are the old fuel tanks which also join the growing scarp heap. More about those later.

Afraid the next few posts are all going to be about stripping before we can focus on rebuilding and evolving this car as it would have been, had a team had the interest, and money, to do so.

4 weeks to get the chassis prepared before a large and very expensive package arrives from the delightful and hugely knowledgeable Cristiano Michelotto. About the most exciting birthday present (mine is in March)I could imagine opening.

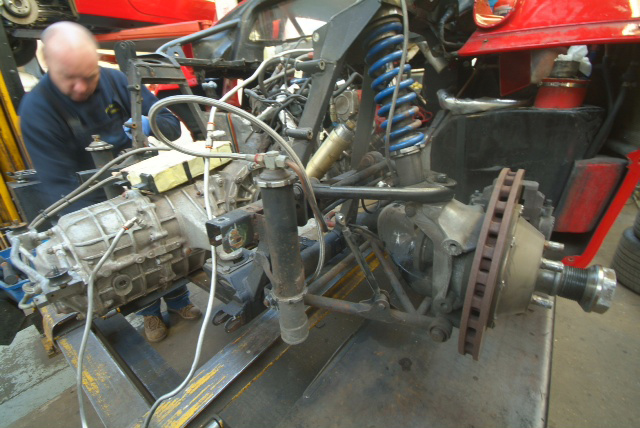

1658700d1360761802-f40-lm-restoration-image-83

1658701d1360761802-f40-lm-restoration-image-93

1658702d1360761802-f40-lm-restoration-image-29

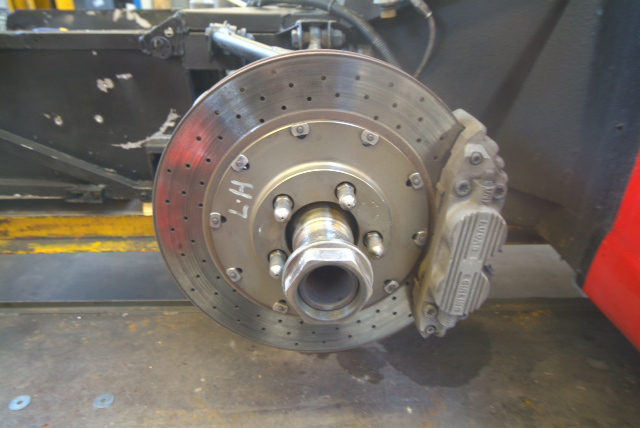

1658703d1360761802-f40-lm-restoration-image-58

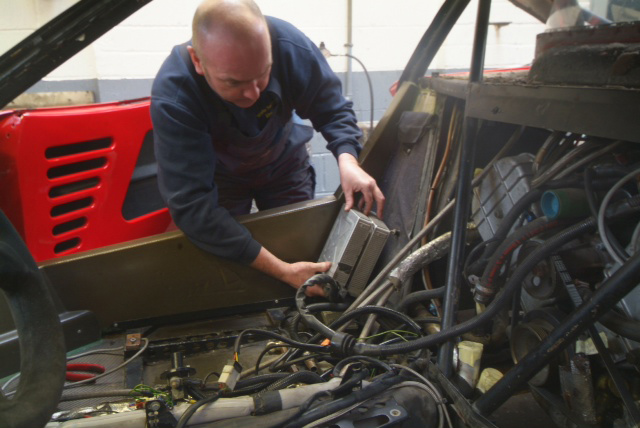

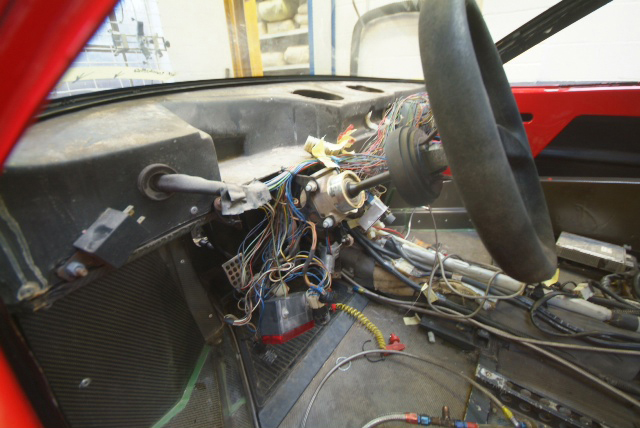

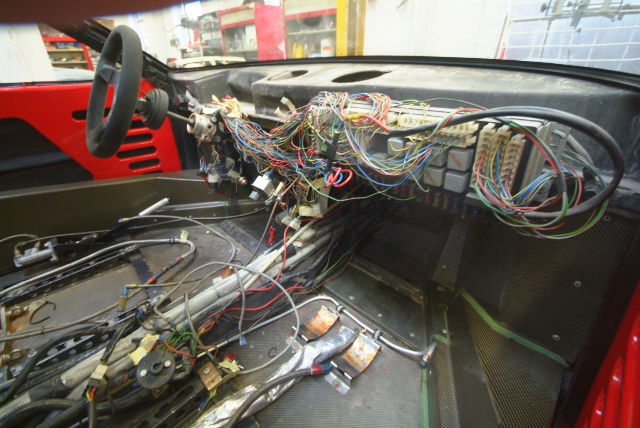

A couple more shots of the interior as it all comes apart. The wiring was a mess, added to and cut out with no logic-German engineering? Hardly. Note the large red fog light in the first image hanging down to the left of the wheel. Believe it or not that was an oil pressure light. Clearly the driver was going to have a hard time explaining if he had grenaded the engine due to low oil pressure. Simple, ugly, effective but now history. Remains of the Fire extinguisher system on the floor which will also be replaced. Given what we found and to be revealed in a future post, it could well have come in handy. Had it been charged.

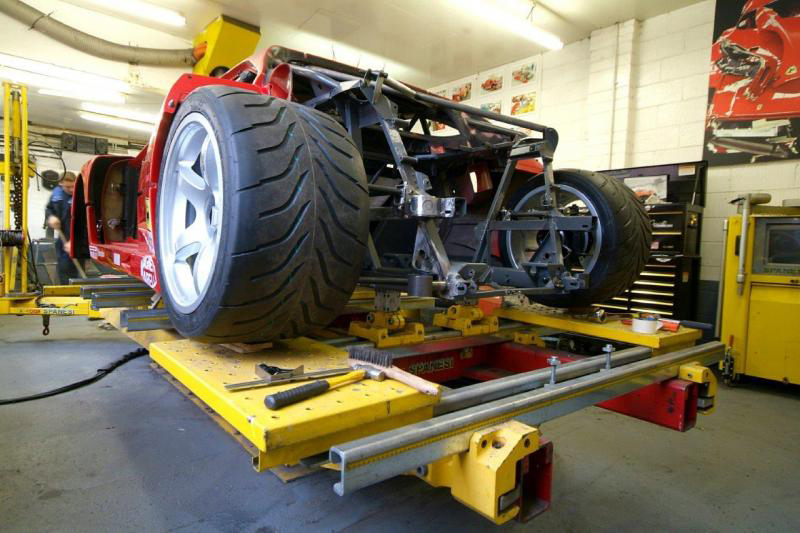

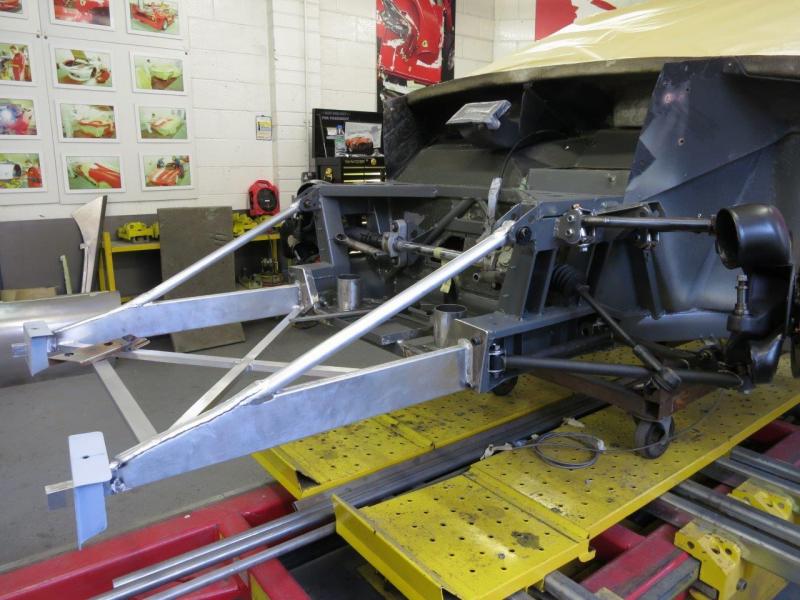

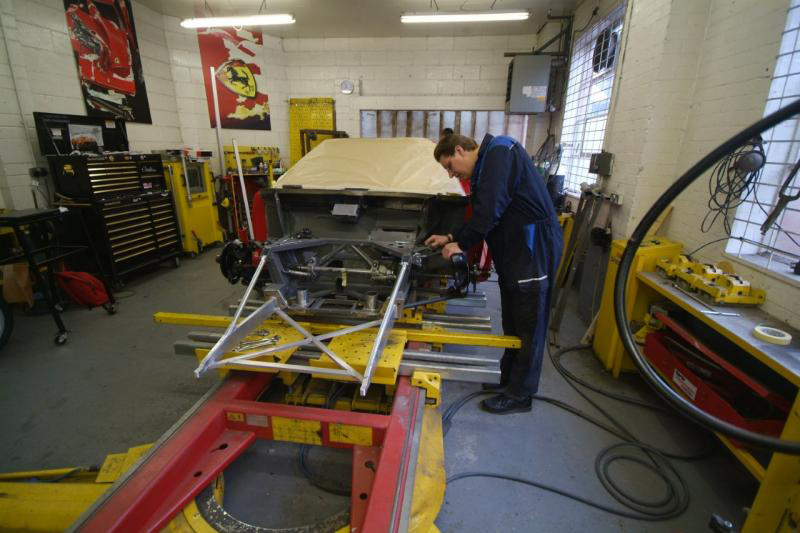

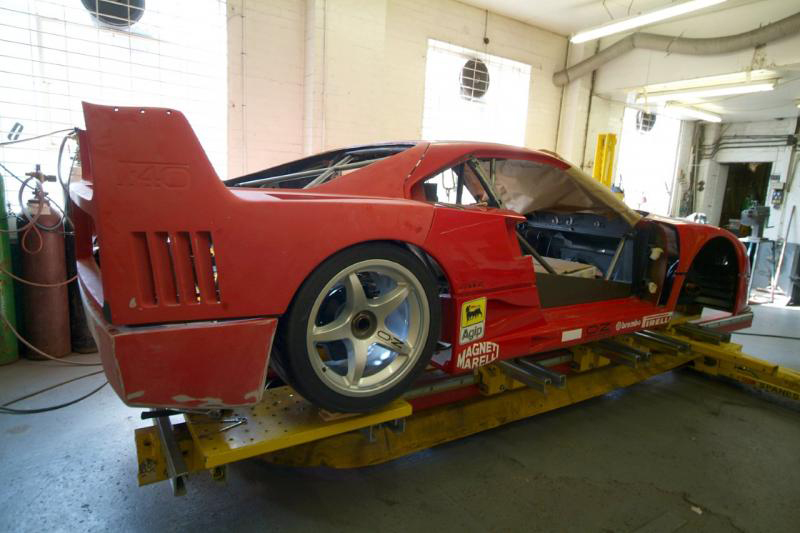

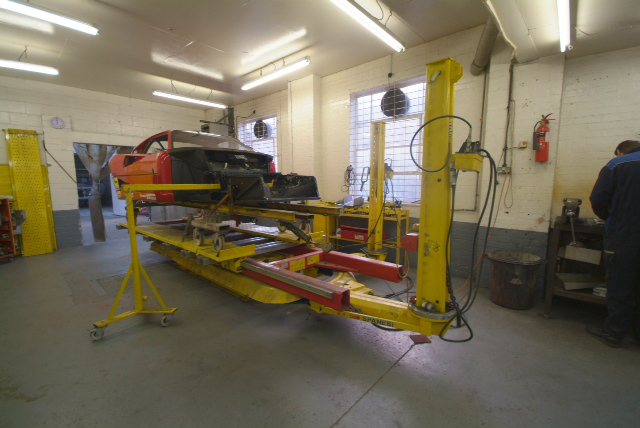

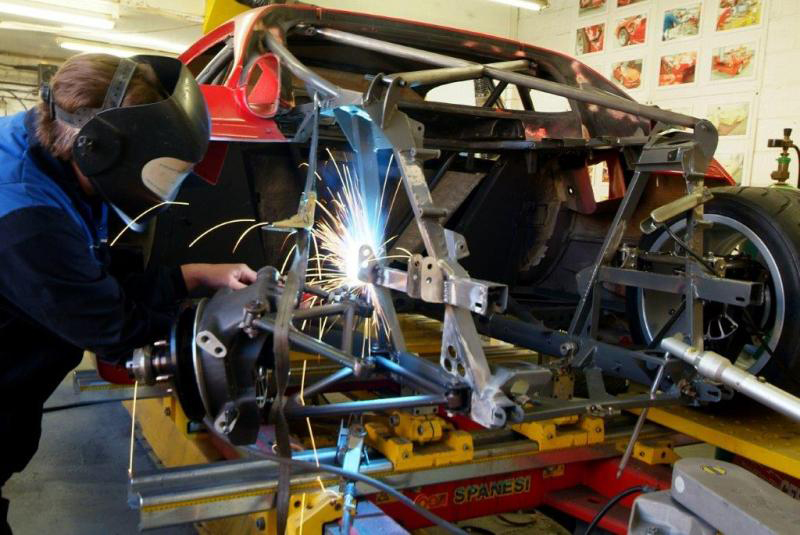

We then got the chassis on the computerised jig to set all our minds at rest and amazingly it was good news for a change: ‘the straightest F40′ they had ever come across, and they have done a few. Great to know we have a really good undamaged and true base to build up on given the history and the time and money being invested. All measurements have been recorded for the future as in due course I will put a book together on the history and the journey from start to finish as a permanent record.

Engine and gearbox still in situ at this stage as needed for checking panel clearances in the body shop so they are correctly stressed as well as ensuring we get the right clearances on the fuel tanks as they are very close to the manifolds. More on the fuel tank saga with the next post, as that was another discovery, but here, as you can see, we have now got them out and they too have gone to the bin.

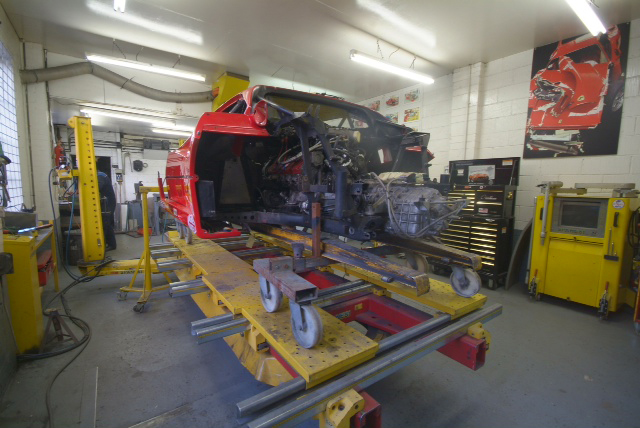

1659257d1360847689-f40-lm-restoration-image-4

1659258d1360847689-f40-lm-restoration-image

1659256d1360847689-f40-lm-restoration-image-3

1659255d1360847689-f40-lm-restoration-image-1

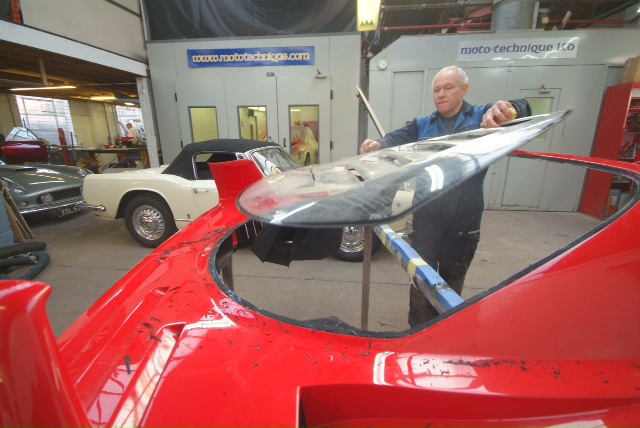

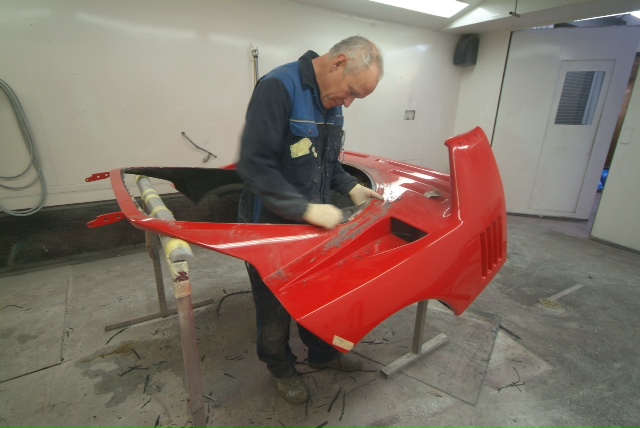

Whilst all the mechanicals get stripped out, a bit of work has started on the bodywork. All LM addenda removed and the prep works starts. Perspex out for repolishing.

For a mad moment I thought of changing colour and then realised that was insane. She stays red.

1659484d1360882217-f40-lm-restoration-image-6

1659485d1360882217-f40-lm-restoration-image-5

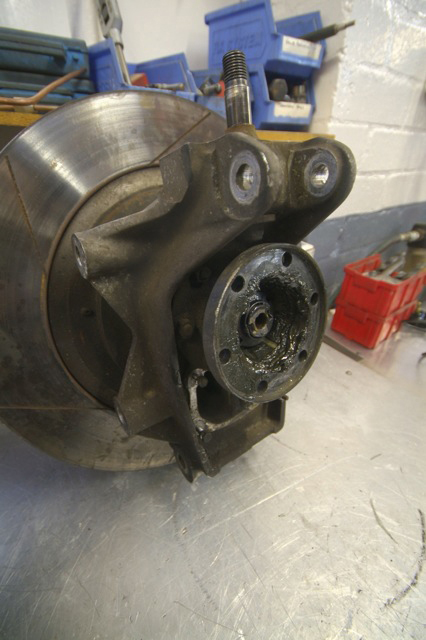

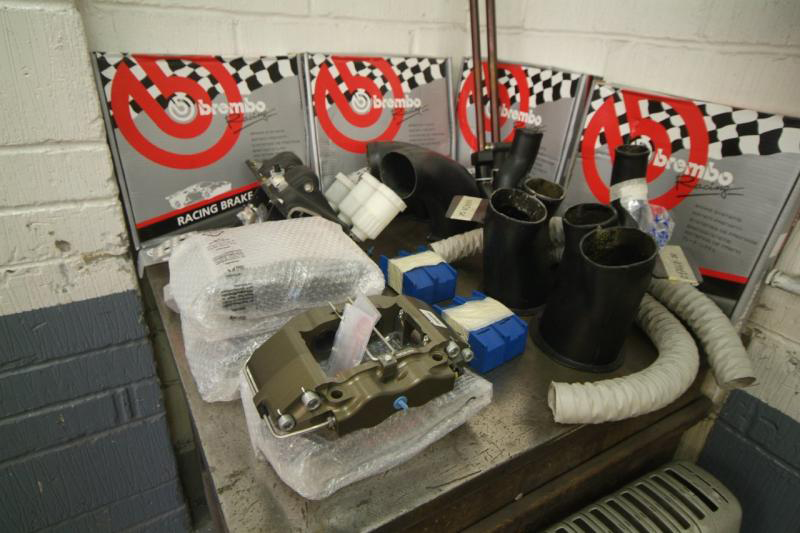

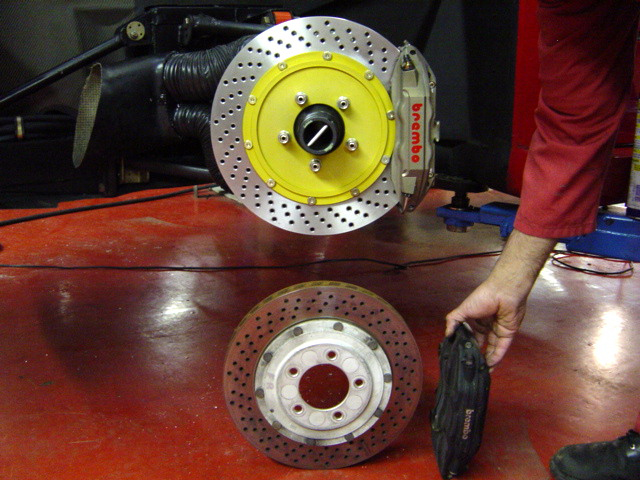

All the discs have spider cracks after hard racing so they are gone. Both hubs and discs will be replaced with beautiful lightweight Michelotto LM discs and hubs. One hub also totally finished so just as well.

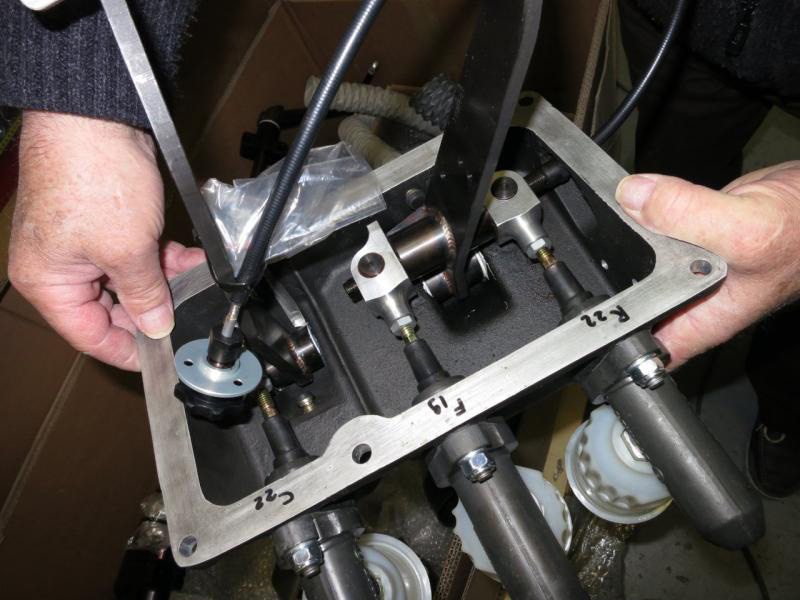

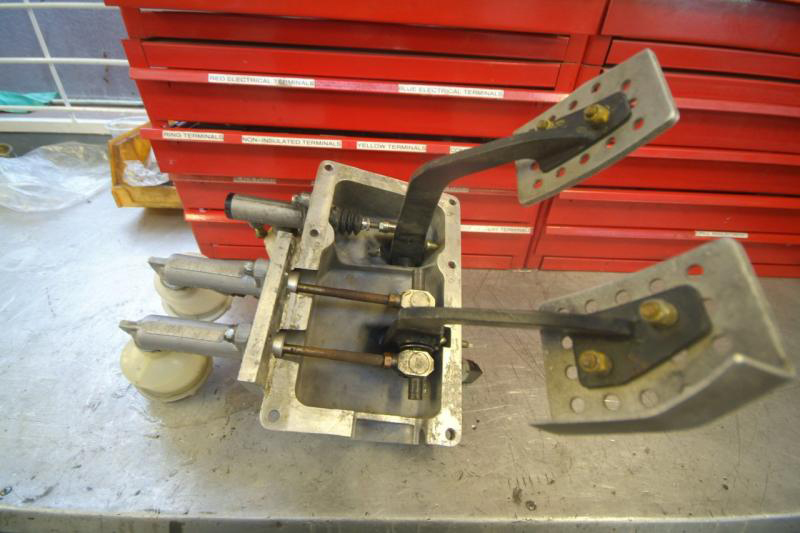

Pedal box en route back to Michelotto for some minor adjustment pending a brand new full magnesium LM one which will take a few months, so at least we can keep going. Apparently they are producing some new ones for a customer who has their cars in inclement conditions and need replacing and so we will wait for that.

Once fitted, this will include the in car brake bias adjustment facility.

1659787d1360952215-f40-lm-restoration-3a

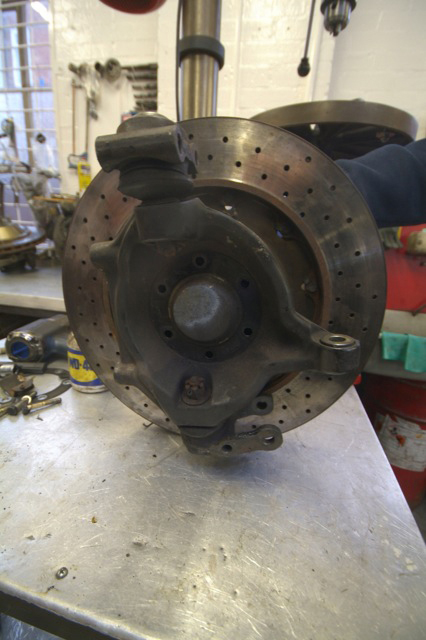

1659786d1360952215-f40-lm-restoration-image-1a 1659785d1360952215-f40-lm-restoration-image7a

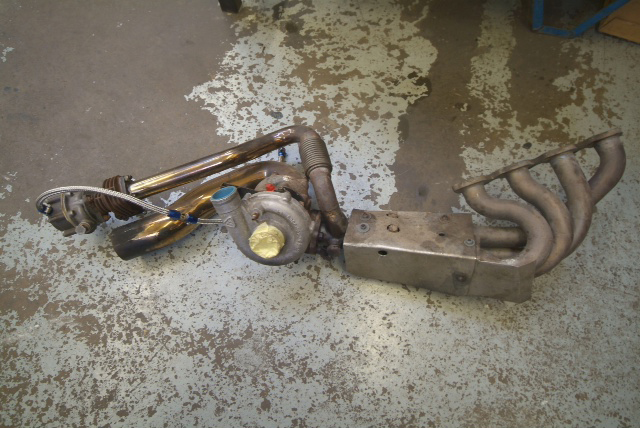

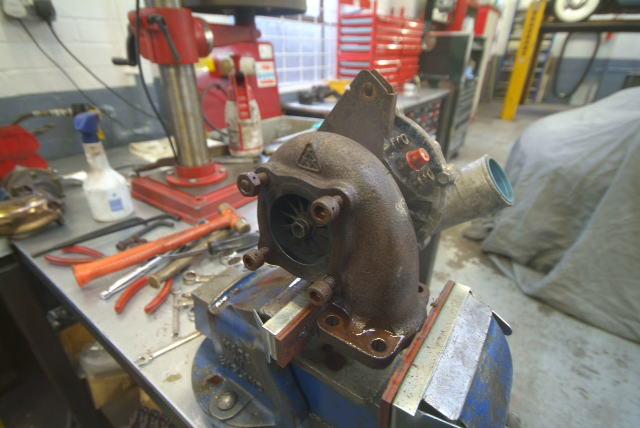

Well we now have the manifolds and turbos out. Unusually this car ran twin KKKs with twin waste gates and produced about 640 BHP before it was fitted with adjustable boost which apparently took it to 720.

Anyway, no surprise that this is all in as bad condition as the rest of it. Turbos and wastegates off to a specialist for rebuilding and refinishing, the wastegates needing to have specific care taken so they dont blow off even slightly early. Everything will be cleaned up and probably ceramic coated.

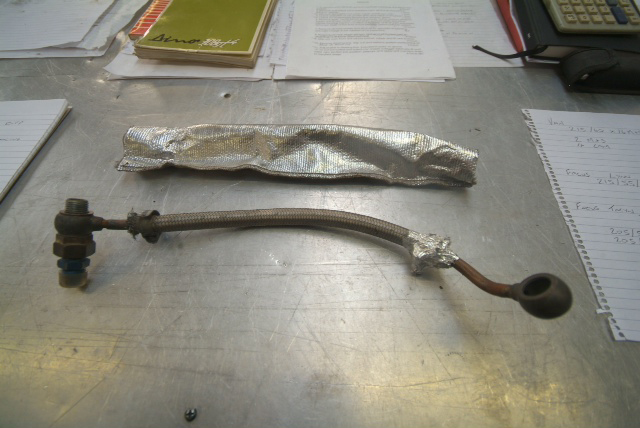

The destruction continues.

1660452d1361110608-f40-lm-restoration-image-3a

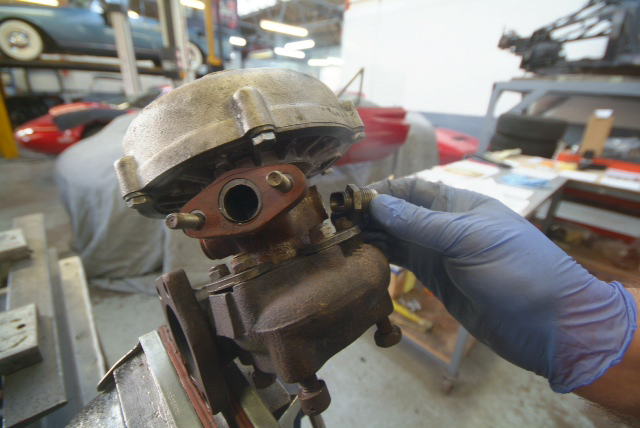

1660451d1361110608-f40-lm-restoration-image-7

1660450d1361110608-f40-lm-restoration-image-4a

1660449d1361110608-f40-lm-restoration-image-1b

Finally a first sign of some construction, limited though it may be.

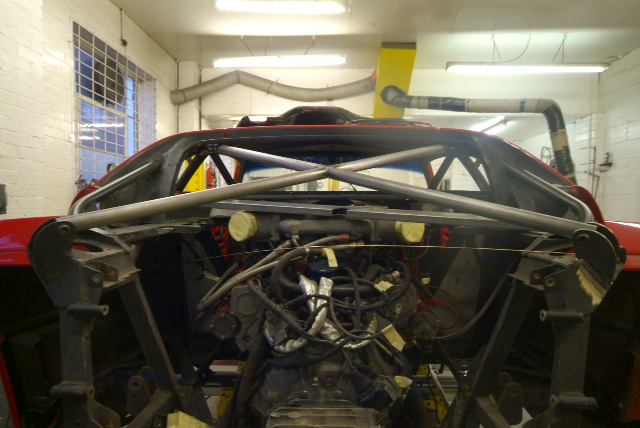

Whilst we have the chassis on the jig and importantly the engine still in, we are changing the single LM cross brace to the more rigid GTE style.

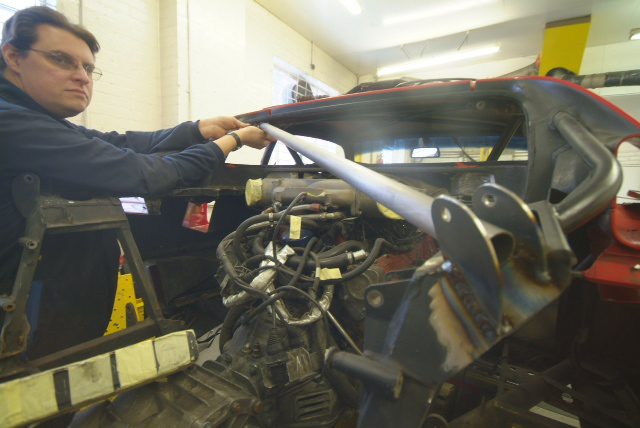

1660988d1361215728-f40-lm-restoration-image-1



1660989d1361215728-f40-lm-restoration-image-2

Construction again!

This is the fuel tank saga. In short they very badly needed replacing.

Original car ran with tanks cloaked in a sort of rubberised paint and were well past their sell by date. They are different to road tanks as fuel pumps etc are external for racing. We looked at fitting new cells which only have a 5 or possibly 10 year life(jury seems to be out on this) and as I plan on keeping this car a long time, we decided we did not want to have to take her apart again in a few years time, so we wanted to do better and evolve. Also as the US cars had alloy tanks, this was hardly stepping into the unknown.

Consequently we decided to avail ourselves of Mototechnique’s metalworking skills and fabricate our own. The interiors are being sanded to provide a key for a sealant, and then the tanks themselves will be clad in carbon fibre and then filled with foam. This solution is FIA approved so the car can still race if we ever wanted to and yet provides a belt and braces solution which takes advantage of modern developments in materials, has no weight penalty (possibly a small saving), and will hopefully last the life of the car. More detail as they get built up but here you can at least see the start, together with dry fitting in the chassis as they go along.

If, in years ahead when I am gone and the car is with a new owner, anyone who was totally hung up on originality can always revert to the cells, should they still be available.

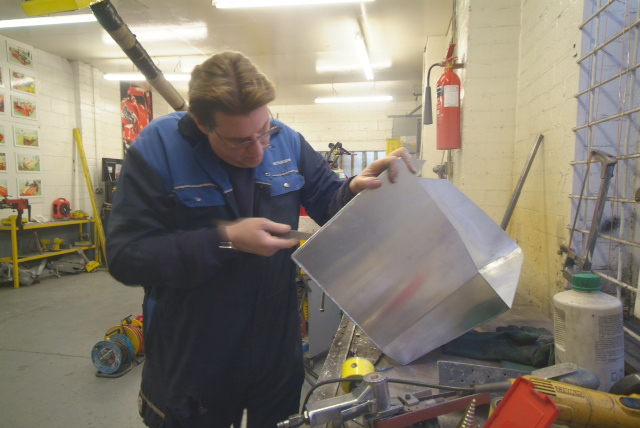

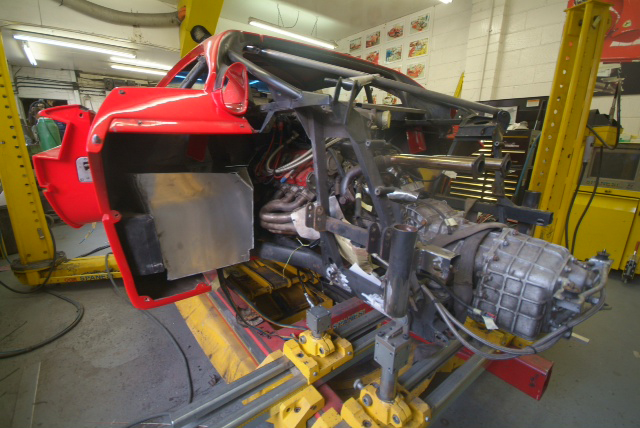

Always amazed at the skill of someone taking a flat piece of metal and teasing it and cajoling it into complex shapes. I could not even do that with paper.

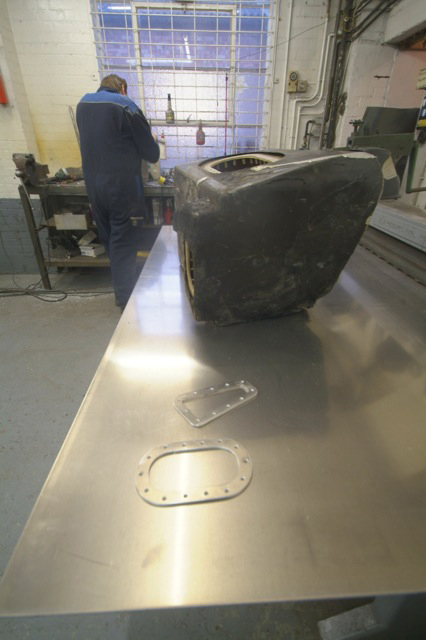

1661697d1361312228-f40-lm-restoration-image8a

1661698d1361312228-f40-lm-restoration-image-1a

1661699d1361312228-f40-lm-restoration-image-5a

1661700d1361312228-f40-lm-restoration-image-3a

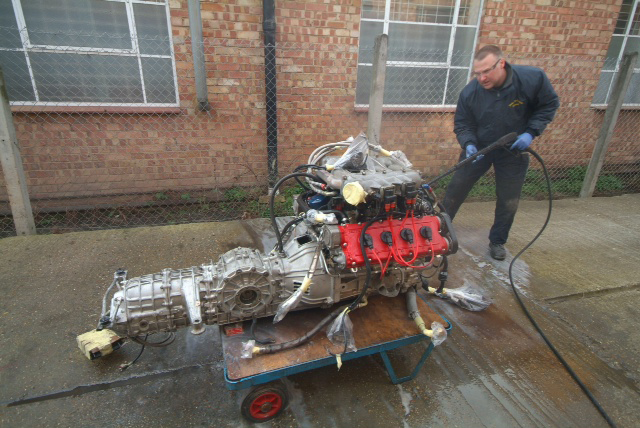

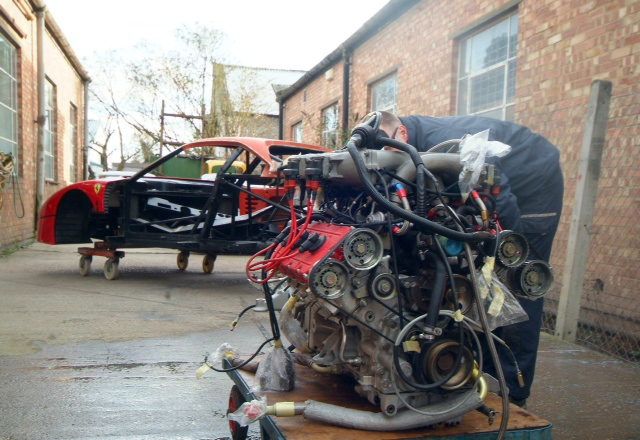

Finally a filthy engine is released. 24 years of road and racing grime removed in a few hours and what a result. We then will break down the gearbox and on Michelotto’s recommendation, replace second gear as it is apparently a known weak spot when you start pumping more power through it, especially when used in anger as in racing. Also considering changing the crown wheel and pinion as apparently this car ran in excess of 220 and again on his advice, he suggests a reduction to give us a top speed of about 190/195 which is what he gears his current race cars to, even at Le Mans. The gain, obviously, is in acceleration.

Note still dry fitting the tanks as they are gradually made up, but in a week or so they should be all clad in carbon and good to go.

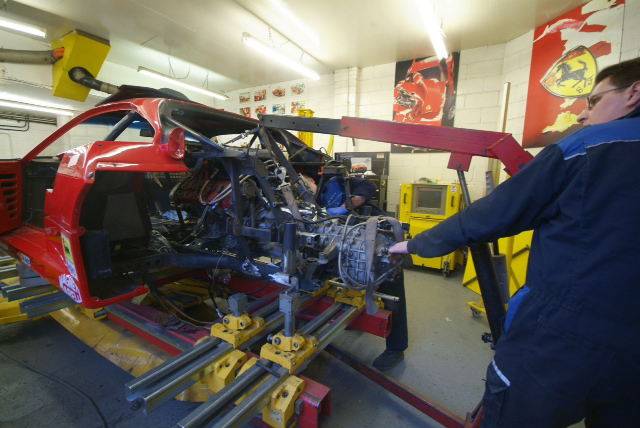

Whilst we have the engine out and broken down, thinking about pulling the heads just to check as it would be a shame to go this far only to find some problem later. Apparently recently rebuilt but after what we have found so far, it might be nice to see for ourselves.

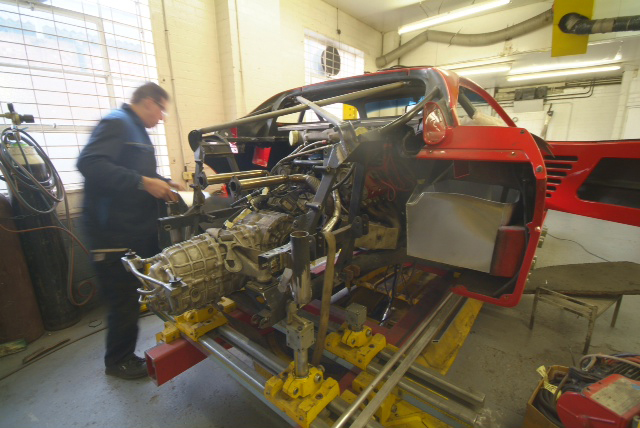

1662936d1361538543-f40-lm-restoration-image-4b



1662937d1361538543-f40-lm-restoration-image-2b

1662939d1361538543-f40-lm-restoration-image-1b





1662938d1361538543-f40-lm-restoration-image-3b

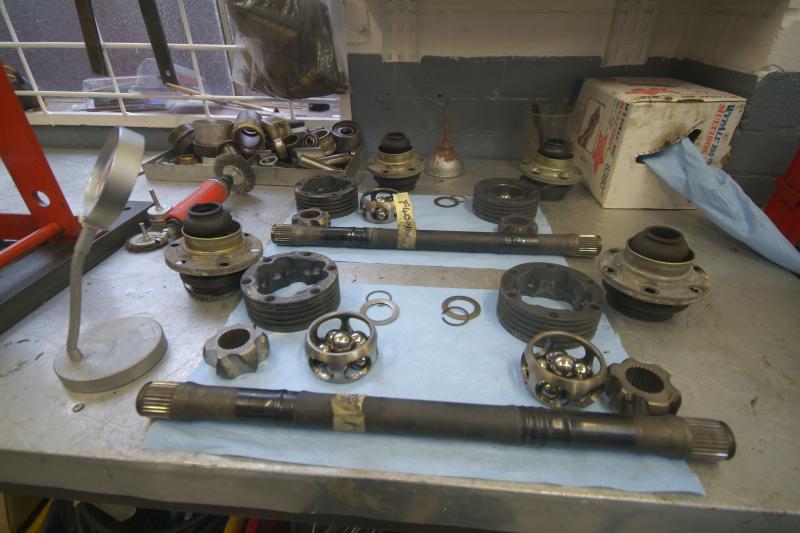

 Universal joints needs sorting but drive shafts are good

1662945d1361540627-f40-lm-restoration-250113-001

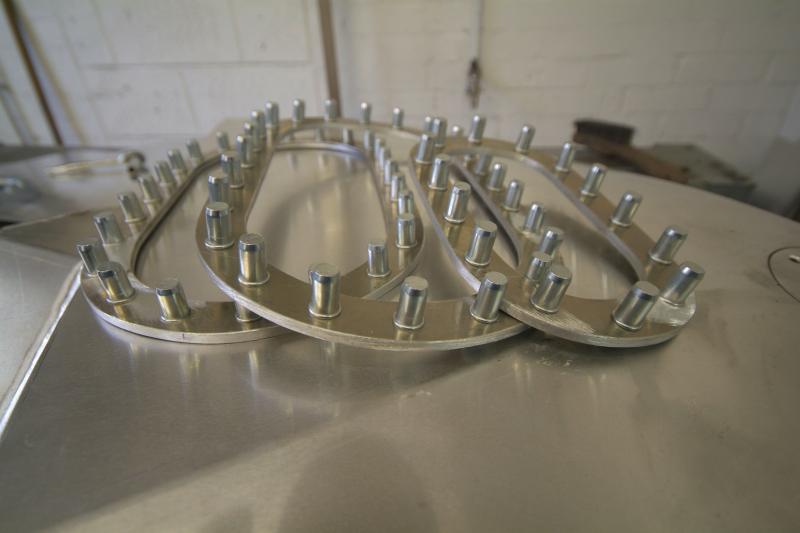

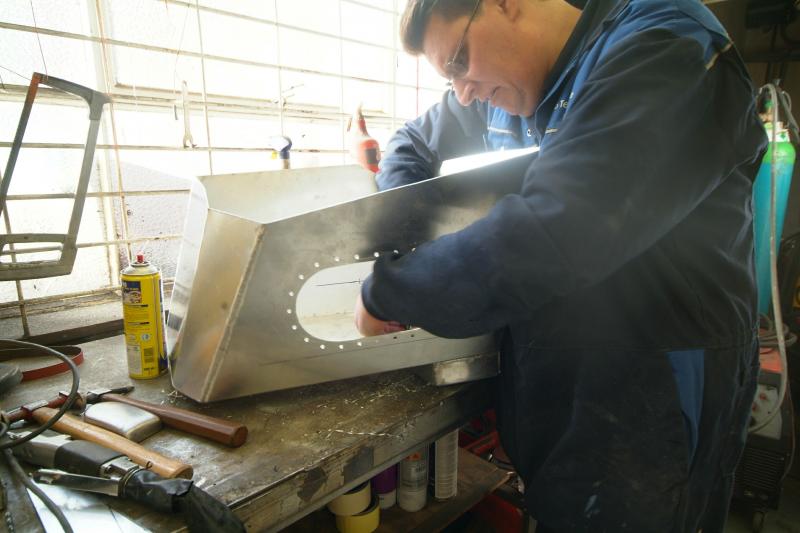

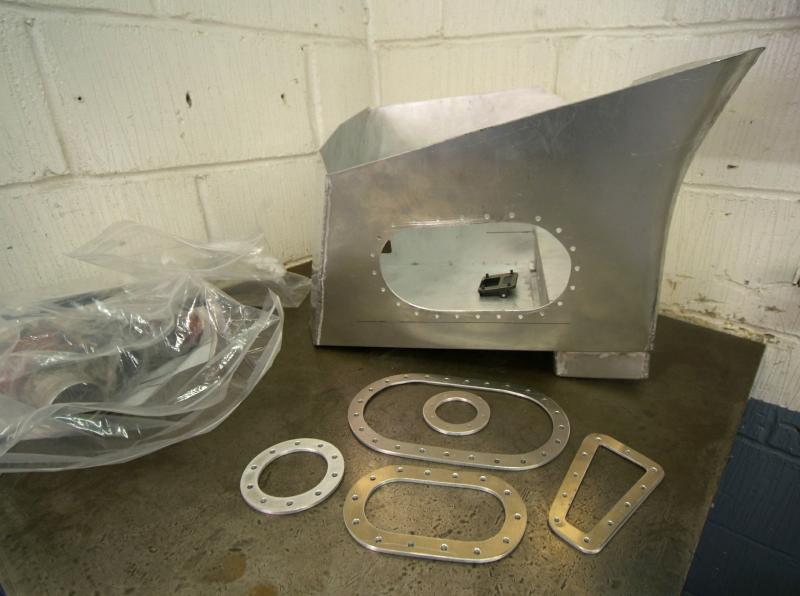

A few more shots of fuel tank artwork.
1664113d1361735035-f40-lm-restoration-310113-001
1664114d1361735035-f40-lm-restoration-310113-005
1664115d1361735035-f40-lm-restoration-130213-005
1665509d1361961019-f40-lm-restoration-1402-003

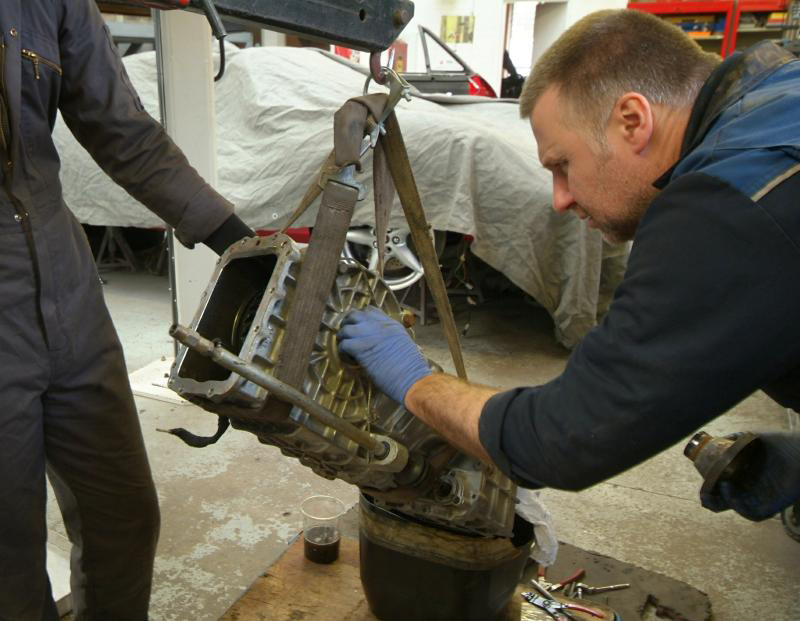

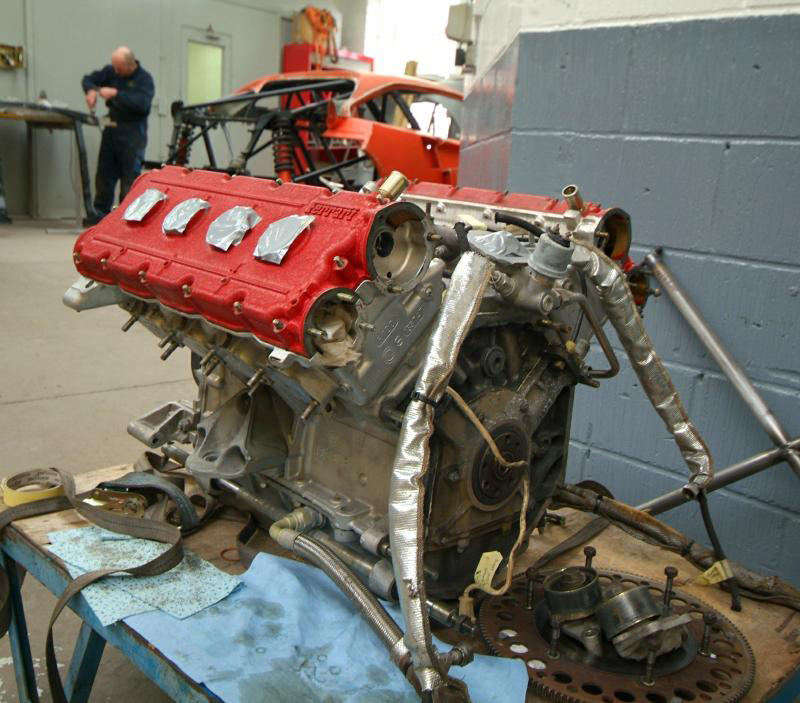

Slowly reducing the car to individual pieces! At this rate I can see the house going, but doing it right is becoming more addictive than drugs.
1664616d1361828400-f40-lm-restoration-150313-031
1664617d1361828400-f40-lm-restoration-150313-026

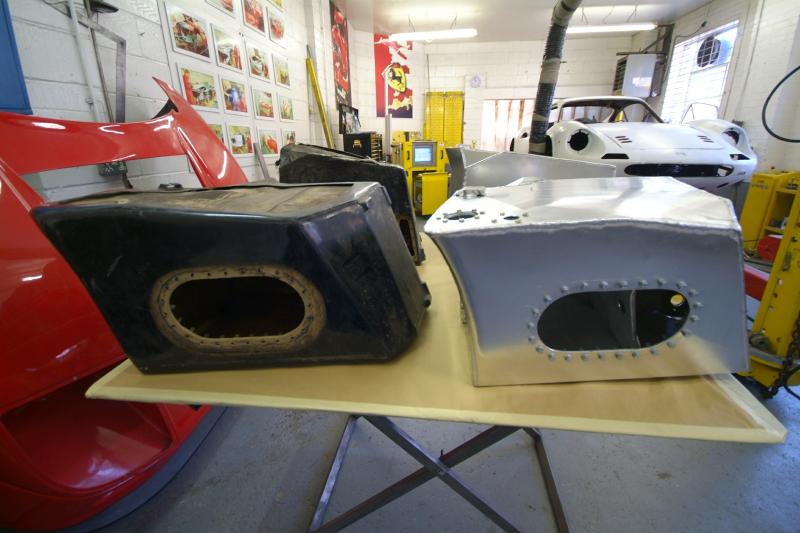

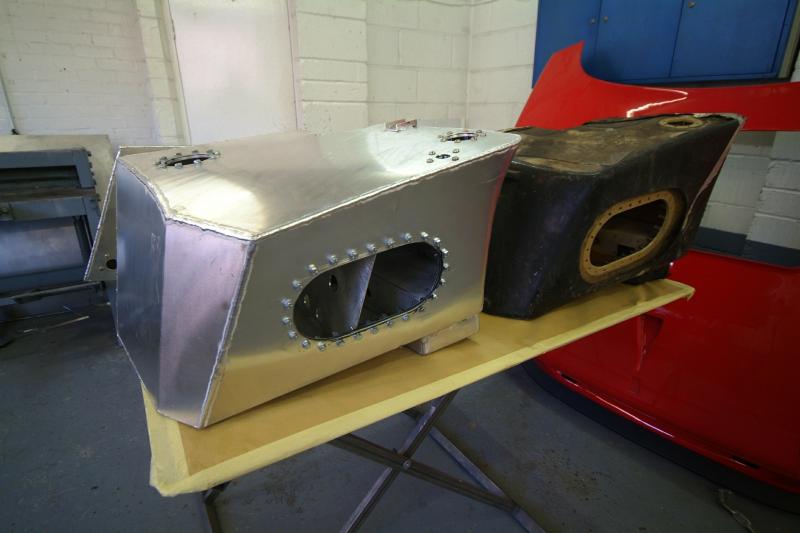

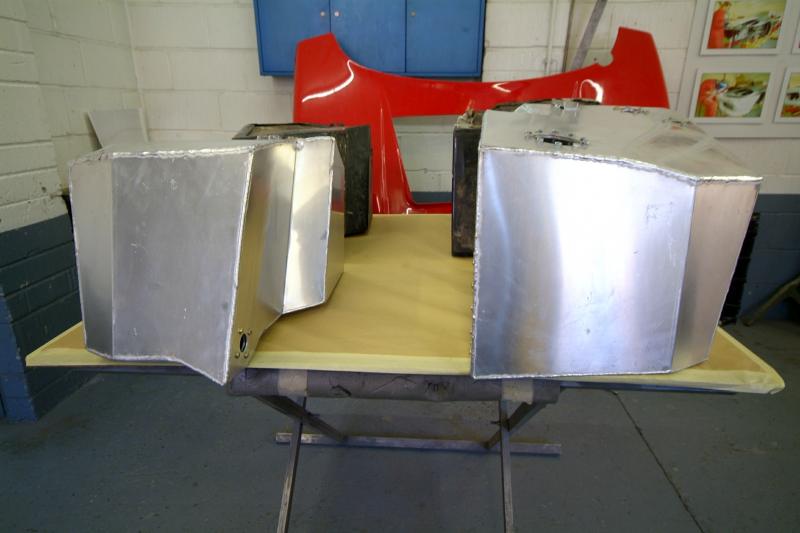

Well, the alloy tanks are effectively finished save for some lugs and heatshields, and shortly, thanks to this forum, we will start to dress them in fibreglass and then the Carbon. You can see one old, slightly singed tank and the new one alongside. Cannot wait to seem them wrapped and finished but suspect that might be a week or so away.My outrageously priced birthday present, well hardly a present, from Michelotto should be shipping at the end of next week so that should really prove to be a turning point when we get our hands on that stuff. Big box opening moment when that arrives. All in all I am hoping that in a couple of weeks or so we can start proper construction and begin to assemble.Generally progress has been slower than I would have liked due to pressure at the shop, but we are still moving forward and learning every inch of the way.

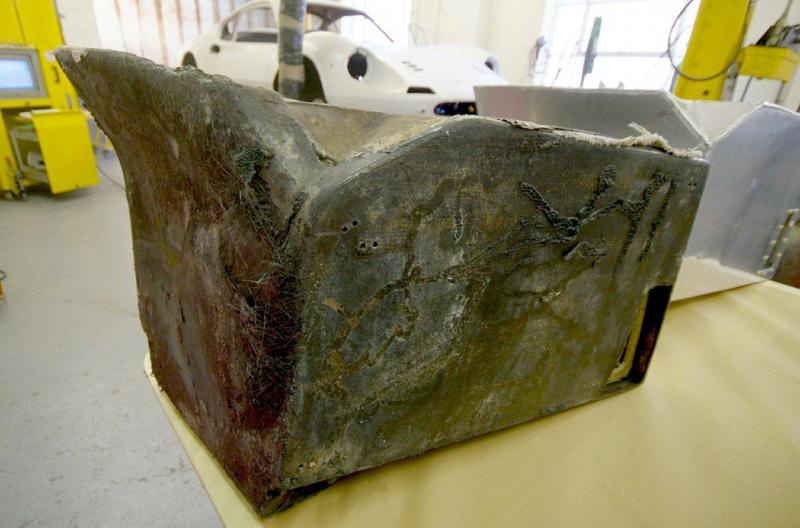

1665901d1362052519-f40-lm-restoration-19213-007s
1665902d1362052519-f40-lm-restoration-19213-006
1665903d1362052519-f40-lm-restoration-19213-004
1665904d1362052519-f40-lm-restoration-19213-001

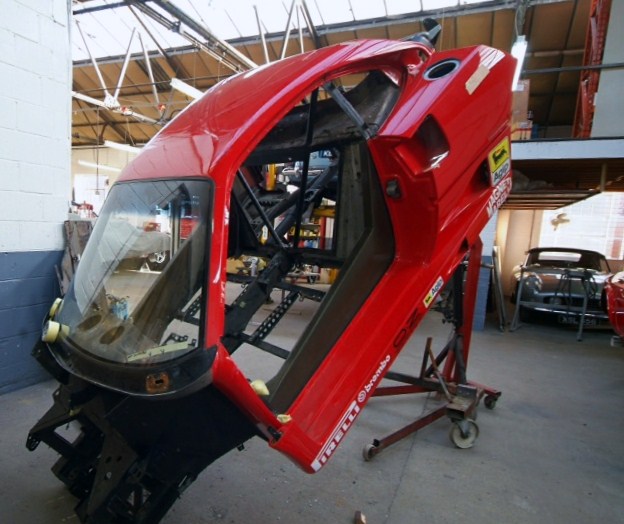

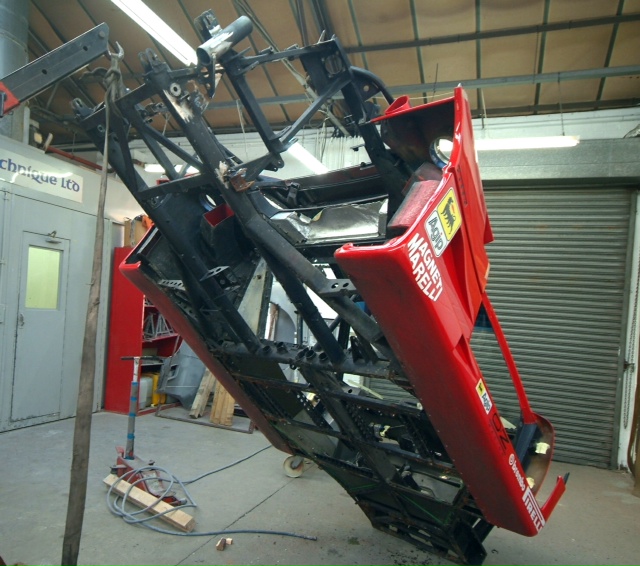

Well, a last gasp for attention for a week or so before the F70 launch when there will be only one thread to follow.I wont bore you with the ongoing work to the fuel tanks for now but we are almost getting to the bottom of the destruction phase. Here she is, down to basics, shortly to be masked up and off to the sand blasters who will strip off all the old chassis paint so we can get back to bare metal, prime and recoat in the correct Michelotto silver. Considered doing it manually and then came to the conclusion that the only way to get into every nook and remove all the grime was to blast it and that way we will get a perfect finish.There is that word again, ‘Perfect’ which normally equates to $.
1667237d1362308903-f40-lm-restoration-20th-feb-2-

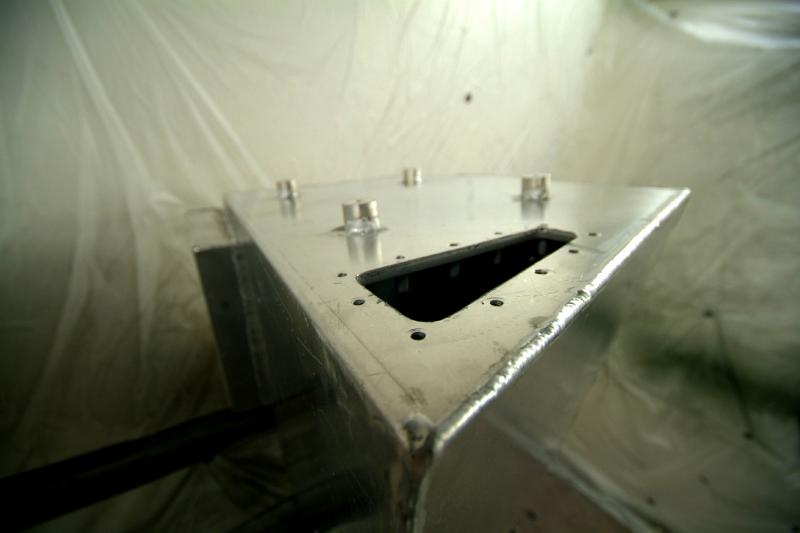

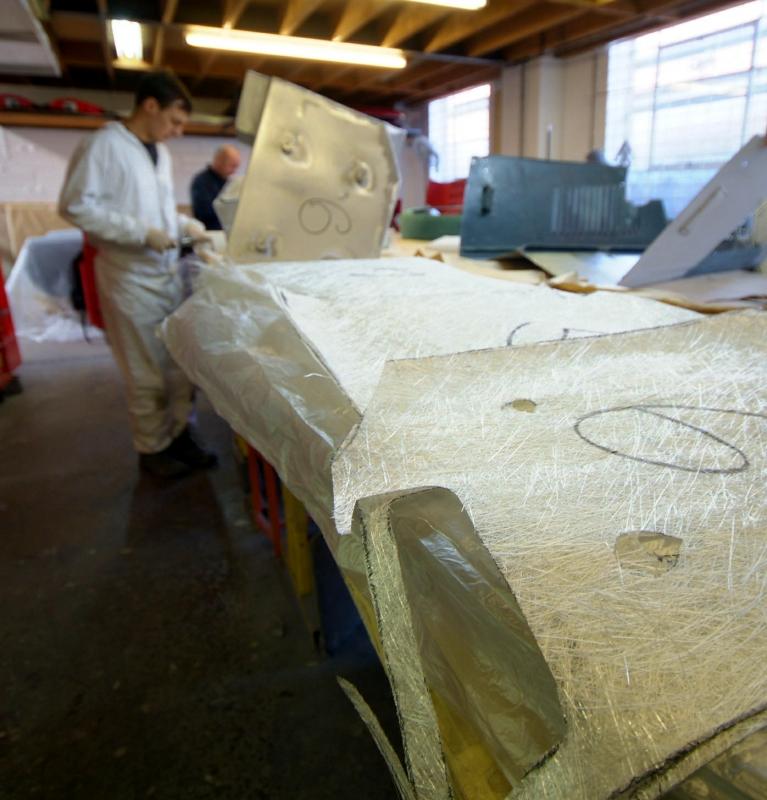

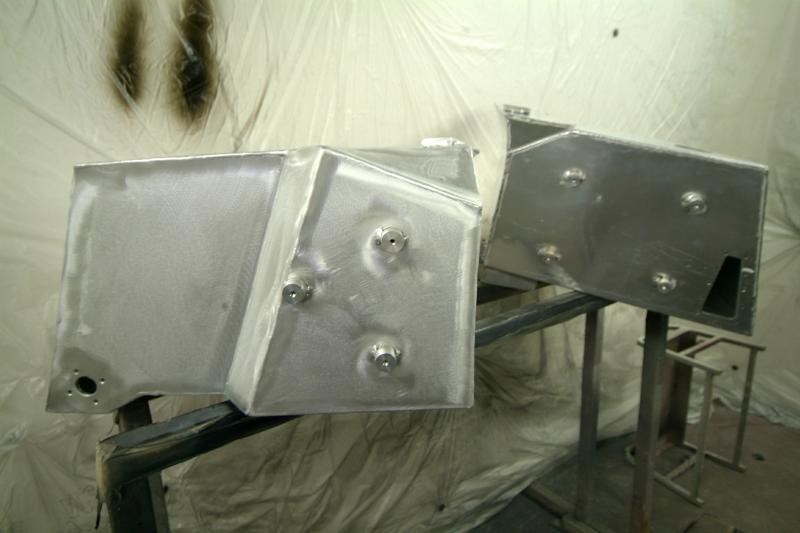

Here are the heat shield lugs that have been attached to the tanks now and the very start of the laying up process.
1667462d1362341356-f40-lm-restoration-27th0213-031
1667463d1362341356-f40-lm-restoration-27th0213-033

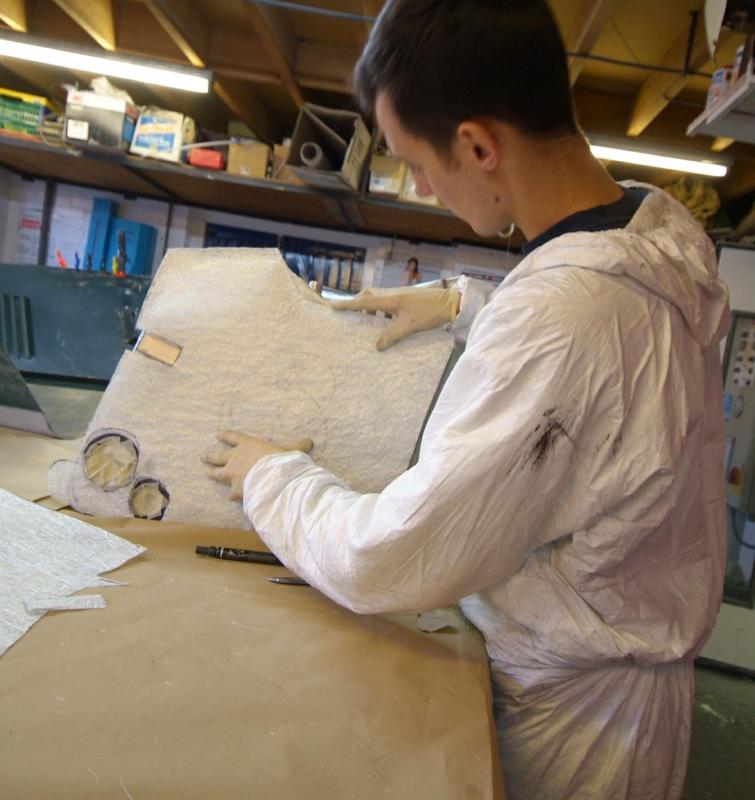

1667464d1362341356-f40-lm-restoration-27feb03-006
1667465d1362341356-f40-lm-restoration-27feb03-005

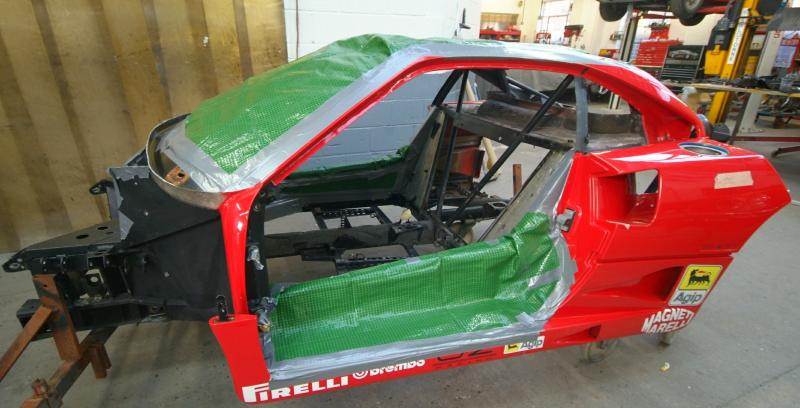

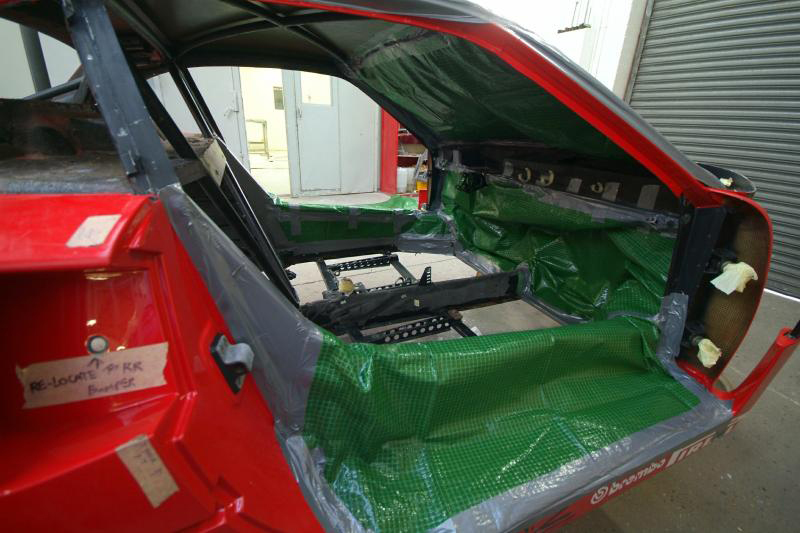

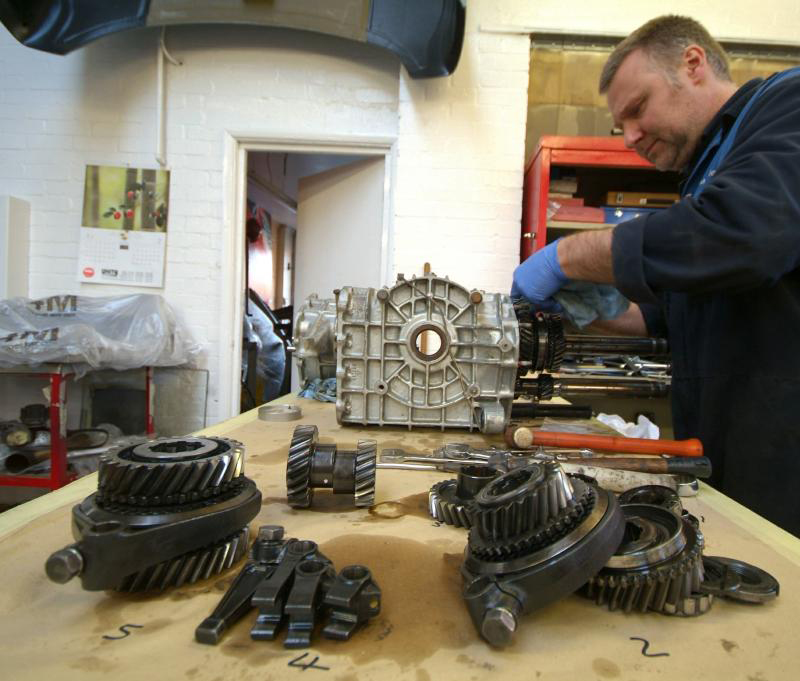

Shell now all masked up and ready to have the chassis back to bare metal so should be the last time I see that in black. Meanwhile gearbox tear down has revealed that reverse gear is now useless and that has created a whole bunch of issues as Ferrari want to sell you reverse, Ist and the main shaft for $15K, so we have to find our way round that which may mean getting the part made up. More on this to follow.
1669502d1362649000-f40-lm-restoration-18th-13-002

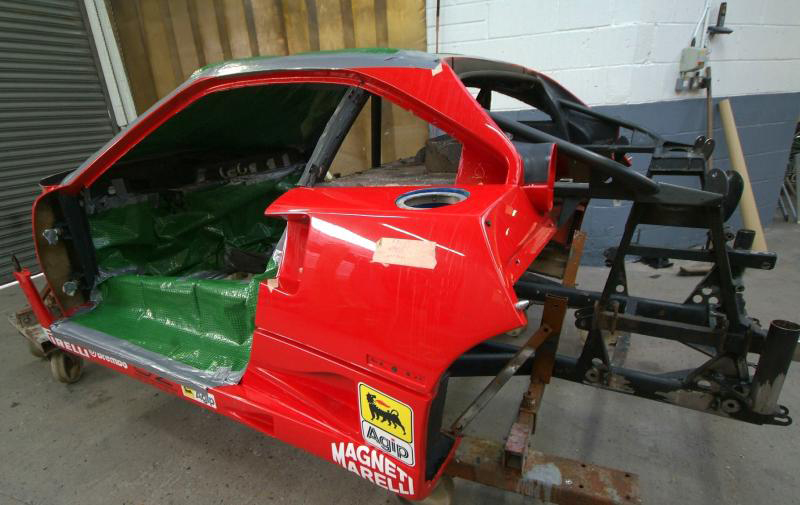

1669503d1362649000-f40-lm-restoration-18th-13-003
1669504d1362649000-f40-lm-restoration-18th-13-004
1669505d1362649000-f40-lm-restoration-27feb03-002

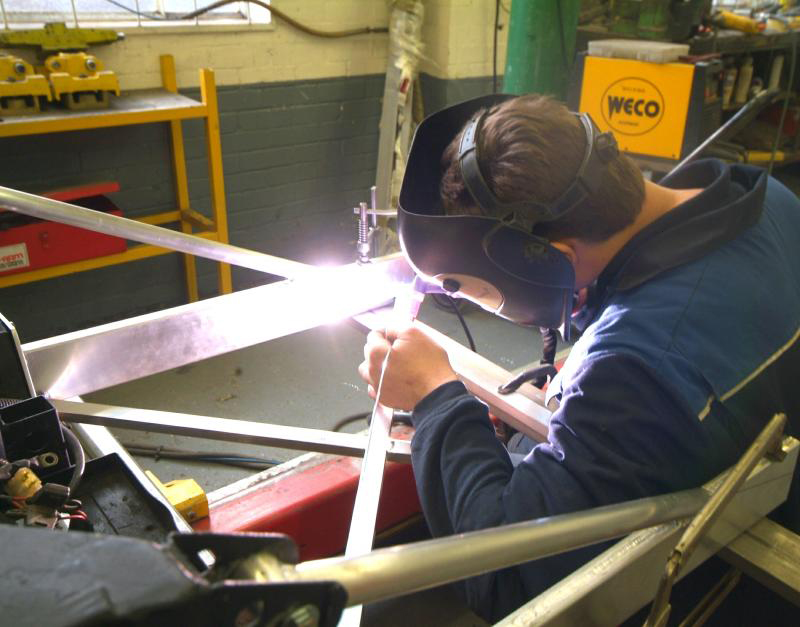

We have now just about finished the front structure save for the locking pins etc and to remind you here is a photo of what went before. The weight saving is dramatic, the new unit being mere ounces.Interesting to note the modified central battery position and twin jacking points of the original. We are maintaining the battery position and replacing the jacks with Krontec units as used in F1 and most top end GT cars.

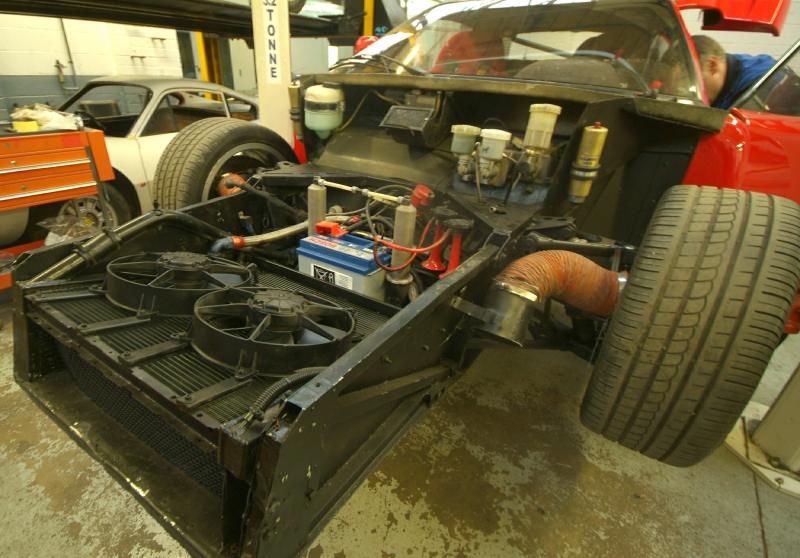

1672015d1363024555-f40-lm-restoration-12th-008
1672016d1363024555-f40-lm-restoration-3113-013

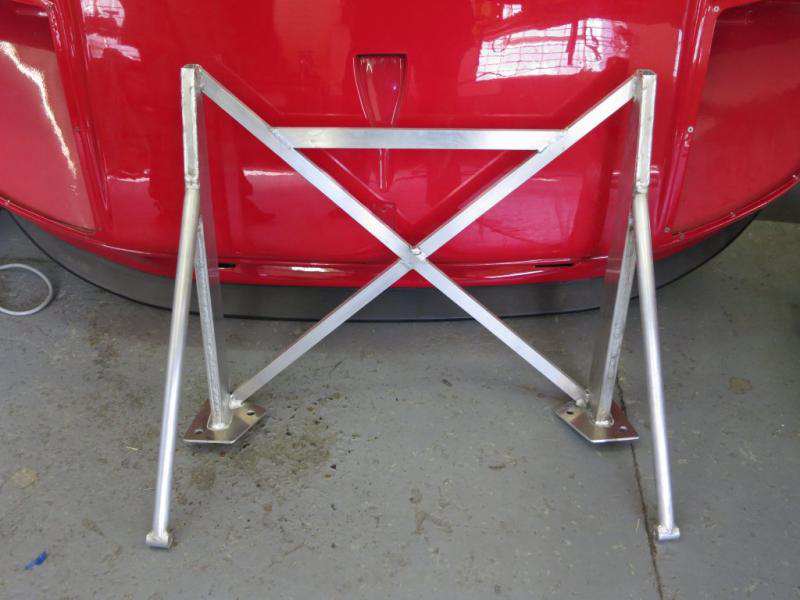

1672017d1363024555-f40-lm-restoration-img_0421s

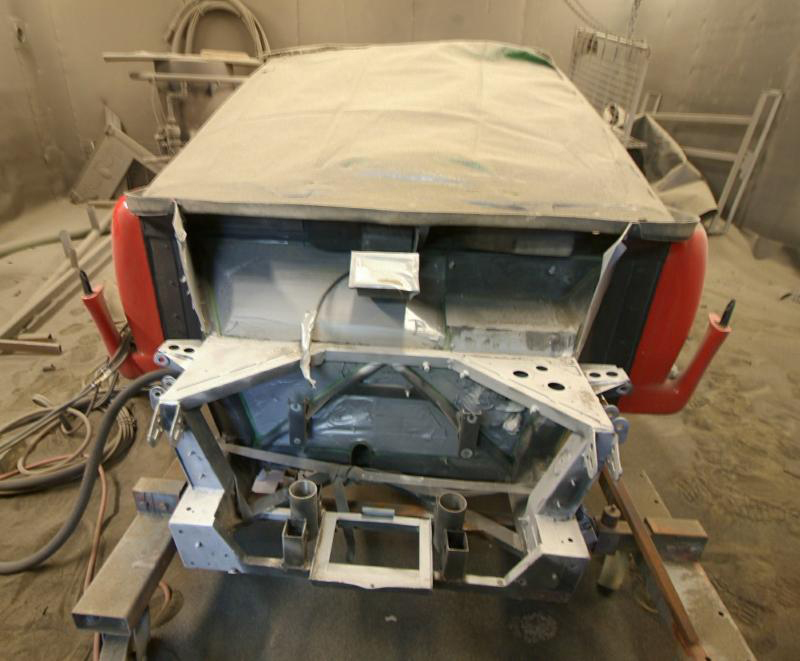

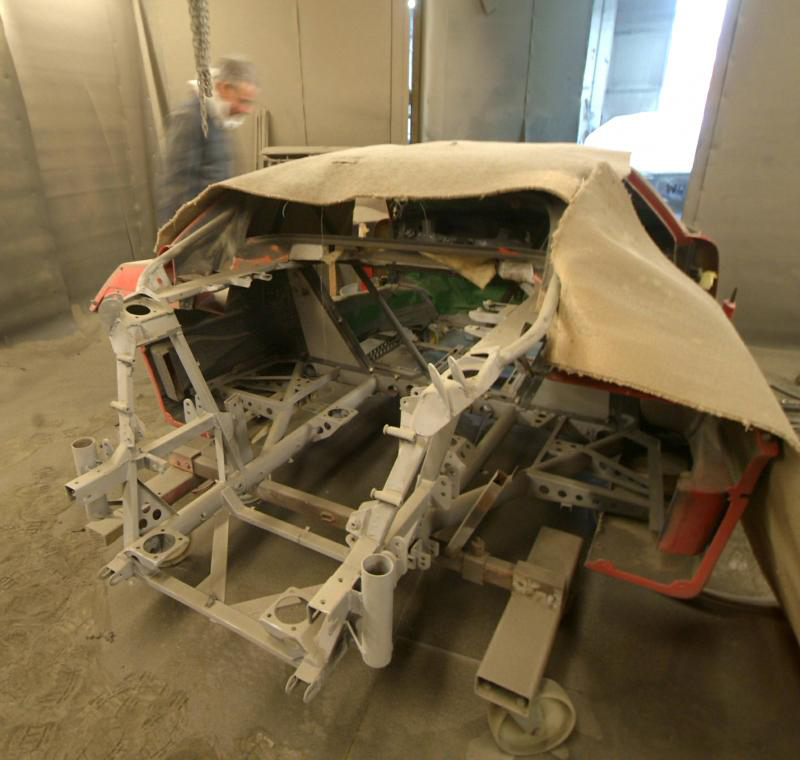

Well, this really is as low as you can go. From where we were to where we are and given where we are my time frame has gone out of the window as like all restoration jobs, this one has ballooned! Bear in mind this car recently went to the Le Mans Classic twice, driven in both directions and apparently never missed a beat.In conditions reminiscent of a Victorian workhouse the chassis is now being blasted back to bare metal and from there the build up can hopefully start in earnest. Interesting to see the central battery position. Suspension parts still being fabricated in Italy by Michelotto but we hope to have them within a week or so but he missed my birthday. Biggest issues remain on what we are to do with the engine etc but more on that to follow.
1672981d1363172272-f40-lm-restoration-f40-lm-lm
1672982d1363172272-f40-lm-restoration-010313-009
1672983d1363172272-f40-lm-restoration-010313-005

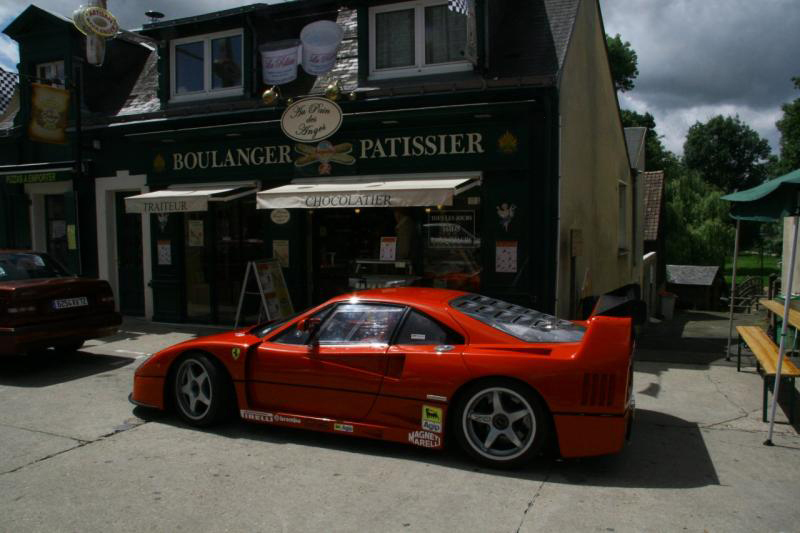

1673015d1363176777-f40-lm-restoration-le-mans-2008-cars-etc-118-small

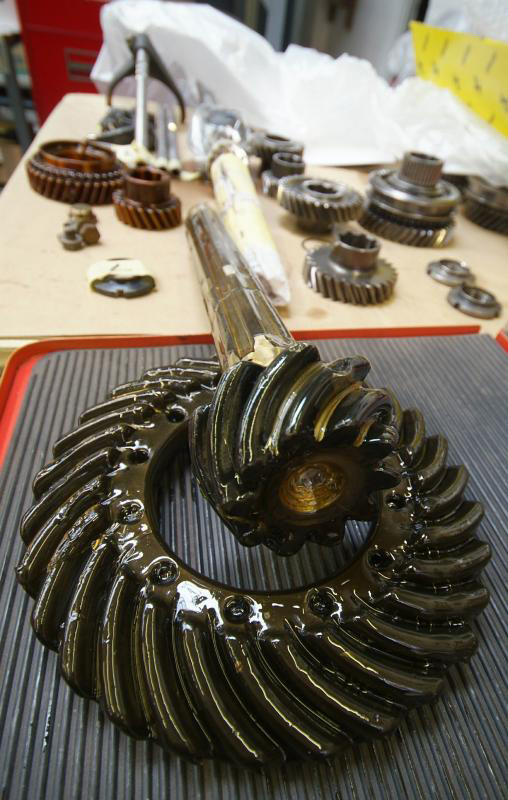

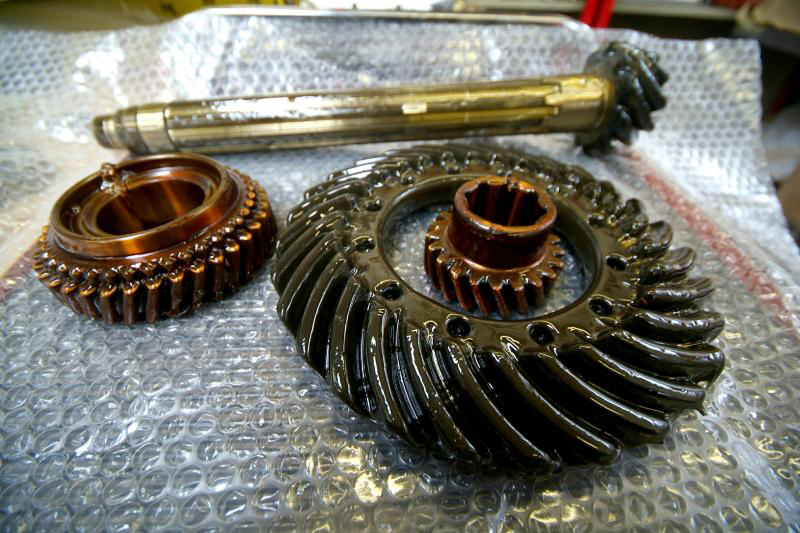

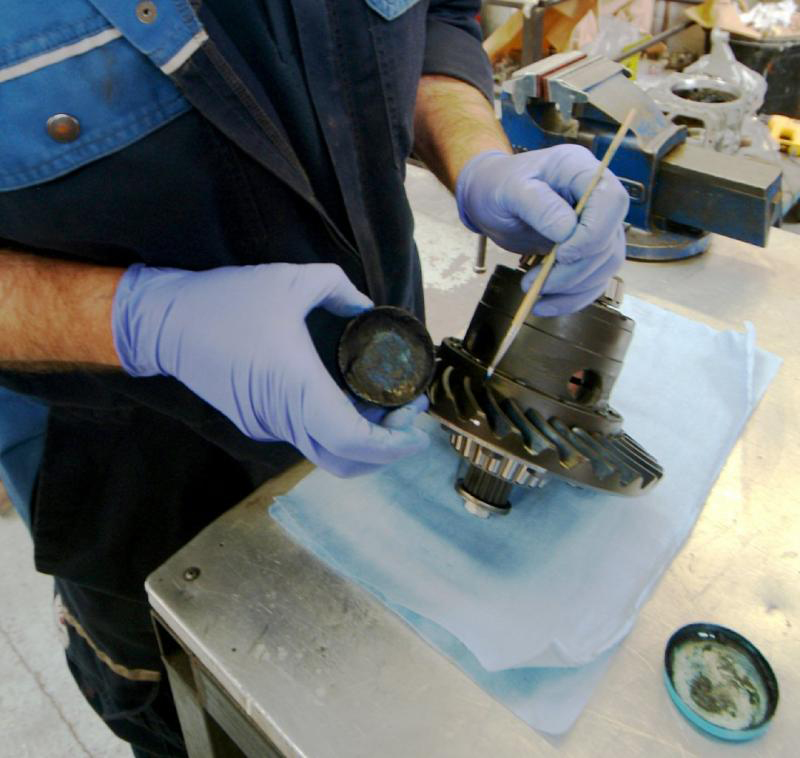

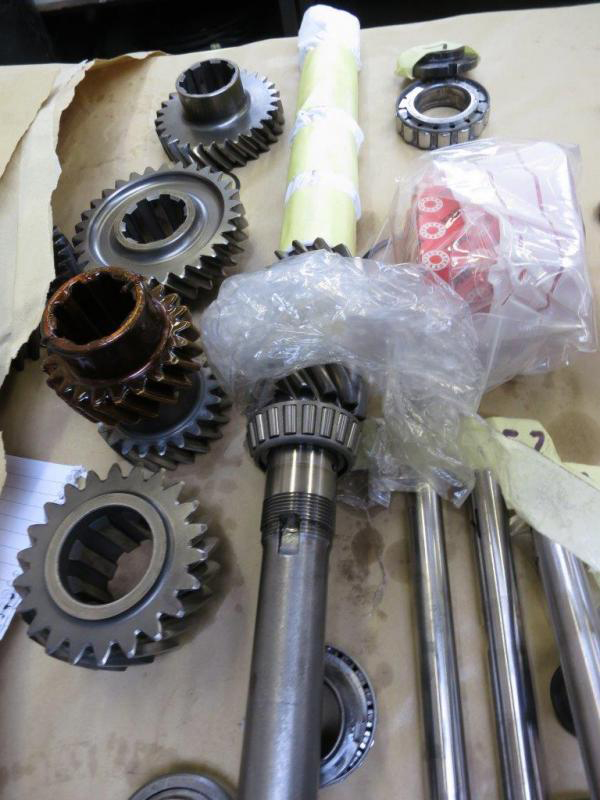

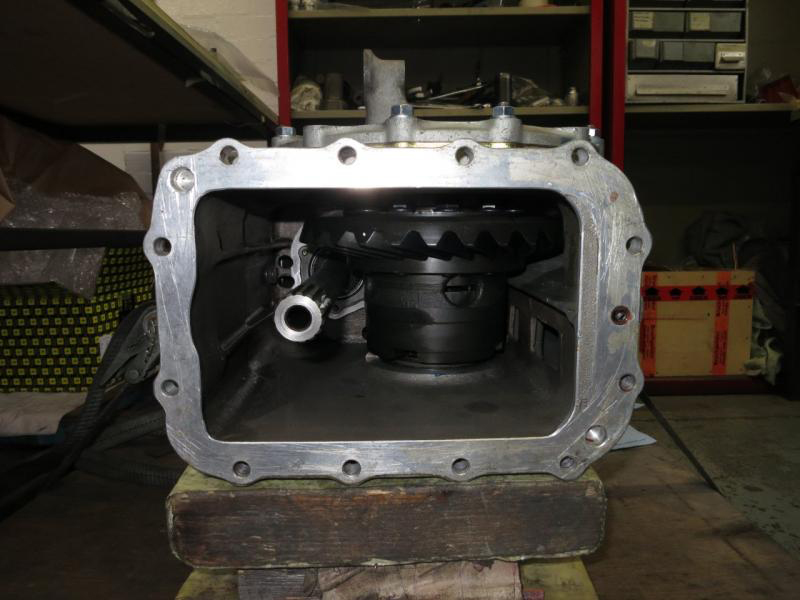

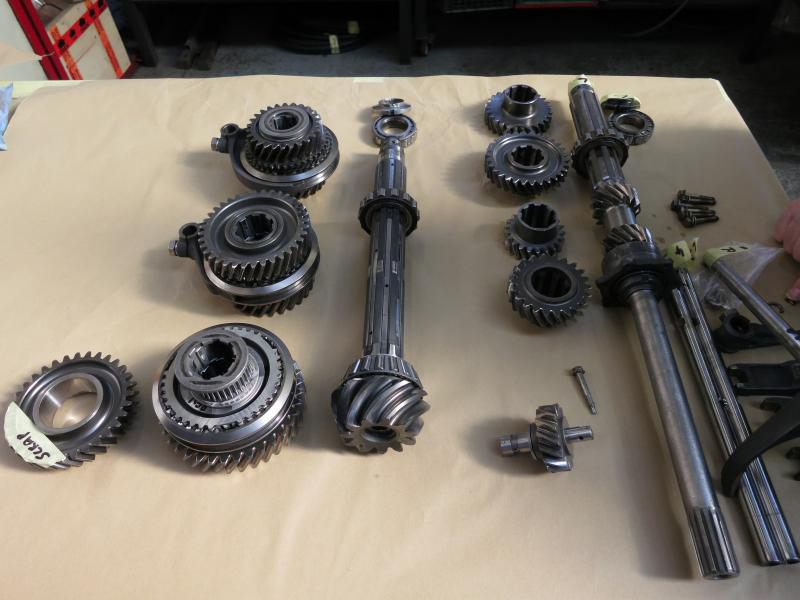

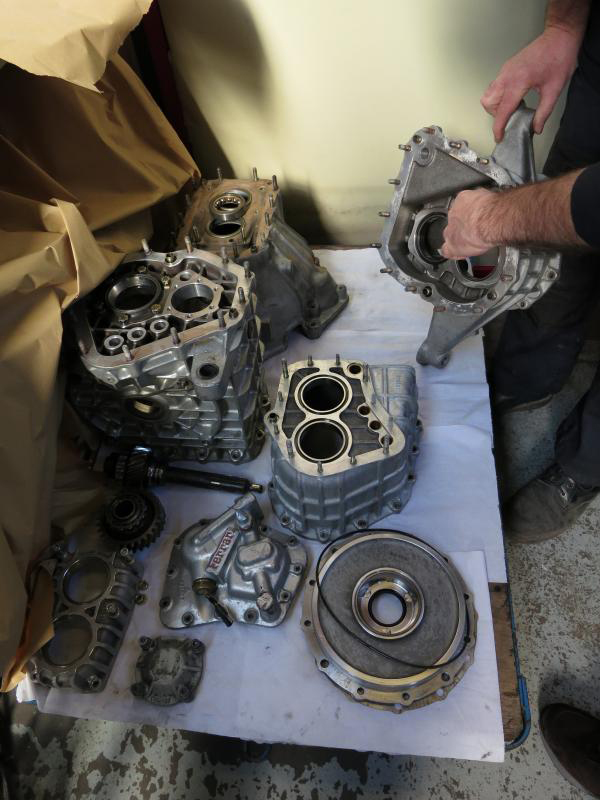

OK, well here is the gearbox all stripped down and unfortunately reverse has developed evidence of heat cracking on the synchro ring. As I mentioned earlier, $15k from Ferrari as that includes first gear and the shaft but we are lucky in the UK to have one of the world’s top restoration companies, Crosthwaite and Gardiner, who, if you can credit it, have recently completed manufacturing, from scratch, an Auto Union D type for Audi complete with V16 as well as a pair of Mercedes W125′s. Check out their website Crosthwaite & Gardiner Fascinating. Consequently reverse gear, I suspect of a rather higher quality than factory, for my little effort should pose few issues. I think we will also be coming back to them for some further engine work but more about that later.In these images welcome to the workings of the F40 gearbox and as I said we are taking the precaution of replacing second gear as that was a weak spot especially with all the extra power.The other picture is off the LSD which was not working properly so we have stripped it down to find the friction plates are worn and useless. Ferrari don’t offer friction plates as replacement parts and prefer you to buy an entire diff so we are examining our options.Is this too much detail?
1674622d1363372748-f40-lm-restoration-img_0413
1674623d1363372748-f40-lm-restoration-img_0414

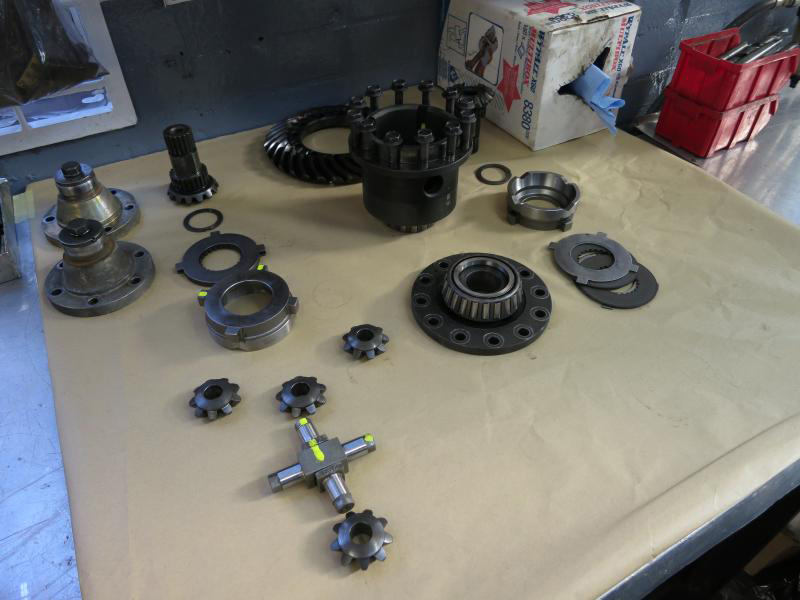

1674624d1363372748-f40-lm-restoration-img_0415

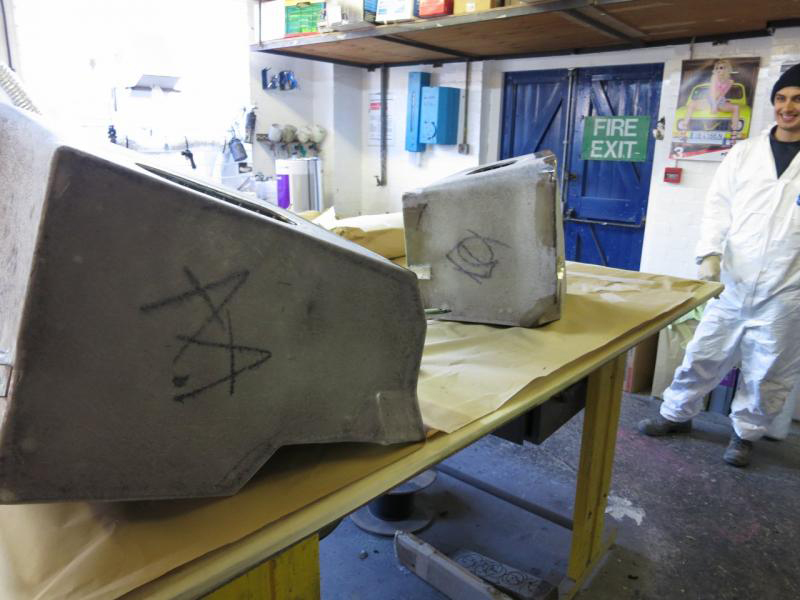

hilst I struggle with my server and turbo decisions, more progress on the fuel tanks. Here you see them being coated with fibreglass and then we start the Kevlar lay up as in the last photo.The finished articles will be works of art.

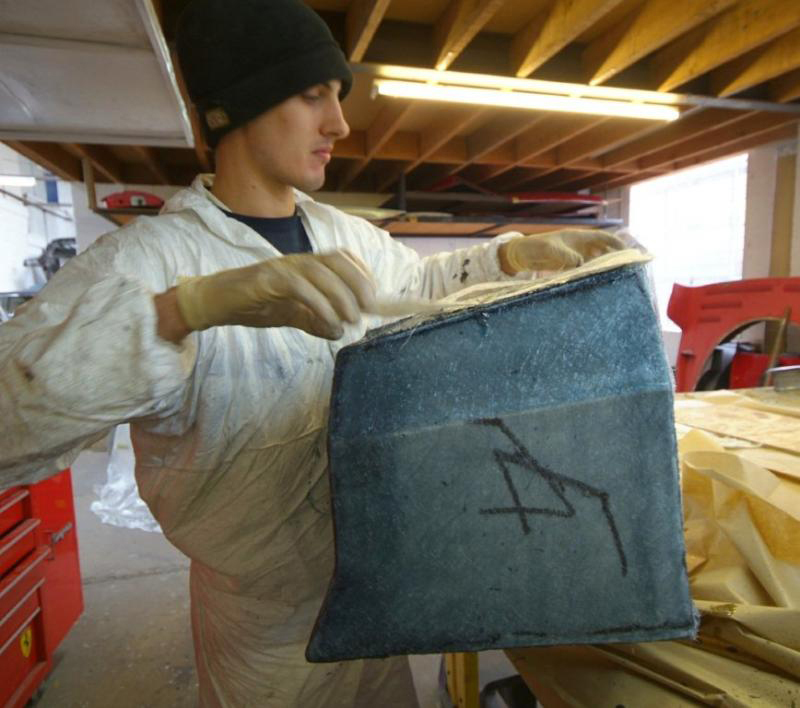

1675677d1363530904-f40-lm-restoration-280213-005s

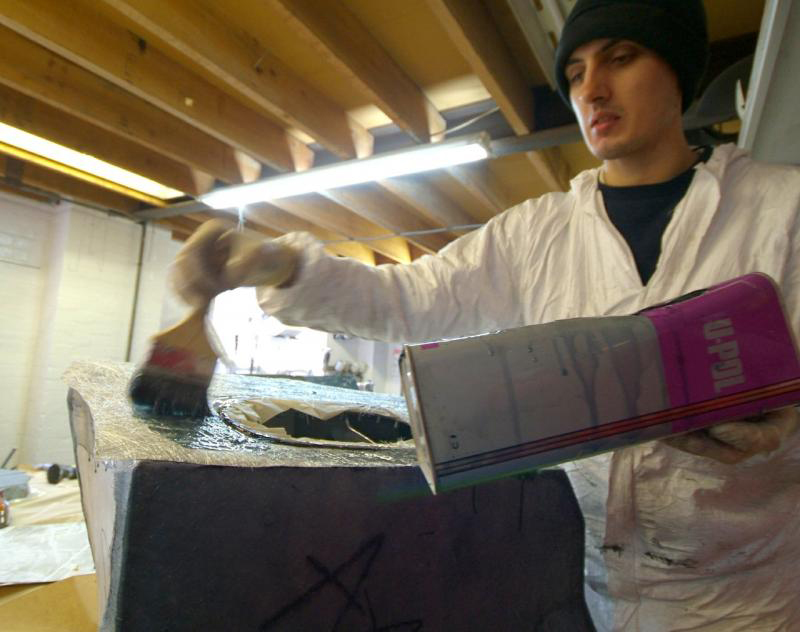

1675678d1363530904-f40-lm-restoration-280213-007s
1675679d1363530904-f40-lm-restoration-img_0416s

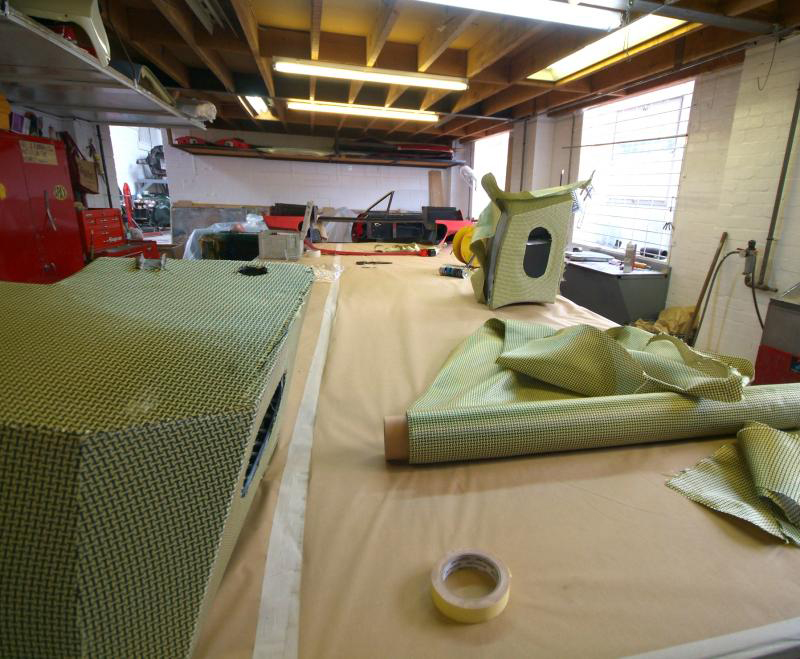

1675680d1363530904-f40-lm-restoration-12th-002

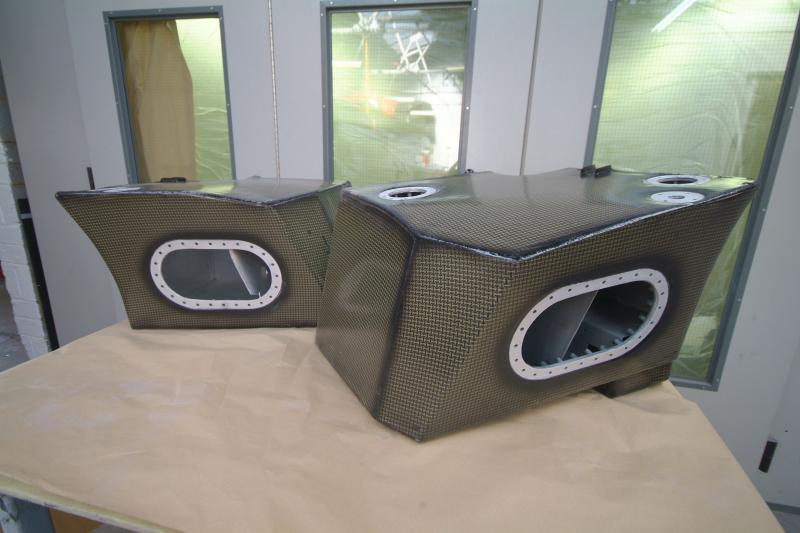

Well here is the trail from what they were to what they are. Perfect. In fact so good I would like perspex wheel arches or a clear panel in the wing!Strong, light, durable and to me, a work of art. What’s not to like? It also gives a good idea to you of the standard I am trying to attain with the rest of the project but a very long way to go…..So these now go into storage for a few months. Quite a few……as you will learn shortly
1676261d1363603237-f40-lm-restoration-19213-007s
1676263d1363603237-f40-lm-restoration-1203-005

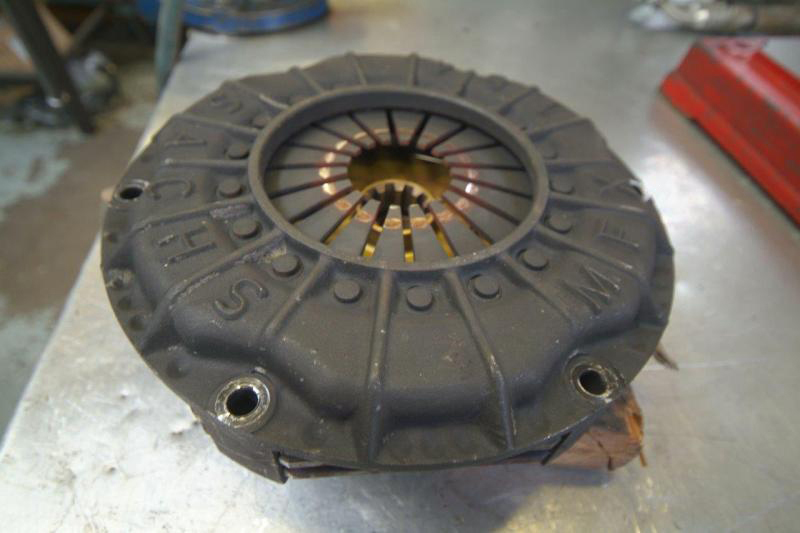

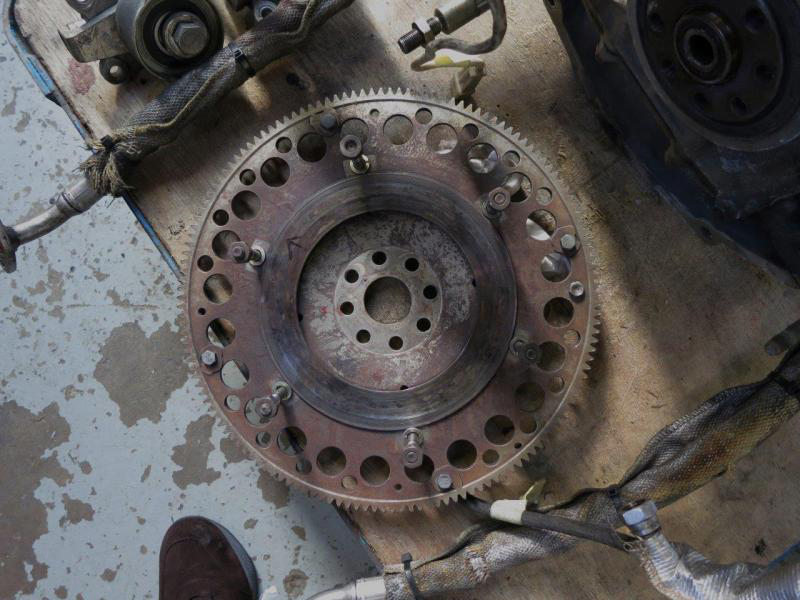

The Flywheel and clutch.The clutch is no issue and we will replace with an AP race unit. The Flywheel is. Very different from a stock flywheel and yet still road driveable and they have taken literally kilos out of it. Unfortunately the teeth that engage with the starter motor are finished and cannot be remachined and there are other issues so we will need to replace and right now it looks like we might have to make our own and then rebalance with the crank.Anyone have any ideas out there?Chassis now back from being stripped and perpetration is starting and details in the next post.
1677983d1363860560-f40-lm-restoration-12b-006s
1677984d1363860560-f40-lm-restoration-img_0411

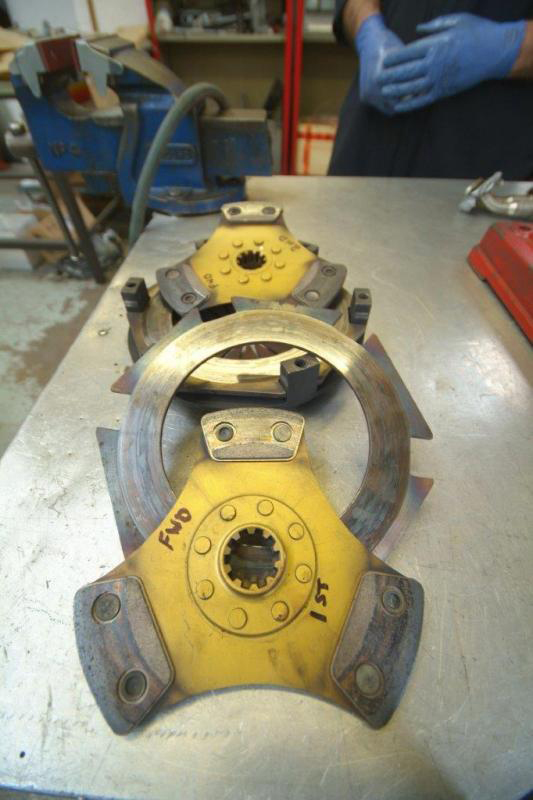

1677985d1363860560-f40-lm-restoration-12b-007s
1677986d1363860604-f40-lm-restoration-img_0412s
Looks like we have agreed with a specialist flywheel manufacturer to have a duplicate made, exactly the same but to a higher standard which will take a while. This will probably be mated to a three puck clutch. Meanwhile we are also having reverse gear manufactured and for those interested here is the problem, not on the gears but on the flange. Thery look like scratches but under magnification they are actually cracks. Not cheap as upon inspection by Crosthwaite and Gardiner, it is apparently very complex to manufacture and they should know.
1678494d1363949357-f40-lm-restoration-21-010

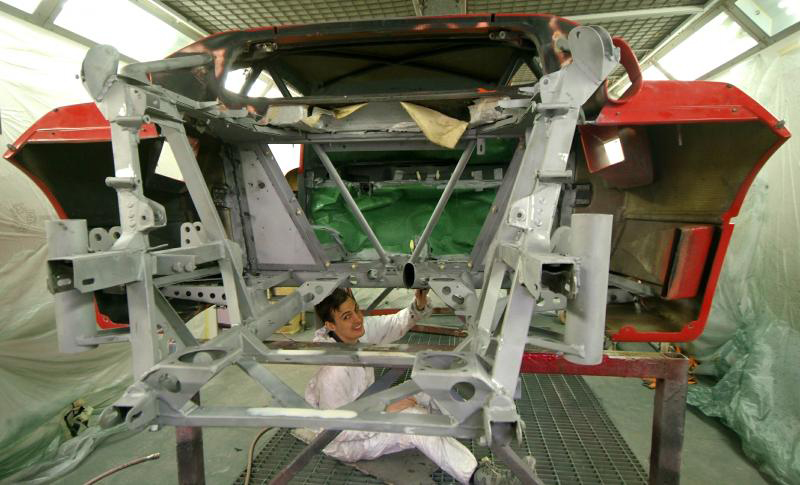

An update on the chassis. Now back from having been ‘blasted’ and years of crud stripped away. This will then be primed and expoxyed prior to dry mounting the suspension, then we will finally have a chassis ready to spray the special silver.I am hoping for part of the Michelotto late Birthday surprise to arrive next week which will then enable us to dry mount the suspension and make any changes prior to the chassis paint. That will be really exciting to open as much of it had to be newly fabricated and bought sight unseen! We already know that for some reason the upper wishbone mounts are turned through 90 degrees so there will be work to be done.Maybe three weeks away from real progress?
1678547d1363964416-f40-lm-restoration-photo

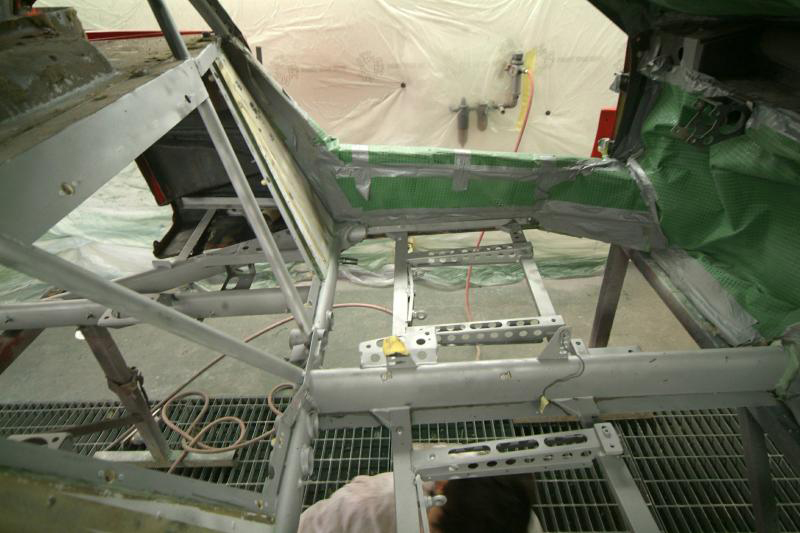

1678548d1363964416-f40-lm-restoration-photo5

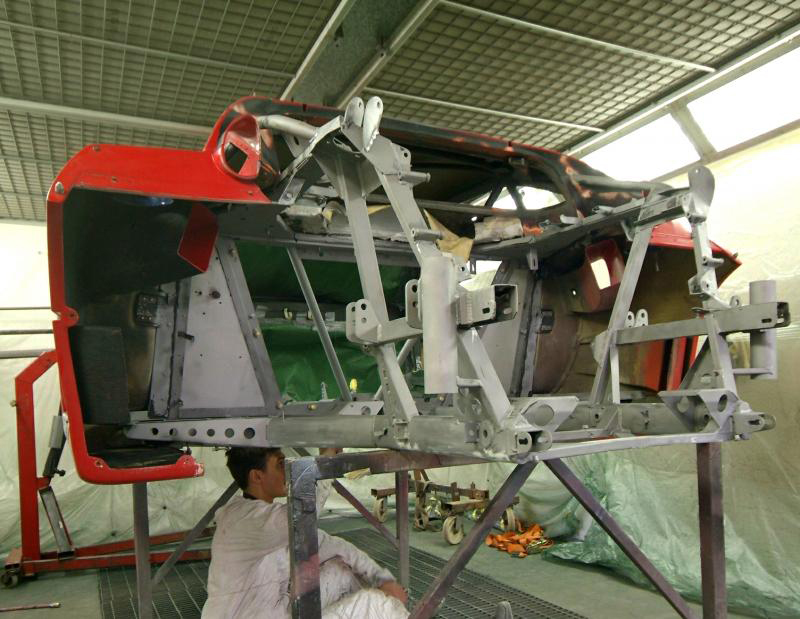

1678549d1363964416-f40-lm-restoration-photo6

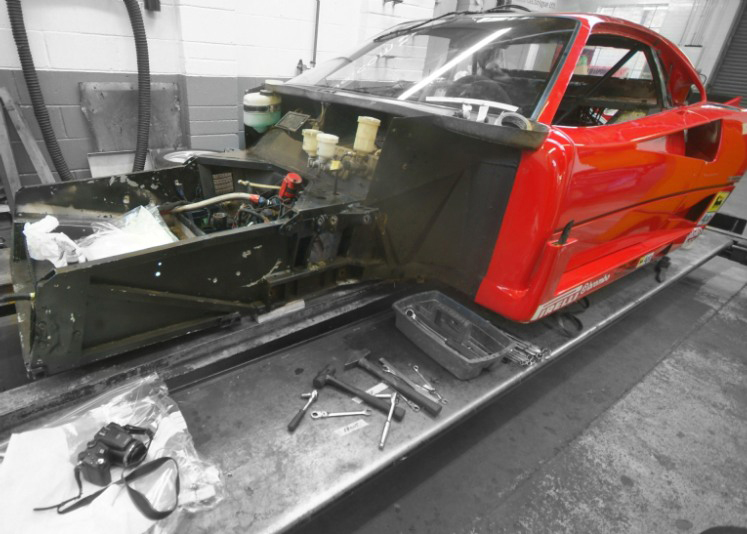

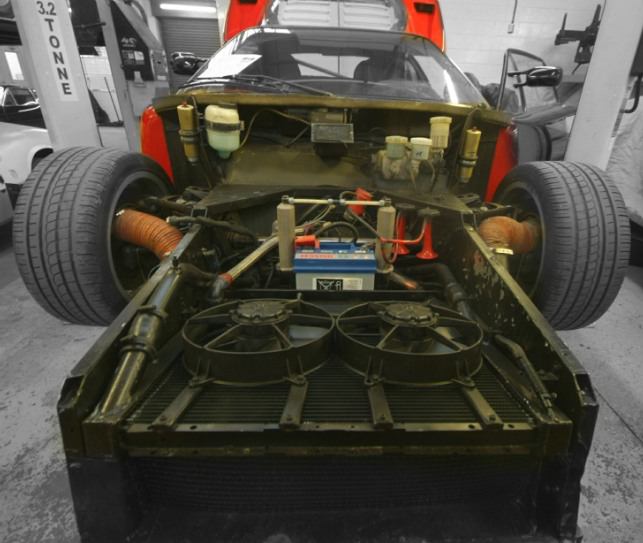

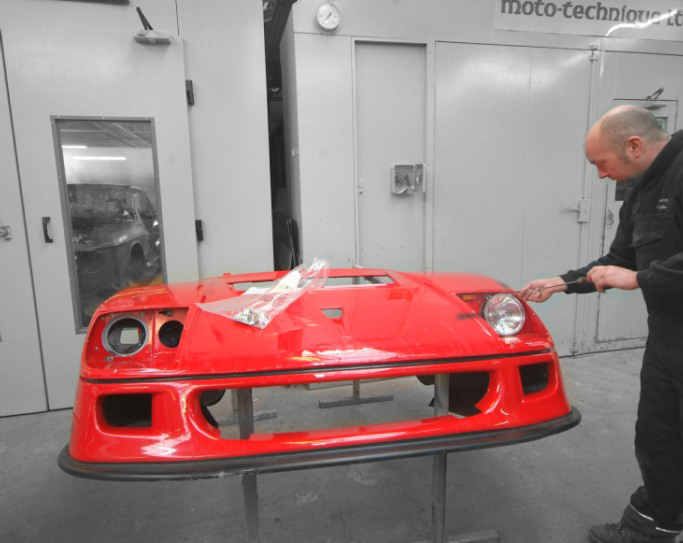

Just a few more general shots of how the car was which may be of interest. This was some weeks ago and so now well in the past.The entire heavy front section has now gone and will be replaced with the lightweight alloy LM structure as posted previously.
1679905d1364206375-f40-lm-restoration-1d213dee918f
1679906d1364206375-f40-lm-restoration-4f8fd301a367
1679908d1364206375-f40-lm-restoration-34c7172a66af

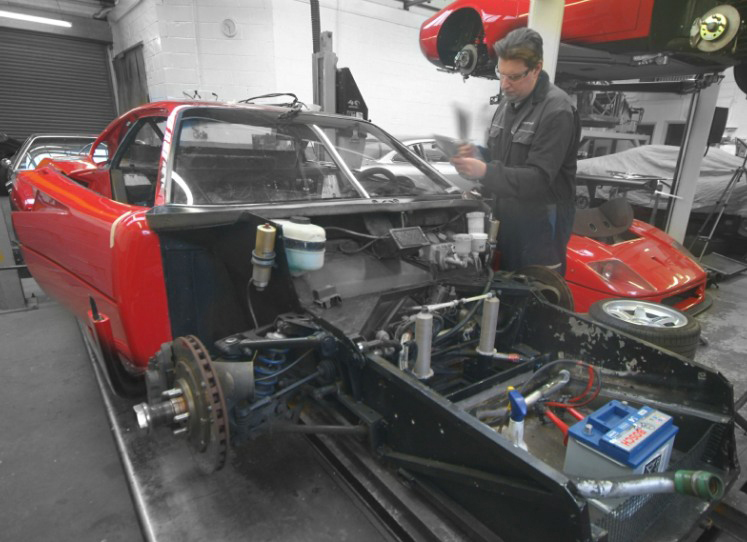

1679909d1364206407-f40-lm-restoration-d1b7f5c874e3

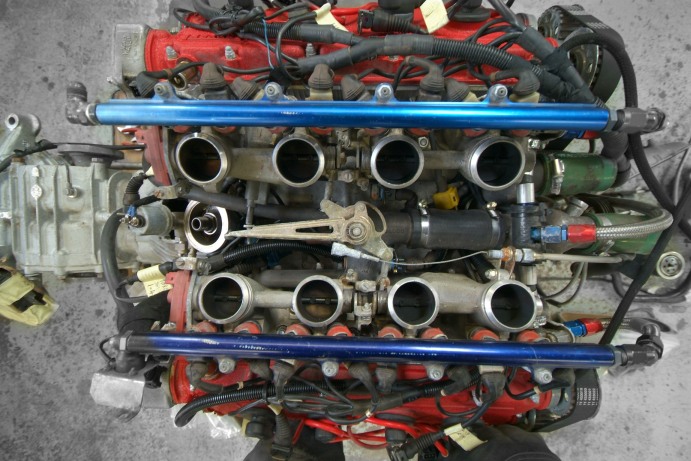

Back to the present.A few shots of the engine in strip down. Blue injector rails and injectors all going off to a specialist to be matched.This is the problem lightweight flywheel and clutch. New flywheel is now being made by Ark Racing a specialist Flywheel manufacturer and they are working with AP who are assembling a clutch for us.The silver lining in the new flywheel is that it will have 60-2 timing pins for accurate setup with the Motec gear, whereas the existing had just 4 rather bent ones, so that would have had to have been addressed anyway.
1680712d1364292202-f40-lm-restoration-b9f2319d7875

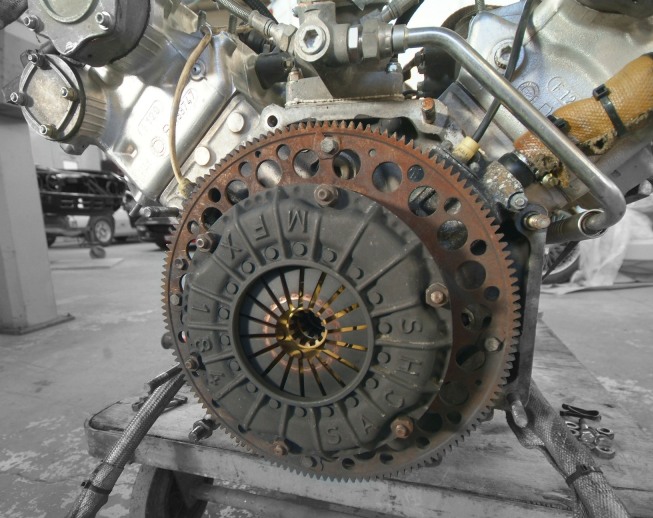

1680713d1364292202-f40-lm-restoration-25c3eff6ff3a

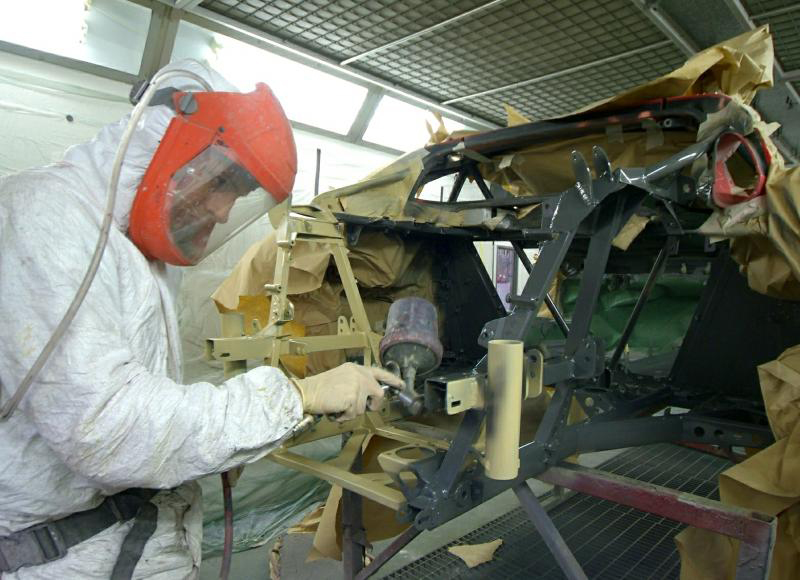

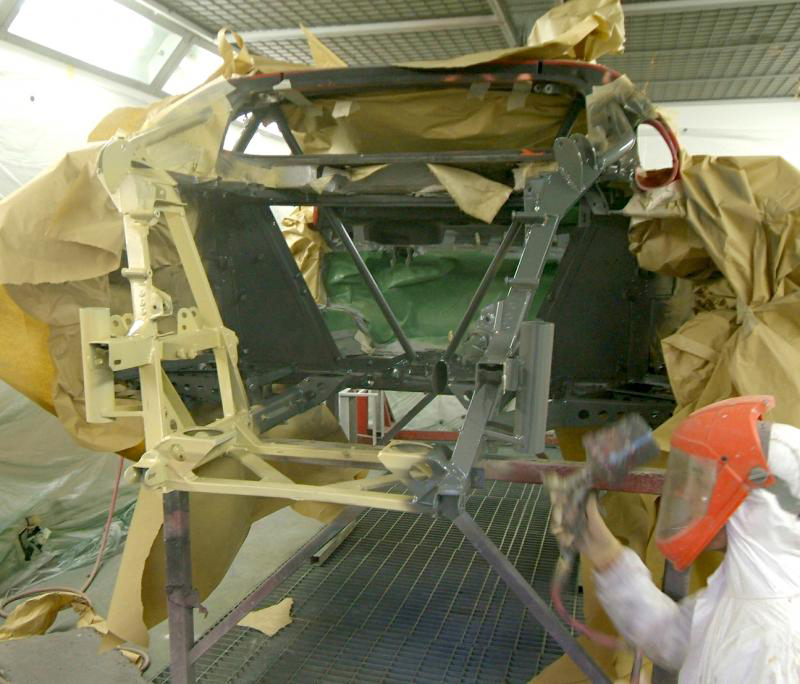

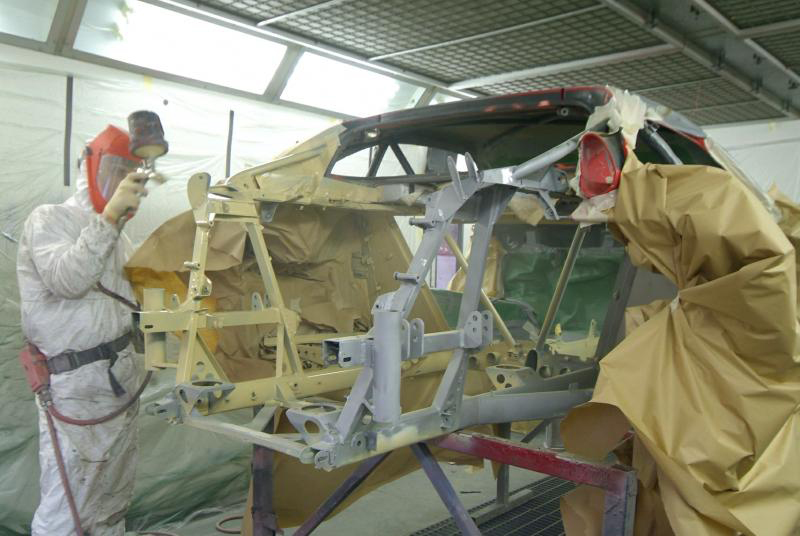

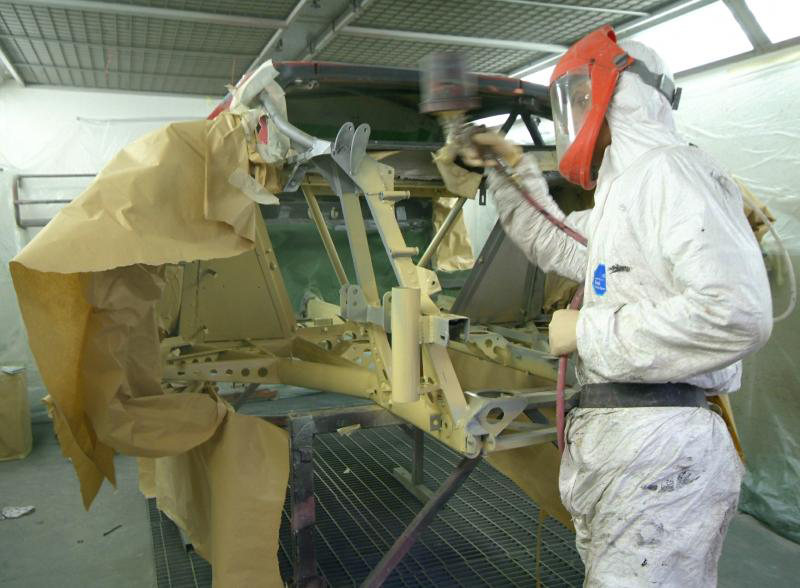

Chassis now being sprayed with primer and then two coats of epoxy before a top coat of the Michelotto silver. If only Michelotto would either answer the phone or get me my parts things would be looking encouraging!
1681256d1364381188-f40-lm-restoration-04022013-001
1681257d1364381188-f40-lm-restoration-04022013-005
1681258d1364381188-f40-lm-restoration-20130402-005
1681259d1364381188-f40-lm-restoration-20130402-006

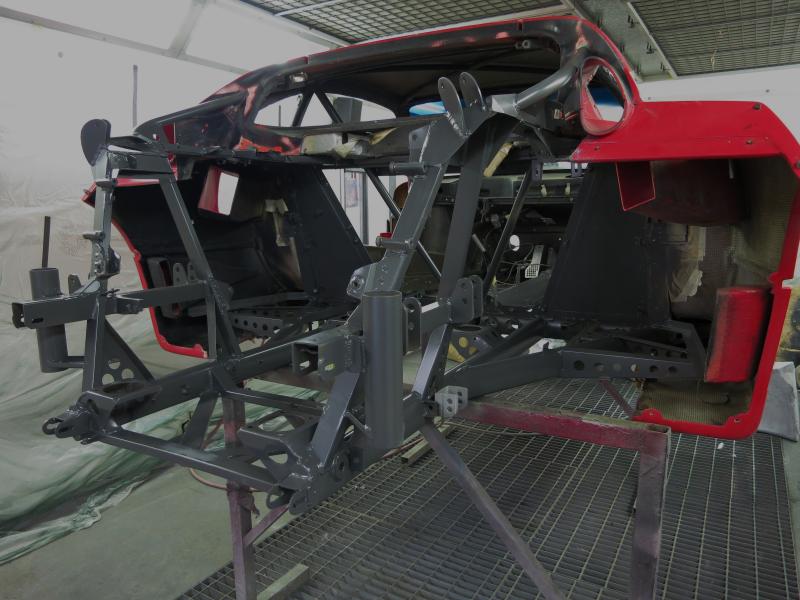

Now two coat epoxied. Next step to dry mount the air new jacks, sort out the roll cage and then look at dry mounting the suspension which, all being well, should be with us next week. Then we get to top coat the chassis with the Michelotto silver. That will mark the start of real progress.And a Happy Easter Holidays to all my (probably few) readers!

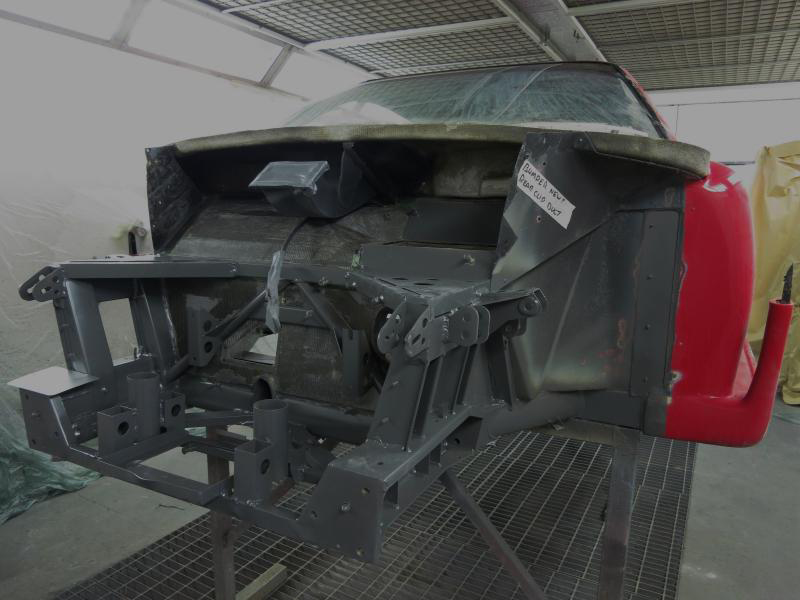

1681813d1364488348-f40-lm-restoration-img_0405

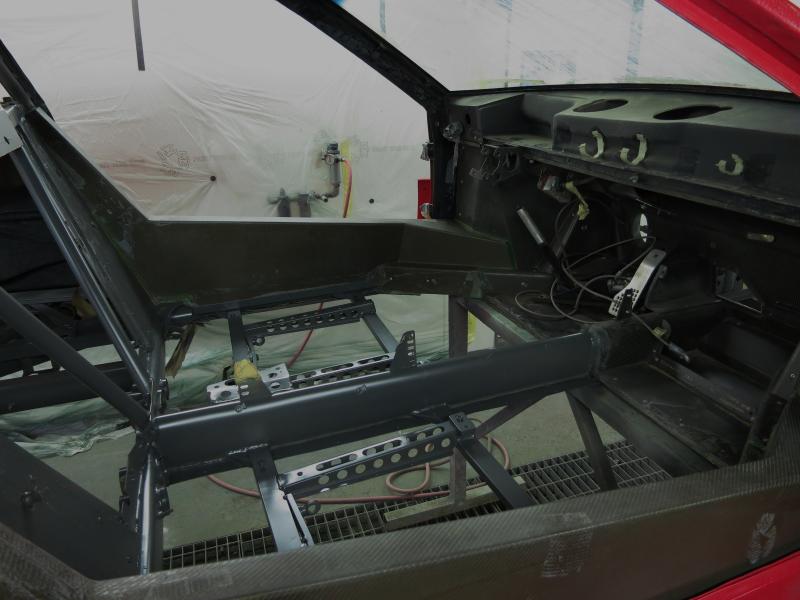

1681814d1364488348-f40-lm-restoration-img_0407
1681815d1364488348-f40-lm-restoration-img_0408
1681830d1364488447-f40-lm-restoration-img_0406

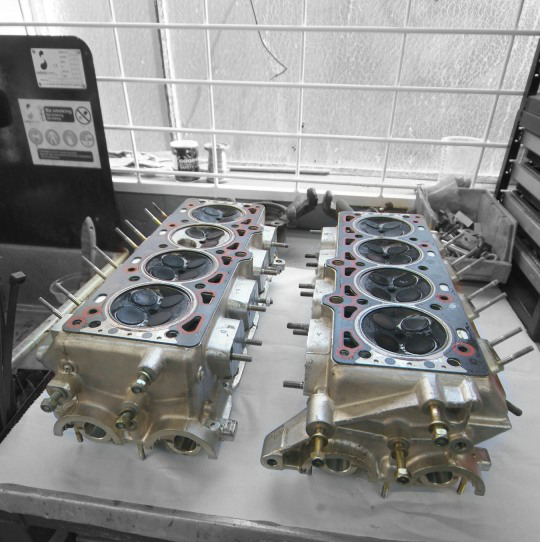

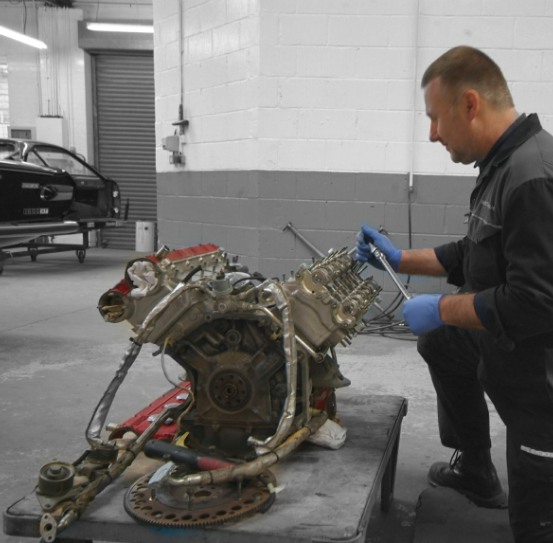

Really just for those who are interested to see what the inside of an F40 engine looks like. Hopefully not a sight I will see again.Valves all OK and heads are only a few thousand miles old but seats will still be perfectly matched. One bore slightly scored so that will also be polished out at Crosthwaites. Biggest delay will be the flywheel which is now in manufacture by Ark racing but will take four weeks and we cannot get on with the dynamic balancing until then so will finish engine strip-down and then focus on the chassis which should work well as we expect parts from Michelotto this week. Expect being the operative word.Whilst it is an expensive pain to find all these issues, the plus point is we know we will end up with an absolutely perfect engine and drivetrain, top to bottom, fully matched and better than when it left the factory. Had we not torn it down completely we could have been facing much bigger bills in a few thousand miles.I suppose that is my penance for buying an old race car.
1684618d1364894793-f40-lm-restoration-49e013c78329
1684619d1364894889-f40-lm-restoration-9a63add67ae

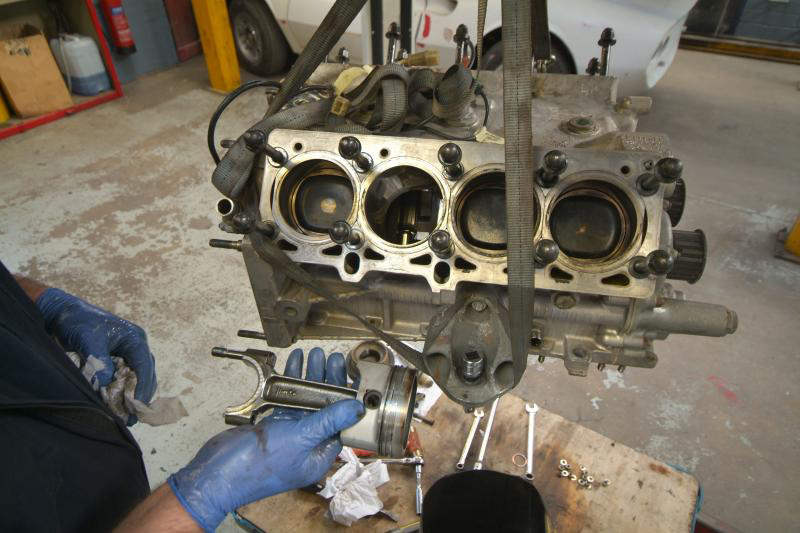

1684620d1364894889-f40-lm-restoration-12b-004

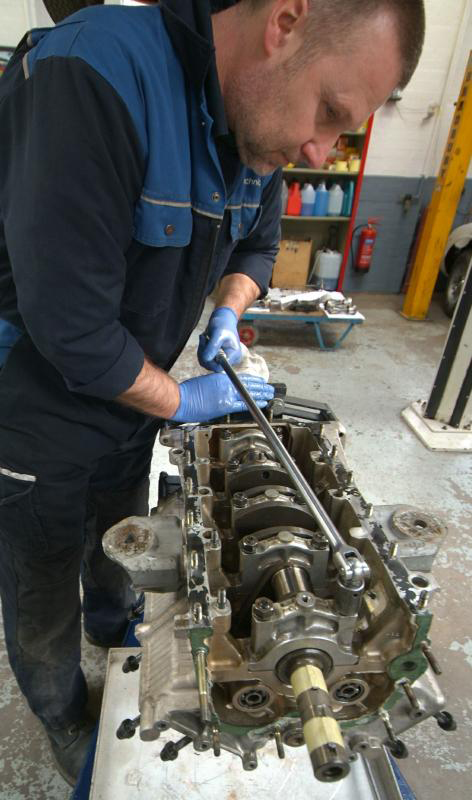

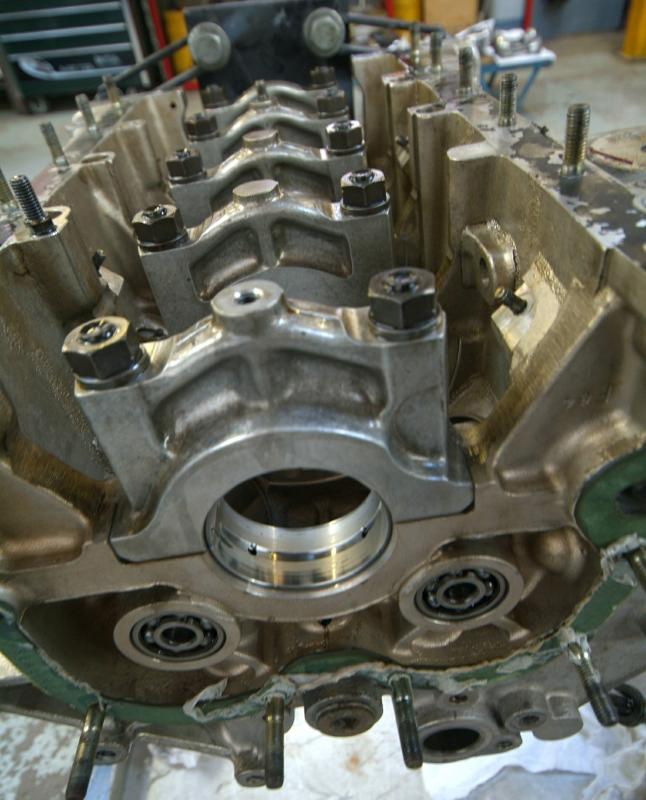

Crankshaft out and away for polishing and dynamic balancing. All new bearings will be fitted. Meanwhile work continues of the bodywork with the rear clam being adjusted to accept revised position for air jack inlet which, so as to be road legal, cannot protrude and so has to be slightly recessed.
1685729d1365019543-f40-lm-restoration-14th-010-copy
1685730d1365019543-f40-lm-restoration-14th0203-011

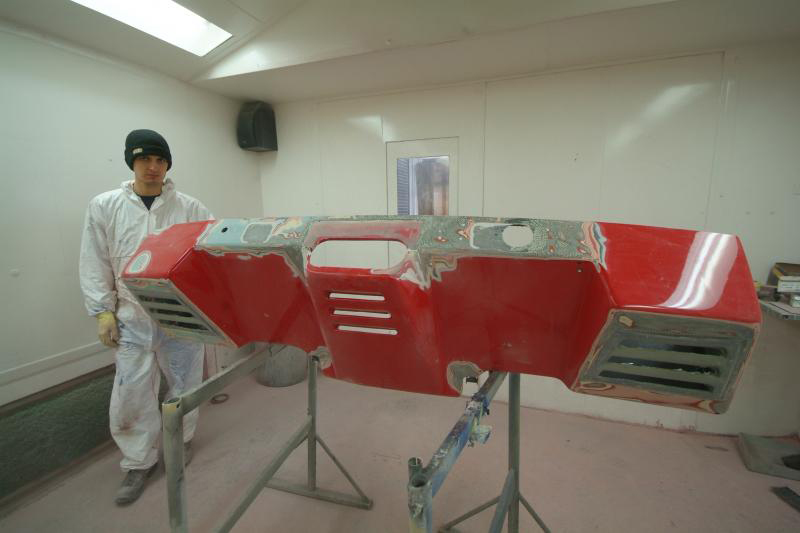

1685731d1365019543-f40-lm-restoration-13th-03-002

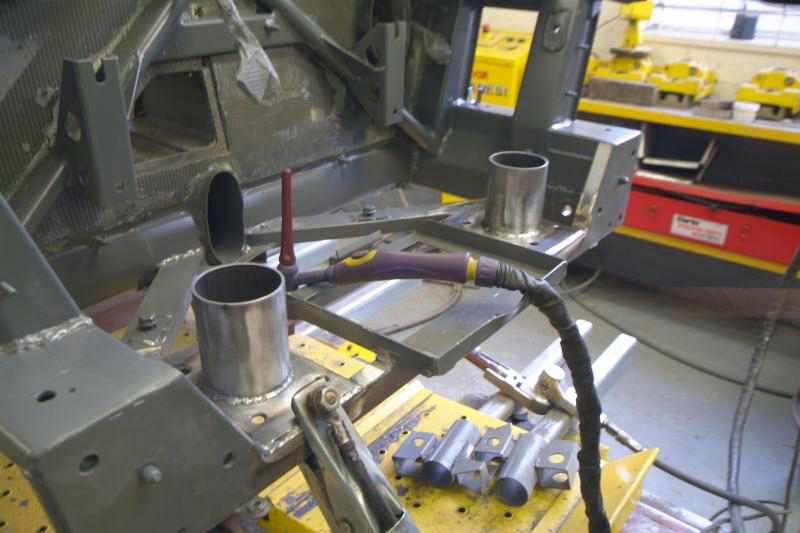

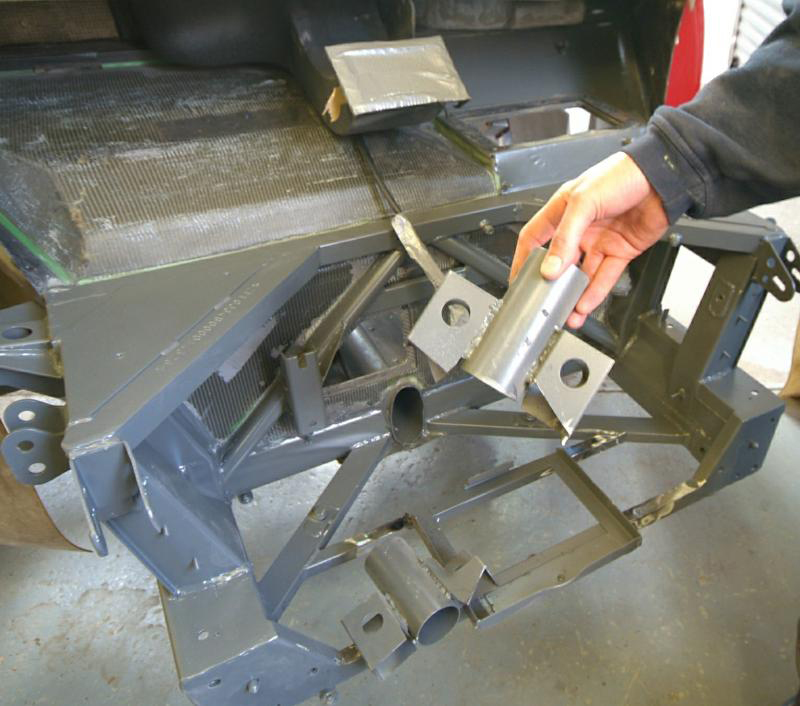

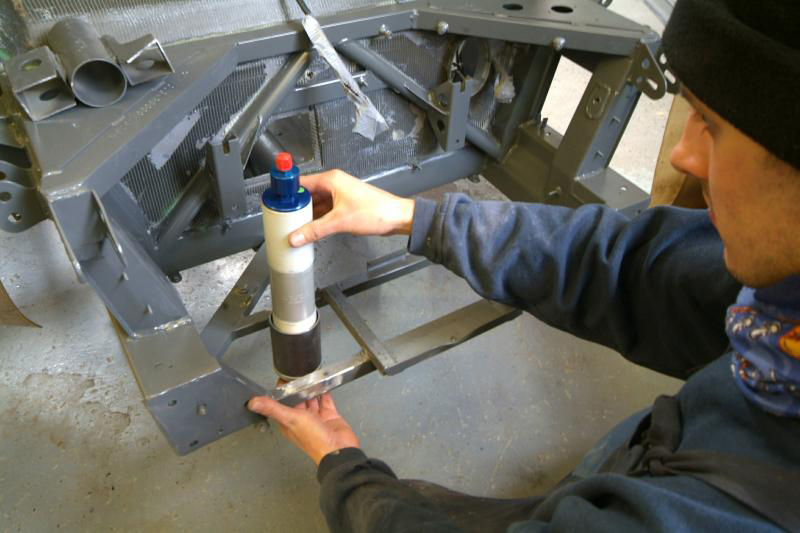

We are currently working our way through installation of the air jack system and still awaiting delivery from Michelotto which is causing us a delay. We are fitting a top of the range (read expensive) Krontec system and tidying up the chassis. Then after we get the delivery and dry mount the suspension, finally everything comes off for final chassis silver paint.For those of you worrying about the look of the carbon, don’t, it is just masking tape residue and once the chassis is painted will all be cleaned up.
1686431d1365157486-f40-lm-restoration-14th-025
1686434d1365157486-f40-lm-restoration-25th-0313-012

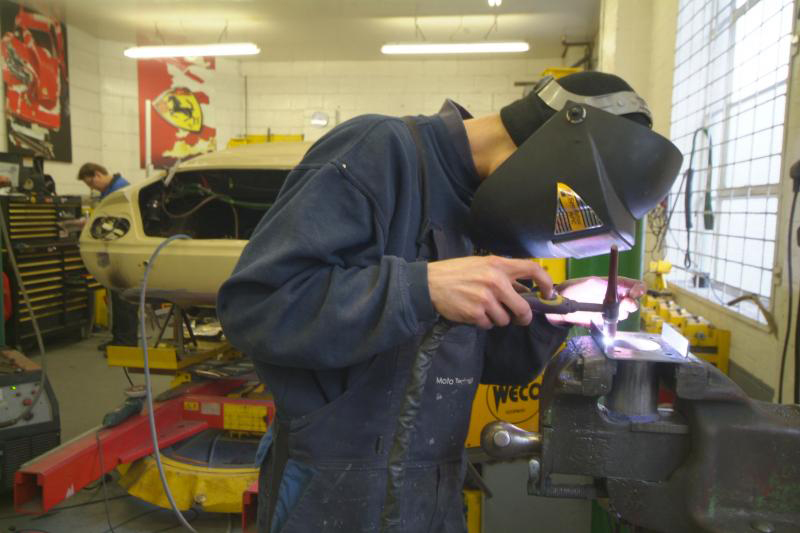

1686433d1365157486-f40-lm-restoration-14th0203-010
1686432d1365157486-f40-lm-restoration-14th-017

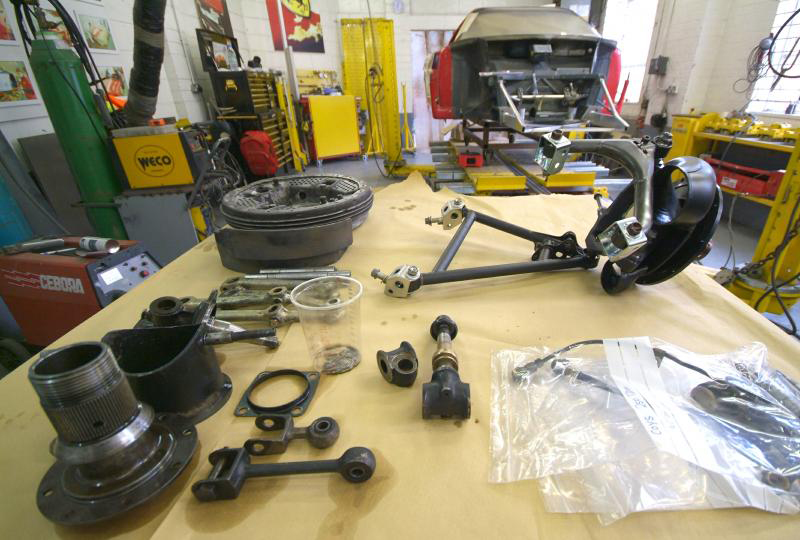

Okay, this is the last post for a few days, but this pm re finally received our first shipment from Michelotto. He has nothing on the shelf so all our suspension has been fabricated especially for us and referenced like a tailor made suit. Beautiful and more detailed images to follow, but here is the front LM unit against another classic Ferrari front hub and brake assembly-any guess what it is from and no more posts until someone gets it?
1686515d1365173834-f40-lm-restoration-tim-f40-009

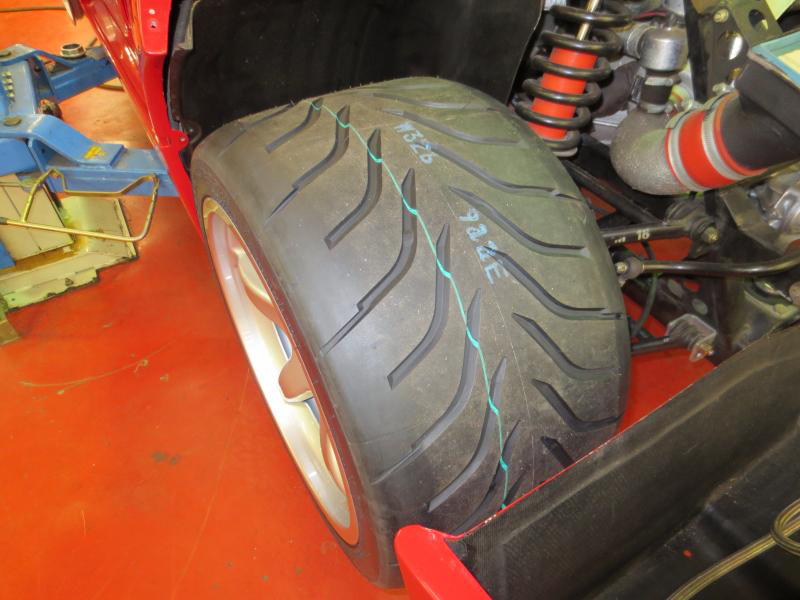

I have to say that I am actually enjoying posting this thread far more than I thought being able to share my adventure with interested and knowledgeable others, and as a fan, it occasionally seems surreal that I get to deal with Cristiano Michelotto direct. Only last night at 11pm, at dinner my phone rings and I find myself speaking to him and he is e mailing me all the details for the suspension geometry setup, albeit it would be nice if we had the parts to start with!Whilst waiting for someone to get closer on the suspension question before I post more images of our progress, I have to make a tyre, or what you call tire, decision. The only tires that really work on the car are either the new Goodrich G Force Rivals or the Toyo R888. Unfortunately the Goodrich which would be my preferred choice, are not street legal in the UK and whilst it will spend most of its time on the track, it will occasionally venture onto the street. The car would therefore be effectively uninsured.The R888 is almost as good a tire with a crazy tread pattern, as below, which does not really suit the look of the car but will make it handle great on track and on the street. One or two owners here in the UK are using these on their standard F40′s and love them.The final choice is to go back to the old Pirellis, possibly, which look right but simply no longer have the performance.Any thoughts as I am leaning to the Toyos and so as to fir the suspension etc we need a tire?
1687080d1365250584-f40-lm-restoration-img_0556
1687081d1365250584-f40-lm-restoration-img_0557

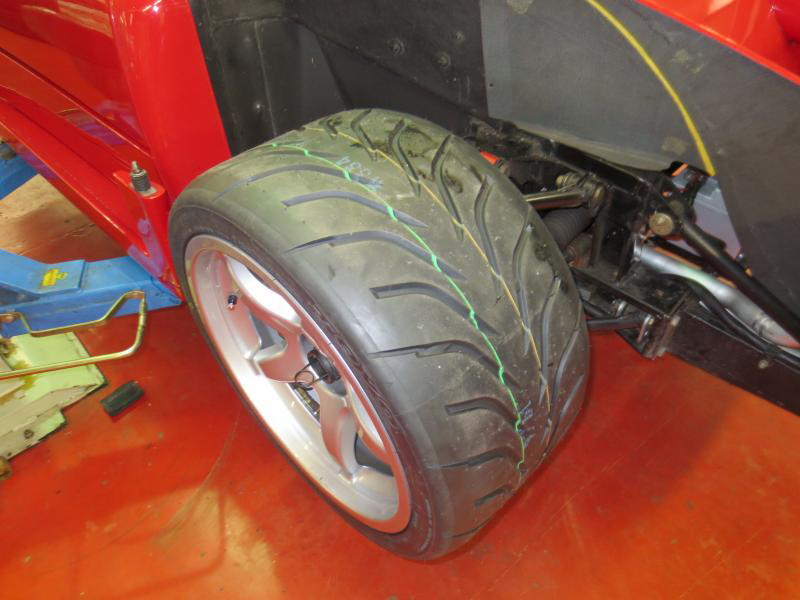

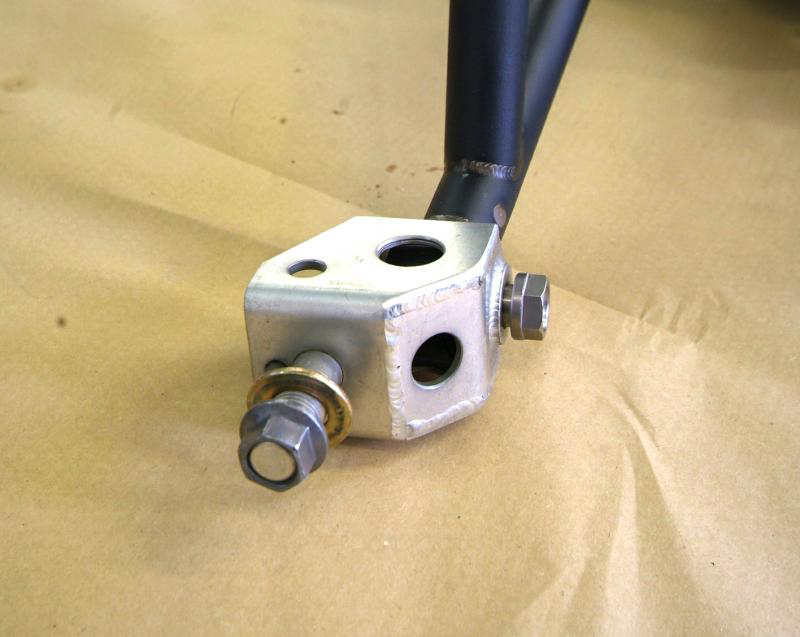

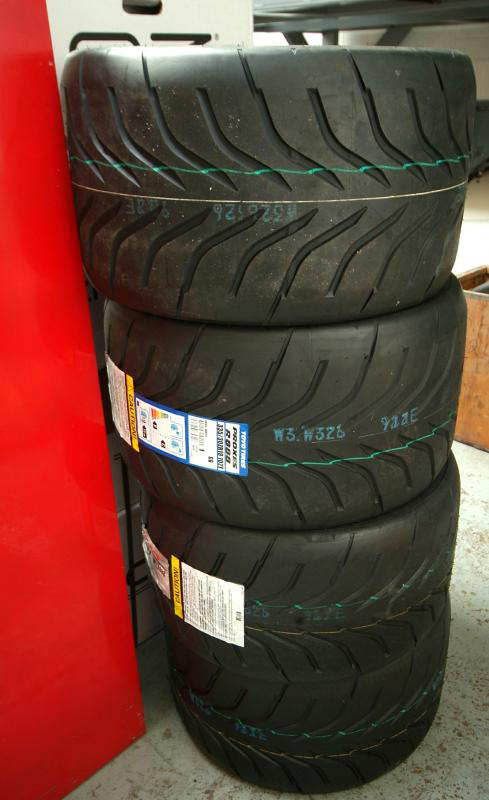

On the Tyre front, many thanks for the thoughts especially Paul and GV27 which means I might well opt for now for Goodrich and import from the States. One issue is that I really would like a 35 profile rear but it just seems impossible to find although I have one of the top tyre guys in the UK working on it for me and so hopefully will be in a position to make a decision imminently, as I need to so we can move forward on bodywork etc. I can see I may end up with a set of street tyres and possibly a set of track tyres or slicks, not that I have driven much on slicks.Back to the car, as the ‘prize’, have a look at a few details of the Michelotto front suspension. Not a simple bolt on so we will have to make some minor changes to the pick up points, but that will then enable us to move forward and hopefully in 10 days time we might have the rest of the order, ductwork, brakes, anti roll bars, rear suspension, uprights etc.Being racing parts the wishbones have not been treated so we are looking at powder coating or similar. All beautiful very high quality aircraft grade materials.Note the hand written reference on the hub. Tailor made.
1688045d1365349276-f40-lm-restoration-tim-f40-001
1688048d1365349276-f40-lm-restoration-05-013

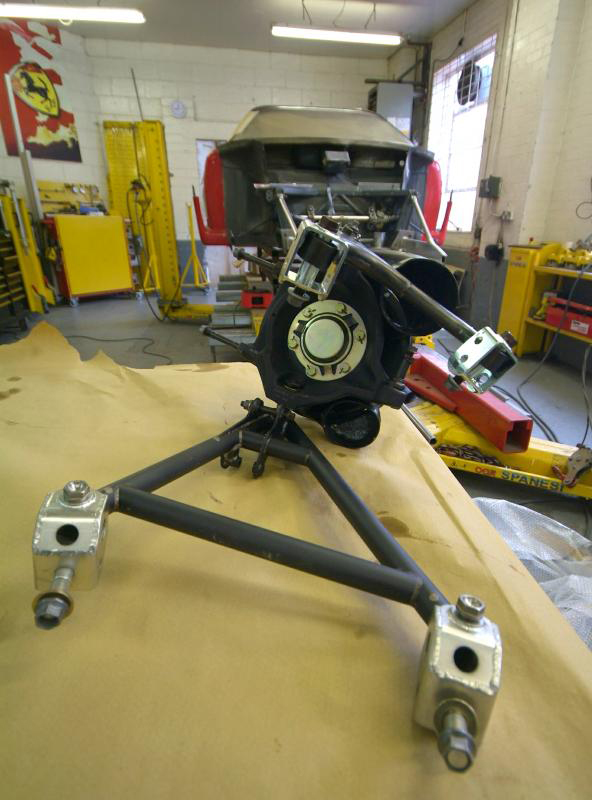

1688047d1365349276-f40-lm-restoration-tim-f40-003
1688046d1365349276-f40-lm-restoration-tim-f40-006
So we are starting to rebuild our engine as you can see from the attached with all new bearings and now looking to find out the tolerances for pistons and liners but for some reason Ferrari don’t have this information and apparently there are no less than 3 f40 engine rebuilds in the UK stuck for lack of this information.We acquired a workshop manual hoping this would provide the answer-no. Anyone out there have any knowledge? All we have been informed is that the pistons are matched to the liners for clearance and there are various batches used which are colour coded to denote their tolerance but that does not help us.

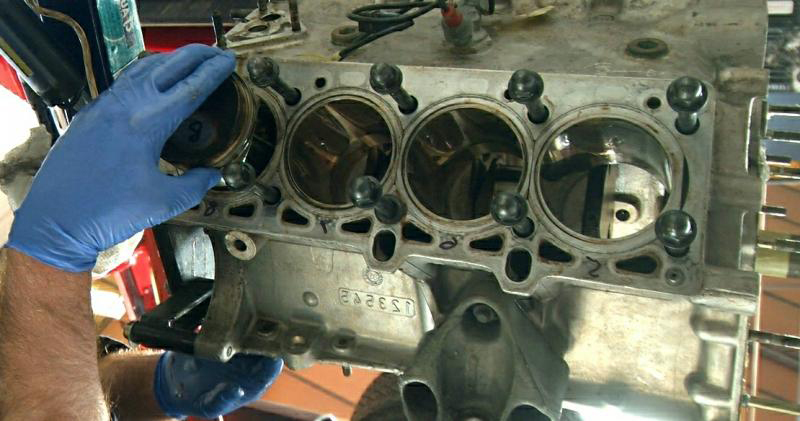

1689884d1365541959-f40-lm-restoration-14th-007
1689883d1365541959-f40-lm-restoration-14th0203-011

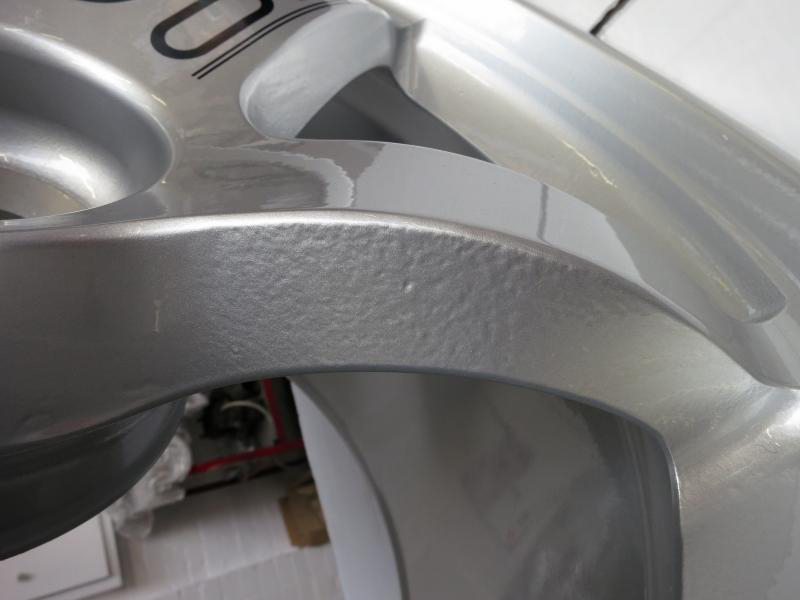

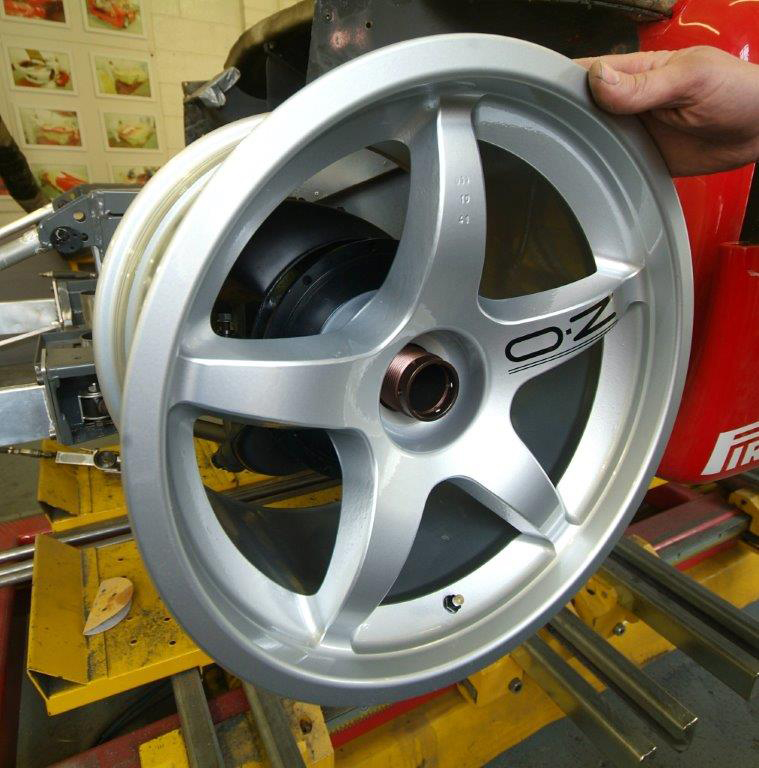

Just had a look at our brand new shiny OZ rims fresh out of the box and at first site, beautiful….until you get closer.Amazing at this price, cannot live with it, so we will have to strip them down and sort them out. Easier than fighting with Italy.
1690780d1365680023-f40-lm-restoration-08-010s
1690781d1365680023-f40-lm-restoration-img_0132
Don’t know if this is of interest to many, but it is to me, as we have stripped the car we have found many small mods that differentiate this race car from a street car. Latest is that due to the far higher loads placed on the suspension through both the wider tyres, slicks cornering and braking loads, not only were the wishbones bespoke and strengthened (for sale if anyone is interested), but even the pick up points have all been beefed up, front and back as in this blurry example.

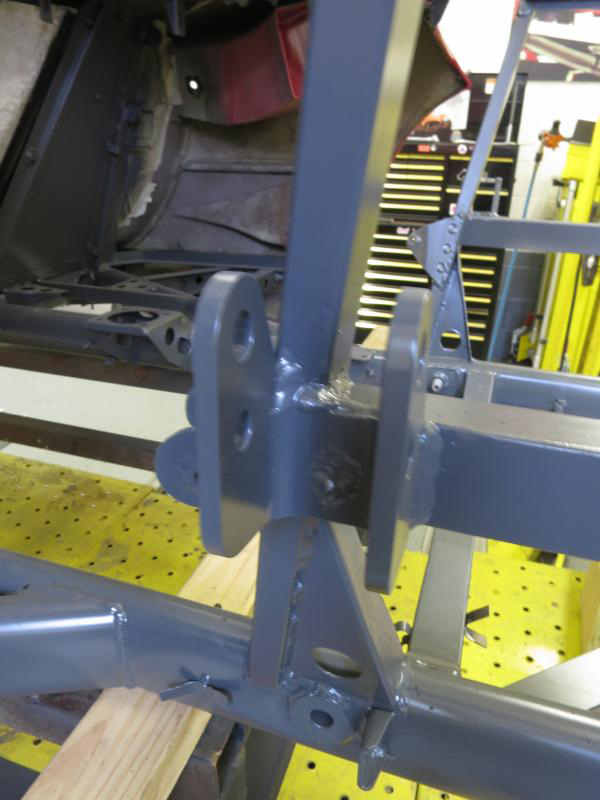

1691502d1365805001-f40-lm-restoration-img_0120

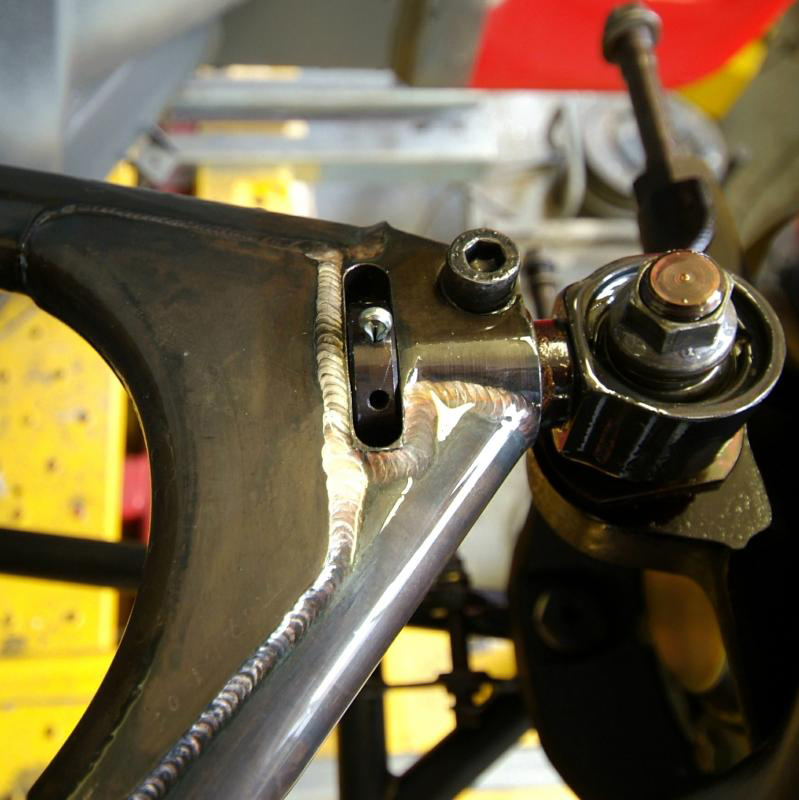

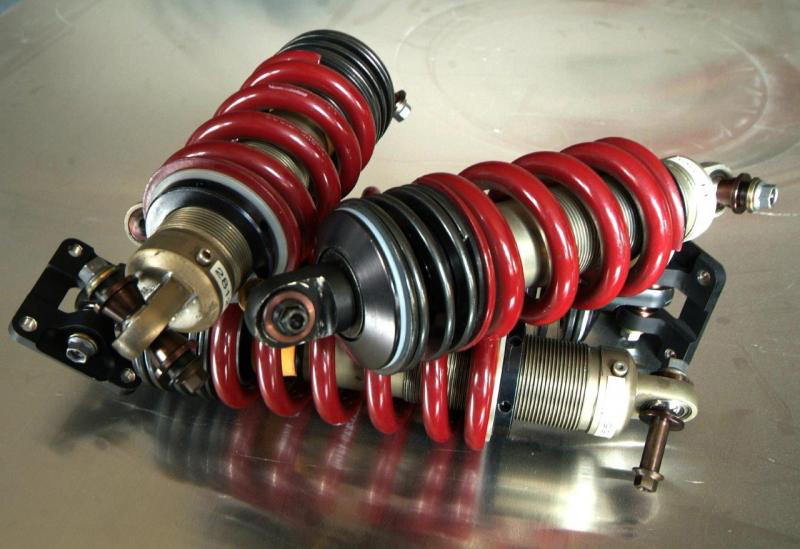

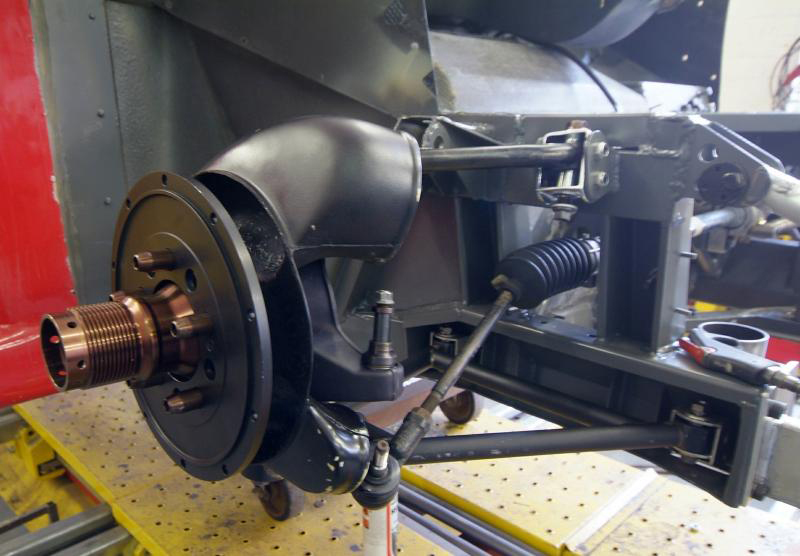

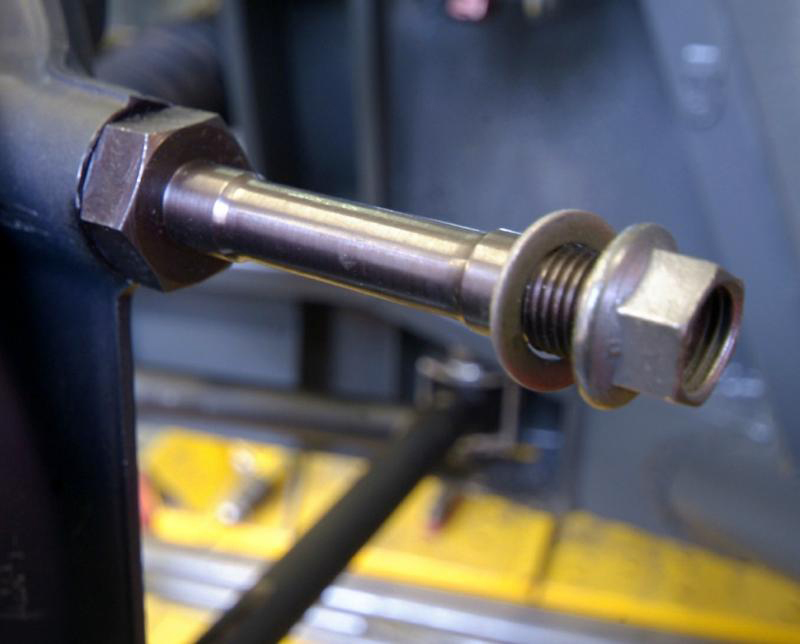

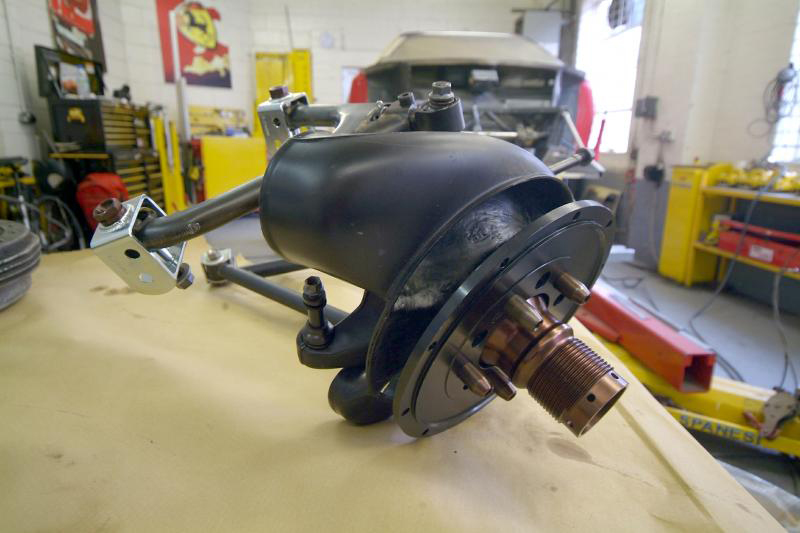

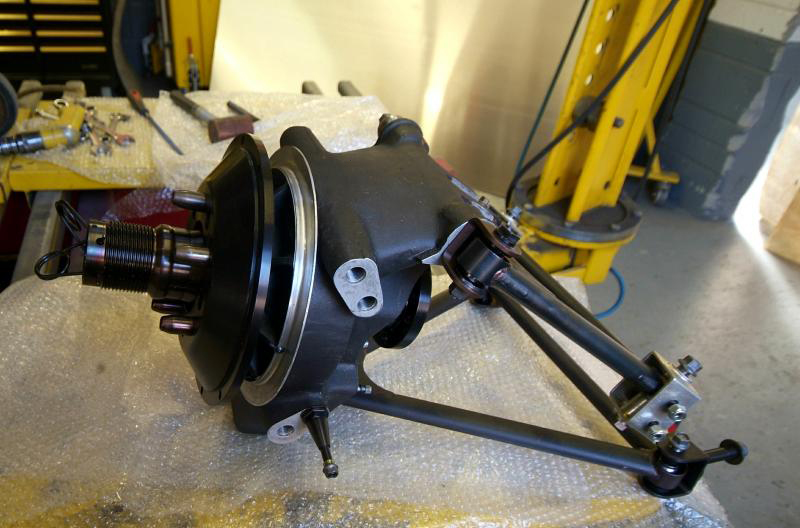

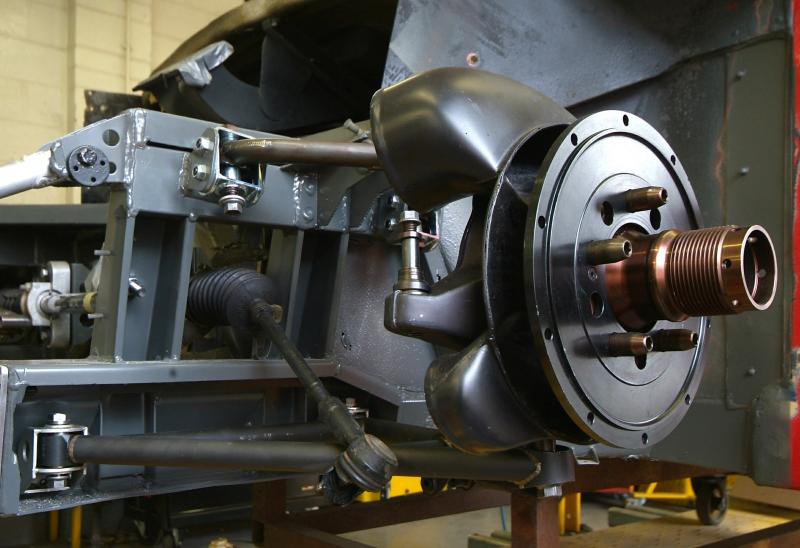

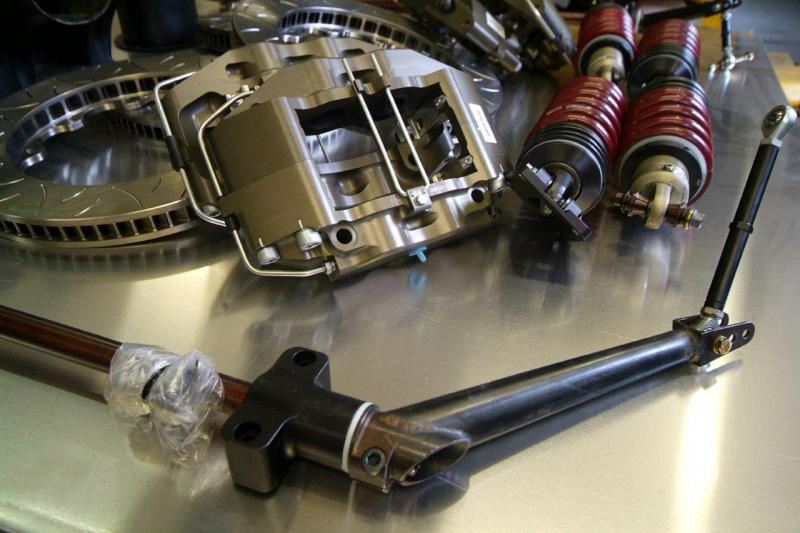

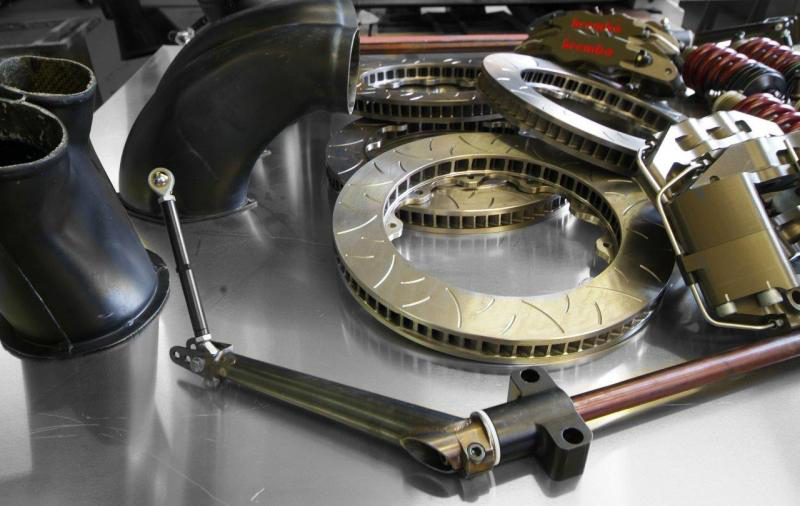

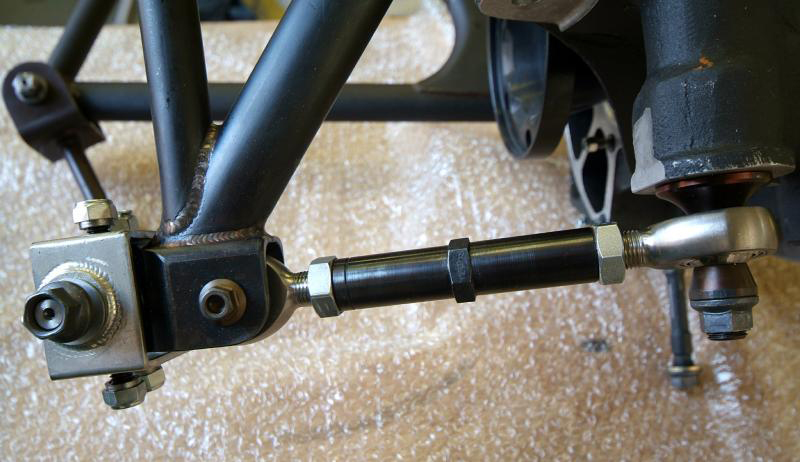

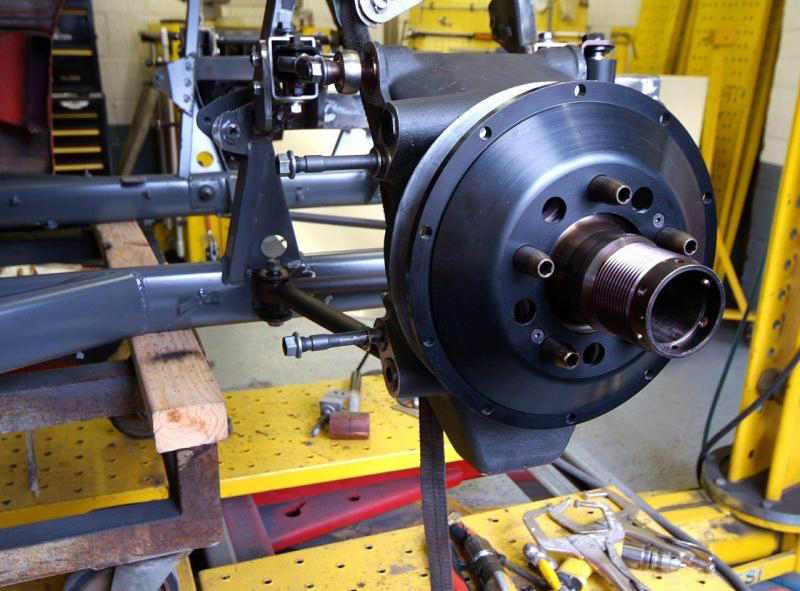

A little Michelotto suspension detail and part explanation of the cost. Note the TITANIUM extremity for camber control adjustment. Very neat. Very expensiveAnd a pile of rubber which certainly looks like it should grip…But turning the steering wheel at low speeds is going to be a workout.
1692815d1366029794-f40-lm-restoration-dscf1698
1692816d1366029794-f40-lm-restoration-dscf1692
As regards the black gate for the gear lever, I think you should just anodise your existing. A trip to Michelotto would be very interesting as he currently has some interesting cars in there and seems very receptive to genuine enthusiasts. I too hope to make the trip later in the year.Back to the project, a few pics of some details. First is another detail of a beautiful wasted bolt and again shows the attention that goes into some of this race kit.Next up, we found a relative bargain. Turns out the differential was pretty shot and we decided rather than just replace the plates, as the rest was not great, to source a new one from Ferrari which has just arrived. I never want to take this car apart again and hopefully after this rebuild it will effectively be a zero miles car.Finally the gearbox rebuild has started, new bearings, new second gear and we are waiting on our ‘reverse engineered reverse’ from Crosthwaites.Meanwhile, major delivery from Michelotto ‘expected’ early next week which means we can really start to move forward.
1694430d1366277945-f40-lm-restoration-280213-010
1694431d1366277945-f40-lm-restoration-08042013-008

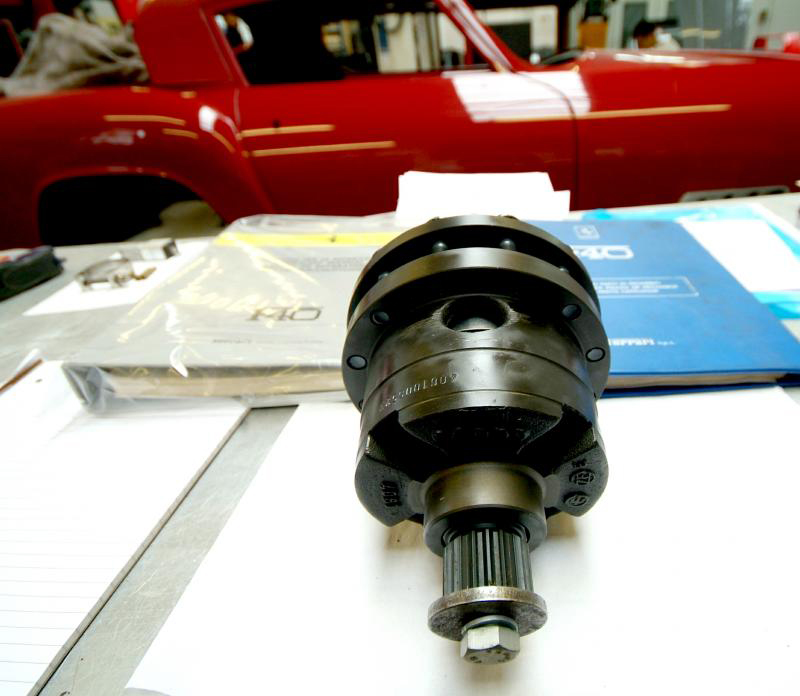

1694432d1366277945-f40-lm-restoration-09042013-034
1694433d1366277970-f40-lm-restoration-img_0128s
Well whilst we are somewhat stuck on resolving our engine and gearbox issues, progress on the front suspension at least. Track rod ends are hanging as bespoke rose joints are awaited from Italy.As you can see, front all now ‘soft’ mounted pending arrival of the rear suspension which needless to say was promised for last week and the week before etc etc but is still with Michelotto. Once we have that we can fit rear suspension and the uprights for the front, all brakes and anti roll bars front and rear and then take it all off again so as to finally start to finish the chassis, getting it top coated in the silver.Then we can start to move forward properly and to have a finished effectively rolling chassis would be a major landmark, probably even a half way point?
1695906d1366555811-f40-lm-restoration-009
1695910d1366555852-f40-lm-restoration-08-003
1695912d1366555893-f40-lm-restoration-08-002
For those interested in the detail, acting on C Michelotto’s advice, we are changing the longer geared Euro spec Crownwheel and Pinion for the shorter geared USA version. This car was apparently timed at 227 MPH with the Euro version, but it is a rare track where you can avail yourself of this, hence the decision to add even more to the acceleration potential.Like the toffee coating?
1697084d1366718463-f40-lm-restoration-19042013-001
1697085d1366718463-f40-lm-restoration-19042013-005
For those who are interested in the set of LM style OZ rims I promised to post a pic or two. Apologies for the quality but this gives you an idea, unmarked, and they should slot onto the standard hub.

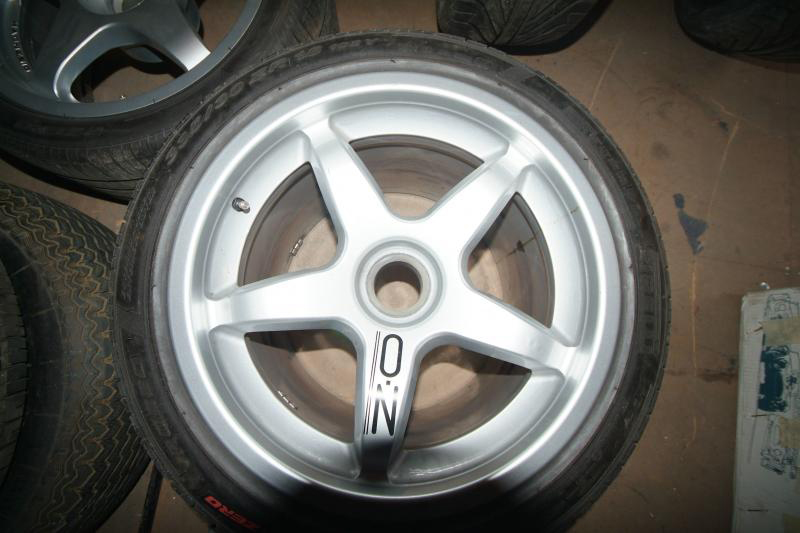

1697848d1366818567-f40-lm-restoration-16-029
Thanks for all the interest and support. Strange, I never thought I would enjoy posting the journey as much as I do, I thought it would be quite trying but in fact the reverse. Very satisfying to share the ups and downs of this adventure with all enthusiasts here with varying levels of knowledge resulting in many useful thoughts and opinions, but all bonded by a common love of the Marque. Brilliant.Meanwhile, CM made a delivery! Yes, 8 weeks late but look what turned up, two sets of rear wishbones assemblies. I will post more once we have had the chance to unpack properly. Apparently the anti roll bars etc are due to leave Italy today and the brakes etc tomorrow. We shall see, but all being well, we might have all these vital components within a week or so and then we can really crack on, at least with the chassis etc.

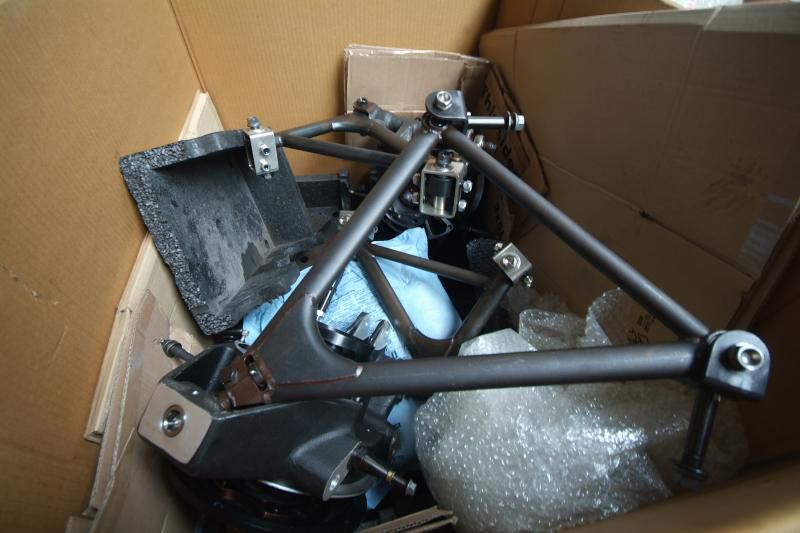

1698451d1366912426-f40-lm-restoration-20130424-001

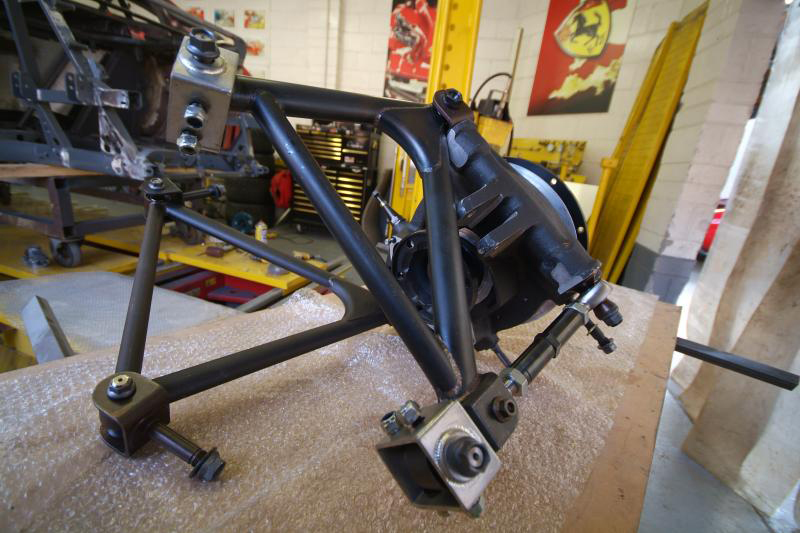

No sooner said than done…………Some delicious detailing
1698716d1366972672-f40-lm-restoration-250413-018
1698720d1366972761-f40-lm-restoration-250413-011
1698724d1366972882-f40-lm-restoration-250413-010

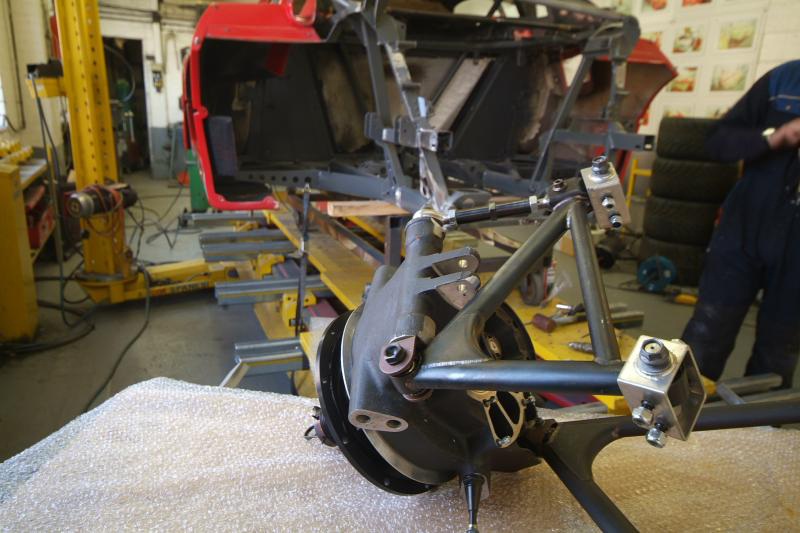

1698725d1366972882-f40-lm-restoration-250413-004
1698733d1366973350-f40-lm-restoration-25th42013-159

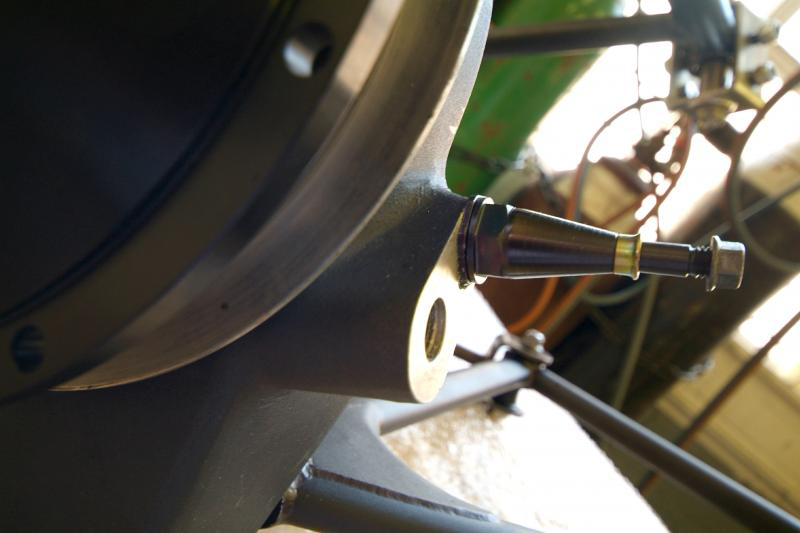

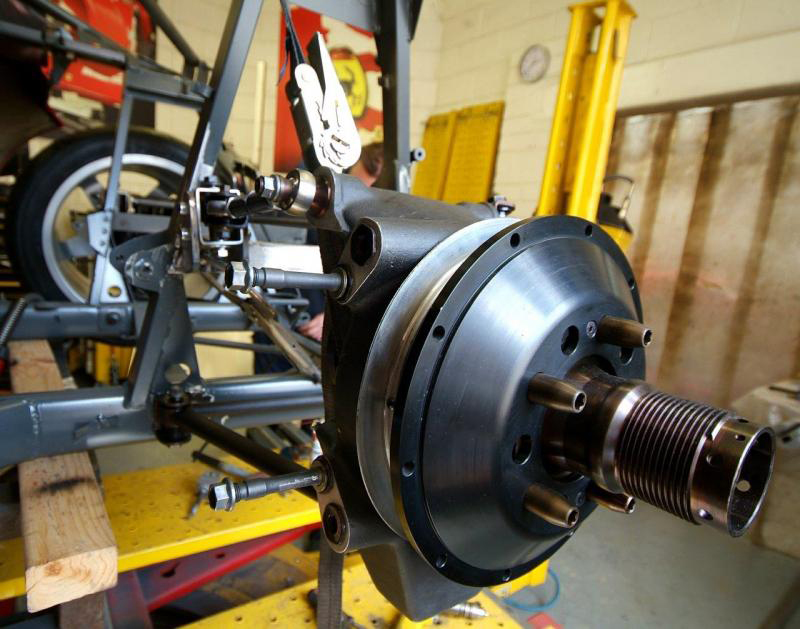

So now we have the front and rear suspension just about mounted. Few alterations needed and the works of art will shortly be in place. Interestingly I note that the front uprights are made of Avional, apparently a super strength lightweight Swiss alloy (had to look that one up) and the rears are Magnesium, again, all with Titanium adjustment. Expensive, but you begin to understand why.Now we have all the set up info from Michelotto we are fine checking with computerised Spanesi Touch system to ensure everything is absolutely spot on.Adjustable LM brakes, adjustable anti roll bars, Carbon Fibre ducting, Magnesium pedal box, master cylinder and light weight Konis etc are hopefully incoming tomorrow!! Hopefully.Everything will be offered up to the chassis, adjusted and fixed before disassembly for final chassis paint.Got to love those rear tyres!I am hoping that by the end of next week, we might finally be in the paint shop…….maybe
1700942d1367312967-f40-lm-restoration-26th-006s
1700943d1367313351-f40-lm-restoration-tim-30th201304-006s
1700944d1367312967-f40-lm-restoration-friday-009s

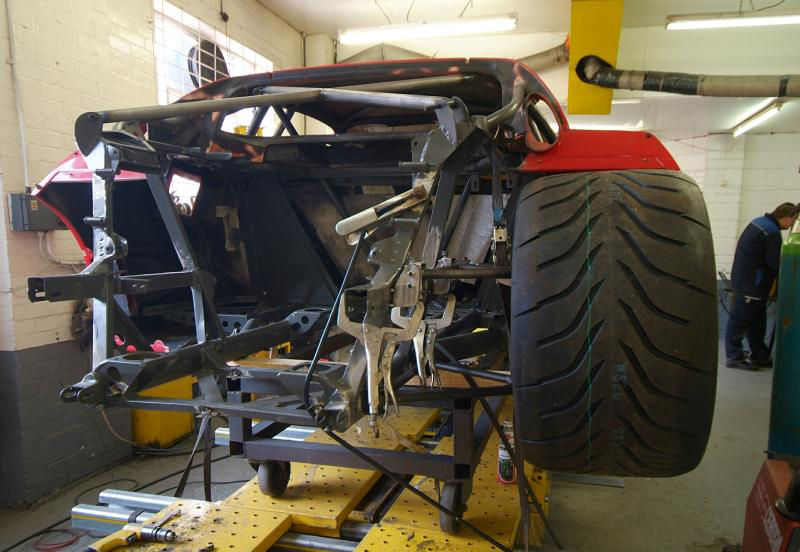

1700946d1367313131-f40-lm-restoration-26th-4-2013-002

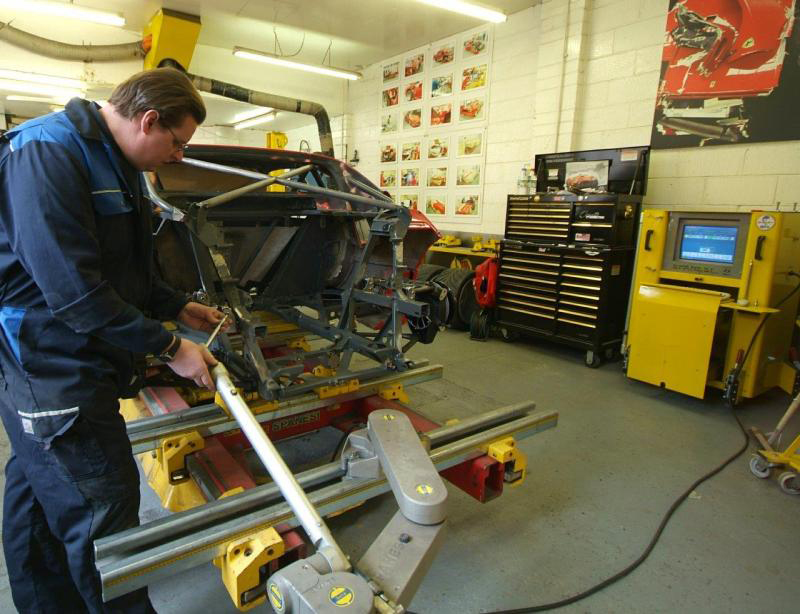

1700947d1367313351-f40-lm-restoration-29th42013-008s

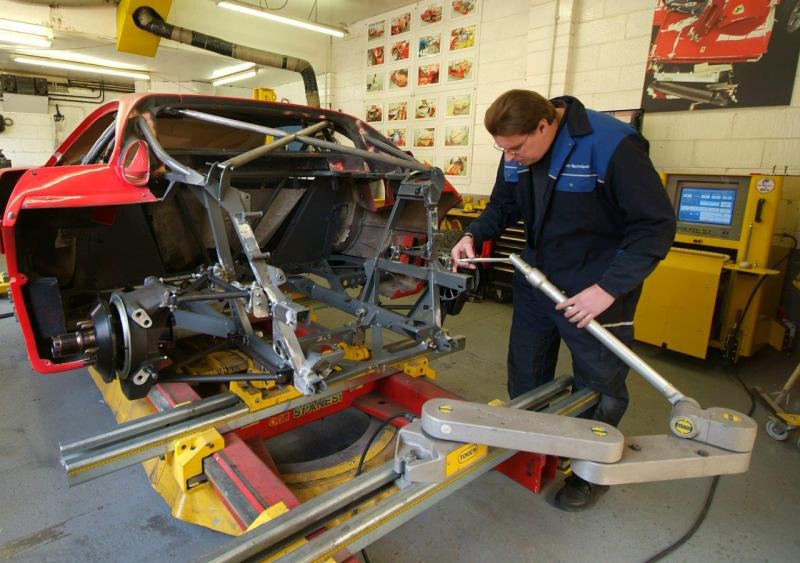

1700948d1367313351-f40-lm-restoration-29th42013-003s
Just a small update. Nothing from Michelotto-disappointing but not unexpected. More chasing but then the day is still young.Meanwhile we have been finishing off the LM front assembly so all we now need is a delivery to finish mounting and checking everything before the paint shop beckons.

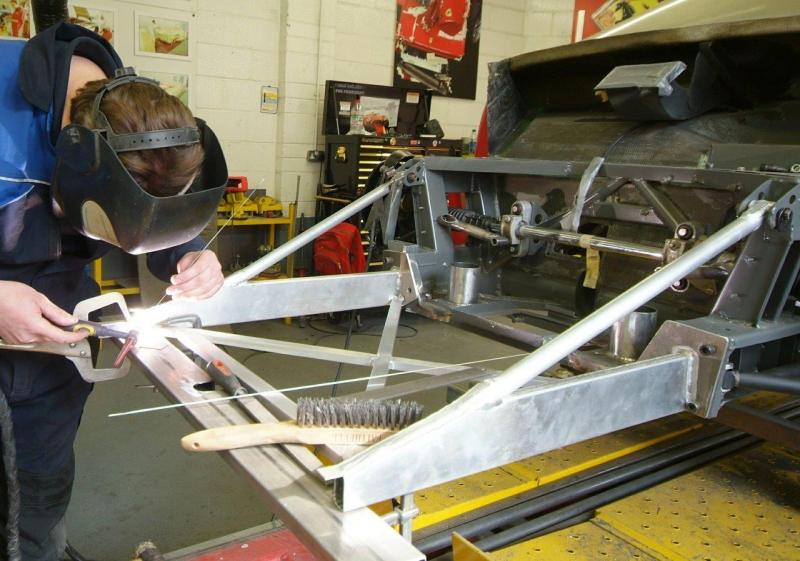

1702075d1367485999-f40-lm-restoration-08th-011s
1702074d1367485999-f40-lm-restoration-img_0124s

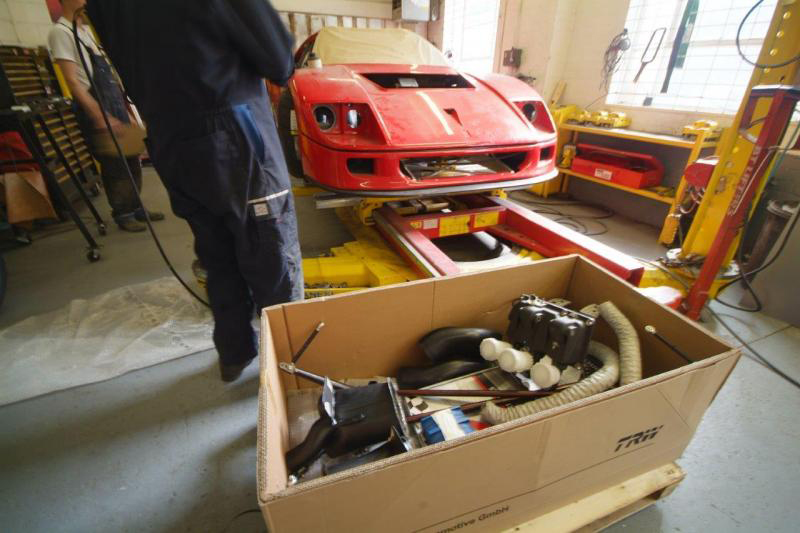

Gear box rebuild now well underway. New bearings, new 2nd gear and shorter ratio crown wheel and pinion all being installed. Then it is off to Crosthwaites for fitting of reverse and final set up and result a zero miles gearbox.Another partial delivery from Michelotto to include LM brakes, magnesium pedal box, carbon fibre cooling ductwork, track rod ends etc etc and I will post pics of these once unpacked, but frustratingly we are still short of the lightweight Koni shocks and springs which we need to be able to set the ride height and deal with the bodywork before final chassis and body paint and final assembly, so blame Michelotto for the shortage of posts. Apparently leaving Italy today but I have heard that before!
1705746d1368092686-f40-lm-restoration-1ish-007s

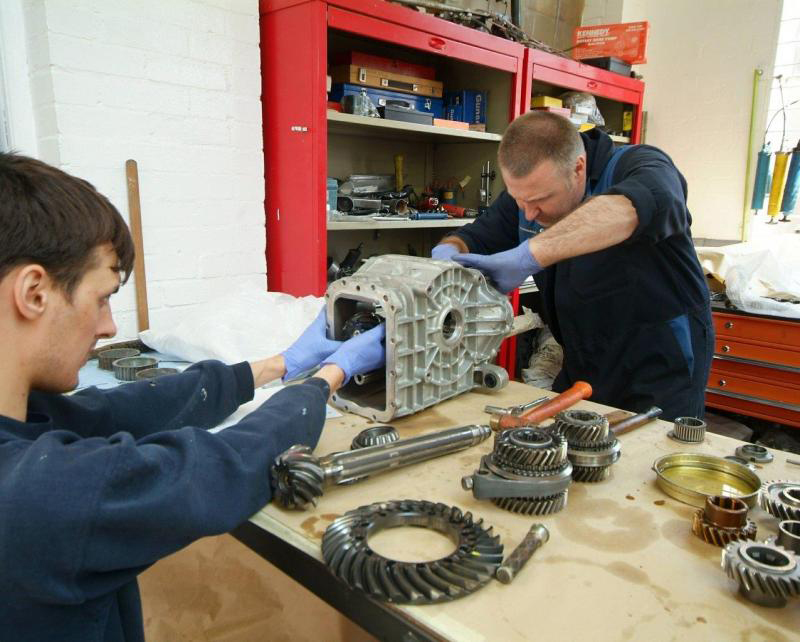

1705747d1368092686-f40-lm-restoration-1ish-033s
1705748d1368092686-f40-lm-restoration-07-may-13-003s
Last post for a week or so or until Michelotto delivers the springs and shocks.Body now back on temporarily to sort ride height, clearances, panel gaps etc but to do it properly we need shocks if you are reading this Cristiano-Please! In theory sent last week but I have heard that before……..please prove me wrong!
1706555d1368263834-f40-lm-restoration-031515-013s

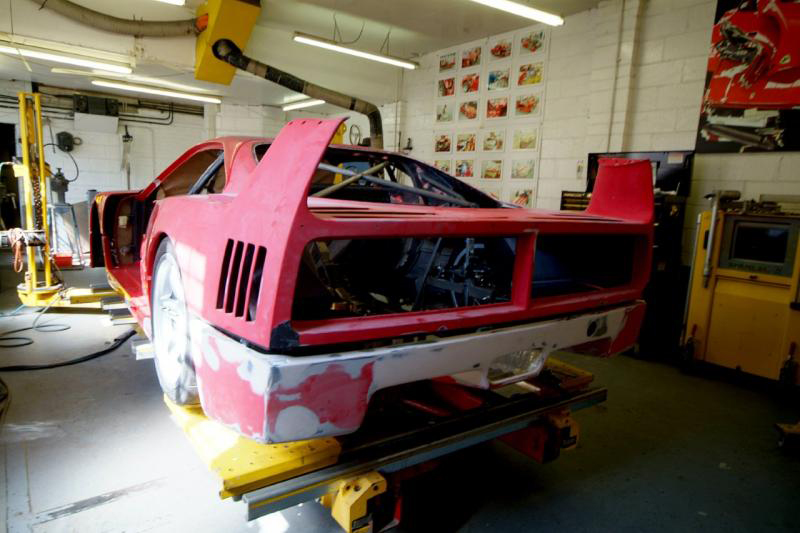

1706556d1368263834-f40-lm-restoration-031515-003s

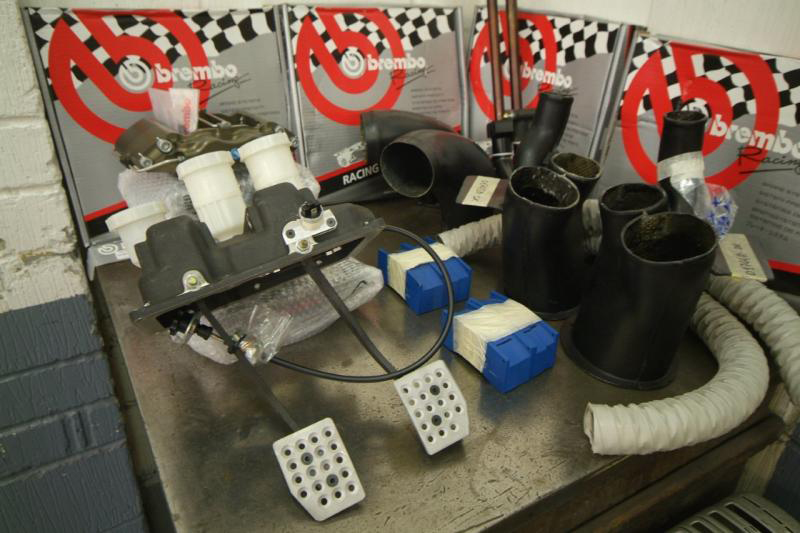

Well here we are with a few more parts from Michelotto. LM brakes and discs, LM magnesium pedal box with front/rear bias controller, LM anti roll bars, track rod ends (now fitted as per pic), carbon cooling ducts etc etc, but not the lightweight shocks and springs which we are still waiting for.Please Cristiano, we need them.
1708328d1368556817-f40-lm-restoration-tim-08-f50-008s
1708329d1368556817-f40-lm-restoration-tim-08-f50-002s
1708330d1368556817-f40-lm-restoration-tim-08-f50-003s
Better pic of track rod ends installed and completed front assembly

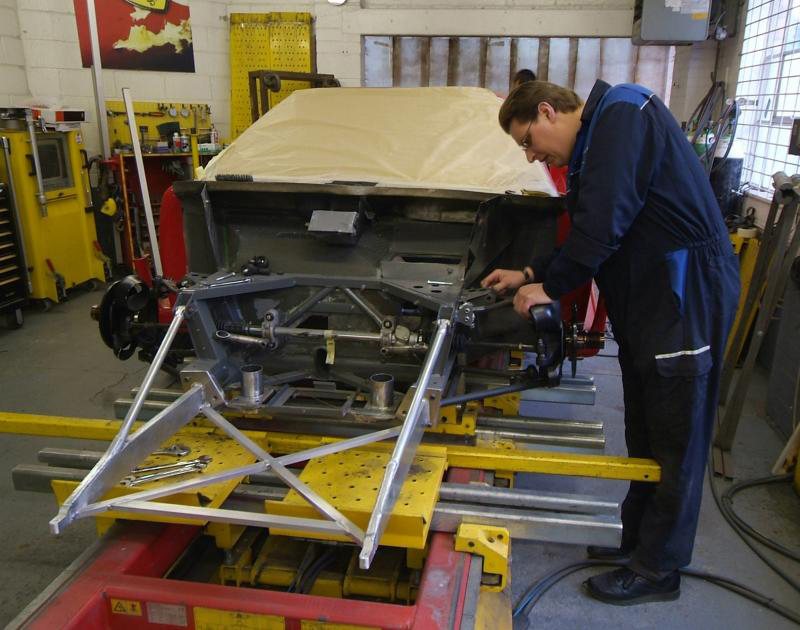

1708576d1368608754-f40-lm-restoration-tim-08-f50-008ss
TREASURE! Finally it looks like we have our missing parts which is great news.
1708624d1368627341-f40-lm-restoration-sir-tims-parts-008-2-
1708680d1368634753-f40-lm-restoration-lord-simonds-photos-039s
1708681d1368634753-f40-lm-restoration-lord-simonds-photos-013s

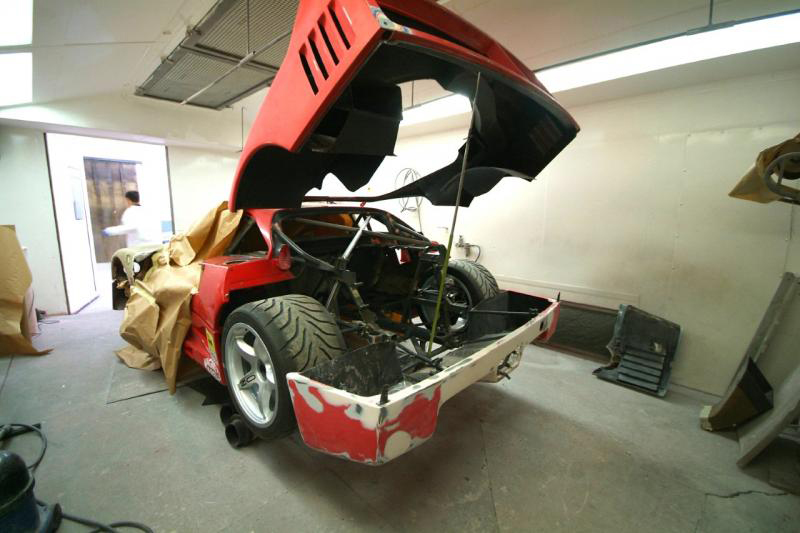

Work has started in earnest on the body. All panels have been refitted so as to start panel alignment and weight will be added to engine bay so as to represent engine in position and ensure that the panels are gapped ‘under load’.Underside of front clam was a mess so that will be prepared and brought up to standard with new ductwork etc.Gradually moving closer to paint, chassis and body, indeed at least we are now in the body shop! Cannot wait and will update further after visiting the shop tomorrow.
1711063d1369040082-f40-lm-restoration-tin-f40-14th-032s

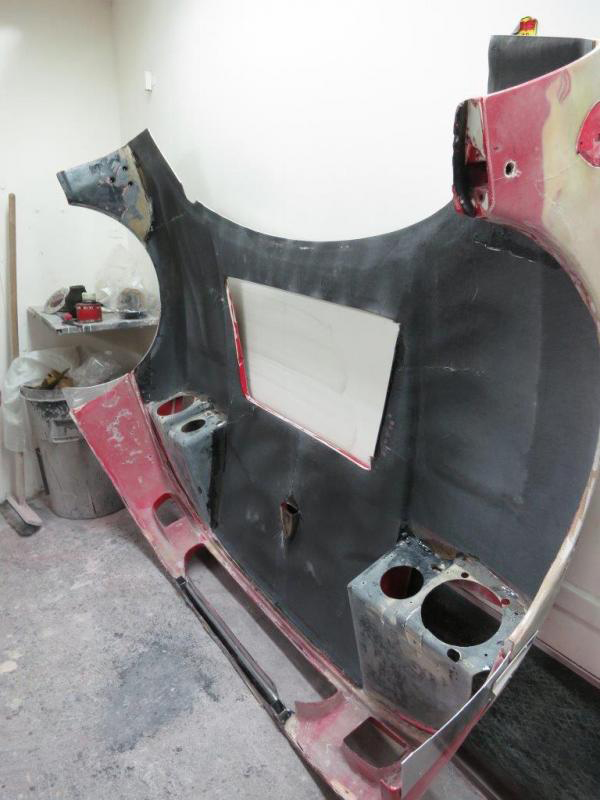

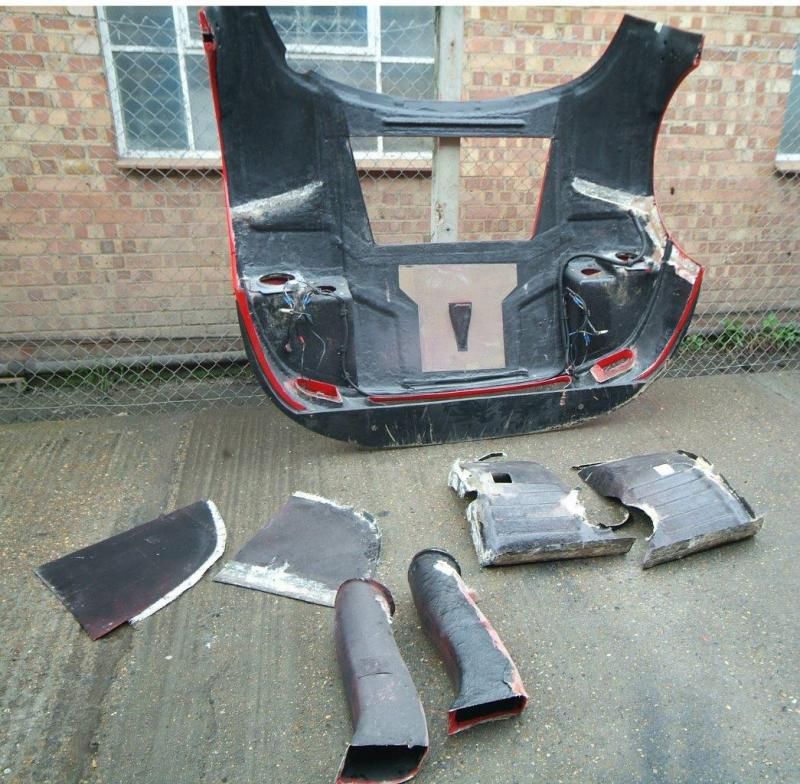

Some further shots of the front clam.Here you can see our original clam before and midway through the restoration process. We have taken literally pounds of filler out of it, so much that you can easily tell the difference just by lifting it. It will be finished off with new arches and ductwork and then a final internal layer of Carbon Kevlar so it will be both lighter and stronger (and more beautiful) than where we started.
1712389d1369146299-f40-lm-restoration-img_0011s
1712388d1369146299-f40-lm-restoration-tin-f40-14th-001s

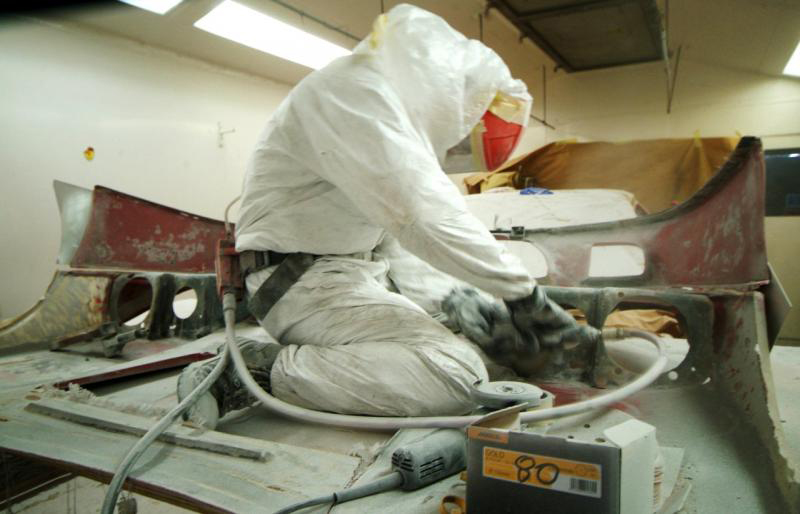

And how we got there, or rather poor James in the DIY spacesuit did……
1712433d1369158170-f40-lm-restoration-dscf2365s
1712432d1369158170-f40-lm-restoration-dscf2366s

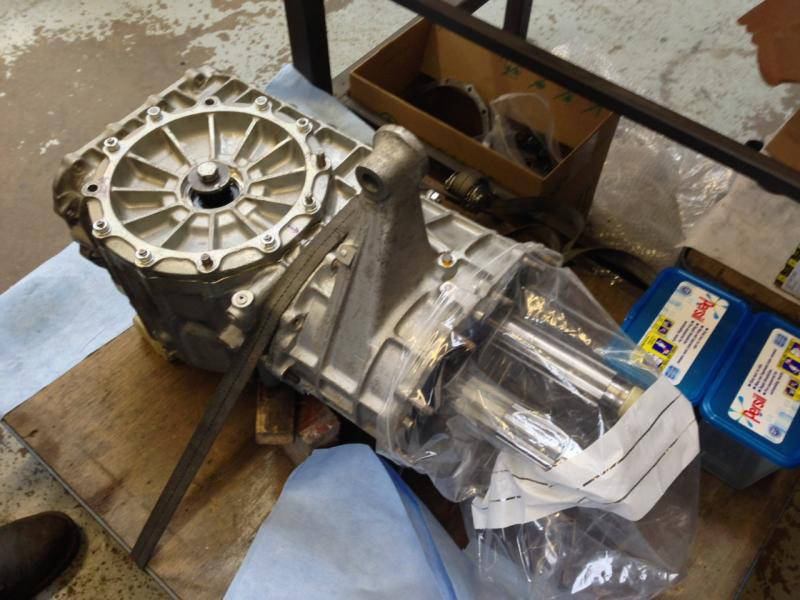

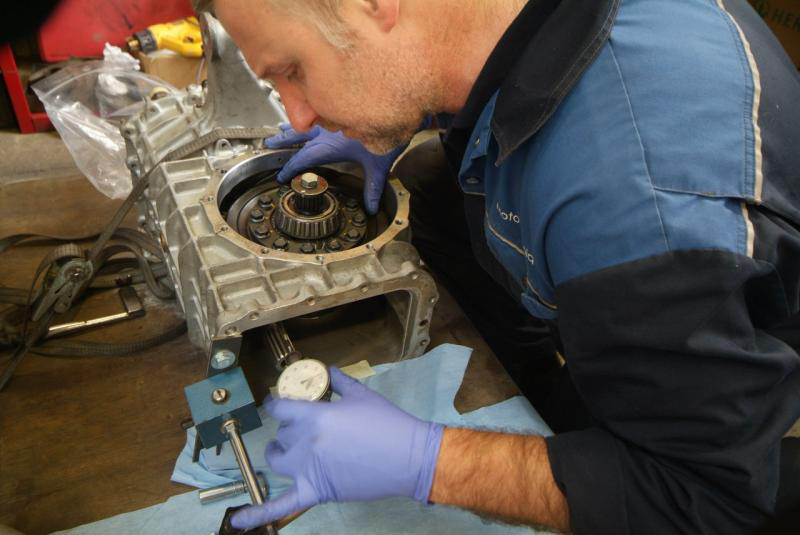

Whilst we labour for the next few weeks to get the bodywork perfect, progress is actually being made elsewhere mechanically. Engine is now in all its component parts and we have been working on the gearbox which is now ready for its new gears and awaiting the Crosthwaite and Gardiner reverse which they are apparently making to a higher quality than Factory as you would expect from such a firm. New crown wheel and pinion with shorter gearing installed as well as new differential and bearings and once we have reverse, the gearbox will be finished up.In these images you can see the backlash being set up with a dial gauge and also the crown wheel and pinion being painted with engineer’s blue to check mesh engagement. Last shots, all finished up and ready for the gears.Once finally assembled all casings will be resprayed.
1713425d1369341448-f40-lm-restoration-sir-tim-f40-1-s
1713426d1369341448-f40-lm-restoration-sir-tin-f40s
1713427d1369341448-f40-lm-restoration-img_0002s
1713428d1369341448-f40-lm-restoration-photo3s
For those of you interested in the detail of what must be one of the world’s most expensive pedal boxes. Next to it is the original so you can get an idea of the difference. And the quality.This was, like everything else, not a stock item, but being a magnesium casting was not viable to be made in a series of one. We were however very fortunate to be able to piggyback on an order from the Sultan Of Brunei who purely coincidentally had to replace two of his on his LM’s which have rotted away in the humidity of their non air conditioned storage and needed replacement. Good timing as otherwise I am not sure what we would have done.The cable attached to the clutch pedal is the front/rear brake bias adjuster which ends up on the dashboard.
1715160d1369651388-f40-lm-restoration-img_0019s
\
1715161d1369651388-f40-lm-restoration-160113-001s

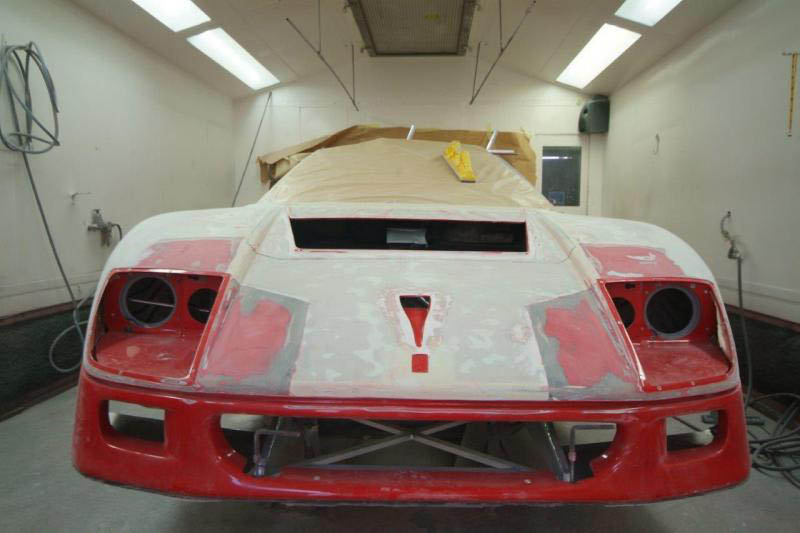

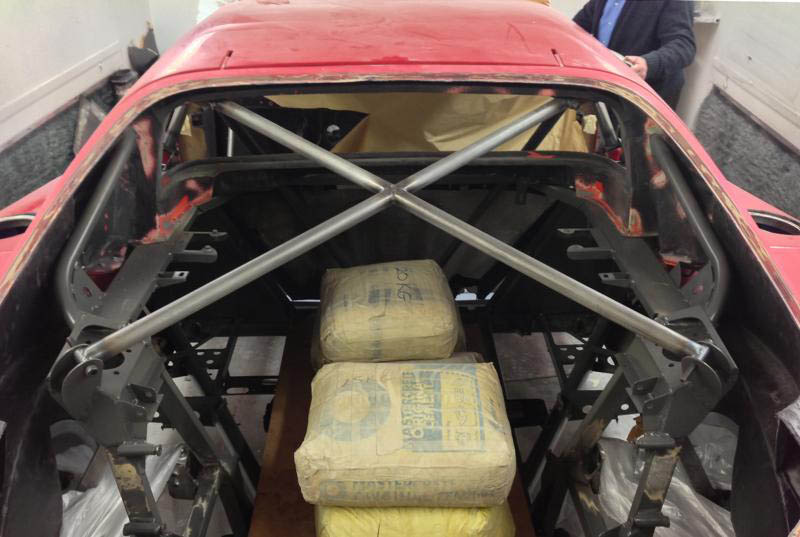

Temporary engine in place so that all the panels can be correctly gapped ‘under load’.Front clam now well on the way to paint…..
1716701d1369908376-f40-lm-restoration-photo3a
1716702d1369908414-f40-lm-restoration-tin-f40-14th-027s

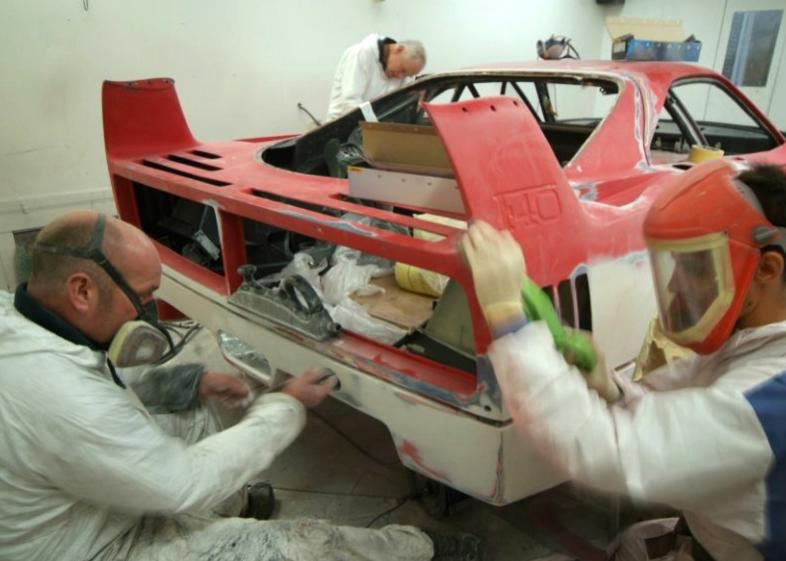

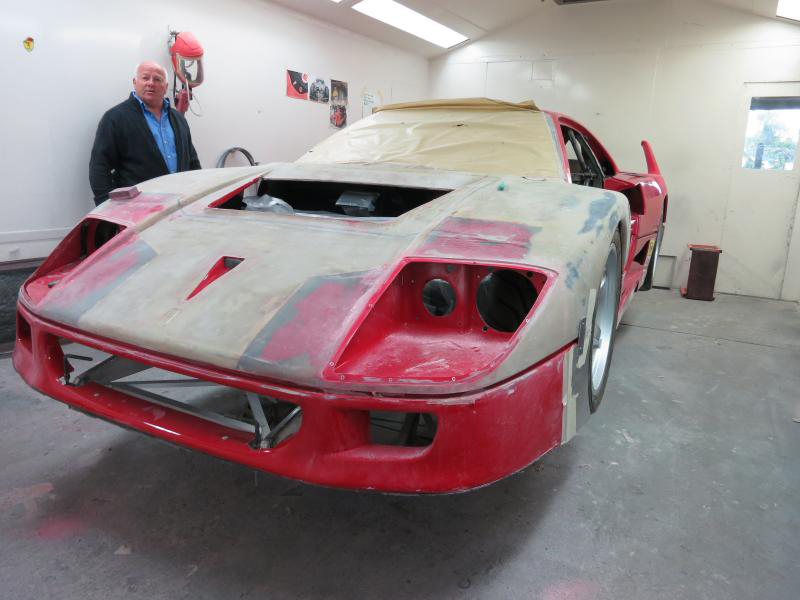

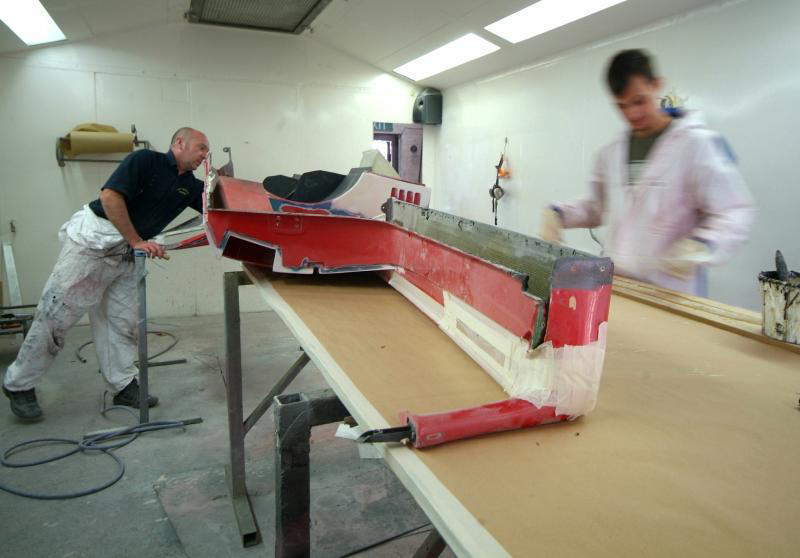

More images of prep work on the body. All old and defective panels such as cooling ductwork and wheel arches are being renewed in Kevlar as appropriate. A lot of work to return it to as new. Side pods are now off so we can get access to the final part of the chassis for paint, and yes it looks like paint next week! That is truly exciting and finally as opposed to digging a hole we can start to fill it in. A potential turning point and I find myself wishing away time.
1717689d1370042152-f40-lm-restoration-dscf2584
1717690d1370042152-f40-lm-restoration-img_0005
1717691d1370042215-f40-lm-restoration-14th-may-003
1717694d1370042329-f40-lm-restoration-31-007
We took the block off to Crosthwaite and Gardiner who checked them all thoroughly and said they were actually all OK, the slight scar was merley cosmetic which was a relief. They are fitting new piston rings, LM style titanium conrods and once the crank is back from repolishing and the new flywheel delivered, we can start a slow assemble. I think the chassis will probably be ready ahead of the engine but that is no bad thing. Very comforting to have Crosthwaites involved with their reputation and abilities, probably one of the World’s best : www.crosthwaiteandgardiner.com – fascinating to see what they get up to.
1717949d1370093198-f40-lm-restoration-1403-007

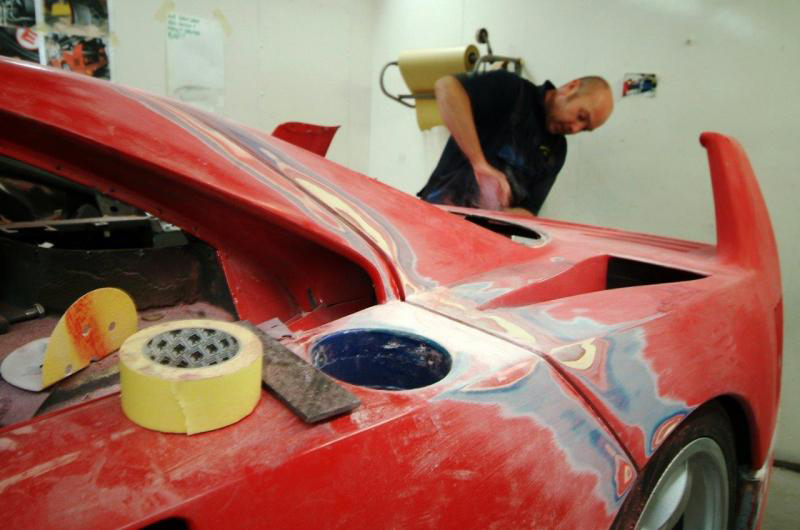

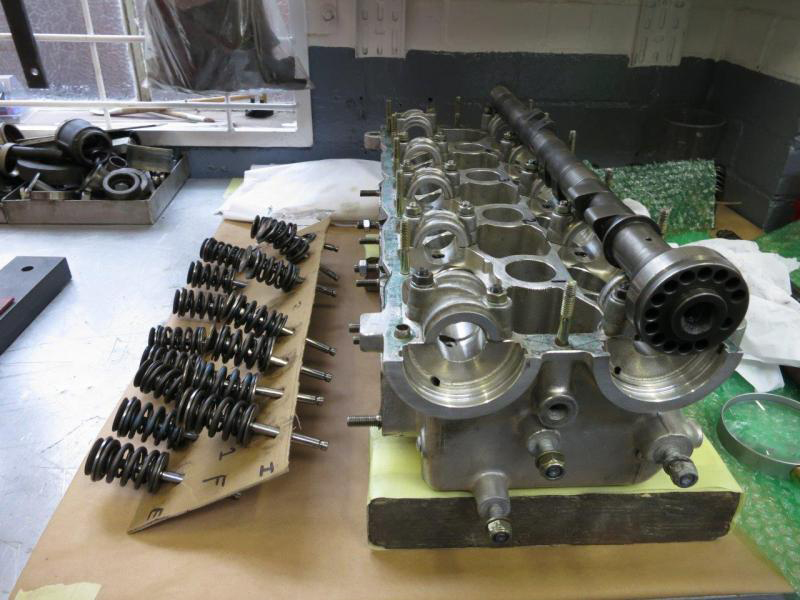

Cam lobes were slightly worn but enough meat on them for a grinding so they have gone out to a specialist. So right now that means crank is out for repolish and new bearings, LM Titanium conrods in manufacture, lightweight flywheel in manufacture, cylinders being rehoned as necessary, turbos/manifolds being built up and inlet trumpets will all be stripped down, cleaned and parts replated as necessary. All taking place at different specialists and one fine day the jigsaw will be reassembled.Apparently, even in its sorry state it was recently recorded on the dyno at 650BHP at the rear wheels, so looking for a little more by the time we have perfected it, a more ‘reliable’ 700 is the target but this time with the suspension and brakes to handle it.
1719083d1370254996-f40-lm-restoration-img_0017s
1719084d1370255031-f40-lm-restoration-dfc4a6b3ac9d
1719086d1370255133-f40-lm-restoration-2401-021s
1719088d1370255440-f40-lm-restoration-img_0127s

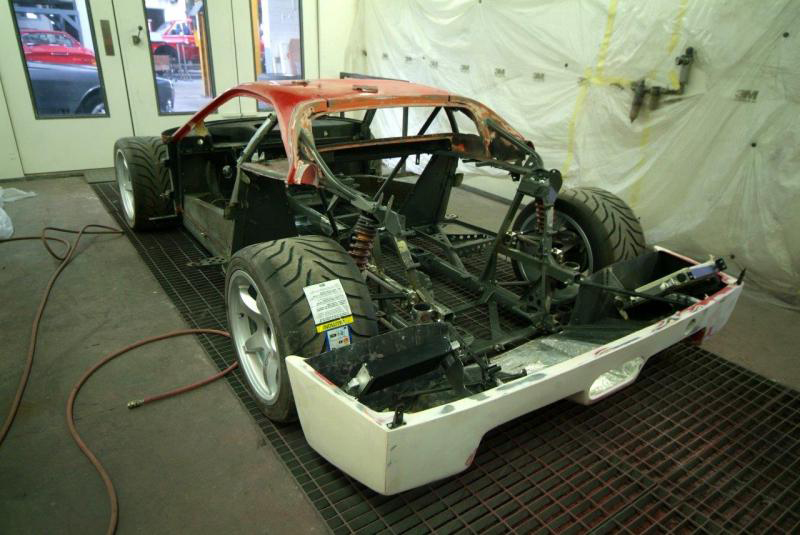

Well finally, hopefully, the last shots you will see of the old.We are now taking up all Mototechnique’s spraying facilities. Chassis stripped of all roll cage and stregthening in one paint bay for final prep and paint next week, and all body panels in other paint bay for final prep and primer this week.Then we can start to put Humpty back together again.And yes, for those really paying attention, I know about the front tyres!
1719790d1370340196-f40-lm-restoration-31st-052013-031s

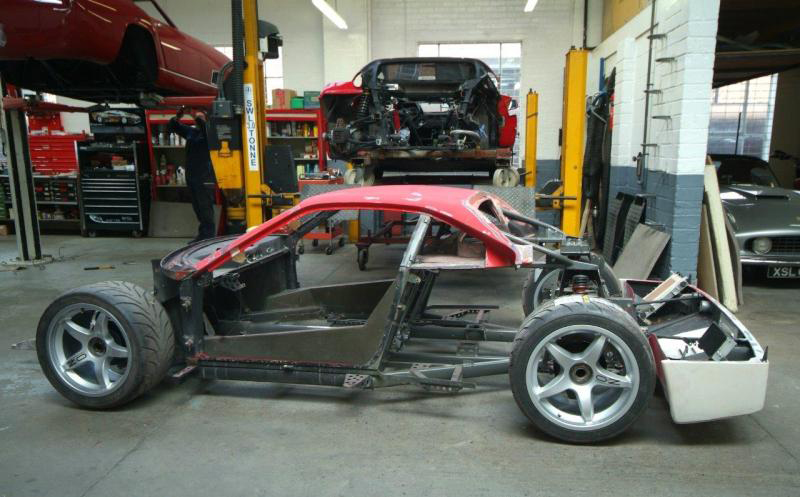

1719791d1370340196-f40-lm-restoration-31st-052013-023s
1719792d1370340196-f40-lm-restoration-31st-052013-007s

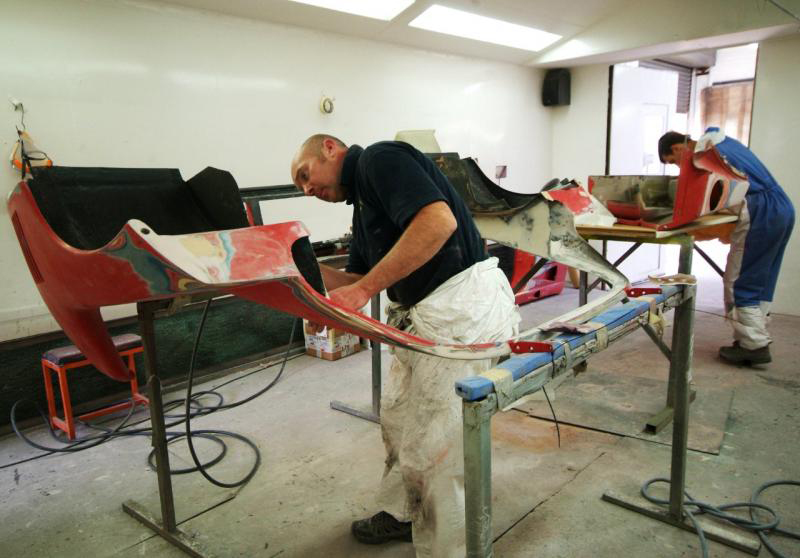

A few pics of the body panels in prep. Laying up the new Kevlar underneath the front clam so now light and strong. Plan is to get primer on the roof and chassis this week and then all being well colour next.Reason for the increase in images is trippling in manpower which, once we have the chassis and body sorted will mean things drift back to normal which from a financial viewpoint is comforting.

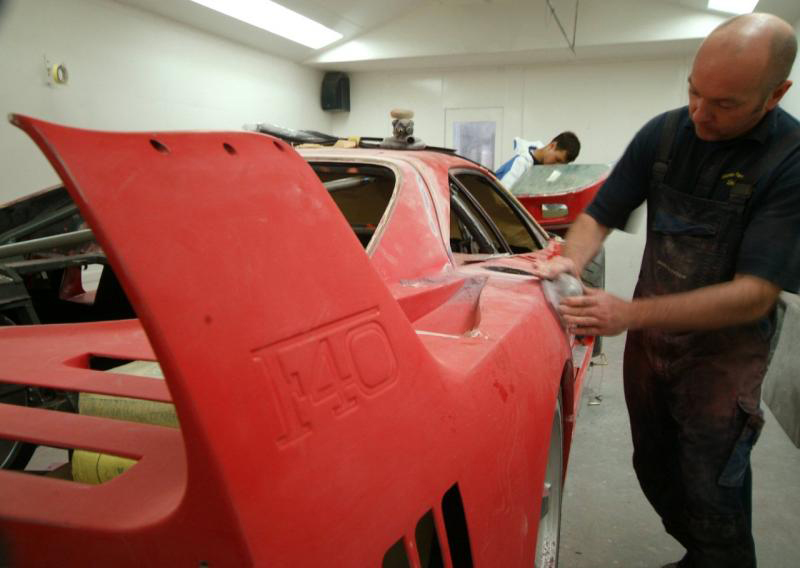

1720364d1370430569-f40-lm-restoration-2401-004s
1720365d1370430569-f40-lm-restoration-31st-052013-002s

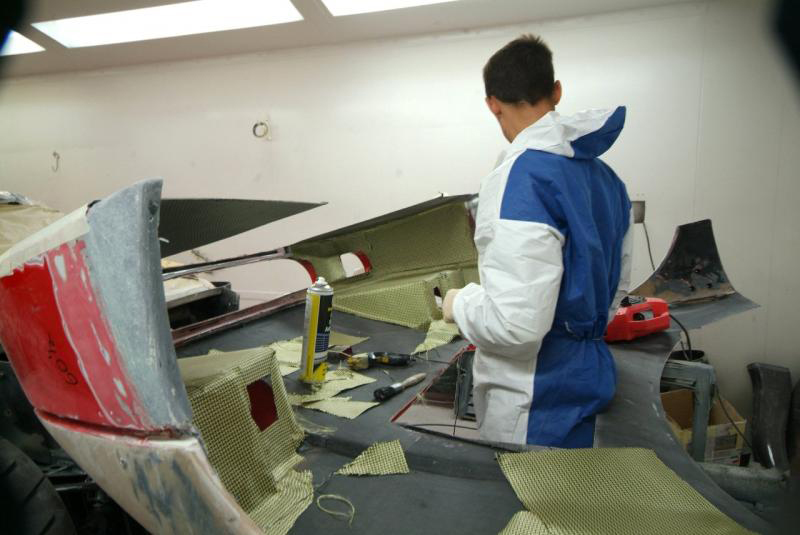

1720366d1370430569-f40-lm-restoration-2401-016s

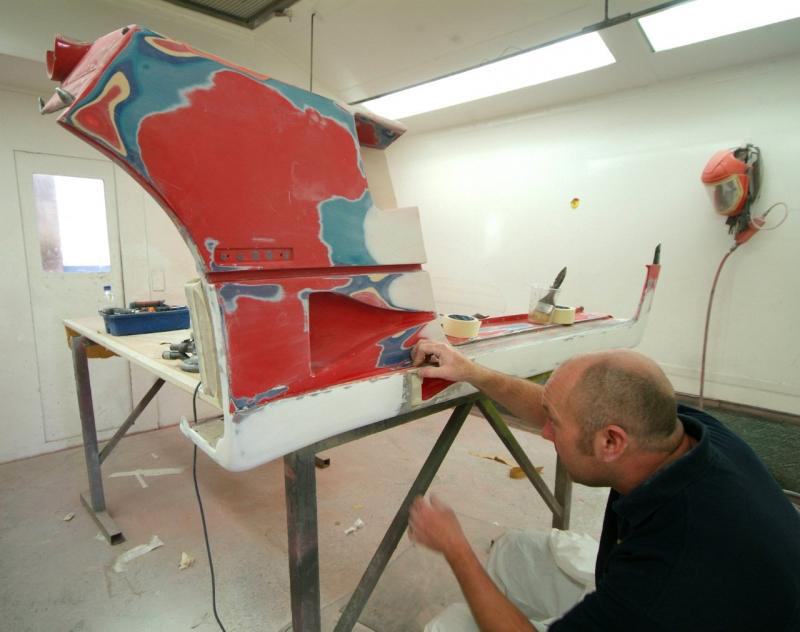

1720367d1370430633-f40-lm-restoration-dscf2682s

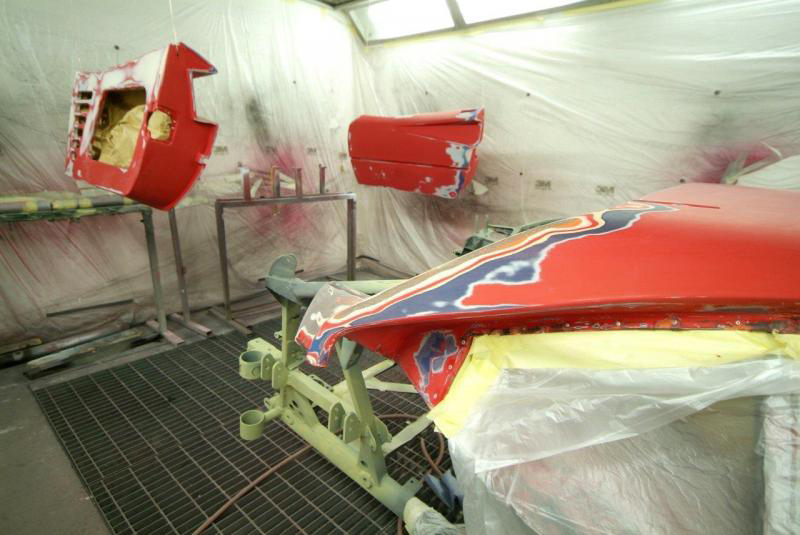

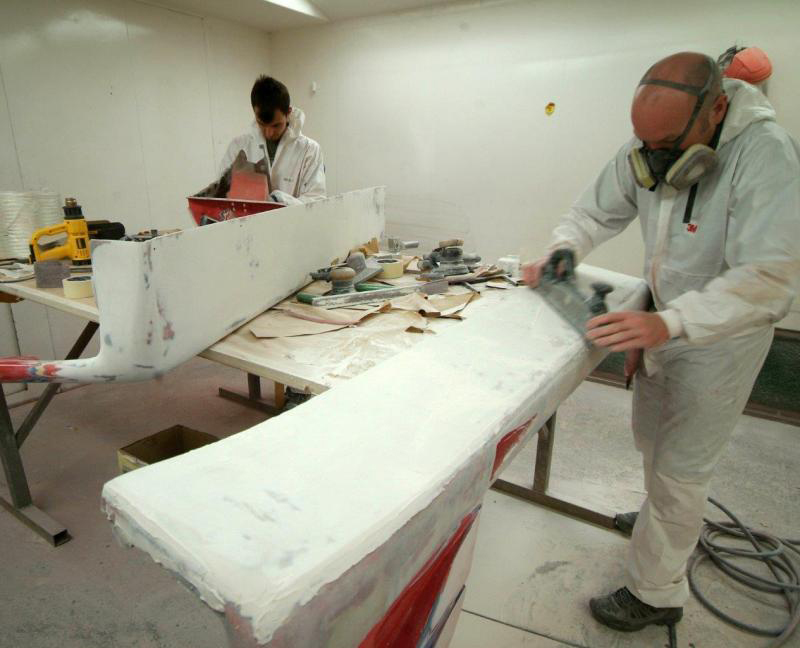

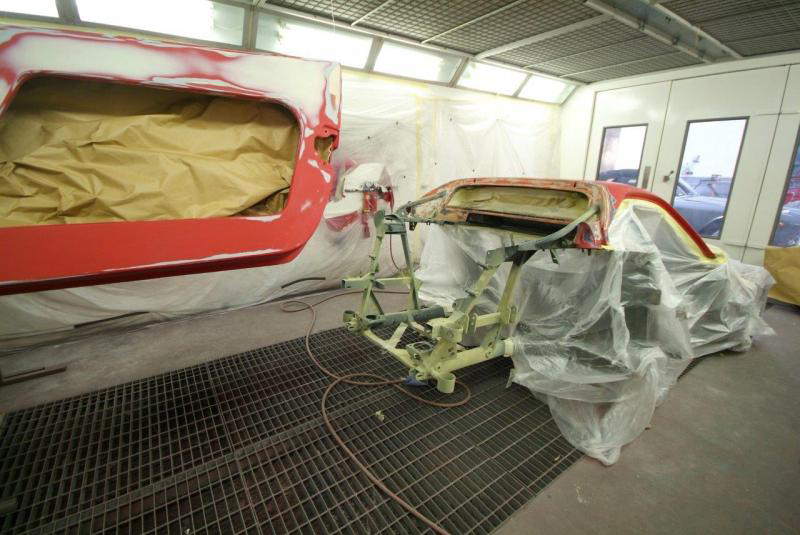

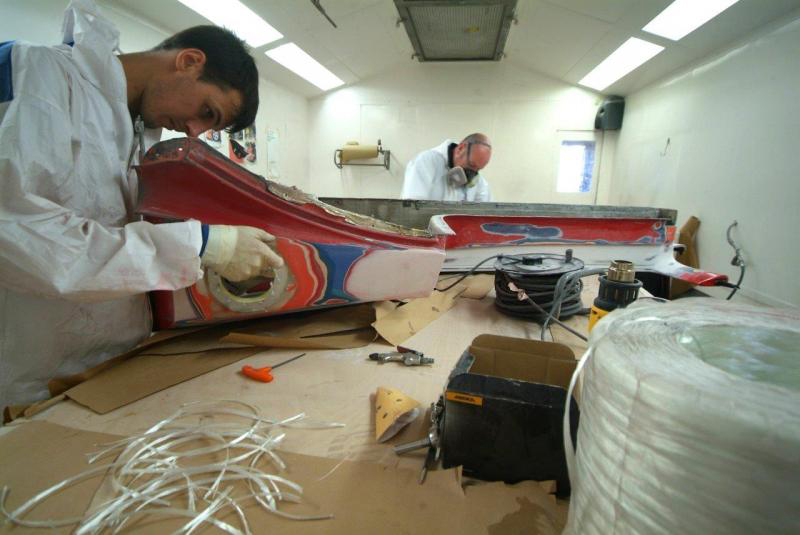

Meanwhile, we are sending the inlet manifolds off for the Zircotec finish as keeping the charged air cool is clearly a plus and anything we can do to reduce the temp of these will be a good start.Meanwhile a few more pics of progress. Here you can see the last photo (I promise) of the chassis pre final paint, the areas where we have been working on the jacking system etc being two pack expoxied before the mist coat and top coat are applied next week. Final prep for various panels and they are being primed today whilst the new fuel filler caps are blended in and the work comes to an end on the sills. All being well, everything except the front clam will at least be in primer next week, and chassis painted.
1721424d1370600784-f40-lm-restoration-04-006s
1721425d1370600784-f40-lm-restoration-04-008s
1721426d1370600784-f40-lm-restoration-5thjune13-010s
1721427d1370600784-f40-lm-restoration-5thjune13-008s
A final shot for the weekend that has just come in which I had to post as so pleasing. New filler caps now all neatly feathered in and panel just about ready for primer next week.

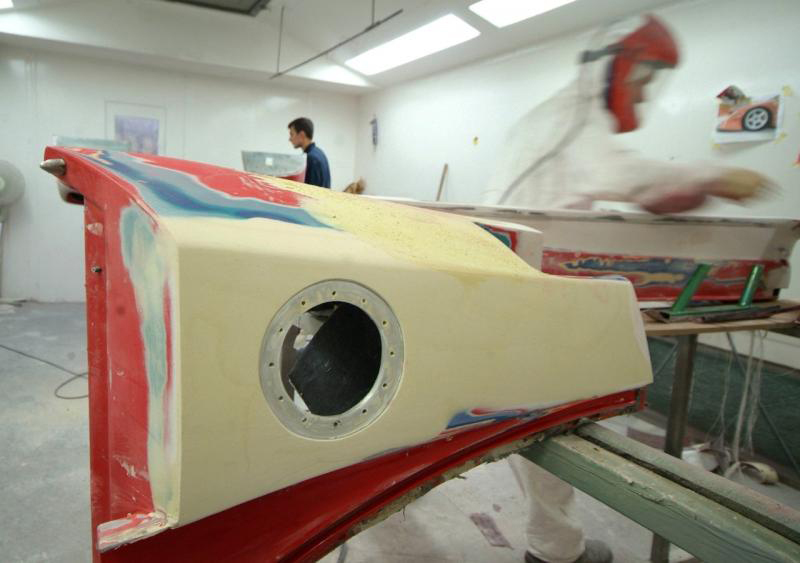

1721533d1370621447-f40-lm-restoration-2013-06-07-13.09.07s
Just looking through the photos from last week and one recent one shows the chassis now with a mist coat so as to reveal any minor aesthetic imperfections in the frame which can then be dealt with. You can also now clearly see the refitted rear air jack mounts.Note in the background that she is in good company in the workshop, in one instance quite humbling.

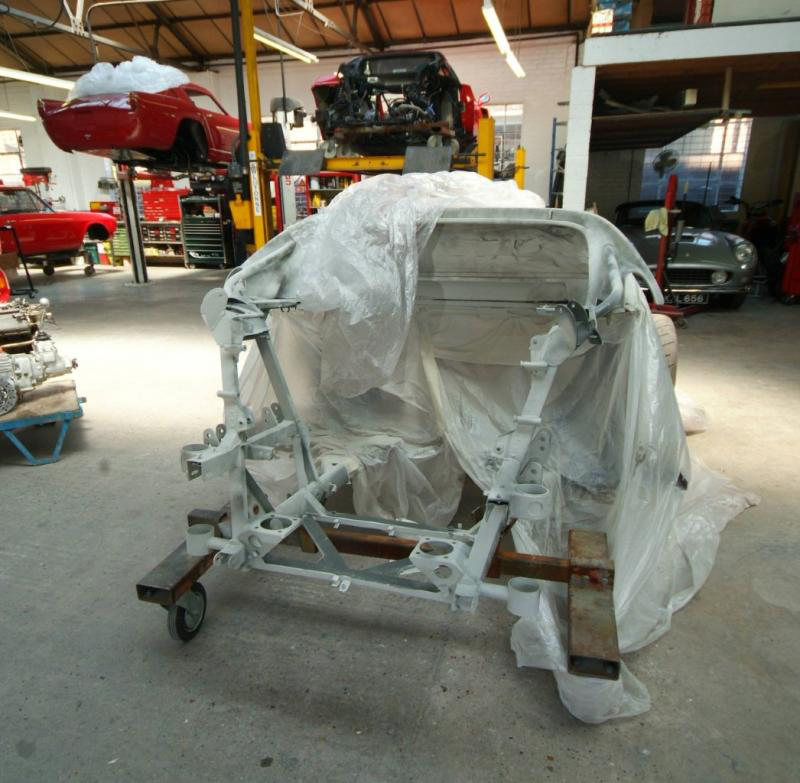

1722757d1370792484-f40-lm-restoration-5thjune13-007s

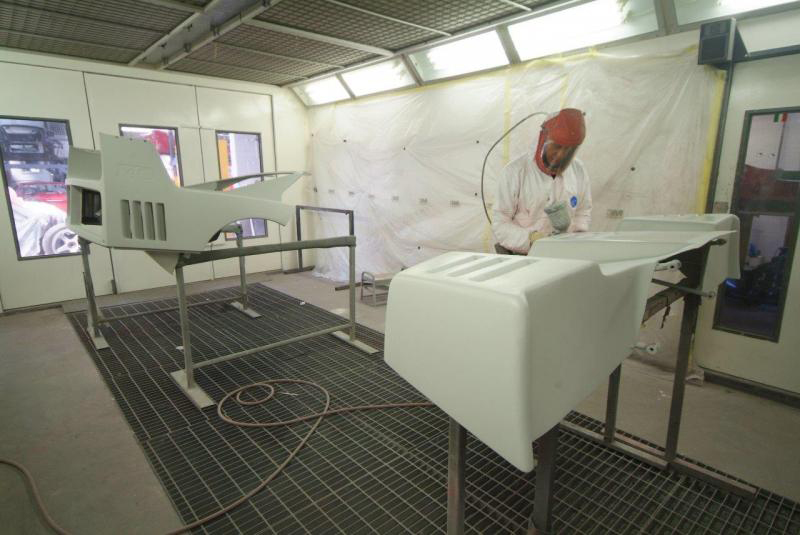

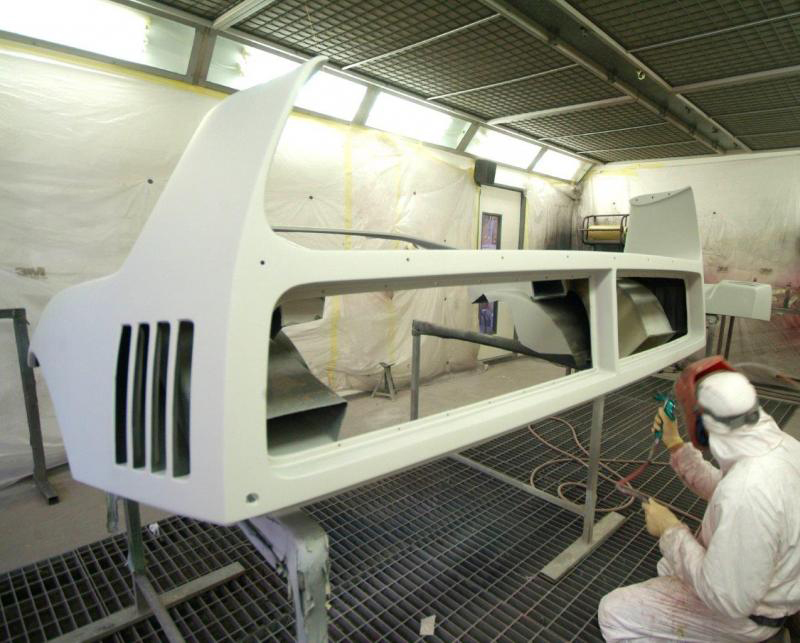

Meanwhile, for the first time in a long time excitingly the upper and lower rear clams are now finally in one colour. In case you thought they were destined for Chris Evan’s White collection, they are not but at least it is primer and I begin to feel we are coming out of this tearfully expensive hole. These sort of jobs are quite draining in more ways than one as you keep on having to write out cheques and yet the car looks worse and worse and it gets more and more depressing until you finally reach bottom and start to climb out and I think that is almost where we are. Maybe another two weeks to be confident that it is all not a waste of time, effort and money but now beginning to feel more positive.Work continues on the front clam but still a week or so away from primer as so much detailed work on wheel arches and all the Kevlar ductwork which is quite extensive on the LM. That should be a work of art when finished and be interesting post before and after shots.
1724058d1370942140-f40-lm-restoration-5thjune13-001s
1724059d1370942140-f40-lm-restoration-5thjune13-005s

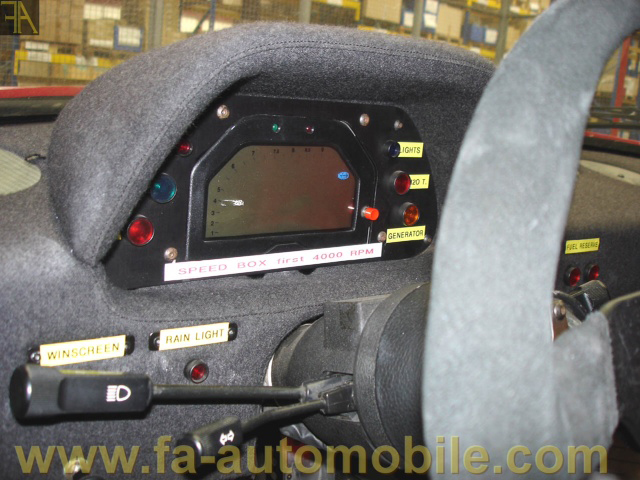

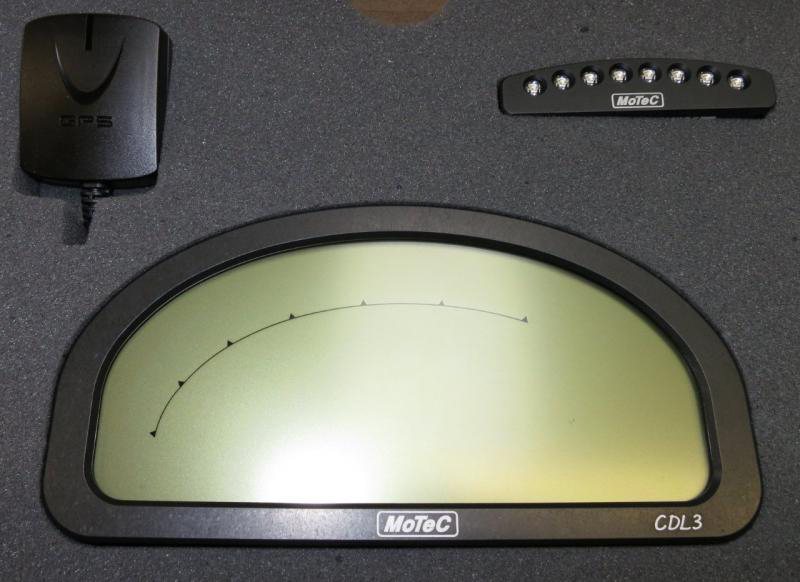

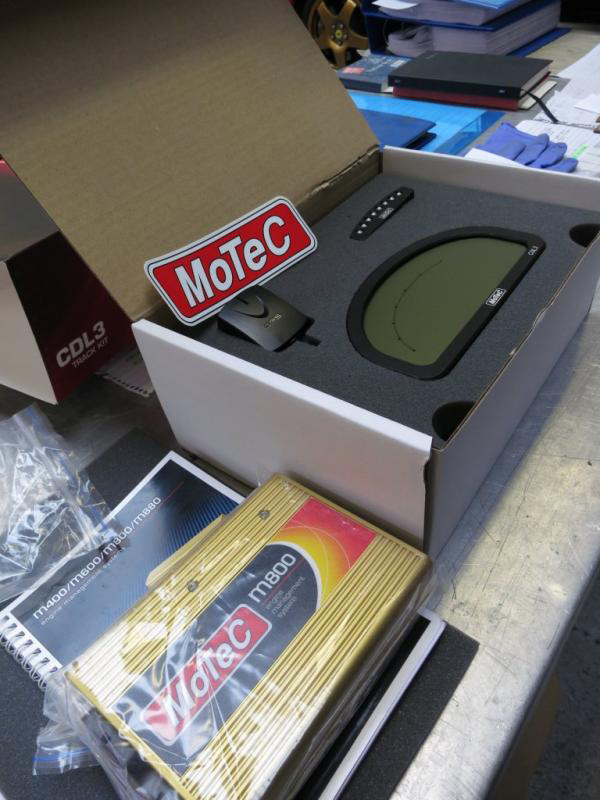

Aside from the finished fuel tanks and Michelotto parts, finally another finished item in the shape of our Motec gear arrived today as this seems the most reliable and adjustable kit out there (with great knowledgeable local support), well proven in racing F40′s and appears very similar to some Michelotto LM’s (as attached) when their old digital board gives up. Nice to have a few finished items appearing as the jigsaw pieces start to arrive from different quarters. What we really need next is a reverse gear from Crosthwaites so we can finish the gearbox.Not quite sure whether to fit the change up lights or not-pondering……
1724184d1370975934-f40-lm-restoration-photo2
1724185d1370975934-f40-lm-restoration-img_0027s
1724186d1370975934-f40-lm-restoration-img_0024s

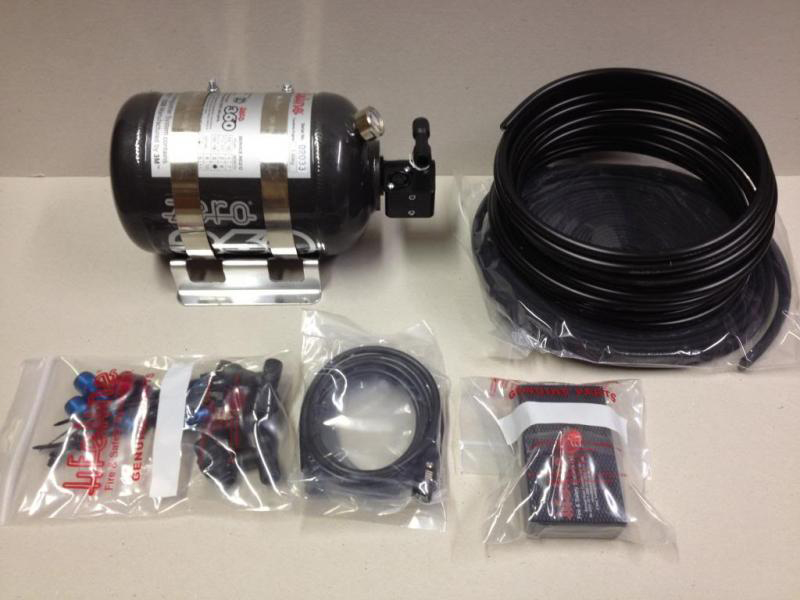

Another part of the jigsaw arrives.Latest 3KG Lifeline 360 extinguisher system just arrived. Used to only be available as 2.25KG but literally just released the larger version. Four nozzles in the engine bay, 2 in the cockpit and no mess to clear up if ever used. I hope not but these cars, as already pointed out on this thread, do occasionally have a issue.
1724857d1371114589-f40-lm-restoration-img_0177_zpsa7c5eebb

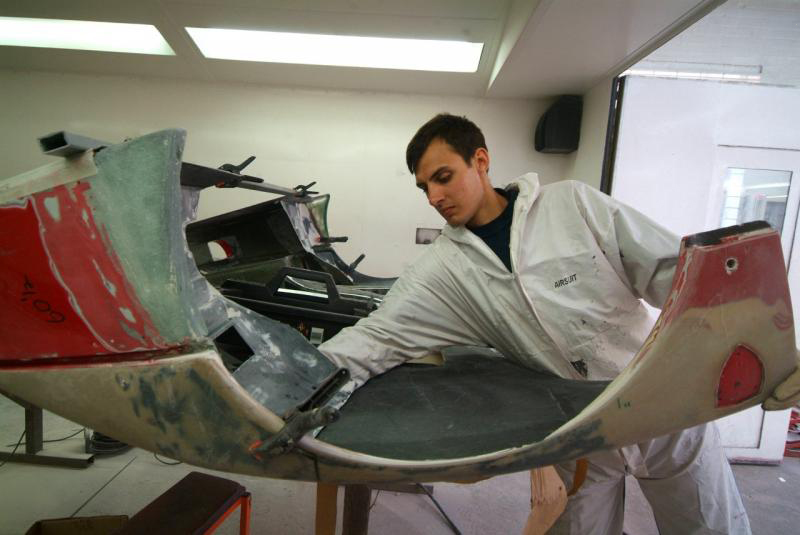

A lot of work going into what was a pretty ratty front clam. Here you can see some of the Kevlar being laid up, wheel arches being bonded in and preparation being made for the ductwork. What a change – kilos of weight removed and we are ending up with a lighter stronger unit from where we started. Another week to go on this and then all the bodywork will be behind us.

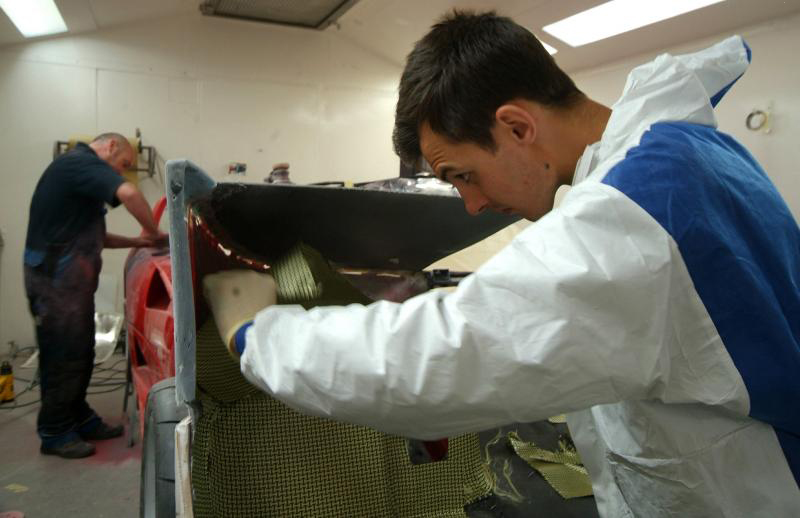

1724952d1371141731-f40-lm-restoration-2401-018
1724953d1371141768-f40-lm-restoration-06-june-13-030s

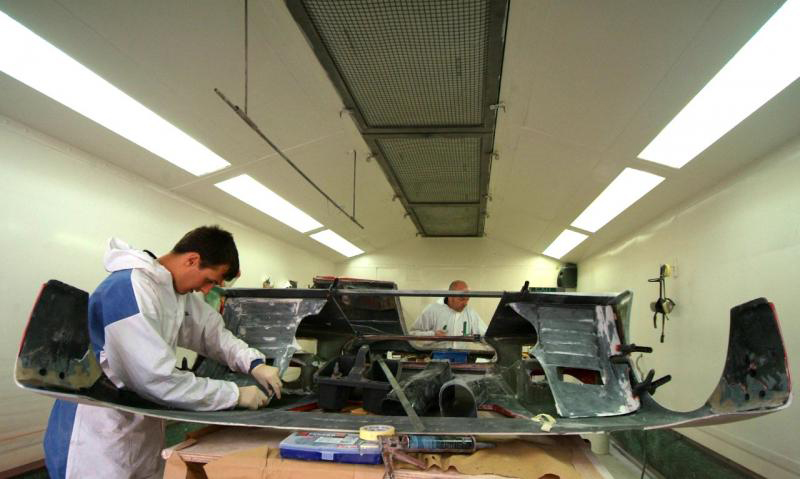

1724954d1371141800-f40-lm-restoration-06-june-13-025s

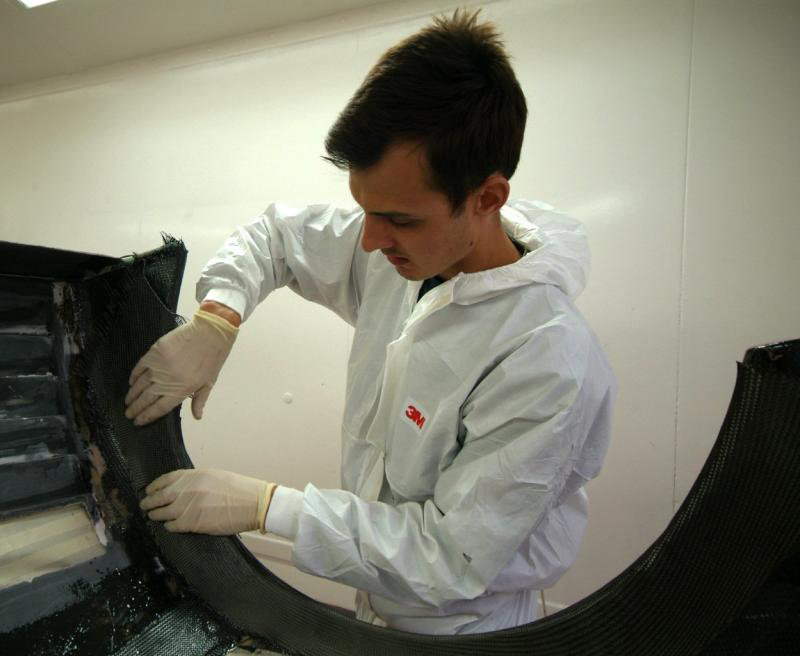

1724955d1371141827-f40-lm-restoration-2013-06-10-07.44.25s

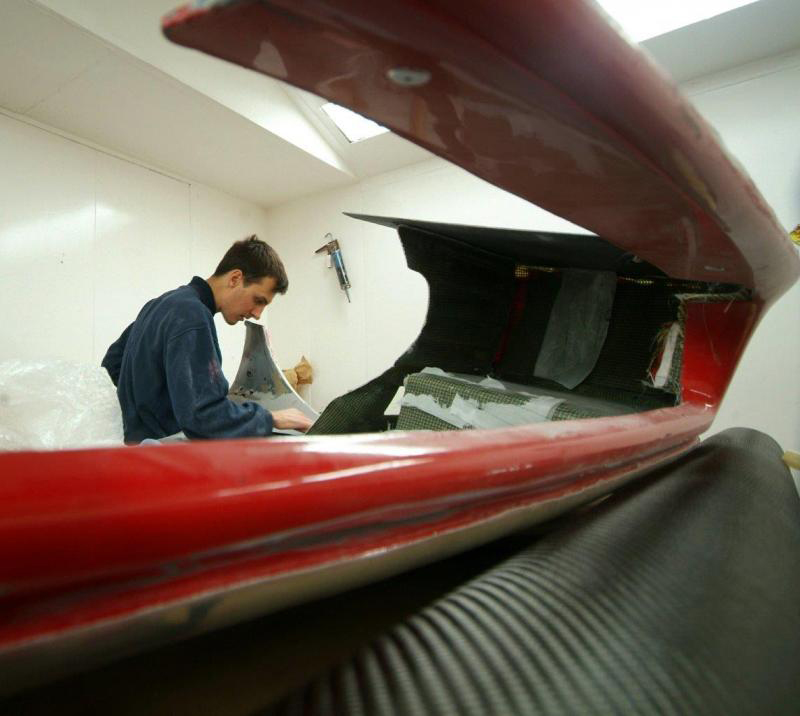

Starter motor has been sent away for matching to the new flywheel, which is currently in manufacture and due in a week or so, and will be overhauled at the same time.Final prep work underway to the underneath of the sills and these will be in primer early next week.Just another arty shot of the front clam lay up on-going. A lot of detailed and intensive work here.
1725484d1371208556-f40-lm-restoration-5thjune13-010s
1725485d1371208556-f40-lm-restoration-2013-06-07-13.11.45s

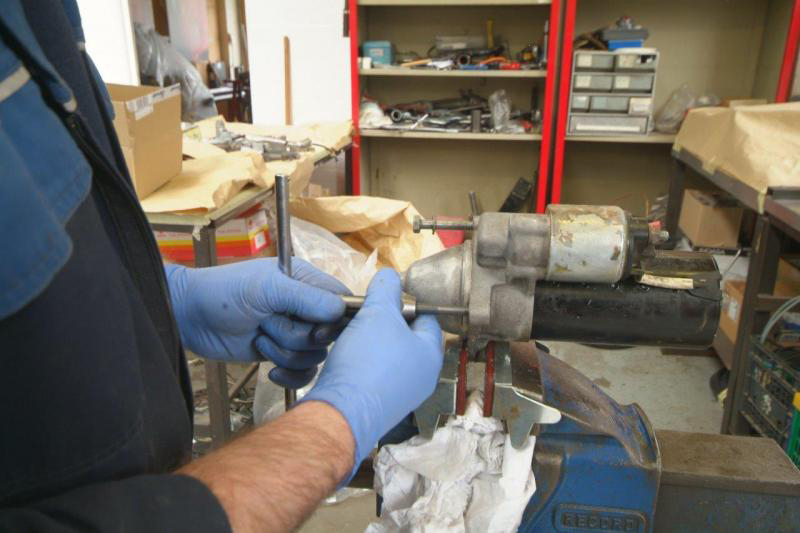

1725486d1371208556-f40-lm-restoration-dscf1356s

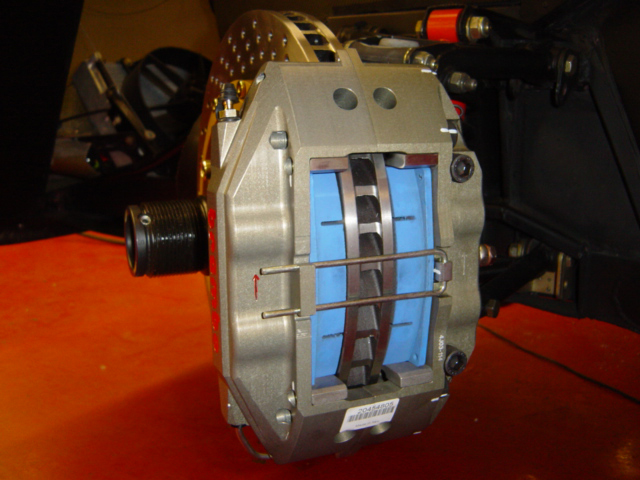

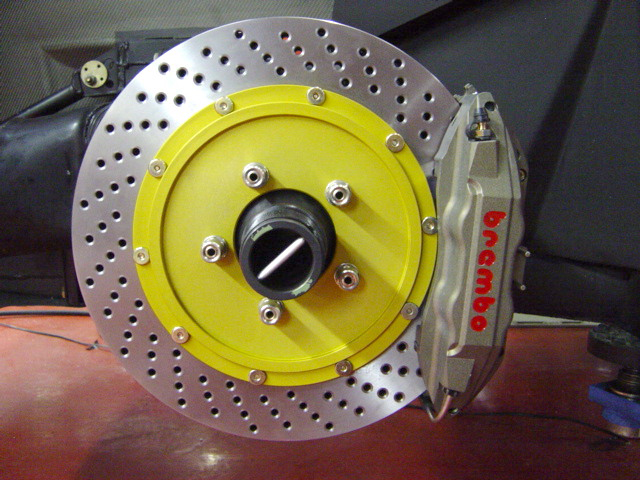

If you look back through the thread there are images of the brakes that were fitted during the cars racing era which were Group C, allegedly off a 962 Porsche. The only sensible alternative today are made by Brembo and they offer an upgrade for the standard F40 as attached (last pic shows difference) but you need the bigger rims to fit the discs. We have full LM units which are very different, different discs, calipers, pedal box, master cylinders etc. (see a few pages ago for pics)We are fortunate in that the car started its race life already one of the 27 LM/GTE conversions as to convert a standard road car to this spec would today be even more eye watering and possibly not an enhancement investment wise given the high value/cost of a road car. Aside from the obvious, there are just so many details that separate a road car from an LM, but even then you would not have that vital race history.
1726222d1371383146-f40-lm-restoration-dsc02682
1726223d1371383146-f40-lm-restoration-dsc02685
1726224d1371383146-f40-lm-restoration-dsc02687

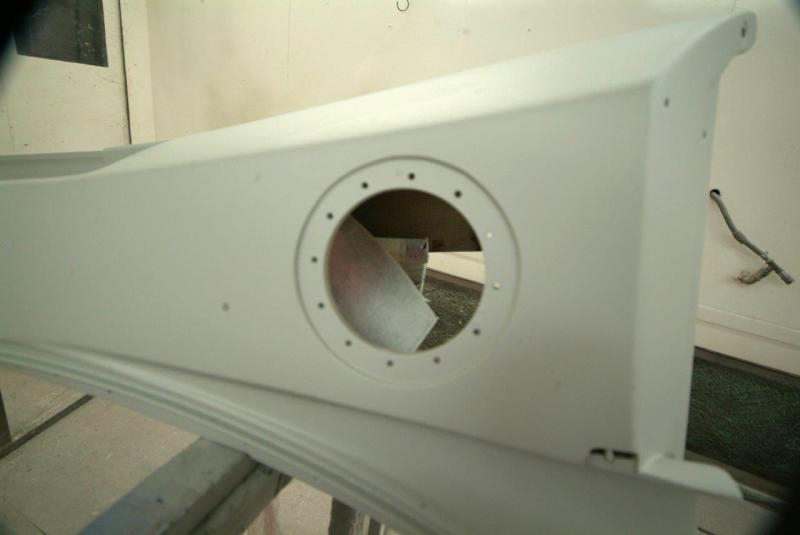

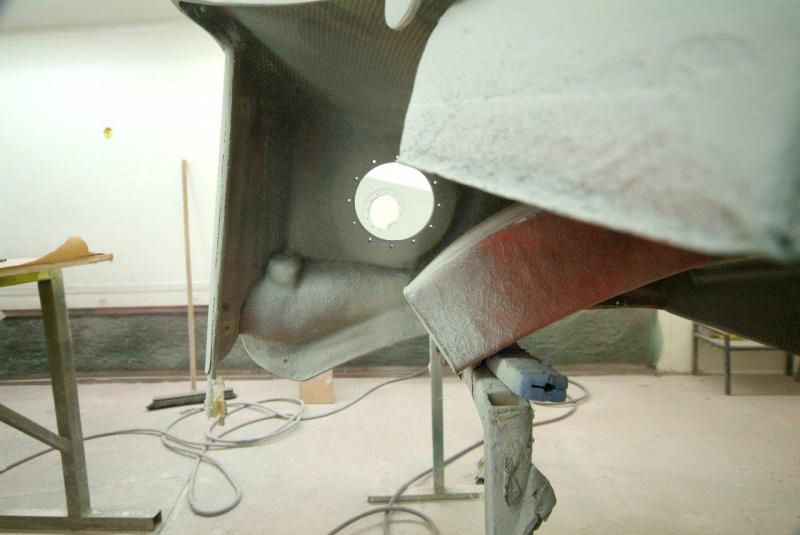

That is exactly my aim, to create a car that can be used rather than become a garage queen, and hopefully finished to a higher standard than any of the competition and good for another 25 years.Meanwhile, we have rear clams in primer and finally side pods in primer, all looking very neat and tidy with faired in fuel caps etc, just waiting for the final front body panels to join them.Next up refit the suspension (again) and the panels to the chassis, line up all the panels so as to get the gaps correct in situ, something Ferrari never did, make final adjustments and then actually paint the panels red! Meanwhile front clam, which can be treated separately and in relative isolation to the rest as it only has a junction with the chassis rather than other panels, can be done once we have finished all the ductwork. Then all the suspension has to come off again (4th time) for chassis paint.I feel I just about have my fingertips on the edge of the hole now-maybe a couple of weeks before final assembly actually starts and I can see out of it.
1727199d1371549341-f40-lm-restoration-dscf2800s

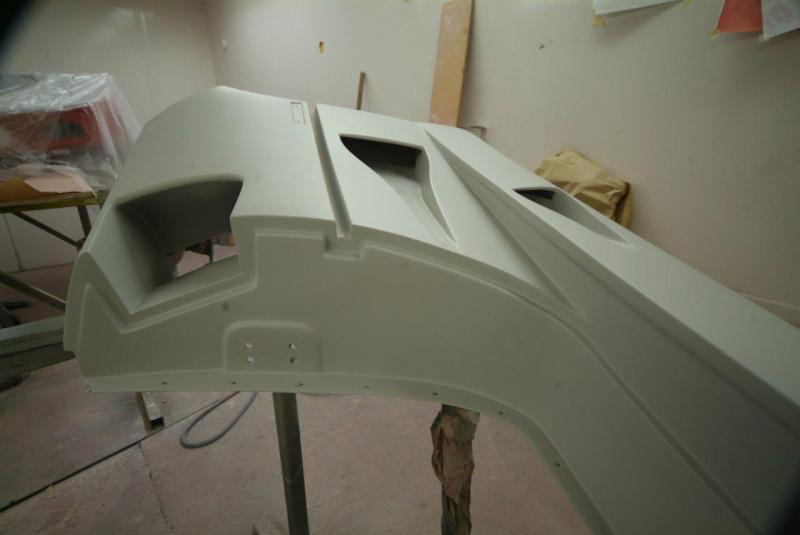

1727200d1371549341-f40-lm-restoration-dscf2806s

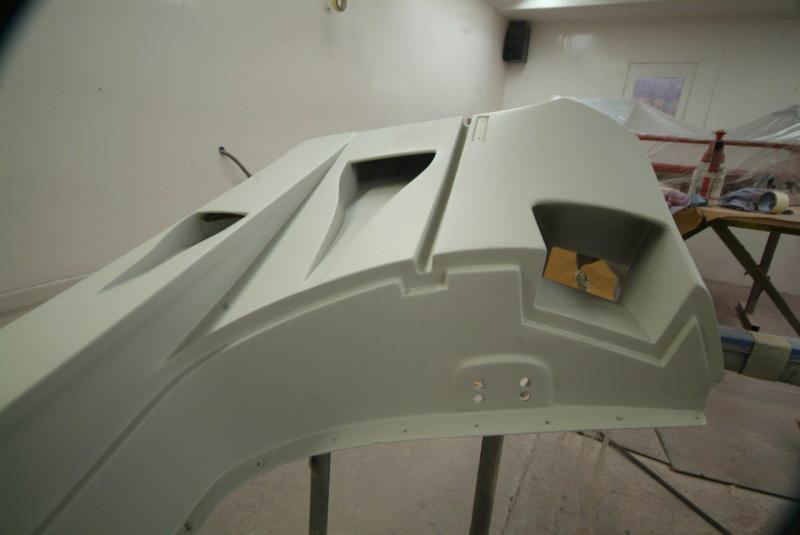

1727201d1371549341-f40-lm-restoration-dscf2805s
1727202d1371549341-f40-lm-restoration-dscf2803s

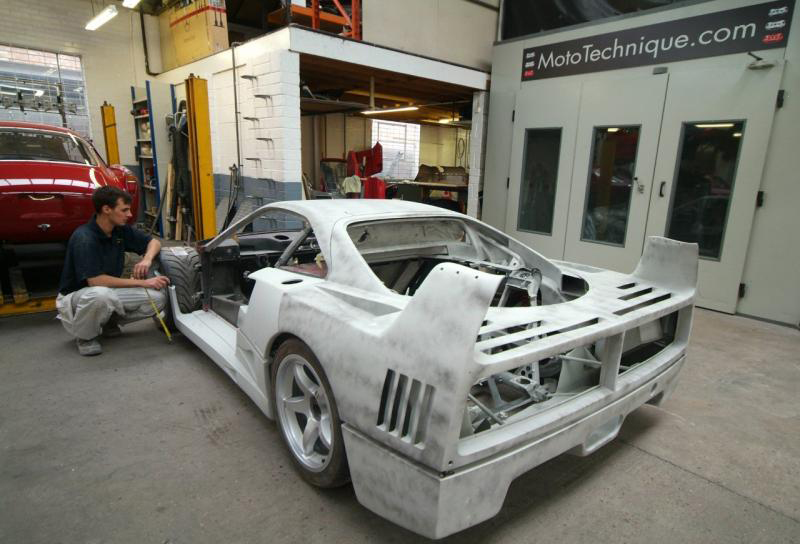

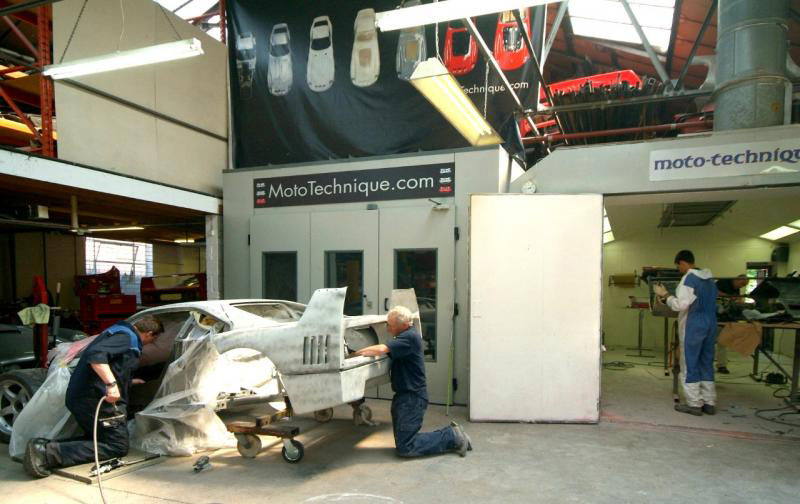

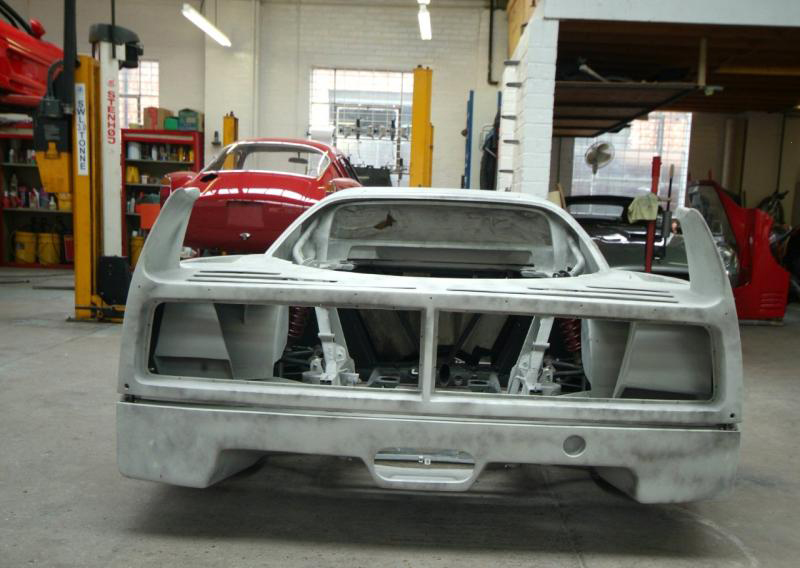

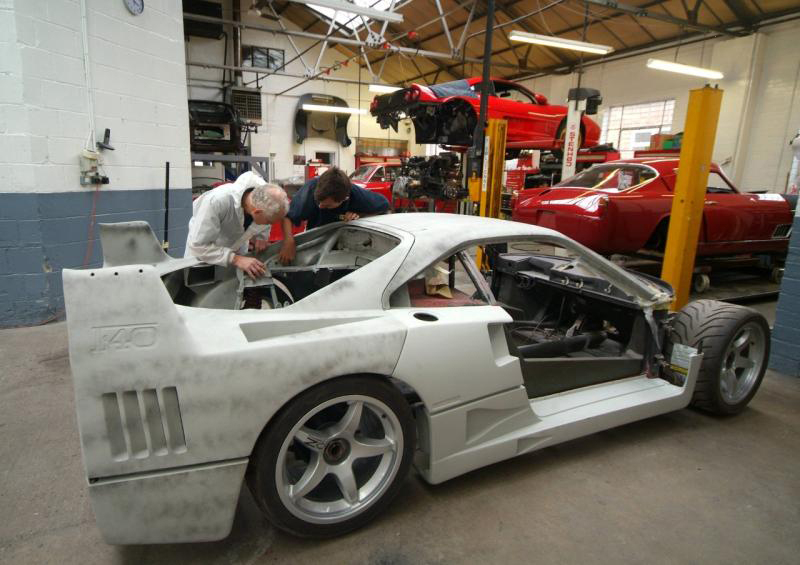

Well two steps forward one step back. All the main panels primed and fitted, save for the front clam, all married up and pretty much ready for paint. Or so we thought.
Rear suspension off again and then on for the 4th time to sort hand brake(to make it street legal)and soon to come off again.Then turns out a well known weakness of these cars is for the chassis member to rub against the inner side of the rear clam by the engine bay glass and create an annoying squeak. This has reared its head on this car as you can see being inspected in the 4th pic. So just as we thought we were going red, rear clam has to come off, wax mold made of offending chassis member, clam adjusted, and then of course as the clam will sit slightly lower,we will have to rematch the panel fit. Again.Silver lining, at least by doing it thoroughly and right, we won’t have to repaint the clamTired of 50 shades of grey………

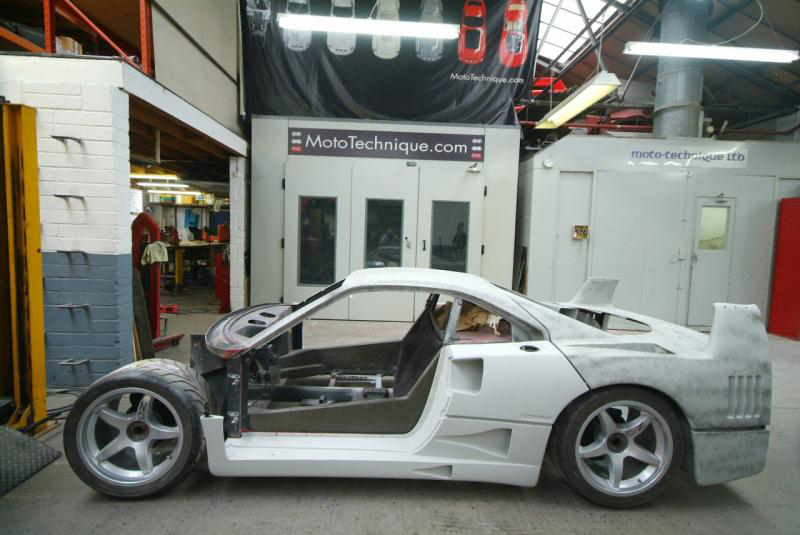

1728906d1371840573-f40-lm-restoration-12th06-006s
1728907d1371840573-f40-lm-restoration-06th-june-005s
1728908d1371840573-f40-lm-restoration-12th06-012s
1728909d1371840573-f40-lm-restoration-12th06-035s
1728910d1371840640-f40-lm-restoration-12th06-038s

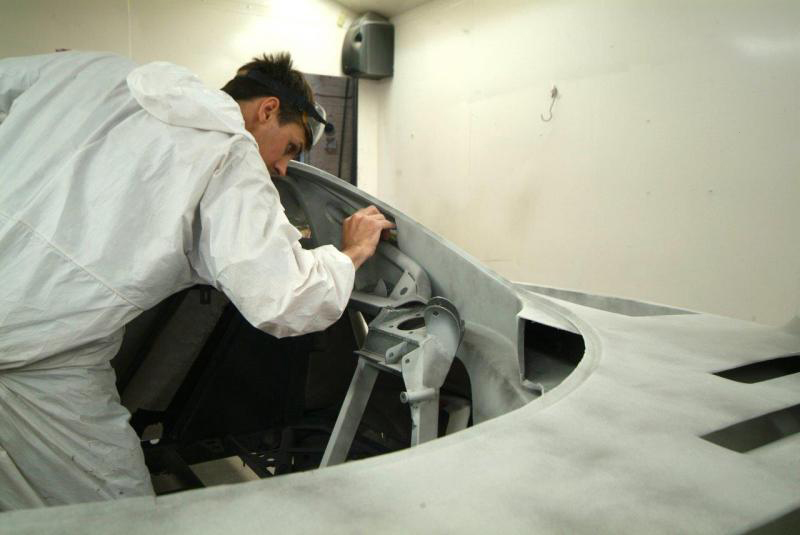

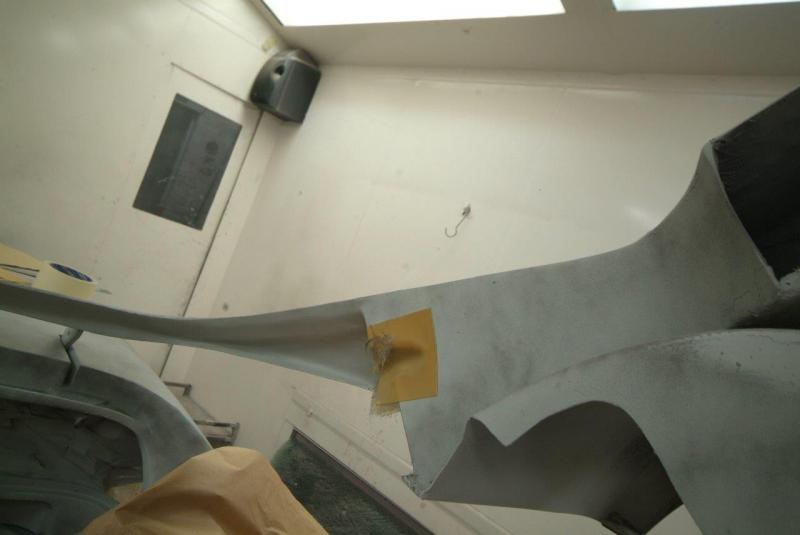

Work has started on eradicating that annoying squeak where the frame member rubs against the rear clam. Wax mould taken, clam adjusted and then refitted with resulting re gapping of panel joints.
1730058d1372091005-f40-lm-restoration-13-th-june-13-003s
1730060d1372091402-f40-lm-restoration-120613-011s

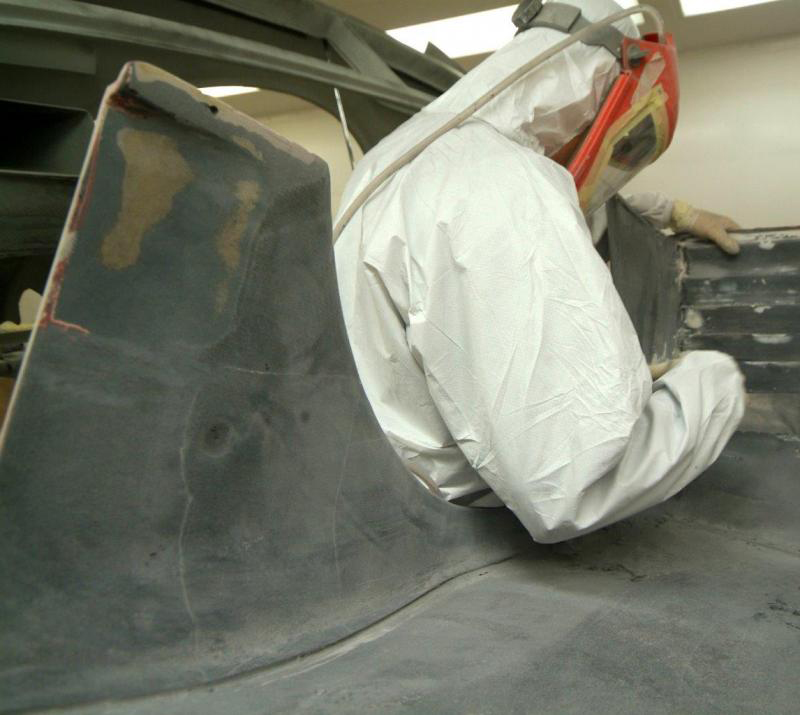

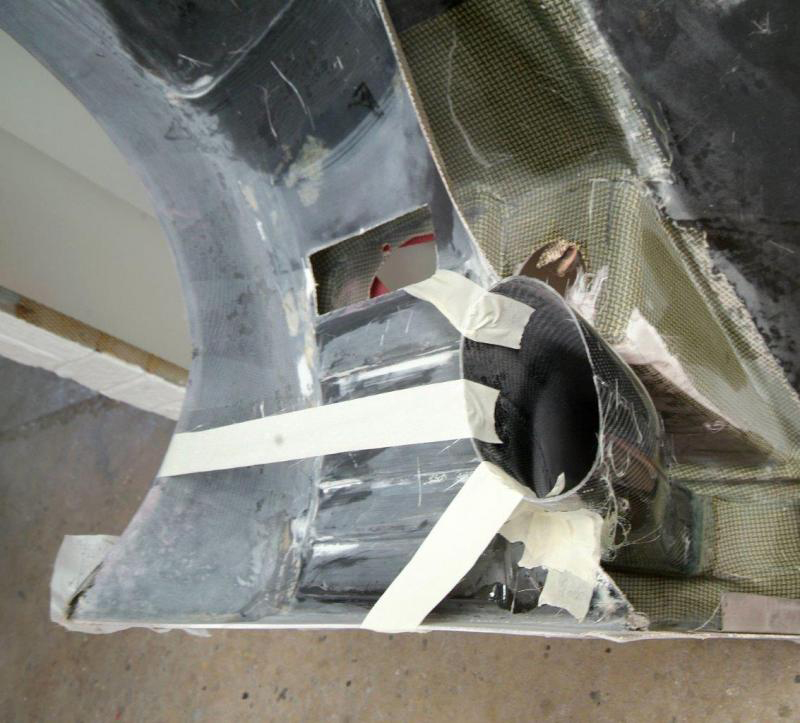

Work going well on the front clam and looking to have it in primer by the weekend. Despite life being too short, we are putting a humungous amount of time and effort into this panel and still have some way to go but a long way from where we started. And squeak free.
1730766d1372168091-f40-lm-restoration-13-th-june-13-005s

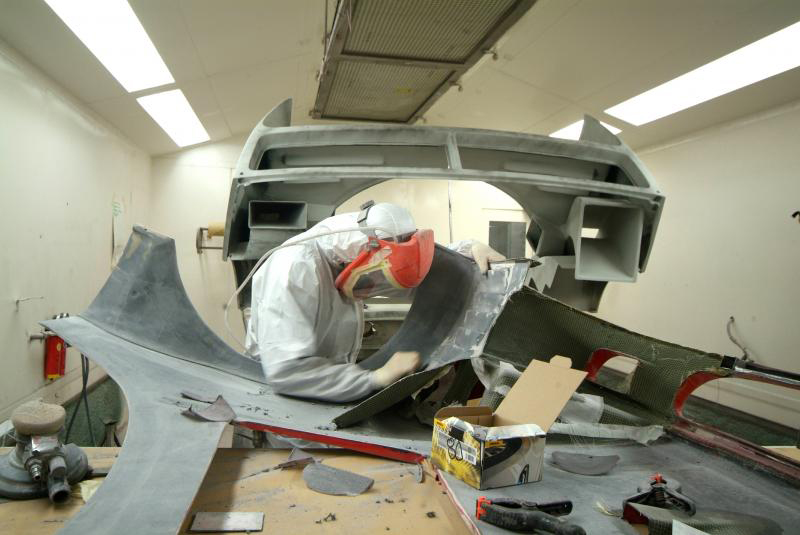

1730767d1372168091-f40-lm-restoration-13-th-june-13-007

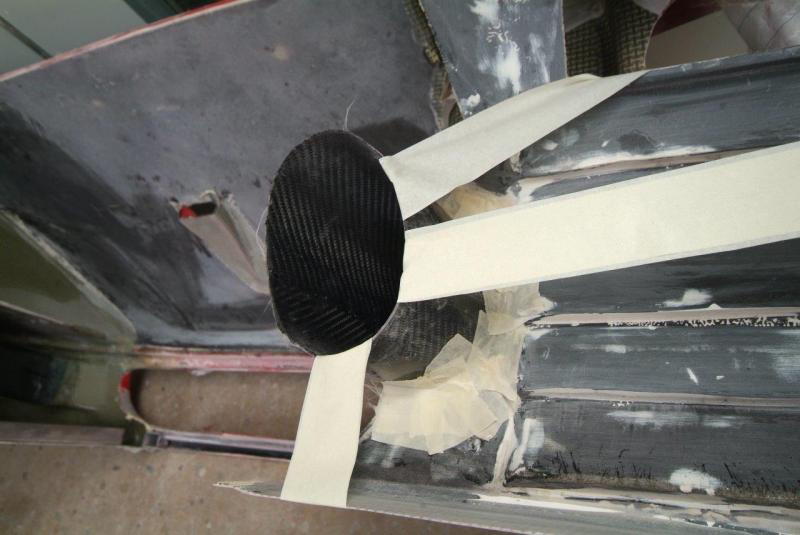

1730768d1372168091-f40-lm-restoration-14th-june-010s
1730769d1372168091-f40-lm-restoration-14th-june-013s
Meanwhile back in the real world, the apparently to be accepted squeak has now been dealt with and the panels re-gapped but it has delayed the plan to get the primer on. This 50 shades of grey thing seems endless.Getting closer.

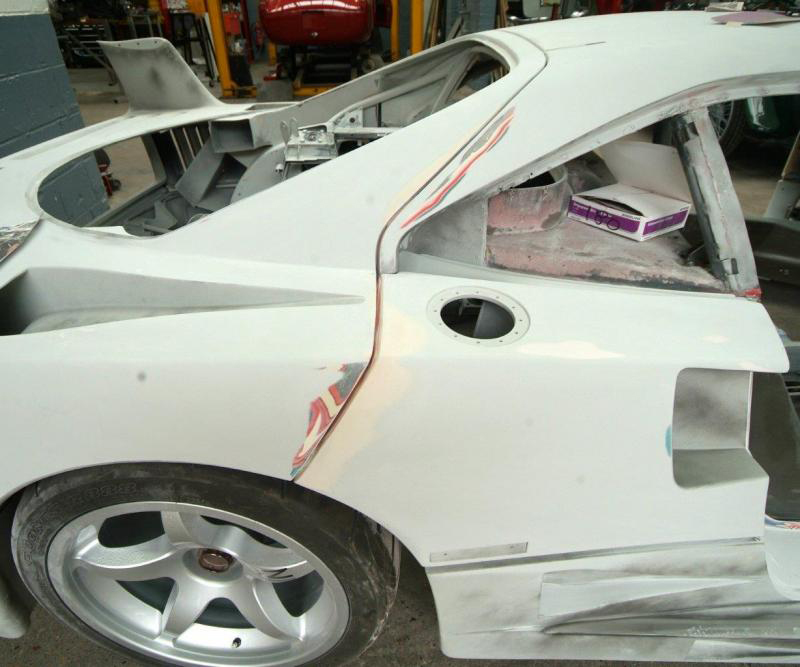

1731373d1372261319-f40-lm-restoration-19th-june-13-012s
1731374d1372261319-f40-lm-restoration-19th-june-13-013s

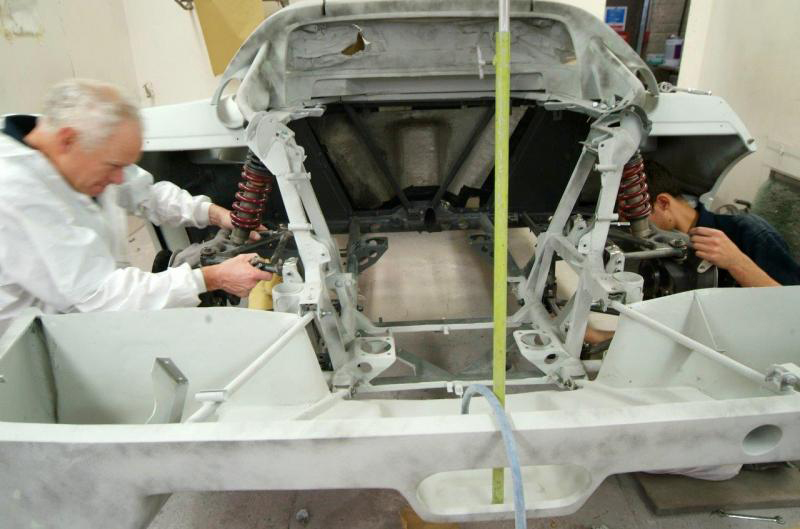

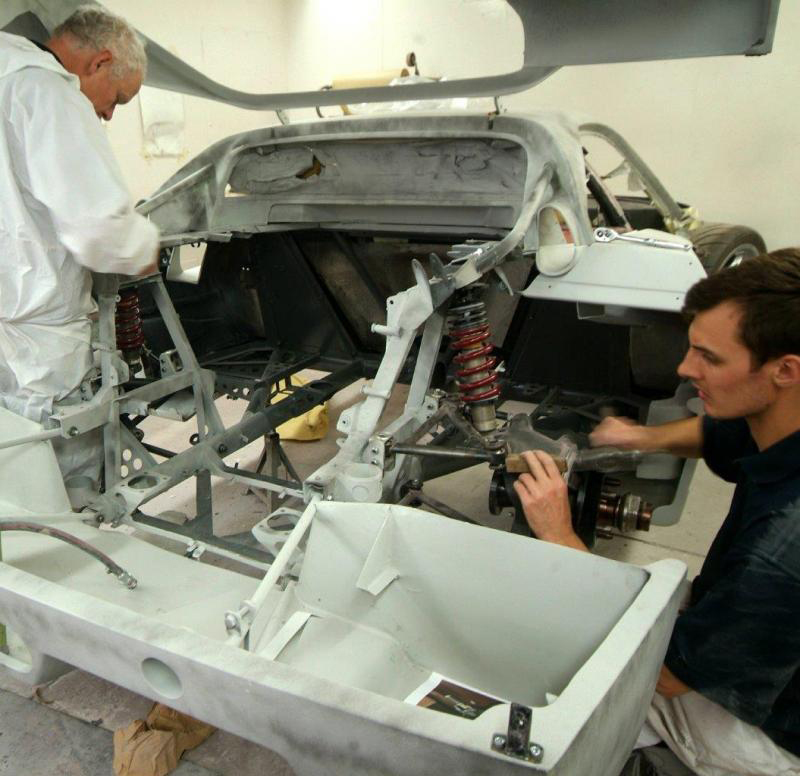

Suspension on again for the fourth time! And then only needs to come off once more for painting and chassis paint. Then it goes back for real.
1731886d1372347927-f40-lm-restoration-12-001s
1731887d1372347927-f40-lm-restoration-12-015s

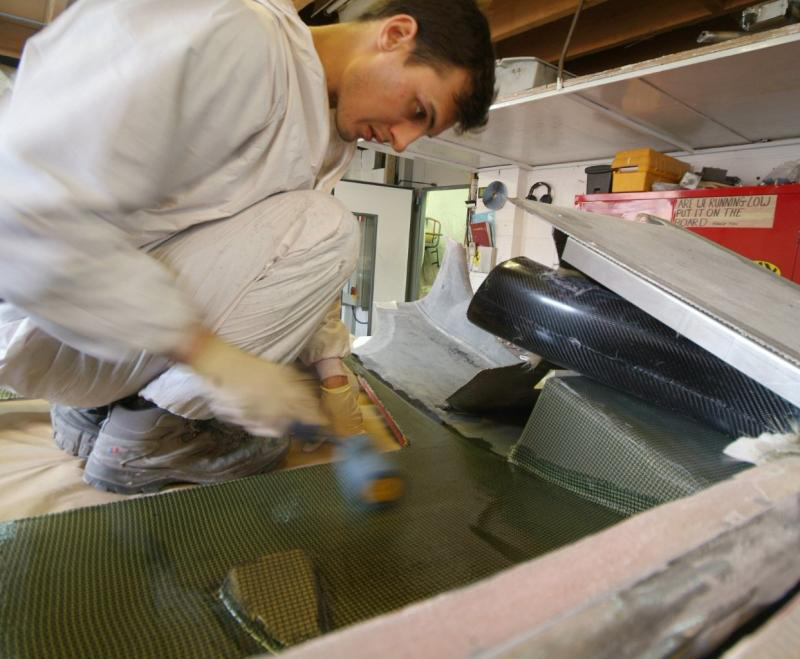

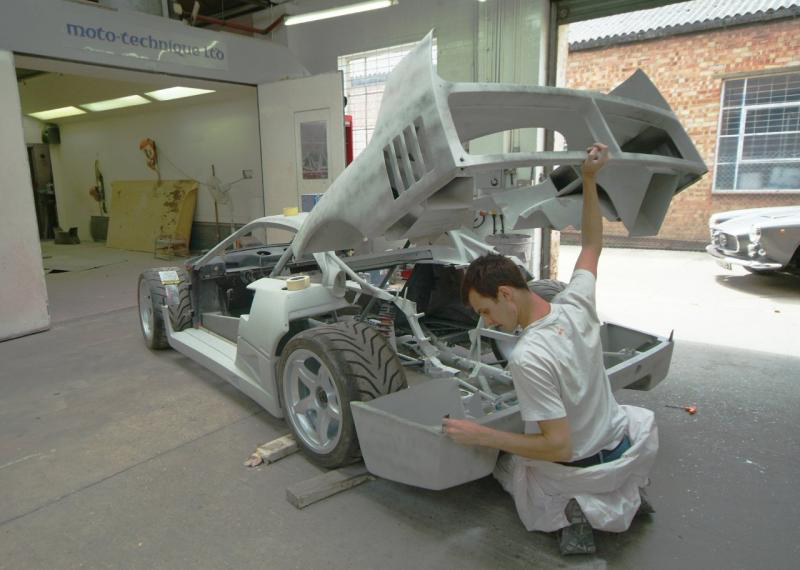

More work on the front clam to sort out the ductwork, then back on to check before going back into the body shop for final prep but there are still two final ducts that cannot be fitted until we have the radiator in place.
1732553d1372445012-f40-lm-restoration-17th-june-13-016s

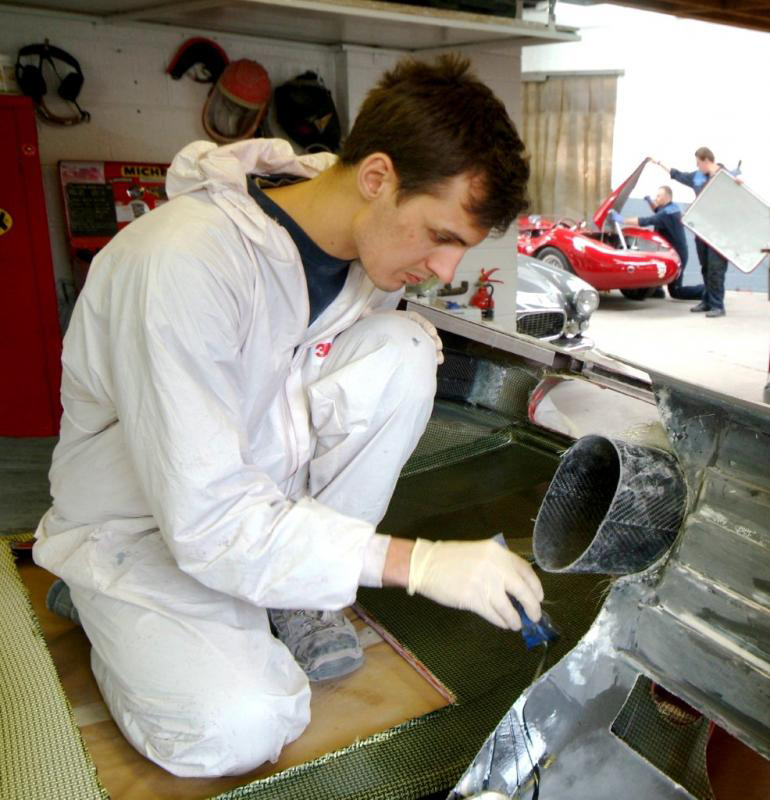

1732552d1372445012-f40-lm-restoration-17th-june-13-007s

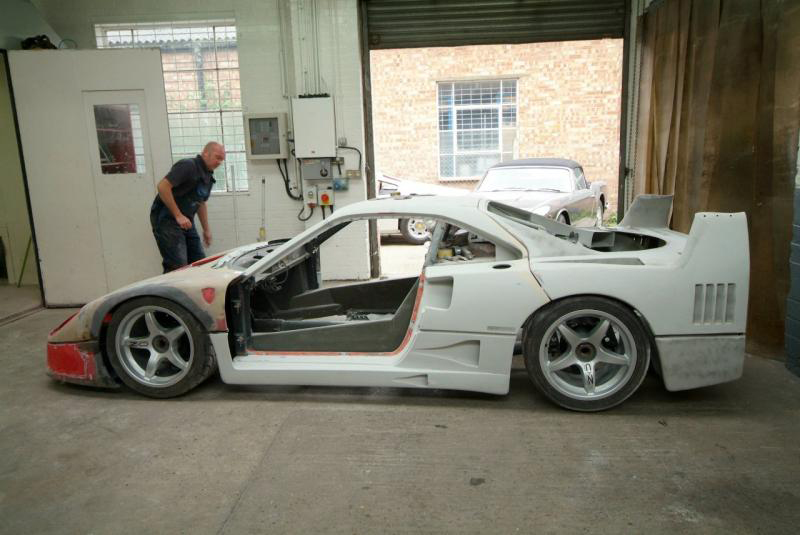

1732554d1372445012-f40-lm-restoration-19th-june-13-001s
1732555d1372445012-f40-lm-restoration-14th-june-006s

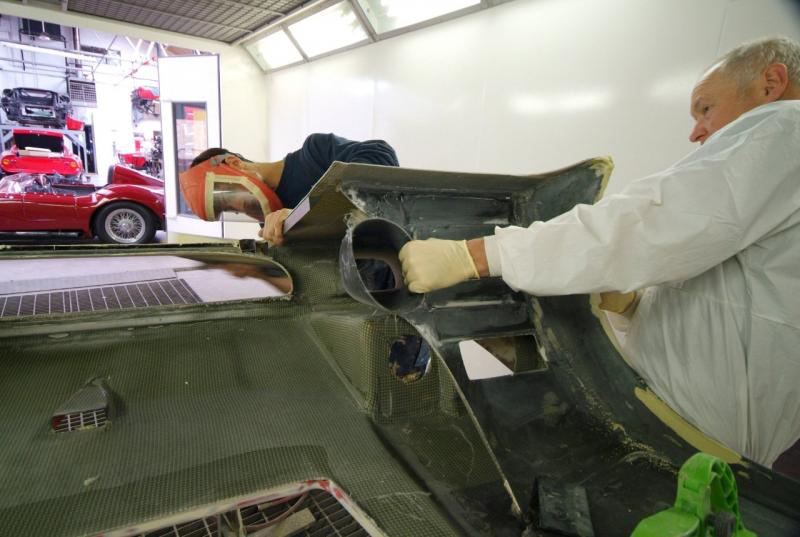

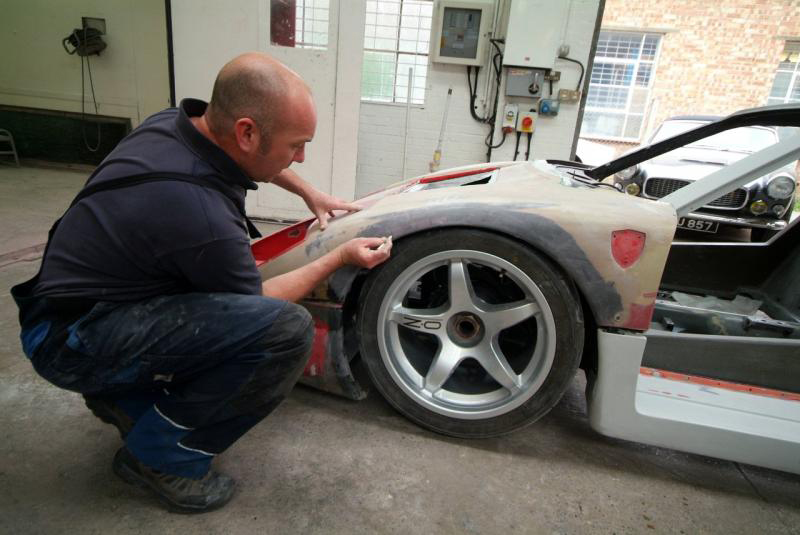

Couple of other shots from last week. More work on the front clam and appreciate the background.The quality of cars passing through Mototechnique’s workshops is truly amazing. More to follow….
1733024d1372523616-f40-lm-restoration-19th-june-13-006s
1733025d1372523616-f40-lm-restoration-130625-004s

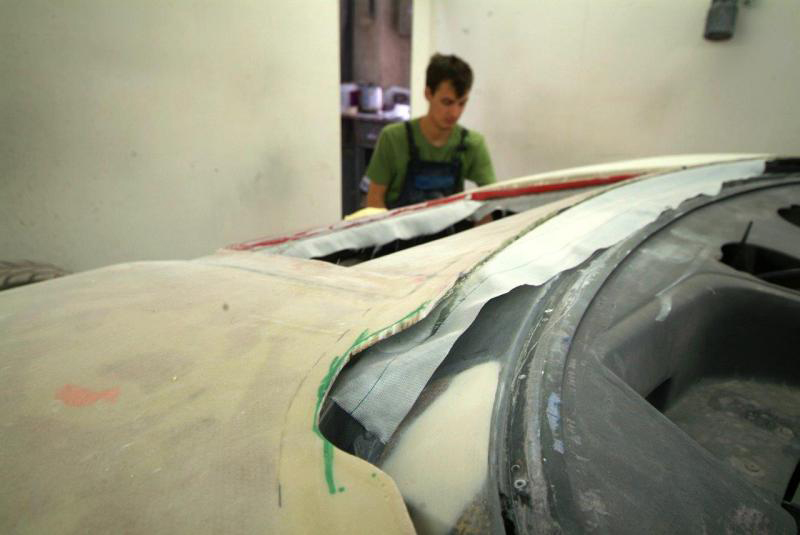

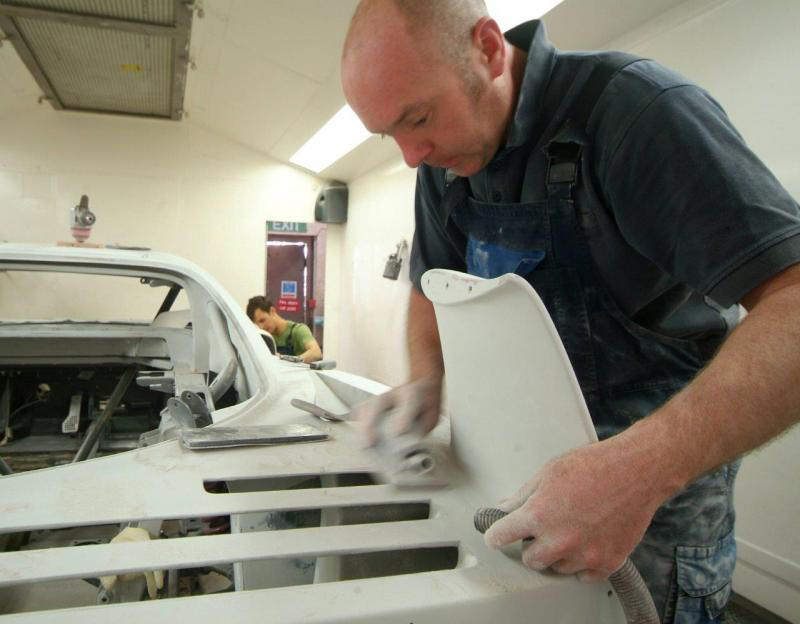

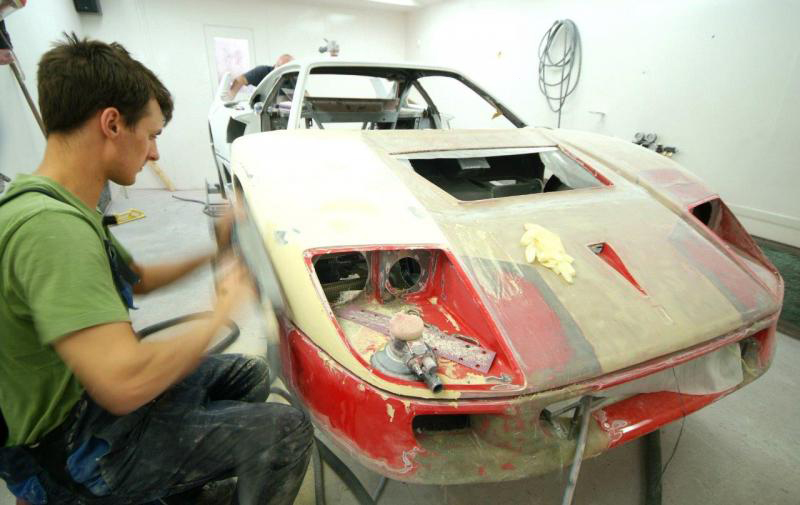

Back in the paint shop, hopefully now with definite intent of colour, and the final shots, I think, of the prepared and un-painted front clam. Wednesday it will be in primer.Work continues on final preparation and the rear panels and roof are just about ready for paint having been primed and baked. We will see colour this week!Hopefully also a week of deliveries as we assemble all the parts out being made/treated by specialists. Manifolds with Zircotec coating, new turbos again Zircotec treated, new lightweight flywheel and clutch, reground camshafts and maybe even our re-polished crank. Or at least that is the plan, but to be honest we are not being held back so none of this is on the critical path, as yet.

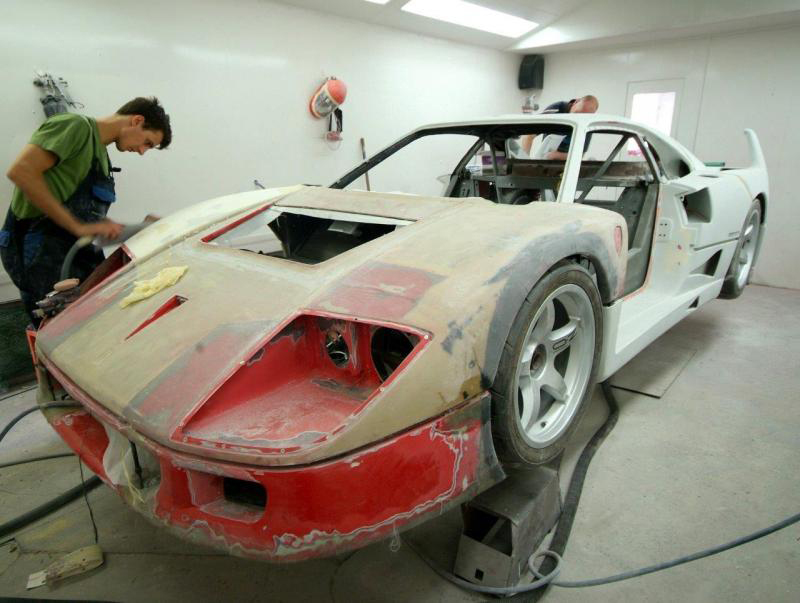

1733738d1372669120-f40-lm-restoration-19thy-004s
1733739d1372669120-f40-lm-restoration-19thy-007s
1733740d1372669120-f40-lm-restoration-19thy-012s
1733741d1372669120-f40-lm-restoration-19thy-017s

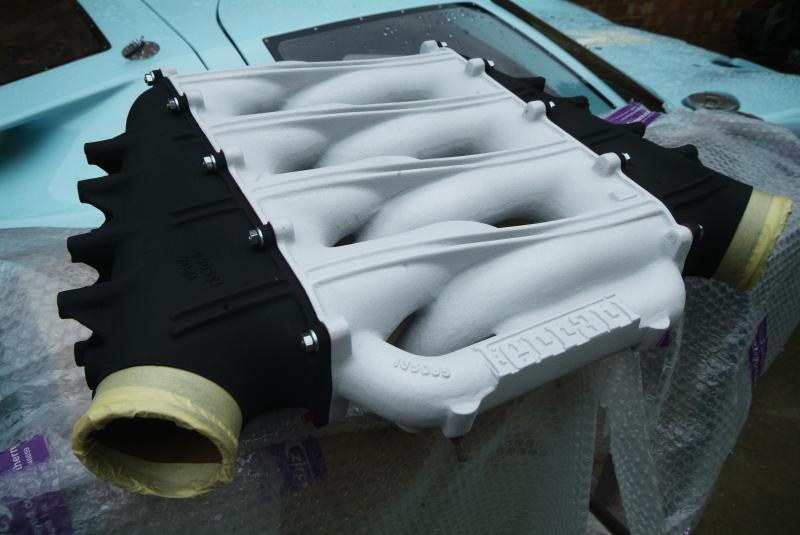

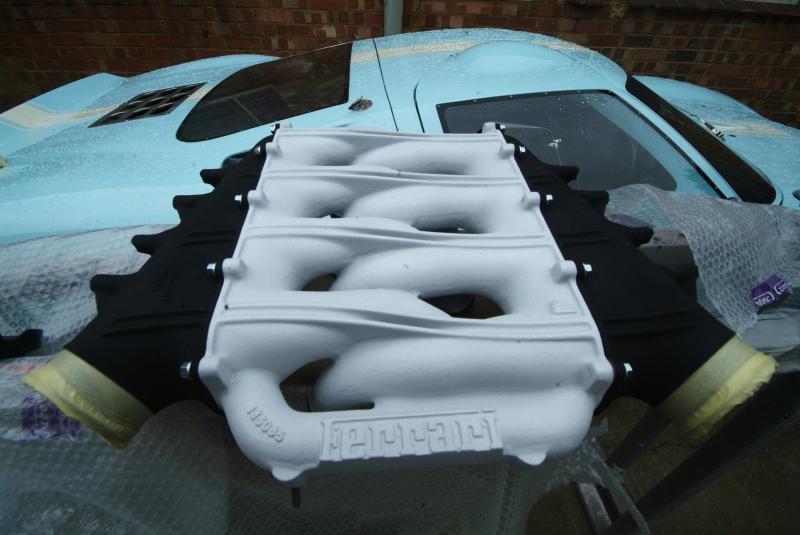

Just look what the Postman surprised us with today – our Zircotec treated inlet manifolds!For those who are unaware, Zircotec is a ‘plasma-sprayed ceramic coatings to protect components from the effects of fire, heat, wear, abrasion and corrosion’. In this instance it will help keep our charged inlet air at a lower temperature which means ‘increased engine performance, eg. a 30 degree C drop in intake air temperature can deliver a 6% increase in power, or can increase engine efficiency leading to less fuel usage’.Used extensively in F1, Nascar, GT racing, Classic cars etc, this hot engine bay seems to be the place to use it and we will also be applying their process to both our exhaust manifolds and hot side of the Turbos.Another work of art to be set alongside the Carbon tanks, Michelotto suspension etc.Yet again, note the background car, yet another classic into their shop for a bit of work.
1734121d1372711260-f40-lm-restoration-june-007
1734122d1372711328-f40-lm-restoration-june-006

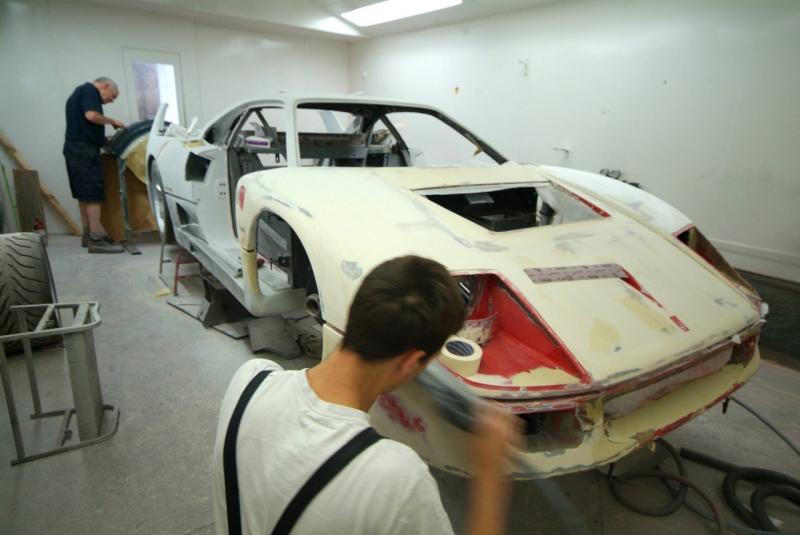

The very last shot of the front clam before we apply polyester spray filler, a sealing coat which will tie all substrates together before final finishing and full priming. Just checking the Perspex headlight covers for a perfect fit and then off to the spray booth tomorrow.Some colour by the weekend? Not on this panel, but hopefully elsewhere.

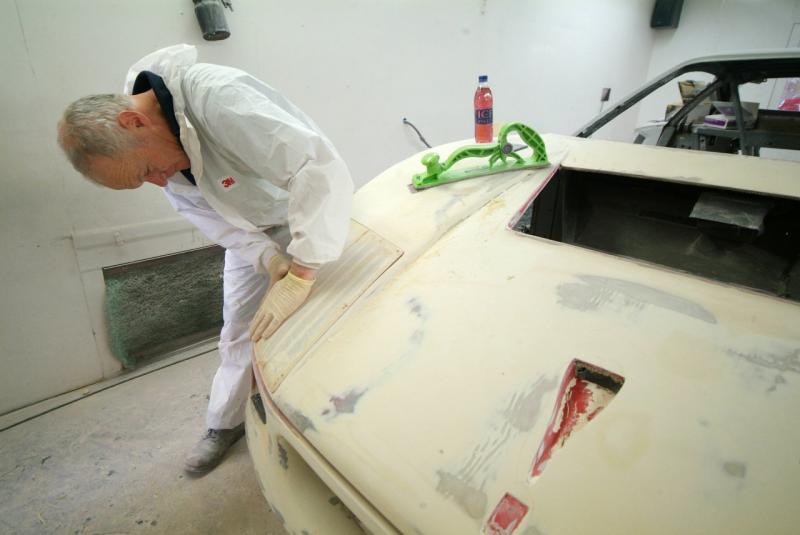

1734639d1372794556-f40-lm-restoration-2506-012s
1734640d1372794556-f40-lm-restoration-210613-001s

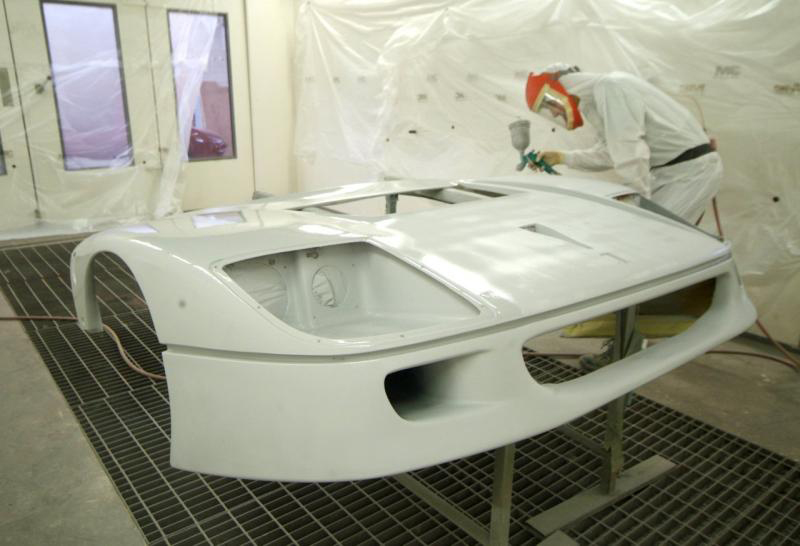

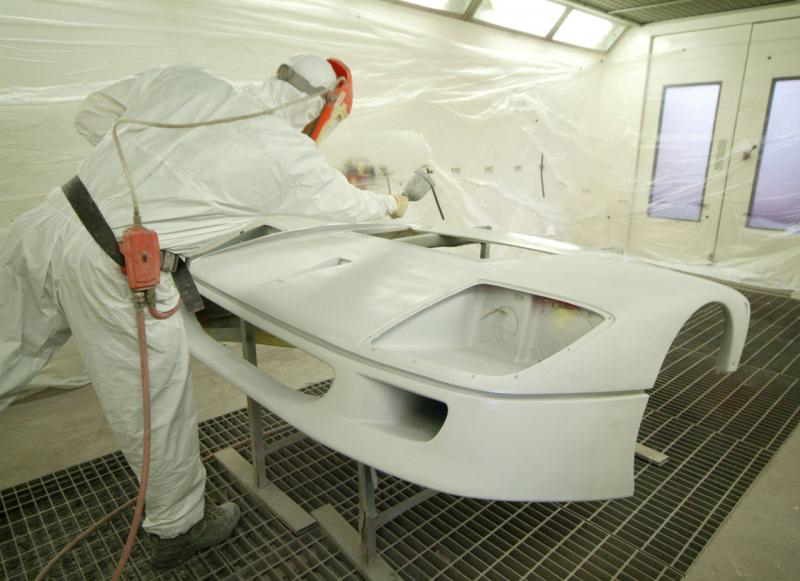

You will all be relieved to see that you never have to look at any more shots of the multi-hued front clam undergoing work (except on the underside) and it is finally close to joining the other panels in grey primer. This polyester spray filler bonds the various substrates and then into the oven before final finishing and grey primer tomorrow. Relief.Thanks Greg for you post and after all this work I too really do hope it pays off in years of enjoyment-this is a long haul and if you read back through the thread there was a stage I thought it would be over in 4 months. Ridiculous knowing myself and my goals.
1734935d1372843071-f40-lm-restoration-26-010s
1734936d1372843129-f40-lm-restoration-26-005s

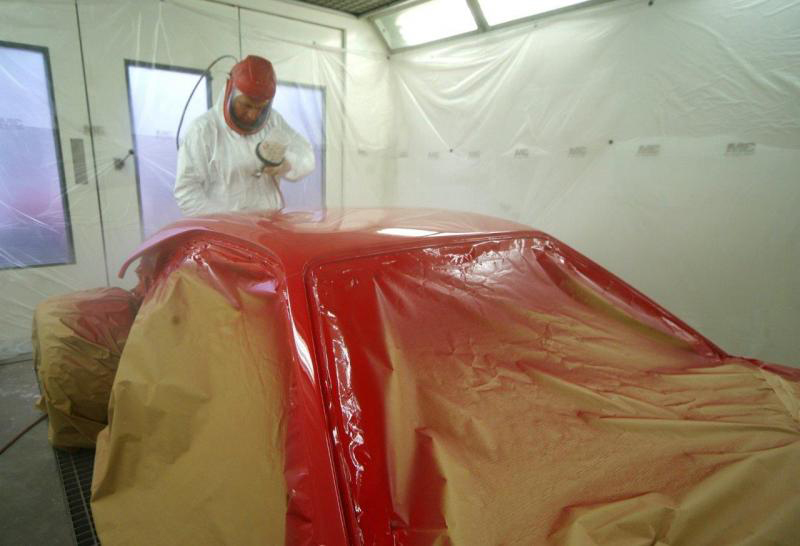

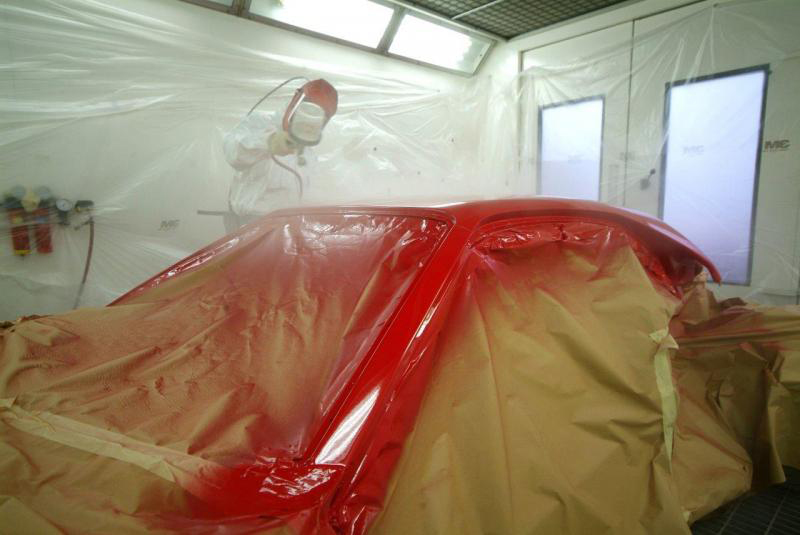

Finally a glimpse of colour over the lip of the moneypit!F40′s apparently were painted in slightly different shades of Rosso Corsa during their production cycle ranging from a darker red to one with a slightly more orange tint. We have gone for the slightly darker shade and apparently I now have to choose whether we go for an old fashioned ” Coach builders” full flat and polish finish which removes all ” Flow ” (Orange peel is a chunky effect whereas ” Flow is a smoother gun finish) or we lightly sand to leave a more natural finish – Any thoughts?Next up, before the week end, is for the chassis to go silver and that means real progress.
1735506d1372927296-f40-lm-restoration-27th-june-008s
1735507d1372927296-f40-lm-restoration-27th-june-017s
Revealed. Visited the shop today and the red is perfect 300/12 Rosso Corsa, deep and beautiful, the one with the least orange albeit does not show well in the pics.Masking off now the roof and pillars are in colour, finishing to be done later. Next up we strip the suspension and front assembly, yet again but for the last time, and start wrapping up my present in preparation for chassis paint. This is a moment I have been waiting 6 long months for.This is the last time the car will look a mess. Silver by Monday and then a big week next week…..
1736197d1373048537-f40-lm-restoration-28th-june-001s
1736198d1373048537-f40-lm-restoration-28th-june-13-009s
1736449d1373096924-f40-lm-restoration-28th-june-13-013s
1736450d1373096924-f40-lm-restoration-28th-june-002s
The first ‘hit’ of 5 days of major progress. Up until now either we have been stripping everything, preparing the chassis, bodywork, having replacement items manufactured off site but finally now we can try to bring all the elements together and start to fit them for hopefully the last time.Frame is now finally in silver, not just any silver but a paint whose code took endless, and I do mean endless, calls to Michelotto to reveal, and it is indeed a rather wondrous colour with a lustre that will be seen later this week. When seen against the Rosso Corsa, it is quite stunning. Typically Italian to pay such attention to the aesthetics.Meanwhile all the suspension has been stripped down to their individual component parts, and is in the process of being primed and painted as, being race parts, they were not really suitable for road use in their naked, unprotected condition. Tomorrow, we start to reassemble ready for installation.So the plan this week is silver today, suspension painting and reassembly tomorrow, and then all being well start to mount on the chassis Wednesday.
1737416d1373274140-f40-lm-restoration-dscf3245s
1737417d1373274140-f40-lm-restoration-dscf3237s
The start of reassembly of the suspension parts after two pack treatment.
1737526d1373305574-f40-lm-restoration-02july-002s
The first delicious detail for this week which better shows the luster of this silver finish..On this thread, there has been discussion about not over restoring and so for comparison I attach a standard F40 detail. I don’t remember them being this bad, but this area never had much attention paid to it and was certainly rough, whereas personally I love the direction of our work and would never wish to recreate some of the factory effort. When you look at the restorations carried out today on Daytonas, 275′s, and especially the earlier cars, they never ever left the factory in that sort of condition.
1737780d1373355803-f40-lm-restoration-dsc_0312s
1737781d1373355803-f40-lm-restoration-dsc_0313s
1737782d1373355803-f40-lm-restoration-dsc_0354s
Meanwhile a few additional pics from today. All the suspension units have now been 2 pack epoxy painted so as to avoid corrosion (told by CM not to powder coat or apply any heat to them) and reassembled and should start to be mounted tomorrow. Exciting times as we start to pull things together and fit them ‘for real’.
1738065d1373401341-f40-lm-restoration-02july-005s
1738066d1373401341-f40-lm-restoration-2nd-july-044s
Handbrake in so as to pass MOT (UK rules to enable the car to be road registered). Magnesium pedal box in temporarily but will come out for protective paint as we don’t want this grossly expensive item going the way of The Sultan of Brunei’s.This is a week of major visible progress as all being well we should have the suspension on for good and then next week will be slower as we start to work on the wiring and plumbing which, I am afraid is less exciting to see and report. Meanwhile it looks like we are going to need a new cabin floor-never ending.
1738333d1373461402-f40-lm-restoration-dsc_0316s
A teaser of what is to come-finally all this industrial art starts to find its functional home.
1738545d1373493720-f40-lm-restoration-2nd-july-034s
The first genuine glimmer of hope as the front suspension and anti roll bar go on, hopefully for the last time. Later today, hopefully the rear.Interesting to see how far we have come versus where we were and it at least begins to explain the past 6 months. And the cost.
1738685d1373535829-f40-lm-restoration-7-047s
1738686d1373536035-f40-lm-restoration-111-005a
Well the rears are on but I think the discs are back to front-fronts are good. Finally just beginning to look like a car and again see where we came from. What a change and just beginning to look a little tasty?
1738819d1373565616-f40-lm-restoration-1101-004s
1738818d1373565616-f40-lm-restoration-7-034s
Front jacks now on, rear to follow later today. Note the little additional support from the bottom of the steering rack to the frame and also we now have the Michelotto front anti roll bar mounted just beneath.
1739209d1373620514-f40-lm-restoration-dsc_0320s
1739210d1373620514-f40-lm-restoration-dsc_0322s
And now the rears. In answer to an earlier question from NurScud, the jack mounting position may have moved very slightly-not much room back there as the anti roll bar has to also fit.Monday will give us brakes.
1739552d1373709034-f40-lm-restoration-4th-july-036-2-
1739553d1373709034-f40-lm-restoration-dsc_0329s
And here it is being fitted but then will come back off again. Almost the last of the Michelotto parts.Next week, brakes.
1739713d1373740590-f40-lm-restoration-1207-003s
Rear brakes now on and with the French Horn shaped inlet, just adds to the artistry. Fronts up next.
1740460d1373879251-f40-lm-restoration-dsc_0315s
1740461d1373879251-f40-lm-restoration-dsc_0331s-2-
1740462d1373879251-f40-lm-restoration-dsc_0327s
And now the fronts, yes, discs yet to be reversed….and yes Kevlar on front scuttle yet to be sorted.
1740536d1373905938-f40-lm-restoration-attachment2
1740540d1373905955-f40-lm-restoration-attachment
Time for that brake swap….
1740846d1373961139-f40-lm-restoration-1272013-001s
OK, game over and well spotted Mike, took over 200 views before the bell went off! They are actually the drums off a Tour De France that is in there for a rebuild and the boys were just messing around-shows how braking has progressed.Meanwhile a bit of work on the wiring loom, boring, not very photographic but very essential, all dodgy connectors replaced and questionable wiring sorted, all rebound and now ready for installation.
1741021d1373996417-f40-lm-restoration-120713-018s
1741022d1373996417-f40-lm-restoration-12th-july-13-011s
Well, after a few months and much discussions on timing pins, Postie (UPS) finally delivered our new lightweight flywheel from Nick Beere Racing. Almost identical to the old one but of a higher quality and strength and with more accurate timing pins to be able to take advantage of the Motec engine management system and give us far more accuracy and control than what we had before where the timing pins were actually rattling in their locations (You can just see them held in place by bolts on the first shot). The new version is also the same weight as the outgoing version.Behind, just visible, is our new clutch, and together make up just about the very first few pieces of our restored drivetrain.
1741353d1374048494-f40-lm-restoration-img_0411s-copy
1741354d1374048494-f40-lm-restoration-15th-july-13-003s
My cup runneth over – another arrival today, bad snap of the newly anodised fuel rails and our new high performance gaskets. A reminder of where we are coming from…..
1741455d1374075010-f40-lm-restoration-b9f2319d7875
1741456d1374075010-f40-lm-restoration-dsc_0336s
A few more bits to deal with. Old lightweight Lexan rear screen needs replacing, oil tank will get the full overhaul.
1741807d1374146903-f40-lm-restoration-dsc_0349s
1741808d1374146903-f40-lm-restoration-dsc_0352s
Off to the shop tomorrow and see if I can bring back anything else of similar quality, although I find that view of the rear with the shapes, curves and colours, very appealing.Attached a couple of shots showing a bit of detail work on those had to get bits, even though they will be covered up in due course.
1741928d1374166564-f40-lm-restoration-120713-019s
1741929d1374166564-f40-lm-restoration-120713-007s
Here is a better shot of the flywheel which the pics cannot do justice, absolutely delicious and also now the AP clutch in detail-a handsome couple, albeit that these shots make them look the same size; rest assured they are not and were provided as a single unit.
1742328d1374231699-f40-lm-restoration-dsc_0376s
1742329d1374231699-f40-lm-restoration-dsc_0378s
1742330d1374231699-f40-lm-restoration-dsc_0379s
Another suspension shot with more to follow.
1742347d1374236115-f40-lm-restoration-4th-july-036
Spot the difference this time?
1742431d1374253054-f40-lm-restoration-dsc_0438s
I told you these guys were highly trained, skilled craftsmen….
1742815d1374318141-f40-lm-restoration-dsc_0436s
With the rear anti roll bar now mounted you can get some idea of just how tight things get back there with the pick up points and jacks. Interesting geometry going on with the links.
1743085d1374393166-f40-lm-restoration-dsc_0404s
1743088d1374393228-f40-lm-restoration-dsc_0405s
1743089d1374393341-f40-lm-restoration-dsc_0400s
Time for a break from the rear suspension and into the paint shop. Panels undergoing their final prep and then first coats of colour before the clear coat. Side panels are on the critical path so they will be finished up first as we hope to get them fitted as a next milestone. Front clam still in final prep and will be the last panel to get colour, still needing to have further ductwork fitted which can only be done once our radiator is in position as, yet again, clearances are tight.
1743583d1374475050-f40-lm-restoration-18tth-011s
1743584d1374475050-f40-lm-restoration-18tth-022s
1743586d1374475276-f40-lm-restoration-150713-009s
An interesting addition we are making. We are lining the firewall with a very lightweight Zircotec product, Zircoflex 3, a thin highly effective insulation foil to try and keep the cabin temperature more bearable as well as insulate the tunnel through the cockpit which carries the radiator pipes. Hopefully in this way we can minimise heat absorption into the cabin, given we have no A/C it could be a useful bonus. Invisible but effective.
1744286d1374586858-f40-lm-restoration-120713-007s
1744287d1374586858-f40-lm-restoration-dsc_0386s
1744288d1374586858-f40-lm-restoration-dsc_0427s
And so it continues. Back in the body shop we have now applied the clear coat and the sanding starts working our way down through varying degrees of coarseness to something you could almost polish you face with, yet is still mildly abrasive.You can see the start of the finish in the reflection in the last image where they are working in the vents, areas that never interested the factory. Some might say non original, I say I want it as good as it can be and how the factory would like to be turning out all their cars if they were not so focused on the bottom line-I can assure you if I was to respray my Spider, I would not want to duplicate the factory finish! Traditional Ferrari orange peel has no place here.
1744699d1374673251-f40-lm-restoration-dsc_0394s
1744700d1374673251-f40-lm-restoration-dsc_0388s
1744701d1374673251-f40-lm-restoration-dsc_0391s
1744702d1374673251-f40-lm-restoration-dsc_0397s
1744714d1374673445-f40-lm-restoration-photo
The last of the suspension detail for now unless someone has not had enough of it. Love the small cross brace from the steering rack back to the chassis, I assume to help deal with increased strain from the ridiculous front wheels. Also another reminder of where we came from with the front brakes. It was found that drilled brakes wore badly and spider cracking started between the holes resulting in potential failure. Early LM’s had drilled discs and later they were replaced with what we have.Trying my hardest to get CM, when I manage to reach him which on average takes weeks now rather than days, to supply us with new wheel nuts but he does not appear to understand they are different from a standard car despite making them! Anyone out there have any genuine spare LM wheel nuts?
1745304d1374765908-f40-lm-restoration-image4
1745305d1374765908-f40-lm-restoration-image3
1745306d1374765908-f40-lm-restoration-image5
1745310d1374765982-f40-lm-restoration-image1
1745311d1374765982-f40-lm-restoration-image6
1745312d1374765982-f40-lm-restoration-image7
1745313d1374765982-f40-lm-restoration-image8
1745314d1374766023-f40-lm-restoration-image9
1745315d1374766023-f40-lm-restoration-image
Work has also been progressing on the new radiator as, like everything else on the car, the old one had had it. New high performance core fitted but invisible due to temporary alloy protection panels. I think we may have to also fit electric fans again so as to make the car acceptable for very limited road use and also all that hanging around the pit lane etc.Collector box to channel the air also fabricated and fitted, and aside from the major exception of the motor, this must be one of the last large parts to be readied. Next week will be a truly transformational one with body panels actually being fitted as it starts to come together and by the end of it we will definitely have something that looks like a car.
1746142d1374930847-f40-lm-restoration-23rd-july-13-029
1746143d1374930847-f40-lm-restoration-23rd-july-13-066-1
1746144d1374930847-f40-lm-restoration-24th-july-13-002
1746145d1374930847-f40-lm-restoration-24th-july-13-009
Back to the paint shop and Cills and doors now finished and ready for installation! This week will see major move forward as we finally return some of the panels to their rightful home. Note the rebuilt and refinished door catches.As mentioned before, the paint on the F40′s changed during the production run and we have gone with 300/12 which we find to be the darkest Rosso Corsa with least orange whereas I note in another thread here on Fchat someone said the total opposite. Having seen the two together, we have the right result whatever it may be called! Starting to get really exciting now, we just need some engine parts back from Crosthwaites as within the not too distant future, we are going to need to start thinking engine.
1747318d1375100895-f40-lm-restoration-image-158
1747319d1375100974-f40-lm-restoration-image-155
1747320d1375100974-f40-lm-restoration-image-152
Another reminder of where we came from with the old cill with possible evidence of what looks like a small fire.Now how about this, one cill finally installed, inside cleaned up and painted! Look closer and you will also find new engine mounts and a bit of plumbing. Real progress as everything starts to come together, or in the case of the radiator, apart again as it needs to go off for pressure testing.When undertaking a project such as this, it is amazing how draining the first months are, not just financially but emotionally as you keep on getting bills, big ones, and yet all you seem to have for it is collection of clapped out parts in varying shades of repair or restoration spread across the countryside and it does not even look like a car anymore; yet the bills, not small ones, keep coming and you keep posting cheques and seeing – not much. and you wonder if you can afford to carry on like this, the job having exploded in reach.Then, as more and more unexpected work is revealed, you begin to wonder if you will ever get your fingers on the lip of the pit, and finally after seven months it is only really in the past two weeks or so that I now feel confident that I am over the edge and the whole unexpected saga makes sense and is beginning to shape up to how I had envisaged it. It also helps when you are supported, in my case, by Kevin and his amazing team for whom no obstacle appears insurmountable. If you are contemplating a project like this, chose your shop very very carefully, they need to offer a lot more than a smart reception, something Mototechnique certainly do not have! They invest in their team
1747770d1375188015-f40-lm-restoration-image-3
1747771d1375188015-f40-lm-restoration-image-4
1747772d1375188015-f40-lm-restoration-image-1
1747773d1375188015-f40-lm-restoration-image-2
1747775d1375188067-f40-lm-restoration-06-june-13-05s
1747770d1375188015-f40-lm-restoration-image-3
1747782d1375190507-f40-lm-restoration-image-26
Work on the wiring now well underway. Love being reminded of how far we have come by these shots of the cabin a few months ago and just what a mess she was. Hopefully you can see what is pre and what is post!On the brown paper you can see what we stripped out of the car, a mass of loose connectors and most importantly a totally frayed through main battery line; untouched, a major fire was in this cars future. Some of the wires also had evidence of heat damage so as posted earlier, all dodgy connectors and frayed wiring out, new in, all rewrapped and now being installed. Hopefully it is clear what is pre and what is post!Towards the bottom you can see the old battery cable, amazingly totally worn through and copper wire exposed, against our new version, properly insulated, sitting on the front clam whose speckled appearance is a witness coat so the guys can make sure they have dealt with every nook. Much more work on this entire front clam, plumbing, ductwork integration needed, a complex area on an LM
1748495d1375281634-f40-lm-restoration-image-59
1748496d1375281634-f40-lm-restoration-24072013-142
1748497d1375281634-f40-lm-restoration-image24
1748498d1375281634-f40-lm-restoration-image-6
1748499d1375281689-f40-lm-restoration-image-3
1748500d1375281689-f40-lm-restoration-image23
1748501d1375281689-f40-lm-restoration-image-1
1748502d1375281768-f40-lm-restoration-230713-006-1
Fuel filler caps now fitted. All the windows are Perspex with the exception of the windscreen but were all in a sorry state. The rear screen is being renewed in Lexan as that was beyond redemption but all the side panels have now been buffed up, the frames repainted and now actually fitted. Nice to have elements being fitted for real, not just for trial.
1749208d1375363075-f40-lm-restoration-image-1a
1749213d1375363193-f40-lm-restoration-24th-july-13-025
1749209d1375363075-f40-lm-restoration-image-2a
1749212d1375363090-f40-lm-restoration-image-7a
1749211d1375363075-f40-lm-restoration-image-5a
A few general shots to show where we are finishing up the week. All Windows and window frames in and next week we hope to dry fit our fuel tanks and are scheduled to receive all our engine parts back from Crosthwaites. Too late to start saving for that one, newly honed cylinders, new exhaust valves, polished crank, reverse gear, titanium rods, pistons with new rings and together with our new flywheel all parts as necessary dynamically balanced. That will be yet another monster milestone. And bill.Front air conveyor being dry fitted as yet to be restored and painted but this front end is just very busy underneath.
1749800d1375446162-f40-lm-restoration-image-3a
1749801d1375446162-f40-lm-restoration-23-015
1749802d1375446162-f40-lm-restoration-23-017
1749803d1375446162-f40-lm-restoration-23rd-july-13-048
1749809d1375446381-f40-lm-restoration-image-5
1749810d1375446417-f40-lm-restoration-image9a
1749811d1375446465-f40-lm-restoration-image-3
Forgot to mention, just dry fitted our new cabin floor here which we will leave out until later to avoid messing it up. Last one had more holes than floor.
1751389d1375658825-f40-lm-restoration-150713-019s
More detailed resto work on ducting, diffuser, rear grill, tanks etc. This is the problem, when you start down this path the last part you fit has to be as good as the first. Wish it would stop.
1751645d1375708322-f40-lm-restoration-image-6
1751646d1375708322-f40-lm-restoration-image-5
1751647d1375708322-f40-lm-restoration-image-4
1751648d1375708322-f40-lm-restoration-image-3
1751649d1375708452-f40-lm-restoration-photo
.
To be continued…
.
A small insight as to what goes into even the apparently simplest repair, the rear Lexan screen, which as you can see was trashed. Clearly you cannot just pop out and buy one but in my nativity I thought you simply bought some Lexan sheet, bent it to your will and whacked it in. Wrong.Firstly, the screen is bonded into place (no old fashioned rubber seal to take up the slack) so it has to be a very accurate fit to the car. To form the correct bend in the right places which conforms to the window aperture we first made an over size former in alloy and braced it against heat distortion and it is then sent off to a specialist company who place the sheet of Lexan over our Alloy former and then it goes into an oven which has an even temperature (no hot or cold areas). The heated Lexan material then wilts over the former and it clamped around the edges until cool, we then trim it to fit and bond it into place. And that is just this tiny item which I gave little consideration to and now every time I look at the rear view mirror, I will be reminded.It will look nice though.
1752204d1375793793-f40-lm-restoration-image-3
1752205d1375793793-f40-lm-restoration-image-4
1752206d1375793793-f40-lm-restoration-image-5
Bit of detail work going on in the background. Old parts constantly being restored and resprayed and now the radiator being attached to the logditudinal pipe work runs. While we are at it, no stone unturned, gear shift and linkage all being stripped, overhauled and rebuilt.Second shot shows rad with all newly finished pipes now in situ and fully connected to the engine bay and finally another startling shot from Kevin’s Everest.
1752817d1375880559-f40-lm-restoration-image-5
1752818d1375880559-f40-lm-restoration-image-3
1752819d1375880559-f40-lm-restoration-image-2
1752821d1375880624-f40-lm-restoration-image-4
All the myriad pieces that need to be checked over, prepared, cleaned and refinished which I keep on forgetting about and sort of hoping they might do as they were. As I have said before every piece has to be as good as the last and as the very first were those truly beautiful fuel tanks, that set the bar pretty high. I thought they were expensive items at the time but had no idea they would lead me to this which now makes them appear outrageous! Looking back I am suspicious that was Kevin’s plan all the long to get me hooked. No going back now
1753332d1375968960-f40-lm-restoration-image-102
1753333d1375968960-f40-lm-restoration-image-103
1753334d1375968960-f40-lm-restoration-image104
This is now almost overkill. To the industrial art that is the silver framed, Michelotto clad chassis, we now add our fuel tanks, albeit only soft fitted for now. For those who joined the thread late, we built these beauties months ago, works of art in their own right. We did not want to have to take this car apart every five years to replace the old bags and so sought a more long lasting FIA approved alternative using a bit of modern tech. Taking the proven route of alloy tanks as fitted to US cars (these we actually custom built as being racing tanks there are a few differences in the fuel system) we lined them with sealant and filled with foam and then clad first in fibreglass to avoid galvanic corrosion, and then in Kevlar for added strength (and beauty). The various lugs you can see prodding from the tank are for the heat shields which will also be clad in Zircoflex so as to keep as much heat as possible away from them.Mirroring the exact shape of the old tanks, this is somewhat better solution than what we inherited and which you can see here in the first image with its secure professional strapping-not. Very light, very strong and very durable. Maybe we have stumbled on something here as hot off the ‘production line’ the last image shows two new pairs of the raw alloy tanks soon to be the recipients of their fibreglass vest and Kevlar overcoat, one set for the other F40 in the shop and another set for another customer, both of whom are fed up with constant replacement. Orders please!This first shot does a good job of reminding me how far we have travelled. What a mess.Also here you can see us making sure the new tanks will be comfortable in their new beds and ensure no shake rattle or roll, secured with a stainless steel strap a la Dino.
1753797d1376054422-f40-lm-restoration-image-108
1753801d1376054499-f40-lm-restoration-image107
1753802d1376054499-f40-lm-restoration-image-107
1753803d1376054499-f40-lm-restoration-image-101
1753804d1376054499-f40-lm-restoration-image-2
1753805d1376054556-f40-lm-restoration-image-104
1753806d1376054556-f40-lm-restoration-image-103
1753807d1376054556-f40-lm-restoration-image-106
1753808d1376054556-f40-lm-restoration-image-112
Another skill to be found at Mototechnique, in-house fabrication of our new plexi headlight lenses. It might look easy but this is an awkward material to work with requiring a delicate hand, more of a model makers job. They are so flat and clear that it is a problem getting a photo which does them justice.Note in the penultimate pic the dinky stainless Allen screws, the retaining bolts for which are set in the clam and the holes in the plexi have been slightly oversized so there is no resistance around the screw which might promote cracking. As I said earlier, a delicate material.
1754269d1376137879-f40-lm-restoration-image21
1754270d1376137879-f40-lm-restoration-image-24
1754271d1376138001-f40-lm-restoration-image-25
1754272d1376137941-f40-lm-restoration-mage20
1754273d1376137941-f40-lm-restoration-image-23
1754274d1376138047-f40-lm-restoration-image-22
Windscreen being checked to make sure all heating elements are OK. Now sprayed Chassis X bar check fitted (makes life even more difficult when you have to treat the chassis like finished bodywork) and finally a few more ancillaries making their way off the restoration line. Headlights all cleaned up, rear lights all remounted in newly finished grilles.Tomorrow will being a change of emphasis as we finally begin to turn our attention to the engine which has been spread across the countryside until recently and is now all starting to come home to Mototechnique. The start of another major milestone, so long awaited.
1754832d1376226106-f40-lm-restoration-image-111
1754833d1376226106-f40-lm-restoration-image-115
1754834d1376226106-f40-lm-restoration-image122
Well we haven’t seen any engine bits for a while and rather like buses, you wait forever and then more than one comes along as you will learn in the next few days.Finally,after many months in the queue at Crosthwaites, we are starting to get all our parts back; time and money is the price of dealing with the best. First up are our cylinder heads, both have been chemically dipped and deep cleaned, valve guides replaced and new inlet and exhaust valves fitted. Valve guides were changed as they were affecting seat alignment and a close inspection revealed that 50% of the valves had been roughly ground, breaking through the surface hardening to reduce the stem length, presumably to get around clearance issues. Consequently the valves were all replaced due to general age and condition and for good housekeeping. Valve seats were inspected and judged to be in good condition and so were recut to suit the new valves have had a light cut, but we will need to hand lap them in with elbow grease.More than we would have hoped to do but the alarm bells went off when disassembling as checking the clearances they were all over the shop, some alarmingly so.In effect new heads.
1755252d1376308366-f40-lm-restoration-image-10
1755253d1376308366-f40-lm-restoration-image-8
1755254d1376308366-f40-lm-restoration-image-7
1755255d1376308366-f40-lm-restoration-image-9
Here you can see our somewhat tatty front air conveyor which once adjusted for a perfect mate with the clam (as in one of the pics) will be stripped and restored. So much work to be done before these elements are ready for paint but we are slowly getting there. Just as I think we have almost reached a decisive point I am reminded we still don’t have a rear clam in paint, upper or lower, nor a front clam or air conveyor. In fact all we have is the roof and two cills!
1756211d1376489056-f40-lm-restoration-image23
1756212d1376489056-f40-lm-restoration-image13
1756213d1376489056-f40-lm-restoration-image-14
1756214d1376489056-f40-lm-restoration-image-15
As I said, a change of focus this week. After the heads and conrods, now our new turbos and waste gates turned up.Earlier in the thread I was seeking opinions from everyone as to the right way to go as clearly we needed a nod at our history, so we keep the twin wastegates, but the twin KKK’s needed updating. From endless research on all options, finally the best route seemed to be Garrett and here was the thinking:1. They are currently used on some LM’s racing in the UK and are proving reliable and powerful.
2. As a result of 1 above, we know we can make the Motec gear work with them, the code has been developed and we don’t have to be a guinea pig.
3. Being contemporary, they offer much reduced lag and are more reliable due to their dual ball bearing construction.In short, more efficient, more reliable, more powerful, less lag. Sounds good to me.Most important though is their track record, and we have support from a team currently running two of these LM’s and they in turn have support from Garrett. No other manufacturer was interested so either we had to start from square one developing code or even if we decided to revert to a single wastegate IHI system (which departed too far from the interesting and individual history of this particular car in our opinion), with it could come reliability issues and then where do wet get the code for the Motec gear? Again we wanted reliable power and a proven route with minimum developmental risks so Garret was the logical choice and a natural evolution of where we were.We are keeping our old bespoke exhaust manifold system, cleaning it up and then Zircotecing it to make sure more heat comes out of the back of the car than into the engine bay, and also keeping all the old turbos etc so if my heirs had a real hard on for originality, they could be refitted-meanwhile I want drivability and reliability. So, in short, still staying true to its racing heritage, unusually still running twin wastegates with its original manifold system, but just brought up to date for a better and more reliable driving experience. A comfortable compromise we think.We have also had the exhaust side of the turbos Zircipotec finished, so as to try and maintain as much of the exhaust gas heat inside which can apparently markedly assist spool up. You can see the different finish in the pics.Not great photos I am afraid but better will follow when we really turn our attention to them.
1756626d1376570810-f40-lm-restoration-dsc_0340s
1756627d1376570810-f40-lm-restoration-dsc_0337s
1756629d1376570810-f40-lm-restoration-image-1112
1756628d1376570810-f40-lm-restoration-image-116
The Turbos are the the GTX3071r with inconel impeller and apparently used at Le Mans.Thanks Guys for the comments, always appreciated as this is my first foray into this restoration world and one understands why the Russians and Chinese are so cagey about broadcasting rocket launches etc as when things go wrong, it is all exposed, the good and the bad. So to have positive comments is very uplifting but then I also risk maybe making the wrong decisions which no doubt will attract negative comments, hopefully as i can learn from that too.Lenses now carefully set aside and fitting of headlights underway before stripping and then final prep. Also note that all important badge finally back where it belongs. Temporarily.Nice shot from Kevin at the bottom just to add a bit of colour to this post!Might we be looking at paint soon? That would be another milestone
1757098d1376659172-f40-lm-restoration-image-3
1757099d1376659172-f40-lm-restoration-image-1
1757100d1376659172-f40-lm-restoration-image-2
1757101d1376659172-f40-lm-restoration-image
1757102d1376659194-f40-lm-restoration-image-5
1757103d1376659194-f40-lm-restoration-image-4
1757104d1376659428-f40-lm-restoration-image114
Meanwhile a few shots from last week, small detailed issues such as fitting door handles, catches, wing mirrors etc.
1758118d1376828188-f40-lm-restoration-image-113
1758119d1376828188-f40-lm-restoration-image-112
1758120d1376828188-f40-lm-restoration-image-111
Whilst I ponder a small update on another element undergoing restoration, the intercoolers. These have been flushed with petrol to clean the internals and here James is prepping, masking and finally the finished product. The last image shows our restored one next to a standard F40 and it will be no surprise the ours provide approximately 50% more cooling area.
1758576d1376914079-f40-lm-restoration-image-2
1758577d1376914079-f40-lm-restoration-image-1
1758578d1376914079-f40-lm-restoration-image-3
1758579d1376914079-f40-lm-restoration-image
We keep on digging into our box of parts thrown together on disassembly without detailed consideration at the time and now we come to need them, what do we dig up but this sort of rubbish. The rear wheel arches, a mess, untidy duct work all very un Germanic (car was run by a German race team) and just not up to scratch, so yet another element for ‘Mototechnique Magic’.You can see the progress from what we started to where we currently are, still with some work to do on the ductwork, but a veritable world of difference. These show the rear wheel arches laid up in Carbon / Kevlar and that stripey material is a layer of sacrificial rip film …… it soaks up the excess resin and when removed gives that pro matt finish.Let me tell you they don’t give this Kevlar sheet away and I was hoping we had just about seen the back of it and frankly I am not sure where Kevin can fit anymore. Unfortunately I feel hoisted by my own petard and keep on coming back to my motto, ‘the last bit has to be as good as the first’.
1759361d1377000347-f40-lm-restoration-image-1
1759362d1377000347-f40-lm-restoration-image-2
1759363d1377000347-f40-lm-restoration-image-4
1759364d1377000347-f40-lm-restoration-image-5
1759365d1377000367-f40-lm-restoration-image
1759366d1377000367-f40-lm-restoration-image-3
The insatiable James just fine tuning the Italians best efforts and adapting the rear LM brake ducts so they line up perfectly with the rear inner arches and so less prone to stress and failure. After slicing them in half, he inserted a shaped plug of cheap insulating foam, refitted them to the car and aligned them properly. Then he rebonded them together in situ and once cured will be removed and shaped prior to paint The difference was small, but no point building in a weakness if we can avoid it.
1759871d1377087496-f40-lm-restoration-image-1
1759872d1377087496-f40-lm-restoration-image
1759873d1377087496-f40-lm-restoration-image-2
1759874d1377087496-f40-lm-restoration-image-3
Getting there with our new wheel arches. I am posting the before shots again, which already appear earlier on another page, so you can easily appreciate the difference. Startling.For those who may not be aware, the main side duct in the cill draws air which is channelled around the wheel arch in a plenum whence part of it is bled off through the small round tube into the wheel arch to balance the low pressure whilst the rest goes on to the rear brake duct. They had chosen to do some pretty weird mods.More exhaust suggestions please guys. Duskybird, I noted in my post that my Motec gear will handle that change so that should not be a concern. I am advised that even with turbos it could be too noisy.
1759361d1377000347-f40-lm-restoration-image-1
1759362d1377000347-f40-lm-restoration-image-2
1759363d1377000347-f40-lm-restoration-image-4
1760536d1377178909-f40-lm-restoration-image-2
1760537d1377178937-f40-lm-restoration-image-3
1760538d1377178937-f40-lm-restoration-image-1
Better than new. The slightly modified LM brake ducts which were just pulling a little so James has extended them as per an earlier post so now they sit perfectly, everything in line with no tension and waiting to fail. Two more parts set aside for assembly.In the background you can see our finished lower clam waiting for paint which will be done with the air conveyor and front clam.
1760939d1377259687-f40-lm-restoration-image-8
1760940d1377259687-f40-lm-restoration-image-4
1760941d1377259687-f40-lm-restoration-image-7
Prep work well underway on the front Air Conveyor. Like most everything else we have renovated, the standard of workmanship was not great and here we are having to lay in some additional Carbon to add rigidity. Would probably have been better off to make a new one but I know the right route is to restore it.Also all headlights have now been soft mounted to ensure fit, as well as indicators. Next up we have got to make a new front splitter which is quite complex and and then soft fit that and finally with a bit more work from James on the ductwork, it could be off to the paint booth? This element still seems like months away, whereas finally next week we might, perhaps, maybe actually start our engine rebuild which would be good.I have given up on October testing-this just seems endless………
1761397d1377349574-f40-lm-restoration-image-4
1761398d1377349574-f40-lm-restoration-image-3
1761399d1377349574-f40-lm-restoration-image-2
1761400d1377349574-f40-lm-restoration-image-5
A brief post in which a picture tells a thousand……
1761821d1377431827-f40-lm-restoration-image-1
1761822d1377431827-f40-lm-restoration-image
We are making a new front splitter as the pure LM one is simply not suitable for any form of road use, whereas the slightly different GTE form is, so we have decided that as even this slightly more modest affair will inevitably get damaged on the streets of the UK, it had better have some small element of replaceability married with an element of practicality. I knew Kevin would find somewhere else to carbon.Here you can see James now demonstrating his skills as a carpenter to add to his list of capabilities, and forming the marine ply filler which as you can see tapers, in depth, towards the rear. These parts have then been glued, screwed and sealed together and once finally shaped up,you can see the result in the 4th photo, a beautiful light ply core.This unit will then be encompassed in Carbon Fibre using the Resin Infusion method whereby the resin is introduced under vacuum as per the attached demo shot of James working on an F40 door in the last shot.
1762489d1377529643-f40-lm-restoration-dscf4790s
1762490d1377529643-f40-lm-restoration-dscf4798s
1762491d1377529643-f40-lm-restoration-dscf4796s
1762492d1377529643-f40-lm-restoration-220813-014s
1762495d1377529700-f40-lm-restoration-f-40-41-2
Stage 2 on the splitter process.A little explanation for those that don’t know (me) about the Resin Infusion method being employed this time on our splitter. The first photos show marking up, the raw cloth and one of the sacrificial layers, then James spraying the alloy base with a blue release agent, note the ring of butyl strip which once the protective tape has been removed will act as a seal; Finally the the carbon being glued down and trimmed in a neat package to larger than final size as it will be trimmed to perfection on the trailing edge once finished but at least so you can start to see the shape of the entire piece as it joins and is filled in with an undertray beneath the radiator so as to help create that important aerodynamic flat floor.Stage 3 tomorrow
1763121d1377626635-f40-lm-restoration-220813-018s
1763122d1377626635-f40-lm-restoration-220813-012s
1763123d1377626635-f40-lm-restoration-220813-019s
1763124d1377626635-f40-lm-restoration-230813-003s
1763125d1377626656-f40-lm-restoration-230813-010s
The next phase.1st photo shows James applying the various sacrificial layers including the ‘rip film’ which will enable the resin transfer, the next photo shows James creating and sealing the vacuum bag in which the process takes place, sealing against leaks is not at all easy and you will see the red meter which monitors the level of vacuum which has to be 00.30 or lower. Then you can see the sealing of the bag with the prepared splitter inside; great care has to be taken to ensure the creation of a near total vacuum or the entire process is voided. Next the pre-heated and activated epoxy resin which has had it’s air content removed by vacuum is poured into a shallow tray as this will avoid an exothermic reaction ……. and finally the valve is opened and allows the resin to start to flood through (see the dark blue stain); Final photo shows the extent of the resins travel in twenty minutes, James looking on concerned, a bit like watching blood being transfused into Frankenstein.During the infusion process, in order to assist resin flow, the booth is run at 40 degrees cent and the mould and resin are pre-heated prior to aid infusion.
1763621d1377711973-f40-lm-restoration-230813-018s
1763622d1377711973-f40-lm-restoration-230813-019s
1763623d1377711973-f40-lm-restoration-230813-022s
1763624d1377711973-f40-lm-restoration-23rd0813-017s
1763625d1377711993-f40-lm-restoration-23rd0813-019s
1763626d1377711993-f40-lm-restoration-23rd0813-025s
Meanwhile, the next stage. This all looks quite straightforward to the untrained eye, meanwhile much detailed control work is ongoing in the background. What we have not shown is the curing process which is a high risk area as the resin is heated to thin it’s viscosity so as to aid resin transfer, a rise in temp of 10 degrees centigrade halves the resins viscosity which is thick like treacle when cold …………. Obviously this has to be balanced with speedy transfer against the danger of premature curing half way through the process or an exothermic reaction which in extreme conditions can catch fire; you can play with the activator as various speeds are available and you can mix them to slow or speed the curing process so it is best to err on the side of caution and go for a slower cure. The booth is run at 40 C during the transfer process, by the time the part is fully saturated, the temperature of the piece naturally rises due to the curing process and it is baked using a “ ramping process” whereby it is cooked for one hour at 60 degrees C and then allowed to cool, then the process is repeated taking the temperature up to 70 C and then finally again allowed to cool and do it again at 90 C. The ‘boil in the bag’ splitter was then left to rest for three days before de-moulding and the part is now stable; it is tempting to de-mould and check earlier when the part is green but this can lead to warp age. The splitter is then undressed, rip film ripped etc as you can see here.You will appreciate why this does not translate into much photographically but it is still a fascinating procedure.Tomorrow, finishing.
1764023d1377798439-f40-lm-restoration-270813-014s
1764024d1377798439-f40-lm-restoration-270813-017s
1764025d1377798439-f40-lm-restoration-270813-020s
Now the reveal.After stripping the oversize formed unit is cut to size specifically on the trailing edges where you can see how thin the carbon actually is. Final finishing yet to follow but pretty much there.As regards FD’s point on the weight, it may way a little more with the ply inner than without but firstly it is where a little weight is needed and secondly I understood that some of the original cars had a timber core if they followed this particular design, a few having a sort of tray shape.Given the beating the underside might take on the road, it seemed sensible to us for it to be as strong as possible.
1764401d1377871783-f40-lm-restoration-270813a-006s
1764402d1377871783-f40-lm-restoration-270813a-008s
1764403d1377871783-f40-lm-restoration-270813a-012s
1764404d1377871783-f40-lm-restoration-270813a-016s
1764405d1377871816-f40-lm-restoration-270813b-003s
1764406d1377871816-f40-lm-restoration-270813b-005s
Now dry fitting the new splitter to the front clam and once adjusted the it will be treated to a coat of lacquer to bring up that nice shine and provide protection. Next up we will turn our attention to the underside of the clam and finish up our ductwork and then seeing as how the lights, indicators, lenses etc have all be dry fitted, it might just be time for some more red paint. This would be another major element over.
1765145d1377961718-f40-lm-restoration-290813b-003
1765146d1377961718-f40-lm-restoration-290813b-006s
1765147d1377961718-f40-lm-restoration-290813b-016s
A couple of left over shots from last week, fitting our new lexan rear screen.
1765538d1378050368-f40-lm-restoration-290813-001s
1765539d1378050368-f40-lm-restoration-290813-003s

Eight months after we found we needed a new reverse gear, which was not available from Ferrari without most of the rest of the gearbox attached, finally it has made it to the top of a very tall Crosthwaites heap!

First up, the gear as before with what looks like fairly inconsequential marks on the flange. It looks like light surface scarring but on deeper inspection turns out to be evidence of cracking.

Interesting stuff ……… Here, after much background planning and tooling, you can see the gear well into being cut and as each tooth takes 25 minutes, at this rate they anticipate completion of the cutting in about a week!!

The last photo shows the stock bar from which the spark eroding tools have been cut from, these tools being used to cut / erode the engagement dogs. Then it goes off for hardening which will take another 10 days, so if we are lucky, that will mean we should have it in our hands in a couple of weeks. There would appear to be an insatiable demand for their services so we are lucky to have crept in and had their help on many major elements of the engine refurb.

1765936d1378119494-f40-lm-restoration-21-010s

1765937d1378119494-f40-lm-restoration-img_1102s

1765938d1378119494-f40-lm-restoration-img_1103s



Heads back from Crosthwaites with all new valves which are now being lapped in. As I said earlier the engine will be reassembled with maximum attention to detail, effectively ‘blueprinted’ so as to leave no spare horses on the workbench. Hopefully.
1767362d1378308313-f40-lm-restoration-280813c-023s
1767363d1378308313-f40-lm-restoration-280813c-030s
Well the splitter has finished its journey and not only does it look quite beautiful, it also levitates.
1767662d1378379948-f40-lm-restoration-300813c-001s
1767663d1378379948-f40-lm-restoration-040813a-004s
1767664d1378379948-f40-lm-restoration-040813a-003s
Another ‘Red Letter Day’. Finally the rear upper and lower clams are in colour. This time Neil applying the 2 pack clear lacquer and then wet sanding with 1200 wet and dry shortly to be re-sanded with 1500, 2000 and 4000 grit abrasives and then finally machine polished.Next up, some Michelotto silver on the rear clam around the engine shroud to be detailed in.
Still leaves the awkward front clam and air conveyor still to go.
1768060d1378465179-f40-lm-restoration-280813c-001s
1768061d1378465179-f40-lm-restoration-290813-006s
1768062d1378465179-f40-lm-restoration-290813-019s
1768063d1378465179-f40-lm-restoration-290813-021s

A few weekend titbits. Just showing that no stone has been left unturned and here the mirrors are shown completely stripped and rebuilt.

More excitingly our new high performance LM spec stainless steel head studs have turned up from Crosthwaites, so our engine rebuild may be finally in train next week. For those interested, the LM’s did have issues with cylinder head warping through running higher boost and one of the changes then introduced was upgraded cylinder head bolts. Indeed this very car suffered from the same problem and the last owner replaced both heads but failed to deal with the core of the issue.

1768461d1378544177-f40-lm-restoration-dscf4578s

1768462d1378544177-f40-lm-restoration-300813b-013s-2-

I love it when one sees old cars that are restored so they run well but maintain their patina of age as they really are time capsules. At the other end of the scale, the inner perfectionist in me cannot help but be drawn by the totally different type of appeal of a Ralph Lauren/Pebble beach ‘over’ restoration. Here I had no choice which made it easy albeit I did start out down a much less perfectionist route until the inner me broke cover.

A few more details as we close in on finishing up the front clam. As I mentioned before, things get pretty busy under here as the high pressure ducts weave between the wheel arches, brake ducts and air conveyor. Also it is quite tiresome with the clam being mounted and taken off endless times to check clearances and avoid chafing. Just want to get all the bodywork finished and in colour and then we are down to the motor and ‘plumbing’.

1769671d1378720447-f40-lm-restoration-290813-031s

1769672d1378720447-f40-lm-restoration-290813-025s

1769673d1378720447-f40-lm-restoration-270813b-010s

Surely one of the great views in the automotive world-timeless and purposeful and 25 years old.

Second shot shows one of the very last parts of the rear clam, the screen, being polished up.

1770230d1378807941-f40-lm-restoration-040813a-020s

1770231d1378807941-f40-lm-restoration-300813c-005s

.
To be continued…
.
We now have most of our newly balanced crankshaft assembly back. Flywheel, clutch, titanium rods, crankshaft and block. Evidence of some oil issues on the old rods.The bubble wrapped package is our newly polished and balanced crankshaft.
1770881d1378883085-f40-lm-restoration-image2
1770882d1378883108-f40-lm-restoration-images
The very last shades of grey post, and that in itself will be something of a milestone.After much working, adjusting and fitting, the air conveyor is now finally just about ready for paint. That just leaves the front clam which as per my earlier post is just about there. Both elements will be in paint next week as they need to be sprayed together as they effectively create one unit.
1771452d1378991464-f40-lm-restoration-image
1771453d1378991464-f40-lm-restoration-image6
1771455d1378991464-f40-lm-restoration-image8
1771454d1378991464-f40-lm-restoration-image7
A nice shot of our block and Colin overhauling and rebuilding some engine element which I cannot identify (standard F40 in the background, not mine!). Any ideas?
1771855d1379069659-f40-lm-restoration-05082013-008s
1771856d1379069659-f40-lm-restoration-05082013-016s
And so finally, all the parts are back and our engine rebuild can commence. The newly polished and balanced crankshaft is now installed and here Colin is setting up the end float.
1772201d1379166105-f40-lm-restoration-image7
1772202d1379166105-f40-lm-restoration-image8
A couple of additional shots from the week but it was a short week as Kevin took the team on a day out to the Goodwood Revival so they can see some of the cars they have worked on over the years driven in anger.Our box of restored parts reveals our newly restored drive shafts and the cam covers before they receive similar attention.
1773166d1379318448-f40-lm-restoration-110813-007s
1773167d1379318448-f40-lm-restoration-040813a-006s
I know I said no more shades of grey but then black does not really count and this is veritably last stage pre-colour. The front clam and air conveyor is finally in the paint shop and colour will be in the gun Wednesday signalling another major milestone as the bodywork is then just about done. Here you can see the first coat of black on the wheel arch area and clam underside
1773230d1379339566-f40-lm-restoration-23rd0813-011s
1773231d1379339566-f40-lm-restoration-23rd0813-010s
We are using model GTX3071r with Tial wastegates currently used on a couple of LM’s racing in UK. As I have posted earlier, but I don’t blame you for not reading the entire thread, the car used to race with twin wastegates and so we will mirror that setup as a nod to history. The Motec unit will control boost and mapping and we will probably have four settings ranging from wet to Banzai Lap all controlled by a Manettino a la GTE.Attached is a pic of the turbos with Inconel Impeller and I note that they all seem to have this green/yellow mark on the impeller-any ideas?As mentioned earlier we are also keeping the original KKK’s and wastegates for any history buffs in the cars future.

1773636d1379406817-f40-lm-restoration-turboss
Yes, finally, after a tortuous journey, the front clam and air conveyor is changing colour. Same process as before, spray, rub down, finer and finer, polish etc etc, so absolutely no orange peel. This is halfway through the process so next clam post they should be flawless. Always seems very frustrating the time it takes to get the paint on as so much time has been spent in prep and dry fitting everything so that it all goes together smoothly for real. Hopefully. Photos don’t really do the red justice so I will be down later in the week to photograph.Very tempted to fit the bodywork just to gaze at where we might soon be for real.
1773650d1379416065-f40-lm-restoration-110813-008s
1773651d1379416065-f40-lm-restoration-110813-020s
1773652d1379416065-f40-lm-restoration-110813-033s
1773653d1379416065-f40-lm-restoration-11a0913-002s
Now into the final stages on the front clam paint. Last shot shows it all polished up and now being masked off for the matt black areas around the radiator inlet, behind the headlights and multiple areas of the air conveyor. Then we can get on with fitting all the ‘bits’

Kevin has now got the colour dialed in much better in this flurescent lights

1774217d1379500218-f40-lm-restoration-12a0913-002s
1774218d1379500218-f40-lm-restoration-11a0913-008s
1774219d1379500218-f40-lm-restoration-image12
Finally some finished elements with the black detailing complete on the lower rear clam as well the air conveyors transformation from ‘sows ear to silk purse’ is now complete. I attach a couple of as was shots as a reminder.
You can leave a response, or trackback from your own site.

30 Responses to “Ferrari F40 LM Restoration”

  1. aclasschris says:

    This is the kind of article you really want to savor. Outstanding work documenting everything Anth! This is one of my all time dream cars and I can’t wait to see Part II!

  2. ahmad says:

    the best reading material of my week! to the very end of details..please post more on the remaining parts
    thanks!

  3. dennis says:

    ok i scrolled down and breezed thru the thread then bookmarked it. This deserves a quiet time and go through it again in detail one lazy afternoon.

  4. leongsoon says:

    Wow. this has to be the longest build post I’ve ever read in one go! Thanks very much for your effort in putting together this epic post! I spent an entire afternoon poring over it!

  5. […] Ferrari F40 LM Restoration – Build-Threads.com – Click Here […]

  6. Gres S says:

    I wonder if Tim knows that his car is online in another forum….

  7. anth says:

    If by “another forum” you mean this site, then yes, he does know, because I asked for his permission and he obliged.

  8. Gres S says:

    Yes i mean exactly this. So, my mistake Anth. Nice thread though :)

  9. belgium says:

    wow ! just wow!!!!!!

  10. JohnS says:

    Thank you for sharing with us such a build! Had a Christmas present in the summer! and that ferrari engine torn apart, just awesome!

  11. thirstforspeed says:

    i like this new format! i killed 2 hrs on this one post just going over it all.
    wonderful. more like this please!

  12. kdizzle says:

    am I the only one who doesnt mind going page by page? Its easier to reference where you left off when you have to return to finsih. That being said, excellent post! I spent a couple hours reading everything and looking at the pics. Inside the rear clamshell, the finish work at the cabin, is very slick

  13. Ben says:

    awesome car, but the owner sounds boring, like he just wants to show off …
    the car is mythic, but there are many builds one this site that are way more interesting ! here, it’s just an assembly of various parts and renovation of a body and moteur !
    not like, for exemple, the volvo 4 rotor build where the guy build almost everything HIMSELF (and with humility, not saying all the time “that is one of the most expensive … etc”)

    but awesome car ^^

  14. Rob says:

    Excellent. Okay, not wild and ridiculous like the four rotor Volvo. But a great format and lots of detail which was insightful. I liked not having to trawl from page to page wading through comments. It was also great to be enlightened by the visuals of an F40′s “inards”. In some regards a pretty basic car and in others pushing what was being done in its era were, but of course, taken to “road car” extremes. I will guess that some of the younger followers did not look at it and learn (I learnt at least two remarkable details as to how Ferrari solved a suspension issue in a way I’d never seen before). It does help to read the text rather than solely scan for images of something wild. Whether one thought this was excellent or not might come down to the purpose they read these posts: did they want to be entertained, or did they want to learn something that could be taken away and applied?

  15. anth says:

    Great reply, Rob :) Can I ask what the two things that you learnt were?

  16. […] Ferrari F40 LM Restoration was always going to be a hard act to follow, so you can imagine my dilemma in trying to find […]

  17. Brenden says:

    Loved reading this, was especially helpful having only the owners comments and pictures to read through.

    Still can’t quite get my head around those rear suspension pickup points. Looks like all the joints are set up for movement in the horizontal plane yet the tyre should move vertically. Unless theres only a small amount of movement allowed and it occurs in those joints?

    No idea but fantastic to see. Was a little hard to see where all the filler in the bodywork was when the final images seemed to show more but I realise surface area and depth are different. Loved the carbon kevlar pieces

  18. […] you have some time to waste, there's a guy restoring a Ferrari F40 LM. click Reply With […]

  19. […] Ferrari F40 LM Restoration | Build Threads (Amazing F40 LM Restomod) […]

  20. Enthalpy says:

    O.M.G.
    wow.

    and I must have that silver colour code…would be nice to share that info.

  21. AllanW says:

    Unbelievable, thanks for sharing.

  22. lightair says:

    wauw :) can’t wait to see more :)

    will help me a lot with my project, thanx a lot :)

  23. Alex says:

    @brenden- I too was wondering about the inner suspension pick up points not looking like they would allow vertical movement?

    Otherwise- yeah so the guys got heaps of money.. At least he is spending it on having an all time great supercar restored and we get to watch. It is fantastic to be able to see the details of how a F40 is put together.

  24. […] one is worth seeing Ferrari F40 LM Restoration | Build Threads __________________ Alain independant MBZ tech since 1981 […]

  25. […] Ferrari F40 LM Restoration – The above builds from numbers 10 to 2 received between 8,000 and 16,000 views over the last […]

  26. Tim Burton says:

    Very cool build, and I love not keeping the purists happy.

    Oh the marks on the turbo blades are for the operator to know what angle the cut he needs to make to balance the impeller.

  27. Joe says:

    To whom it may concern,

    I own an F40 that has had a similar restoration done.
    I am very interested in the OZ wheels if you are selling a set.

    Please email me at jfaro@tuscanbrands.com.

    I’m curious to know how long the restoration took.
    My car took almost 7 years.

    Best of luck with her. She looks beautiful.

    Regards,

    Joe Faro

Leave a Reply
